Stepmotor Driver Module v1.1 (HR8825)

Product Description

Unit ACSSR is a DC to DC single phase solid state relaycontroller kit, comes with a single phase solid state relay + ESP32C3 controller board. Supportskey control, I2C slave, and Modbus networking` modes of operation. Integrated programmable full-color RGB LED for for state indication, clear to operate.This kit is contactless and adopts semiconductor switching elements. It has several advantages such as high switching speed, extremely long life, low switching noise, no switching spark and ultra-reliable than most mechanical relays. Widely used in digital program control devices, motor control devices, temperature control, data processing systems and computer peripheral interface devices. It is specially designed for harsh environments with corrosion, humidity or explosion-proof requirements and frequent turn-on/off requirements.

Note

It is forbidden to plug and unplug the motor with electricity when using, and all operations should be carried out after the equipment is powered off to avoid damaging the module.

Power Supply Methods：

1. PWR485 Interface：
- Interface Type: 3.96-4P Terminal
- Voltage Range: DC 9-24V
2. DC Jack：
- Voltage Range: DC 9-24V
- Interface Type: 5.5/2.1mm DC Jack
- Polarity: Positive Inside, Negative Outside

Features

1.Single-phase solid state relay
2.Three operating modes. - Push button control - I2C slave (support device I2C address configuration) - Modbus networking (supports device ID configuration)
3.Programmable full color RGB LED
4.RS485PWR interface (support input 9-24V to power the device)

Includes

1x Single Phase Solid State Relay
1x UNIT ACSSR1x HY2.0-4P Cable (20cm)
1x Communication protocol manual
2x 3.96-4P Terminal Block

Applications

AC line interrupting
Motor equipment control
Temperature control devices

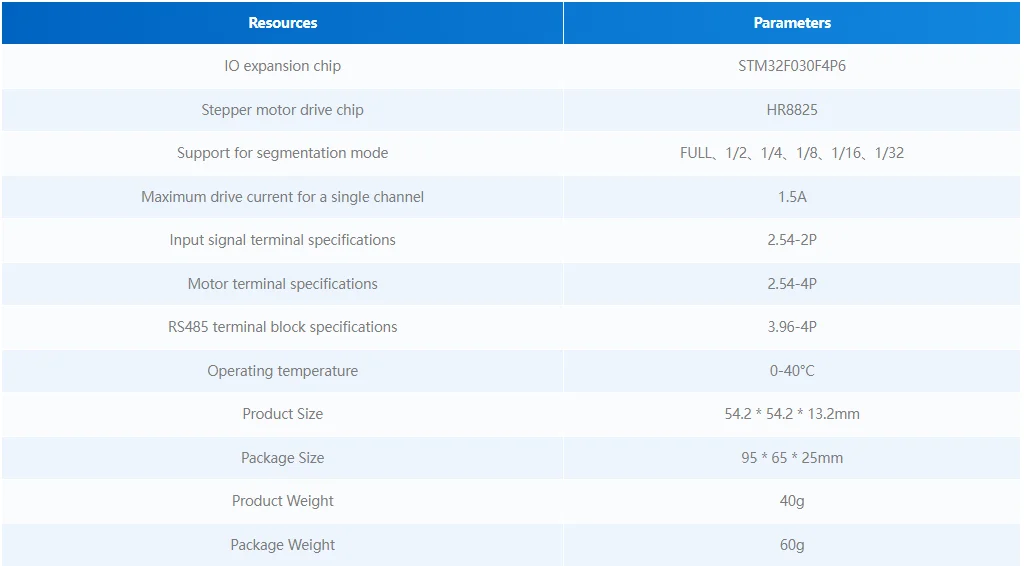

Specification
