Product Description
Official M5StickC Thermal Camera Hat(MLX90640)
Official M5StickC Thermal Camera Hat(MLX90640)THERMAL HAT is an M5StickC-compatible human infrared thermal imaging. Built-in MLX90640 thermopile sensor that measures the surface temperature of an object and generates a thermal image through a temperature gradient formed by the surface temperature. Resolution is 32 x 24)
MLX90640 Infrared (IR) sensor arrays offer high resolution and the ability to work reliably in harsh environments. Compared to expensive high-end thermal imaging cameras, Hat-Thermal is a cost-effective alternative. Relatively general Micro-bolometer, the advantage of this sensor is that it does not require frequent re-calibration, thus ensuring continuity of detection and reducing system maintenance costs. The field of view provides a wide-angle version (110 ° × 75 °).
Product Features

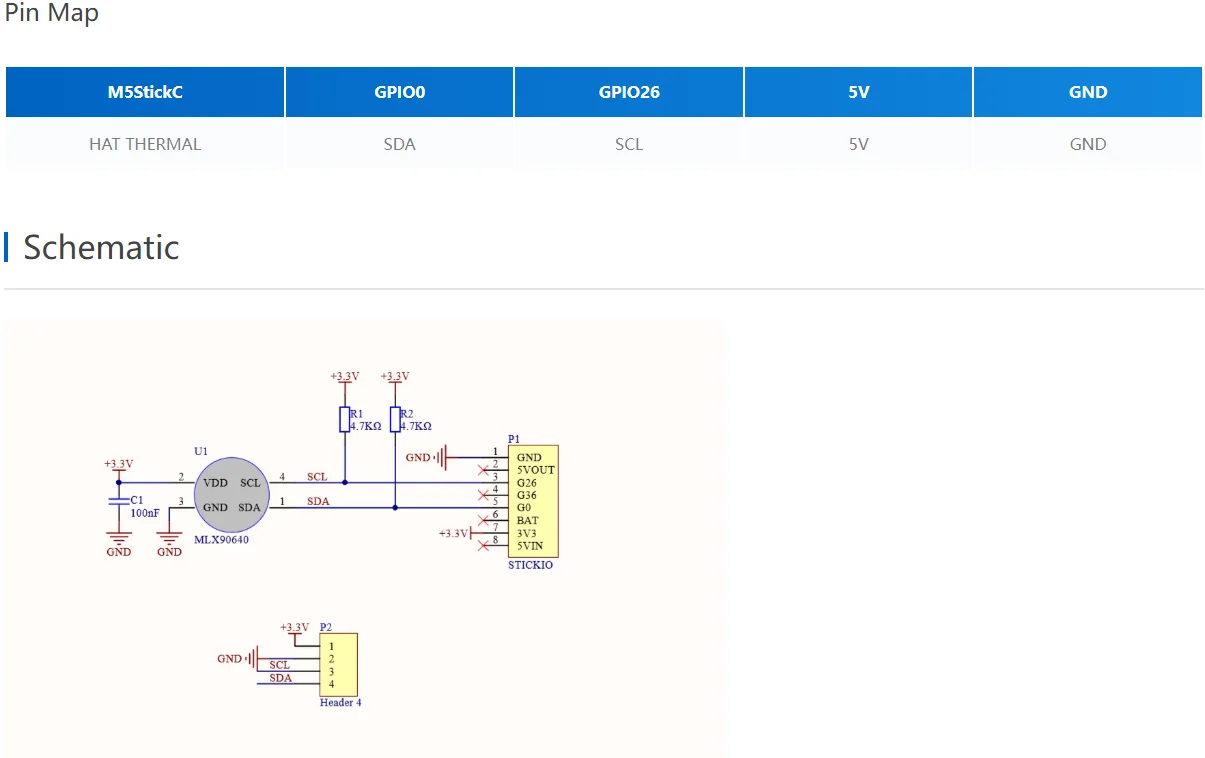

I2C address:0x33. (GPIO 0/26)
Current Consumption: 23mA
Field of View: 110°x75°
Measurement Range: -40°C ~ 300°C
Resolution: ±1.5°C
Refresh Rate: 0.5Hz-64Hz
Operating temperature: -40°C ~ 85°C
Include
1x THERMAL CAMERA HAT
Applications
High precision non-contact temperature measurements
Intrusion / Movement detection
Visual IR thermometers
LEARN AND DOCUMENTS
