Official GRBL Module 13.2 Stepmotor Driver (DRV8825)

Product Description

GRBL 13.2 is a three-axis stepper motor driver module in the M5Stack stacking module series. It uses an ATmega328P-AU controller with three sets of DRV8825PWPR stepper motor driver chip control ways, which can drive three bipolar steppers at the same time.

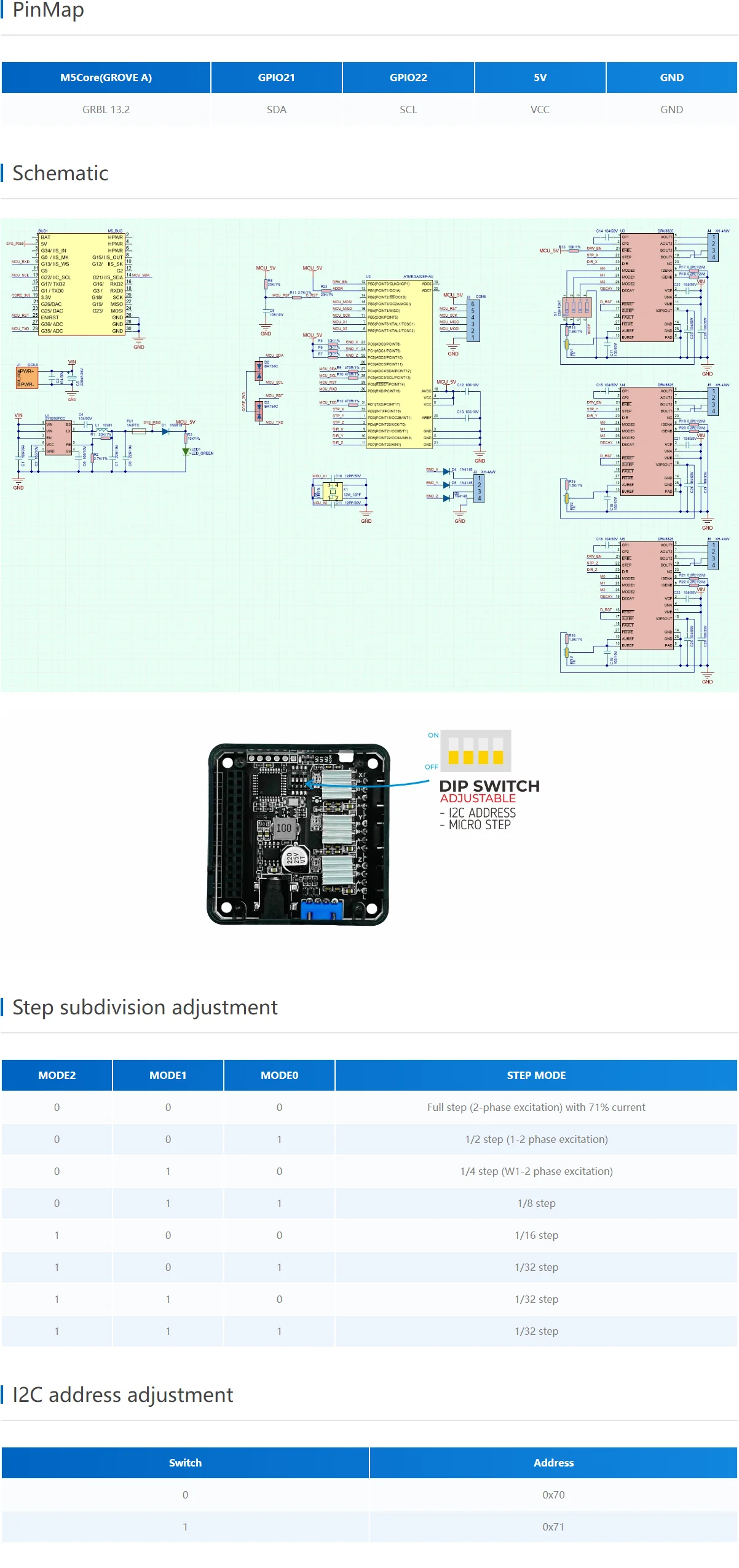

Using the I2C communication interface (default address:0x70) and integrated DIP switch for adjusting motor step subdivision (maximum support of 1/32 step subdivision) and I2C address adjustment (support dual address adjustment 0x70, 0x71), You can achieve six-axis control by stacking two GRBL 13.2 modules.

The power input interface is DC/9-24V, the motor drive current can reach 1.5A, and three sets of limit switch signal interfaces are open, which can be used to connect an external limit switch (active low) to realize the motor braking function. Suitable for a variety of stepping motor motion control scenarios, such as printers, robotic arms, etc.

Product Features

ATmega328P-AU controller
Three-axis DRV8825PWPR stepper motor driver
Drive current up to 1.5A
Drive bipolar stepper motor
Maximum 1/32 mode STEP subdivision
Limit switch interface (active low)

Include

1x GRBL 13.2 Module

Applications

Printer
scanner
Office automation machine
Factory automation
robot technology

LEARN AND DOCUMENTS
