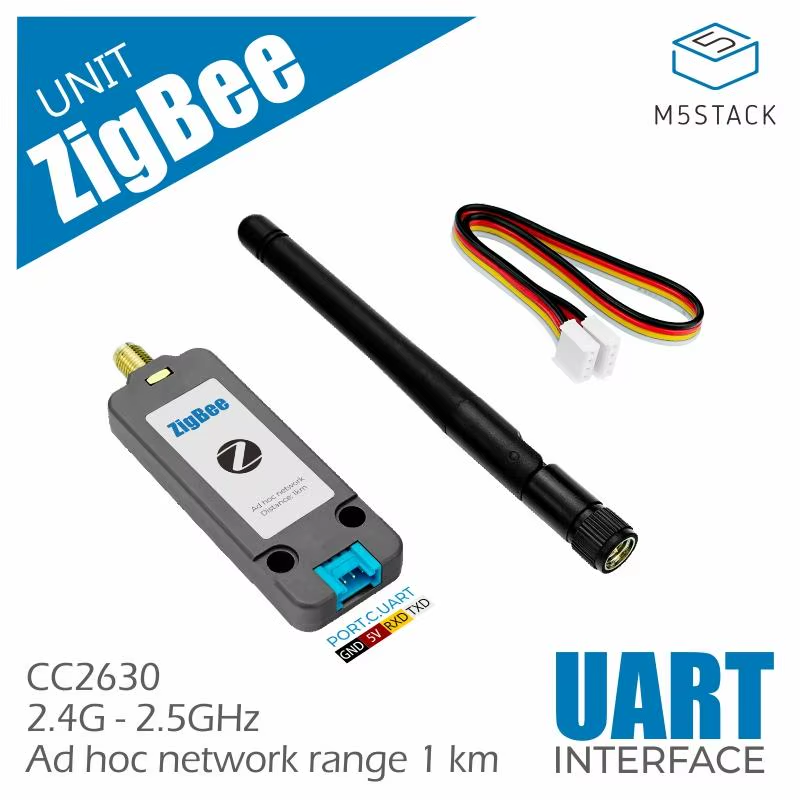

Official Zigbee Unit (CC2630F128) with Antenna

Product Description

Zigbee is a self-organizing network communication module launched by M5Stack. The module adopts the CC2630F128 solution, integrates the Zigbee protocol stack internally, and provides an open serial communication interface. It features an external antenna, with a stable single-node communication distance of up to 1 km and supports up to 200 levels of router depth. Through MESH networking, it can significantly extend the range of your IoT applications, offering both ultra-low power consumption and high sensitivity. The Zigbee network can support hundreds of nodes and has enhanced security features, providing a complete and interoperable IoT solution for home and building automation.

Product Features

CC2630F128 (dual ARM core-32 bit)
Serial communication
Low power consumption (module working current: 25mA, sleep 5uA)
Dynamic routing maintenance, supporting 200-level routing depth
Transmission speed 250Kbps
Node communication distance 1km
UART transparent transmission/broadcasting/P2P

Include

1x Zigbee Unit
1x SMA antenna
1x Grove Cable

Applications

Smart Home
IoT collection node
Building Automation
