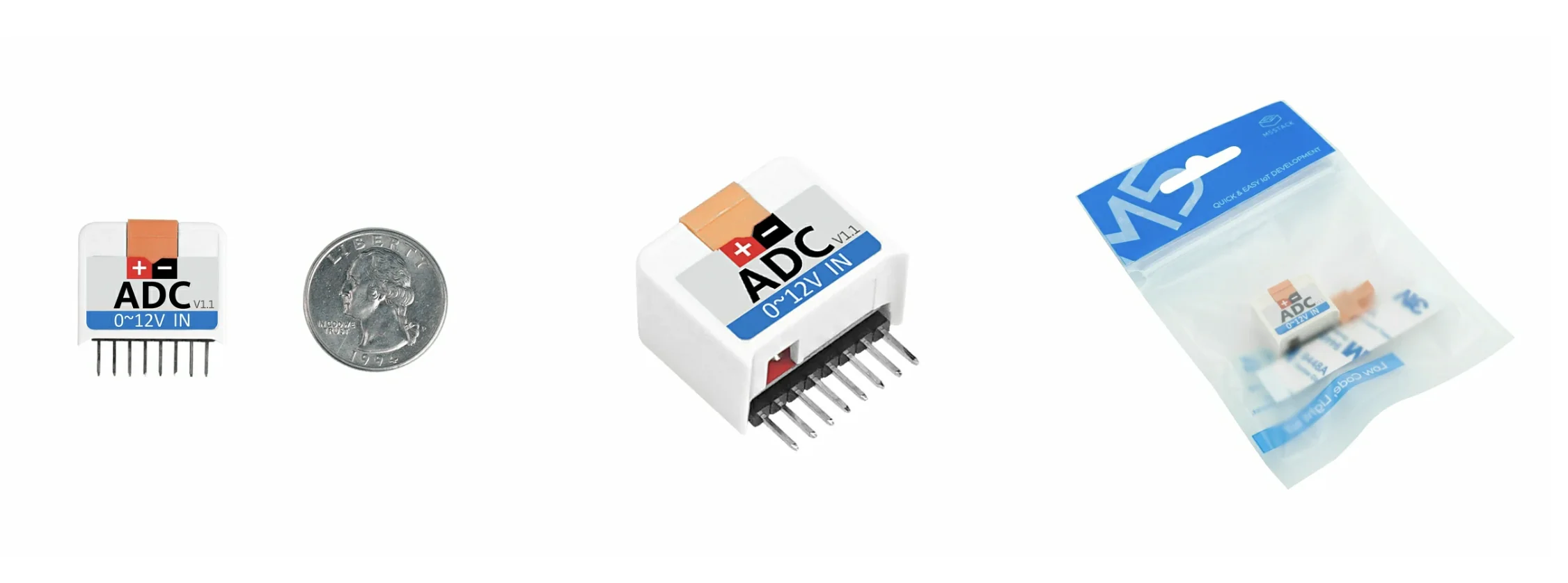

Official M5StickC ADC Hat ADS1110 V1.1

Product Description

ADC HAT V1.1 is another type of C-HAT specifically design for M5StickC controller. Same as ADC unit, this is an ADC converter component for stickc. Packed with an ADC converter chip ADS1110, which is a fully differential, 16-bit, self-calibrating, delta-sigma A/D converter. Extremely easy to design with and configure, the ADS1110 allows you to obtain precise measurements with a minimum of effort.

The ADS1100 consists of a delta-sigma A/D converter core with adjustable gain, a clock generator, and an I2C interface.

ADS1110 itself is able to accept a differential input from -5 ~ +5 V, but we have limited the input to 0~12V by adding on the peripheral circuit design of this IC.

Product Features

* Input: 0-12V
* Software Development Platform: Arduino, UIFlow(Blockly, Python)
* ADS1110
- 16-bits Resolution
- CONTINUOUS SELF-CALIBRATION
- SINGLE-CYCLE CONVERSION
- PROGRAMMABLE GAIN AMPLIFIER GAIN = 1, 2, 4, OR 8
- LOW NOISE: 4μVp-p
- PROGRAMMABLE DATA RATE: 8SPS to 128SPS
- INTERNAL SYSTEM CLOCK
- I2C INTERFACE: address 0x48

Include

1x ADC HAT V11
1x 2 Pin 3.96 Pitch Terminal

Applications

* Analog Signal Capture

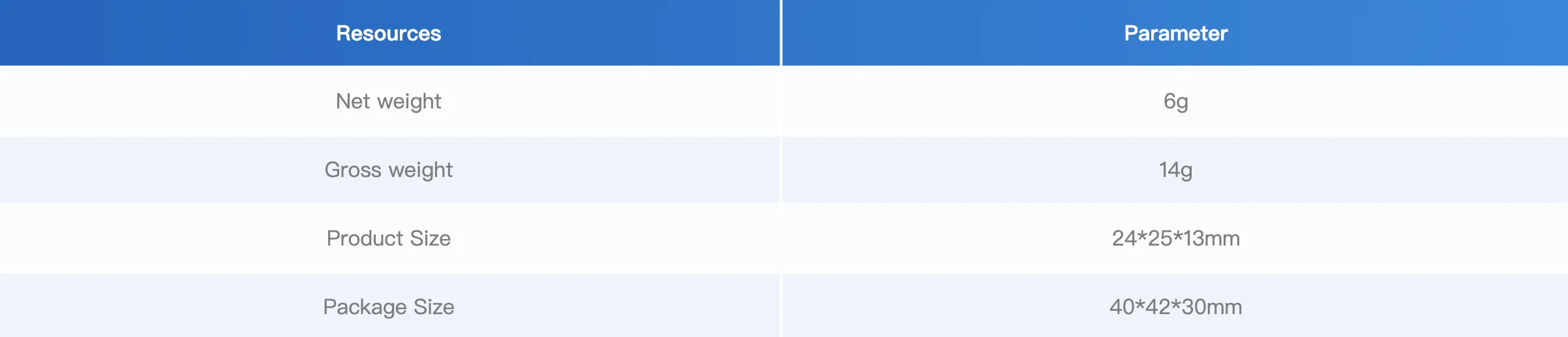

Specification

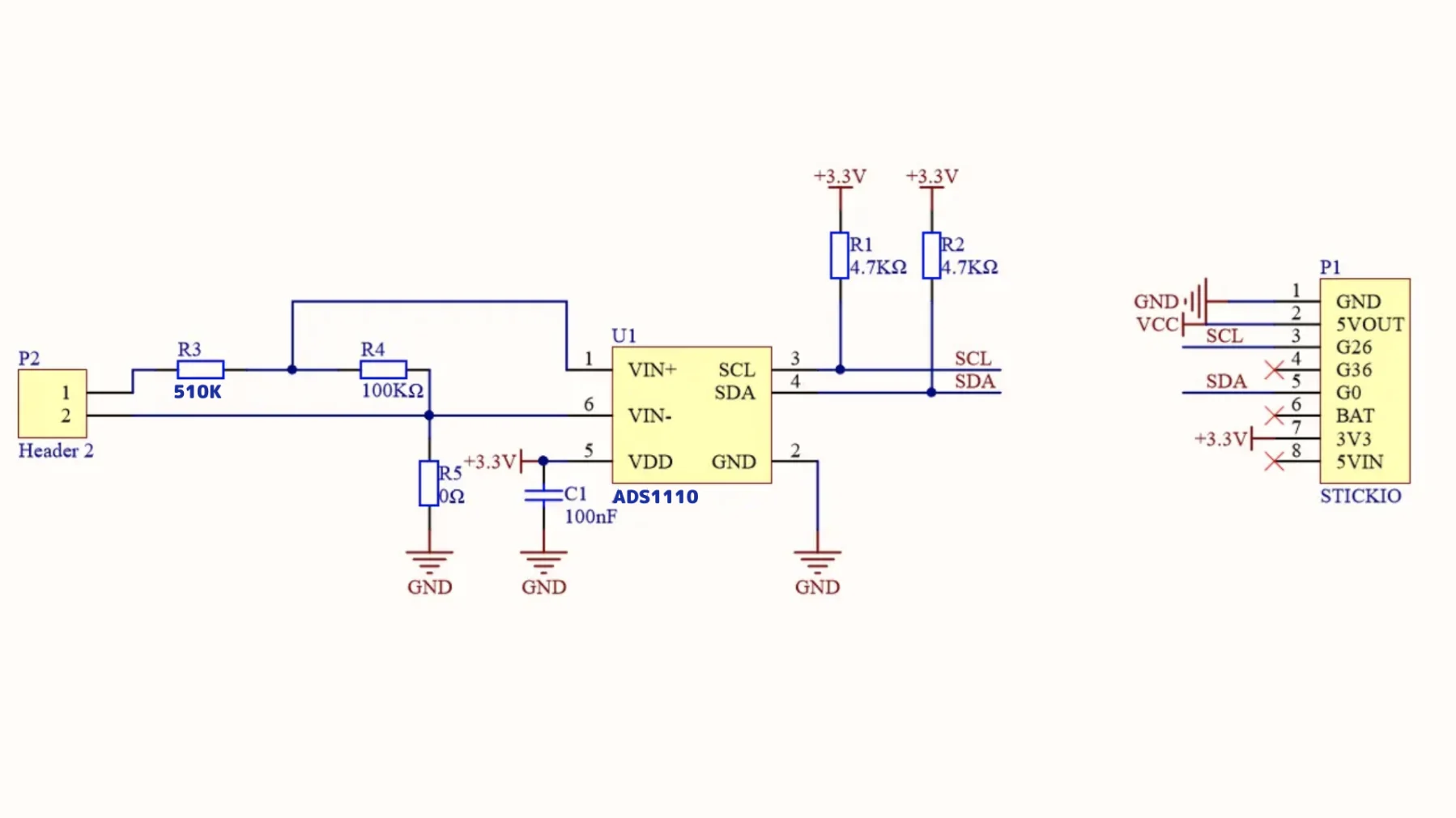

Schematic

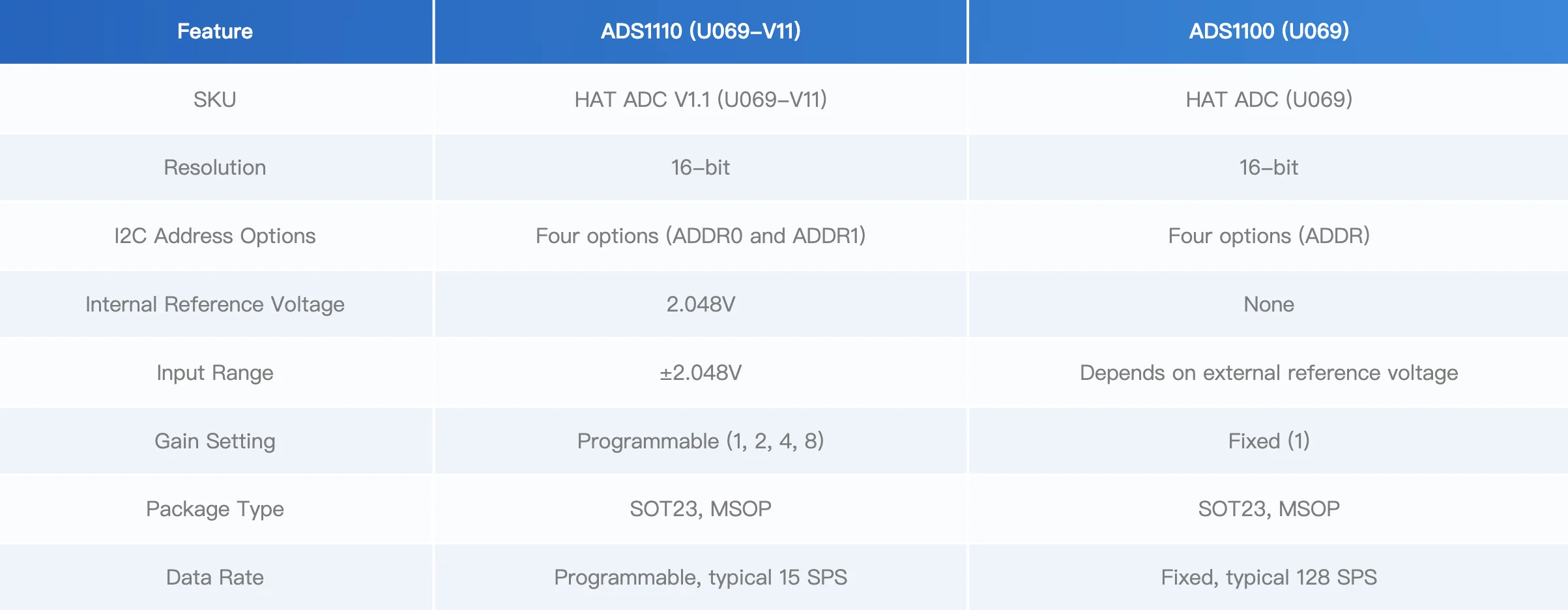

Version Comparison
