Official Atomic Display Base (GW1NR)

Product Description

Atomic Display Base is a high-definition display driver unit that uses FPGA to emulate traditional SPI TFT-LCD data output, supporting up to 720P (1280x720) image output. It achieves broad compatibility for display output through a dedicated RGB-to-high-definition multimedia signal chip. Users can pair it with the ATOM series hosts to meet different memory and application requirements. The Atomic Display Base can replace traditional PC-controlled display panel solutions, offering a more cost-effective option. It is widely applicable in industrial control displays, smart home information screens, education and conference presentations, and remote monitoring displays.

Note

Atomic Display Base requires a display with adaptive resolution scaling. Some displays without this feature may experience display abnormalities.

Features

*Uses FPGA (Gowin GW1NR-9C)
*Built-in LT8618SX RGB-to-high-definition multimedia signal chip (supports 24-bit color depth)
*SPI interface (FPGA) + I2C interface (LT8618SX)
*Maximum 720P (1280x720) image output
*Various output modes with optimized frame rates of up to 12 ~ 16 FPS
*Development platforms: Arduino, ESP32-IDF (UIFlow not yet supported)

Contents

1x Atomic Display Base

Applications

Display input signal source
High-definition data dashboard

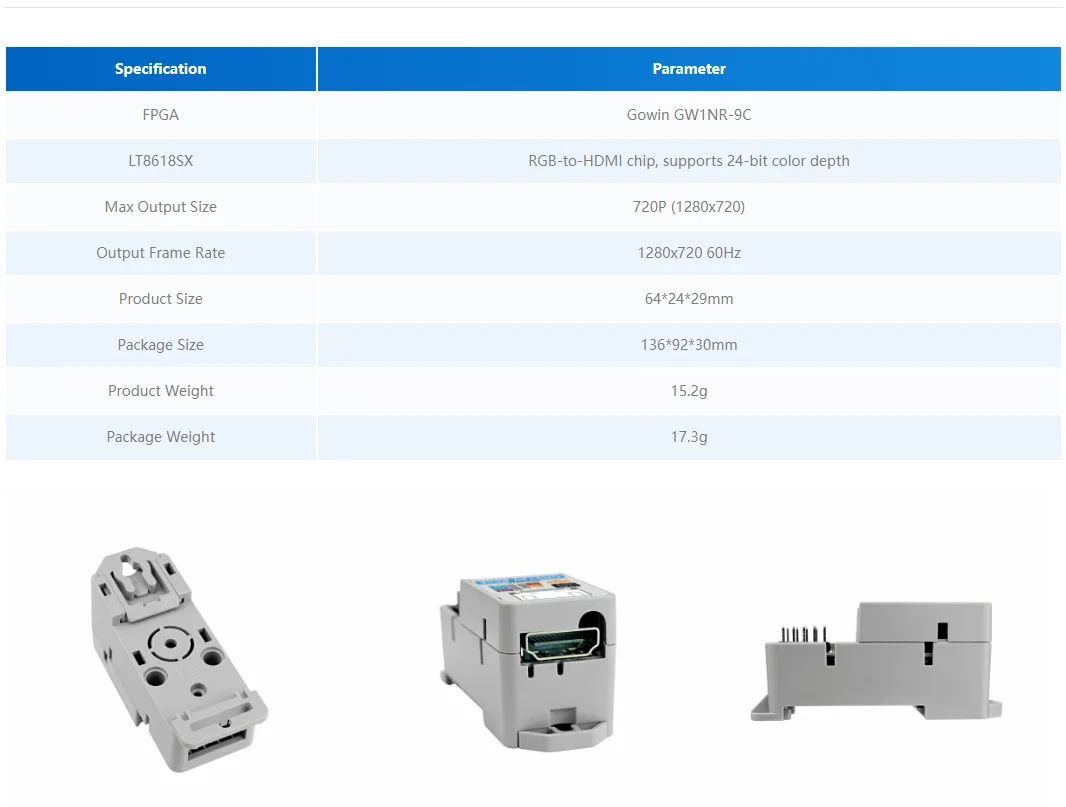

Specifications

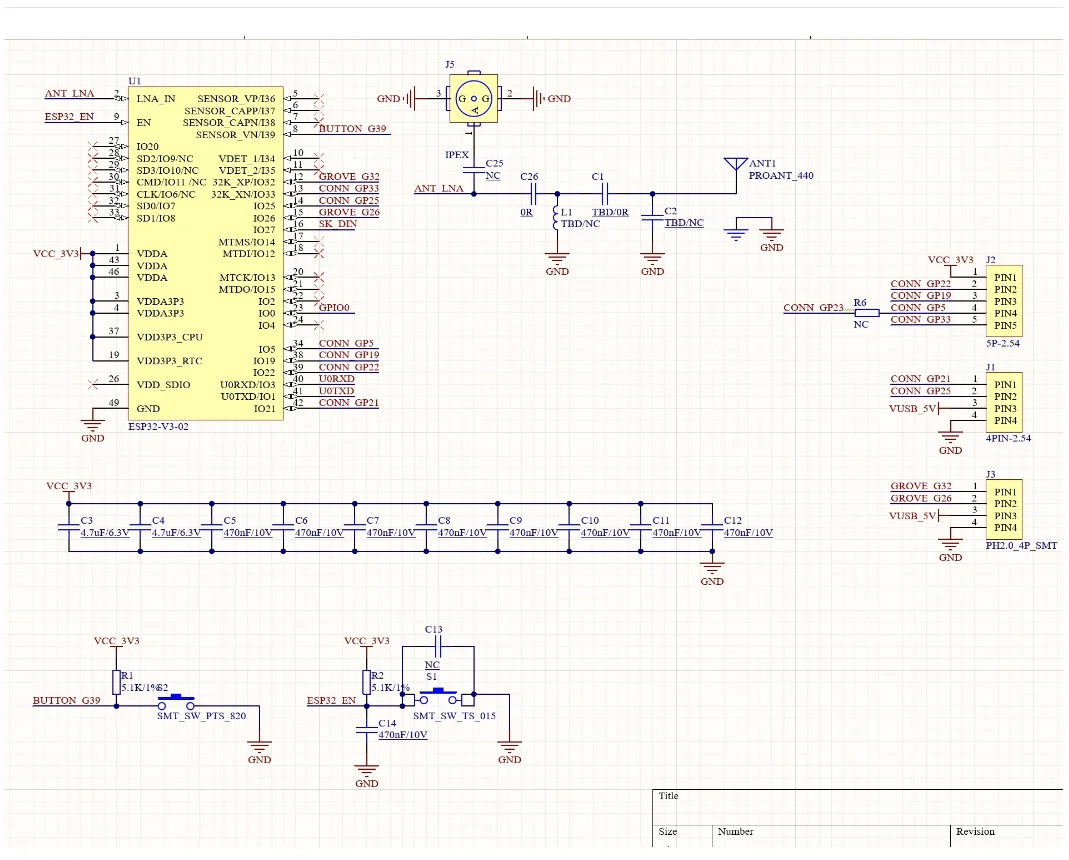

Schematic

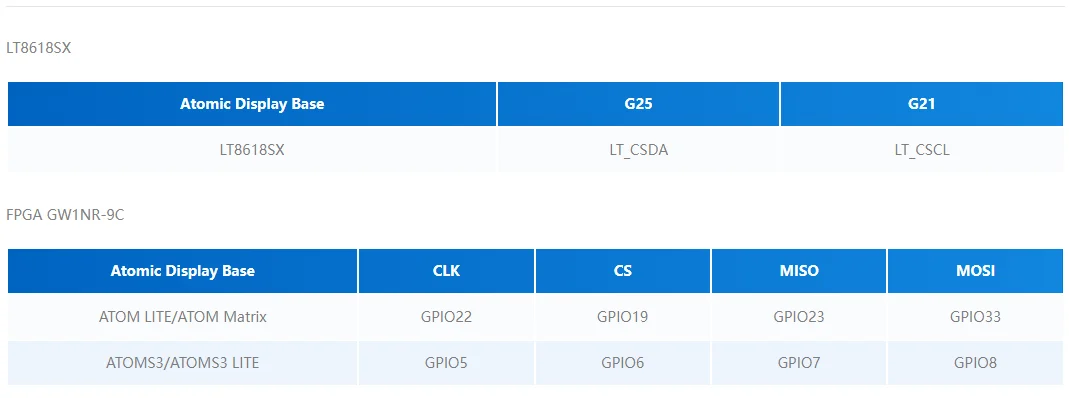

PinMap

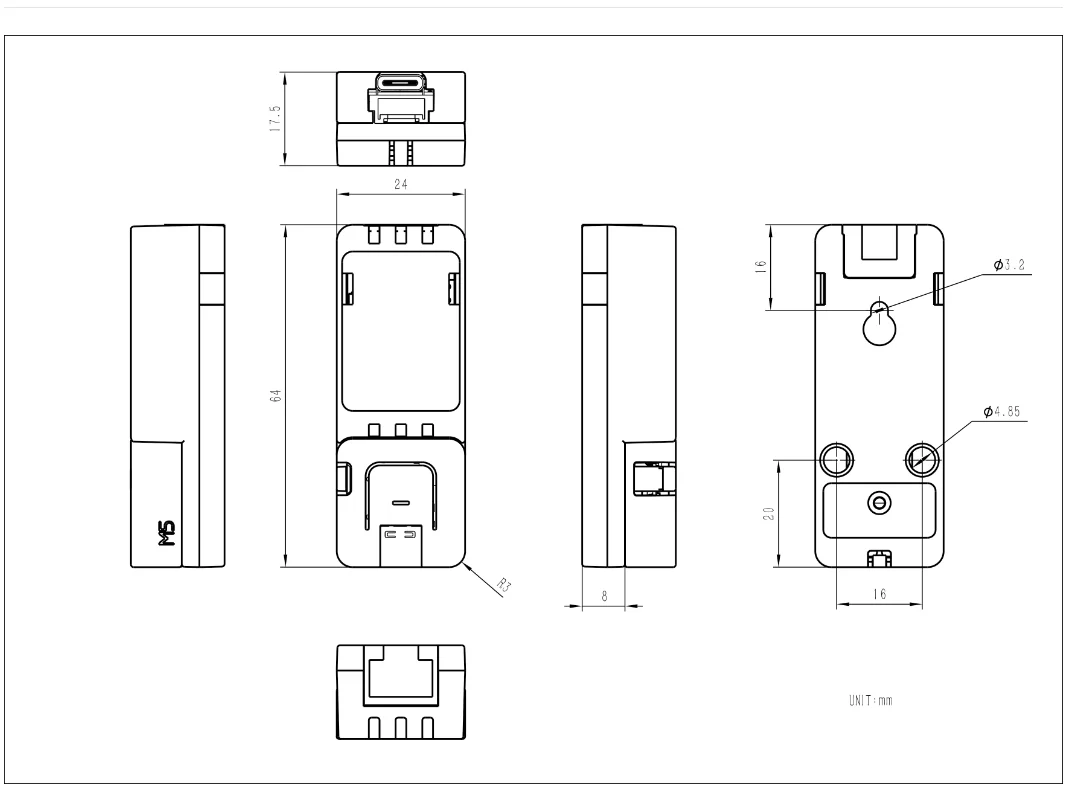

Module Size
