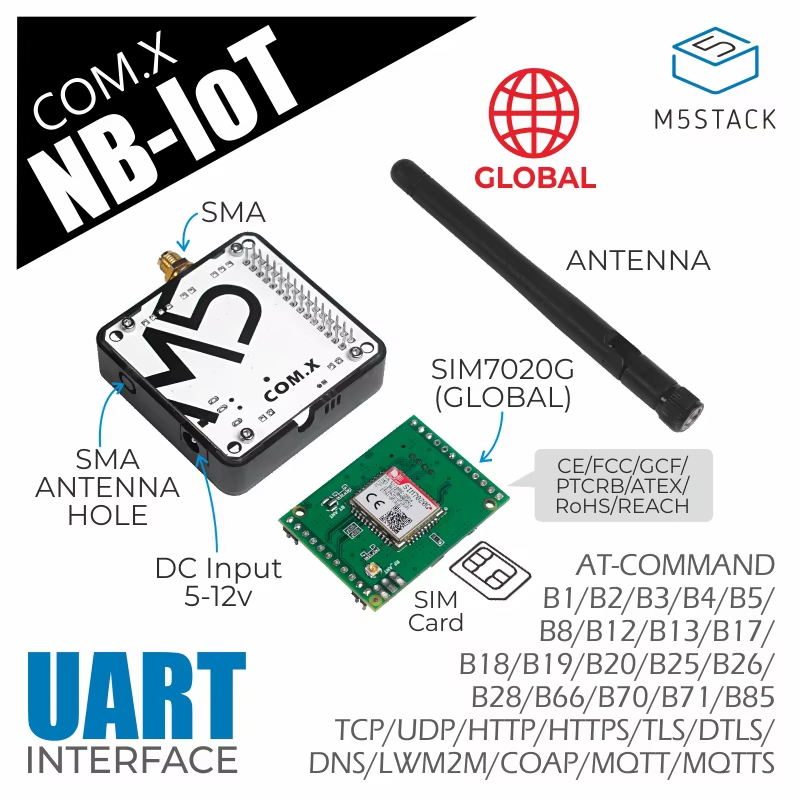

Official COM.NB-IoT Module(SIM7020G)

Product Description

COM.NB-IoT is a stackable multi-band NB-IoT wireless communication module with built-in SIM7020G communication module. The module supports PSM and eDRX low power consumption modes.

The COM.NB-IoT module has a wide coverage signal. Compared to GSM, NB-IoT has a strong gain, which also enables the product to have wireless communication capabilities in locations such as basements.

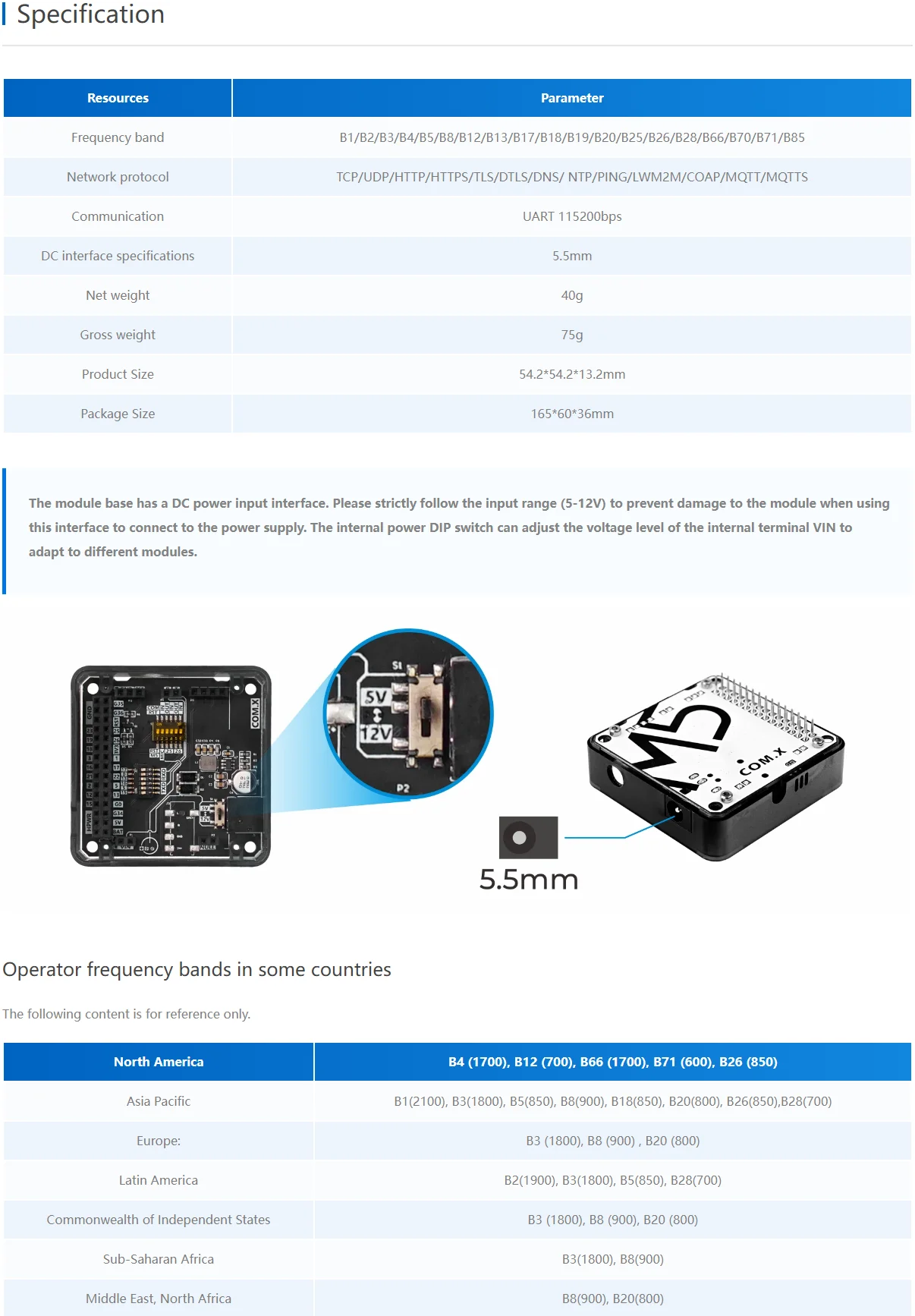

The module has a DC power input and can provide 5V-12V power supply through an external power supply. In order to facilitate the user to configure the pin, the DIP switch is used to set the pin. The SIM7020G module is the optimal solution for low latency, low power consumption, and low throughput applications. It is very suitable for IoT applications such as metering, remote control, asset tracking, remote monitoring, telemedicine, and ride sharing.

Notice

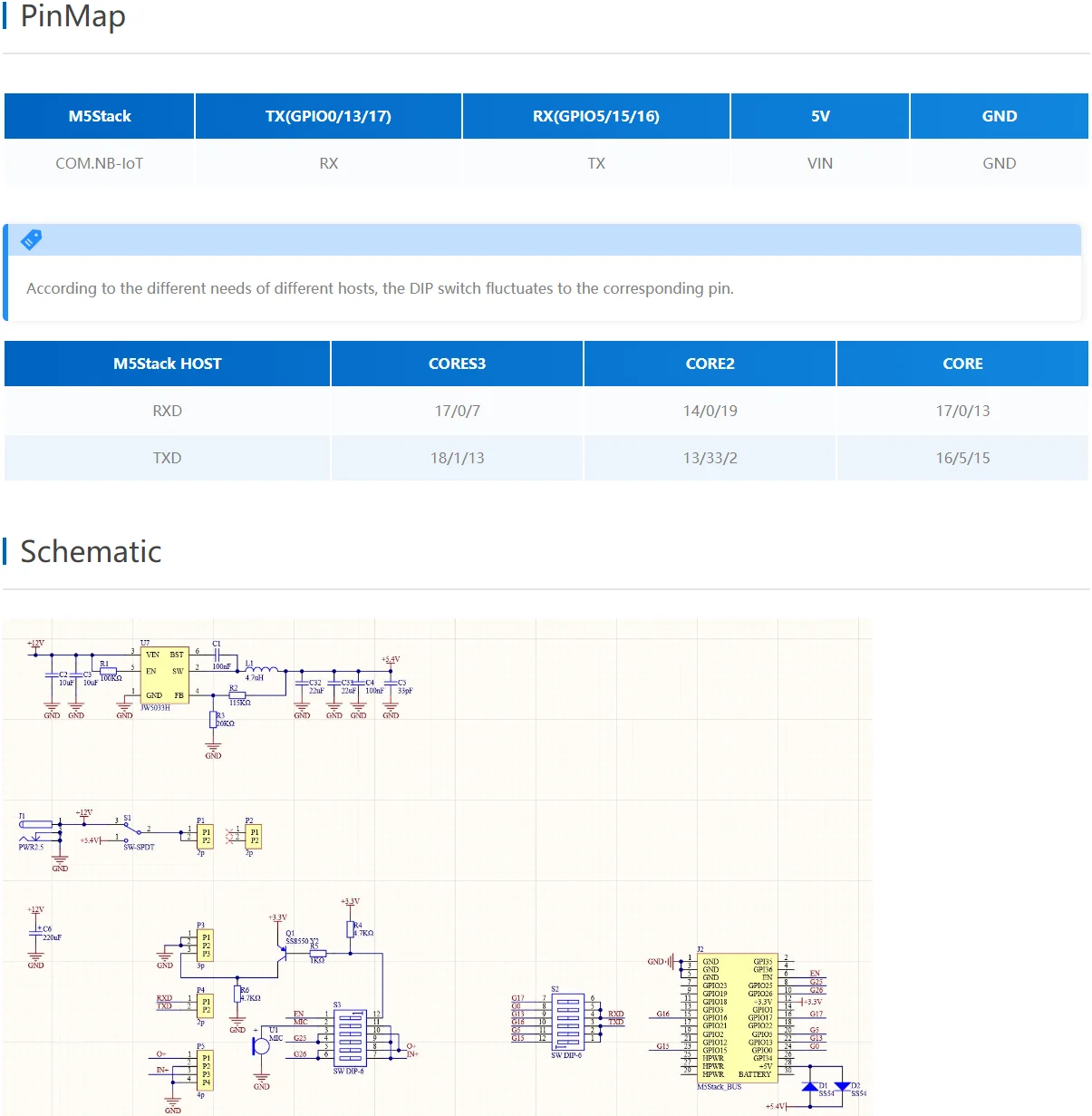

When used with the FIRE main control, due to the PSRAM pin conflict, please switch the DIP switch pins of the module base to TX(0/13), RX(5/15), and the device can use USB/ External DC is used for power supply.

When used with Core2 series main control, due to the different order of the base pin array, COM.X base pins TX(16), RX(17) correspond to the actual pins TX(14), RX of the Core2 main control (13) The equipment needs to use external DC for power supply.

Product Features

*Stackable design
*Support low power consumption mode
*Strong signal access capability
*Independent external power supply
*AT command control
*SIM card type: MicroSIM
*Status signal: two LED indicators
*External antenna: SMA antenna
*Serial communication: UART 115200bps
*Frequency band:
B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B66/B70/B71/B85
Data transmission speed: Upload:150Kbps Download:126Kbps
*Protocol: TCP/UDP/HTTP/HTTPS/TLS/DTLS/DNS/ NTP/PING/LWM2M/COAP/MQTT/MQTTS

Include

1x COM.NB-IoT module
1x SMA antenna

Applications

Smart meter
Smart parking
Municipal management

Certification

• CE/FCC/GCF/PTCRB/ATEX
• RoHS/REACH
• Telstra*(on going)
• Vodafone
• Deutsche Telekom
