4-Channel Analog to 12C 13.2 Module 4-20mA Input(ST32G030)
✓ Paiement protégé✓ Livraison suivie✓ Canadian service

Maison · H-168120209508

4-Channel Analog to 12C 13.2 Module 4-20mA Input(ST32G030)

NouveauAvailable from Prime Living

Last unit available

151.99 CAD
Free worldwide shippingEstimated delivery to Canada: 4–10 business days
Product details
SKU
H-168120209508
Product code
H-168120209508
Condition
Neuf
Department
Maison
Brand
—
Shipping
Free worldwide shipping

COMPLETE INFORMATION

Product description

Product Description

4-Channel Analog to 12C 13.2 Module 4-20mA Input(ST32G030)4-Channel Analog to 12C 13.2 Module 4-20mA Input(ST32G030)4-Channel Analog to 12C 13.2 Module 4-20mA Input(ST32G030)

AIN4-20mA Module 13.2 is a quad-channel 4~20mA current analog acquisition module. It adopts the STM32G030F6 main control chip and a dedicated acquisition chip with isolation to communicate with the M5 host for i2c communication. Supports switching to internally or externally powered wiring via jumper caps. On-board power isolation chip and built-in op amp circuitry accurately measure external current sensors and ensure signal accuracy and system safety. In terms of power supply, the DC-JACK interface and the corresponding DC-DC boost circuit can provide power to the entire device. 'Suitable for power system equipment monitoring, motor control, energy management and automation, and industrial process control'.

Features

1.STM32G030F6® 32-bit Cortex®-M0+ CPU
2.I2C communication
3.Support four 2 or 4-wire sensors, jumper cap
switching
4.Built-in galvanic isolation chip
5.Support Arduino,UIFlow and other programming
platforms

Includes

1*AIN4-20mA Moudle 13.2
12* jumper cap
5*2.54mm plug-in terminal block

Applications

Power system equipment monitoring
Motor control
energy management
Automation and industrial process control

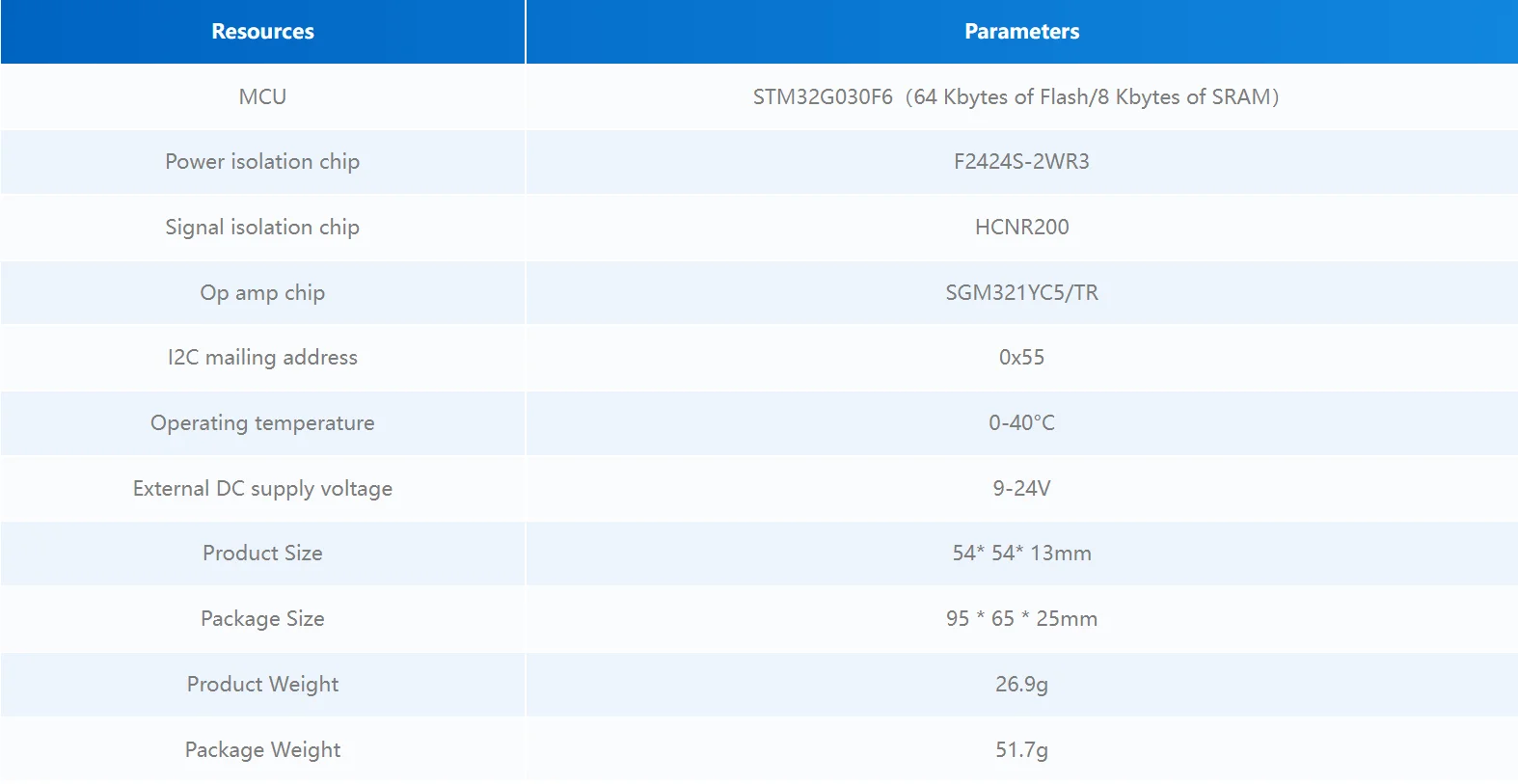

Specification

4-Channel Analog to 12C 13.2 Module 4-20mA Input(ST32G030)4-Channel Analog to 12C 13.2 Module 4-20mA Input(ST32G030)4-Channel Analog to 12C 13.2 Module 4-20mA Input(ST32G030)4-Channel Analog to 12C 13.2 Module 4-20mA Input(ST32G030)

Examples

Arduino

4-Channel Analog to 12C 13.2 Module 4-20mA Input(ST32G030)

UIFlow

4-Channel Analog to 12C 13.2 Module 4-20mA Input(ST32G030)

UIFlow Blocks

  • Init device I2C address

4-Channel Analog to 12C 13.2 Module 4-20mA Input(ST32G030)

  • Get ADC 16bit raw value

4-Channel Analog to 12C 13.2 Module 4-20mA Input(ST32G030)

  • Get current value

4-Channel Analog to 12C 13.2 Module 4-20mA Input(ST32G030)

  • Get device firware version

4-Channel Analog to 12C 13.2 Module 4-20mA Input(ST32G030)

  • Set device I2C slave address

4-Channel Analog to 12C 13.2 Module 4-20mA Input(ST32G030)
