Official Neco Unit with LED (WS2812C) Cat Ear RGB Light Development Board and Gr

Product Description

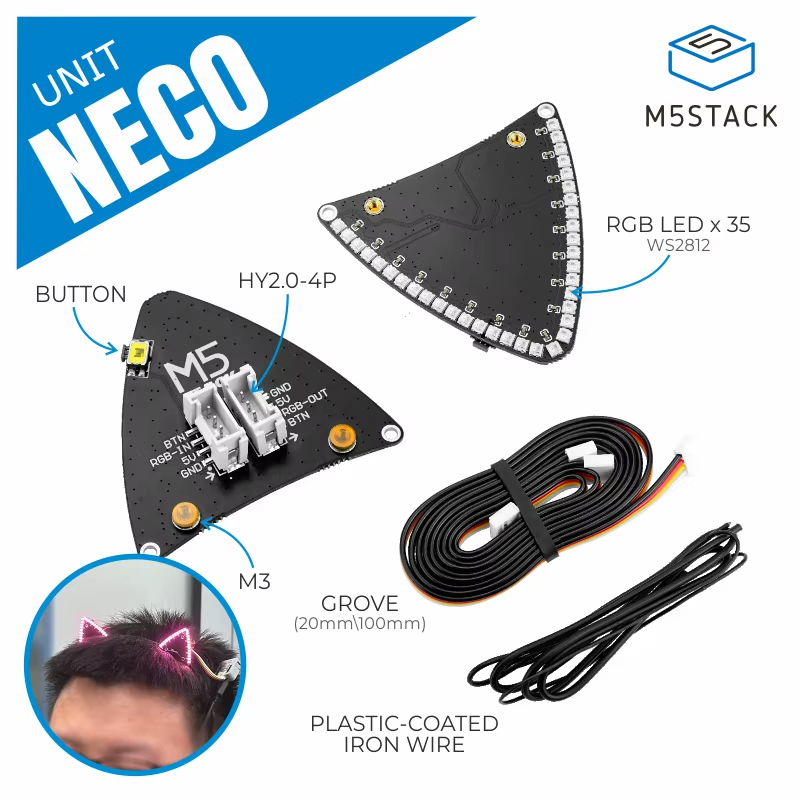

Neco Unit is an RGB light board unit with cat ear shape, including 35 WS2812C-2020RGB lamp beads. It is equipped with two 4pin grove ports for connecting M5Stack host and expanding more units. In addition, there is a button to interact with the host and switch between different lighting effects. It's suitable for home decoration, party atmosphere, stage performance and other scenes.

Notice:If it is set to be in full brightness for a long time, it will cause the lamp bulbs to burn out, it is recommended to set the brightness to around 20.

Features

1.WS2812C-2020 RGB lamp bead
2.HY2.0-4P
3.BUTTON
4.Compatible with multi-platform development:
UIFlow
Arduino

Includes

2 × Neco Unit
2 × grove cable（20cm\100mm）
2 × PLASTIC-COATED IRON WIRE

Applications

Home Decoration
Party atmosphere
Stage performances

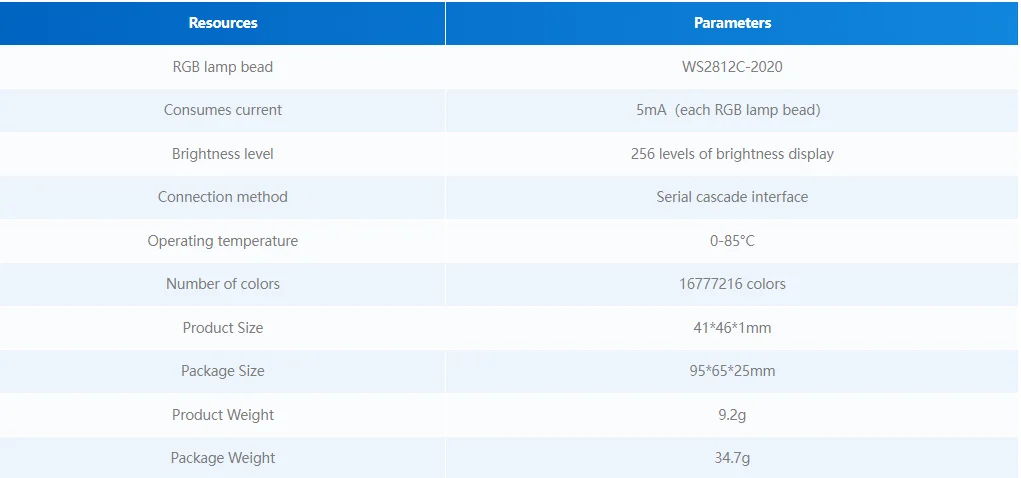

Specification

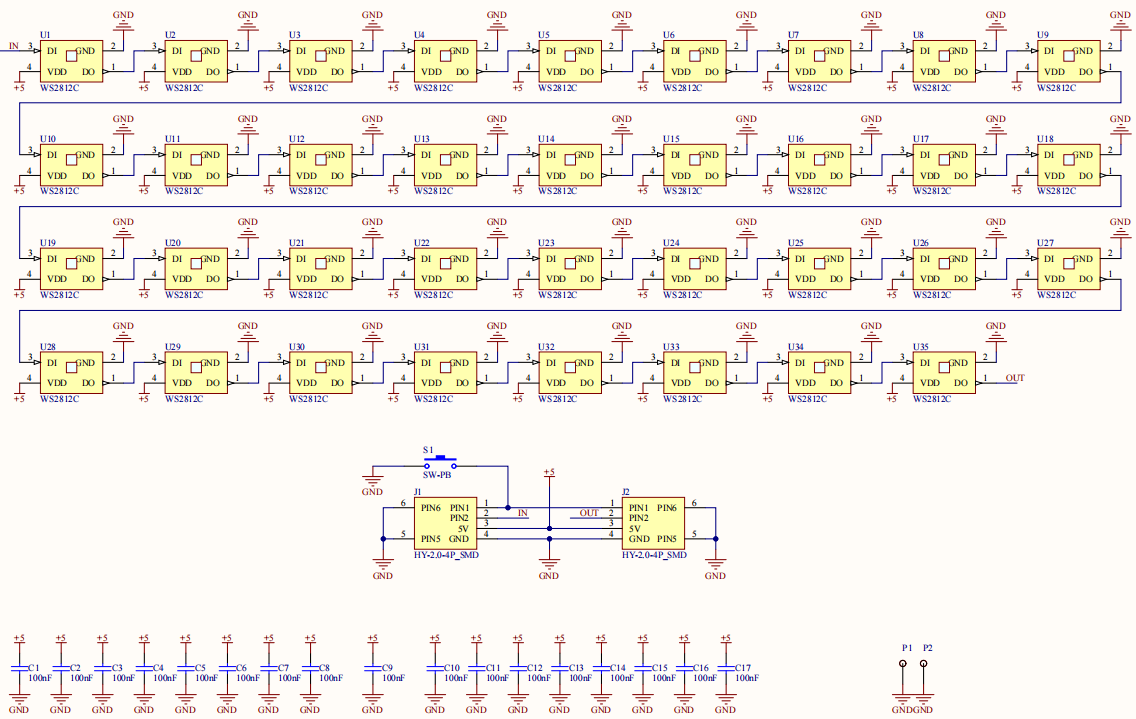

Schematic

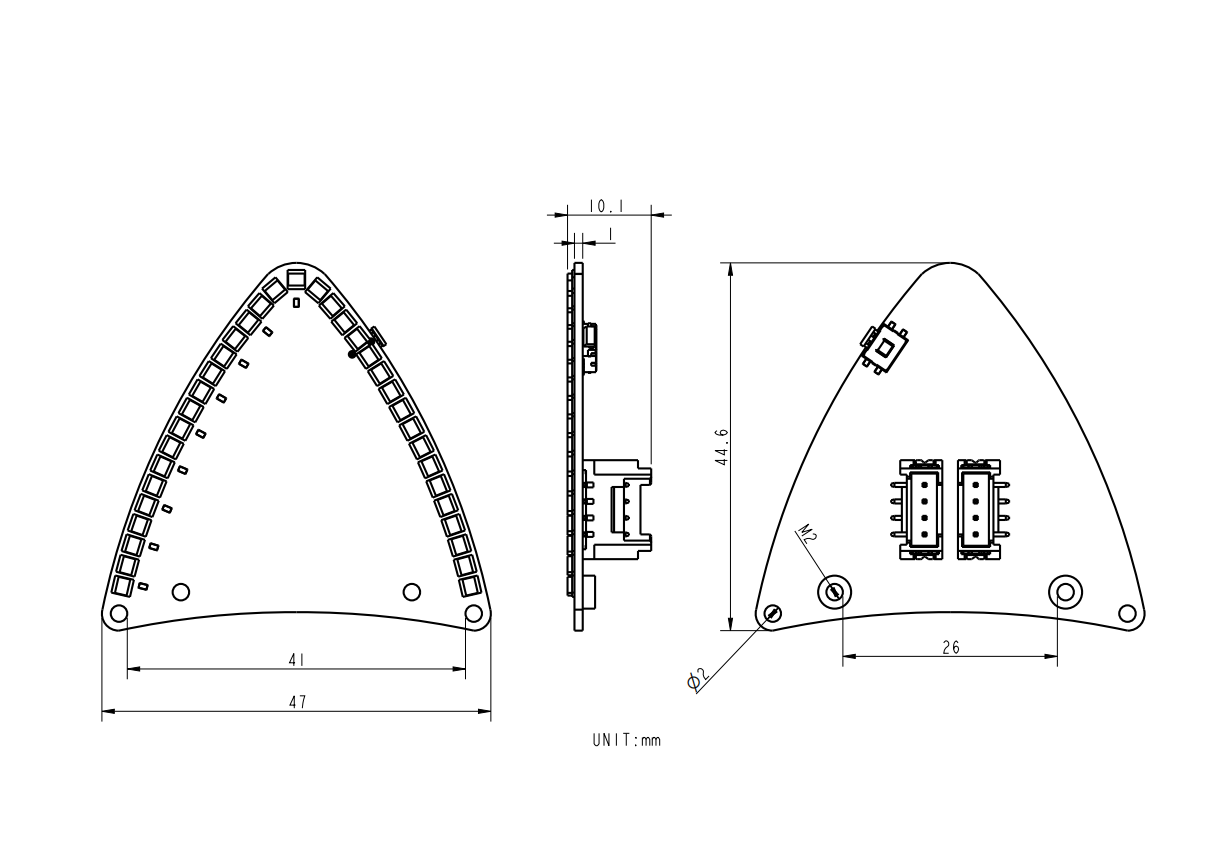

Module Size

Neco Unit Arduino Example

#include #define PIN 2 // M5AtomS3
#define NUMPIXELS 70
Adafruit_NeoPixel pixels(NUMPIXELS, PIN, NEO_GRB + NEO_KHZ800);
#define DELAYVAL 100

void setup() {
pixels.setBrightness(20);
pixels.begin();
}

void loop() {
pixels.clear();
for(int i=0; i

Neco Unit UIFlow Example

UIFlow Blocks

Set single led color

Set single led color

Set single led in random color

Set multiple led colors

Set multiple led colors

Set multiple led in one random color

Set multiple led in random color

Set all led color

Set all led color

Set all led in one random color

Set all led in random color

Set brightness

Button callback

Obtain button status
