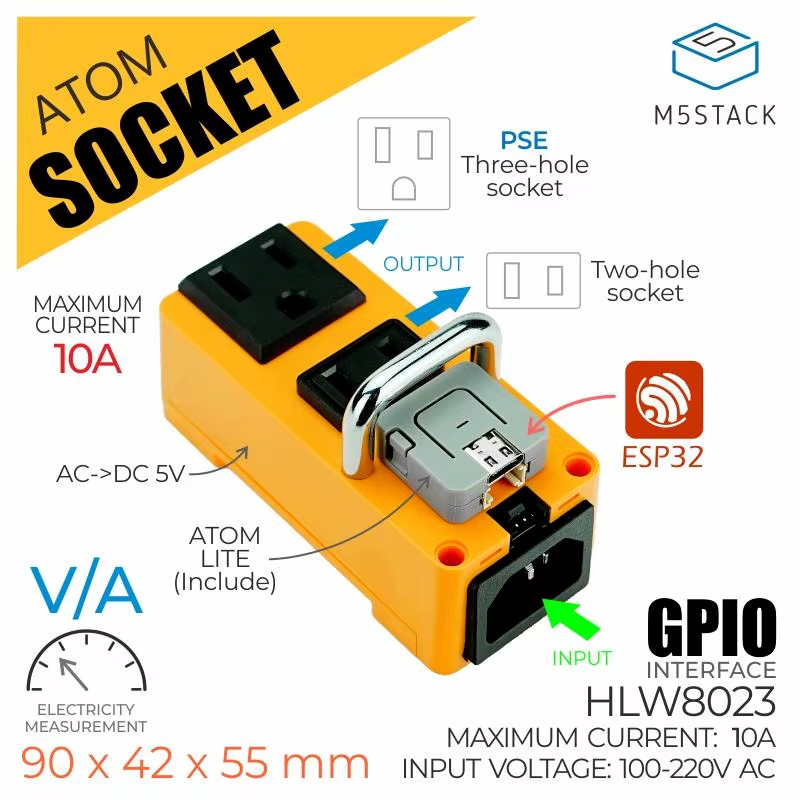

Official ATOM Socket Kit (HLW8023) - JP&US

Product Description

ATOM Socket is a smart power socket adapted to ATOM main control. Built-in HLW8032 high-precision energy metering IC, can read the electrical parameters (line voltage, current, active power, apparent power and power factor) of the socket through serial communication. The external jack adopts Japanese standard specifications, and the internal integrated single-circuit relay (AC-100~120V@10A) is used to control the power on and off of the socket. With the ATOM main control integrated with WiFi module, the power socket can be easily connected to the network for remote control And energy metering. The extra socket integrates HY2.0-4P interface, which can interact with external equipment (relay signal input, key signal output).

Product Features

*Single relay control socket power on and off (AC:100~120V@10A/DC:28V@10A)
*HLW8032 High Precision Energy Metering IC
*Support voltage and current detection power calculation, within 1000:1 dynamic range:
----The measurement error of active power reaches 0.2%
----The effective current measurement error reaches 0.5%
----The effective voltage measurement error reaches 0.5%
*UART communication (baud: 4800)
*∑-Δ ADC, high-precision energy metering core
*JP&US jack- PSE standard
*HY2.0-4P external control interface

Includes

1x ATOM Socket
1x ATOM LITE

Application

Metering socket
Smart WIFI socket
Smart home appliance control
