Official DDS Unit (AD9833)

Product Description

DDS is a signal source Unit. It uses the AD9833 programmable waveform generator + STM32F0 micro controller. Based on I2C communication interface (addr:0x31) It can easily control the signal source to output multiple waveforms (sine wave, triangle wave, square wave output, sawtooth wave, signal output amplitude 0-0.6V) and adjust the frequency and phase.

It supports deep sleep mode, which can reduce the power consumption in the idle state. The Unit is suitable for the electronic circuit prototype design of various test instruments as a signal source.

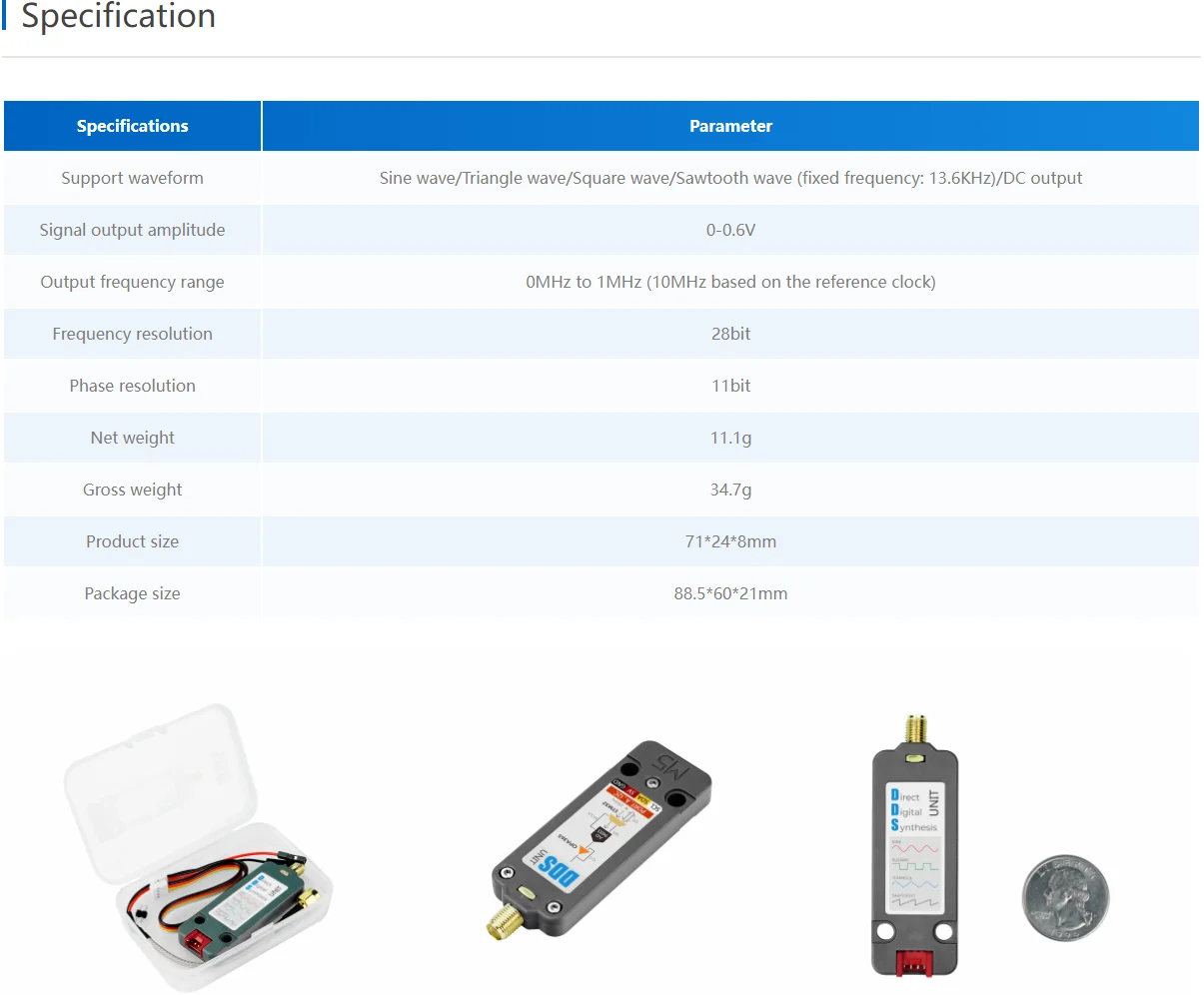

Product Features

*Digital programmable frequency and phase
*Signal output amplitude 0-0.6V
*Sine wave/Triangle wave/Square wave/Sawtooth wave (fixed frequency: 13.6KHz)/DC output
*Output frequency range: 0MHz to 1MHz (10MHz based on the reference clock)
*28bit frequency resolution
*11bit phase resolution

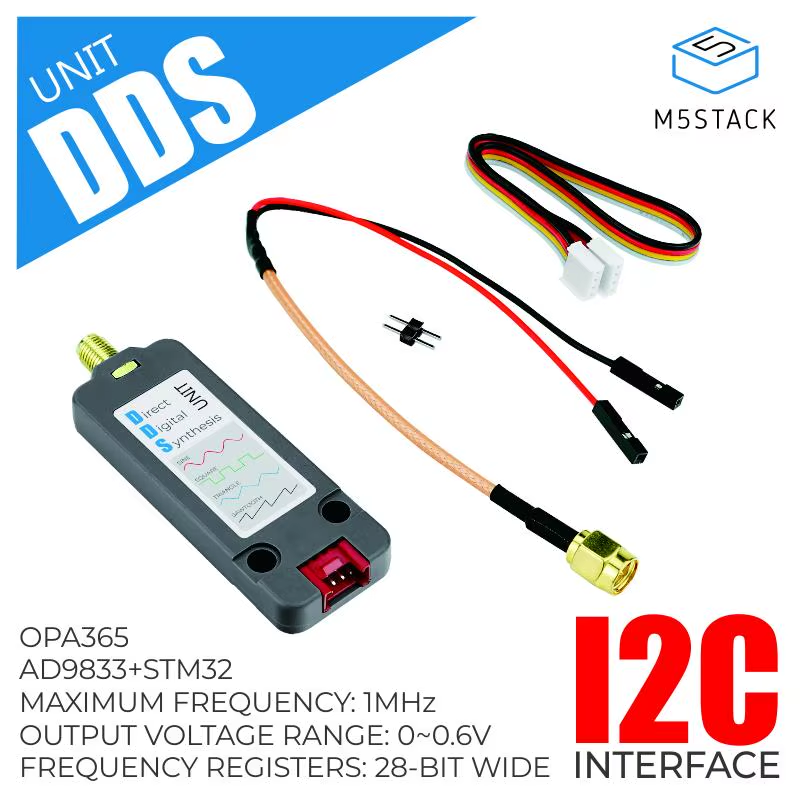

Includes

1x DDS Unit
1x HY2.0-4P cable
1x SMA-2.54mm cable

Application

Frequency stimulation/waveform generation
Liquid flow and airflow measurement
Sensor applications: proximity, motion and defect detection
Line loss/attenuation
Testing and medical equipment
Scan/clock generator
Time domain reflectometry (TDR) application
