Official PLC Proto Industrial Board Module V11

Product Description

PLC M12 V1.1 is a Base specifically design for industrial application. DC Power in 9-24V. Does this PLC remind you of the 'PLC' in industrial control short for 'Programmable Logic Controller'. This PLC base is not the typical 'PLC' used in programmable controller, but its does able to implement the most common controller in industrial field. Based on the current M5 development system, you can add as many Relays as you want, you can enable the TTL-RS485 communication, you can layout your customized circuit on the proto board. you also can make it an LoRa node by stacking a LoRa module etc. This base gives you an unlimited number of combinations, it is powerful, flexible, and covered with an industrial-grade case. If you happen to work in an industrial field, We especially recommend this PLC base to you which will surely give you the best and the fastest way to resolve your requirement.

If you need to add RS485 interface, soldering the RS485 board onto the mean board pin correspondingly. The serial port pins on the RS485 board will be connected to the GPIO16 and GPIO17 of the PLC back plane.

FEATURES

* Support 9-24V voltage input

INCLUDES

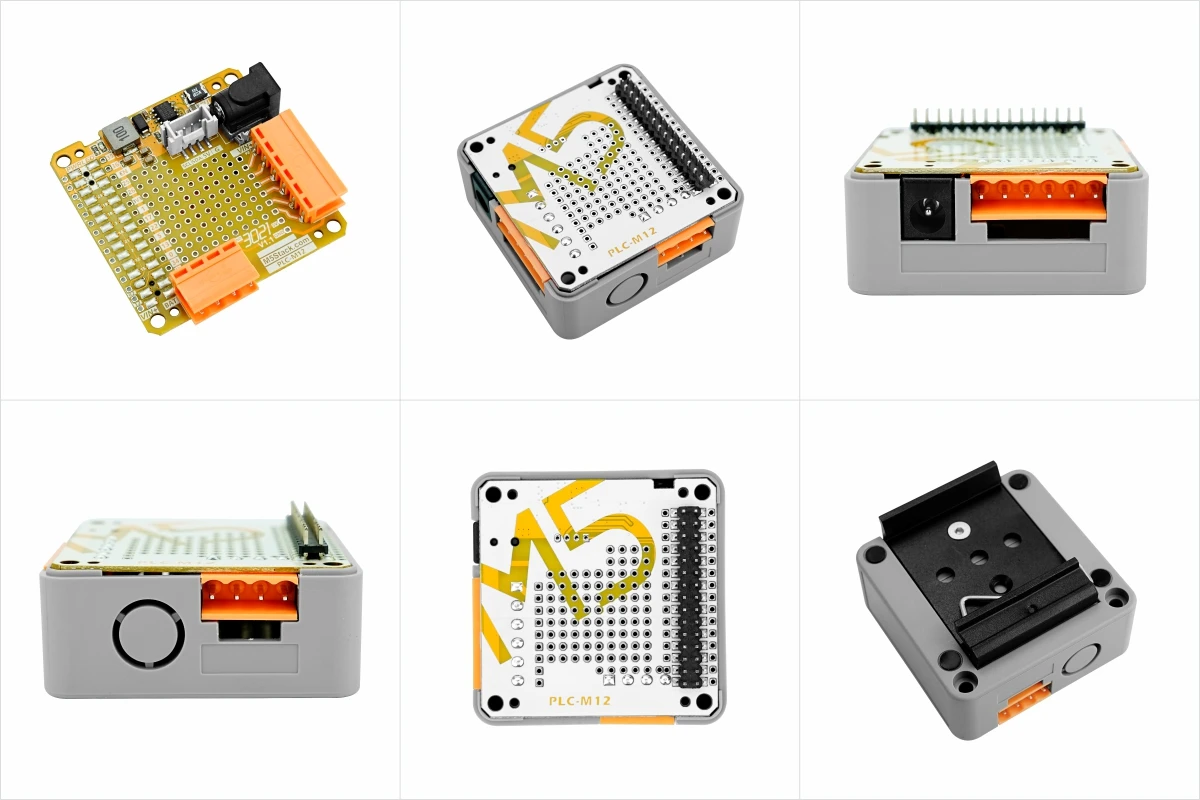

1x PLC Proto Board
1x PLC base housing
1x RS485-To-TTL adapter board
1x HT3.96-4P terminal
2x HT3.96-3P terminals
1x 1.5mm hex key
1x 2.0mm hex key
1x 2.5mm hex key
10x 2mm Crimp Terminals
1x magnet (with hole in the middle, diameter 15mm, thickness 3mm)
1x 35mm silver metal rail
1x 35mm black rail clip
1x M3*6mm screw (countersunk head, mechanical teeth)
2x M3*28mm screws (cup head, mechanical teeth)
4x M2*5mm screws (cup head, self-tapping)
1x cable gland (M12)
1x 2.54mm-20P straight pin header (total height 5.32mm)
1x product sticker

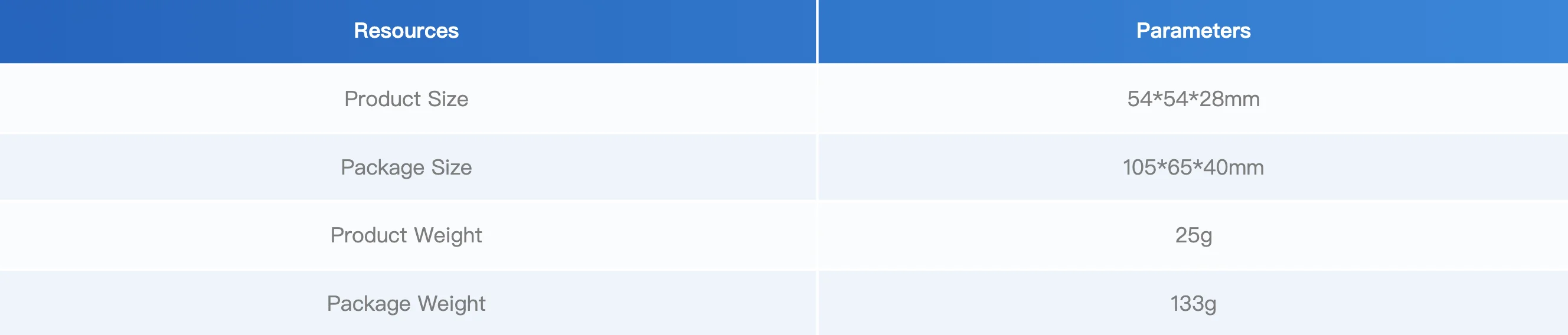

SPECIFICATION

LEARN AND DOCUMENTS
