Official RS232 Module 13.2 with DB9 Female Connector

Product Description

RS232F Module 13.2 is an expansion module of RS232 serial communication with isolation, using the scheme of TD301D232H serial port conversion chip + Female DB9 interface to realize the interface conversion between RS232 and TTL/CMOS logic level signals, and using F0505S-2WR3 DC-DC power module to realize electrical and noise isolation functions, toggle switch and coding switch It can realize the pass-through or cross-switching of DB9 signal lines and the switching of serial interfaces to meet different connection needs. The module has a built-in DC power input socket and a corresponding DC-DC circuit to provide power to the entire device. The product is suitable for industrial automation, instrumentation, medical equipment and communication equipment.

Feature

* TD301D232H serial port chip, support full duplex, fast and reliable
* F0505S-2WR3 Electrical and noise isolation
* Toggle switches and coded switches switch line sequence and GPIO
* Programming platform: Arduino, UIFlow

Includes

1 × RS232F Module 13.2

Applications

* Industrial automation
* Instrumentation
* Medical equipment
* Communication equipment

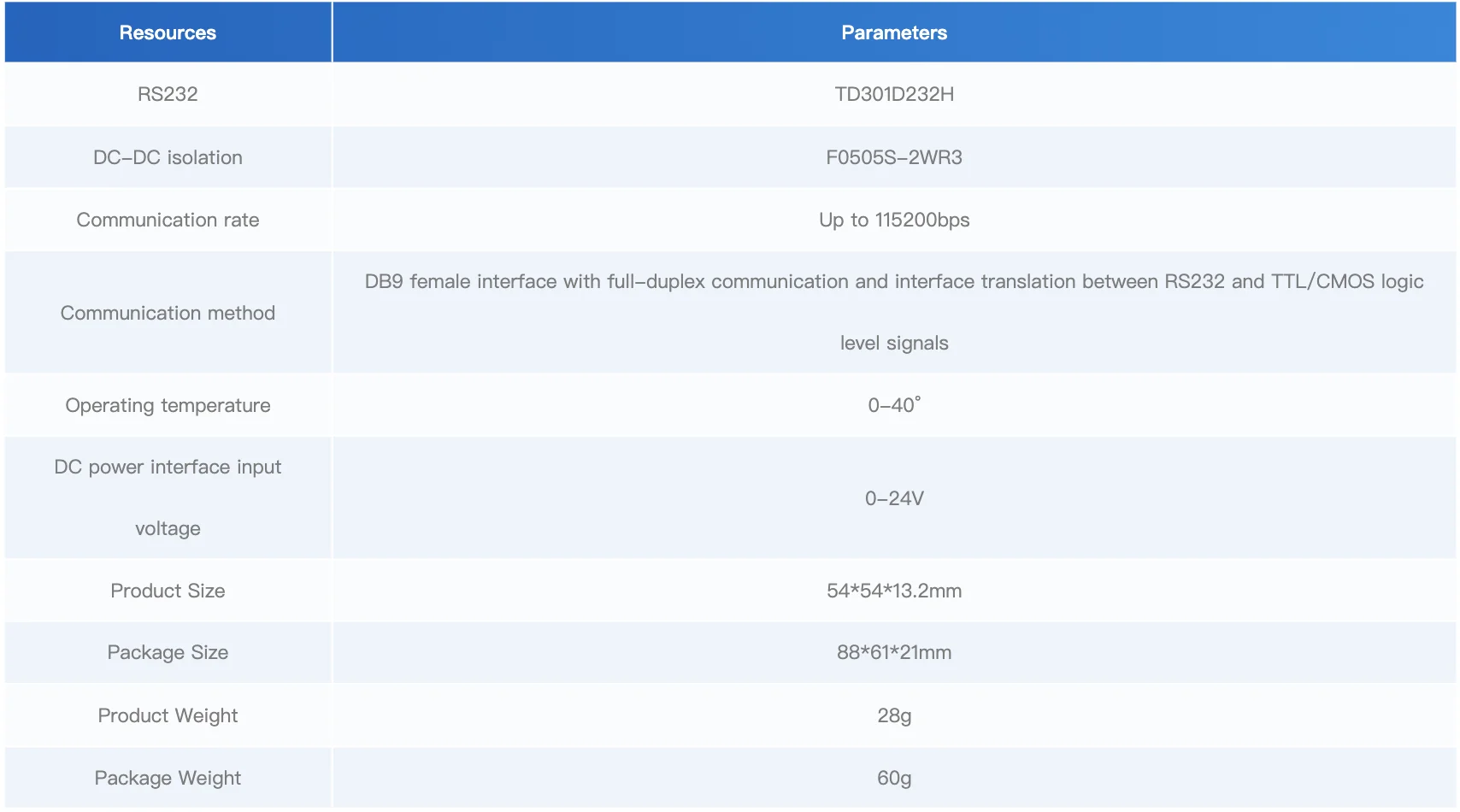

Specification

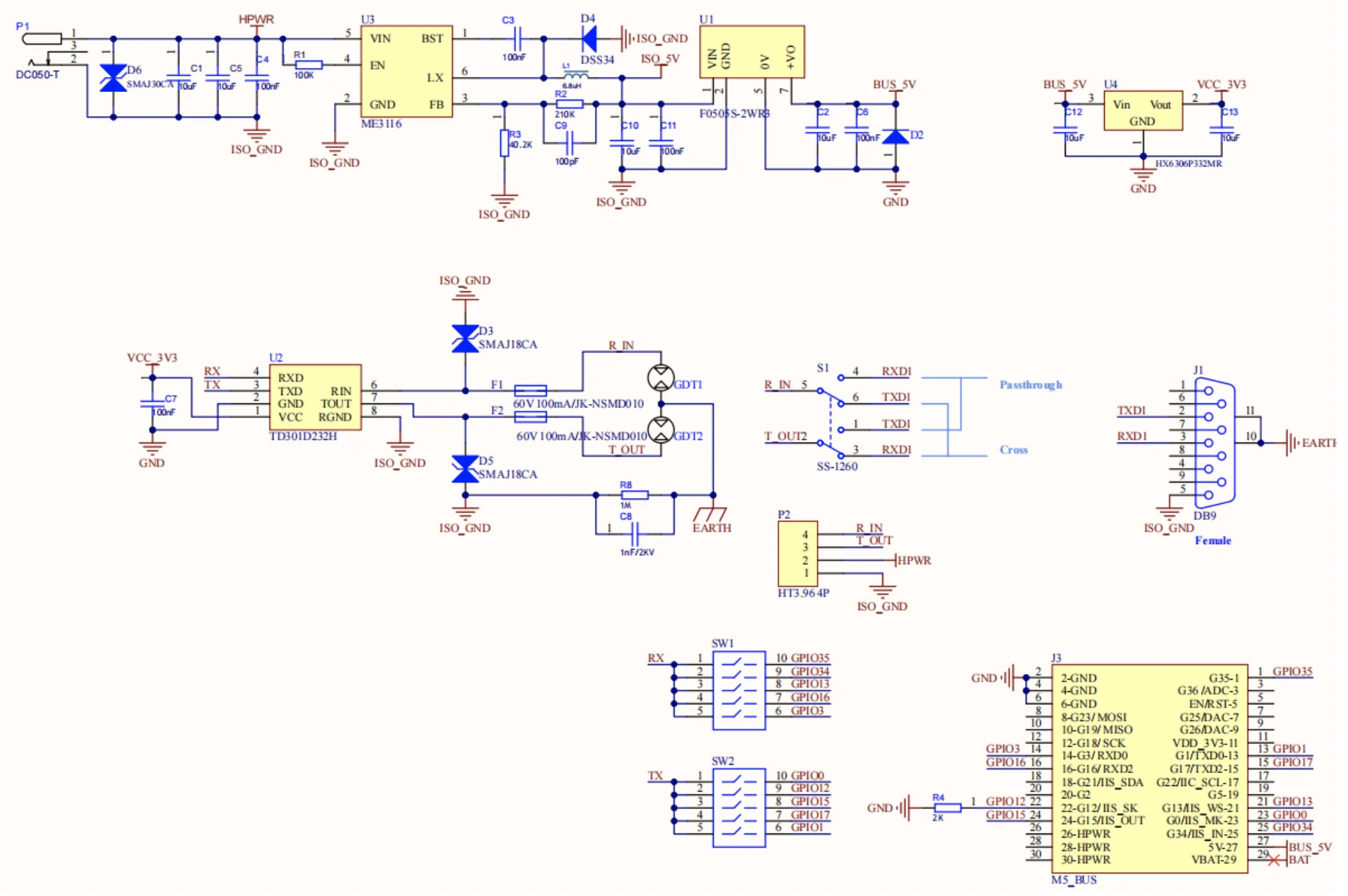

Schematic

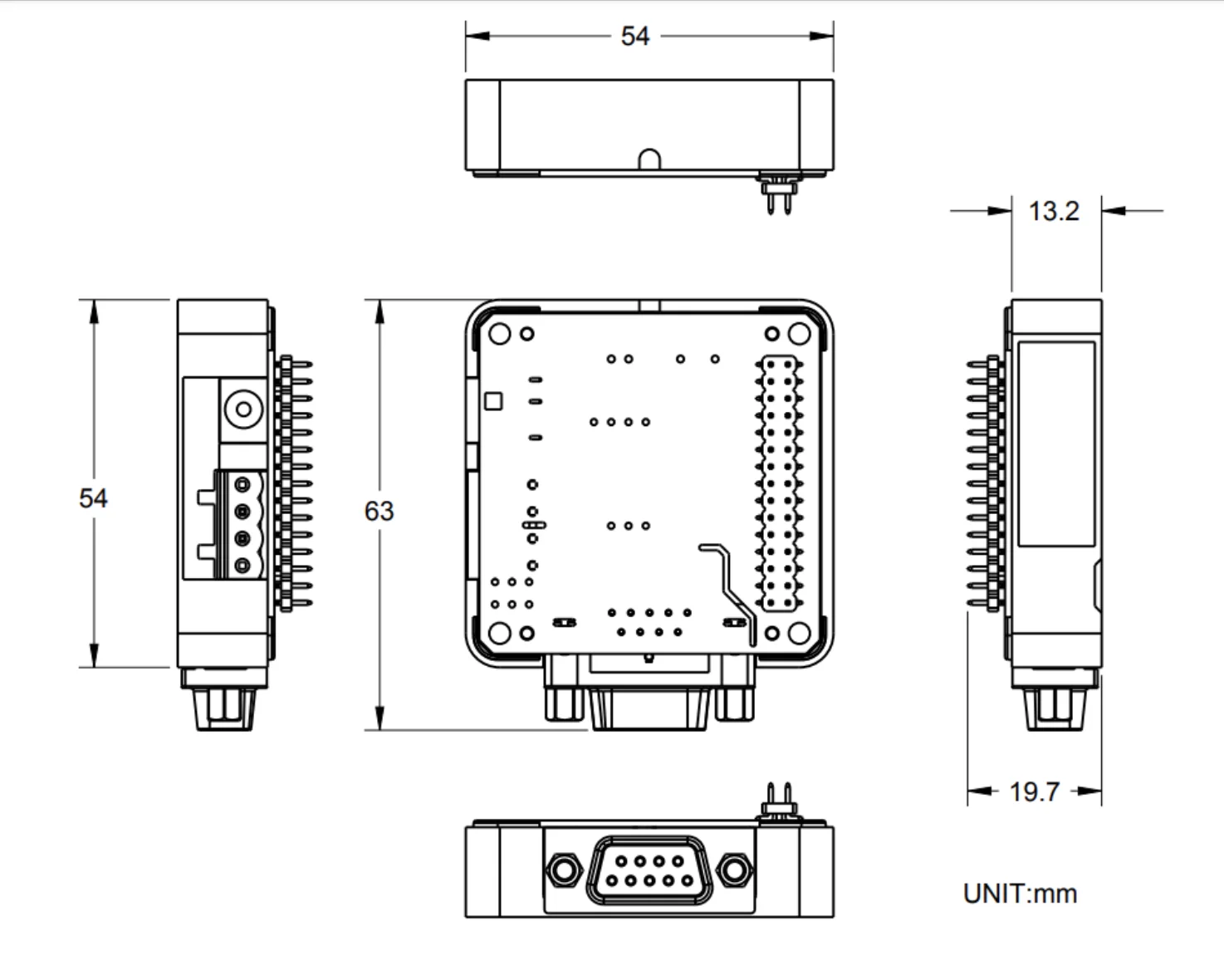

Module Size
