Official ATOM HUB SwitchD 2-Relay Kit

Product Description

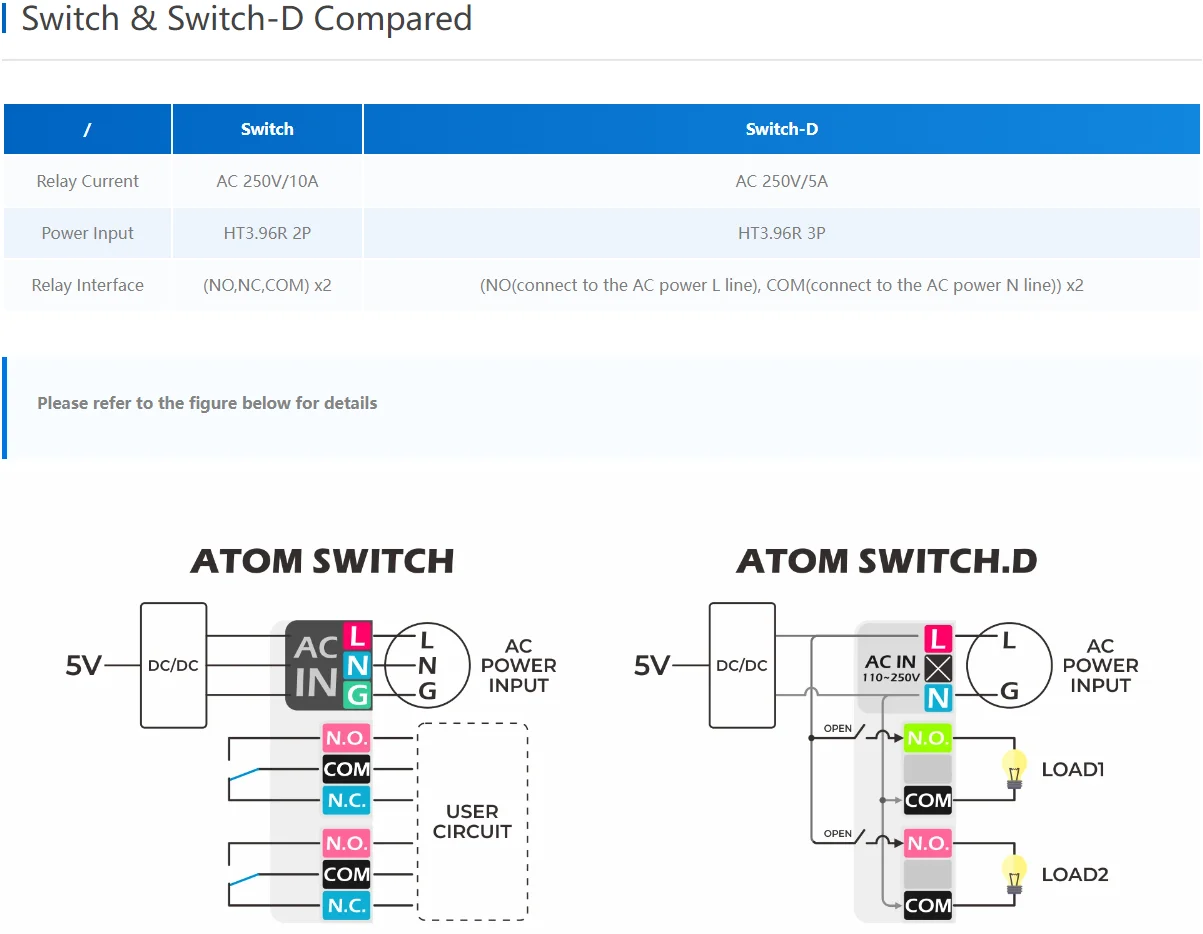

Atom Hub Switch D is a dual relay expansion kit. The D in the name stands for "Direct" since the power supply is directly connected to the relays. The AC power supply flows to the NO(Normally Open) contacts of the two relays and can be controlled via the M5Atom. When in use, the user only needs to connect the electrical load to the relay, and there is no need to connect the power line separately. Compared with the previous relay control scheme, this module will be more concise and efficient in controlling the electric load. In addition to the power supply for the relay, the input power supply will also provide 5V/1A DC power supply for the ATOM through the built-in step-down module. In order to ensure the safety of use, the power input circuit has overheating and short-circuit protection, when the current is too high or a short circuit occurs It can effectively disconnect the circuit to prevent damage to the components. A built-in SP485EE level conversion chip, provides an RS485 communication interface to support multi-device communication. It also integrates a 9-24V step-down 5V circuit to adapt to the power demand in industrial scenarios, and expand power supply capabilities.

A pair of HY2.0-4P ports are included to connect to I2C peripherals or general I/O devices. Combined with ATOM's built-in WIFI functions, ATOM HUB SWITCH D can quickly build remote device switch applications.

Product Features

Compatible ATOM Matrix/ATOM Lite
Built-in AC-DC circuit
2-way relay
Built-in RS485 level-conversion, supporting Modbus
HY2.0-4P port extend
Short circuit protection
Remote control via Wi-Fi and RS485

Include

1x ATOM SWITCH D
1x ATOM Lite
4x Magnet
1x double-side tape

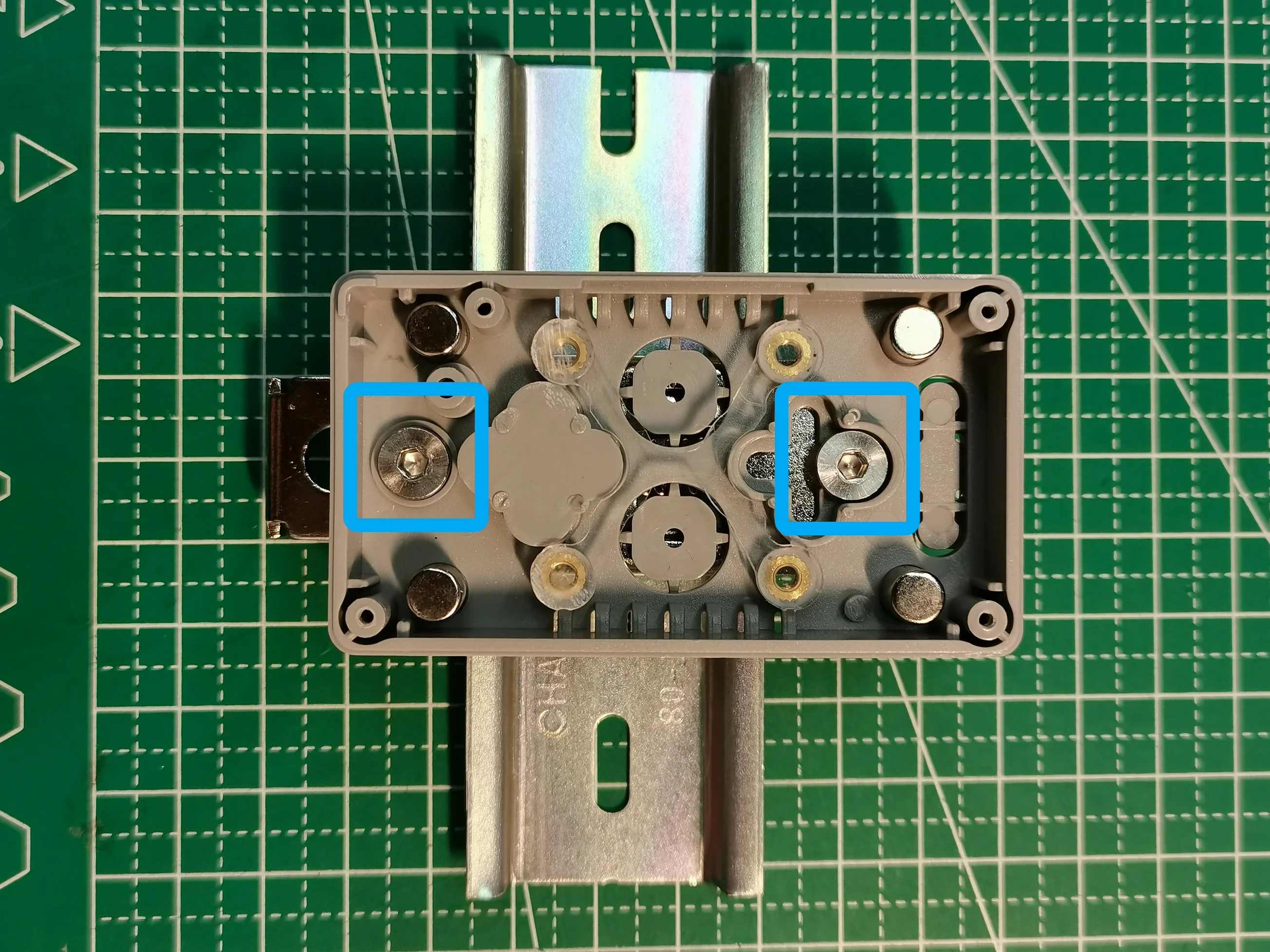

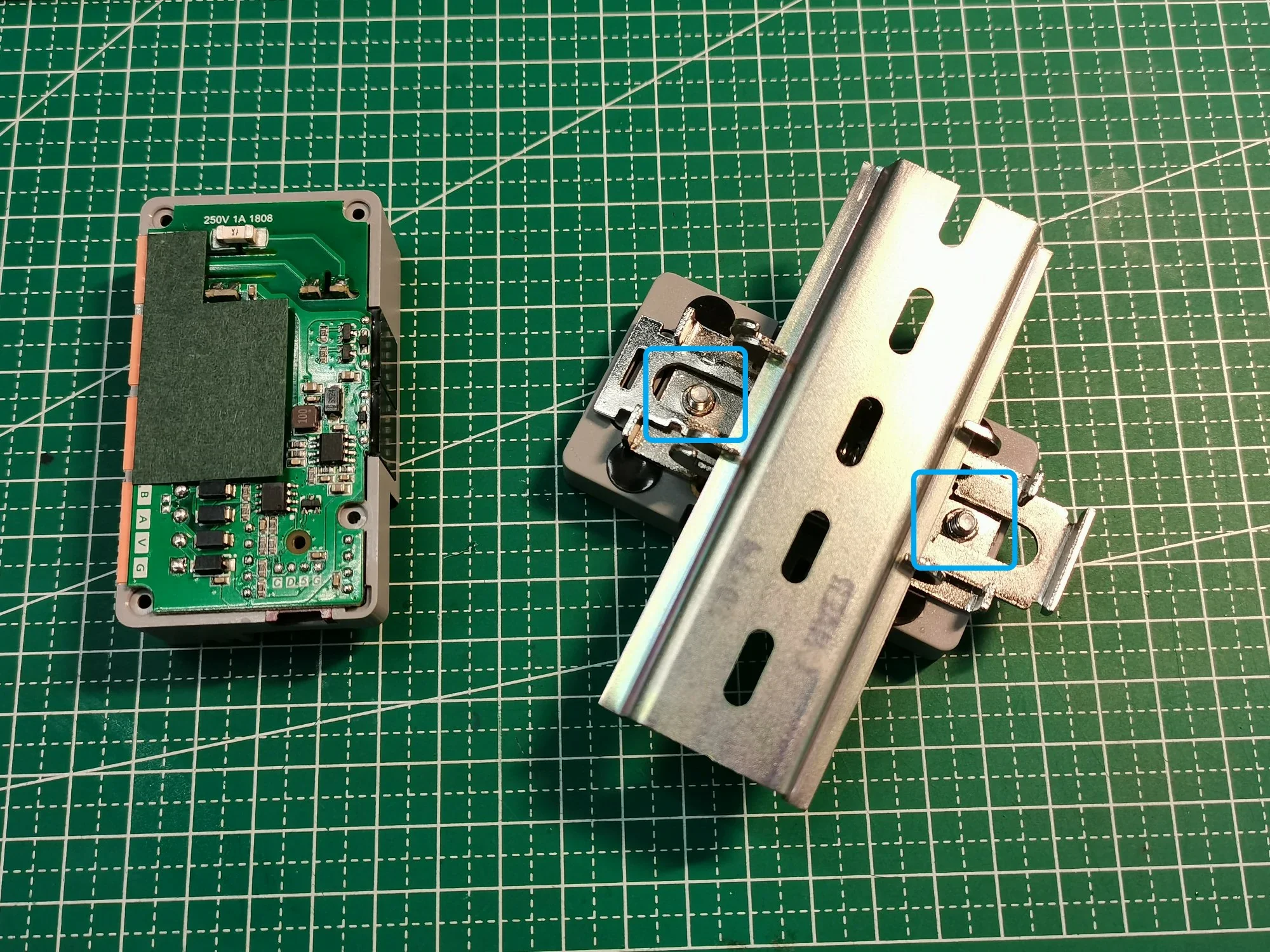

1x DIN Rail
1x 3.96*4P plug
3x 3.96*3P plug
1x M4 Hex Key
1x M2 Hex Key
2x M4*10mm Hexagon countersunk screw
1x M2*20mm Hexagon socket cup head machine screw

Applications

Intelligent switch
