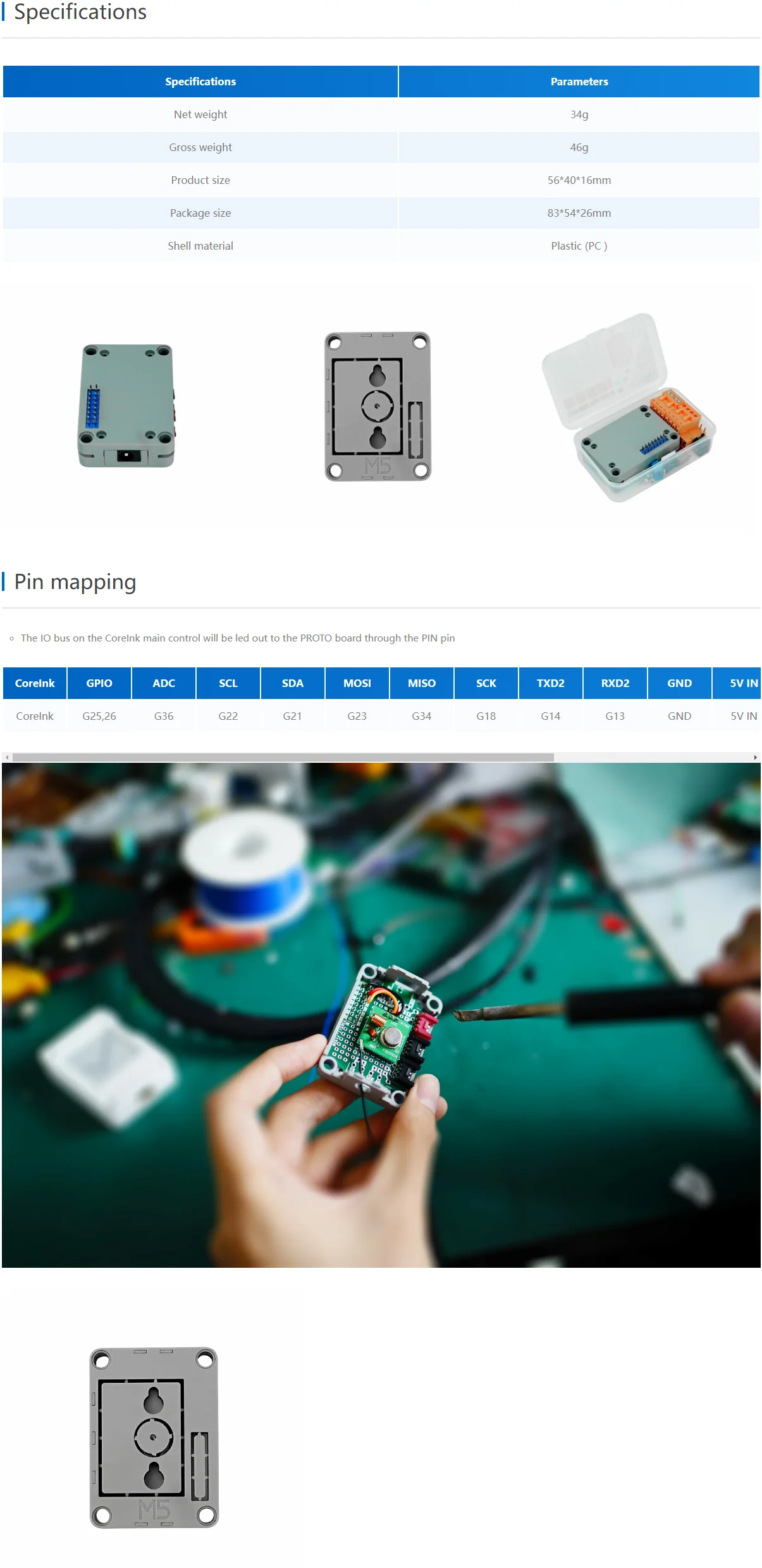

Official CoreInk Proto Base

Product Description

CoreInk Proto Base is a DIY expansion kit suitable for CoreInk master control. When stacking the expansion board, the IO bus on the CoreInk main control will be led out to the PROTO board through the lower PIN pin. You can design and build the circuit according to your own needs. The package also contains a variety of expansion parts (HY2.0-4P female terminal, 3.96 male/female terminal, DC power terminal, etc.), which can be soldered to the PROTO board, which can add standard specifications to your circuit design. Output Interface. The hook hole on the back and the LEGO compatible hole design on the corners make it easy for you to embed the finished DIY product into a variety of structures.

Product Features

Compatible with CoreInk
Prototype circuit design
PROTO board

Includes

1x CoreInk Proto Base (face shell + bottom shell)
1x HEX KEY
3x HY2.0-4P socket terminals (red x1, blue x1, black x1)
4x HT3.96R-4P pins
4x HT3.96R-4P socket
1x HT3.96R-2P pin
1x HT3.96R-2P socket
1x DC-044 socket terminal
4x M2*6 cup head tapping screws
1x PROTO DIP header
3x port block

Application

Experimental circuit
DIY function expansion
