Product Description
PID Temperature Controller REX‑C700 Panel Mount Digital Controller Universal Input 4‑20mA SSR Relay Industrial Oven Kiln
PID Temperature Controller REX‑C700 Panel Mount Digital Controller Universal Input 4‑20mA SSR Relay Industrial Oven Kiln1.NOTE
Due to space constraints, some specifications may not be fully listed. Please feel free to contact us if you have specific requirements.
Default Configuration of the REX-C700:
This controller does not directly measure temperature—it relies on external sensor inputs. The universal input version supports temperatures up to 1200°C, while the standard K-type input supports up to 999°C.

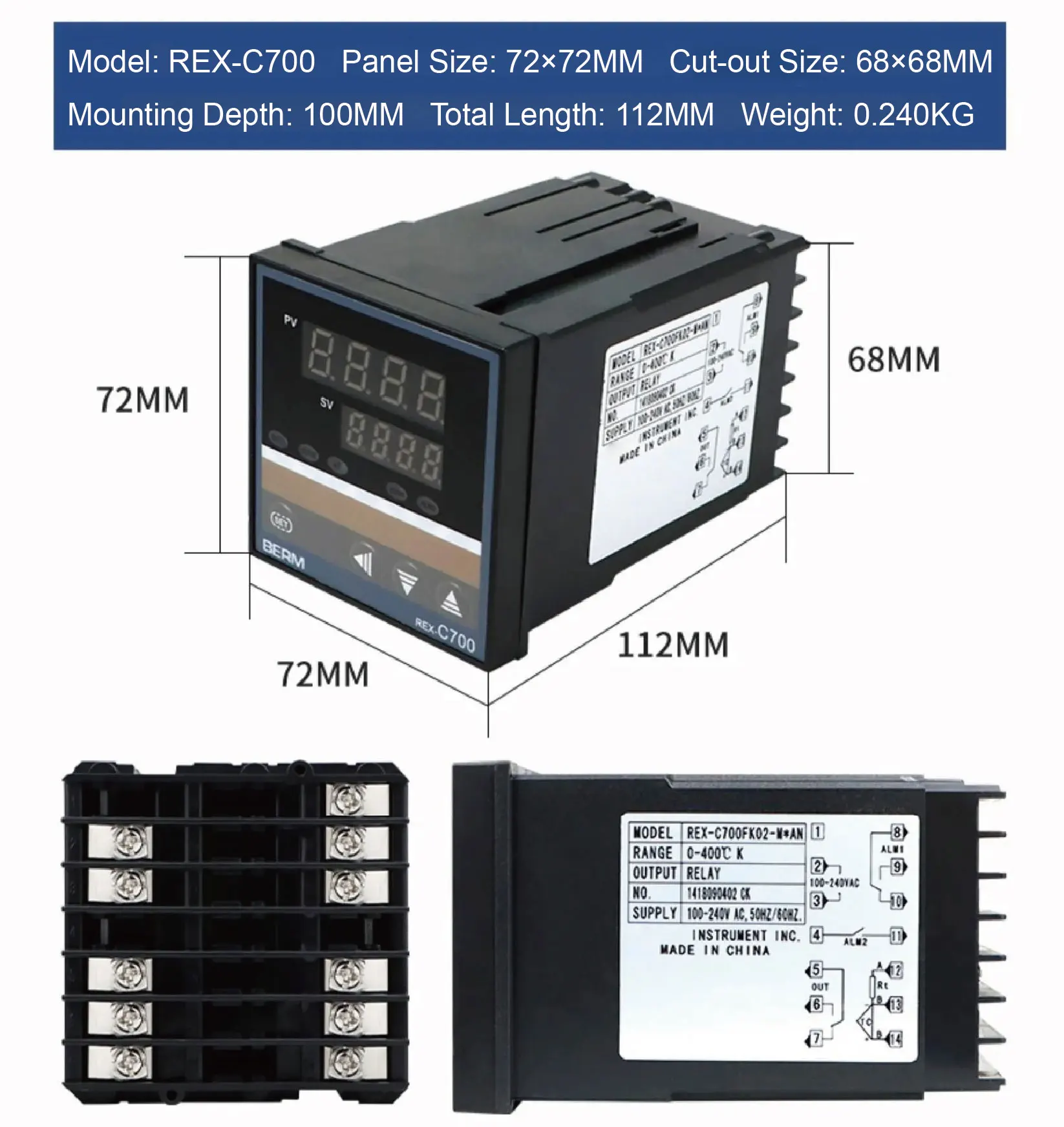

Panel Dimensions: 72x72mm
Mounting Cutout: 68x68mm
Installation Depth: 100mm
Total Length: 112mm
Net Weight: 0.240kg
Power Supply: 100–240VAC / 24VDC

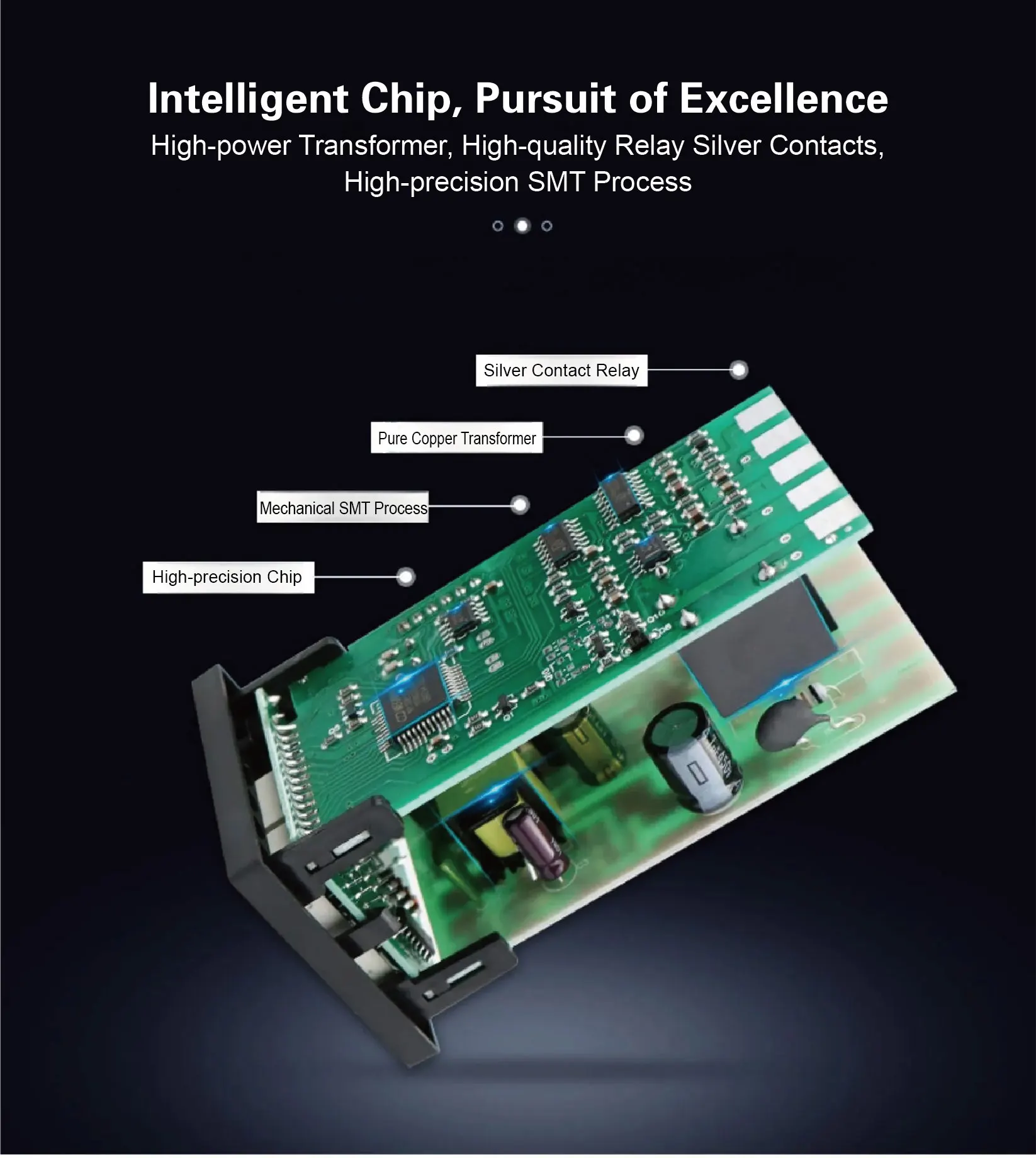

The controller features a high-quality copper transformer to ensure stable power delivery and supports multiple sensor input types, including K, E, and PT100.
Optional configurations include relay or SSR output modes. Customization is available upon request.

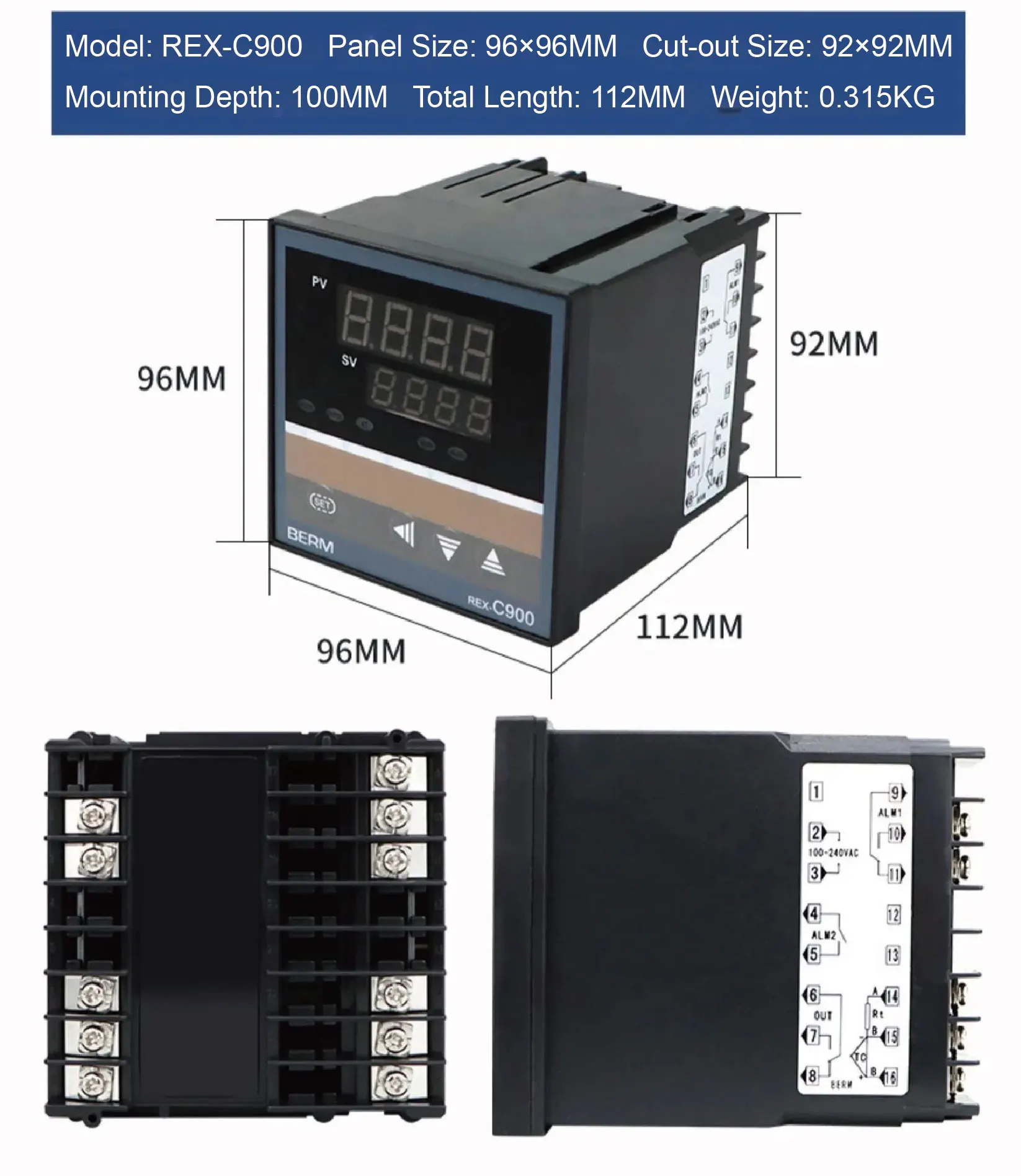

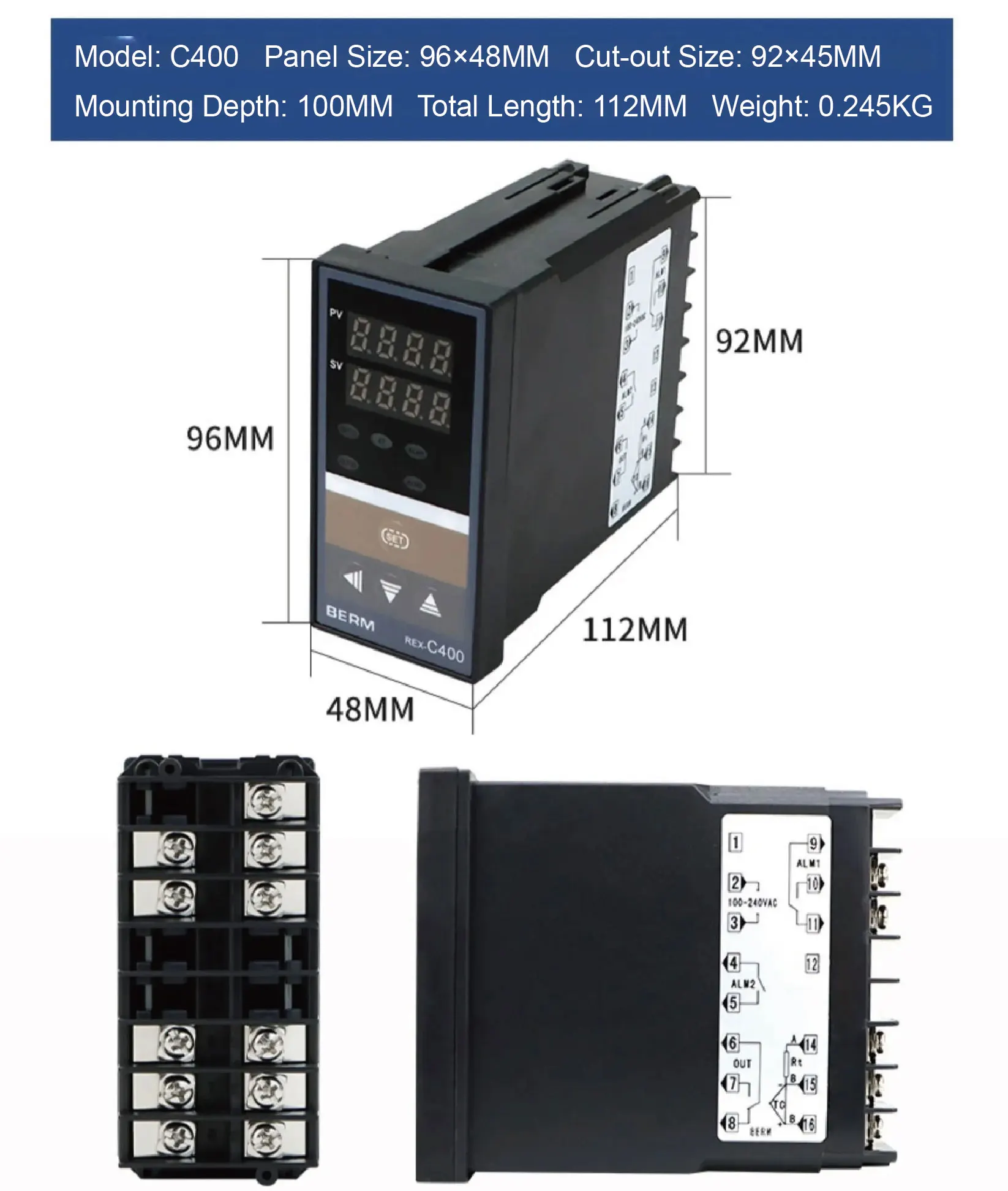

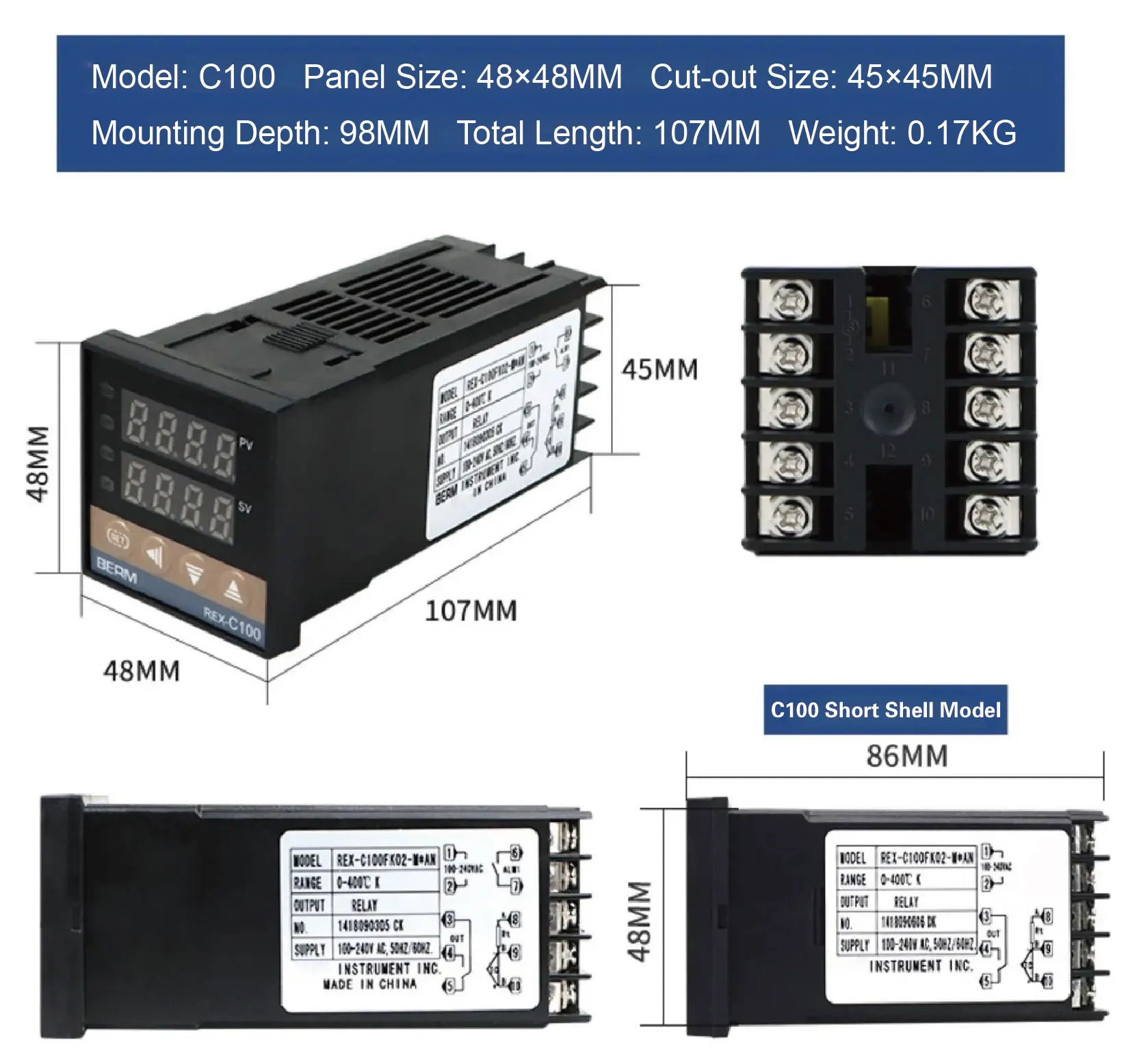

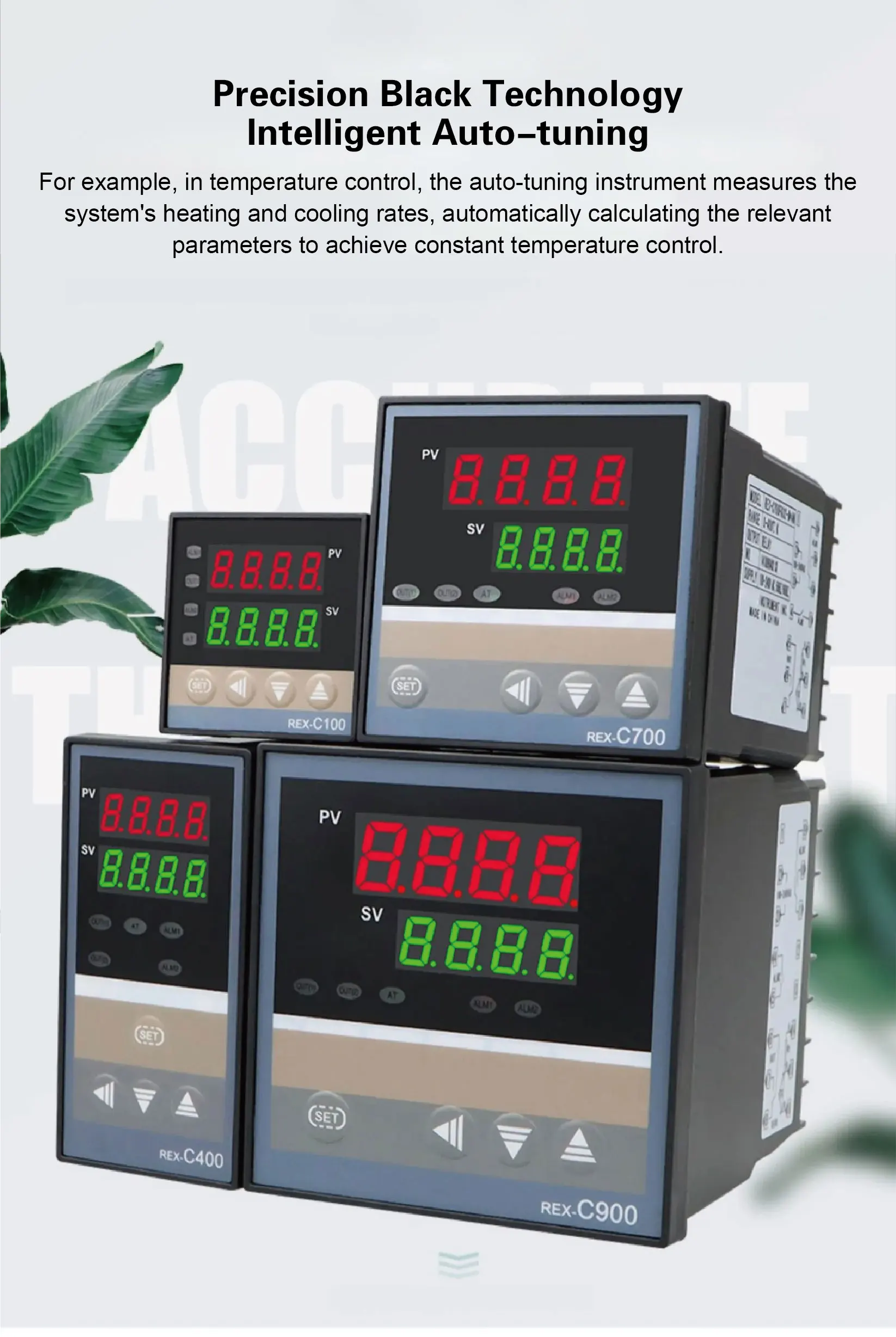

Additional panel sizes available:
45x45mm
92x45mm
92x92mm

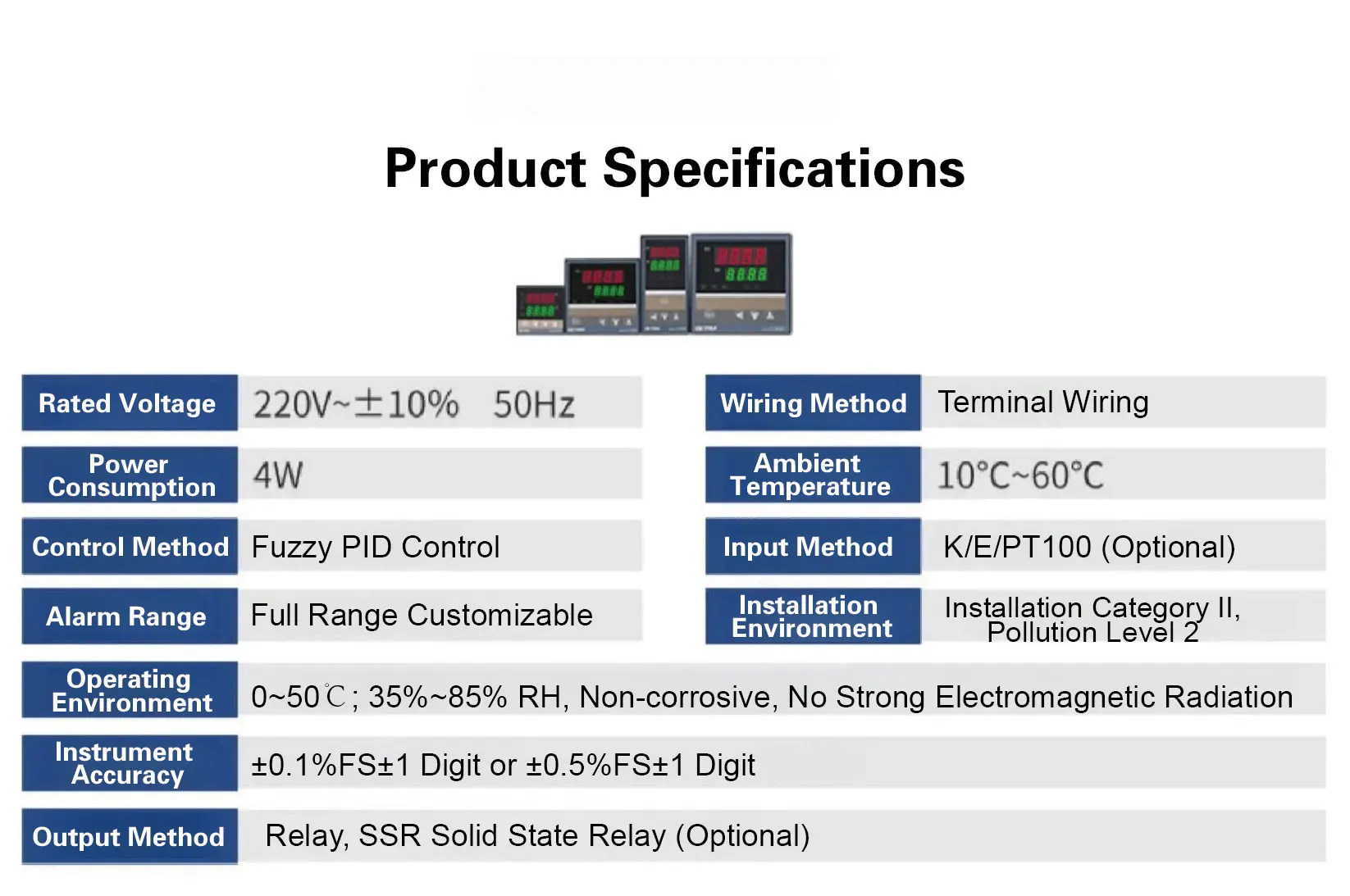

2、Parameters
Parameter | Specification |
Temperature Range | 0–1200°C |
Rated Voltage | 220V~±10% 50Hz |
Power Consumption | 4W |
Control Method | PID fuzzy control |
Alarm Range | Full range adjustable |
Connection Method | Terminal connection |
Operating Environment | 0~50°C, 35–85% RH, no corrosion or EM radiation |
Accuracy | ±0.1%FS±1 digit or ±0.5%FS±1 digit |
Output Options | Relay, SSR (optional) |

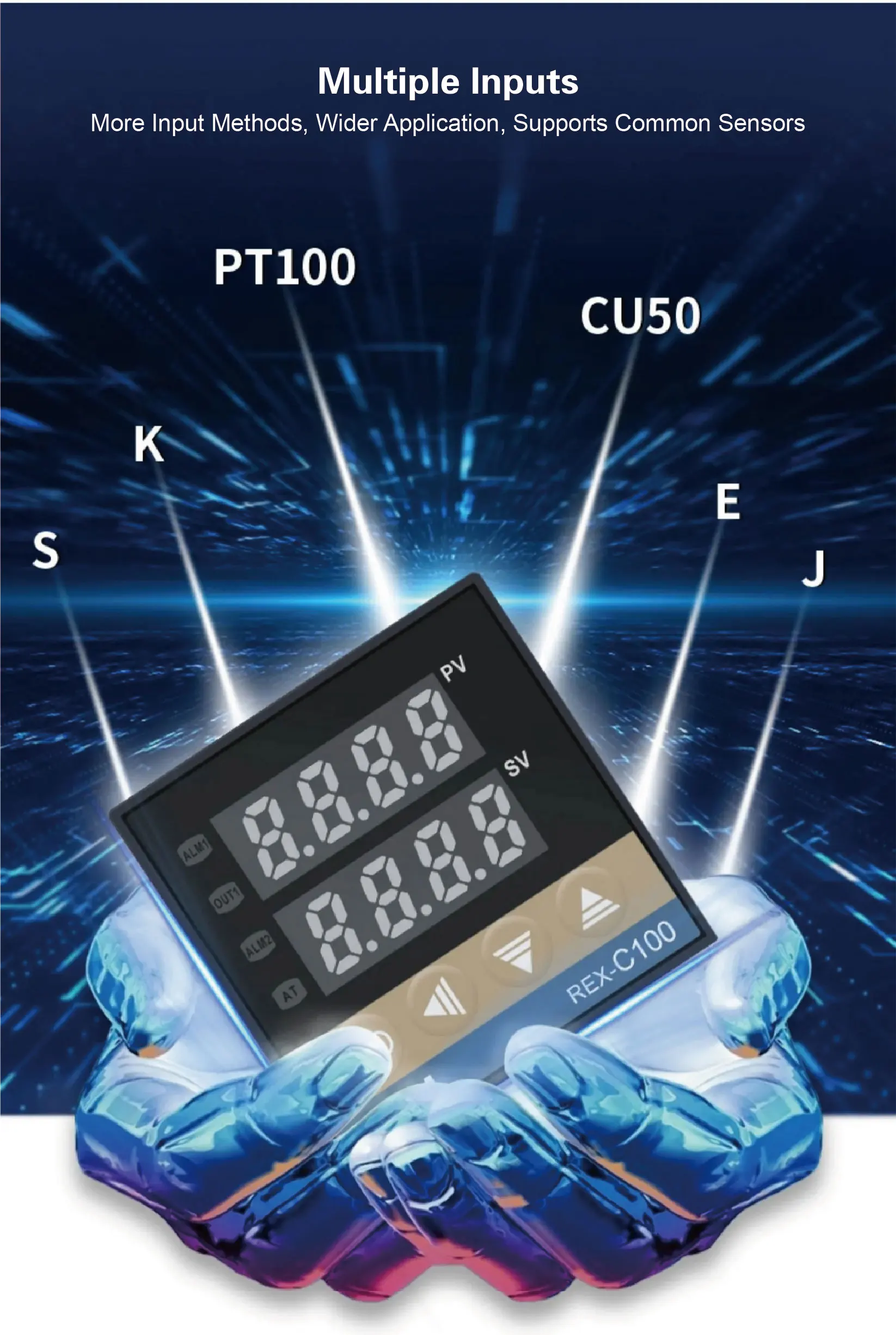

Input Options | K/E/PT100 (selectable) |
3、Features

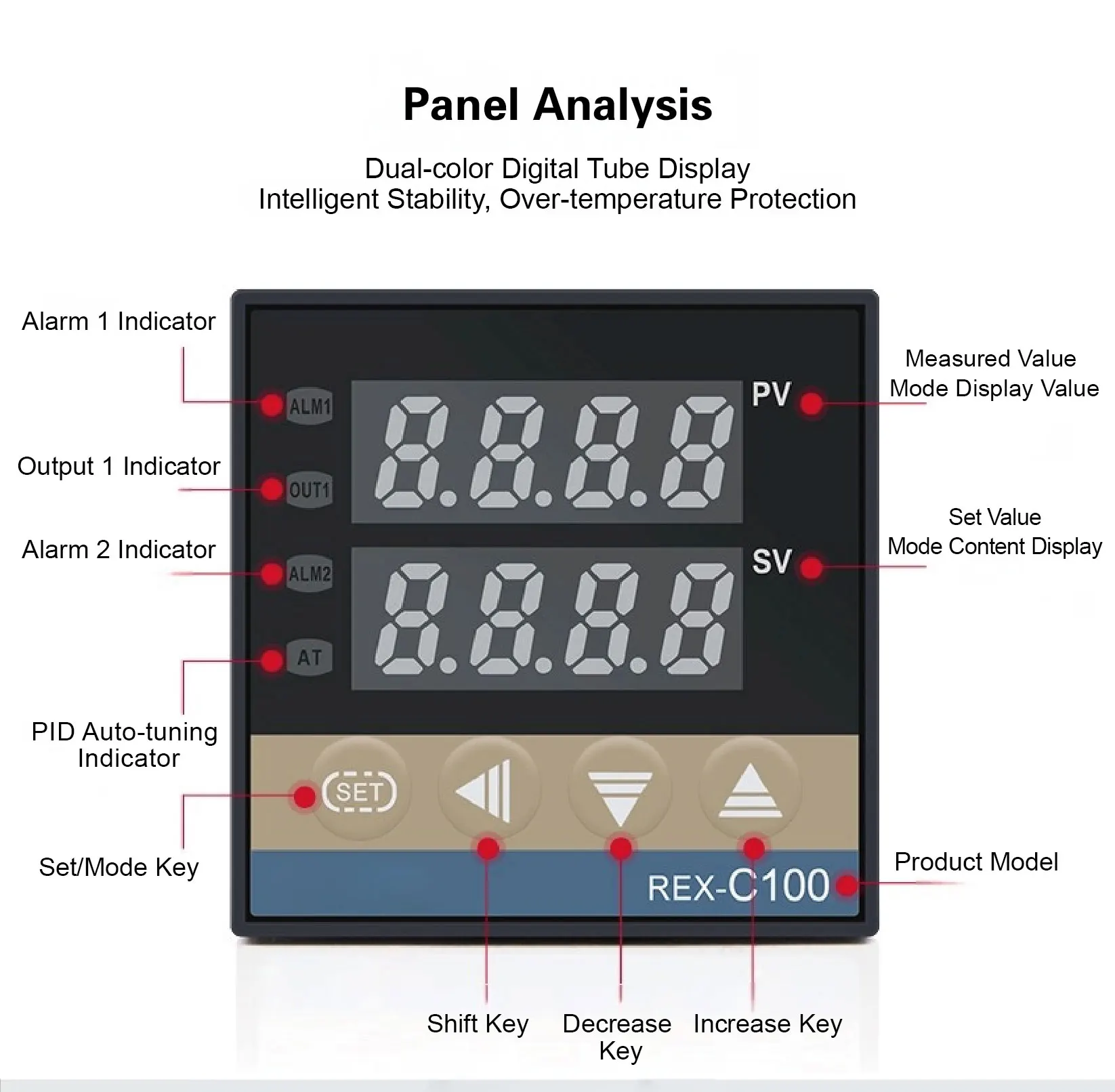

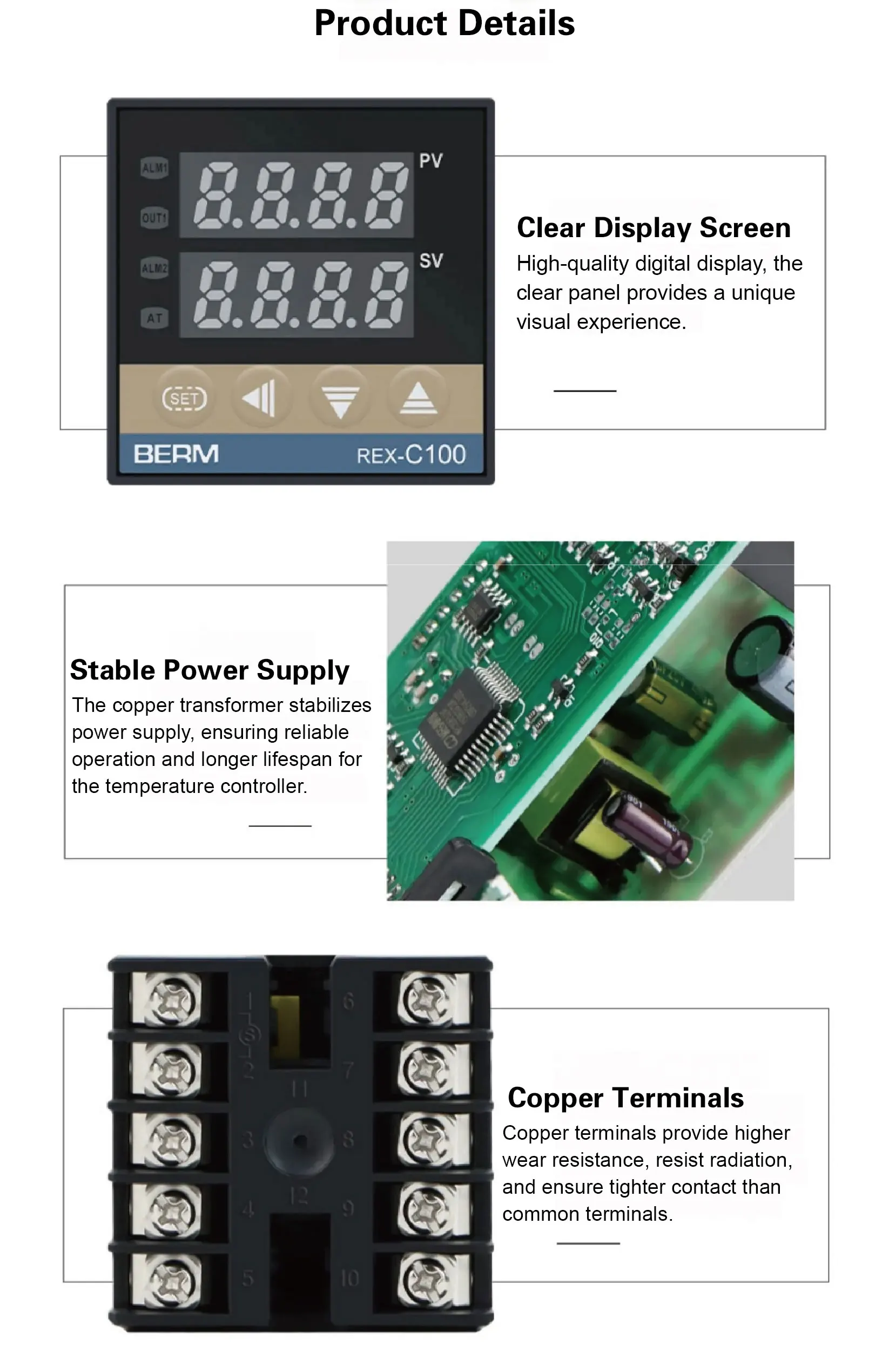

Clear Display
High-quality LED screen provides outstanding visibility and a user-friendly interface for easy operation.
Stable Power Supply
Equipped with a durable copper transformer to deliver consistent power, improving system stability and prolonging the lifespan of the device.

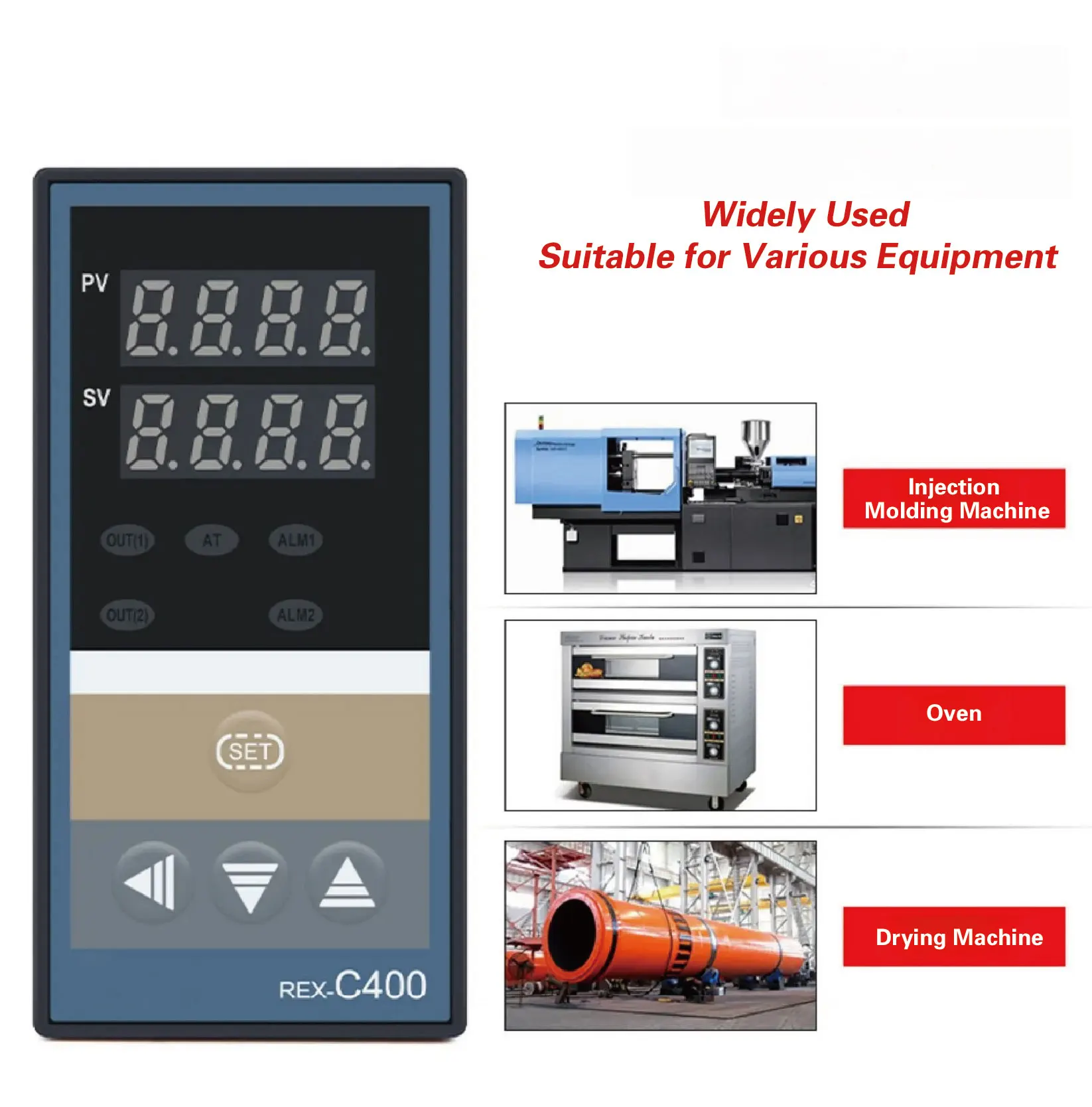

Versatile Applications
Suitable for a wide range of equipment, including injection molding machines, ovens, dryers, and more.
4、Applications
Widely used in industrial processes requiring precise temperature control, including manufacturing, baking, and drying.
5、FAQs
Can this controller handle temperatures up to 1200°C?
Answer: Yes, it supports a temperature range of 0–1200°C with high precision when using the universal input version.
Is it compatible with PT100 sensors?
Answer: Yes, the controller supports K, E, and PT100 sensor input options.
What are the installation requirements?
Answer: Install the device in a clean environment with a pollution degree of 2, following the specified panel dimensions for proper mounting.
