Product Description

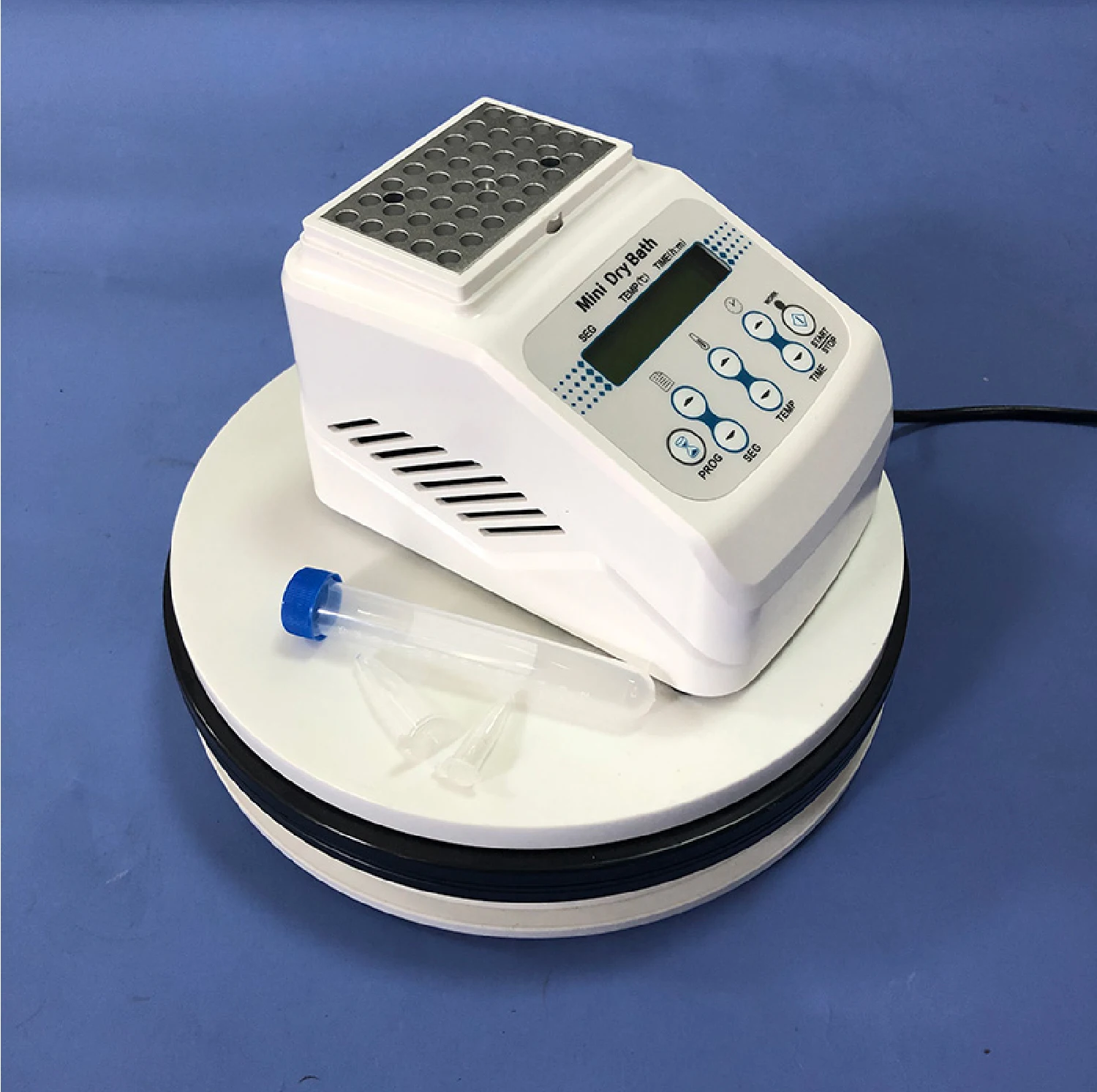

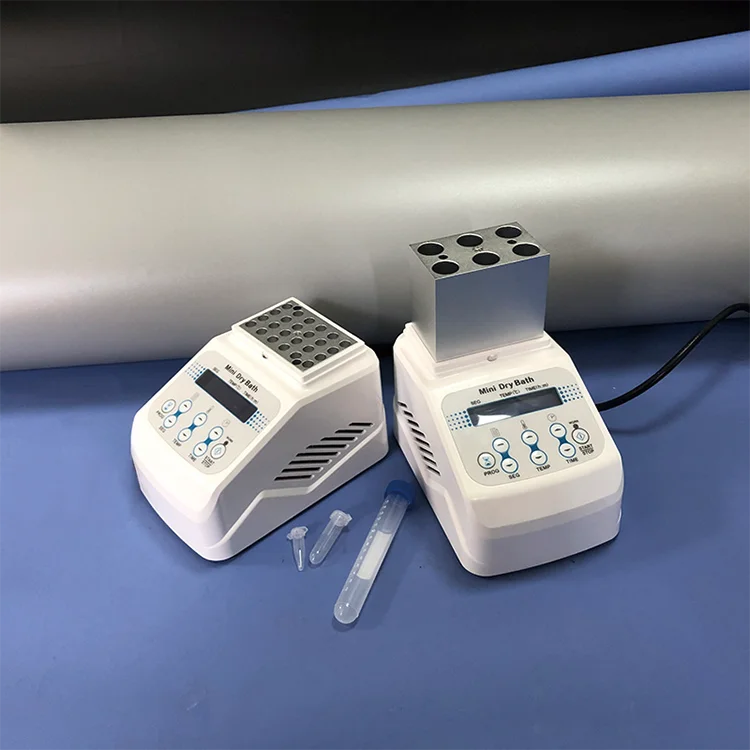

Mini Dry Bath Heater Milk Test Lab Incubator Constant Temperature Block Heating Cooling Thermoblock Aluminum Device
Mini Dry Bath Heater Milk Test Lab Incubator Constant Temperature Block Heating Cooling Thermoblock Aluminum Device1.NOTE
Default Specifications

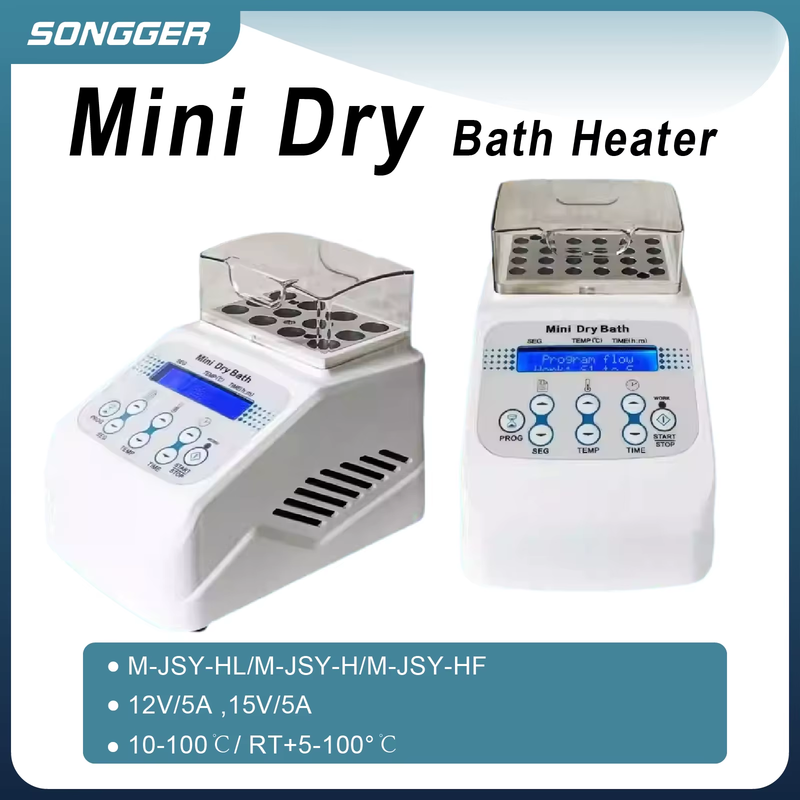

Model Options:
JSY-H (Heating only): RT+5 to 100°C, Power Supply: 12V / 5A
M-JSY-HF (Heating + Air Cooling): RT+5 to 100°C, Power Supply: 12V / 5A
M-JSY-HL (Heating + Cooling): 10 to 100°C, Power Supply: 15V / 5A
Default Block Module: 15 × 2.0ml
Customizable Options

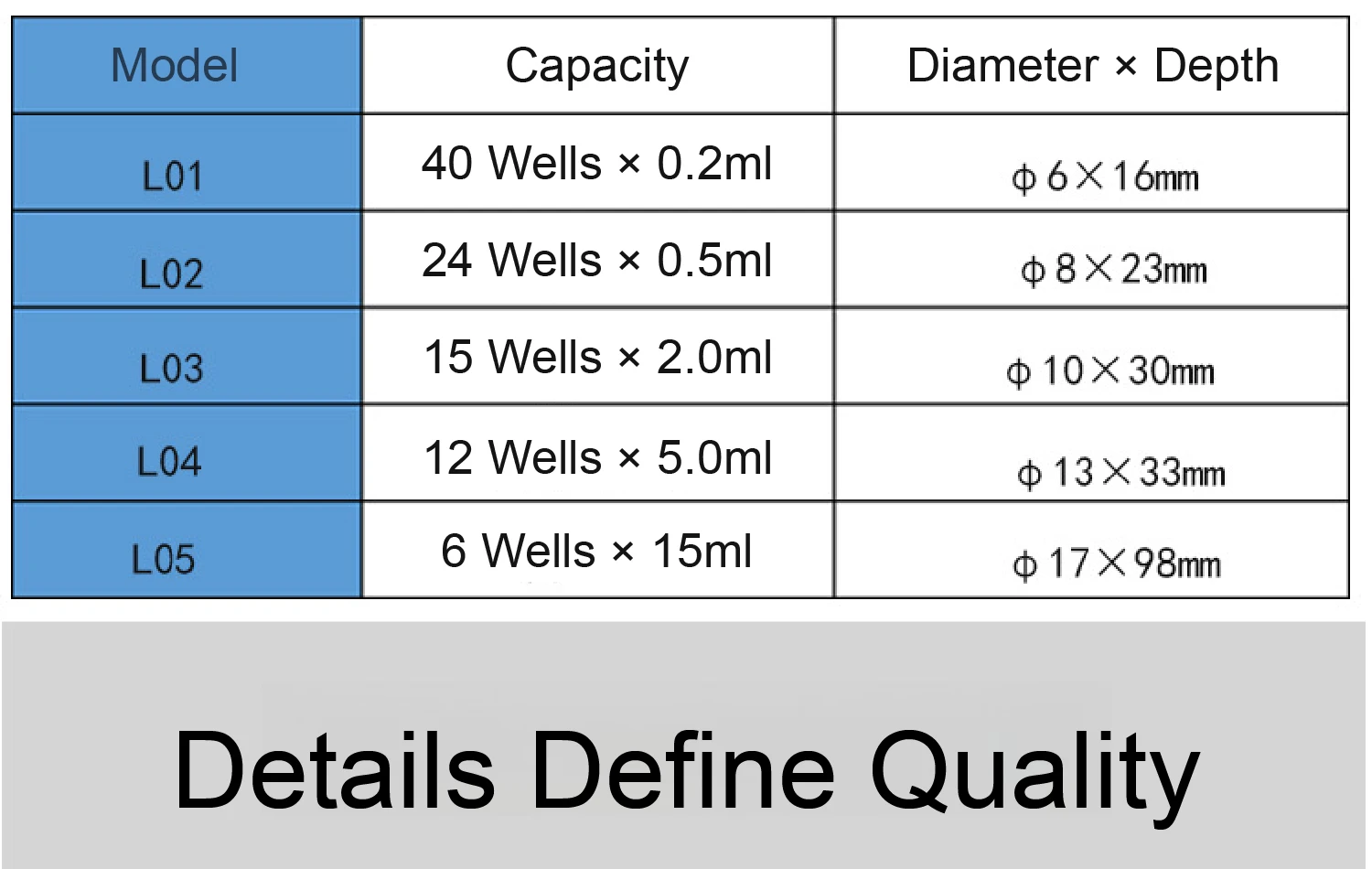

Multiple interchangeable block modules available:
40 × 0.2ml
24 × 0.5ml
12 × 5.0ml
32 × 0.2ml (specialized for milk applications)
2.Parameters
Parameter | M-JSY-HL | M-JSY-H | M-JSY-HF |
Temperature Control Range | 10 – 100°C | RT +5 – 100°C | RT +5 – 100°C |
Time Setting Range | 1 min – 99 h 59 min | 1 min – 99 h 59 min | 1 min – 99 h 59 min |
Temperature Fluctuation | ≤ ±0.5°C | ≤ ±0.5°C | ≤ ±0.5°C |
Block Temperature Uniformity | ≤ ±0.5°C | ≤ ±0.5°C | ≤ ±0.5°C |
Temperature Control Accuracy | ≤ ±0.3°C | ≤ ±0.3°C | ≤ ±0.3°C |
Display Accuracy | ±0.1°C | ±0.1°C | ±0.1°C |
Temperature Deviation Correction | Supported | Supported | Supported |
Multi-point Program Control | Up to 5 temperature/time sets | Up to 5 temperature/time sets | Up to 5 temperature/time sets |
Power Supply | 15V / 5A | 12V / 5A | 12V / 5A |
Safety Features | Startup self-check, overheat protection, fault alarms | Same | Same |
Cooling Method | Semiconductor cooling | Natural cooling | Fast fan cooling |
Net Weight | 1.8 kg | 1.2 kg | 1.2 kg |
Dimensions | 110 × 170 × 140 mm | 110 × 170 × 140 mm | 110 × 170 × 140 mm |
Max Power | 60W | 30W | 30W |
Module Capacity | 1 block | 1 block | 1 block |
3.Features
Accurate Real-Time Temperature Control
Display both real-time temperature and countdown, ensuring visibility and reliability during experiments.
Programmable Temperature Settings
Supports up to 5 programmable stages for temperature and time, ideal for complex experimental workflows.
Replaceable Aluminum Heating Blocks
Easy-to-change anodized blocks ensure fast heating, excellent thermal conductivity, and simplified cleaning.
Built-in Over-temperature Protection
Safety-focused design includes self-diagnostics and automatic shutdown to prevent overheating.
Transparent Thermal Cover
Prevents temperature drift due to air flow or water vapor interference, enhancing experiment accuracy.
Compact and Durable Design
ABS high-strength casing with efficient air vents, suitable for continuous lab operation.
4.Applications
Nucleic acid and protein denaturation
Enzyme preservation and reaction incubation
PCR sample preparation and pre-electrophoresis treatment
Serum coagulation experiments
General laboratory sample heating or preservation
5.FAQs
Q1: Can the heating blocks be customized or replaced?
A: Yes, interchangeable aluminum blocks are available in various formats to fit different tube sizes or applications.
Q2: Does the device support cooling?
A: Depending on the model. The HL version supports semiconductor cooling, while H and HF use natural or fan-assisted cooling.
Q3: Is it suitable for time-based thermal cycling?
A: Yes. The multi-point temperature program allows you to pre-set up to 5 temperature stages and run them sequentially.
