Product Description

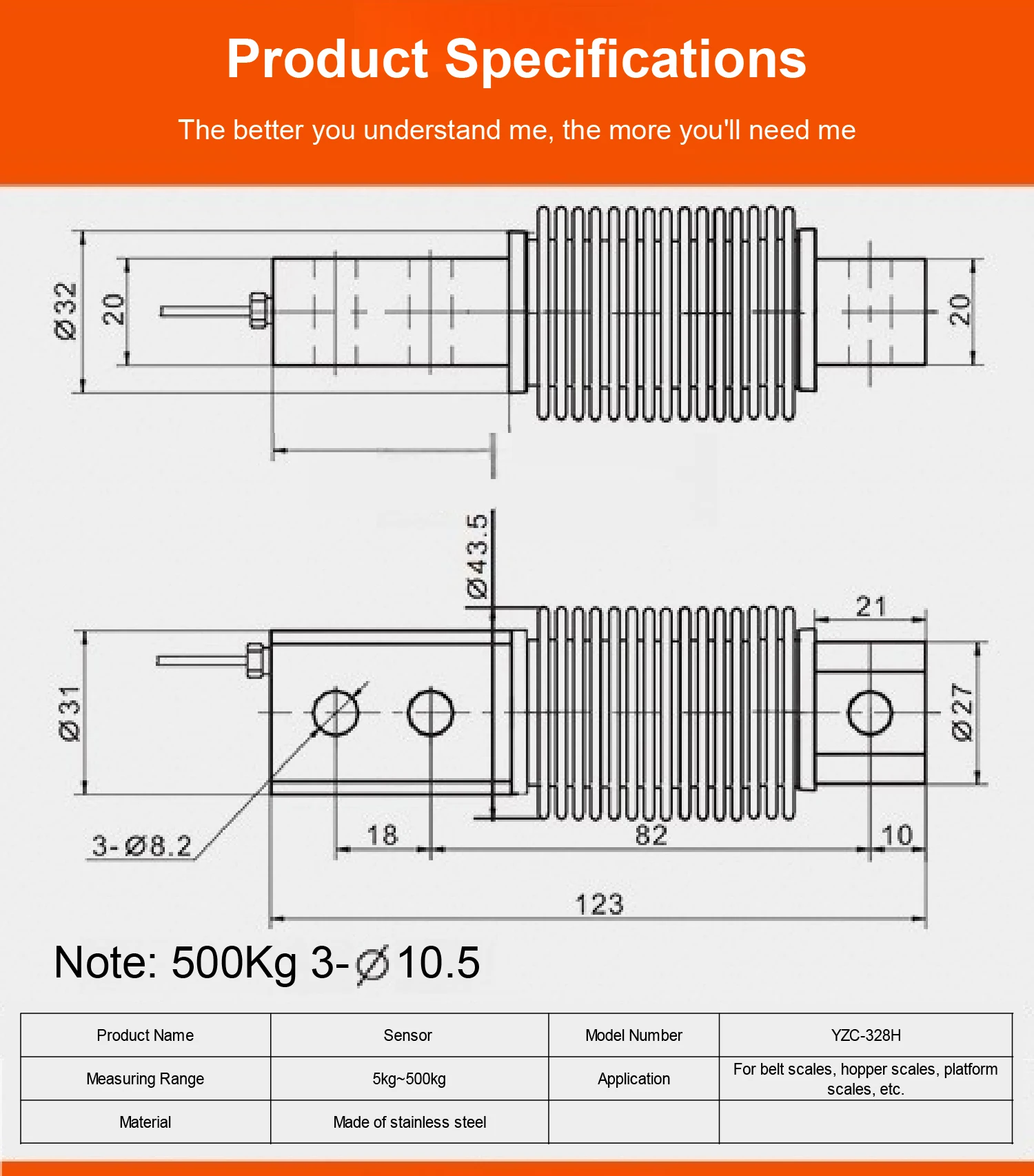

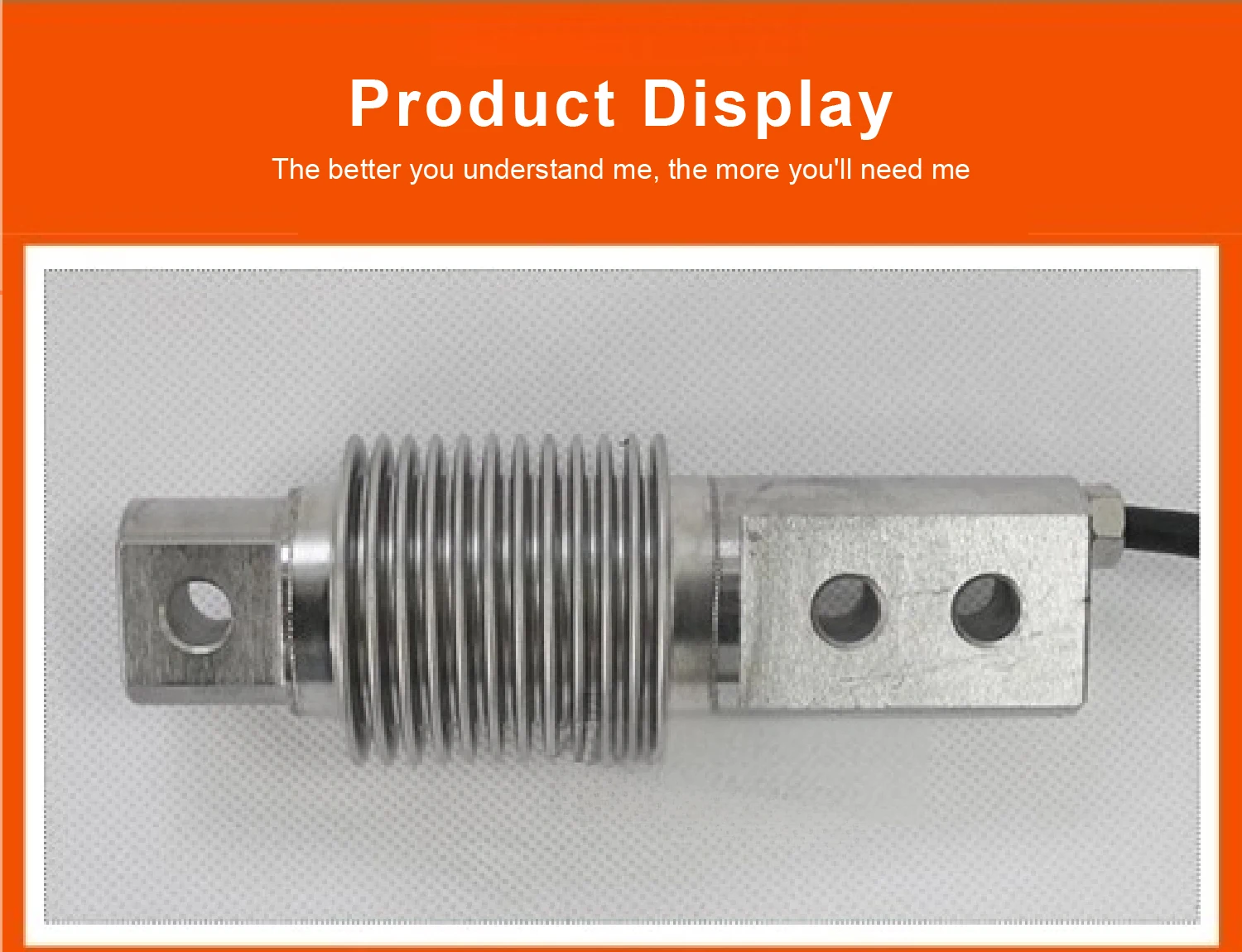

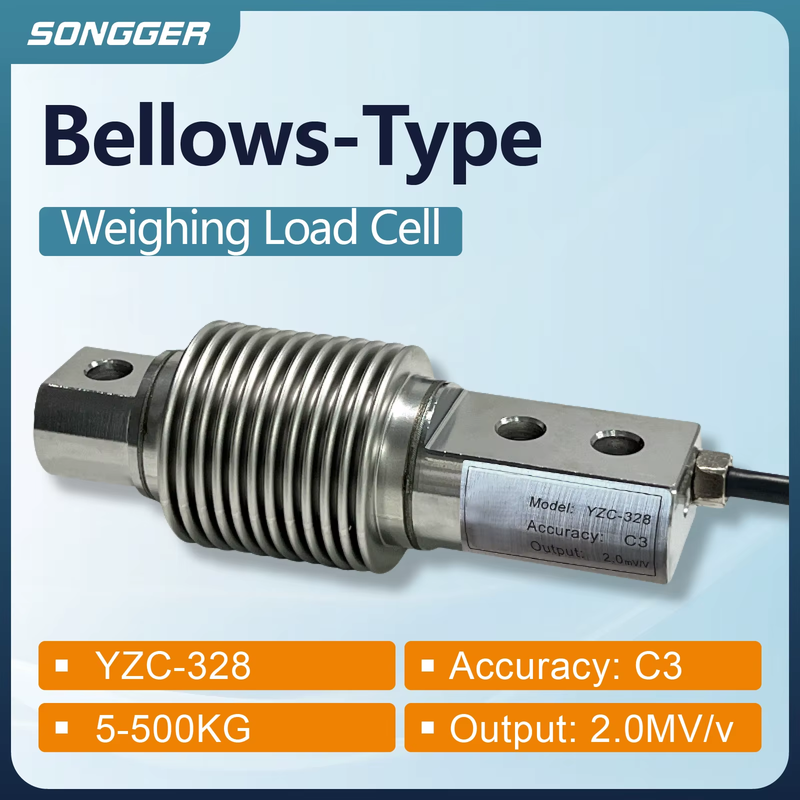

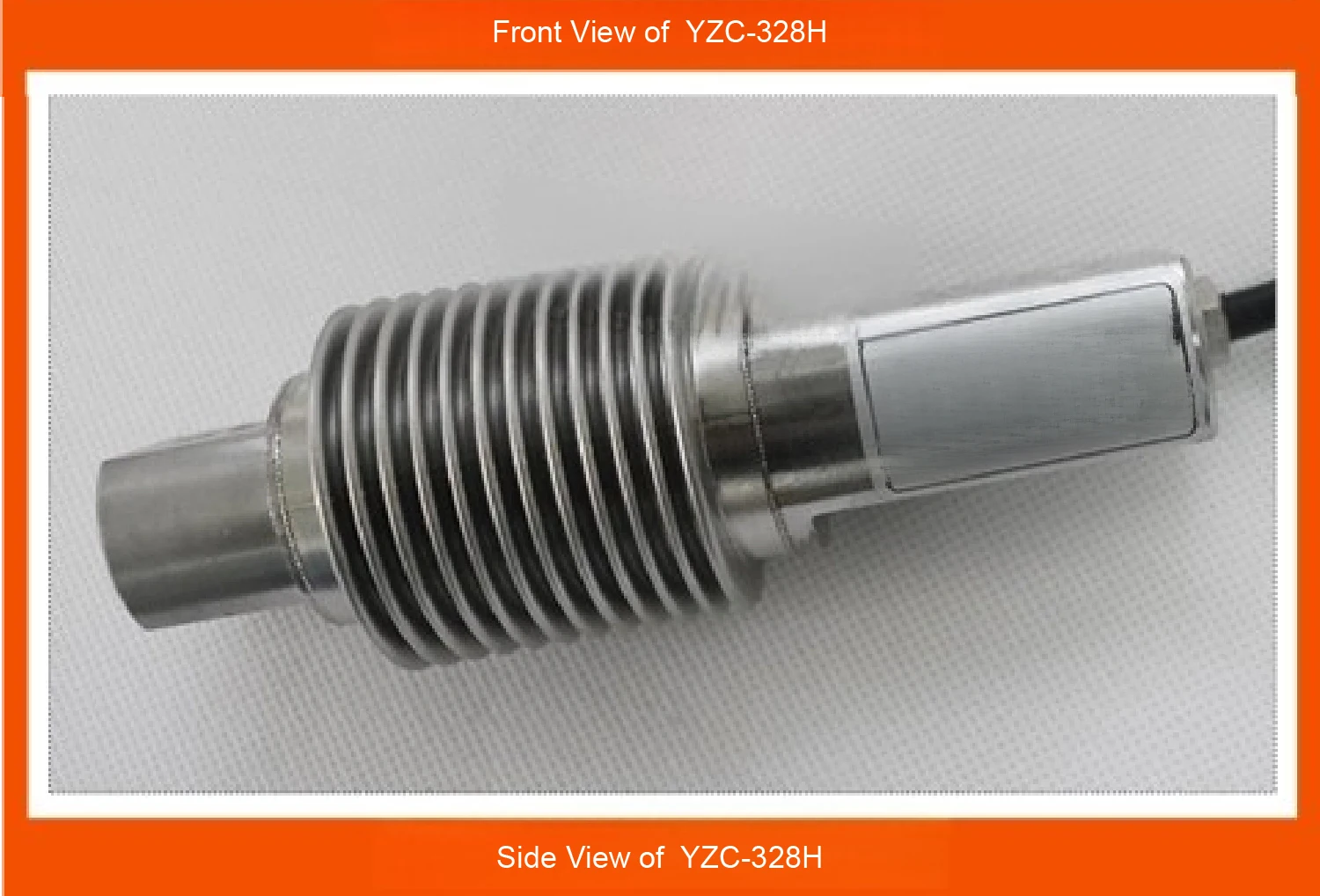

YZC-328 Stainless Steel Bellows Load Cell 5-500kg for Belt Scale Hopper Scale Batching Scale High Precision Sensor
YZC-328 Stainless Steel Bellows Load Cell 5-500kg for Belt Scale Hopper Scale Batching Scale High Precision Sensor1.NOTE
Default Parameters:
Capacity Range: 5KG–500KG
Material: Stainless Steel
Protection Class: IP68
Accuracy: C3
Applications: Suitable for belt scales, hopper scales, platform scales, etc.
Usage: Must be used with a weighing indicator!
Note: Due to page limitations, some configurations are not fully listed. For customization, please contact us.

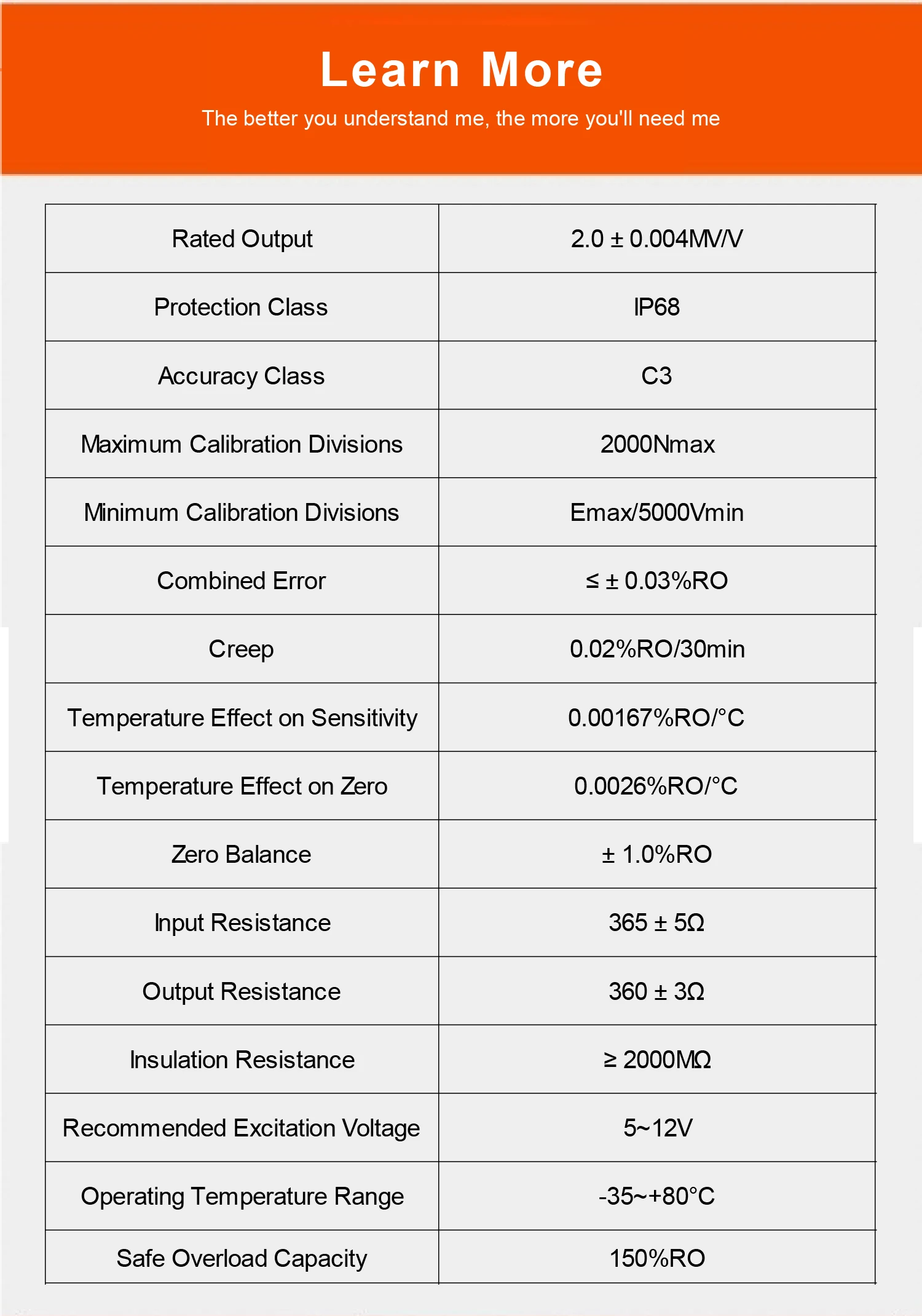

2. Parameters
Parameter | Specification |
Product Model | YZC-328H |
Capacity Range | 5kg ~ 500kg |
Material | Stainless Steel |
Output Sensitivity | 2.0 ± 0.004 mV/V |
Protection Class | IP68 |
Accuracy Class | C3 |
Max. Verification Scale | 2000 Nmax |
Min. Verification Scale | Emax/5000 Vmin |
Combined Error | ≤ ±0.03% RO |
Creep (30 min) | 0.02% RO |
Temp. Effect on Sensitivity | 0.00167% RO/°C |
Temp. Effect on Zero | 0.0026% RO/°C |
Input Resistance | 365 ± 5 Ω |
Output Resistance | 360 ± 3 Ω |
Insulation Resistance | ≥ 2000 MΩ |
Recommended Excitation Voltage | 5 ~ 12 VDC |
Operating Temperature Range | -35°C to +80°C |
Safe Overload Capacity | 150% RO |
3. Features

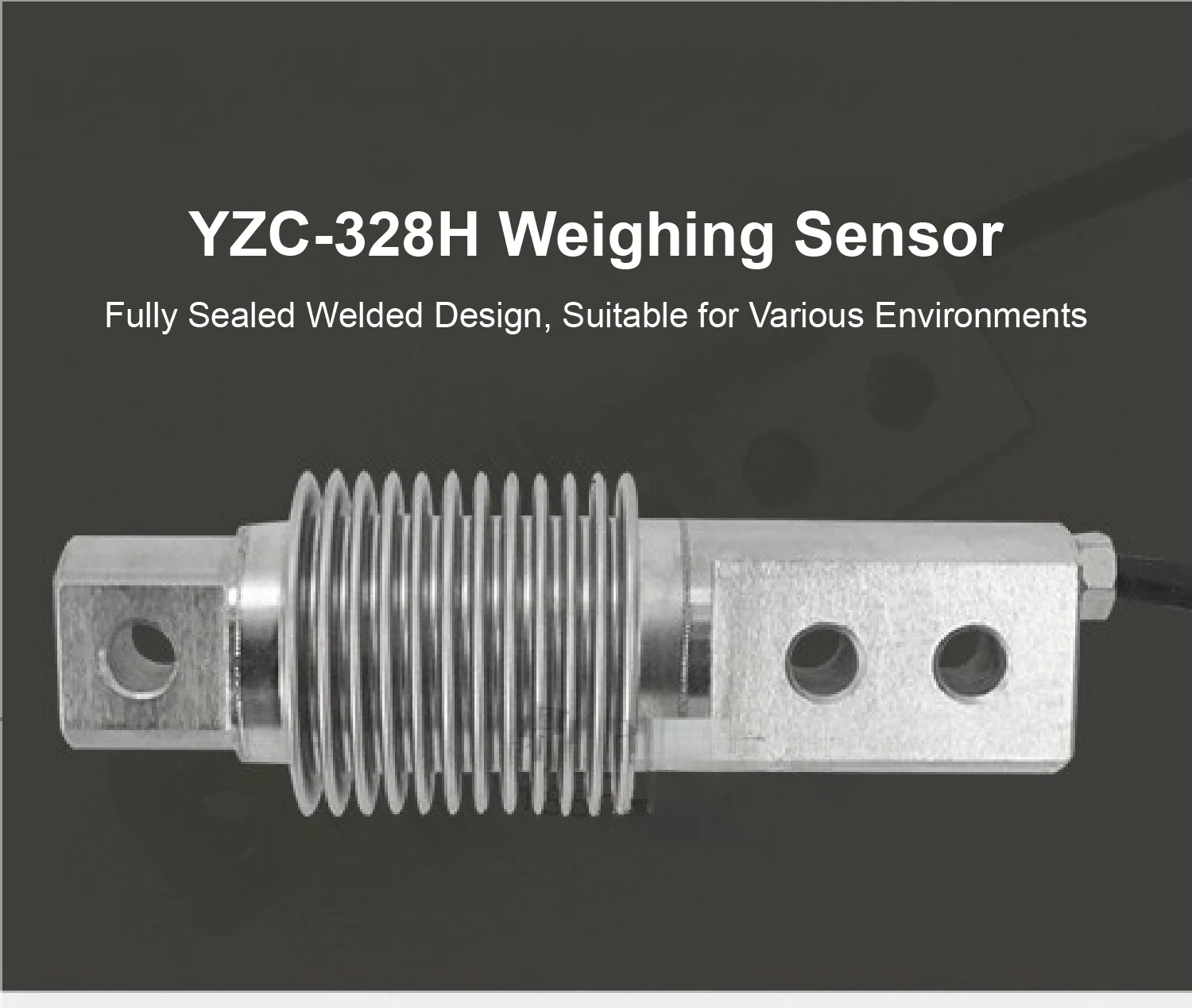

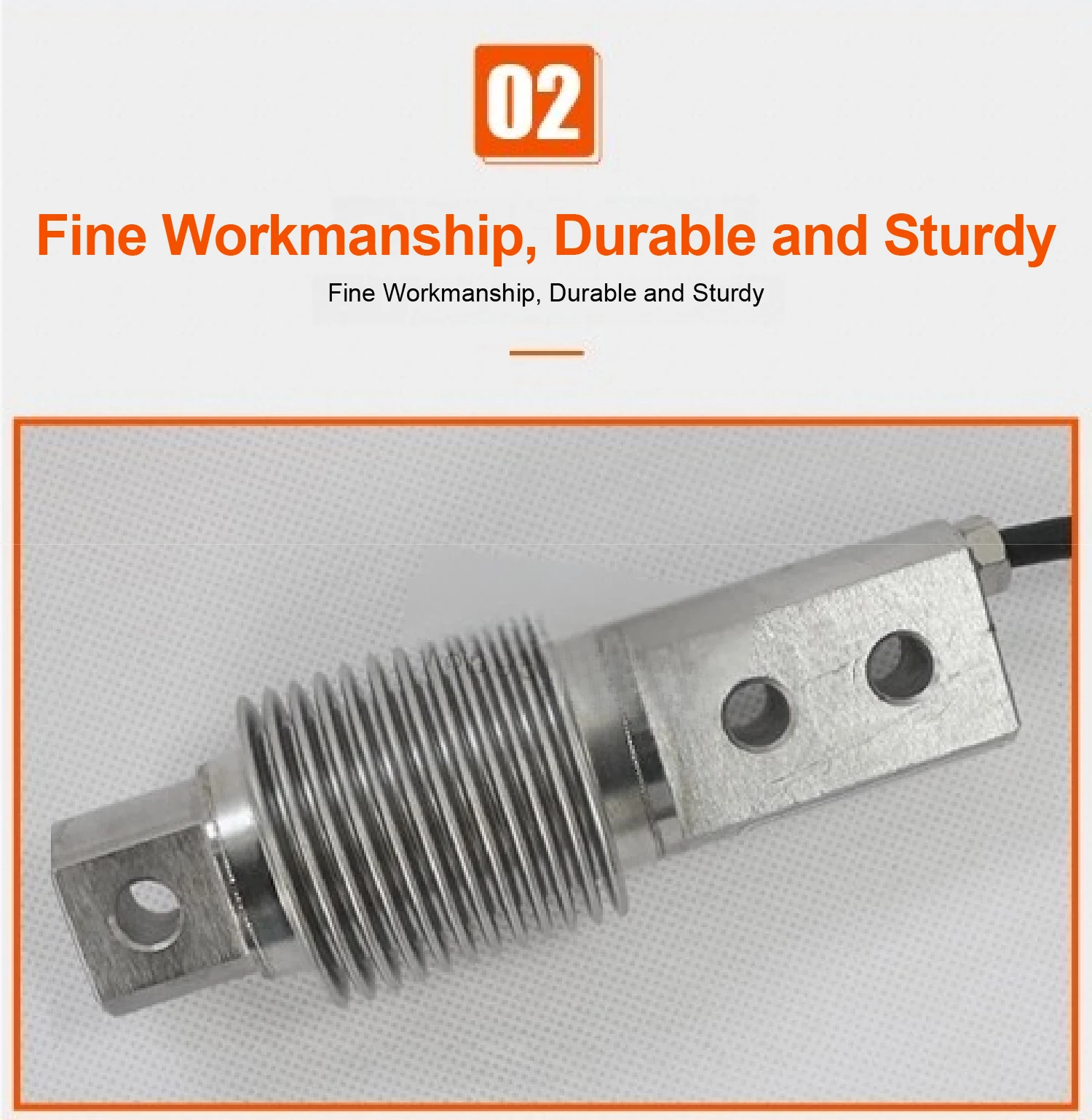

Fully Sealed Stainless Steel Housing
Designed for high resistance to moisture, corrosion, and mechanical stress.
High Precision and Stability (C3 Class)
Provides reliable measurement in various demanding industrial conditions.
IP68 Protection Rating
Excellent dustproof and waterproof performance for harsh environments.

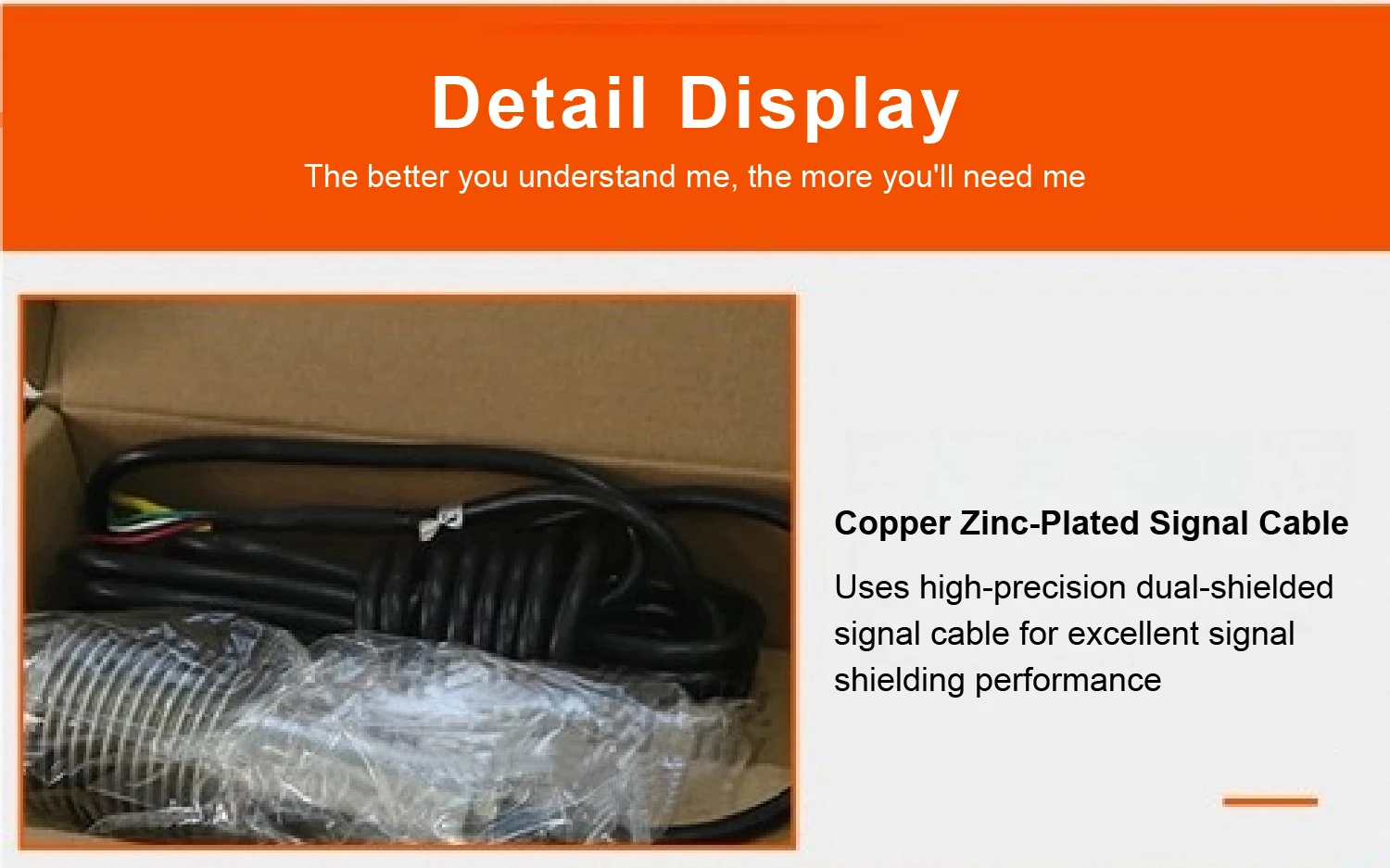

Shielded Signal Cable
Double-layer shielding minimizes interference for accurate signal transmission.

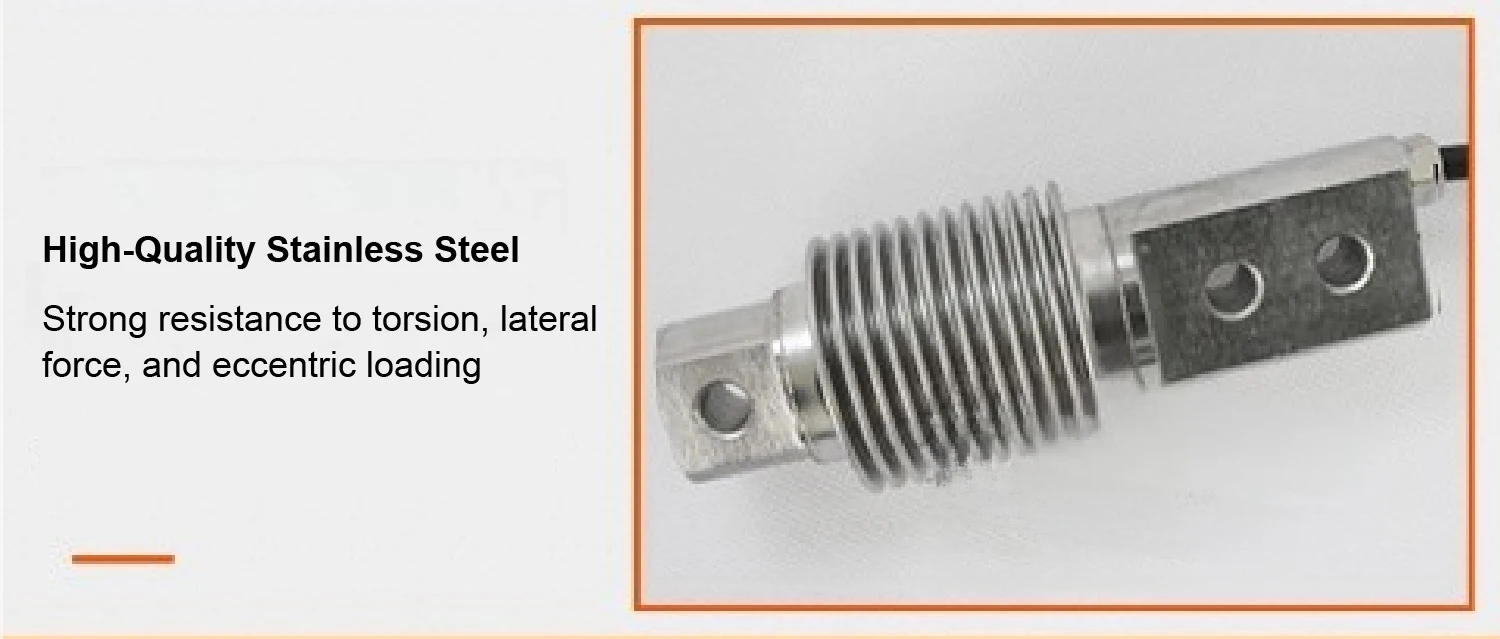

Excellent Load Handling
Strong resistance to torsion, side load, and off-center loading for versatile applications.
4. Applications
Perfect for industrial applications such as:
Belt scales
Hopper scales
Platform scales
General-purpose industrial weighing systems
5. FAQs
Q1: Is the load cell suitable for outdoor environments?
A1: Yes, its IP68 protection and stainless steel construction make it ideal for outdoor or wet conditions.
Q2: What weighing systems is this compatible with?
A2: It is compatible with belt scales, hopper scales, and platform scales.
Q3: What is the recommended excitation voltage?
A3: The recommended voltage is 5 to 12V DC for optimal performance.
