Wall Mounted Illuminance Sensor 4-20mA 0-10V RS485 Output Selectable Range 65535

Product Description

Note
Due to page space constraints, not all configurations are listed. Please contact us for detailed information.

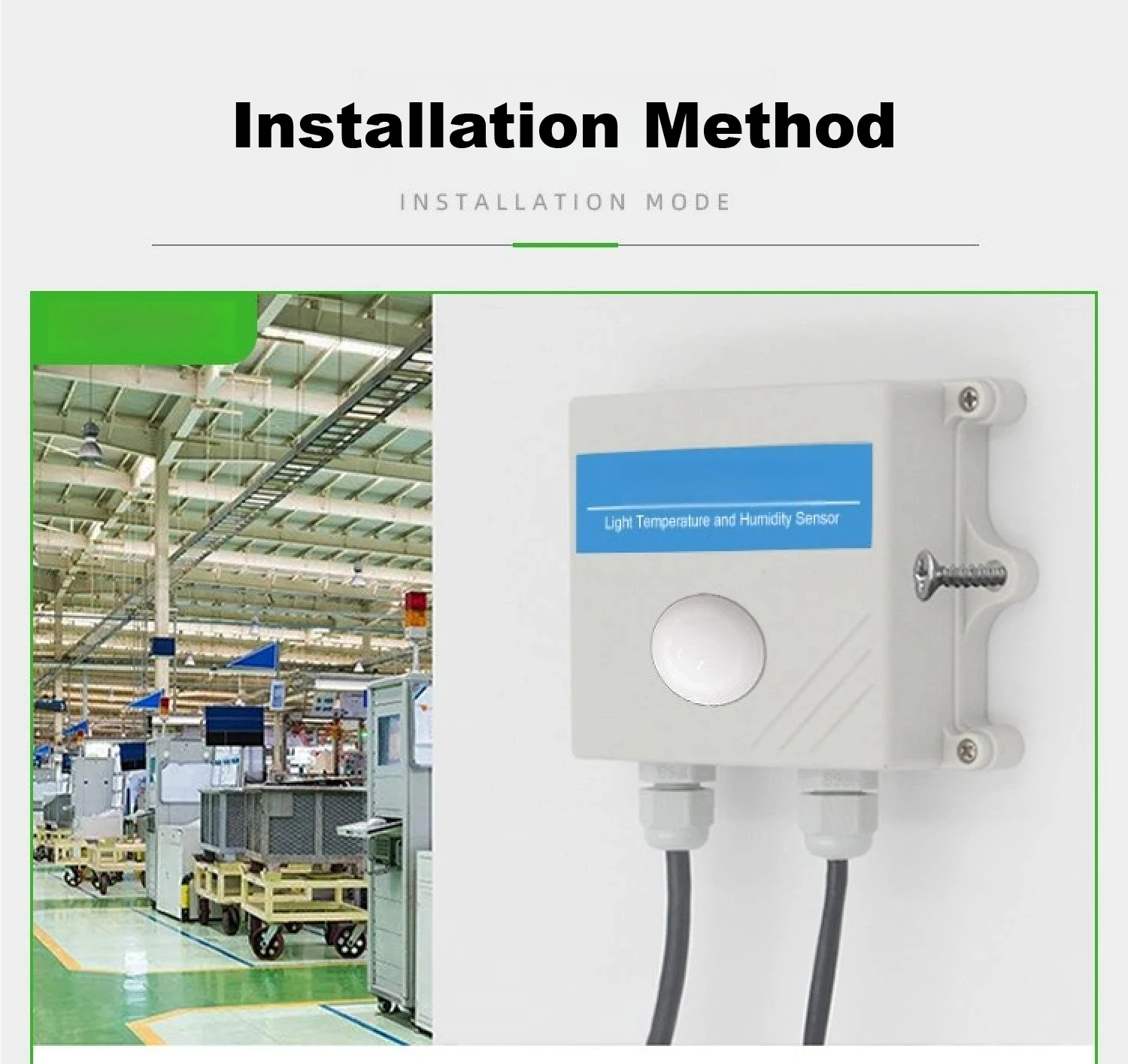

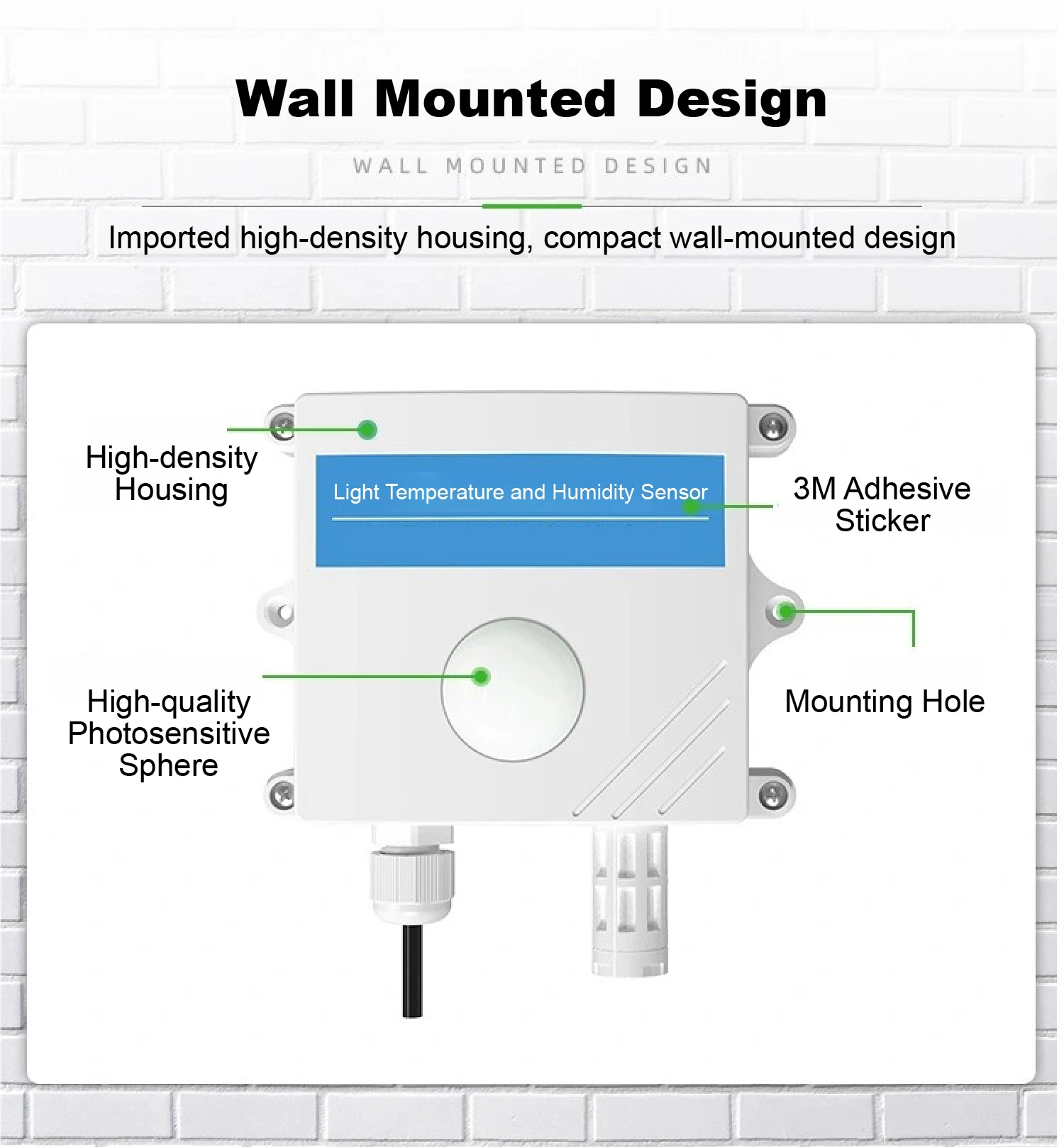

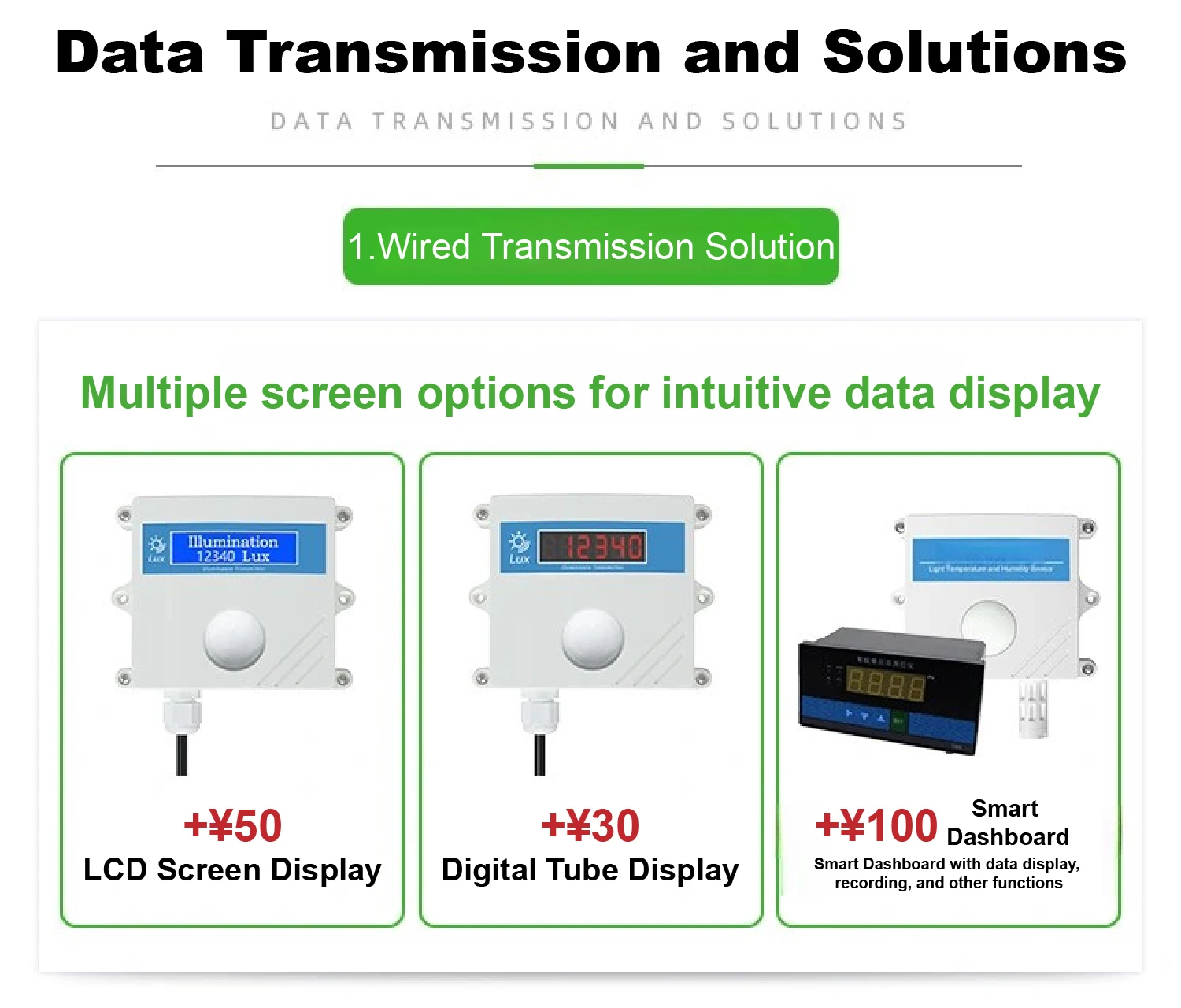

Default configuration: Wall-mounted unit with a built-in probe, available in non-display, LCD, or LED versions.
Integrated 3-in-1 Sensor: Measures illuminance, temperature, and humidity in one compact device.

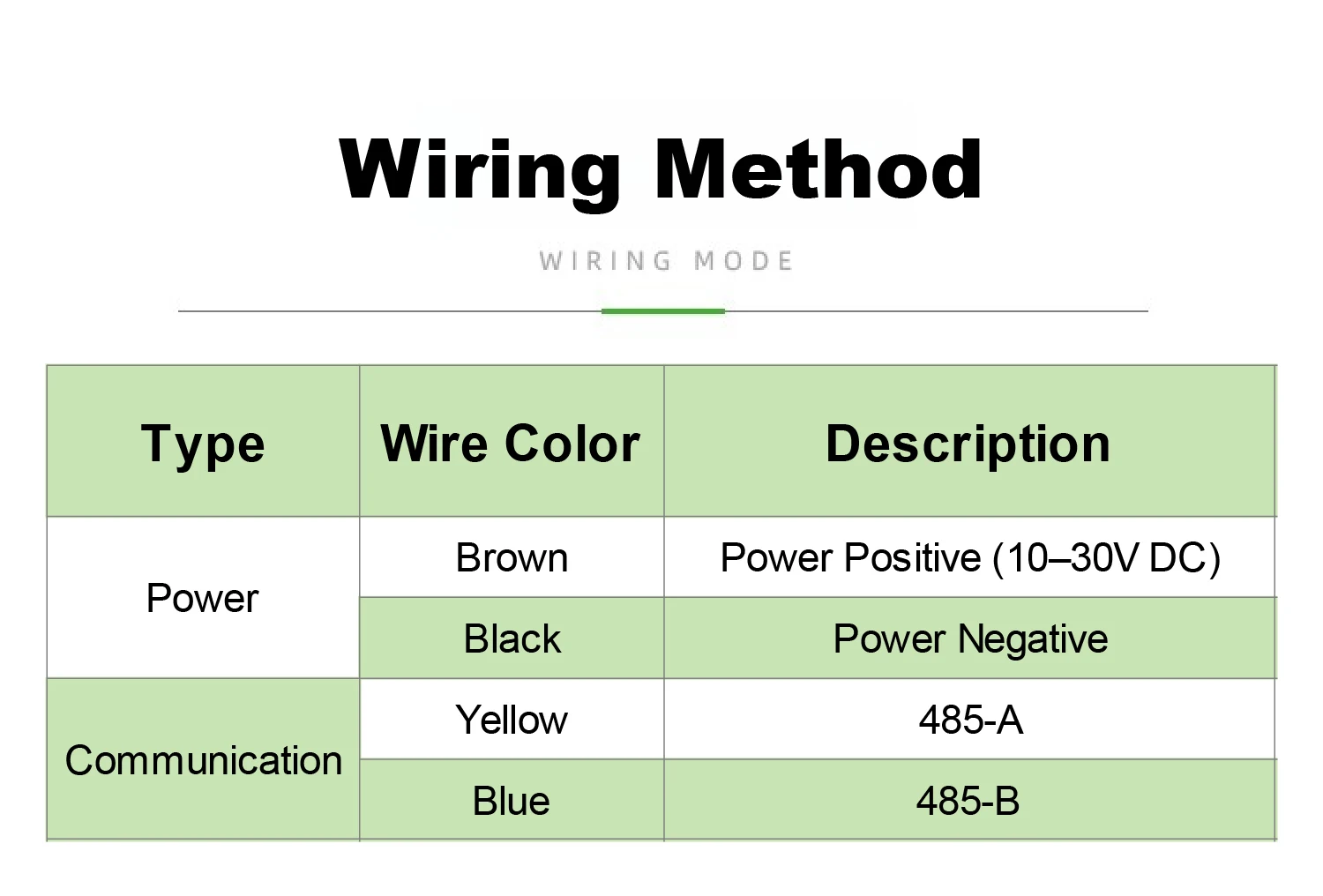

Power Supply: DC10–30V (other options available).

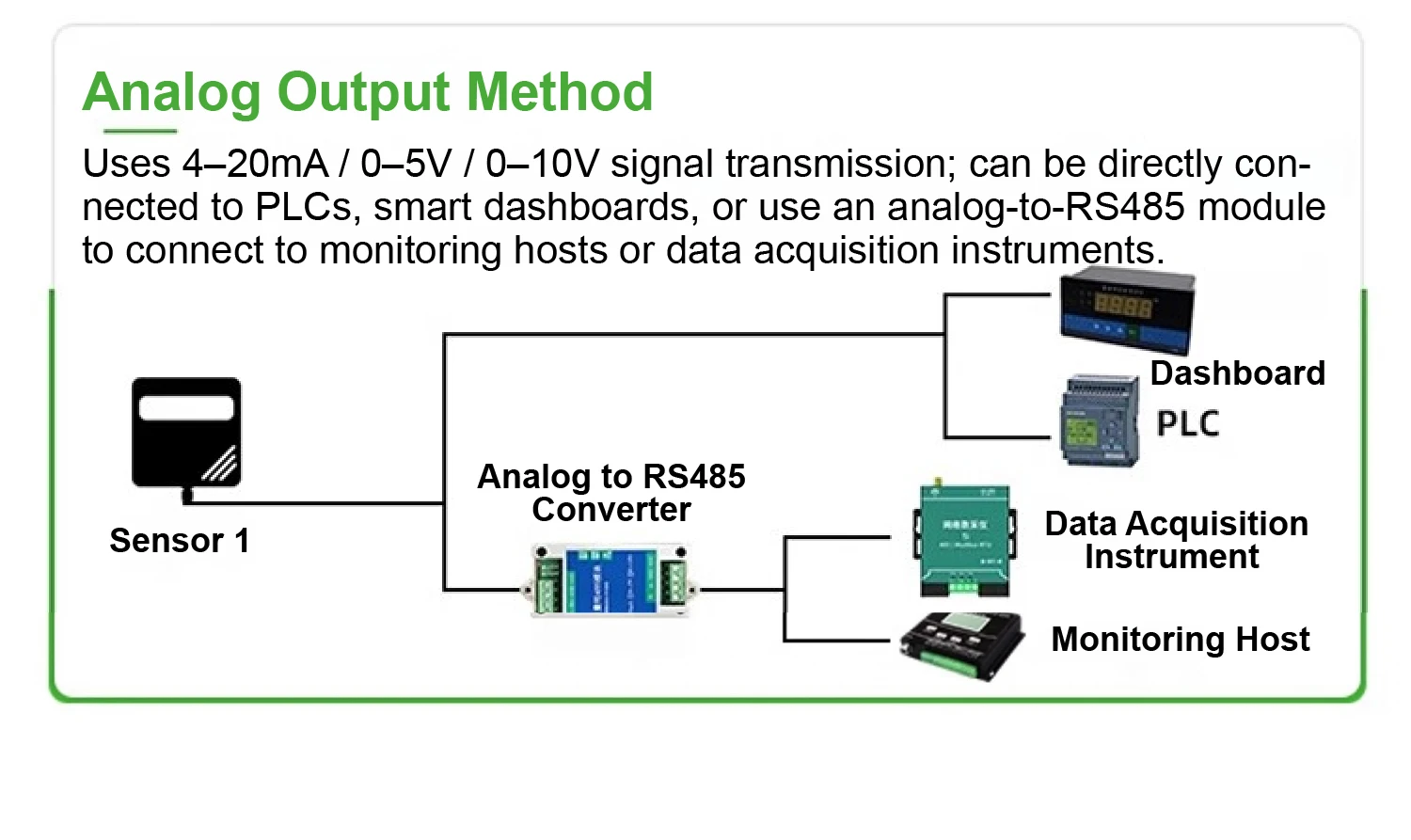

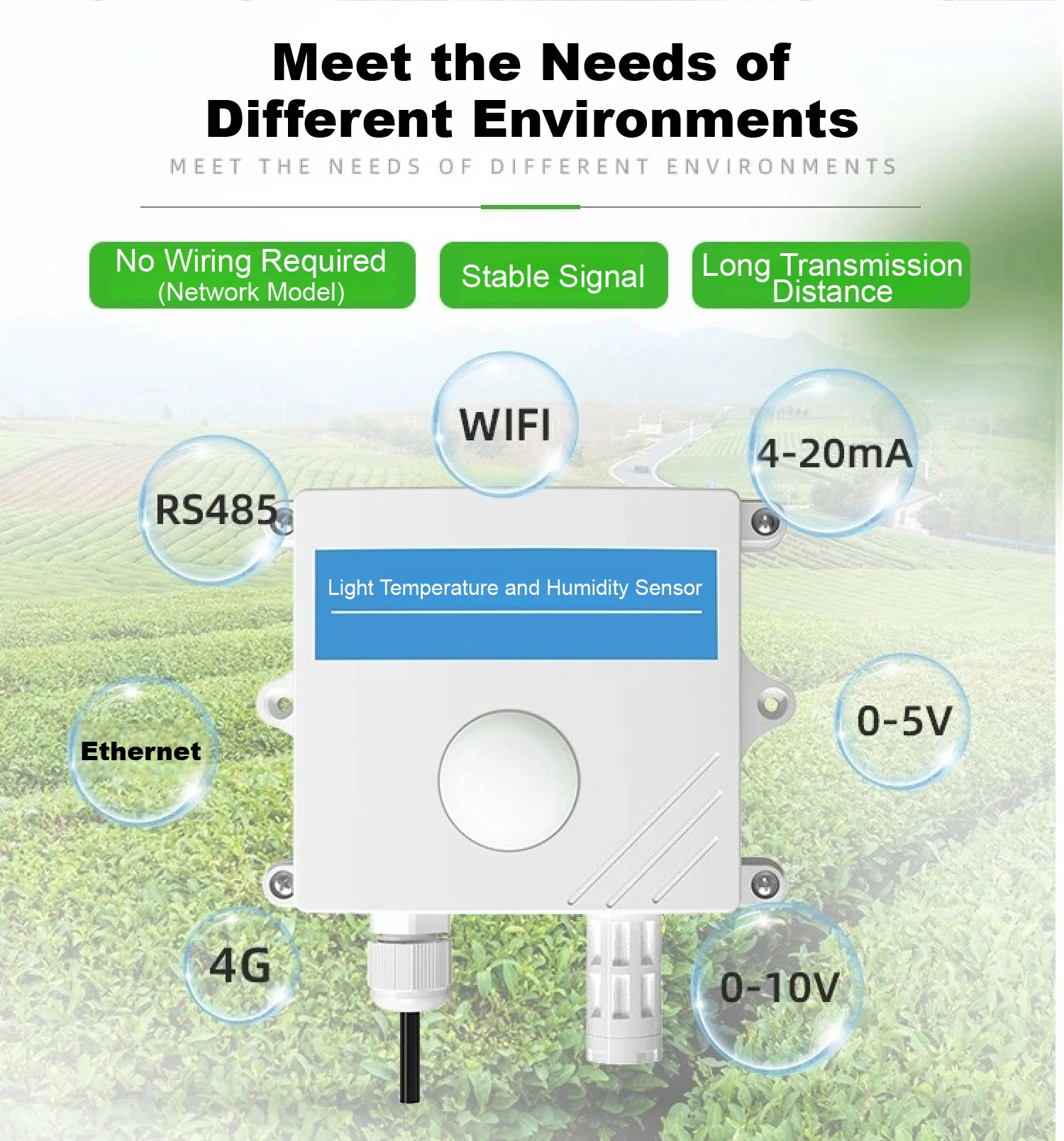

Signal Output: RS485 (default); optional outputs include 4–20mA, 0–5V, and 0–10V.

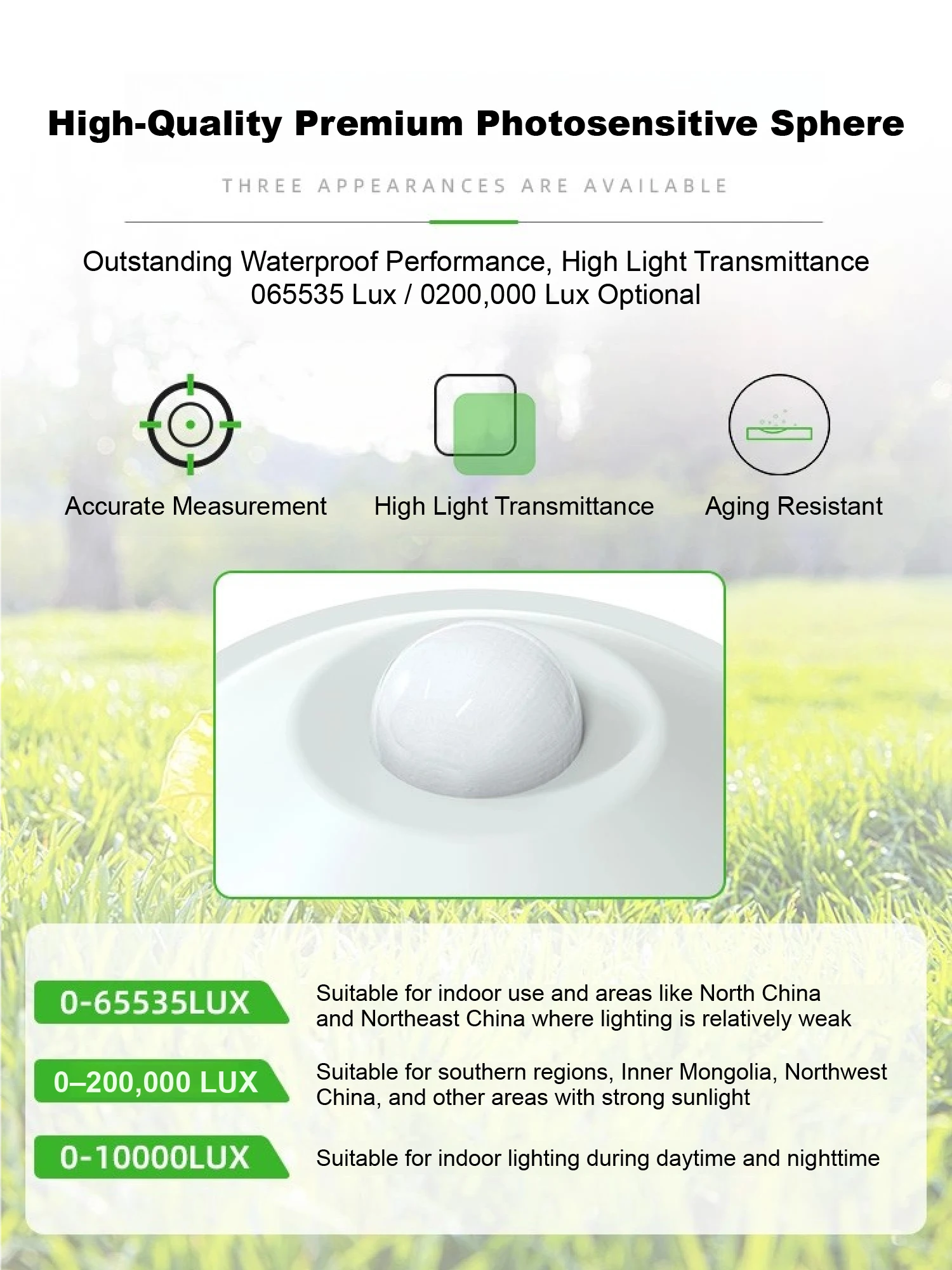

Measurement Range Options:

• 0–65535 Lux: Ideal for indoor or low-light conditions

• 0–200000 Lux: Designed for high-light environments

• 0–10000 Lux: Suitable for spaces with both day and night lighting variations

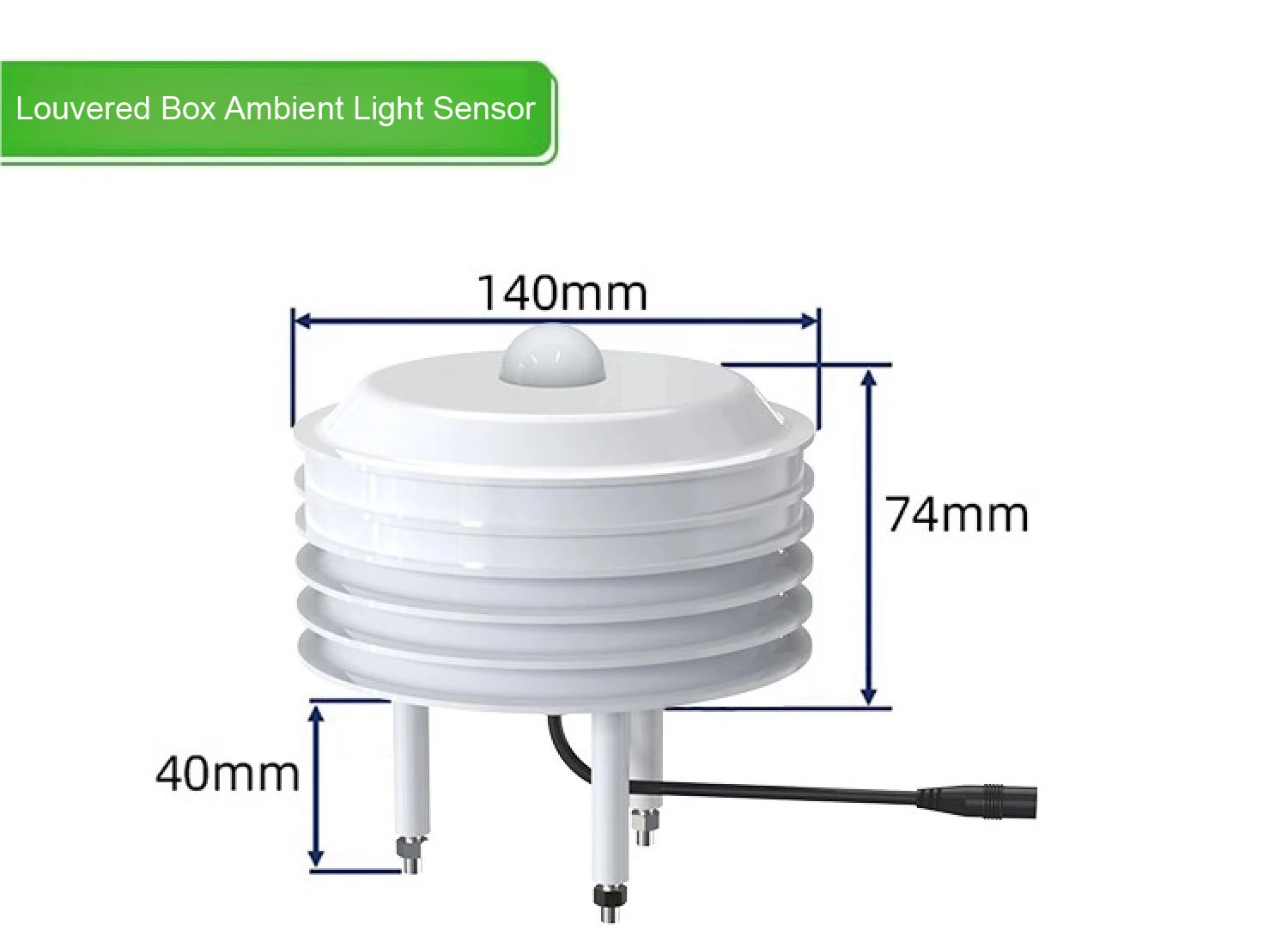

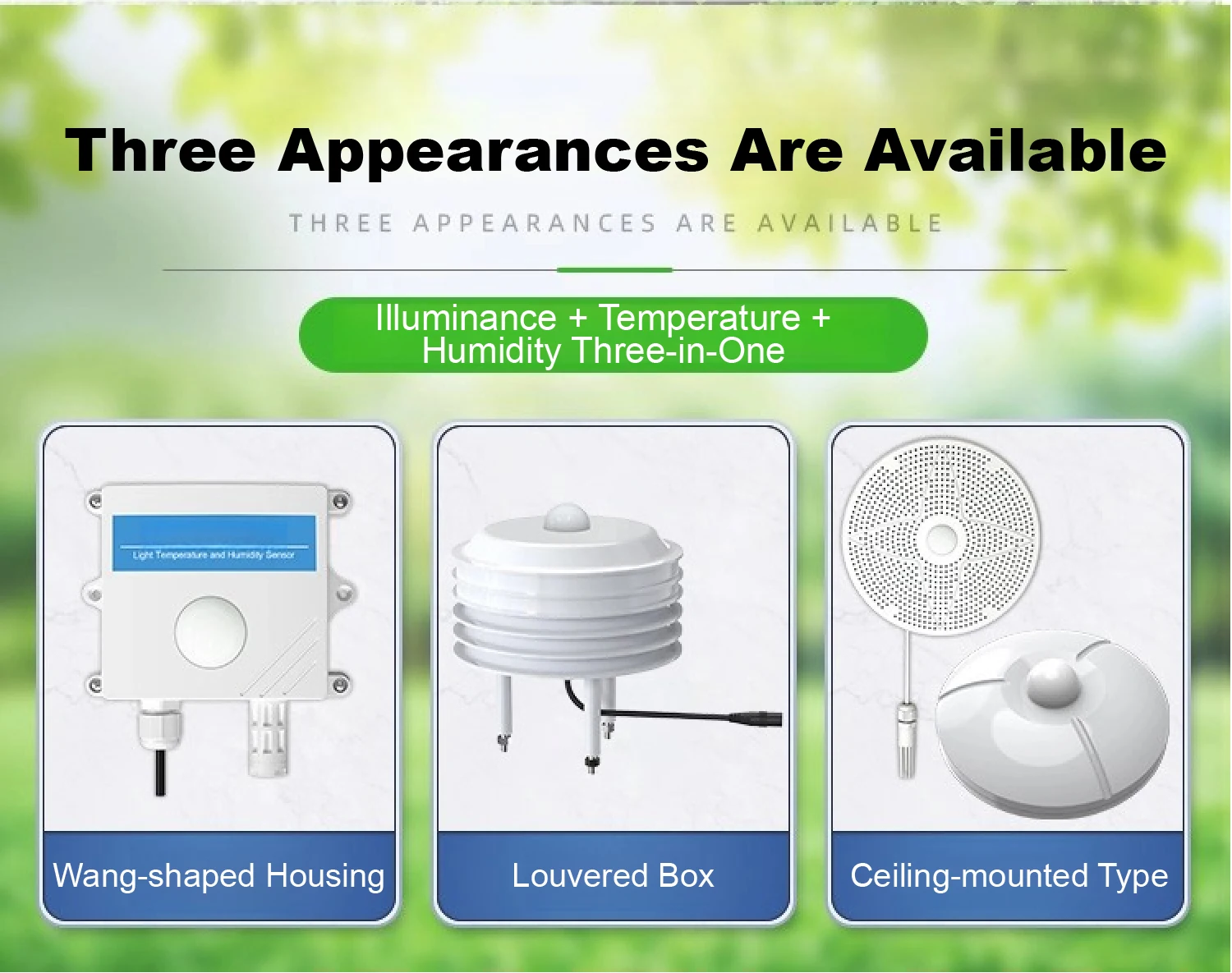

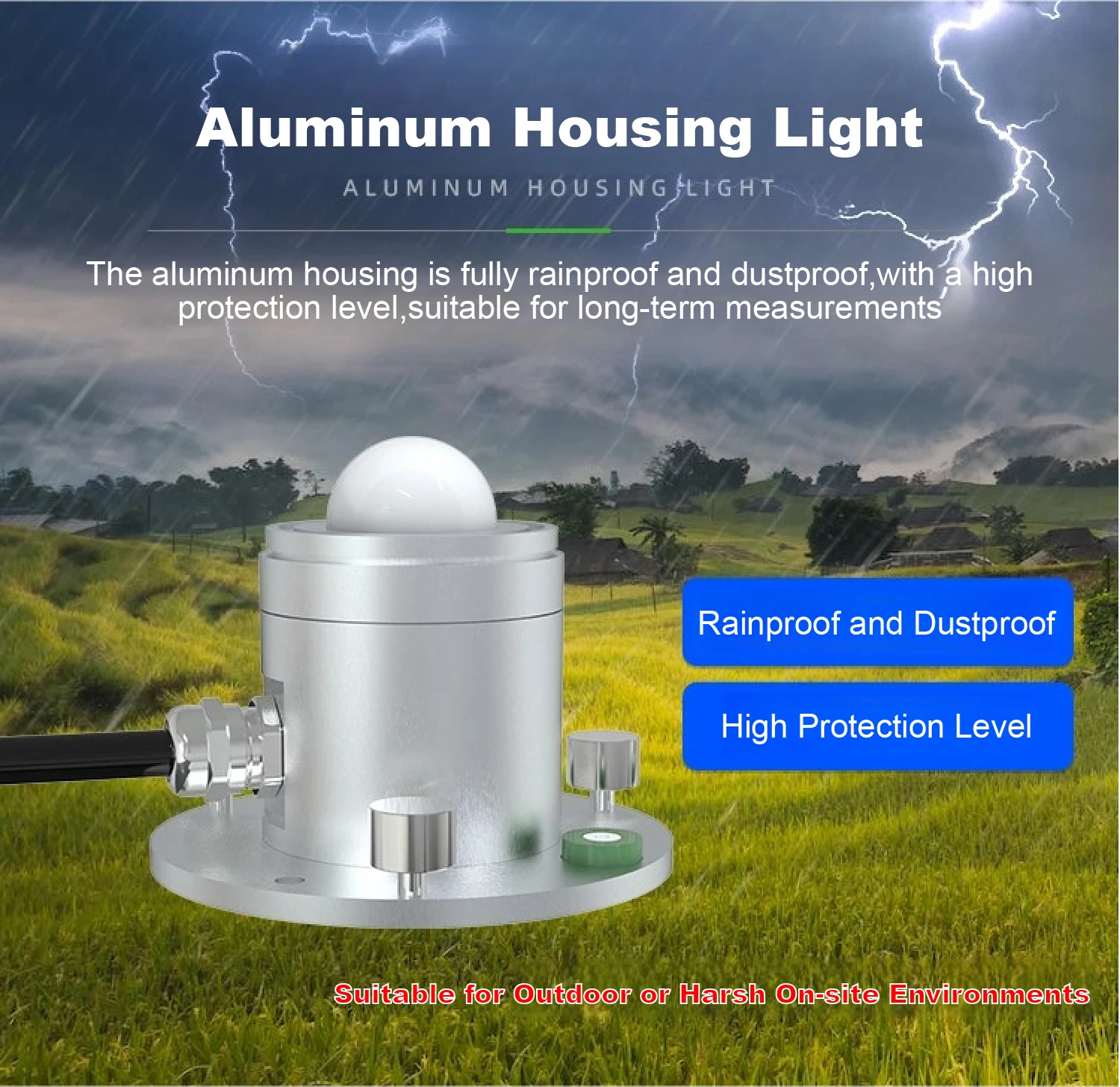

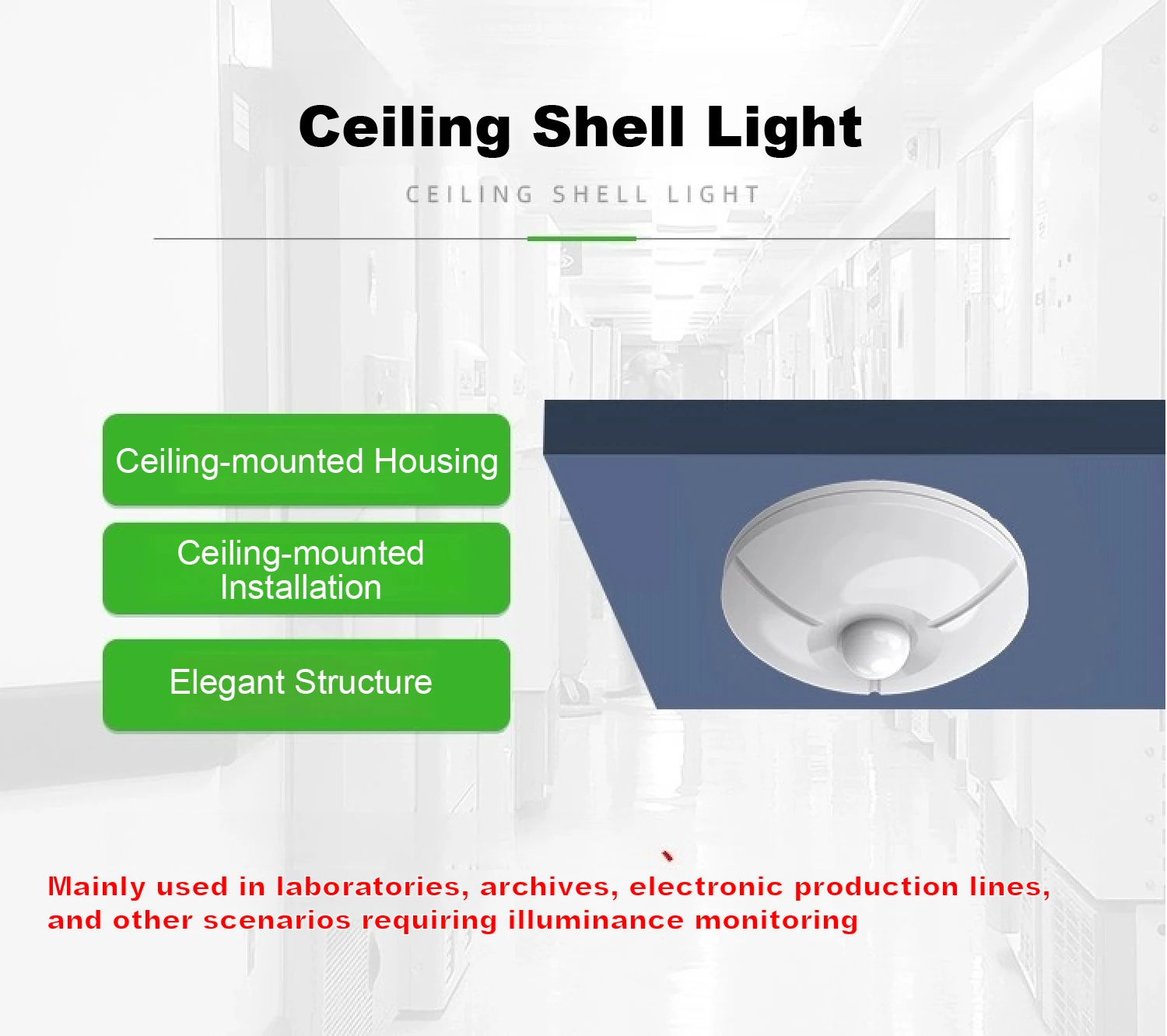

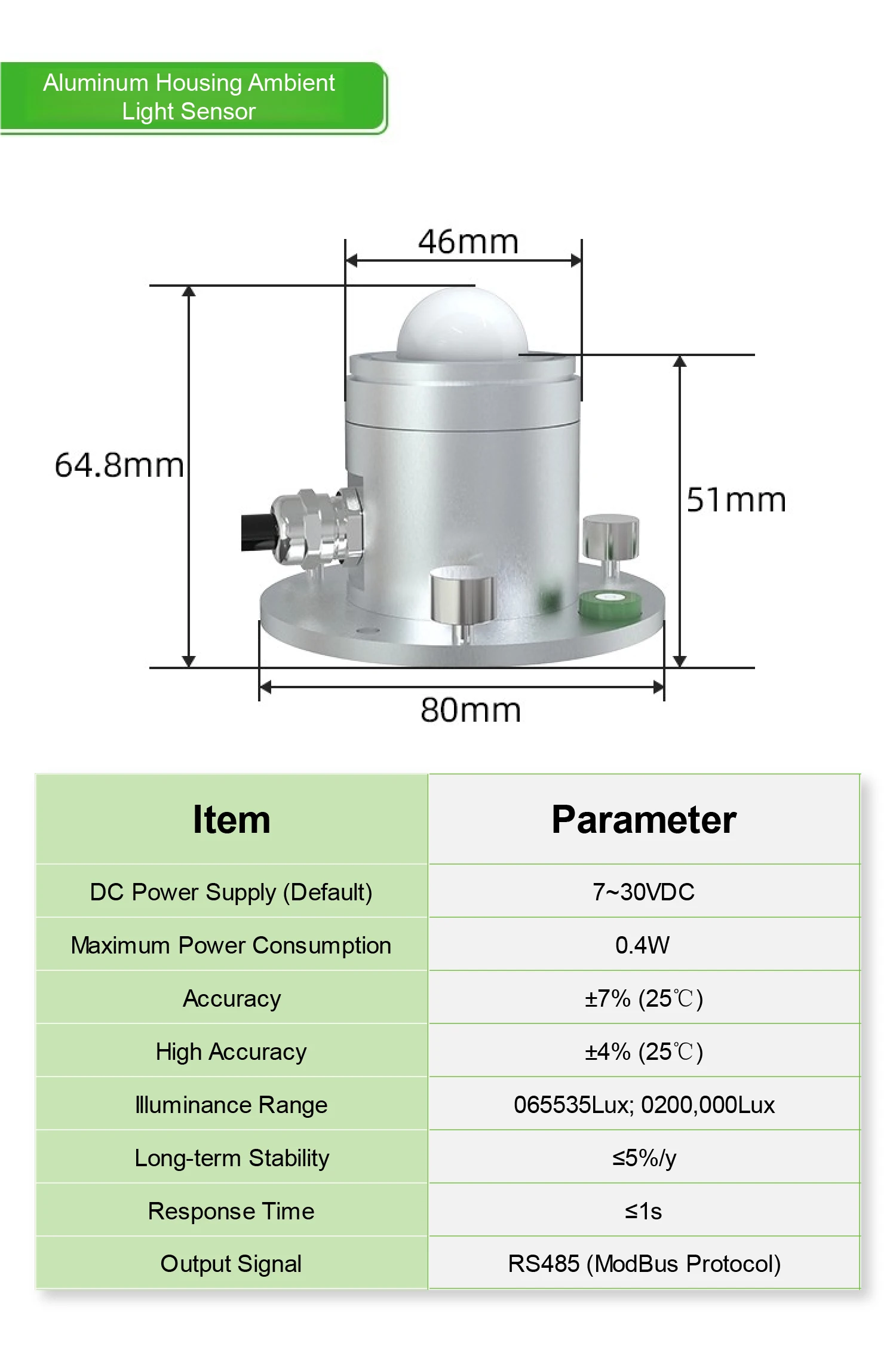

  Customizable Housing Options: Available in louvered box, ceiling-mounted, aluminum shell, and more.

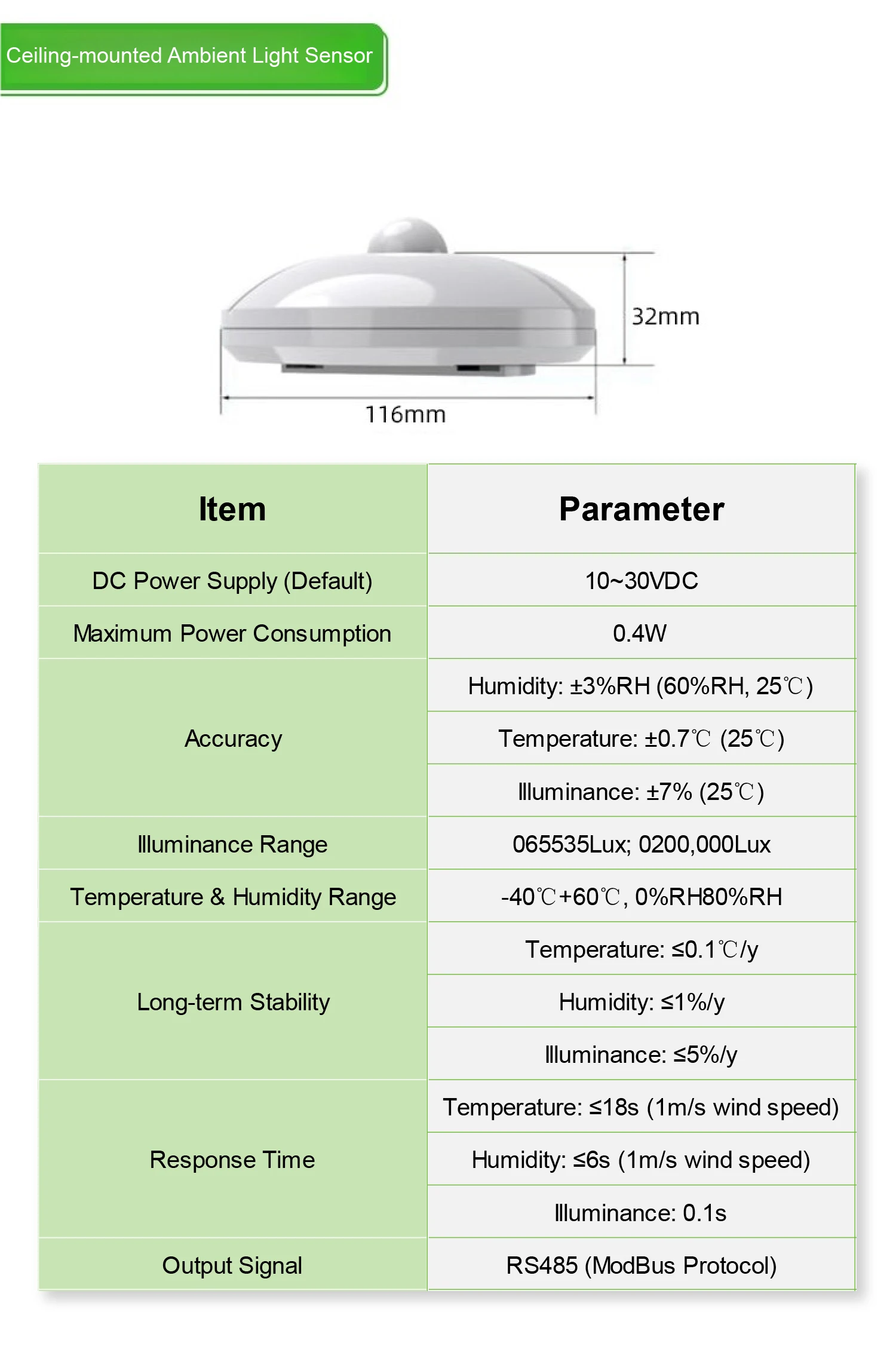

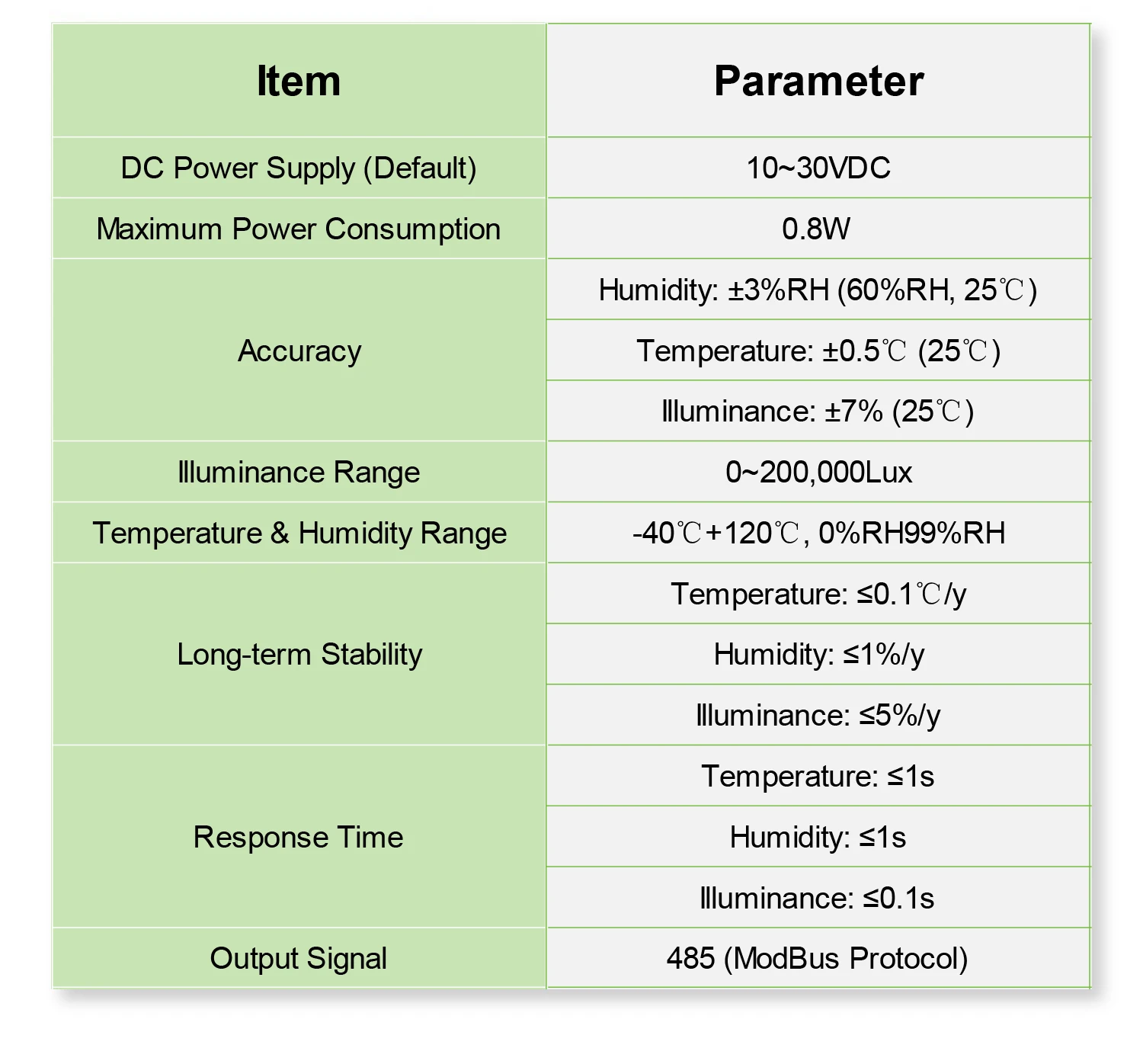

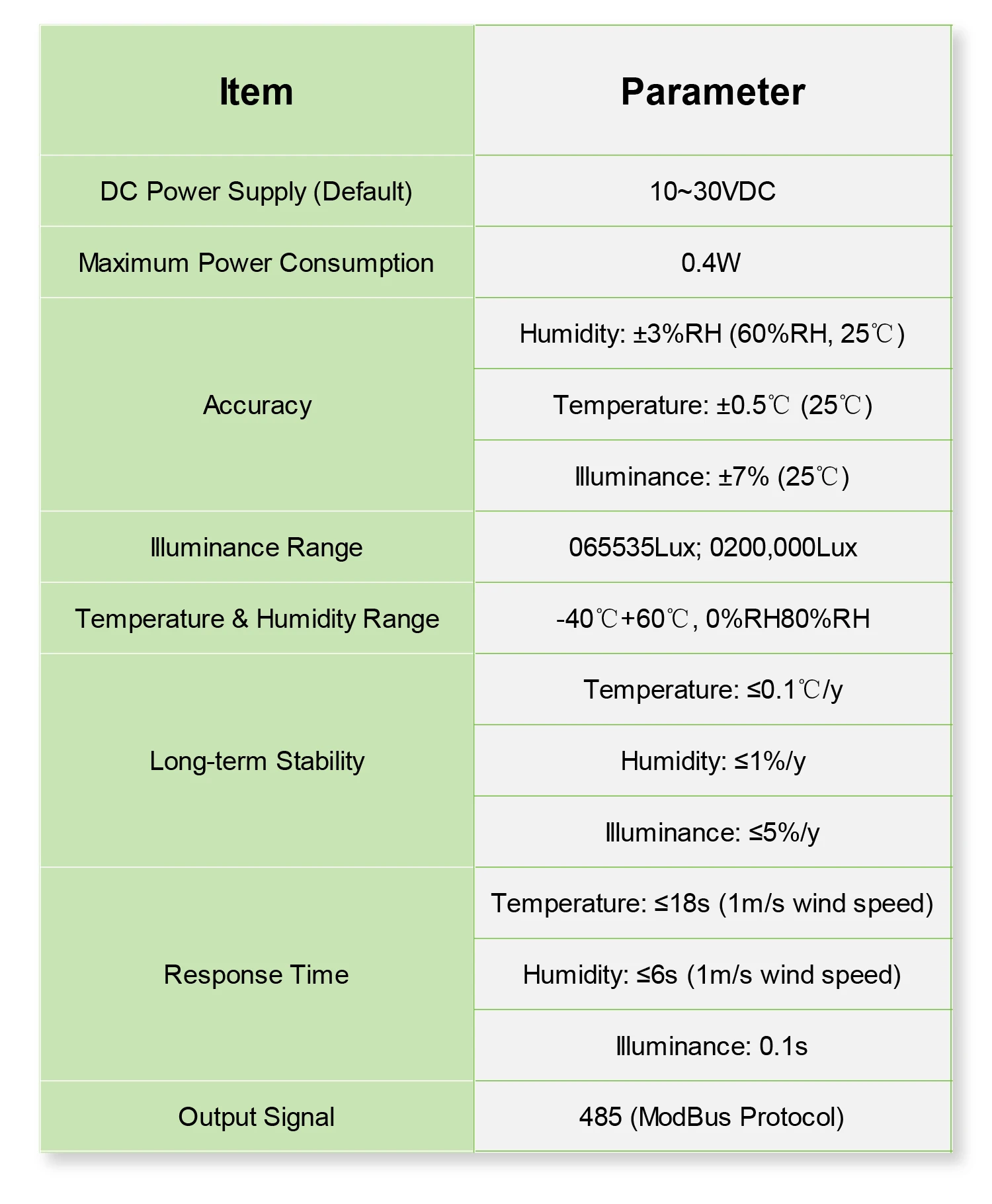

Technical Specifications
Parameter | Specification
--- | ---
Light Measurement Range | 0–200,000 Lux
Temperature Range | -40°C to +85°C
Humidity Range | 0–100% RH
Output Signal | RS485 / Modbus
Power Supply | DC 5V / 12V / 24V
Waterproof Rating | IP65
Material | UV-resistant ABS plastic

Key Features
All-in-One Monitoring
Combines light, temperature, and humidity sensors into a single unit for simplified installation and maintenance.

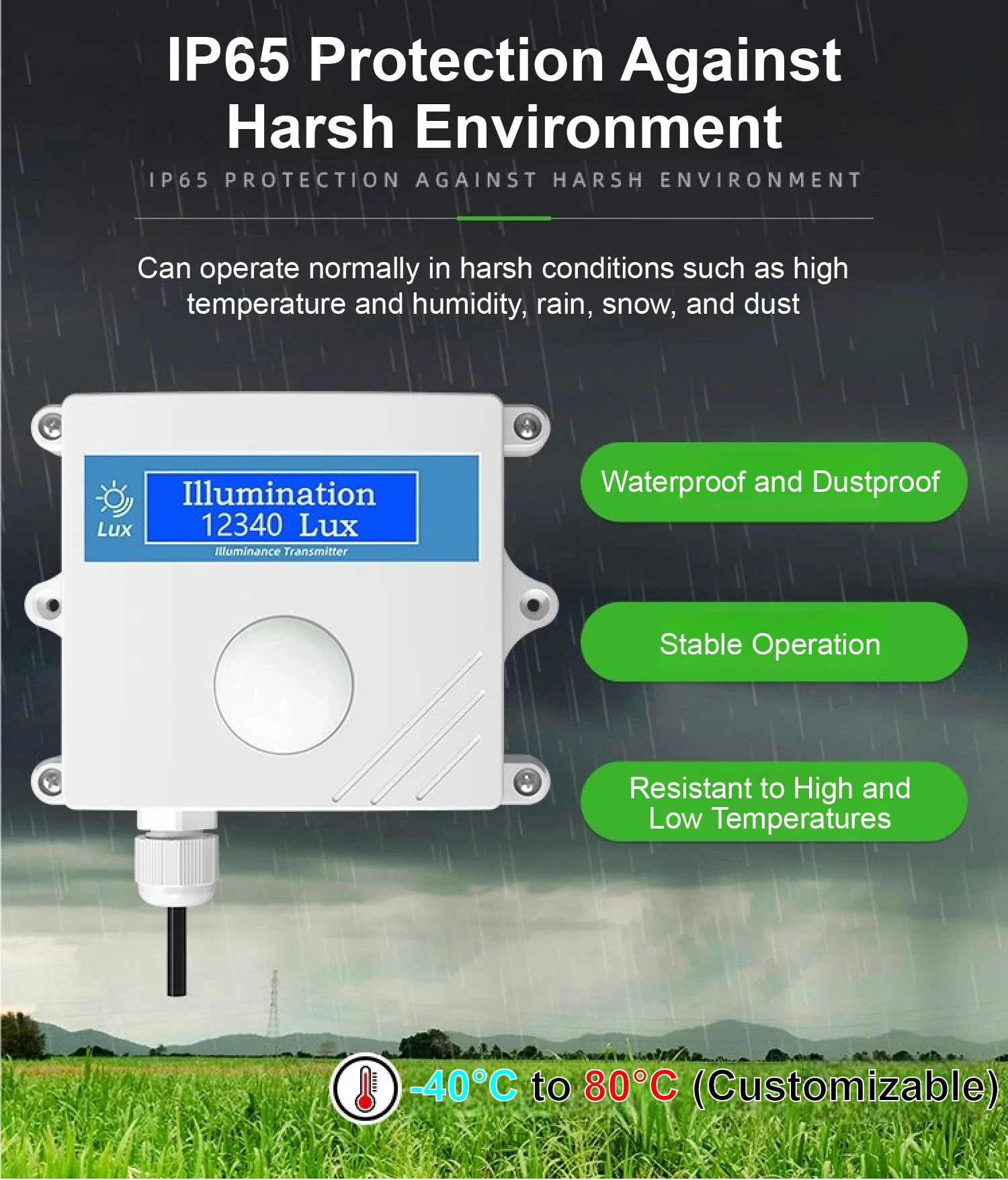

Reliable in Harsh Environments
Built with IP65-rated waterproof housing, suitable for outdoor and high-humidity conditions.

High Accuracy & Real-Time Readings
Delivers precise, real-time environmental data to support intelligent system control.

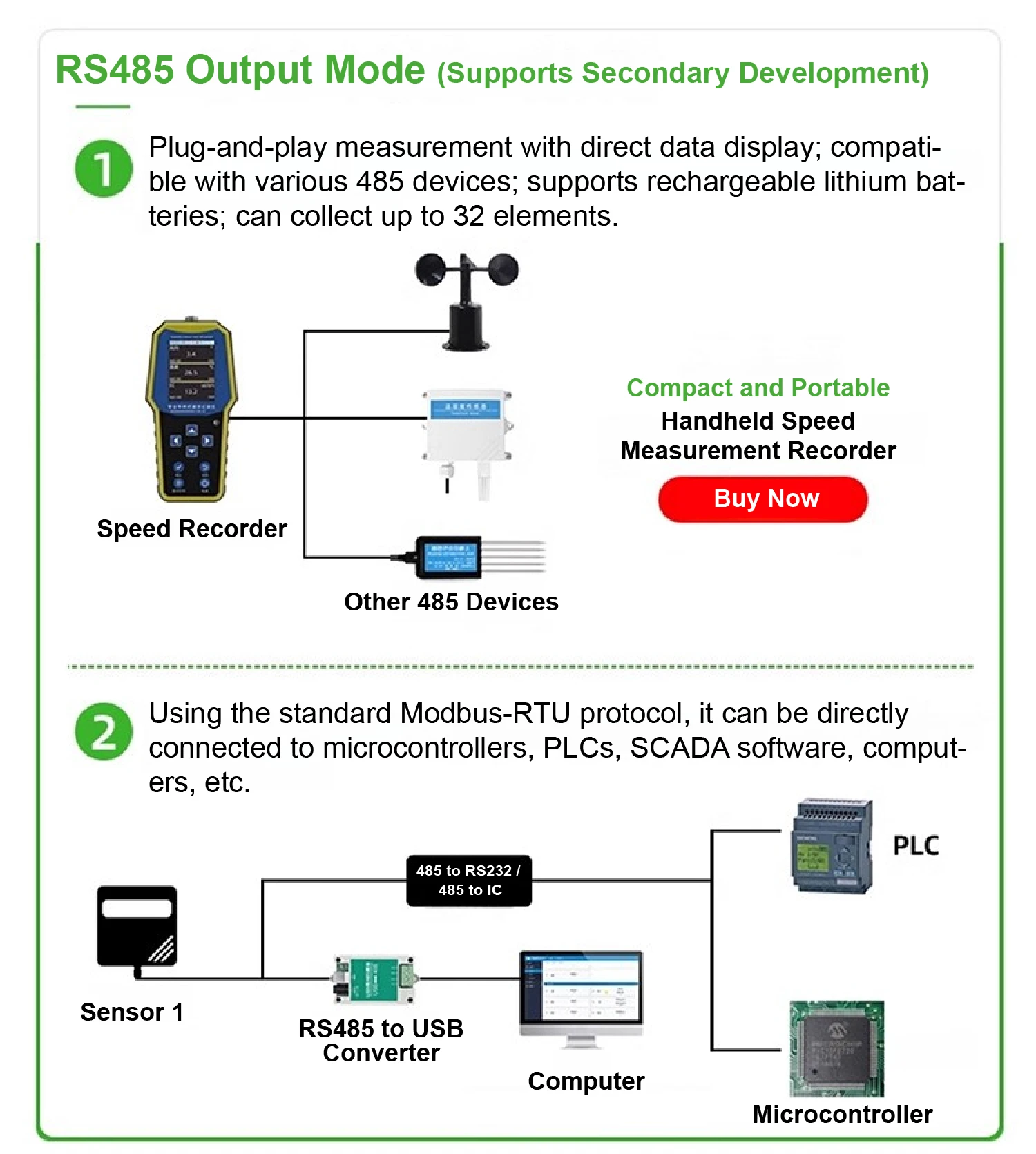

RS485 Modbus Communication
Compatible with standard industrial communication protocols, ensuring seamless integration with automation systems.

Typical Applications
Smart Greenhouses – Enables automated climate control for optimal plant growth.
Floriculture & Nurseries – Monitors environmental conditions to support healthy plant development.
Outdoor Lighting Systems – Uses light data to optimize energy efficiency through adaptive lighting.
Environmental Monitoring Stations – Gathers accurate field data for research and environmental analysis.

Frequently Asked Questions
Q1: Is this sensor suitable for long-term outdoor use?
Yes. It is built with an IP65-rated waterproof enclosure and UV-resistant materials, ensuring long-term durability in outdoor conditions.

Q2: Can it be integrated into existing monitoring systems?
Absolutely. The sensor supports RS485 Modbus protocol, making it compatible with most industrial and automation platforms.
