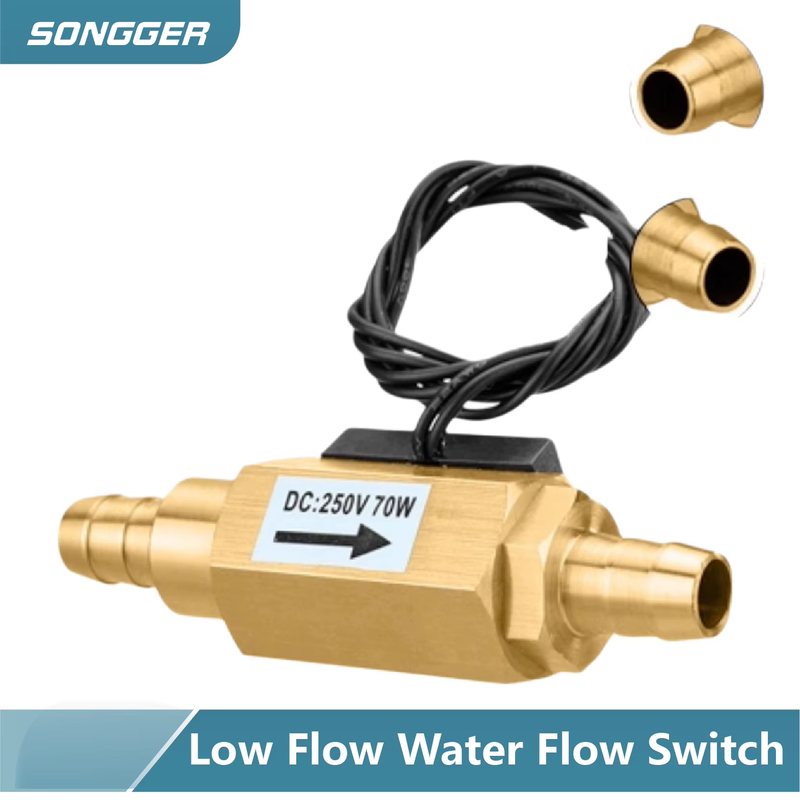

Brass Water Flow Switch Low Flow 1.5-3 L/min G1/4 G3/8 G1/2 G3/4 Thread Magnetic

Product Description

1. NOTE

Default Parameters

Power Supply:
Passive switch design, no external power source required.

Signal Type:
Passive switch signal / Normally open

Switch Type:

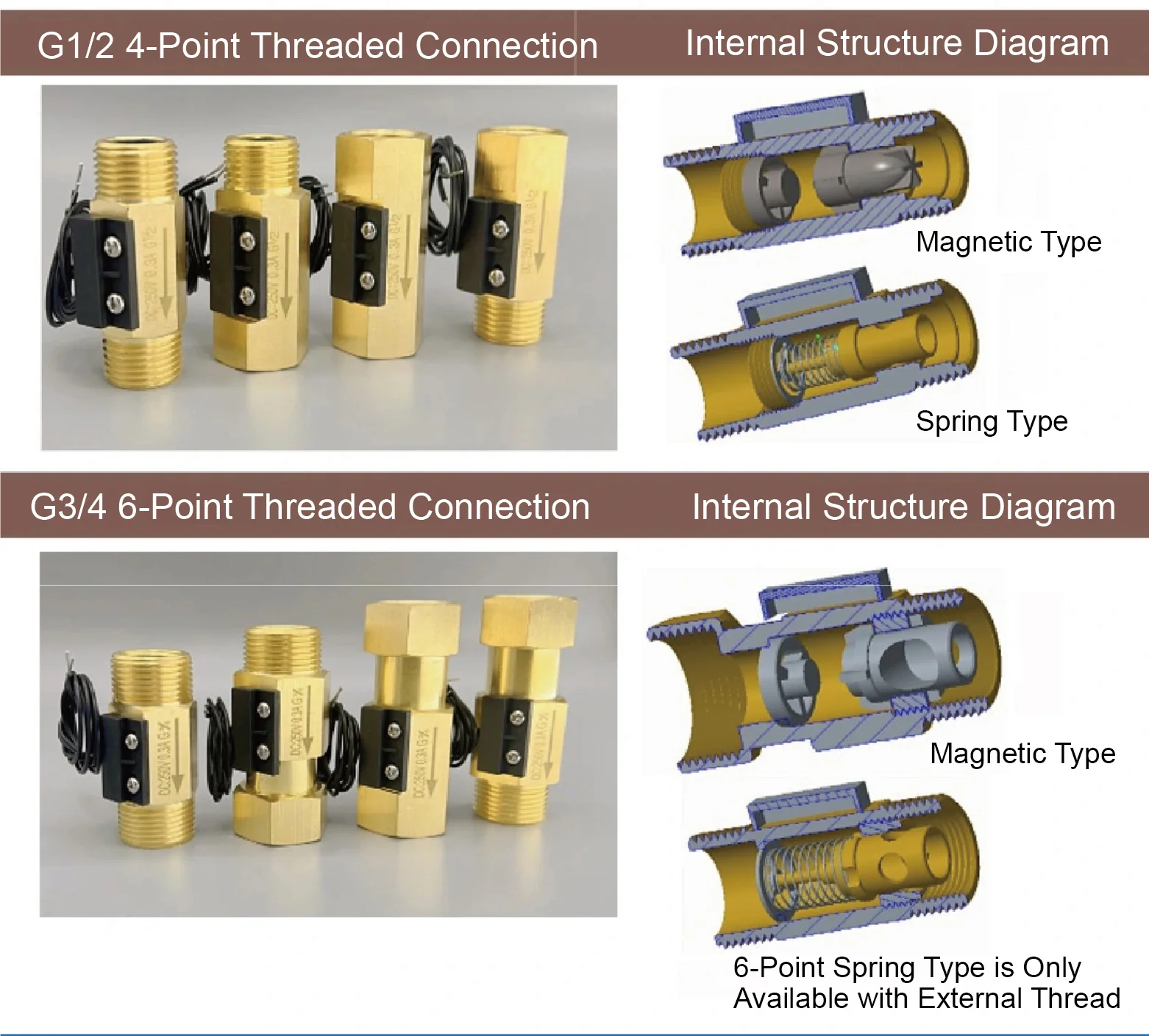

Available in magnetic and spring-loaded types

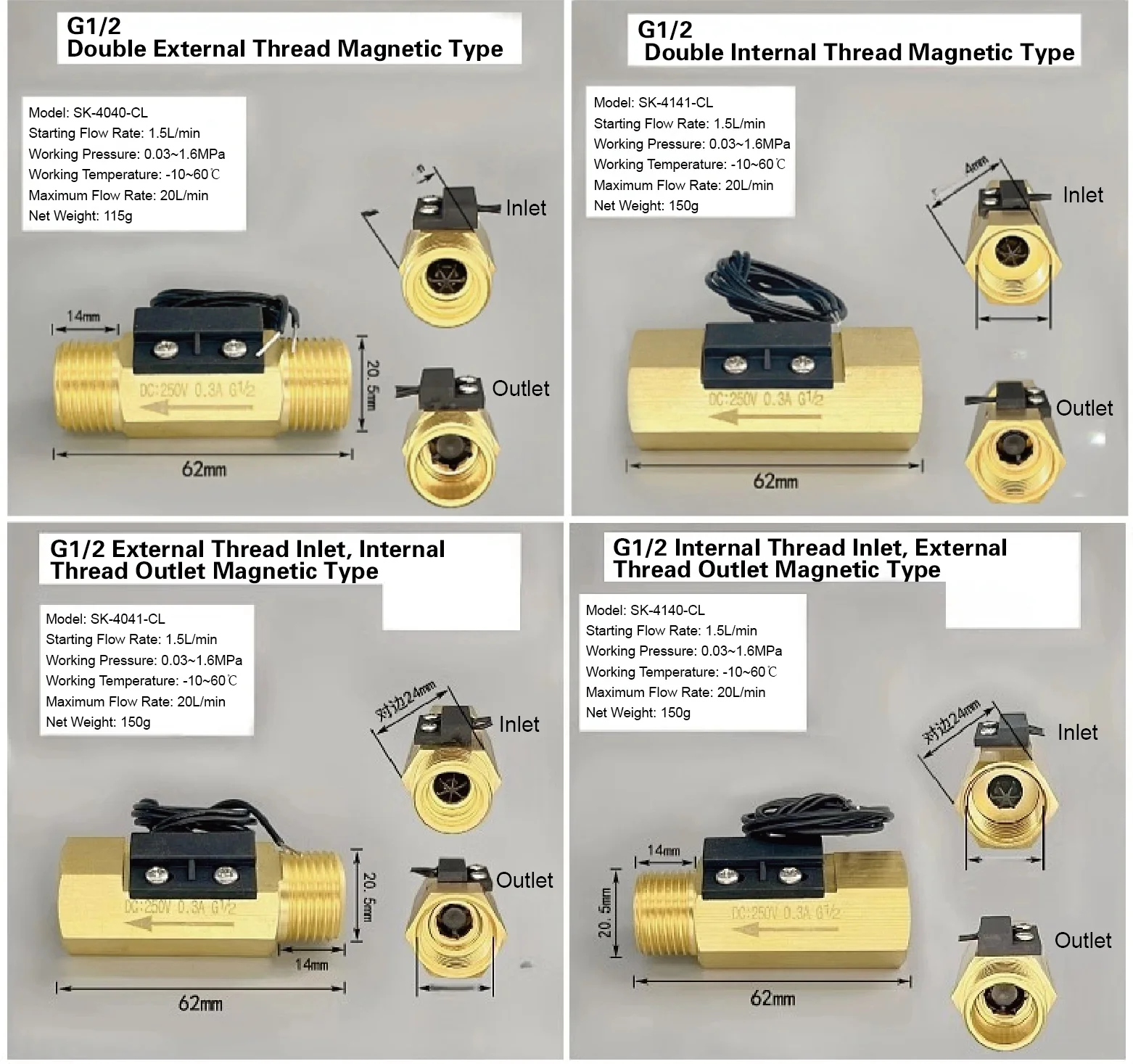

Connection Types:

• Dual male thread

• Dual female thread

• Male inlet / Female outlet

• Female inlet / Male outlet

Specifications:

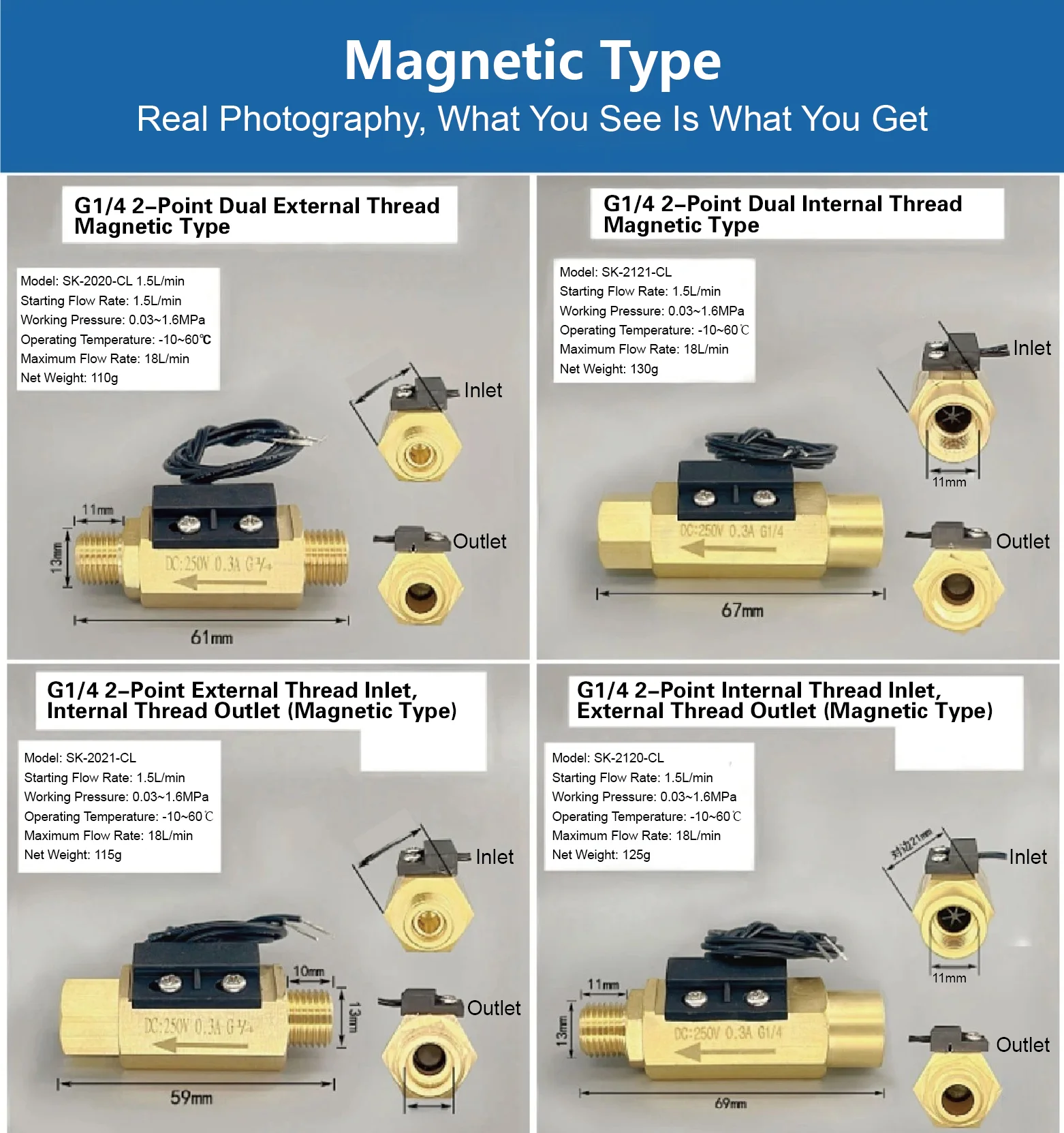

• G1/4
  Flow Rate: 1.5L/min
  Temperature Resistance: -10°C to 70°C

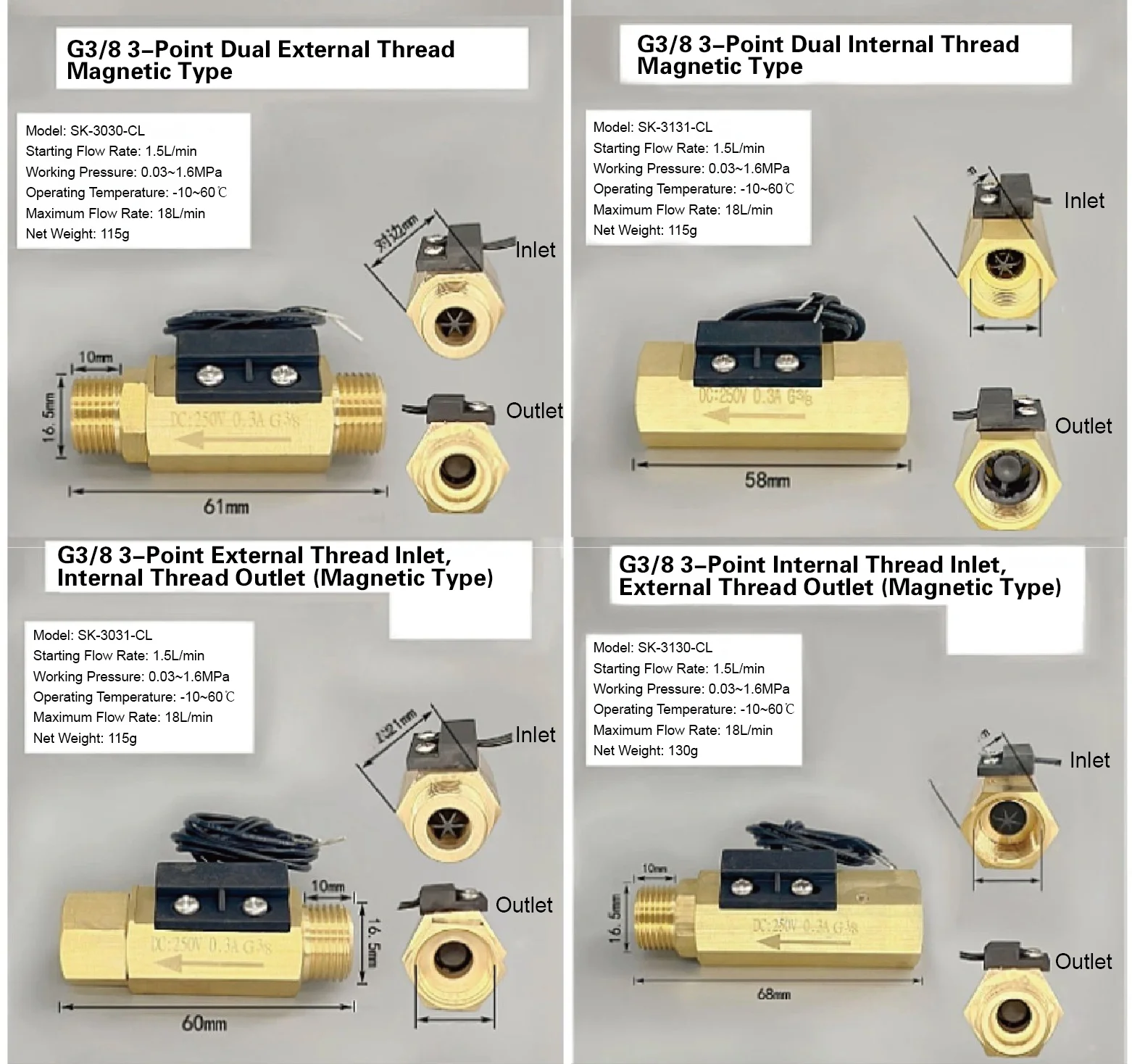

• G3/8
  Flow Rate: 1.5L/min
  Temperature Resistance: -10°C to 70°C

• G1/2
  Magnetic Type: Flow Rate: 1.5L/min, Temperature Resistance: -10°C to 70°C

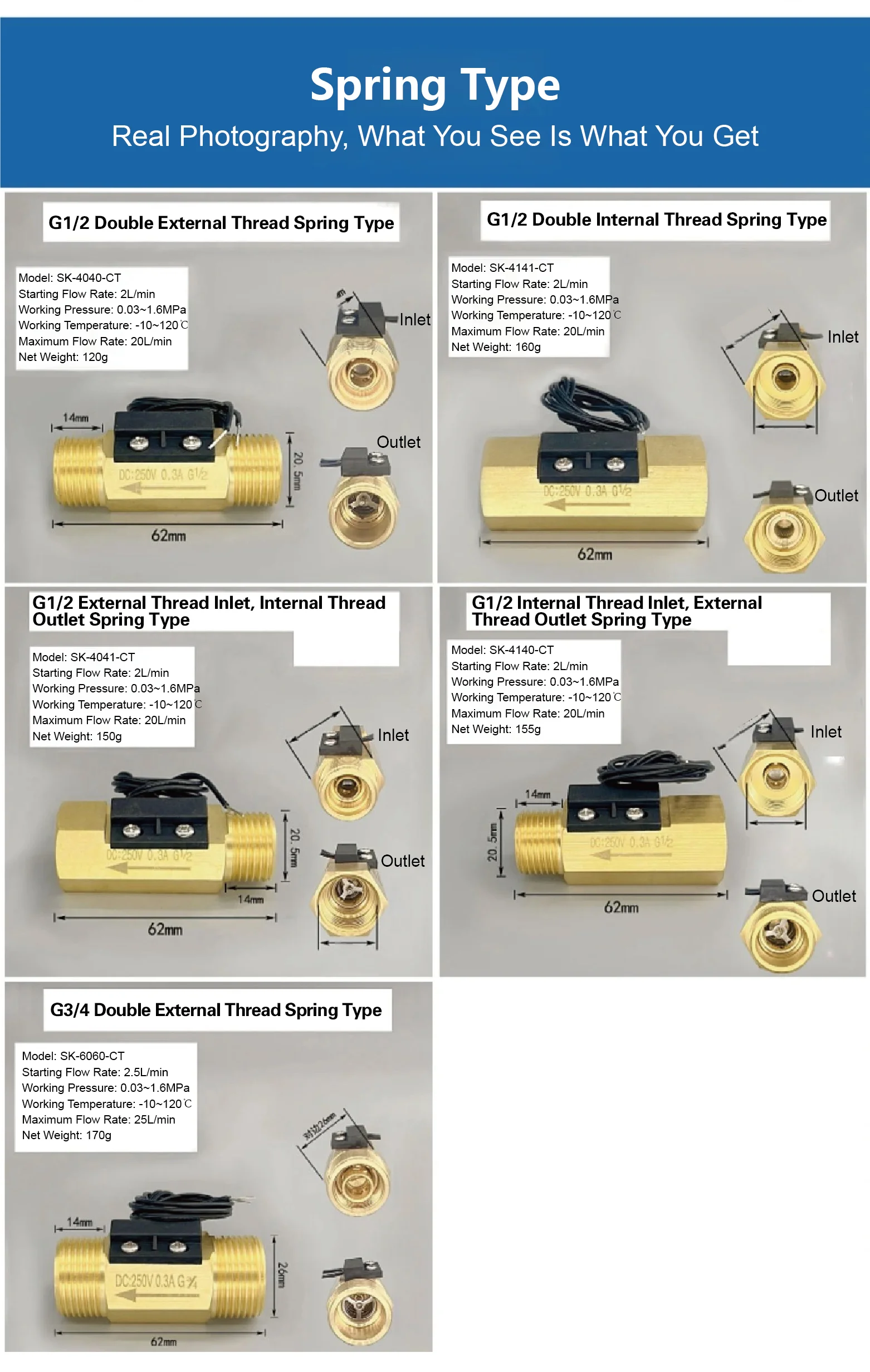

  Spring Type: Flow Rate: 1.8L/min, Temperature Resistance: -10°C to 120°C

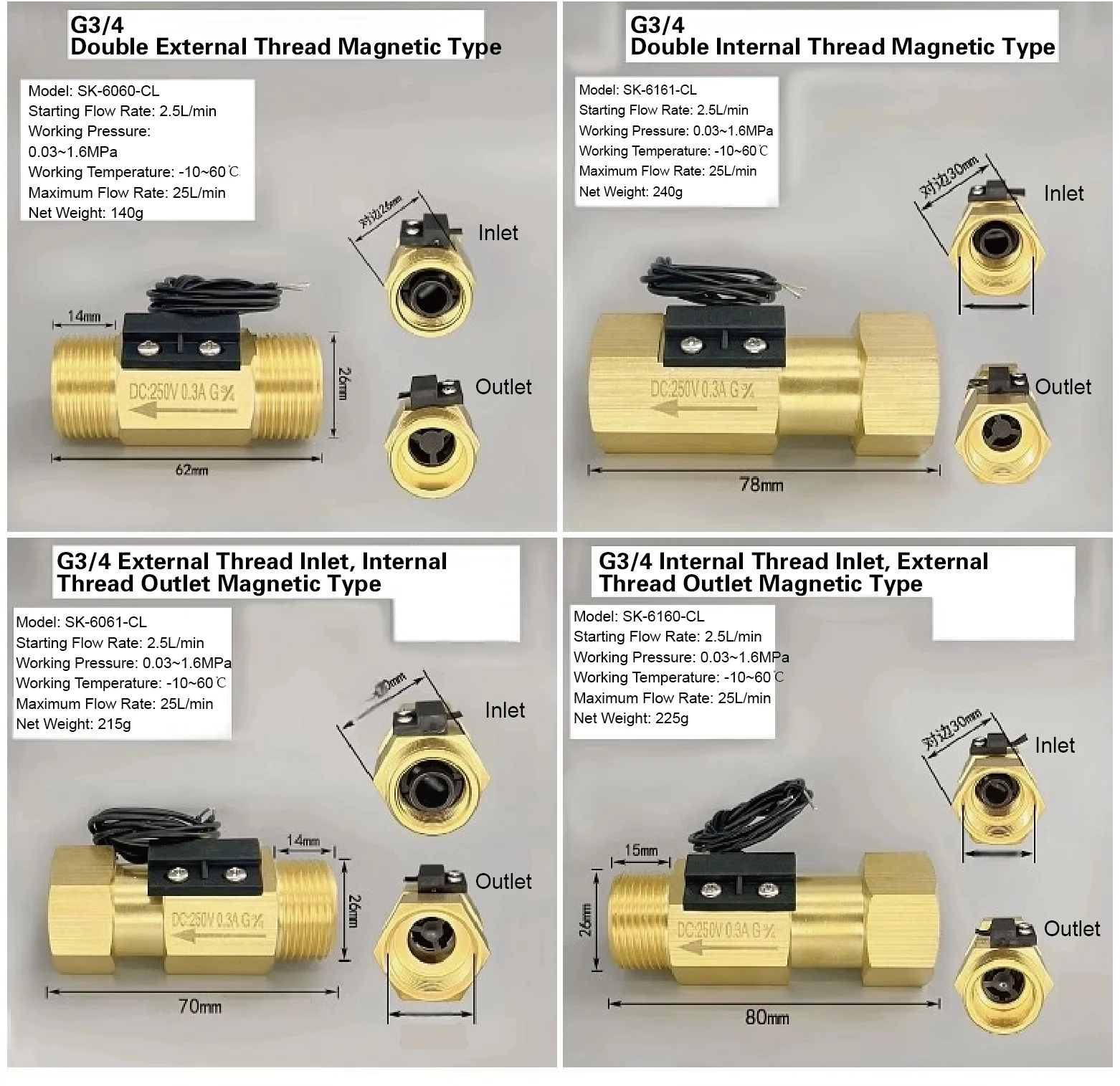

• G3/4
  Magnetic Type: Flow Rate: 2.5L/min, Temperature Resistance: -10°C to 70°C
  Spring Type: Flow Rate: 3L/min, Temperature Resistance: -10°C to 120°C

Important Notice:
This flow switch features an internal reed switch with small contacts, which are not designed to drive electrical loads directly. It should only be used as a signal output device. If you plan to control contactors, motors, solenoid valves, water pumps, or alarms, an intermediate relay is required. Direct connection to a load will damage the switch.

Please ensure you select the correct connection type before placing your order. If you need help choosing the right configuration, feel free to contact us.

2.Electrical Specifications

Electrical Usage Notice

The internal reed switch has small contacts and cannot directly drive loads. It should only be used as a signal output. When controlling contactors, motors, solenoid valves, water pumps, or alarms, an intermediate relay must be used to prevent damage to the switch.

3.Basic Parameters

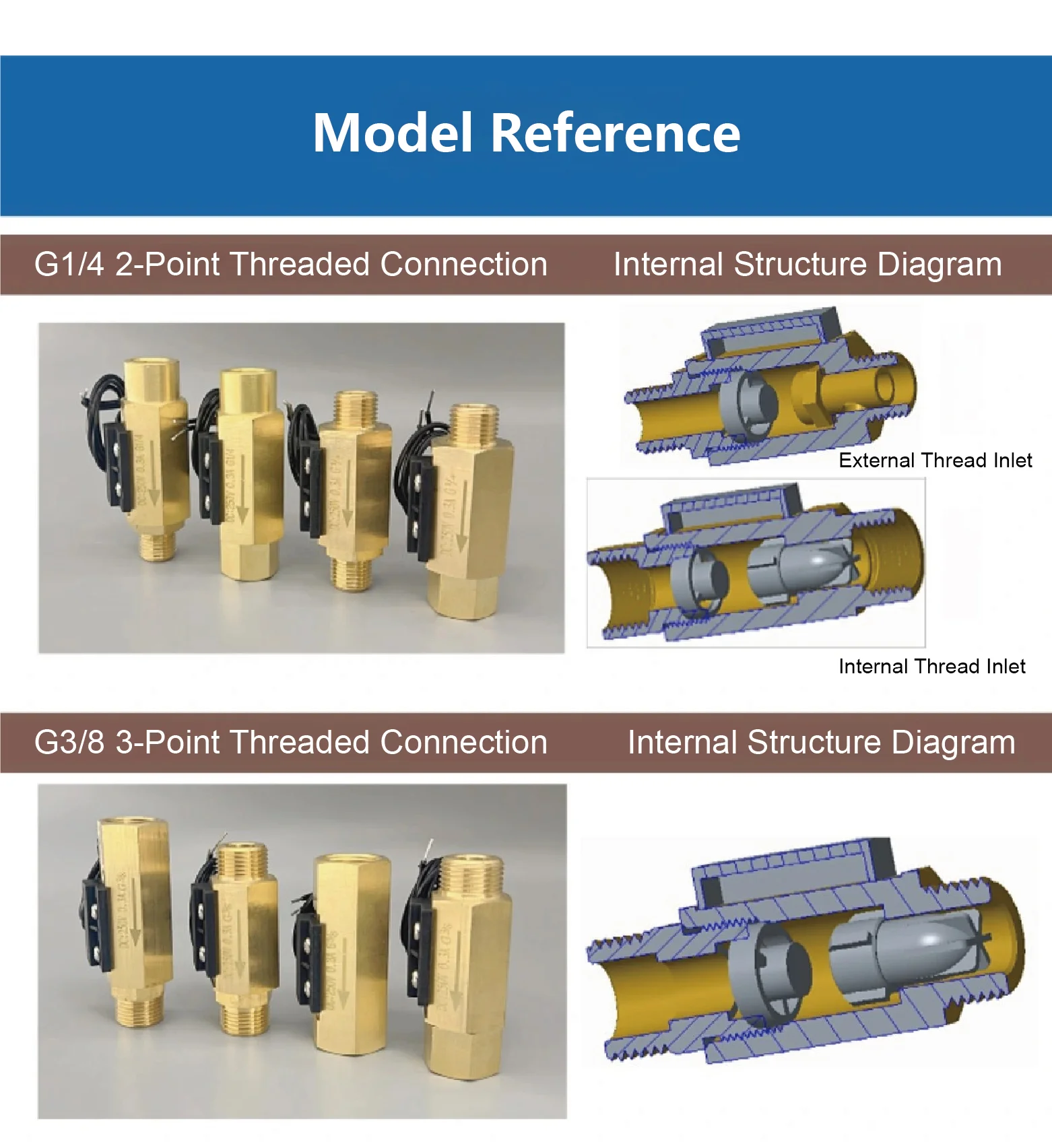

Specifications & Models

4.Applications

Smart home water systems

Water heaters and solar water heating

Water pumps and industrial fluid control

Agricultural irrigation and greenhouse automation

HVAC and cooling systems

5.FAQs

Q1. Does this sensor require a power supply?
A1.No, it is a passive switch that does not require any external power.

Q2. Can this switch directly control a pump or solenoid valve?
A2.No, it must be used with an intermediate relay for such applications.

Q3. What are the installation requirements?
A3.It can be installed in any direction. Ensure proper sealing to prevent leaks.
