Product Description
F05-TN Fiber Optic Amplifier Sensor Dual Display 12-24VDC NPN PNP Diffuse/Through-Beam M3 M4 M6 Industrial Automation
F05-TN Fiber Optic Amplifier Sensor Dual Display 12-24VDC NPN PNP Diffuse/Through-Beam M3 M4 M6 Industrial Automation1. Note
Default Parameters
Amplifier Power: DC12-24V
Display: Dual LED screen
Models Available: F05-TN, F05-TP (optional)
Output Types: NPN, PNP (optional)
Amplifier Cable Length: 2 meters
Amplifier Functions: Off-delay timer, On-delay timer, One-shot timer
Fiber Optic Cable
Types Available: Reflective fiber, Through-beam fiber (optional)
Thread Sizes: M3, M4, M6 (optional)
Standard Length: 1 meter
Customizable Parameters
Custom Models: F05-TCN, F05-TCP

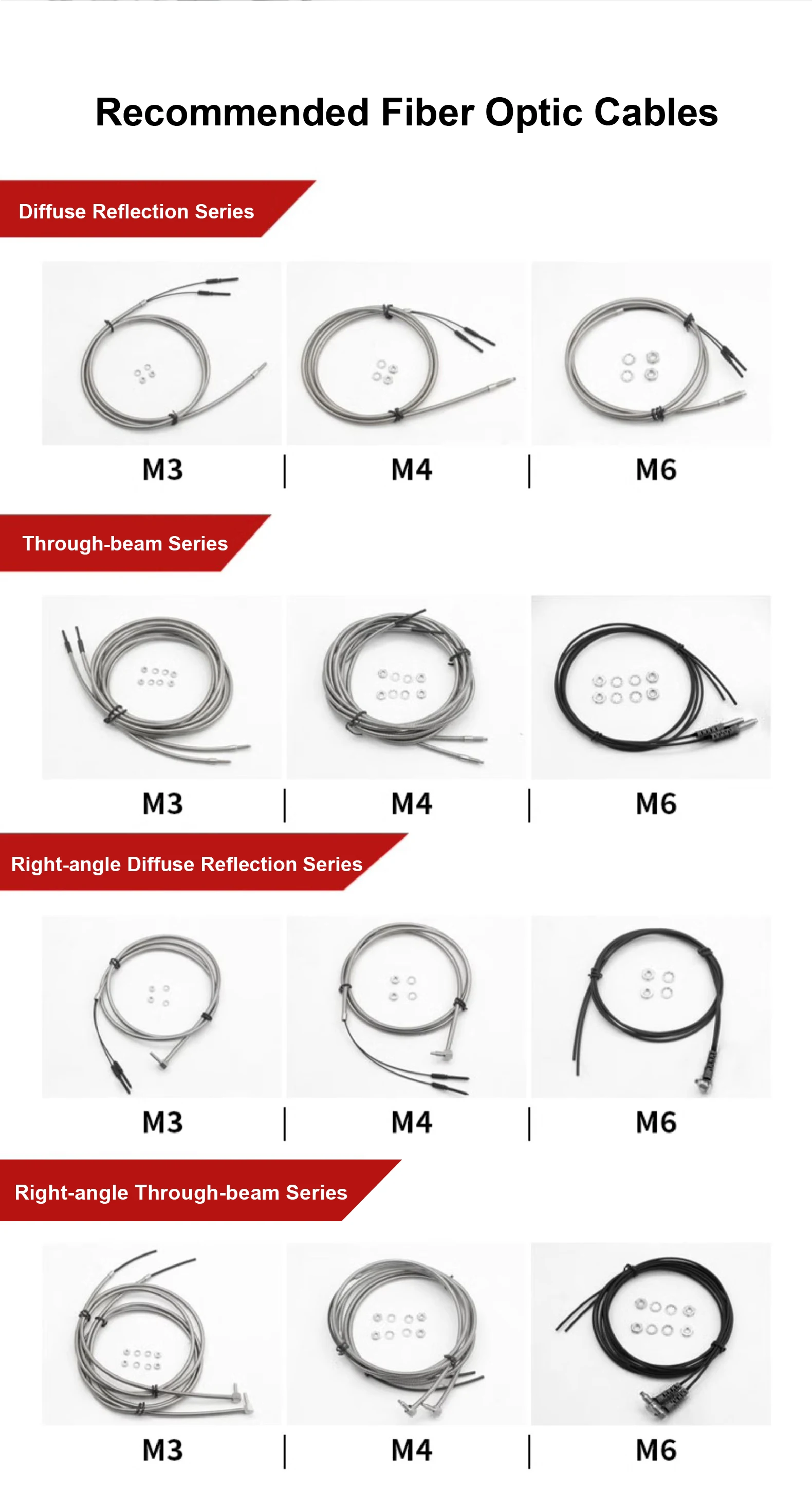

Fiber Options:
Elbow diffuse reflection series: M3 / M4 / M6
Elbow through-beam series: M3 / M4 / M6
Connection Method: M8 connector
Important Note

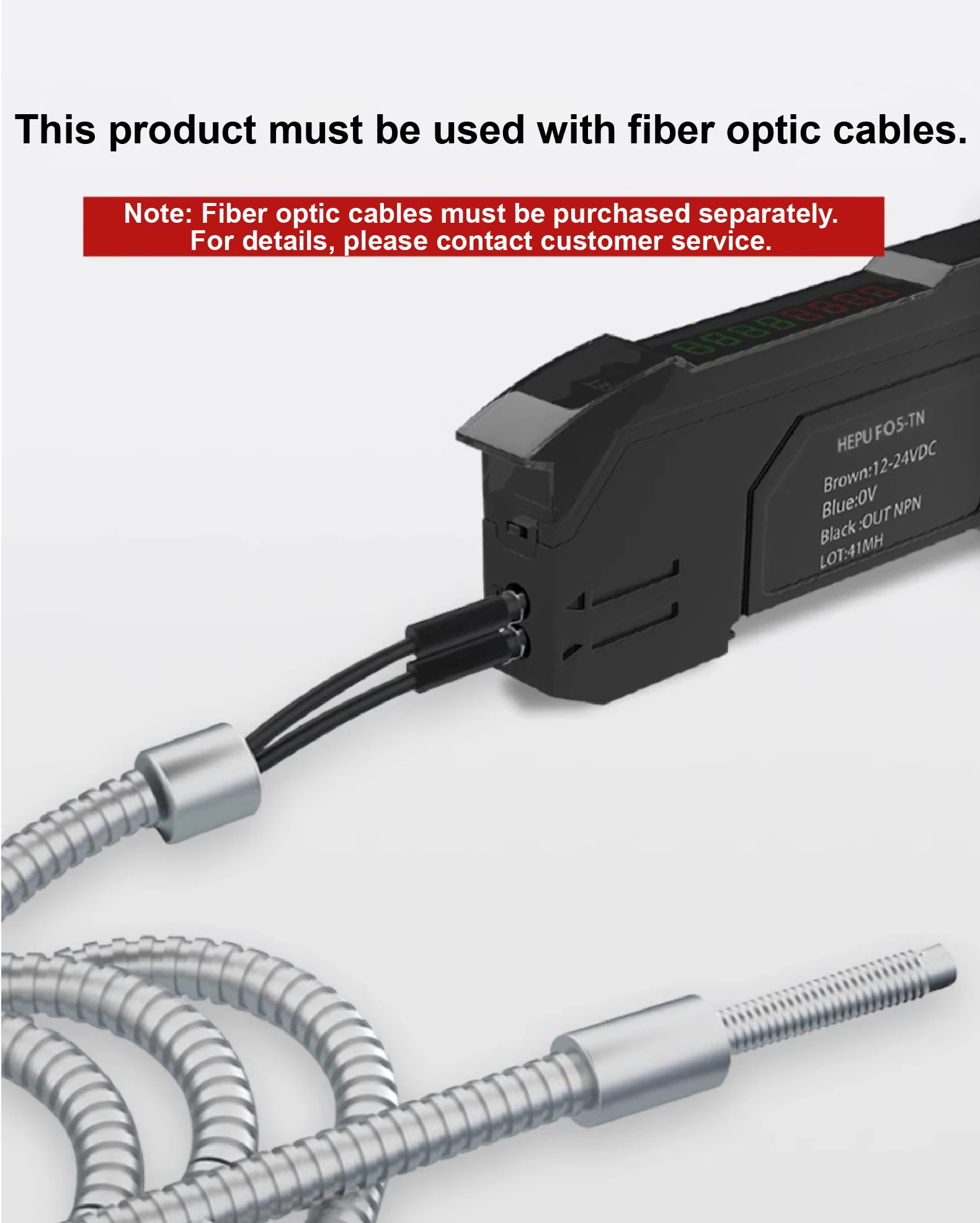

This amplifier must be used with a fiber optic cable and is compatible with over 2,000 fiber types. Due to space constraints, not all parameters are listed here. For specific requirements or customizations, please contact us directly.

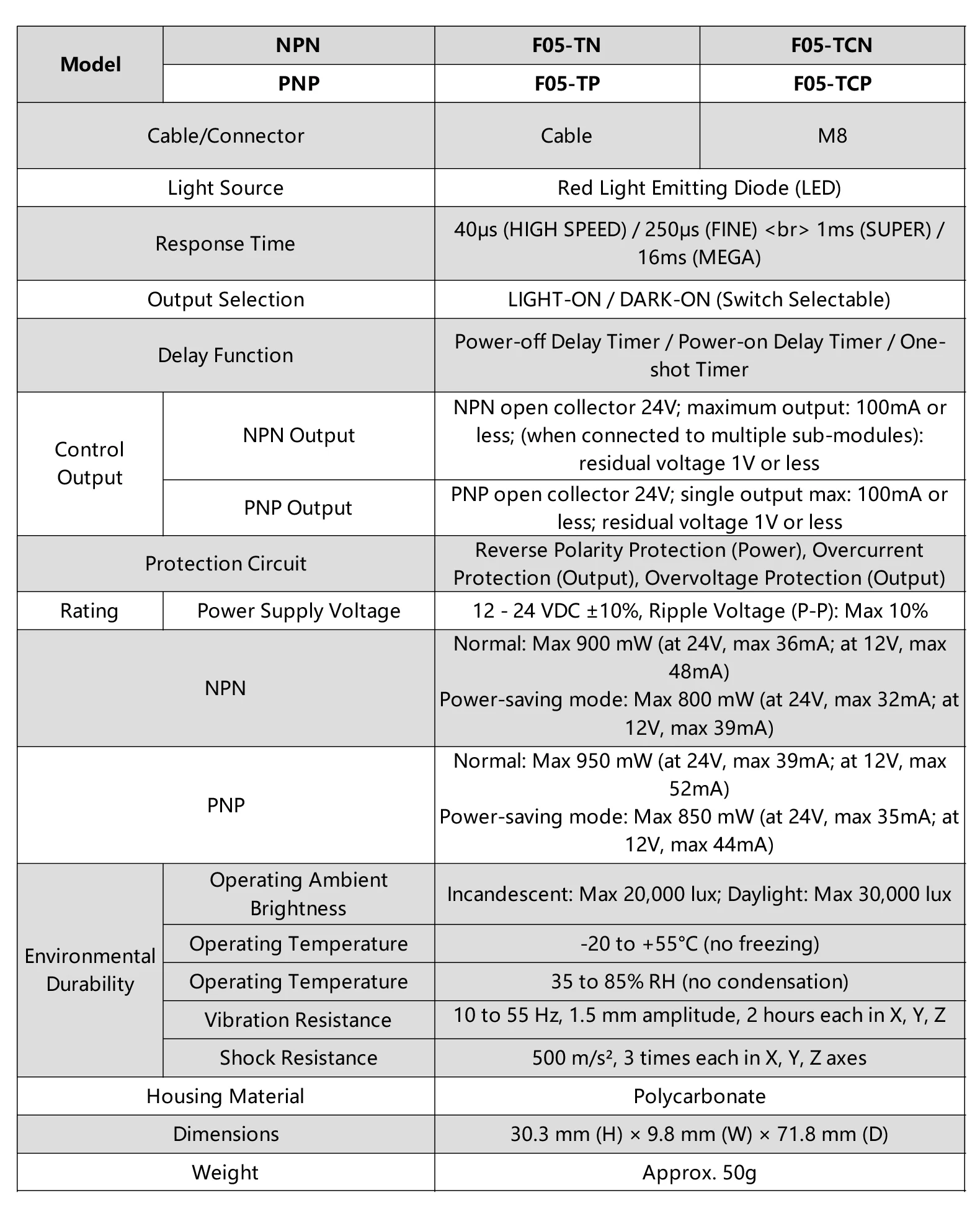

2.Parameters
Parameter | Description |
Model | F05-TN（NPN）、F05-TP（PNP）、F05-TCN（NPN）、F05-TCP（PNP） |
Cable/Connector | Cable / M8 (optional) |
Light Source | Red LED emitter |
Response Time | 40μs (HIGH SPEED) / 250μs (FINE) / 1ms (SUPER) / 16ms (MEGA) |
Output Mode | LIGHT-ON / DARK-ON (selectable) |
Delay Functions | OFF-delay / ON-delay / One-shot timer |
NPN Output | Open collector 24V, max 100mA, residual voltage ≤1V |
PNP Output | Open collector 24V, max 100mA, residual voltage ≤1V |
Protection Circuits | Reverse polarity protection (power), overcurrent & overvoltage protection (output) |
Power Supply | 12–24 VDC ±10%, ripple (P–P) ≤10% |
Power Consumption (NPN) | Normal: Max 900mW (24V: 36mA / 12V: 48mA) |
Power Consumption (PNP) | Normal: Max 950mW (24V: 39mA / 12V: 52mA) |
High-Speed Mode Note | Increases consumption by approx. 160mW (7mA) |
Ambient Light Resistance | Incandescent: ≤20,000 lux / Sunlight: ≤30,000 lux |
Operating Temperature | -20°C to +55°C (non-freezing) |
Operating Humidity | 35% to 85% RH (non-condensing) |
Vibration Resistance | 10–55 Hz, amplitude 1.5mm, 2 hours per axis (X, Y, Z) |
Shock Resistance | 500 m/s², 3 times per direction (X, Y, Z) |
Housing Material | Polycarbonate |

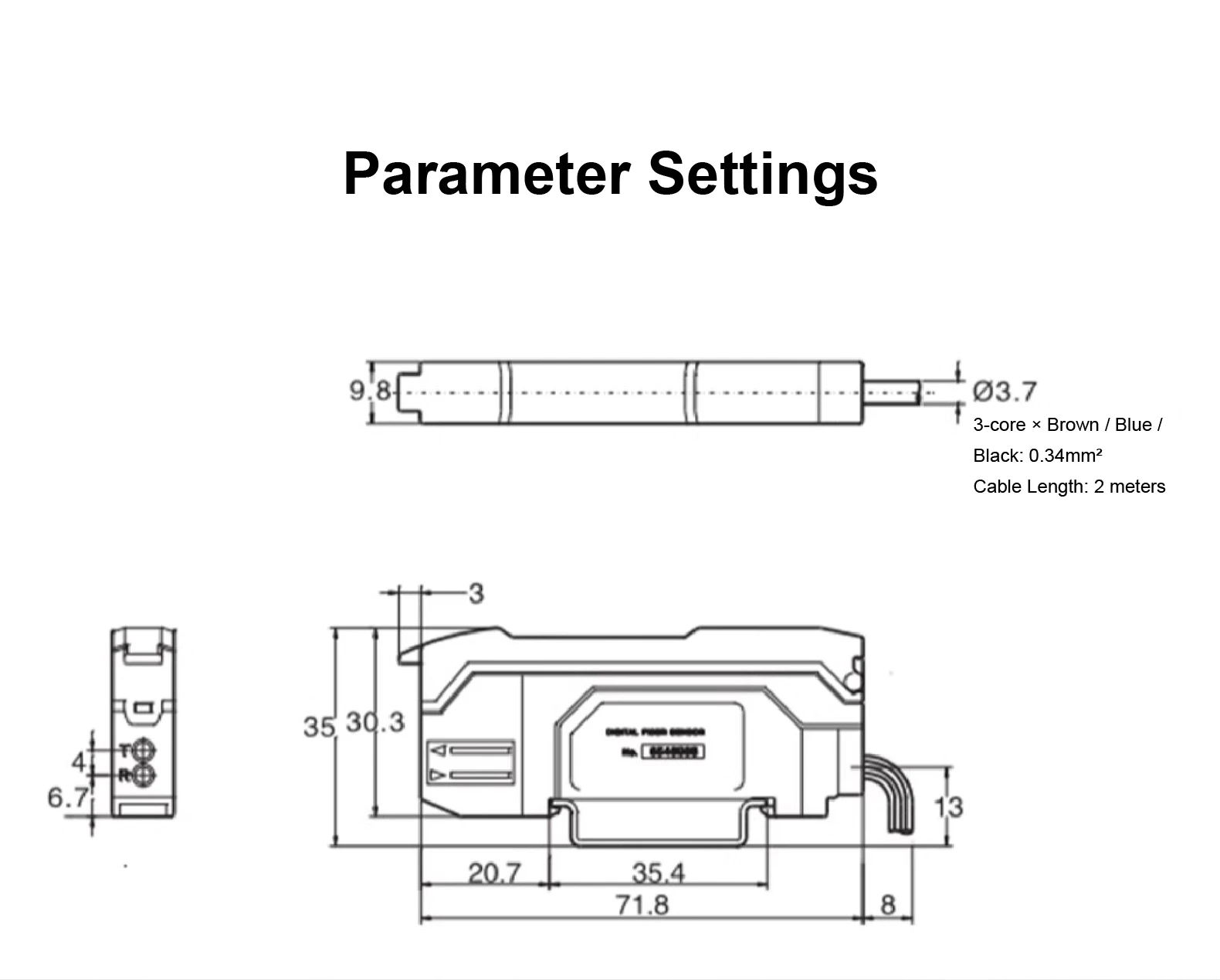

Dimensions | 30.3mm (H) × 9.8mm (W) × 71.8mm (D) |
3. Features

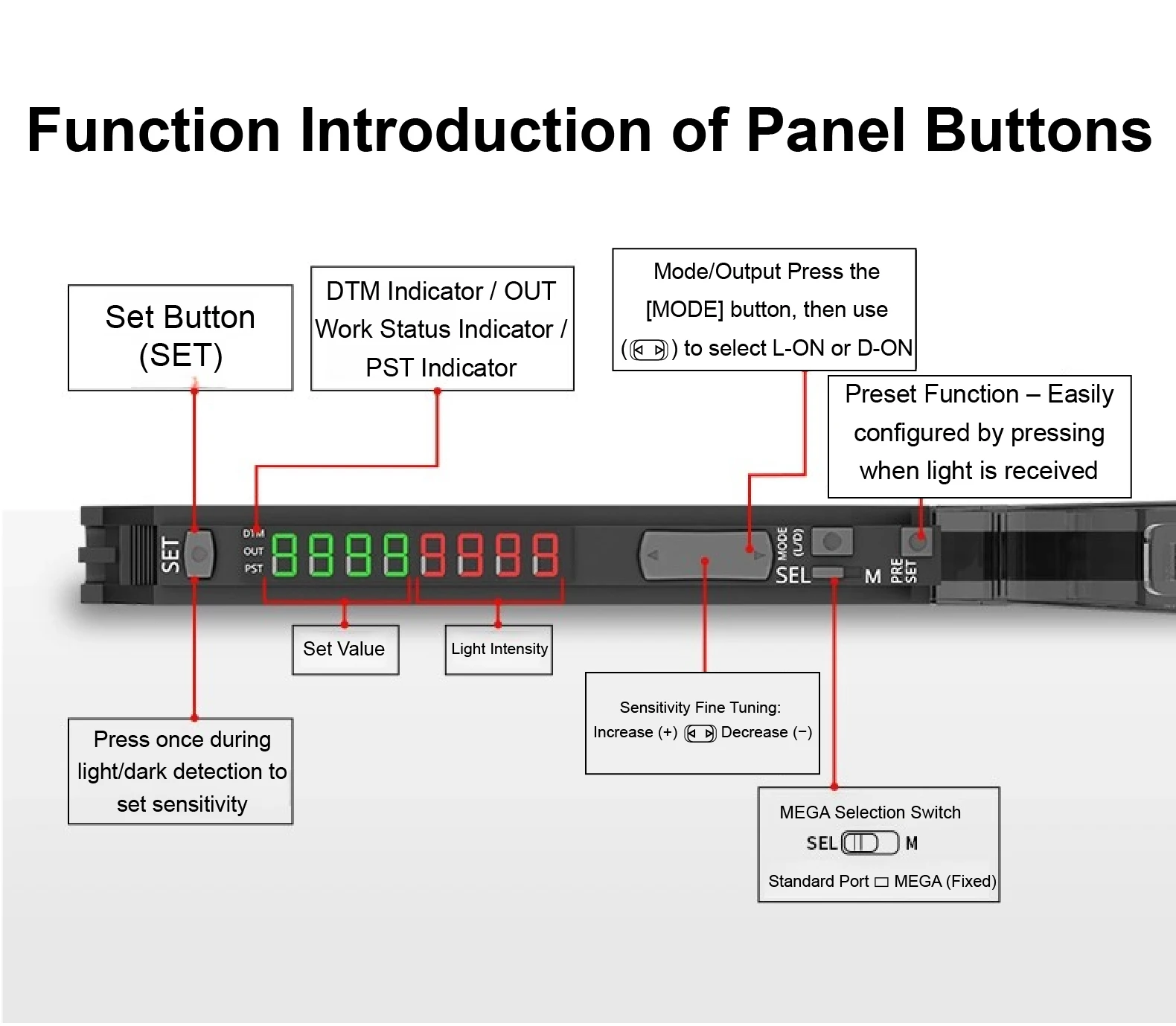

Dual LED Display
Provides real-time feedback, allowing for fast and easy adjustments.

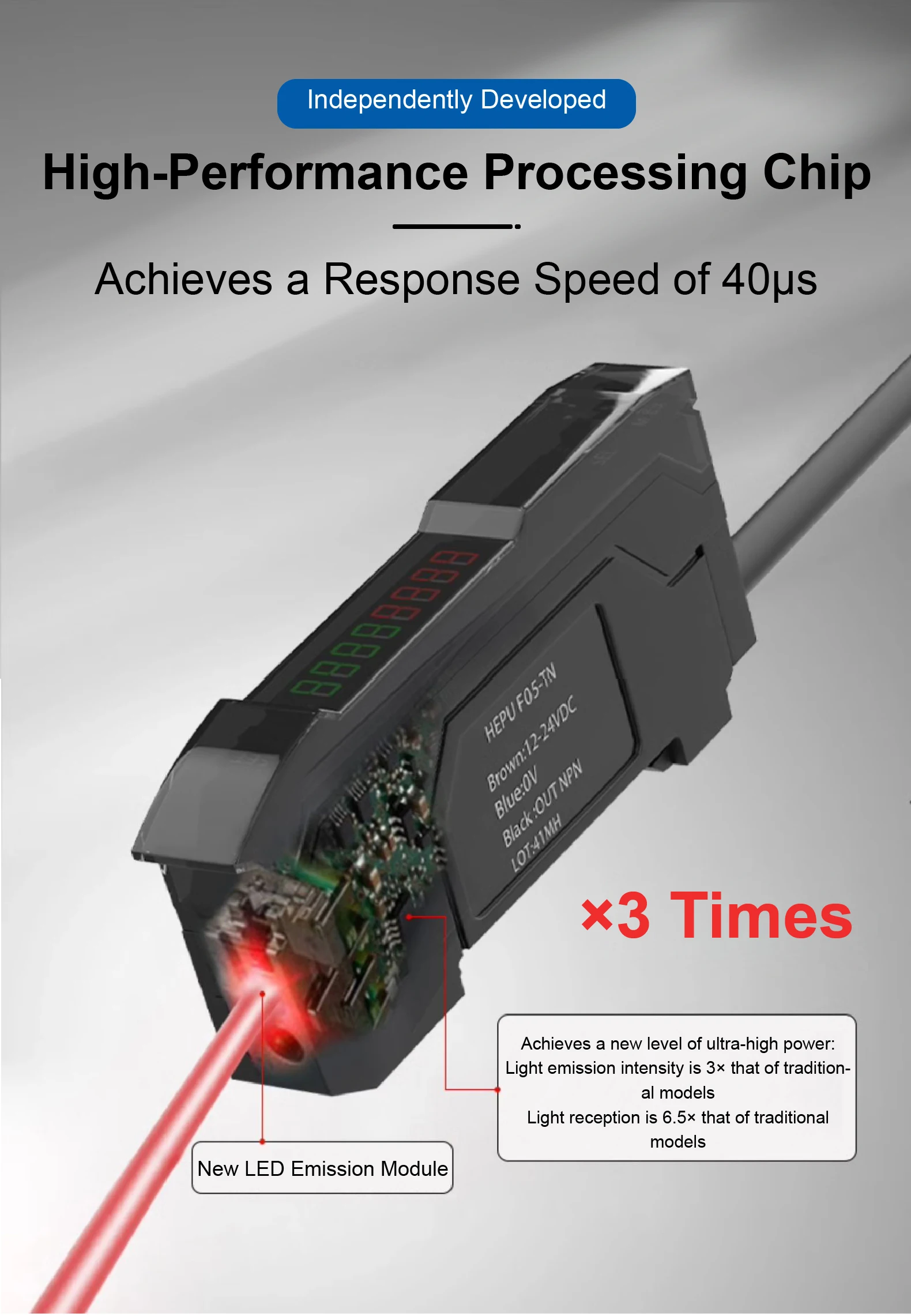

Ultra-Fast Response
40μs high-speed response time ensures precise and reliable detection, even in high-speed applications.
Wide Fiber Head Compatibility
Supports over 2,000 fiber optic types, including both reflective and through-beam options, offering maximum flexibility.

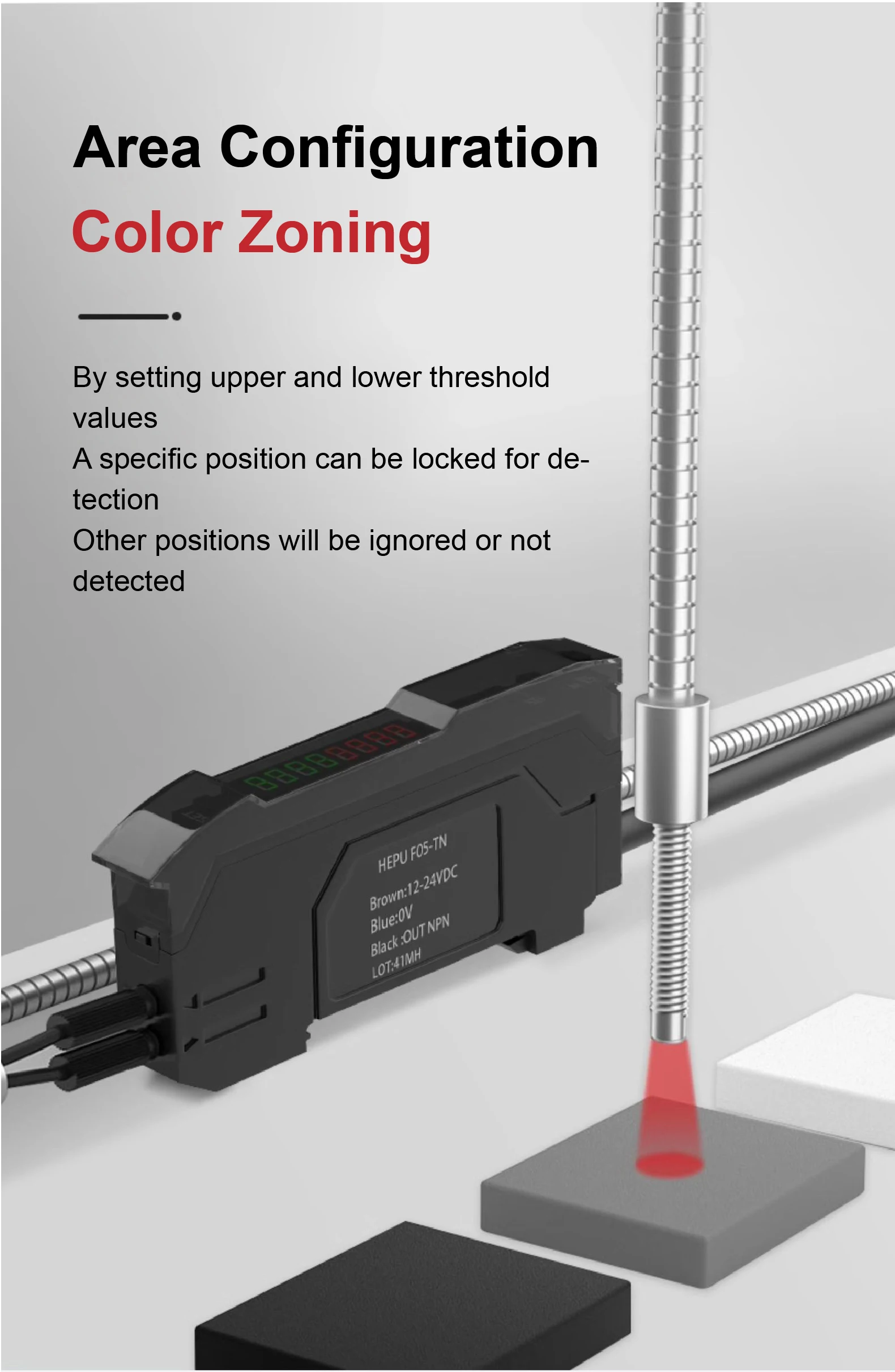

Versatile Timing Functions
Equipped with ON-delay, OFF-delay, and one-shot timer functions to meet diverse application needs.
Customizable Design
Offers optional M8 connector and a variety of fiber sizes (M3, M4, M6) to suit different installation requirements.
4. Applications
Ideal Applications
High-Speed Assembly Lines
Perfect for environments that demand rapid object detection with minimal delay.
Precision Positioning
Ensures accurate alignment and positioning in automated machinery.
Presence Detection for Quality Control
Reliably identifies object presence or absence, enhancing quality assurance processes.
Versatile Industrial Use
Designed for flexible integration across a wide range of industrial automation systems.
5. FAQs
Q1: Can the amplifier work with all fiber optic heads?
A1: It supports over 2000 types. Contact us for customized options.
Q2: Is there an M8 connector version?
A2: Yes, models F05-TCN and F05-TCP offer M8 connectivity.
Q3: What’s the sensing range?
A3: It depends on the fiber head type used.
Q4: What outputs are available?
A4: NPN and PNP open collector options are both provided.
