FT FR Matrix Fiber Optic Sensor Array for Area Detection Through Beam Diffuse Re

Product Description

NOTE
This fiber optic cable must be used together with a fiber optic amplifier to function properly. Please note that this listing includes only the fiber optic cable; the amplifier is not included and must be purchased separately.

Model: FT-FR
Power Supply: DC 24V
Output Type: NPN
Sensing Width: 6–120mm
Housing Material: Metal

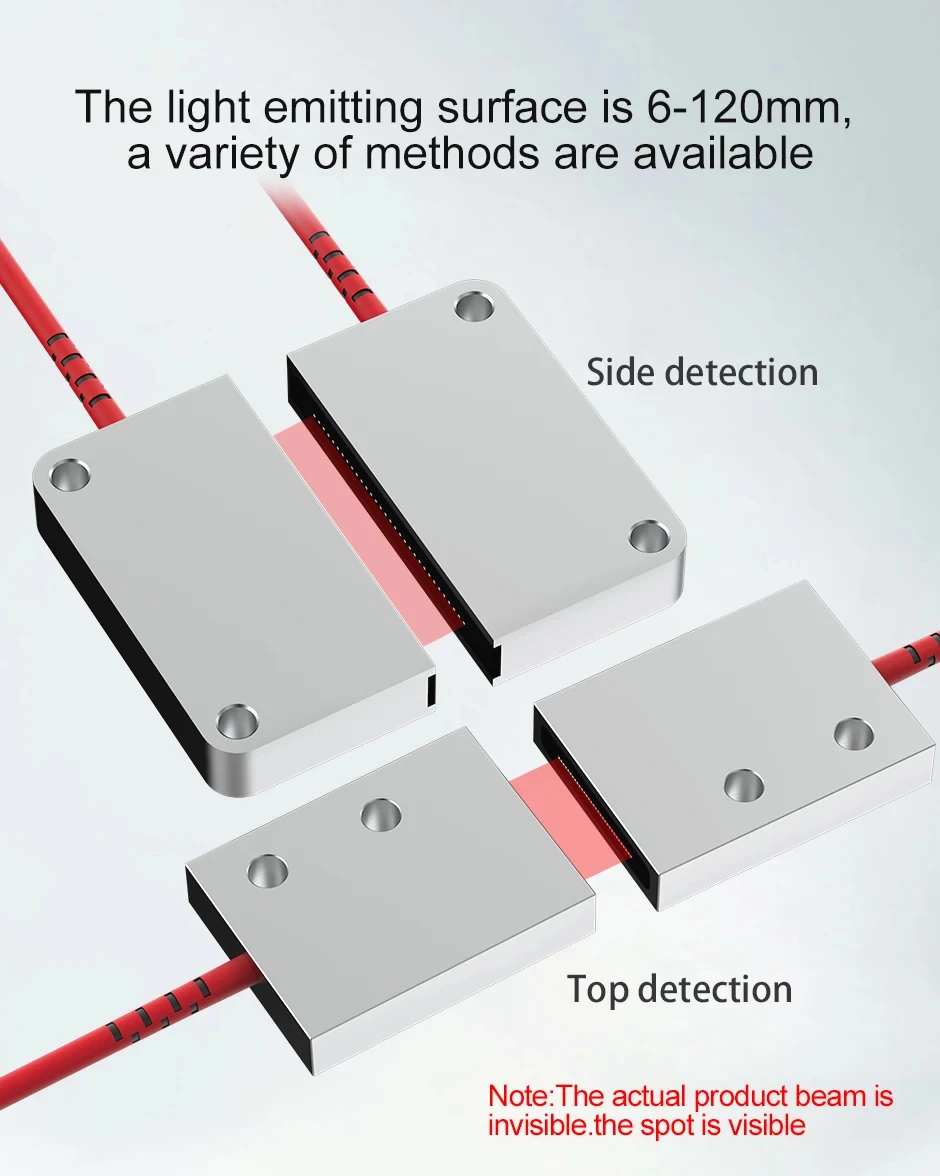

Detection Type: Top Detection / Side Detection

Note: Due to space limitations, not all specifications are listed. For detailed requirements or customization, please contact us directly.

Parameters

Features

High Precision Detection
Accurately detects ultra-small objects, making it ideal for micro-components and precise positioning applications.

Stable Output with Dust & Oil Compensation
Built-in automatic light compensation ensures consistent performance, even in environments with dust or oil contamination.

Long-range Through-beam Capability
Supports detection distances of up to 1 meter, offering greater flexibility in installation and application design.

Dual Detection Configuration
Compatible with both top and side sensing orientations, allowing seamless integration into various system layouts.

Durable & Flexible Construction
Equipped with a reinforced soft rubber tail sleeve that resists bending, oil exposure, and cable strain—significantly extending the product’s lifespan.

Ultra-fine Light Spot Pitch
Offers multiple light pitch options, with resolutions as fine as 0.35mm, enabling precise detection of narrow or tightly spaced targets.

Applications

Ideal for use in automation systems, beverage packaging lines, and high-speed conveyor setups where compact size and precise object detection are critical.

FAQs

Q1: Can this sensor detect very small or thin objects?
A1: Yes, it is designed with fine light spot pitches as small as 0.35mm and offers high resolution, making it ideal for detecting small or thin objects with precision.

Q2: Is the sensor durable for continuous use in oil-rich environments?
A2: Absolutely. It features a protective tail sleeve and automatic light compensation, ensuring reliable performance even in oily or dusty environments.

Q3: Can I choose between different detection orientations?
A3: Yes, the FT-FR sensor supports both top and side detection orientations, offering flexibility for various installation and application needs.
