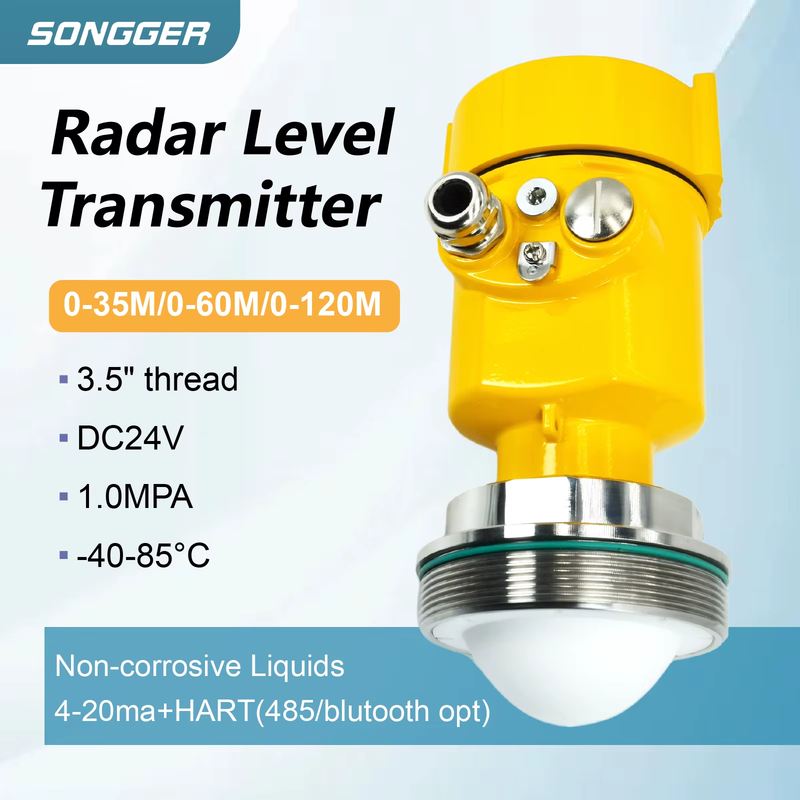

Non-Contact Radar Level Sensor 80GHz 4-20mA RS485 Transmitter Explosion Proof Co

Product Description

1.NOTE

Default Configuration

• Application: Suitable for both liquid and solid materials

• Measurement Range: 0–35 meters (Please specify your required range in the order notes, such as 0–5M, 0–10M, or any range within 35M. If not specified, the default 0–35M configuration will be provided.)

• Accuracy: ±1mm

• Power Supply: 15–28VDC

• Operating Temperature: -40°C to 85°C

• Installation Type: G3½ threaded connection

• Signal Output: 4–20mA with HART protocol

• Pressure Tolerance: Up to 1.6MPa

Customizable Options

• Extended Temperature Range: -40°C to 600°C

• Power Supply Options: DC12V or AC220V

• Flange Mounting Options: DN50, DN80, DN100

• Enhanced Pressure Tolerance: Up to 2.0MPa

• Extended Measurement Range: Up to 0–120 meters

• Communication Protocols: Optional RS485 MODBUS or Bluetooth

As a trusted industrial instrument supplier, we provide strong customization capabilities and highly competitive pricing. If you need to tailor any specifications to meet your application requirements, please don’t hesitate to contact us!

2.arameters

3.Features

High Precision with Minimal Interference
A focused energy beam and narrow 3° beam angle significantly reduce signal interference, allowing for more accurate and reliable echo detection.

Adaptable to Complex Conditions
Engineered for reliable performance in challenging environments, including high temperatures, foam, and turbulent surfaces—ideal for water, chemical, and slurry level monitoring.

Cutting-Edge 80GHz Technology
Equipped with an advanced high-frequency chip, this sensor offers ultra-small blind zones and high resolution for precise level measurement.

Flexible Installation Options
Supports a variety of mounting styles including threaded, flanged, and corrosion-resistant designs, making it suitable for a wide range of industrial setups.

Durable, Industrial-Grade Build
Constructed from robust aluminum alloy or stainless steel and rated IP65, the device is built to withstand harsh environments and long-term operation.

4.Applications

Ideal for liquid, water, and solid level measurement in industrial environments, including those with extreme temperatures or high pressure.
Especially well-suited for highly corrosive or foam-rich applications, such as chemical storage tanks and hydrology monitoring systems.

5.FAQs

Q: Can this radar work in high-temperature environments?
A: Yes, certain models are designed to operate in temperatures up to 600°C.

Q: What types of signal outputs are available?
A: The transmitter supports multiple output options, including 4–20mA, RS485, MODBUS, HART, and Bluetooth.

Q: Is it compatible with corrosive chemicals?
A: Yes, models equipped with corrosion-resistant antennas are available for use in chemically aggressive environments.
