Product Description

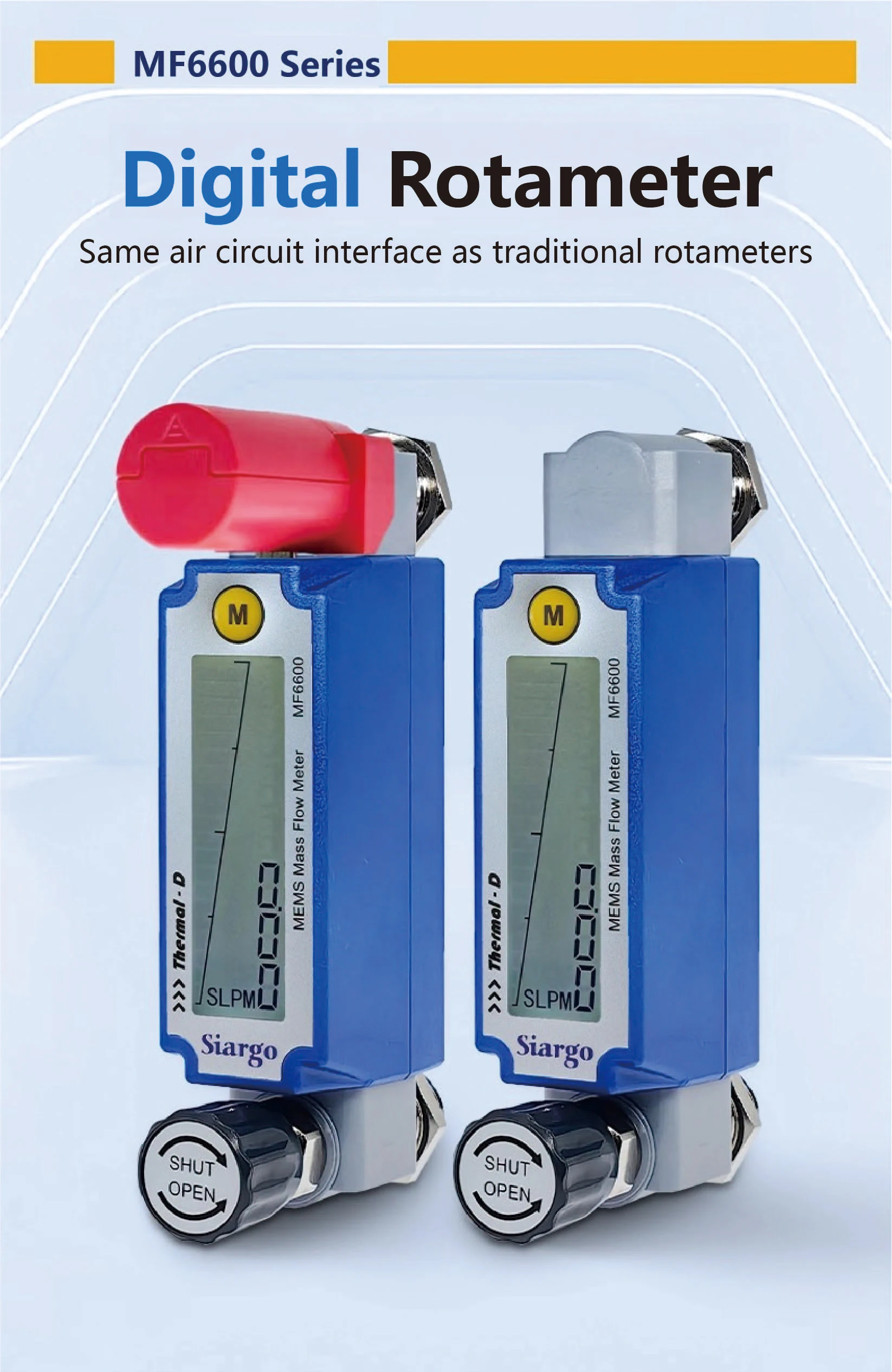

MEMS Digital Rotameter MF6600 Gas Flow Meter LCD Display RS485 Adjustable Mass Flow Sensor High Accuracy Industrial Use
MEMS Digital Rotameter MF6600 Gas Flow Meter LCD Display RS485 Adjustable Mass Flow Sensor High Accuracy Industrial Use1.NOTE.
Default Parameters
Measured Media:Air, Nitrogen, Oxygen, Argon (For other gases, please contact customer service)
Power Supply: 3.6-24VDC power input (default without power cable)
Signal: RS485
Flow Range: 01, 5, 10, 20, 50, 70 L/Min. Optional
Connection: BSPT1/4 internal thread (default with 8mm quick push-in fitting)
Accuracy: 2.0%
Customizable Parameters
Power Supply: 3.6V lithium battery（ER14250）
Signal：I2C
Accuracy: 1.5%
Connector Types: Hose barb, 6mm quick connector, ferrule fitting
Due to page limitations, not all flow range options are listed. For custom specifications, please contact us .

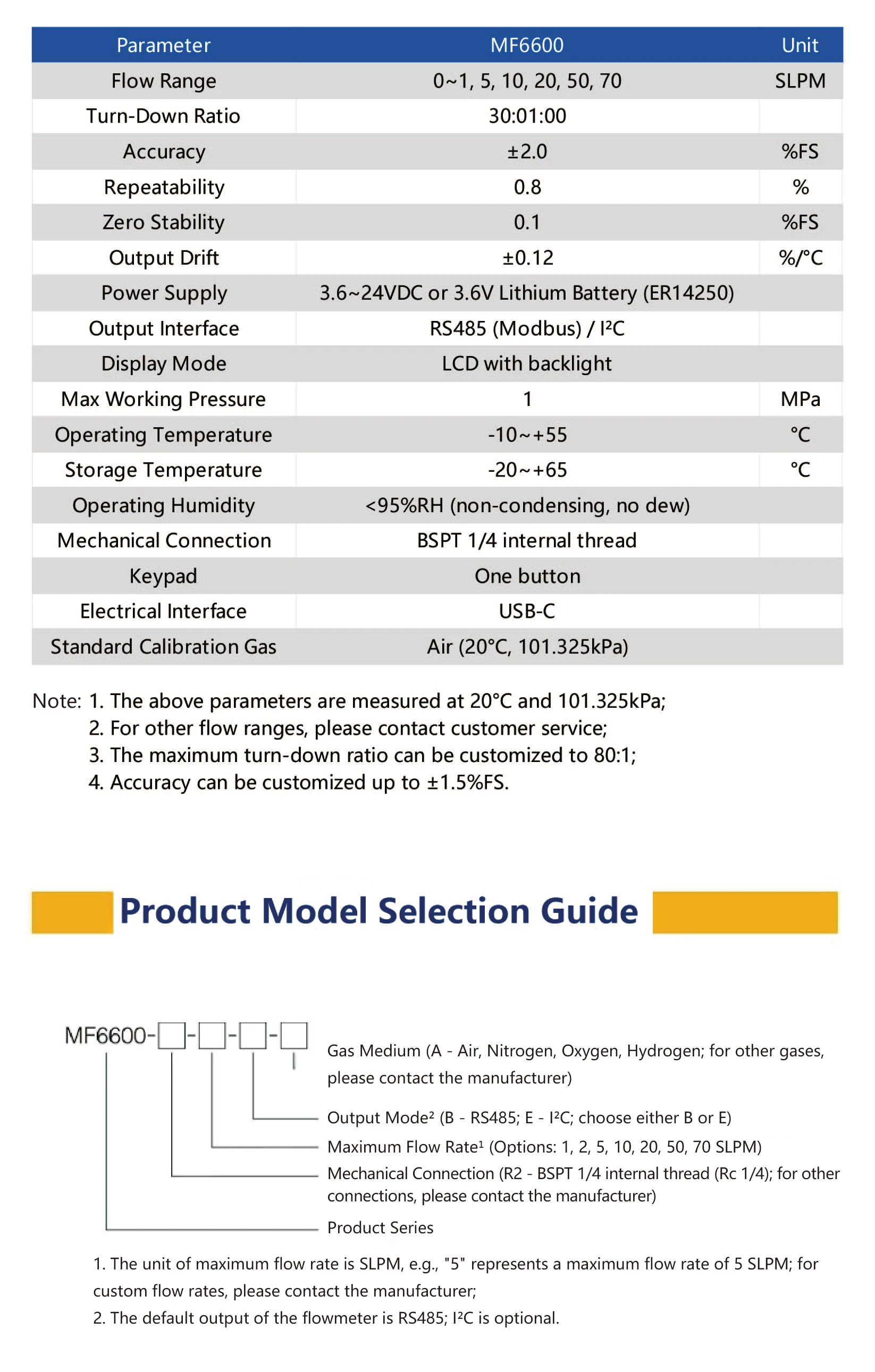

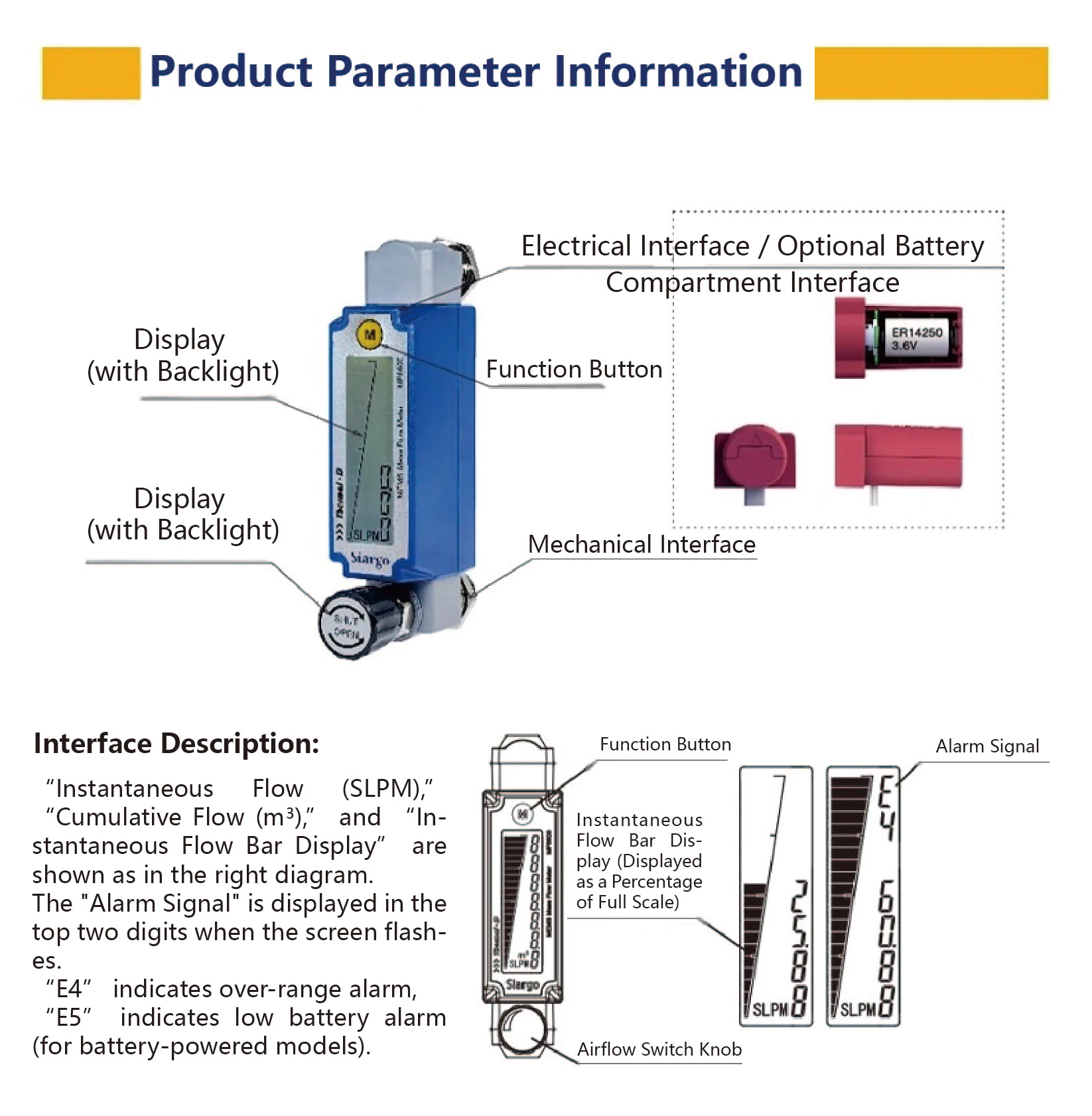

2. Parameters
Parameter | Specification |
Flow Range | 0~1, 5, 10, 20, 50, 70 SLPM (customizable) |
Turndown Ratio | 30:1 (up to 80:1 optional) |
Accuracy | ±2.0% FS (±1.5% FS optional) |
Repeatability | ±0.8% |
Zero Stability | 0.1% FS |
Output Drift | ±0.129%/°C |
Power Supply | 3.6~24VDC or 3.6V lithium battery (ER14250) |
Output Signal | RS485 (Modbus protocol) |
Display Type | LCD with backlight |
Max Working Pressure | 1.0 MPa |
Operating Temperature | -10~+55°C |
Storage Temperature | -20~+65°C |
Operating Humidity | <95%RH (non-condensing) |

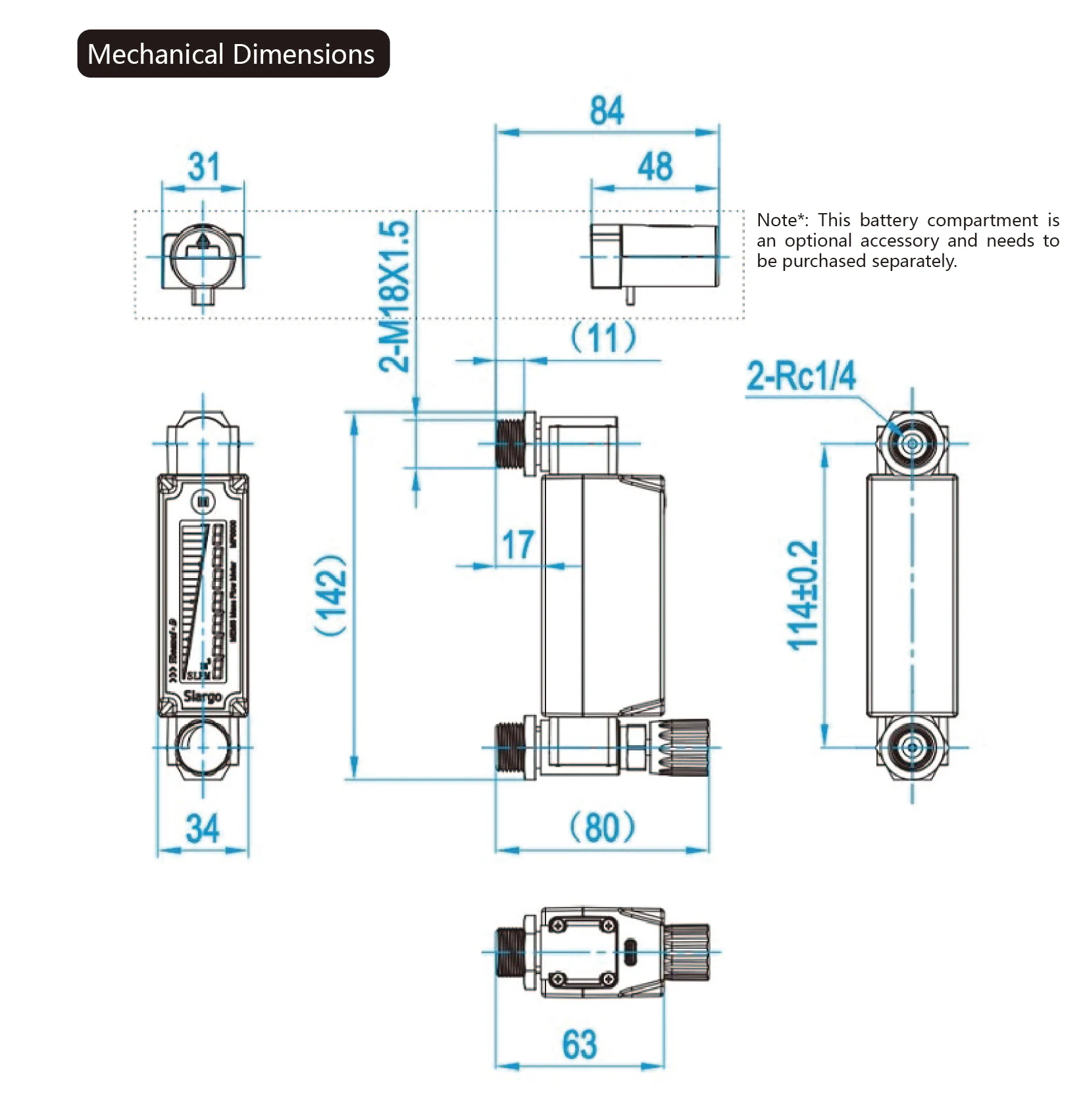

Mechanical Connection | BSPT 1/4” female thread |

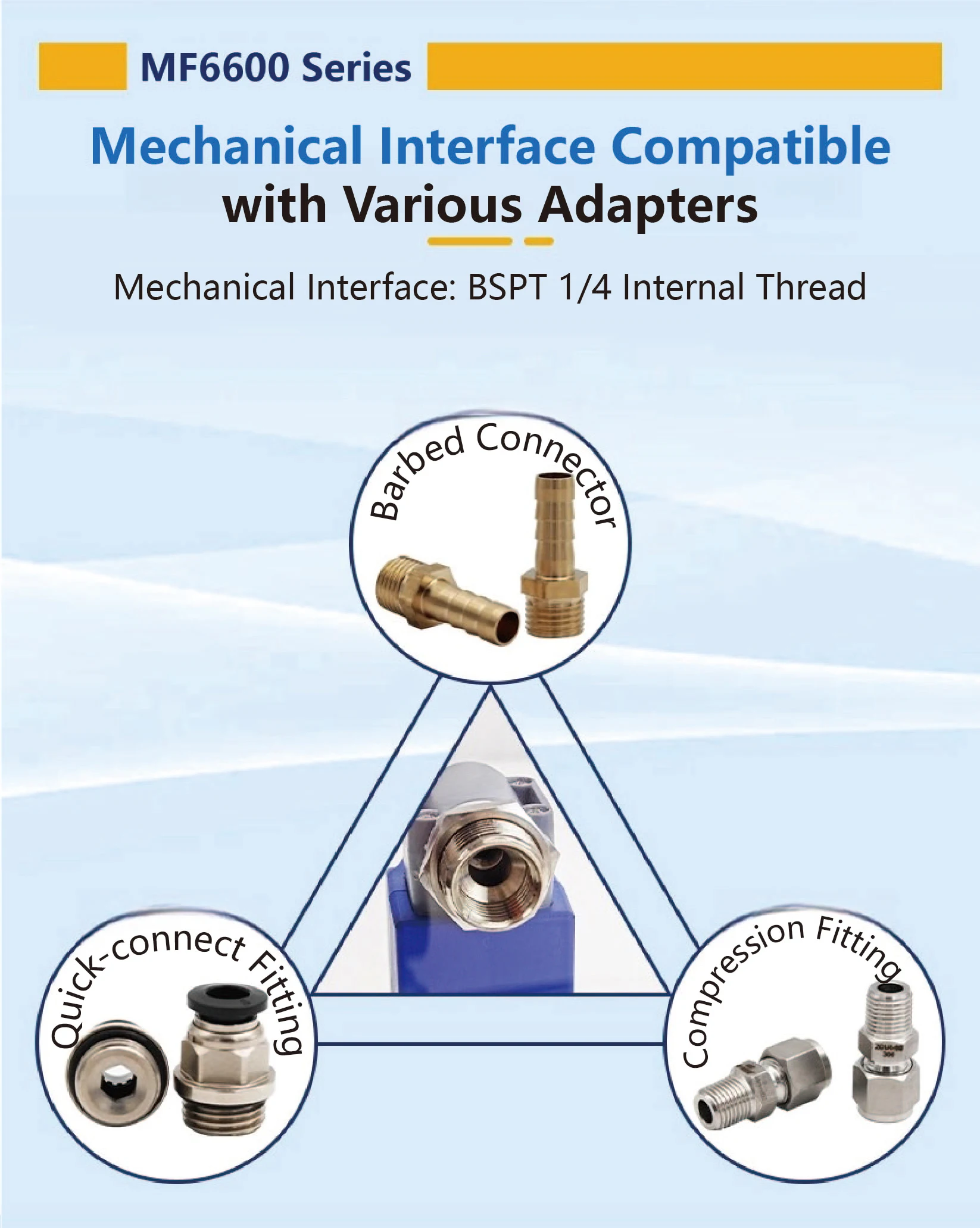

Adapter Options | Barbed, Quick-connect, Ferrule (on request) |
Electrical Interface | USB-C |
Calibration Gas | Air (20°C, 101.325 kPa) |

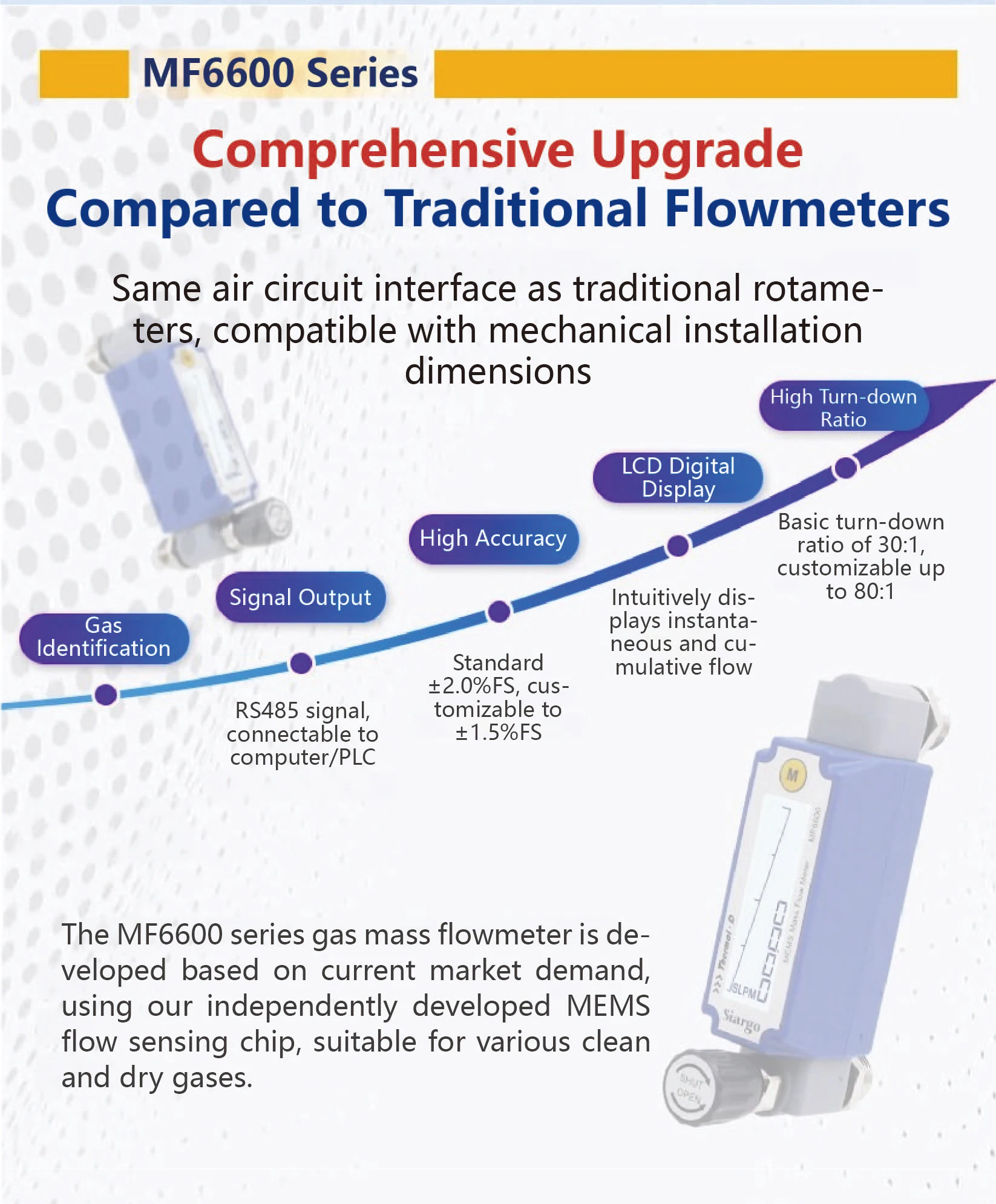

3. Features

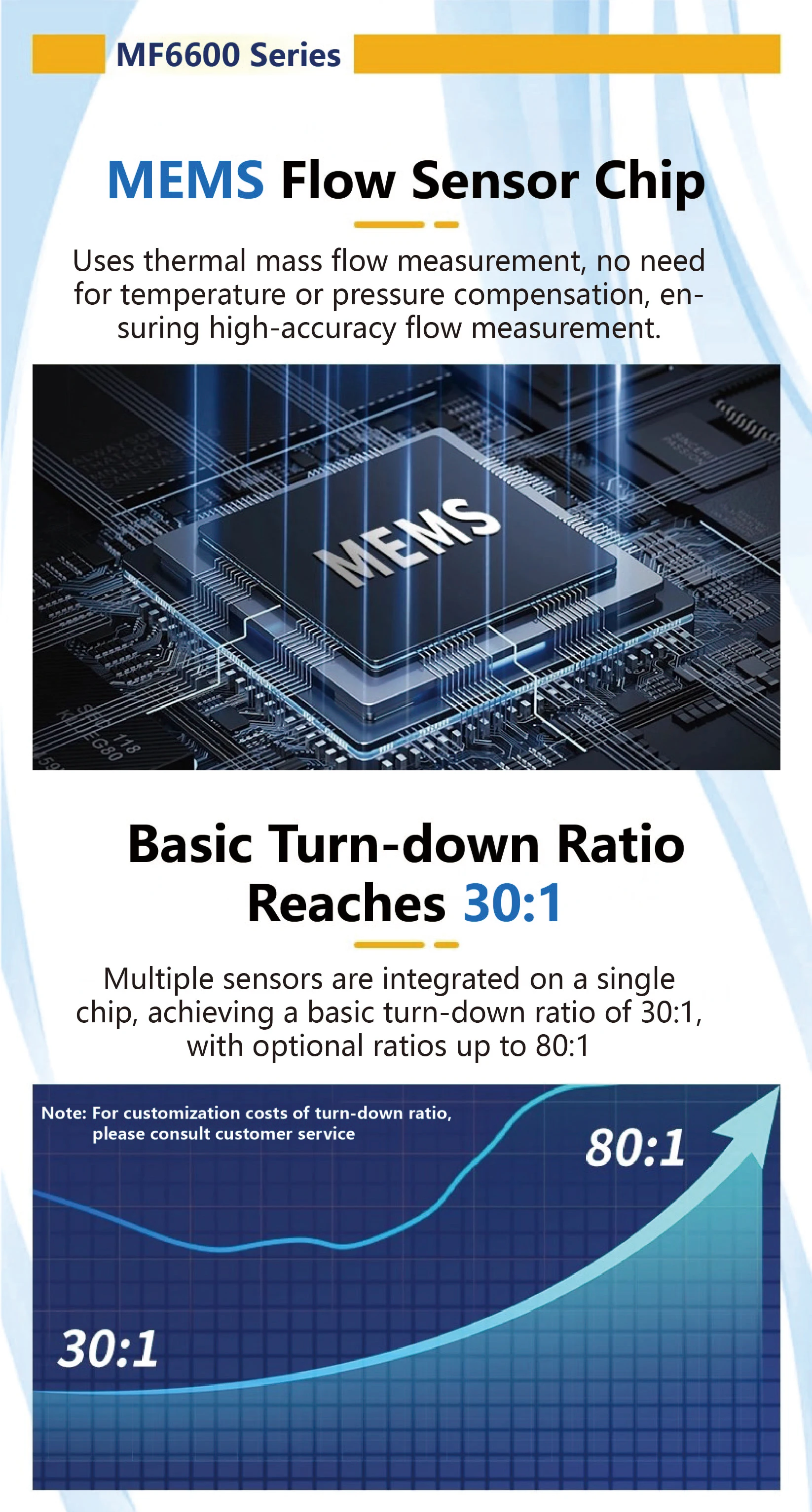

Wide Turndown Ratio
Standard 30:1 ratio, customizable up to 80:1 for greater flexibility in flow measurement.
Intuitive LCD Display
Real-time digital display shows both instantaneous and cumulative flow for easy monitoring.
High Accuracy
±2.0% FS as standard; optional ±1.5% FS for applications requiring higher precision.

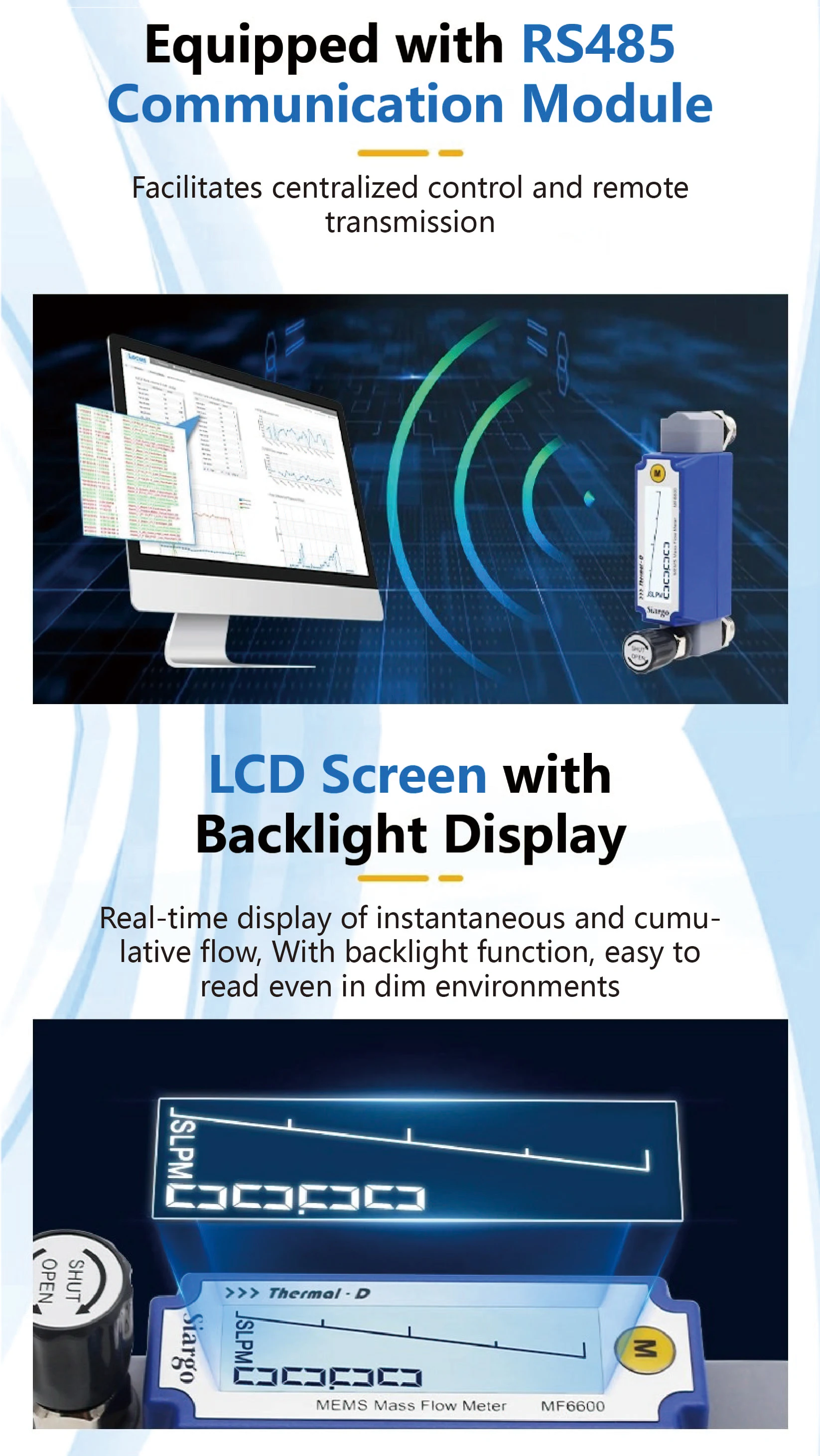

RS485 Digital Communication
Supports Modbus protocol for seamless integration with PC, PLC, or data acquisition systems.
Gas Type Recognition
Automatically identifies common gases such as air, oxygen, nitrogen, and argon.

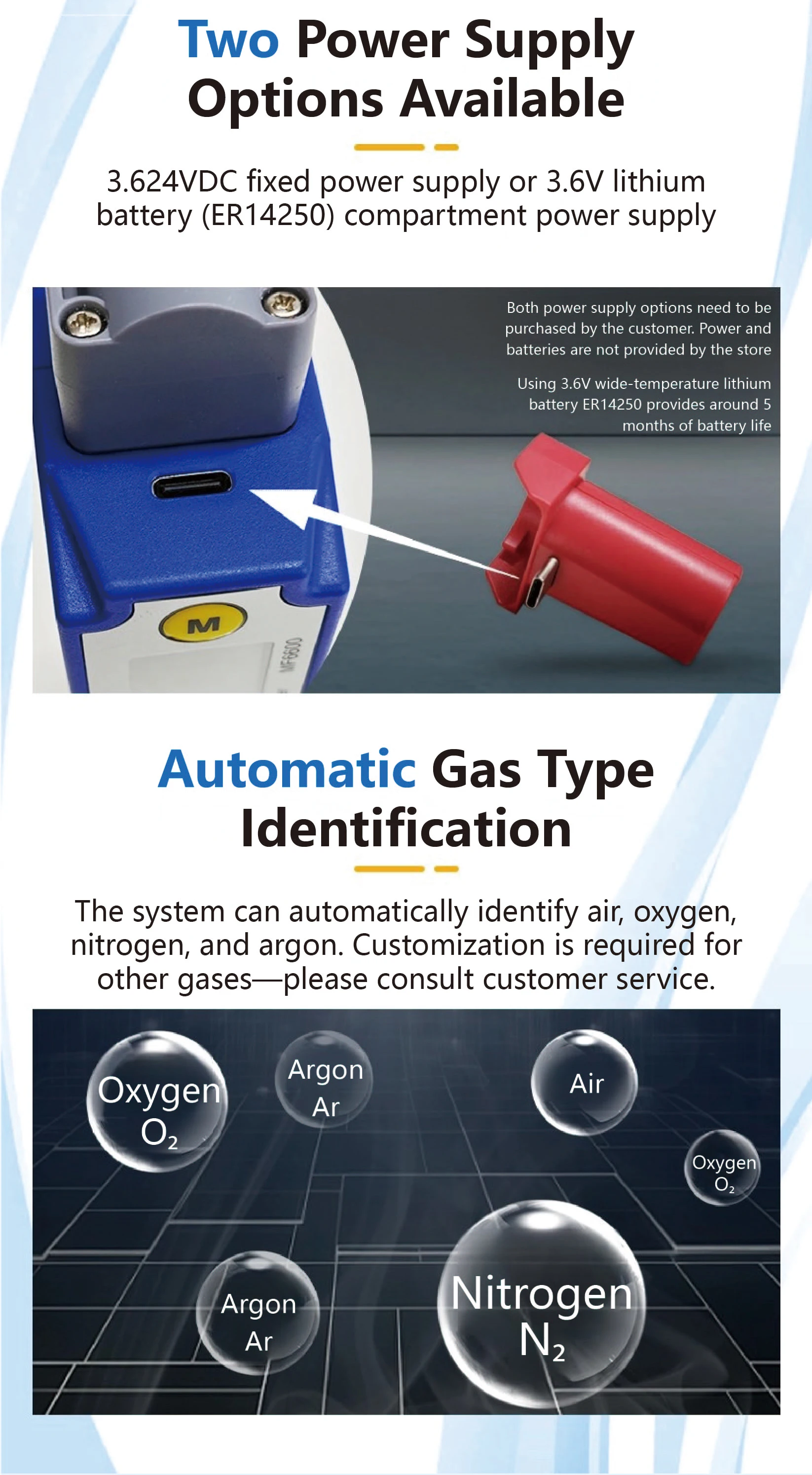

Flexible Power Supply
Operates with a DC power source or internal lithium battery (ER14250), suitable for remote installations.
4. Applications
Used in oxygen supply systems, gas metering, metallurgy, energy management, and scientific research.
Suitable for clean, dry, and non-corrosive gases (not for flammable or explosive gases).
5. FAQs
Q1: Can this flow meter be used for oxygen?
A1: Yes, it supports oxygen as well as nitrogen, argon, and air.
Q2: Does it support PLC communication?
A2: Yes, RS485 (Modbus) output is compatible with PLC and PC-based systems.
Q3: What if I need a custom flow range or fitting?
A3: Customization is available—please contact us before ordering.
