Product Description

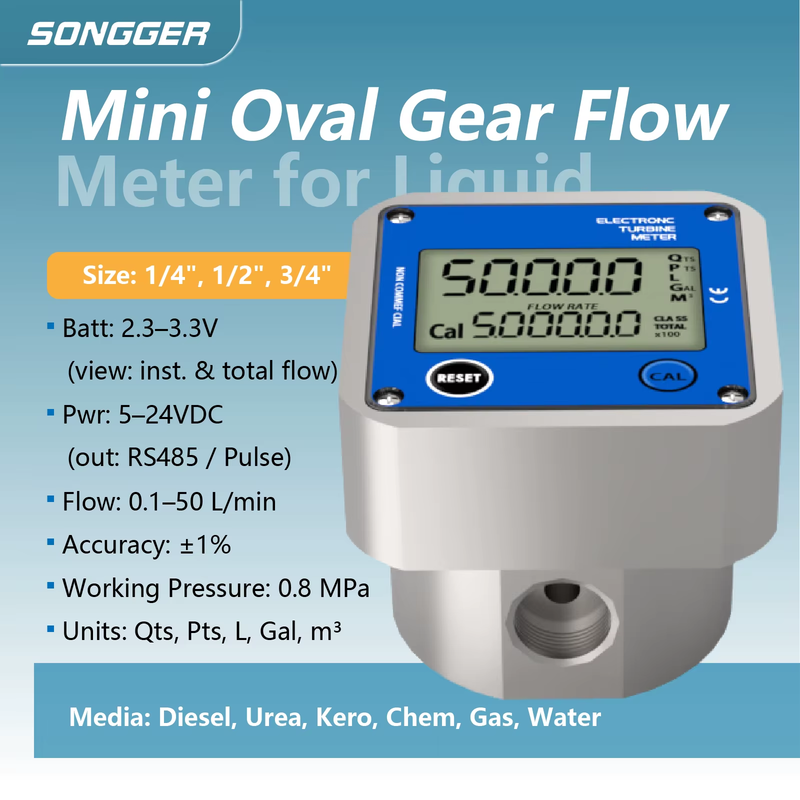

Micro Digital Oval Gear Flow Meter Fuel Flowmeter for Diesel Alcohol Aluminum Body Chemical Application 0.1‑50L/min
Micro Digital Oval Gear Flow Meter Fuel Flowmeter for Diesel Alcohol Aluminum Body Chemical Application 0.1‑50L/min1.NOTE
Some configurations may not be shown due to page space limits. For special requests, please contact us.
Default Configuration:
Connection Type: Internal thread
Accuracy: ±1%
Flow Range:
1/4 inch (DN8): 0.1–20 L/min
1/2 inch (DN15): 0.2–25 L/min
G3/4inch(DN 20):0.5-50L/min
Material: Aluminum alloy
Measurement Units: QTS, PTS, L, GAL, m³
Optional Features:
RS485 communication
Compatible Fluids:
Diesel, gasoline, methanol, water, chemical liquids

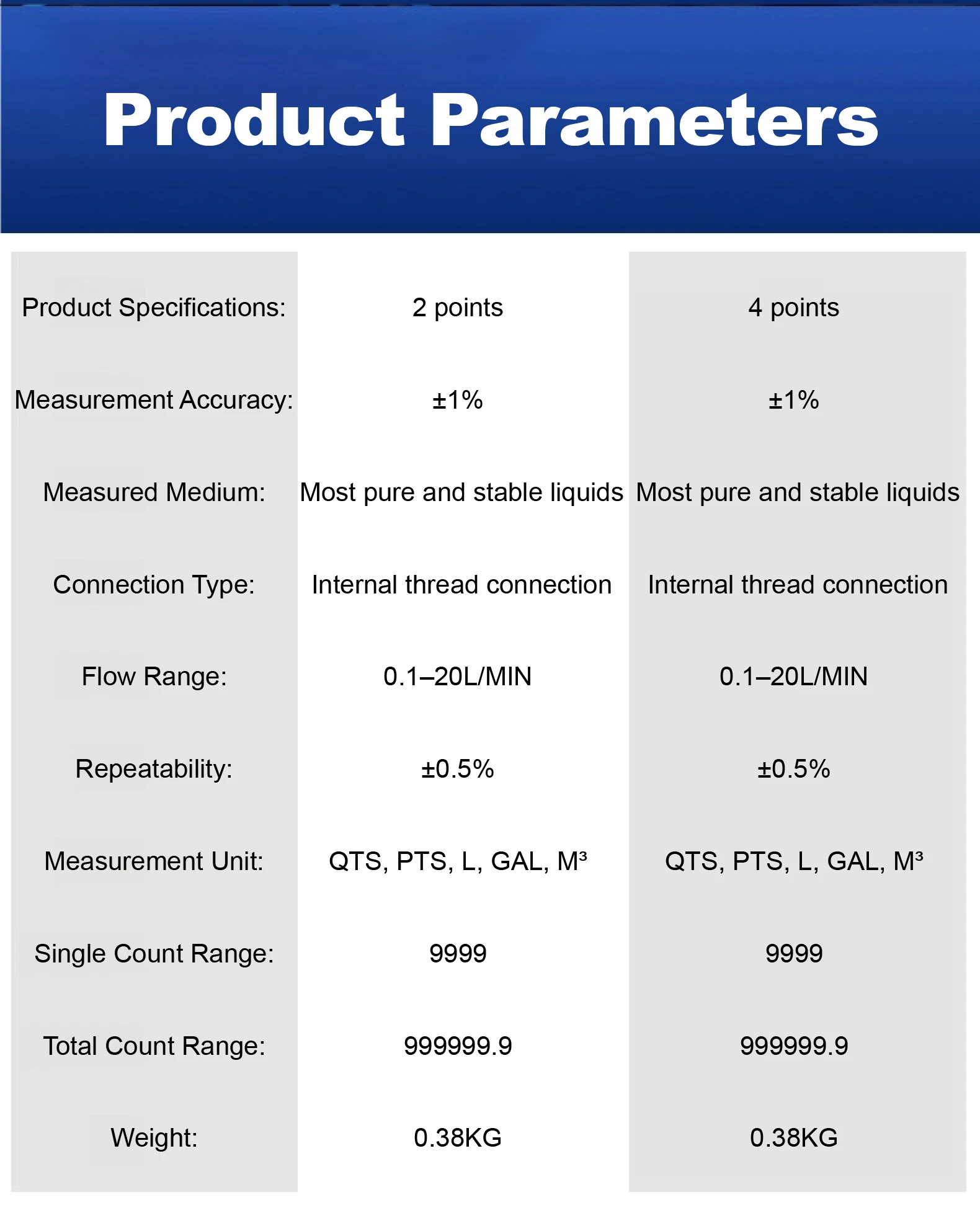

2. Parameters
Specification | DN15 (1/2") | DN20 (3/4") |
Measuring Accuracy | ±1% | ±1% |
Medium | Most clean and stable liquids | Most clean and stable liquids |
Connection Type | Internal threaded | Internal threaded |
Flow Rate | 0.1–20 L/min | 0.2–25 L/min |
Repeatability | ±0.5% | ±0.5% |
Units | QTS, PTS, L, GAL, M³ | QTS, PTS, L, GAL, M³ |
Single Count Range | 9999 | 9999 |
Total Count Range | 999999.9 | 999999.9 |
Weight | 0.38 kg | 0.38 kg |
Optional | RS485 Communication | RS485 Communication |
3. Features
High Accuracy Measurement
Ensures ±1% precision, suitable for critical metering tasks.

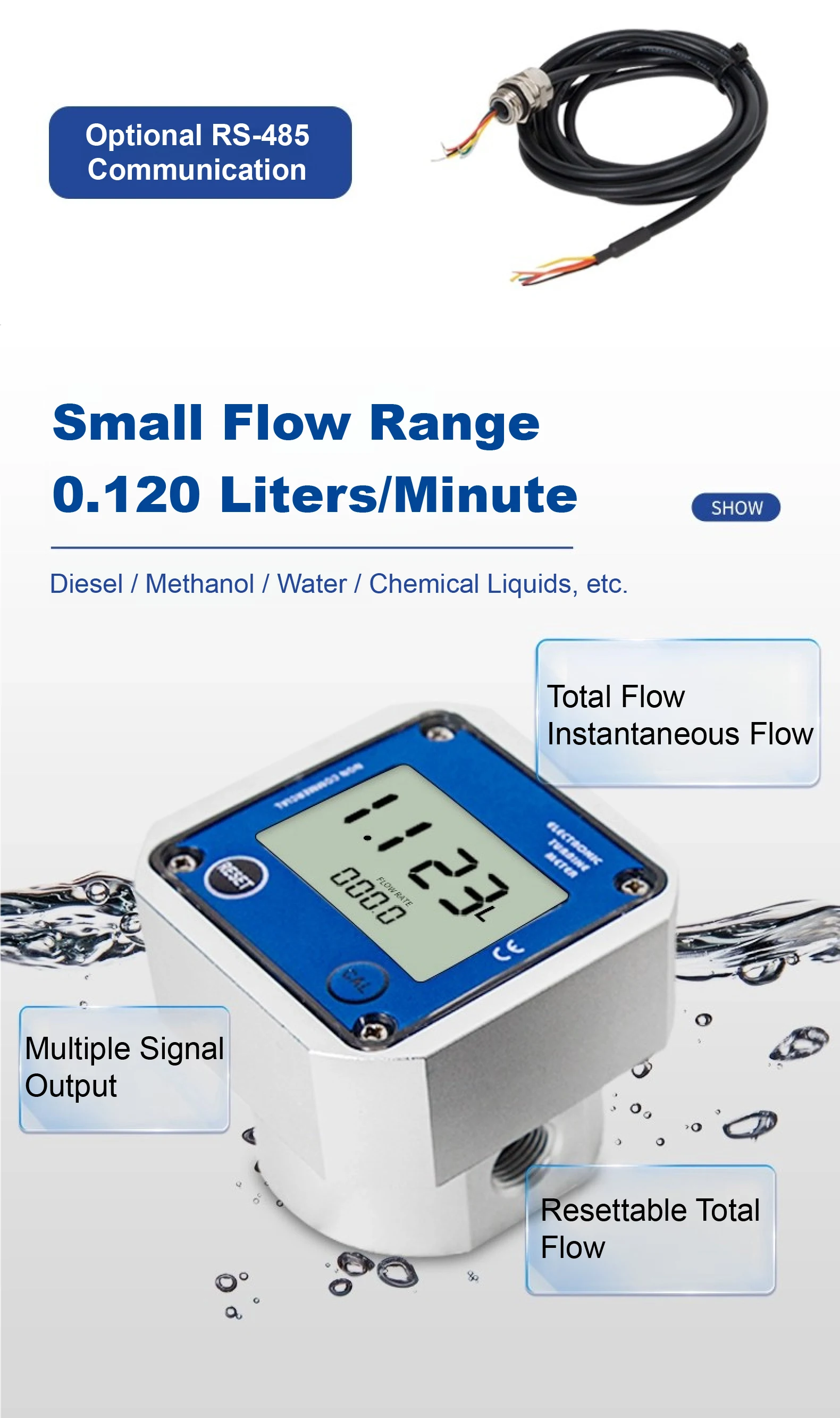

Low Flow Capability
Measures flow as low as 0.1 L/min, ideal for microfluidic or chemical applications.

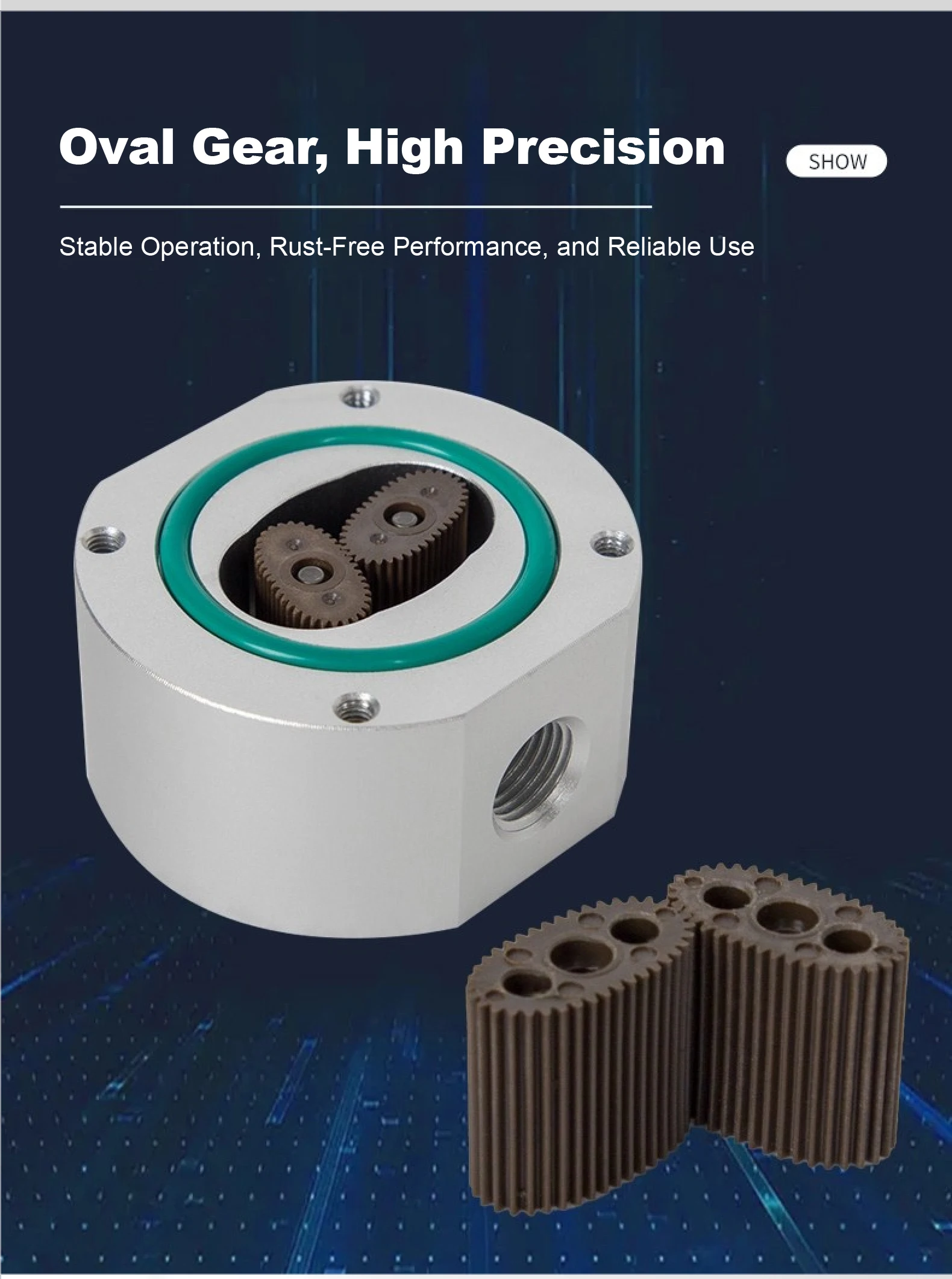

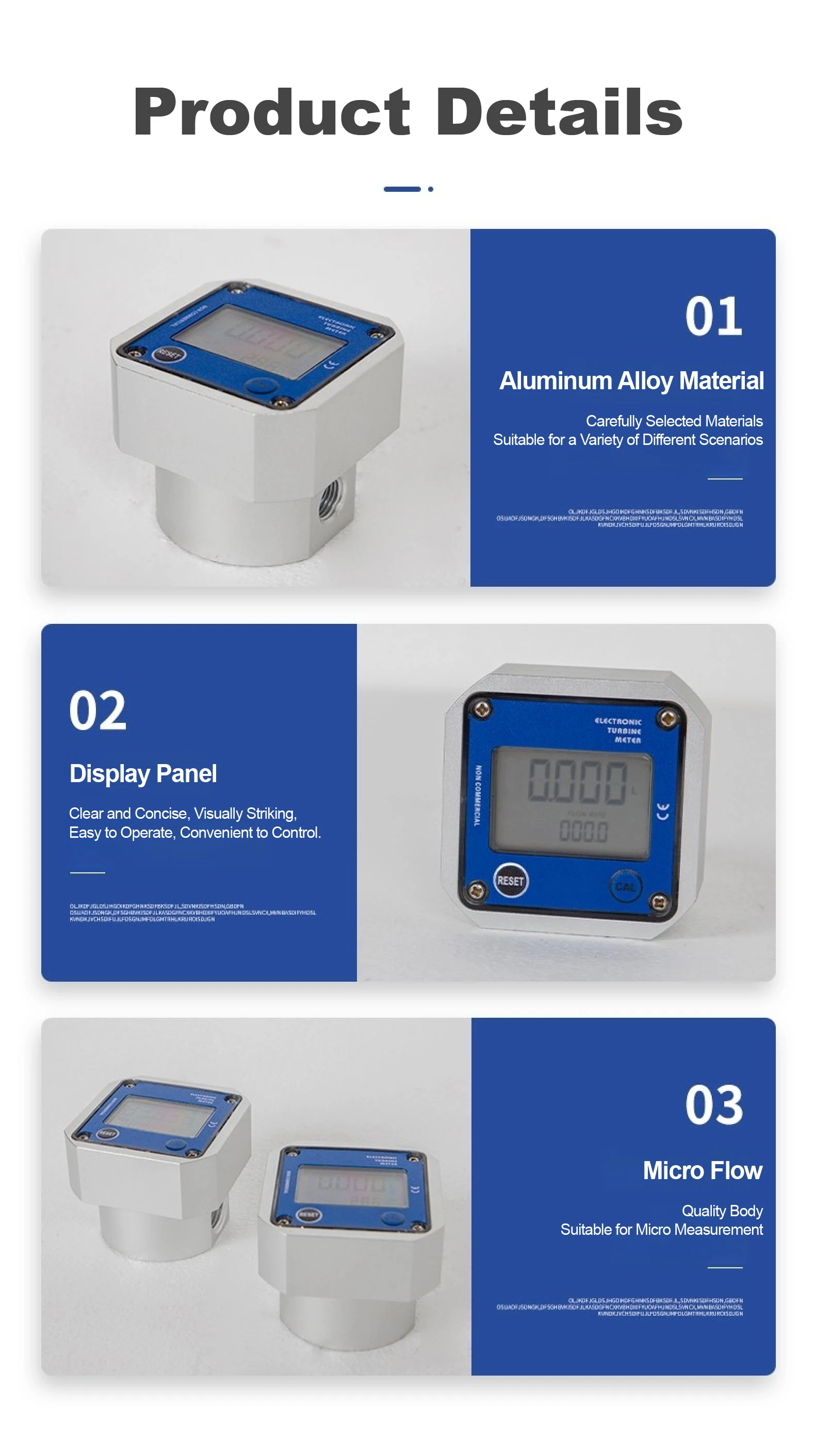

Aluminum Alloy Body
Durable and corrosion-resistant housing for extended life.

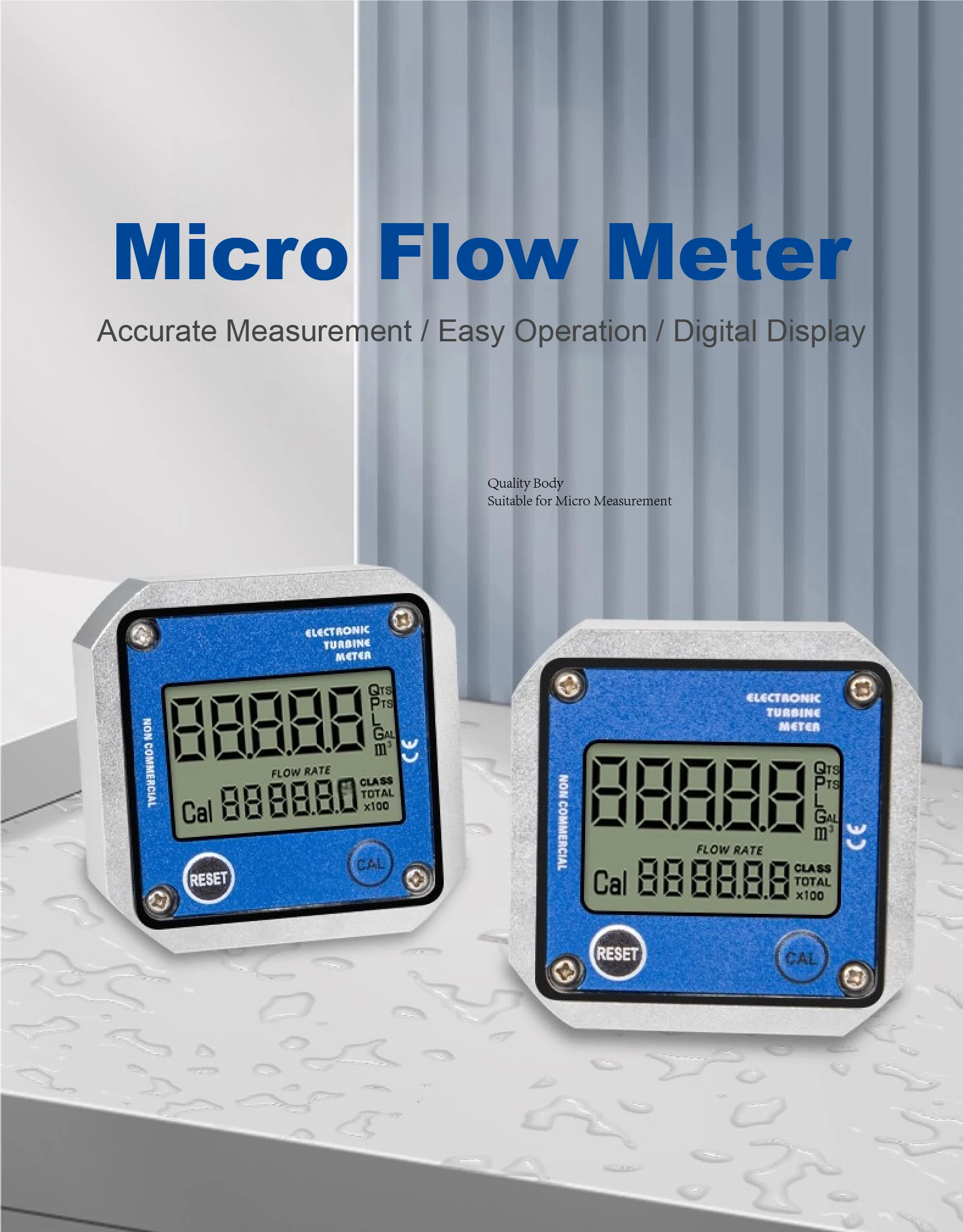

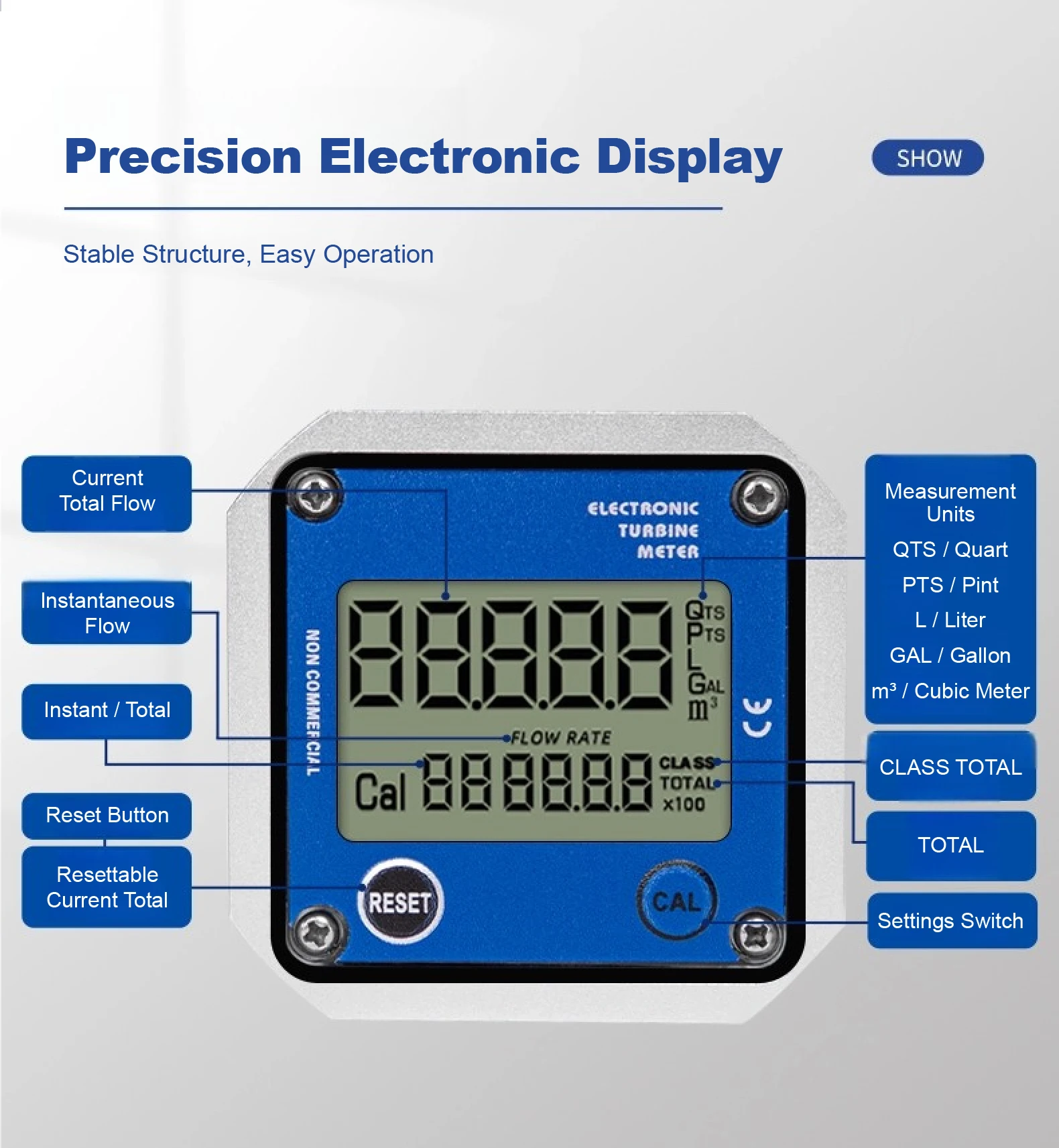

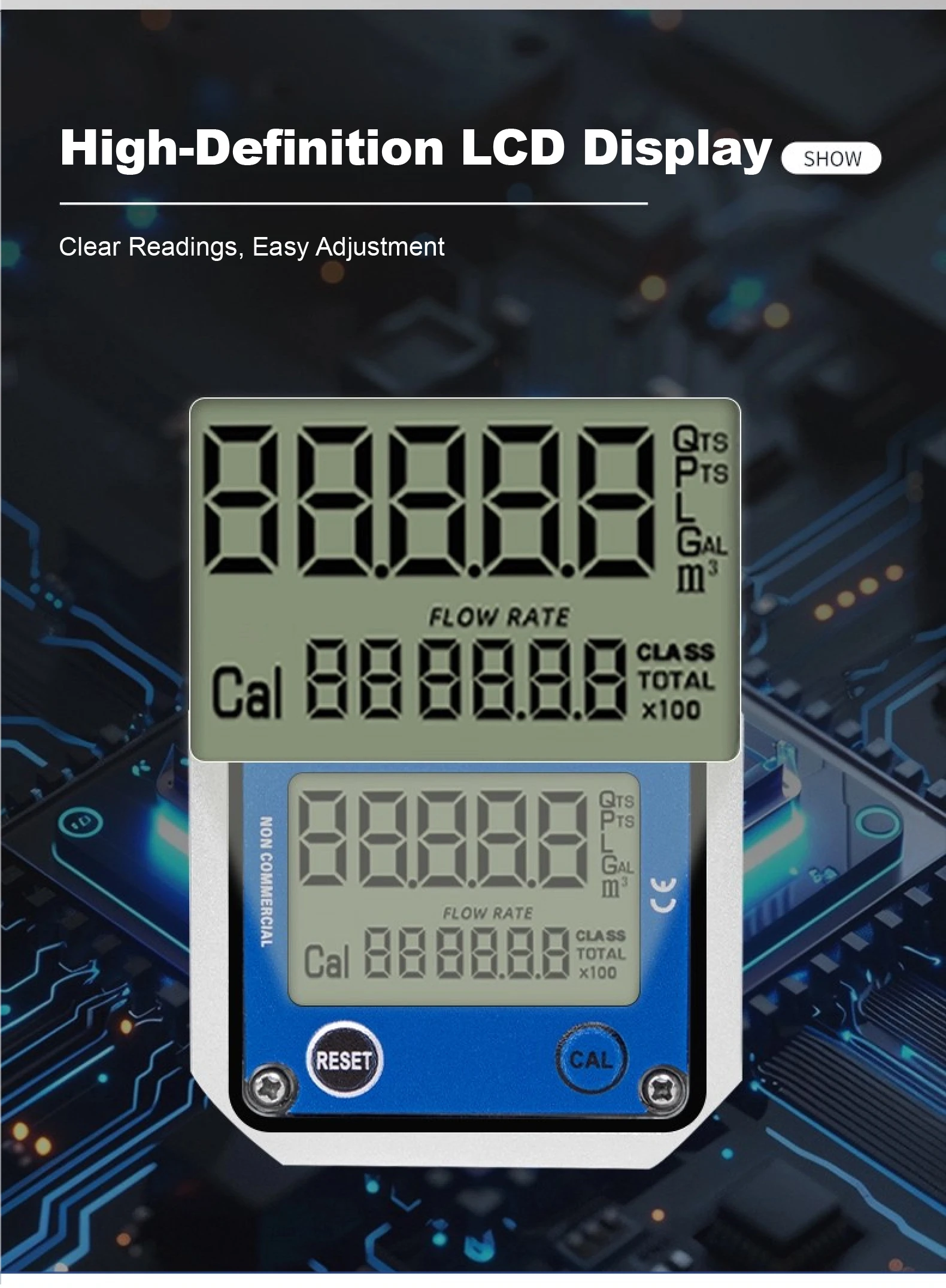

Intuitive Display Panel
Clear, easy-to-read interface for real-time data monitoring.
Multi-Unit Display
Supports multiple units including L, GAL, M³, for global adaptability.
Optional RS485 Communication
Easy integration into automation and remote monitoring systems.
4. Applications
Widely used in petroleum, chemical processing, wastewater treatment, and agricultural irrigation systems.
5. FAQs
Q1: Can this meter handle corrosive or viscous liquids?
A1: It is suitable for clean and stable liquids. For corrosive or viscous fluids, please consult us for customization.
Q2: How do I connect the device to a monitoring system?
A2: The meter supports RS485 communication (optional), which can be integrated into PLC or SCADA systems.
Q3: Is the display powered by battery or external source?
A3: Typically powered by internal battery; external power option may be available upon request.
