Product Description

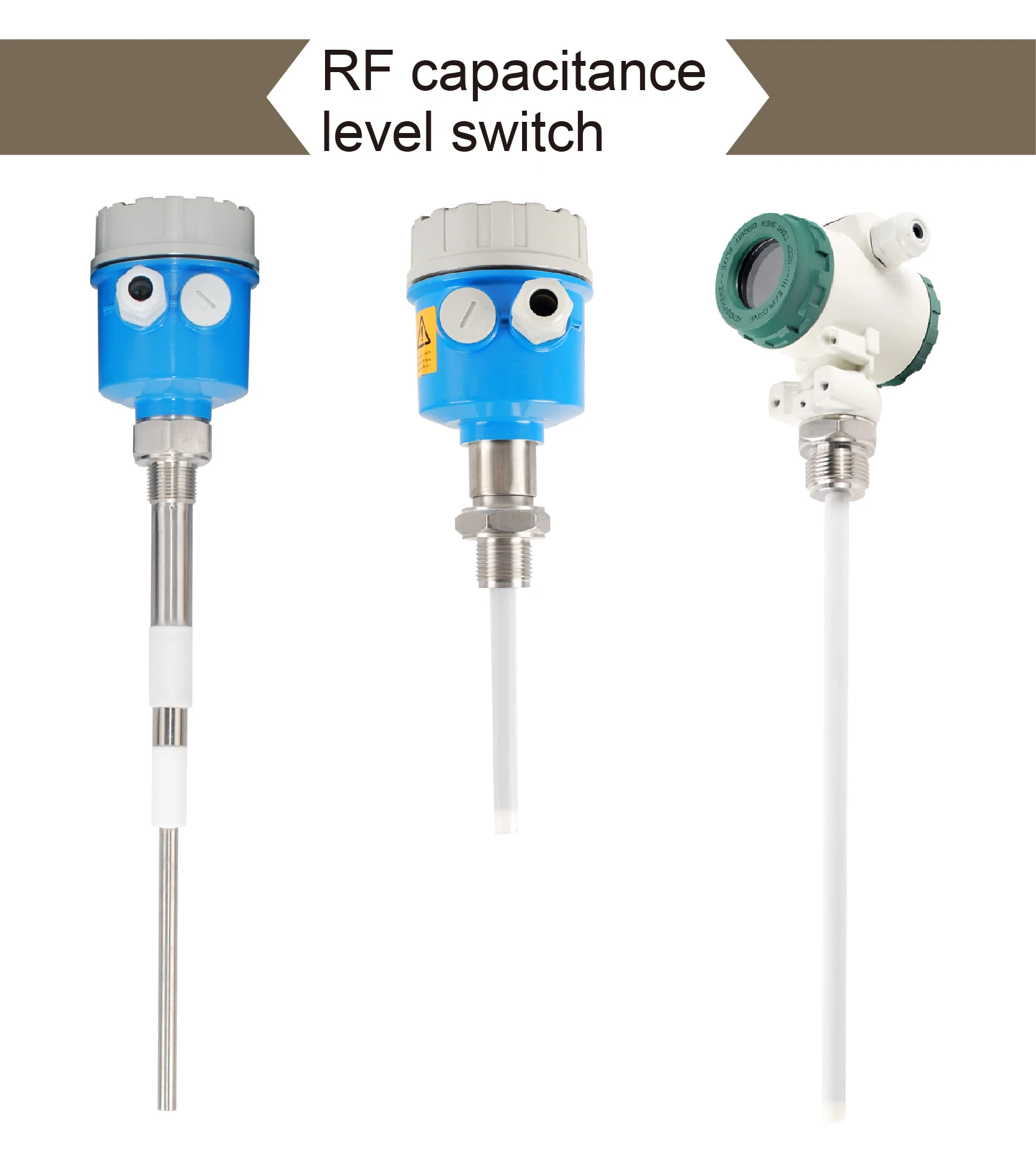

RF Capacitance Level Switch CKSP-100 PTFE Coated Anti-Corrosion Liquid Level Sensor for Chemical Water Tank Flange Type
RF Capacitance Level Switch CKSP-100 PTFE Coated Anti-Corrosion Liquid Level Sensor for Chemical Water Tank Flange TypeThe default flange connection standard is DIN/EN1092-1-2018 (German/European standard). Please refer to the dimension chart on the product details page for specific flange sizes.
If you require customized flanges in other standards such as ANSI/ASME (American standard), JIS (Japanese standard), BS (British standard), or GOST (Russian standard), please contact us.
NOTE
Suitable for level and liquid level control applications.
Due to page limitations, some configurations and lengths may not be listed. If you have special requirements, please contact us.
Default Configuration Includes:
Installation: Standard G1 Thread and Flange (Customizable to Clamp; Flange/Thread Sizes Optional)
Power Supply: DC24V (Customizable to AC220V/AC110V)
Length: Standard 300mm (Minimum 150mm, Customizable up to 3000mm)
Steel Cable Type Length: Minimum 1M (Customizable up to 15M)
Temperature Resistance: 80°C (Customizable up to 500°C)
Material: SUS304 (Customizable to 316L and PTFE Coating)
For further customization, please contact us.
PARAMETERS
Parameter | Specification |
Power Supply | 220VAC 50Hz or 24VDC (recommended) |
Relay Contacts | 1 SPDT, 5A 220VAC |
Probe Material | SUS304/316, Insulation: PP or Teflon (custom length available) |
Sensitivity Range | 0.5pF to 750pF |
Operating Temp | -10°C to 80°C (standard); high-temp version customizable |
Thread Connection | 1" NPT or 1" PF (customizable) |
Delay Time | Adjustable 0-30s |
Note: The above dimensions apply only to flanges of PN16 rating.
DN | Outer Diameter (D) | Bolt Circle Diameter (K) | Number of Bolt Holes - Diameter (n-φL) | Flange Thickness (C) | Raised Face Height (f) |
10 | 90 | 60 | 4-φ14 | 14 | 2 |
15 | 95 | 65 | 4-φ14 | 14 | 2 |
20 | 105 | 75 | 4-φ14 | 16 | 2 |
25 | 115 | 85 | 4-φ14 | 16 | 2 |
32 | 140 | 100 | 4-φ18 | 18 | 2 |
40 | 150 | 110 | 4-φ18 | 18 | 3 |
50 | 165 | 125 | 4-φ18 | 20 | 3 |
65 | 185 | 145 | 8-φ18 | 20 | 3 |
80 | 200 | 160 | 8-φ18 | 22 | 3 |
100 | 220 | 180 | 8-φ18 | 24 | 3 |
APPLICATION
This device is suitable for industrial material level monitoring across various media, ideal for automatic detection of high/low levels of liquids, powders, and solid particles.
FEATURES
High-precision RF capacitance technology to avoid material build-up interference
Adjustable sensitivity and delay to suit diverse operating conditions
High-temperature support with options for custom connection and probe material length
Dustproof and waterproof structure, suitable for harsh industrial environments
FAQ
Q: How can I set high and low-level alarms?
A: The high or low-level alarm mode can be selected via jumper settings on the panel.
