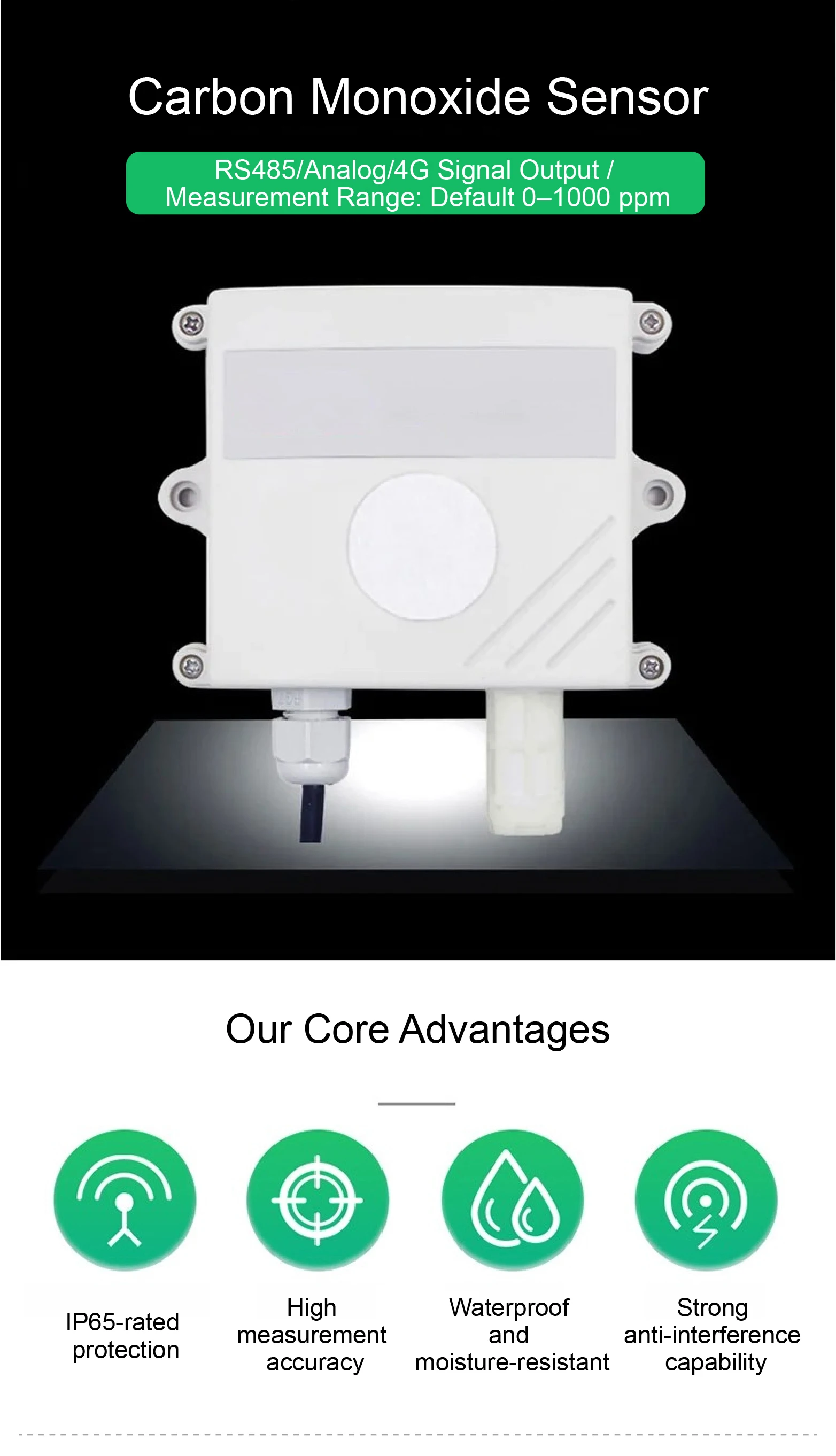

Carbon Monoxide Transmitter CO Gas Detector Wall Mount Sensor RS485 4‑20mA Relay

Product Description

1. NOTE

Default Configuration
• Style: Wall-mounted, non-display model with built-in probe
• Measurement Range: 0–1000 ppm, 0–2000 ppm
• Output Modes: RS485, 4–20 mA, 0–5 V, 0–10 V
• Power Supply: 10–30V DC
• Housing: IP65-rated for waterproofing, dust resistance, and corrosion protection

Note: Due to page space limitations, not all specifications are listed. Please contact us for specific customization requirements.

Customizable Options
• Measurement Range: Up to 0–2000 ppm
• Style: Wall-mounted with display, or CO₂, temperature, and humidity 3-in-1 version
• Probe Type: External (customizable)
• External Probe Length: 80 cm standard (customizable up to 10 meters)
• Exterior Design: Options include portable, ceiling-mounted, pipeline-mounted, or louvered enclosure
• Output Modes: RS485, 4–20 mA, 0–5 V, 0–10 V
• Adjustable Parameters: Address (1–255), Baud Rate (1200–115200)

Please confirm your required specifications and output modes before placing an order. For custom solutions, contact us directly to meet your specific needs.

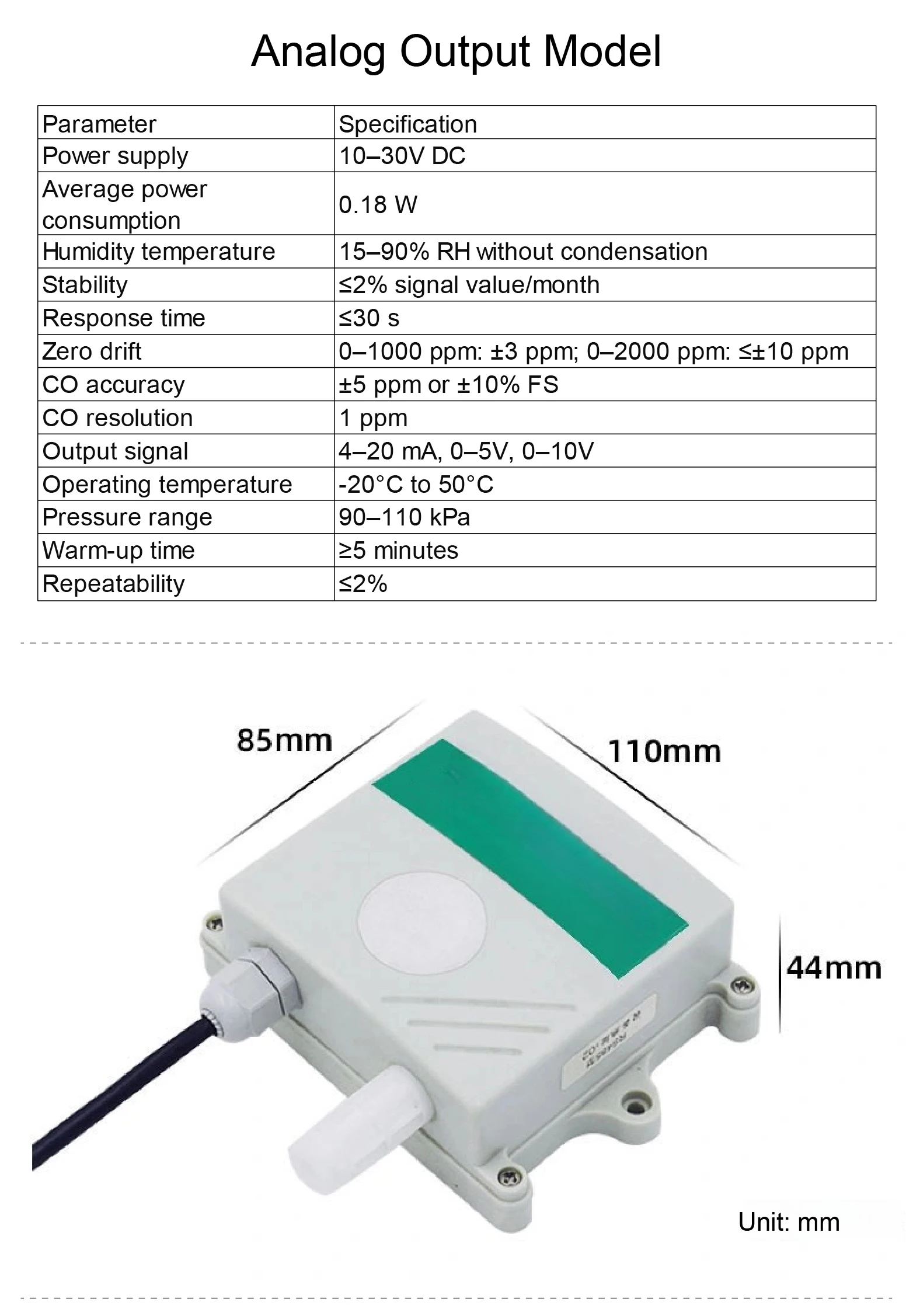

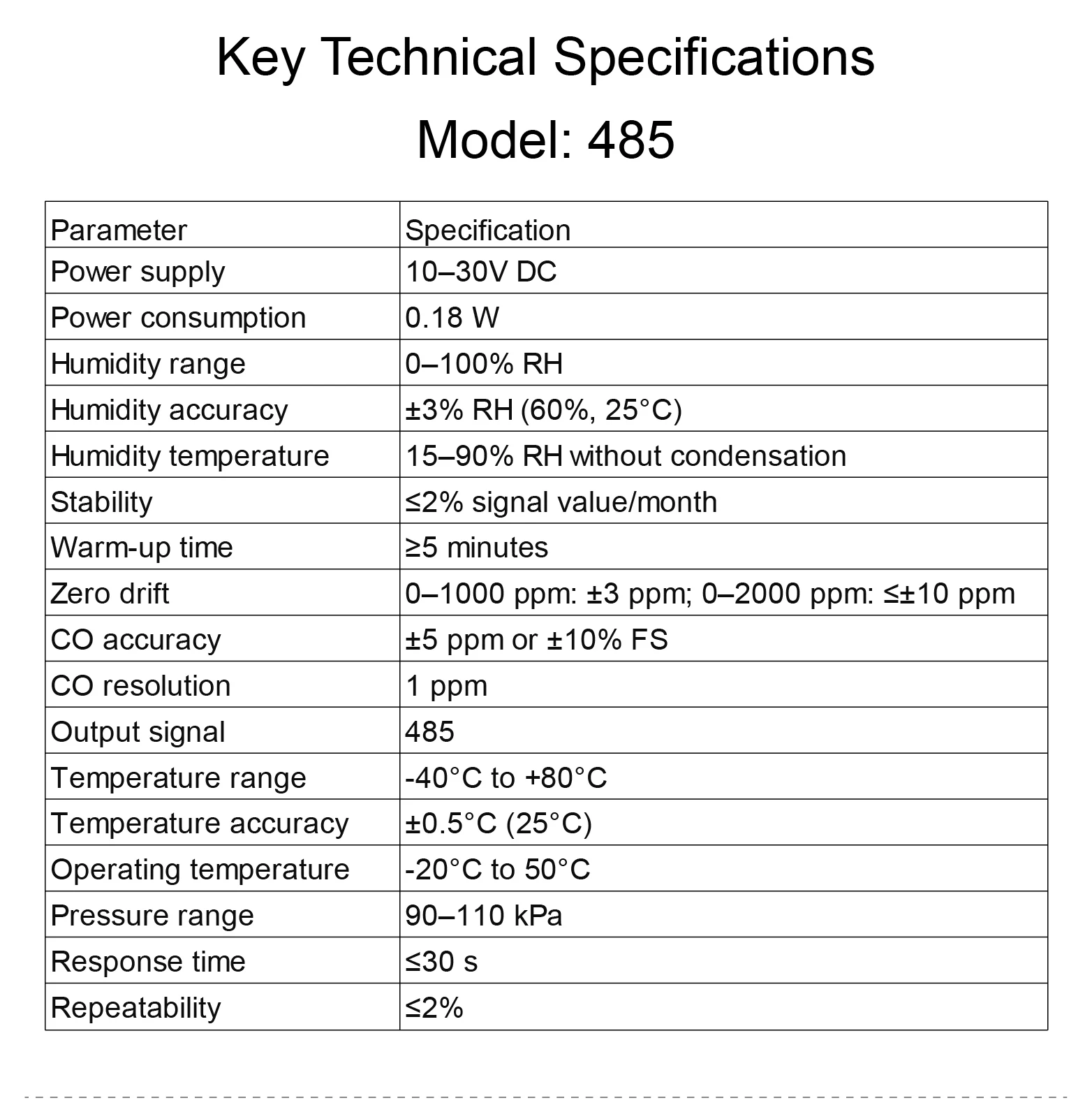

2. PARAMETERS

3. APPLICATION

Ideal for use in agricultural greenhouses, flower cultivation, industrial workshops, and laboratories.
Designed to perform reliably in harsh environments with exposure to dust, rain, and snow.

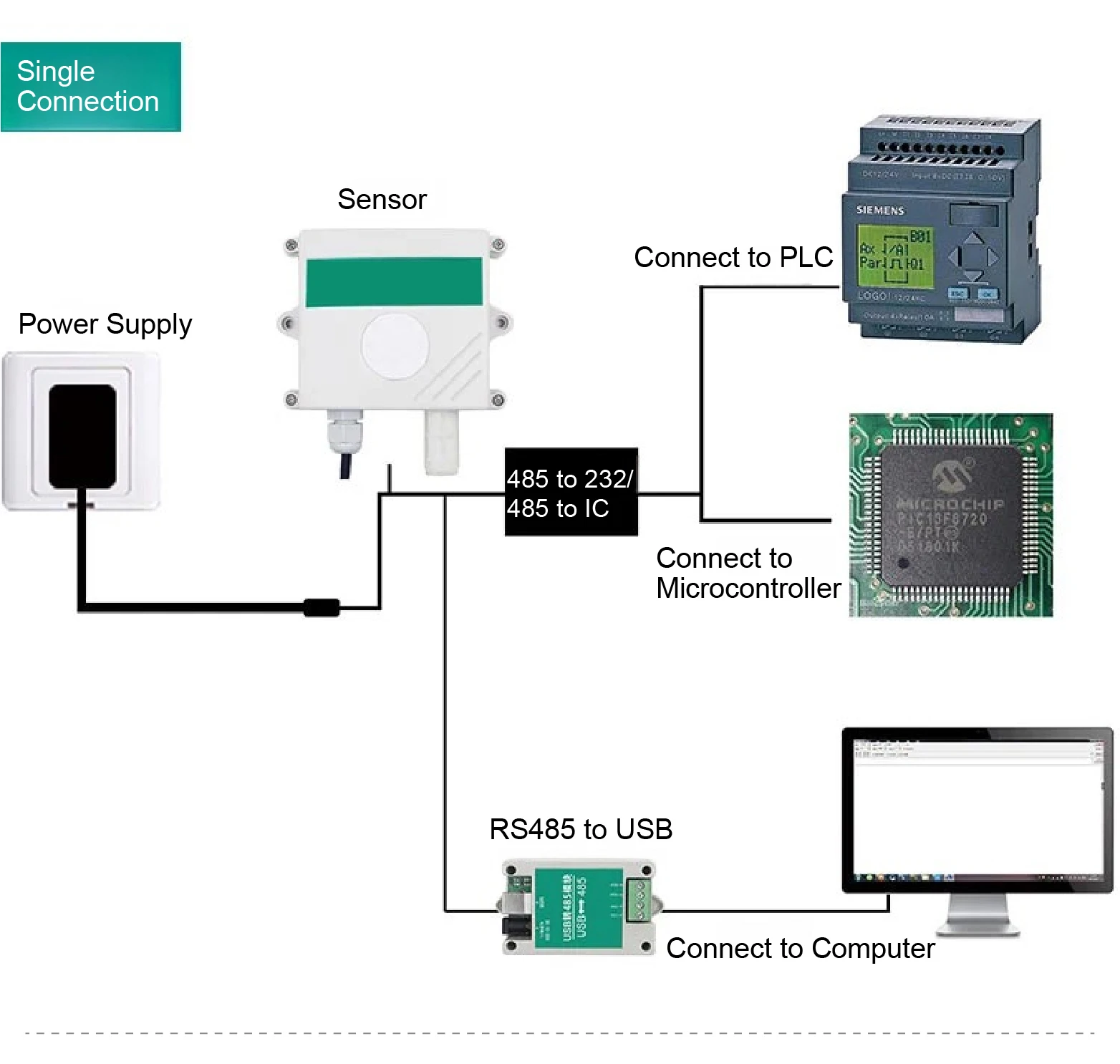

Supports real-time data transmission and seamless integration with cloud platforms for automated monitoring and management.

4. FEATURES

Precision Design
Factory-calibrated using six-point standard gas to ensure accurate and reliable measurements.

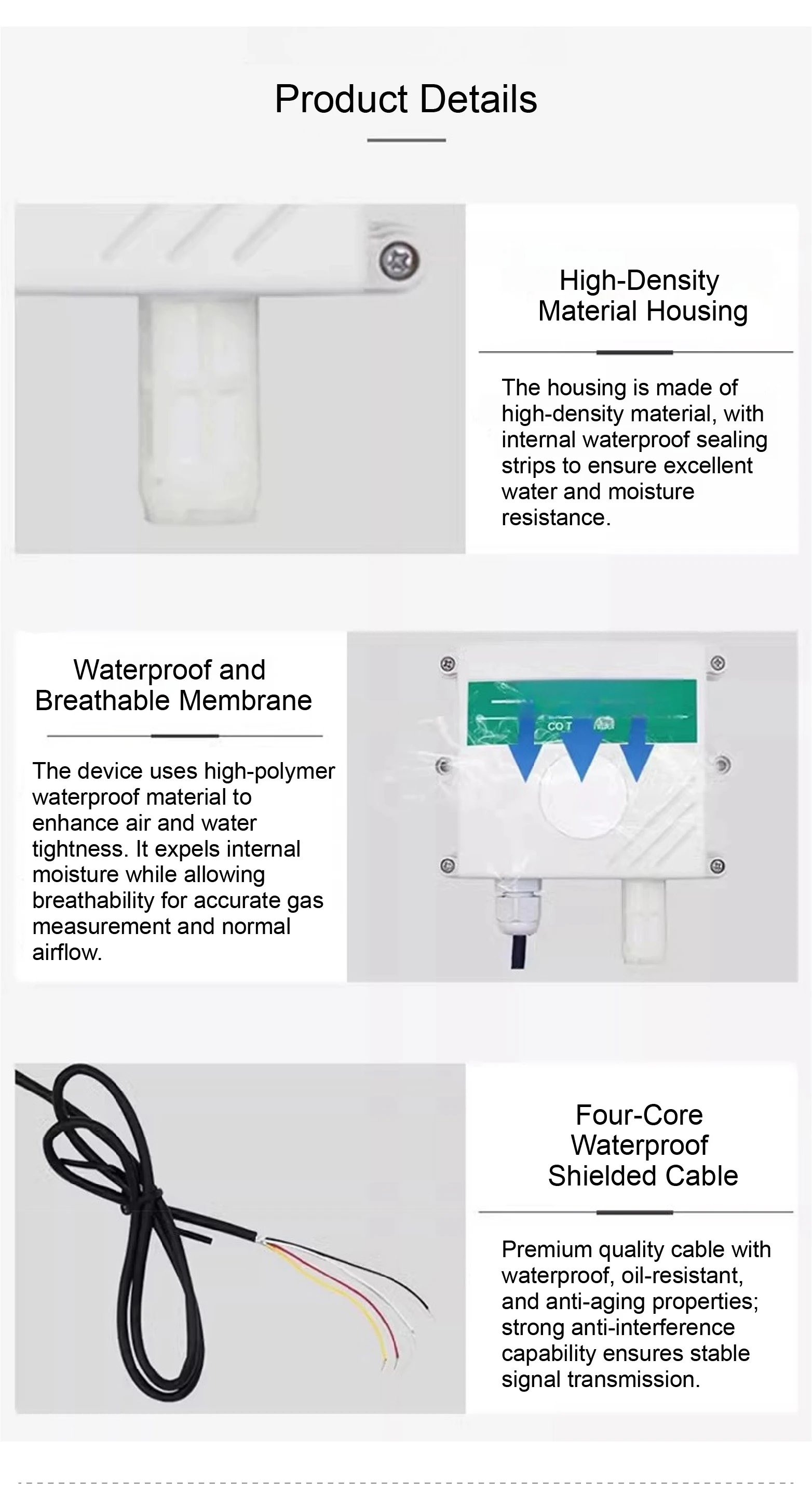

Robust Build

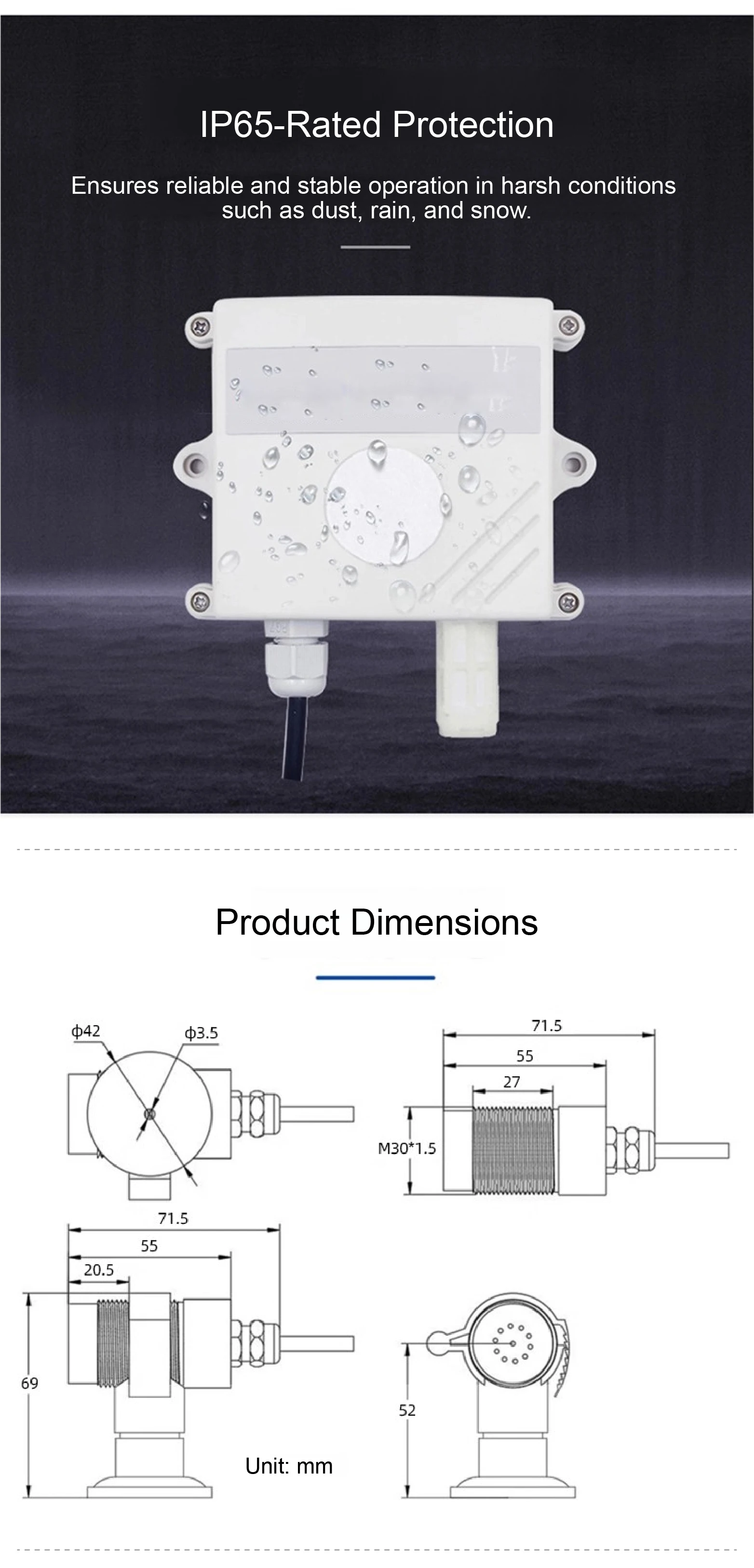

IP65-rated enclosure provides strong protection against dust and water, making it suitable for demanding environments.

Customizable Length
Equipped with shielded four-core waterproof cables, extendable up to 15 meters to suit different installation needs.

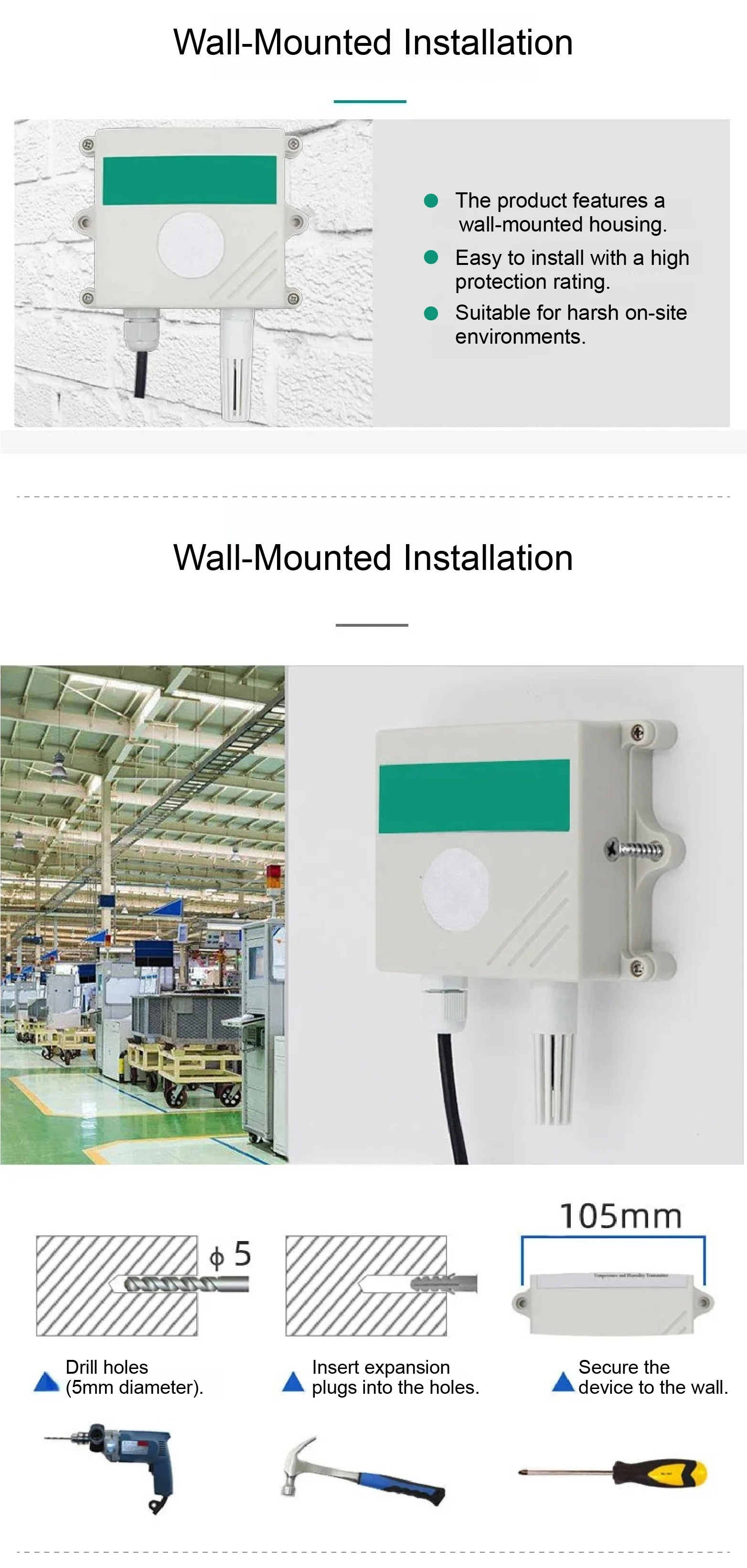

User-Friendly Installation
Wall-mounted design allows for quick and secure setup, offering both convenience and long-term durability.

5. FAQ

Q: Can this product be customized for unique needs?
A: Yes, we support non-standard customization and additional features upon request.

Q: What transmission options are available?
A: RS485, analog output, 4G, WiFi, Ethernet, NB, and LoRa.

Q: Is this product suitable for harsh environments?
A: Absolutely! The IP65 protection level ensures stable performance in challenging conditions like dust, rain, or snow.
