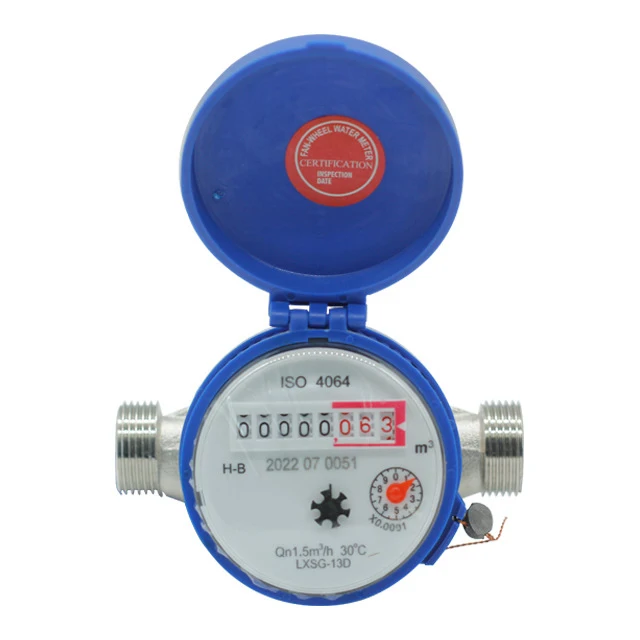

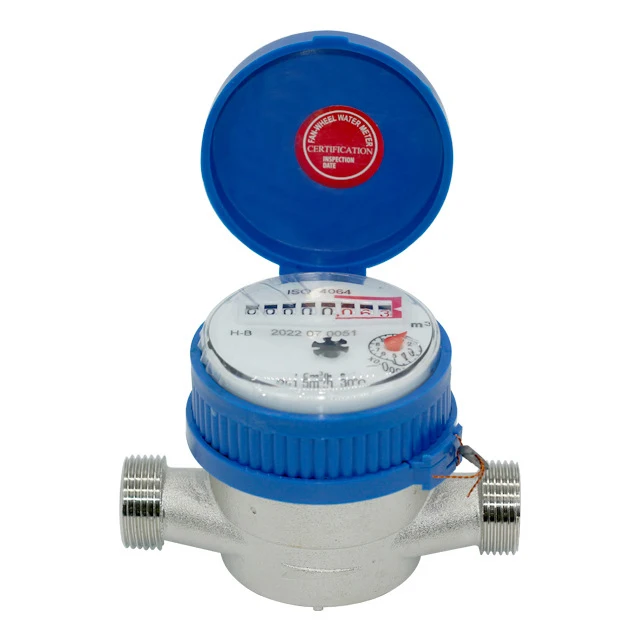

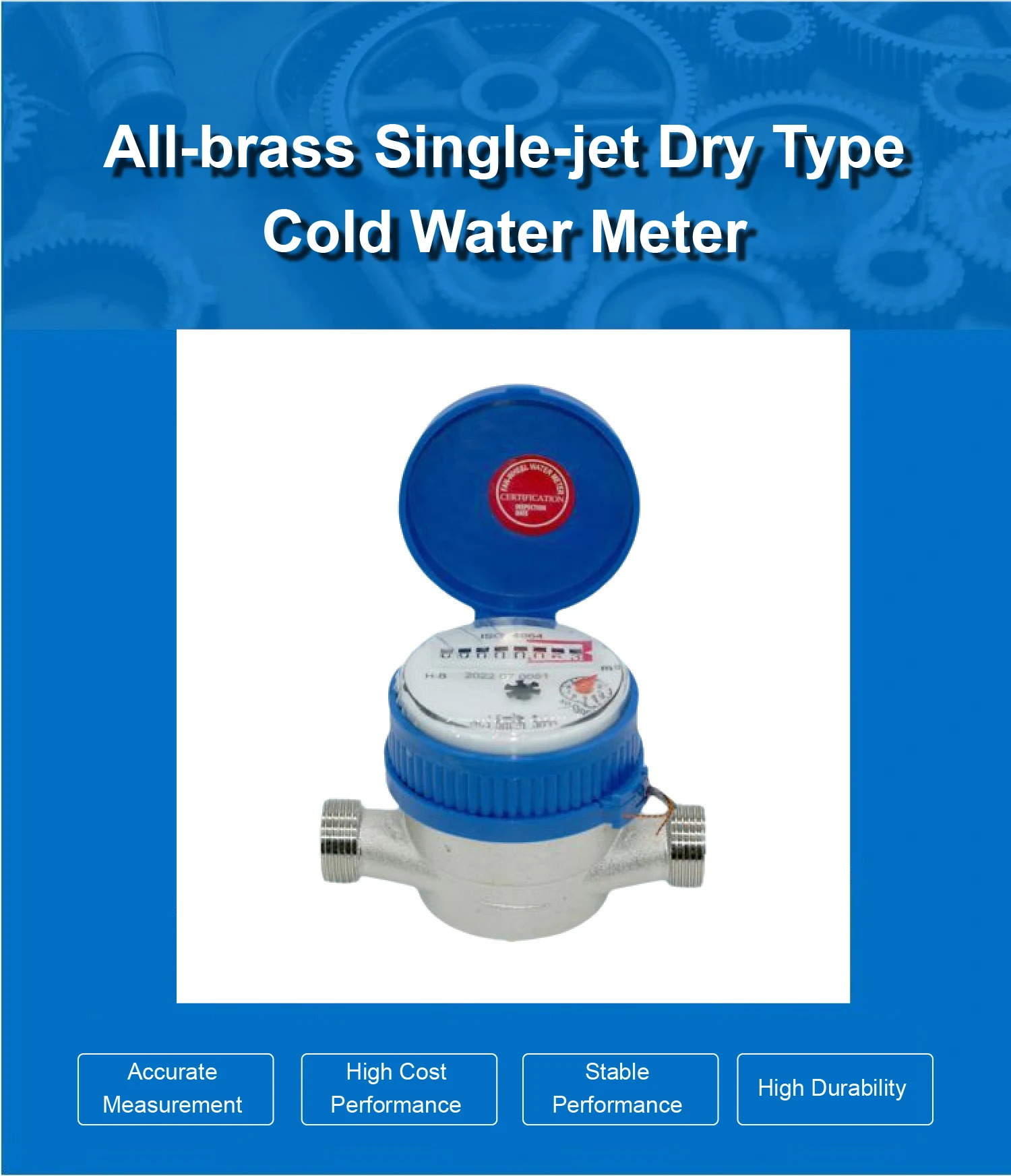

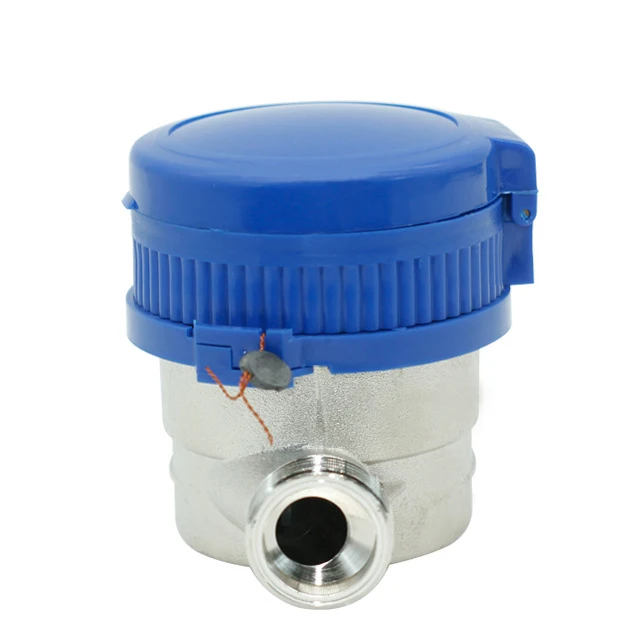

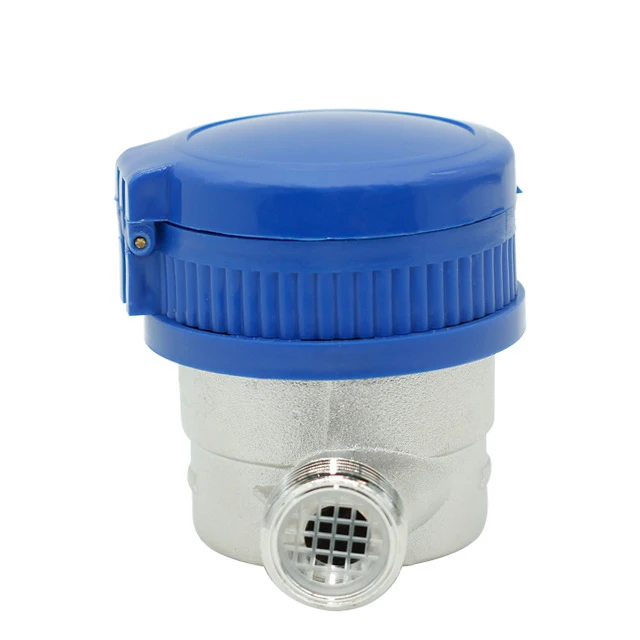

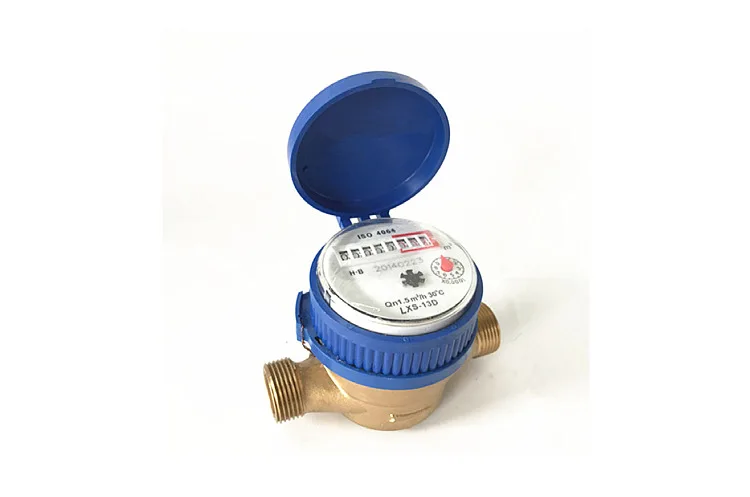

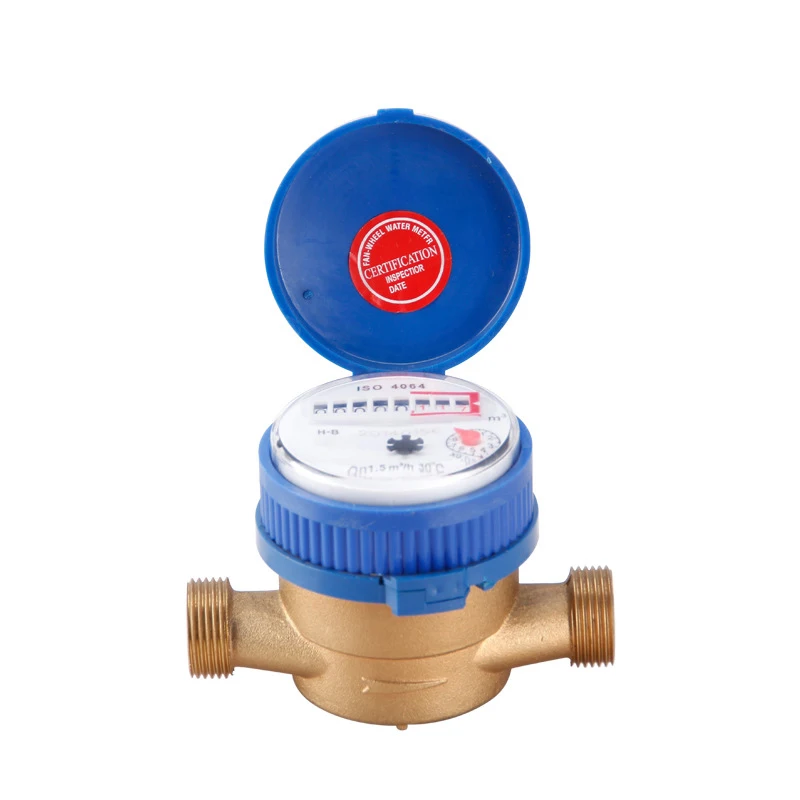

LXSG-13D ISO4064 Class B Single Jet Water Meter Dry Dial Brass Nickel Plated Magnetic Drive Vacuum Sealed Cold Water DN15
LXSG-13D ISO4064 Class B Single Jet Water Meter Dry Dial Brass Nickel Plated Magnetic Drive Vacuum Sealed Cold Water DN15
1.Note:
Due to page limitations, some configurations may not be listed. Please contact us for special requirements."
Default Configuration:
Flow range: 0.03–3 m³/h

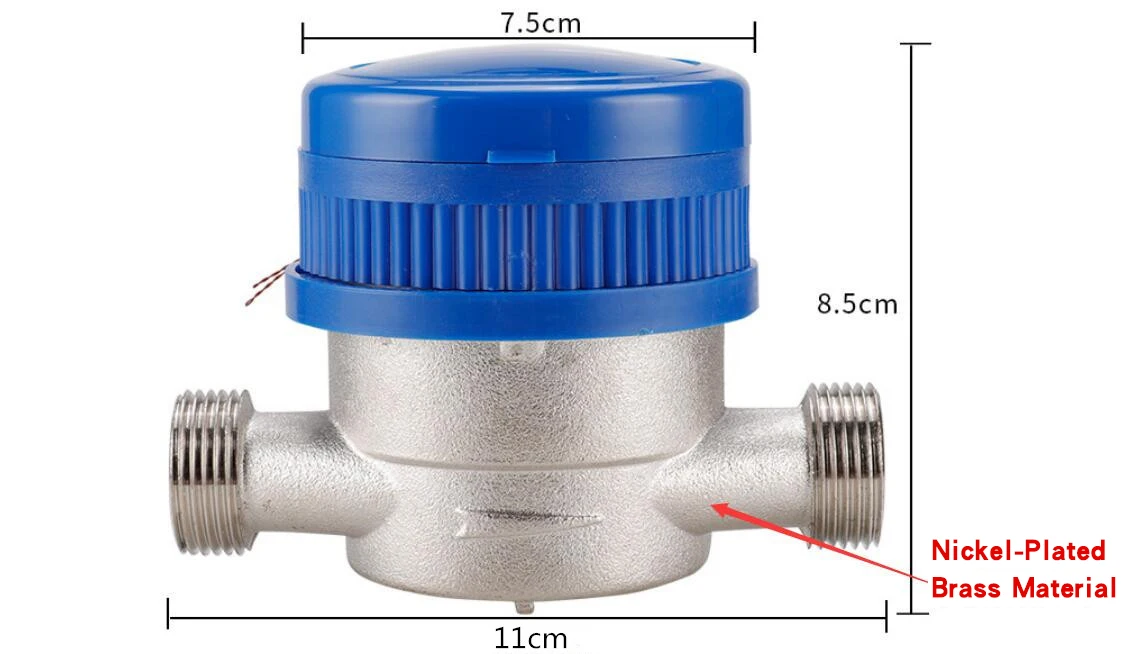

Diameter: 13 mm

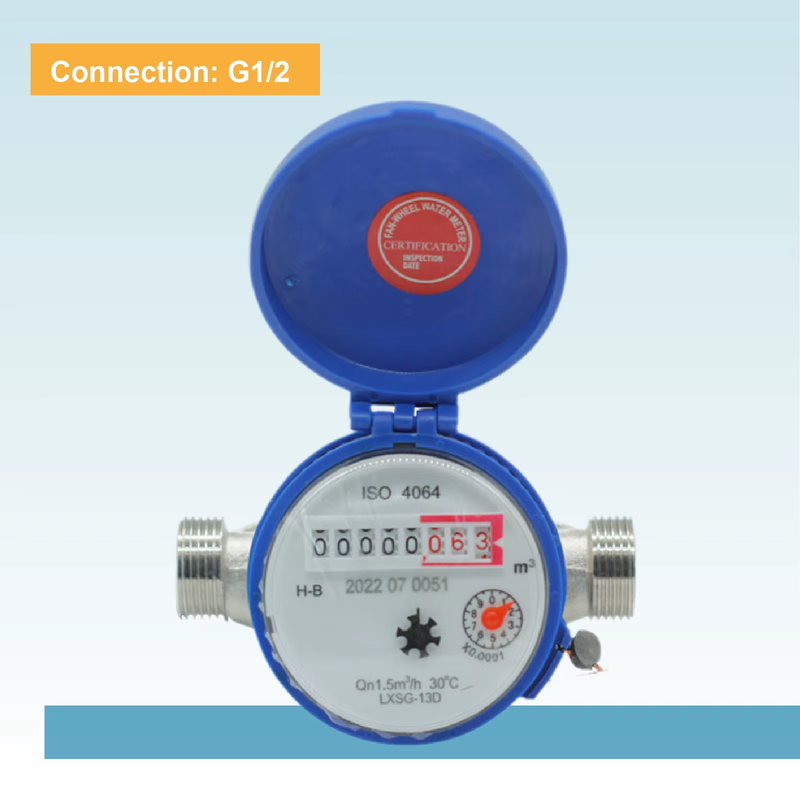

Connection Type: G1/2
Interface Material: Brass housing and connector
Body Material: Brass
Working Temperature: 0–40°C
Pressure Resistance: 1.6MPa

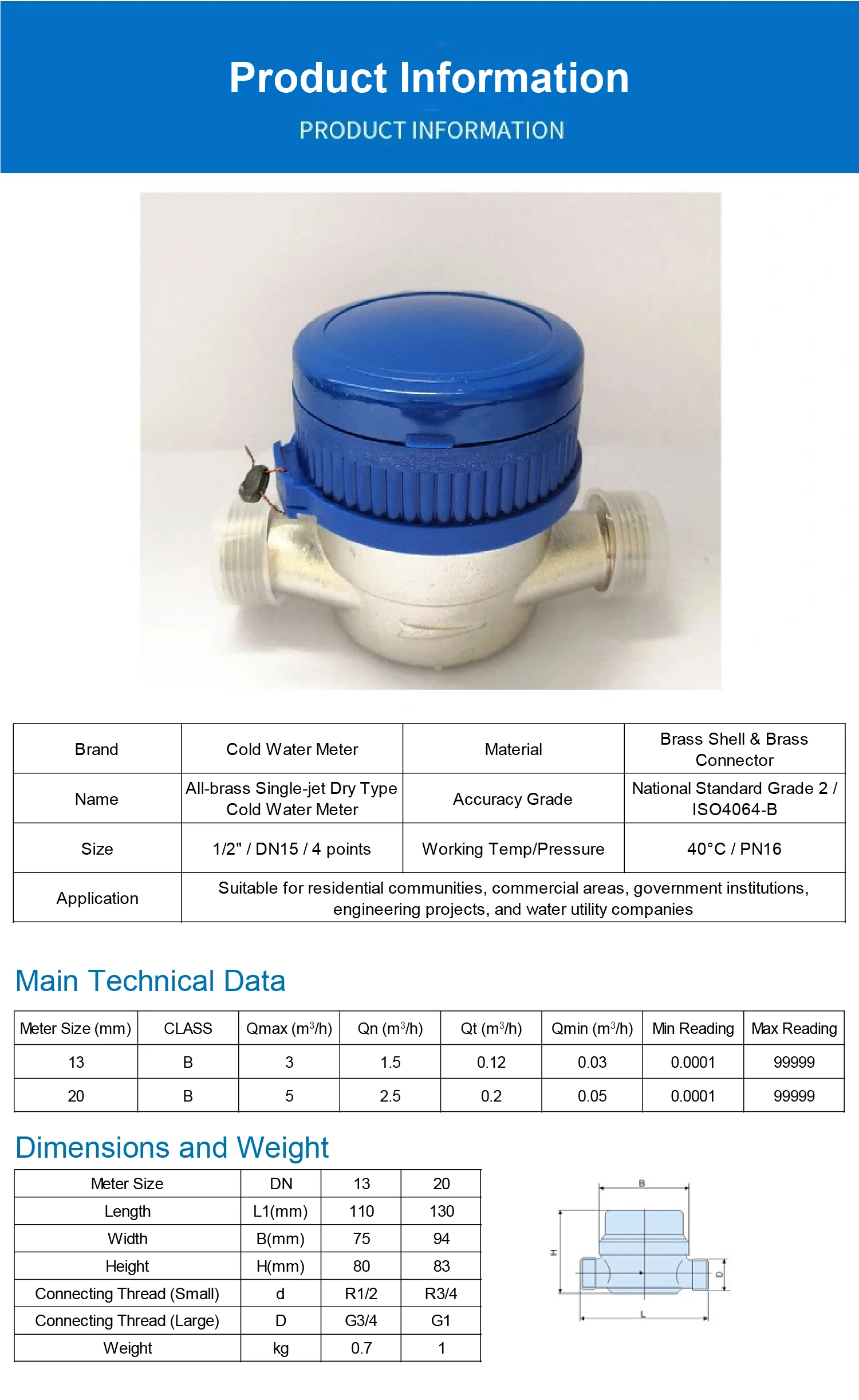

2. Parameters
Parameter | Value |
Model | LXSG-13D |
Material | Brass body & joints |
Connection Type | Threaded connection |
Nominal Diameter | DN15 (1/2", 4 points) |
Protection Rating | IP65 |
Operating Temperature | 0 – 50°C |
Nominal Pressure | PN16 |
Accuracy Class | Class 2 |
Minimum Flow Rate | 0.03 m³/h |
Transitional Flow Rate | 0.12 m³/h |
Pressure Loss Class | P63 |
Max Reading | 99999.999 |
3. Features

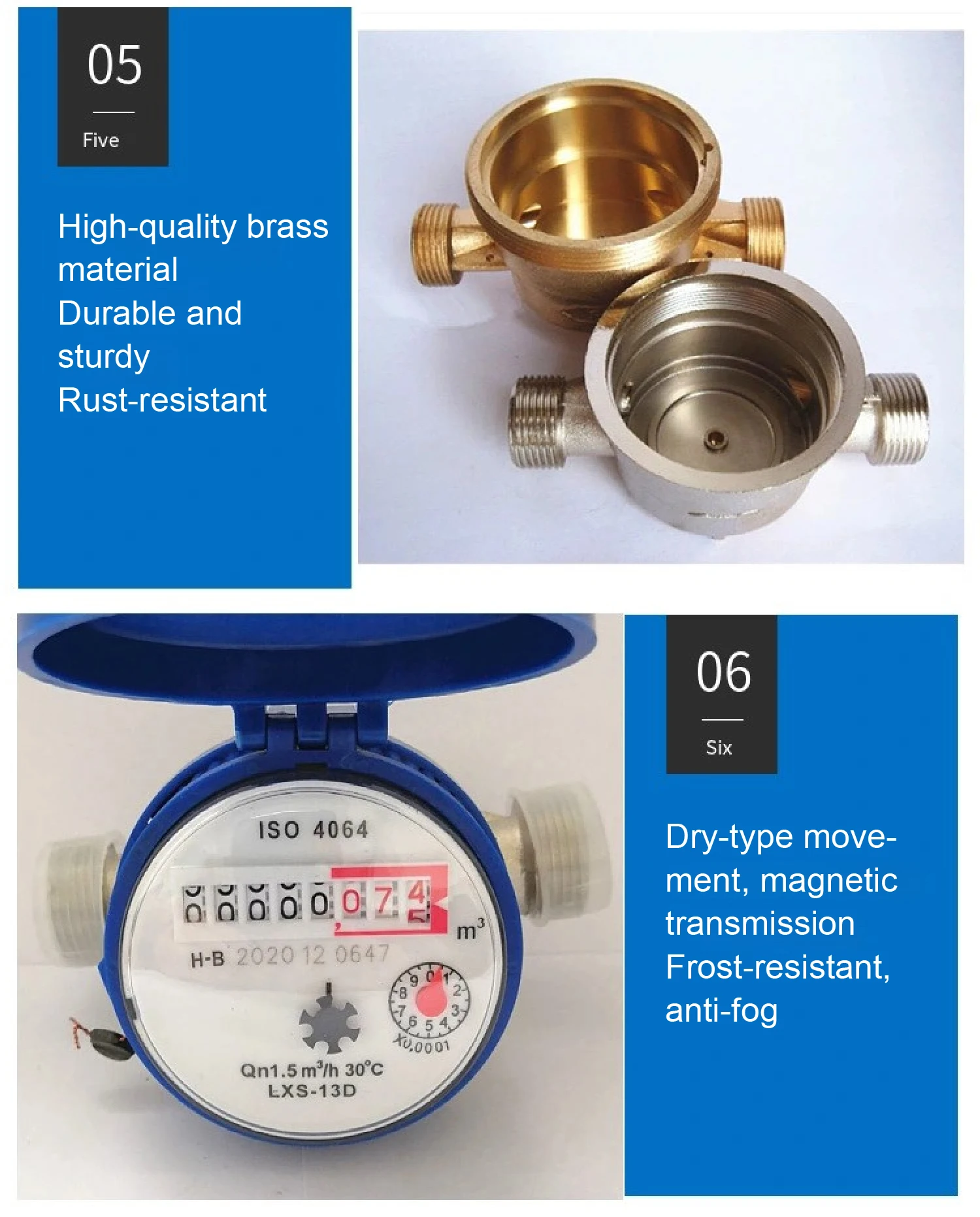

Full brass body for superior durability
High-quality brass ensures corrosion resistance and long-lasting use.
Dry-type mechanism with magnetic drive
Prevents fogging and freezing, ensuring long-term accuracy.
IP65-rated protection
Suitable for humid or outdoor environments.

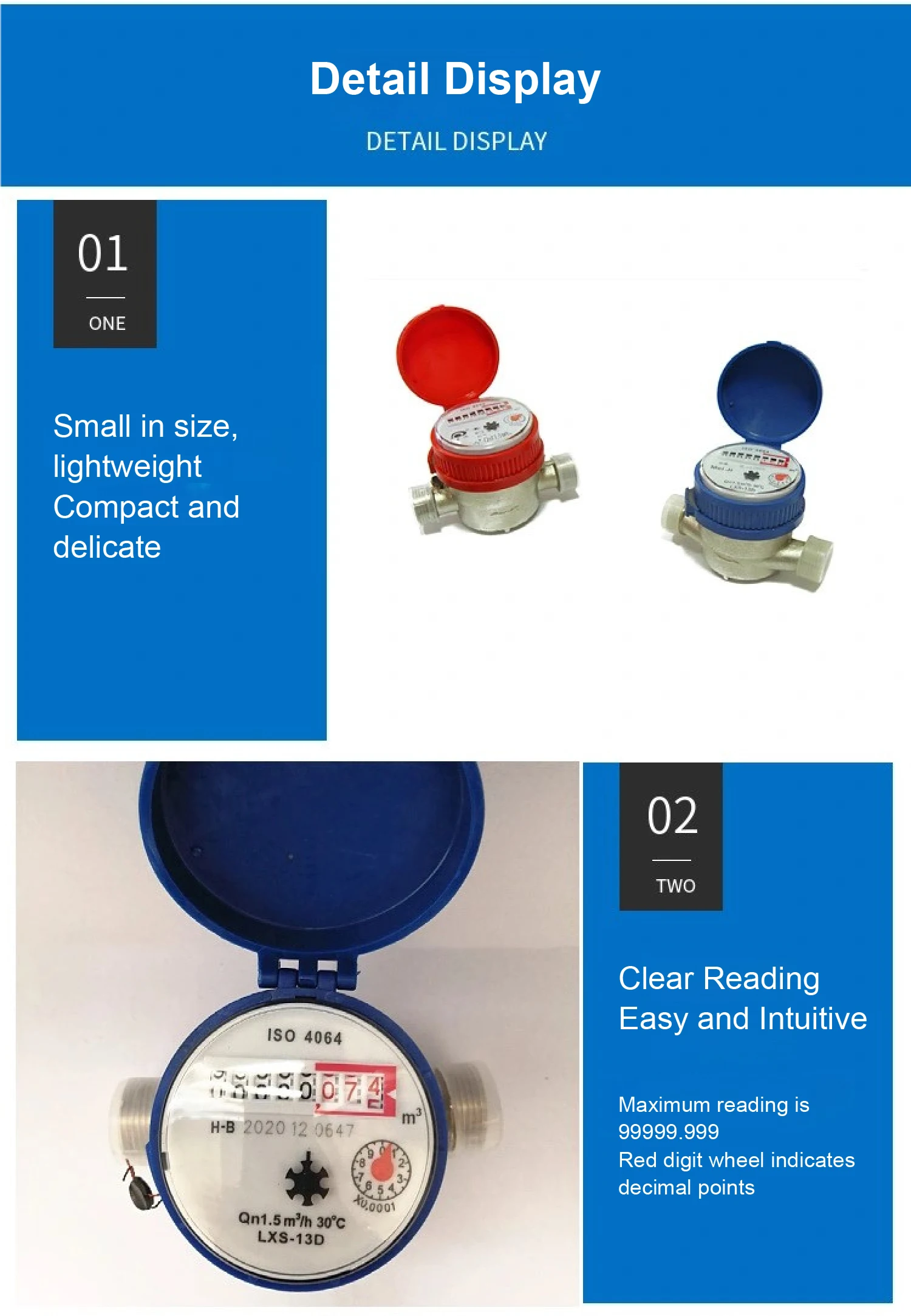

Compact size with clear reading
Red decimal dial, easy-to-read, ideal for residential users.

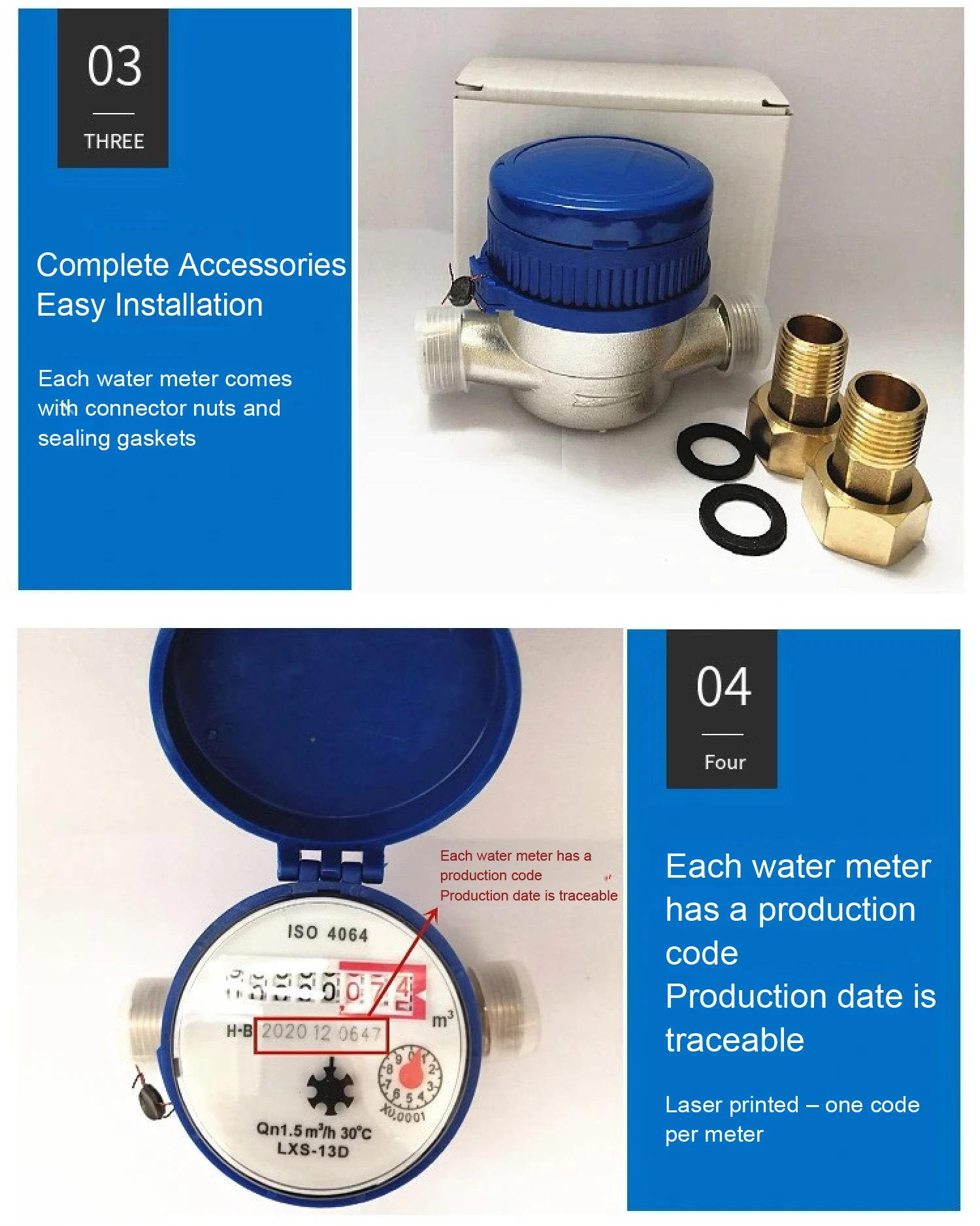

Complete accessories included

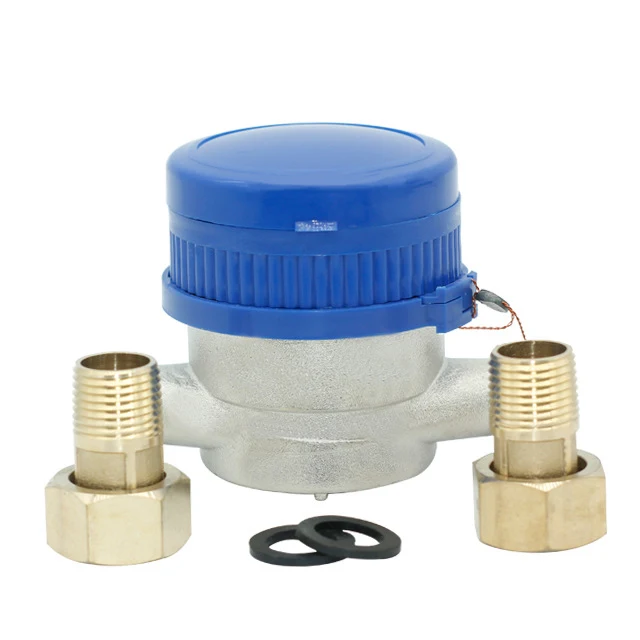

Each meter includes union nuts and sealing gaskets for quick installation.
4. Applications
Perfect for residential buildings, office blocks, shopping malls, hotels, schools, hospitals, rural water projects, and government engineering works.
5. FAQs
Q1: Can it be installed outdoors?
A2: Yes, the IP65 rating makes it suitable for outdoor or damp conditions.
Q2: Are installation accessories included?
A3: Yes, each water meter comes with nuts and gaskets for hassle-free installation.
