Product Description

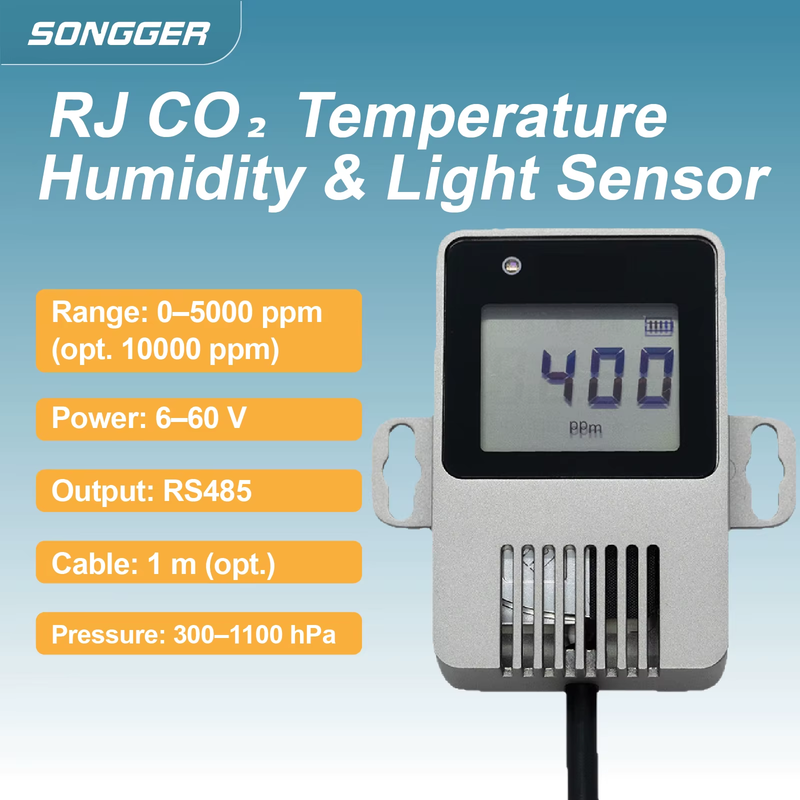

WS301 CO2 Temperature Humidity Barometric Pressure Light Sensor RS485 Transmitter Compact Multifunction Environmental Detector
WS301 CO2 Temperature Humidity Barometric Pressure Light Sensor RS485 Transmitter Compact Multifunction Environmental Detector1.NOTE:
Due to page limitations, some configurations may not be listed. Please contact us for special requirements.
Default configuration:
Range: 0–5000 ppm
Power supply: 6–60 V
Output: RS485
Cable length: 1 m
Operating temperature:
WS300 / WS301 / WS303: 0–50 °C
WS304: -40–85 °C
Atmospheric pressure range: 300–1100 hPa
Optional:
Range: customizable up to 10000 ppm
Cable length: customizable

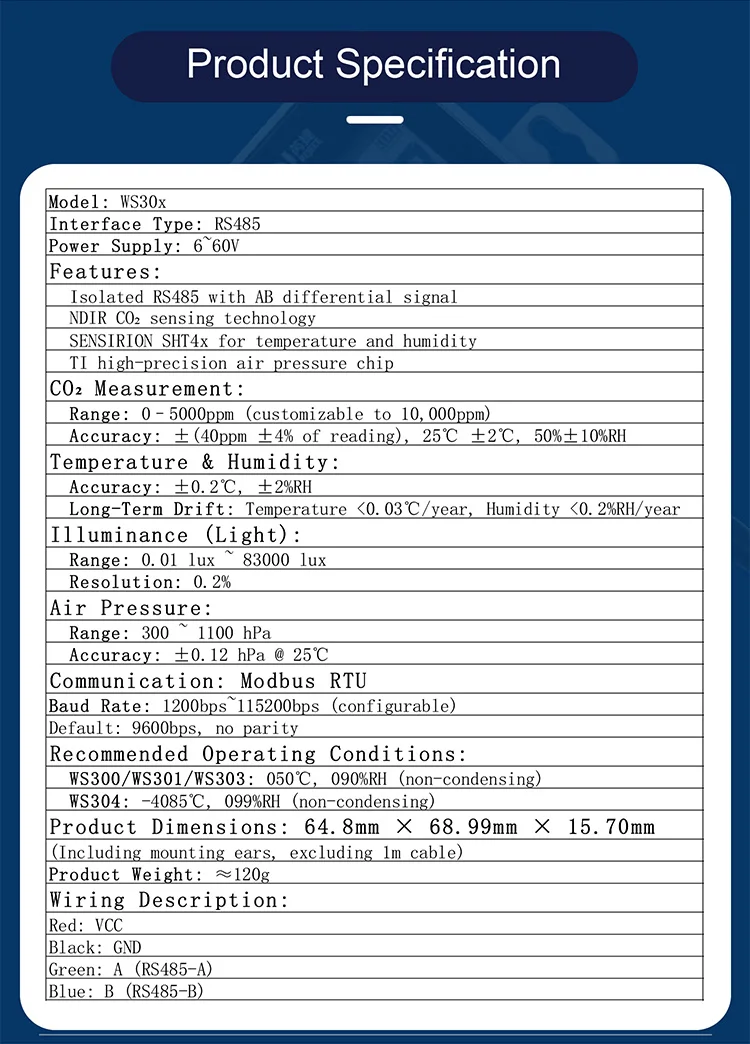

2. Parameters
Parameter | Specification |
Model | WS30x |
Interface Type | RS485 (Isolated) |
Power Supply | 6–60V DC |
CO₂ Range | 0–5000ppm (customizable to 10000ppm) |
CO₂ Accuracy | ±(40ppm + 4% of reading) @ 25℃, 50%RH |
Temp Accuracy | ±0.2℃ |
Humidity Accuracy | ±2%RH |
Long-term Drift | Temp <0.03℃/year, RH <0.2%RH/year |

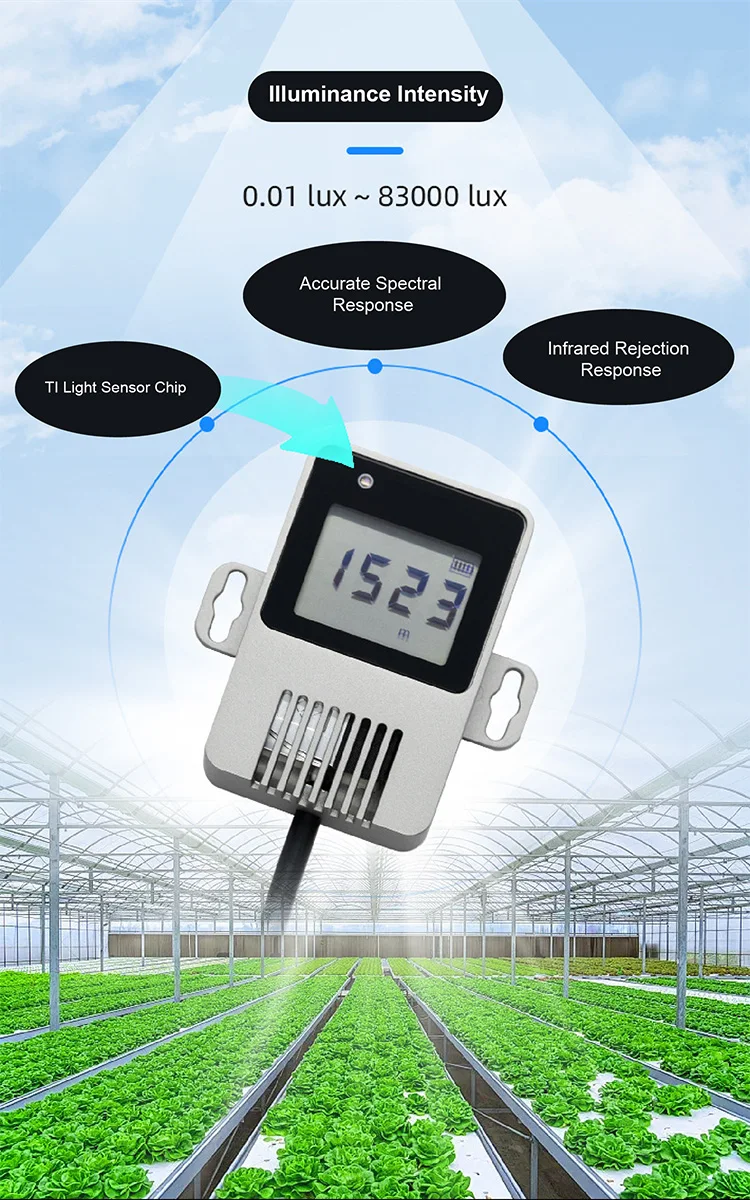

Light Range | 0.01–83000 lux |
Light Accuracy | ±0.2% |
Pressure Range | 300–1100 hPa |
Pressure Accuracy | ±0.12 hPa @ 25℃ |
Communication | Modbus RTU |
Baud Rate | 1200–115200bps (default 9600bps) |
Operating Temp | 0–50℃ (WS300/301/303) / -40–85℃ (WS304) |

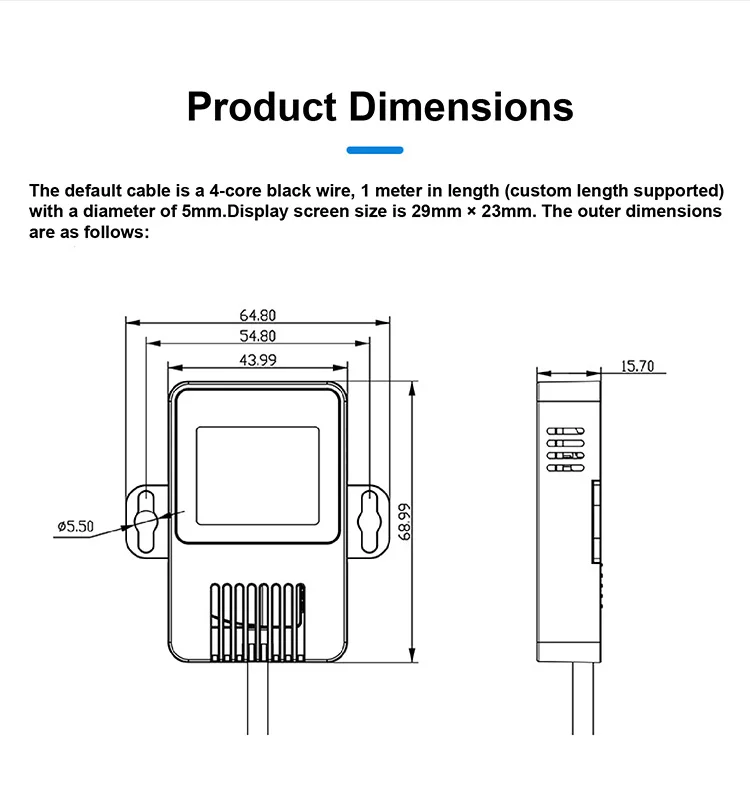

Dimensions | 64.8×68.99×15.70 mm |
Weight | ≈120g |
3. Features

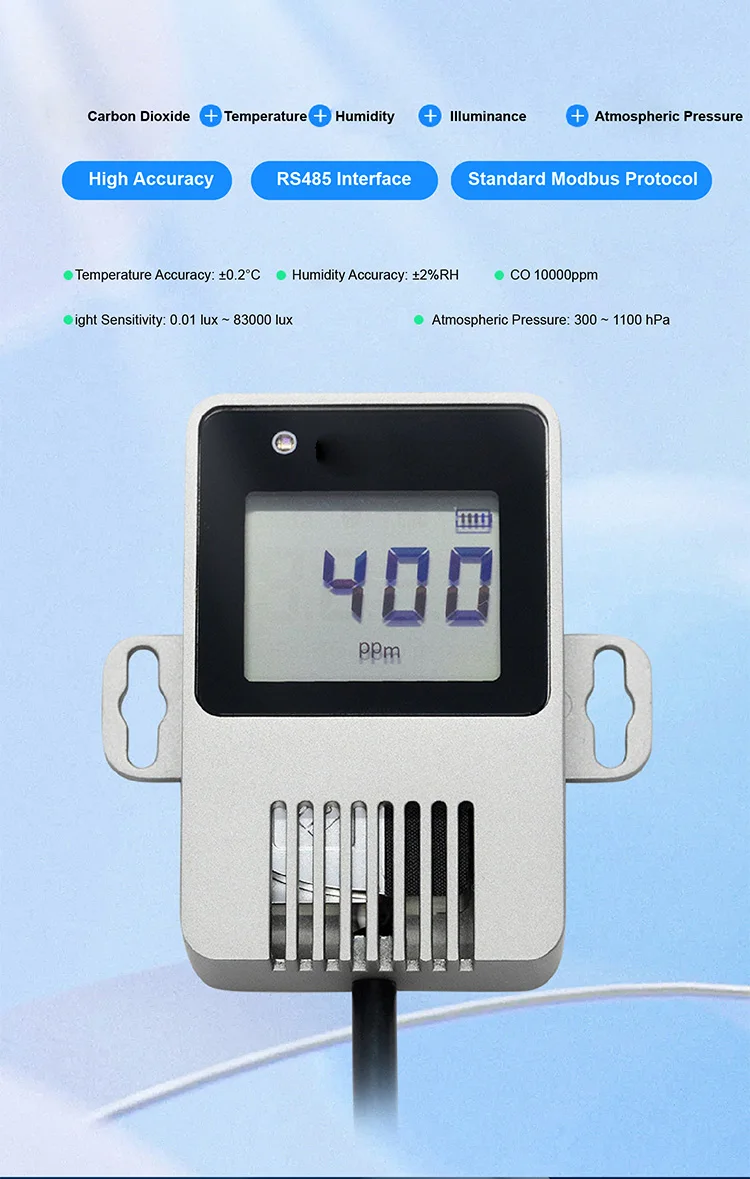

High-Integration Multi-Sensor– Measures CO₂, temperature, humidity, light, and pressure in one compact unit.

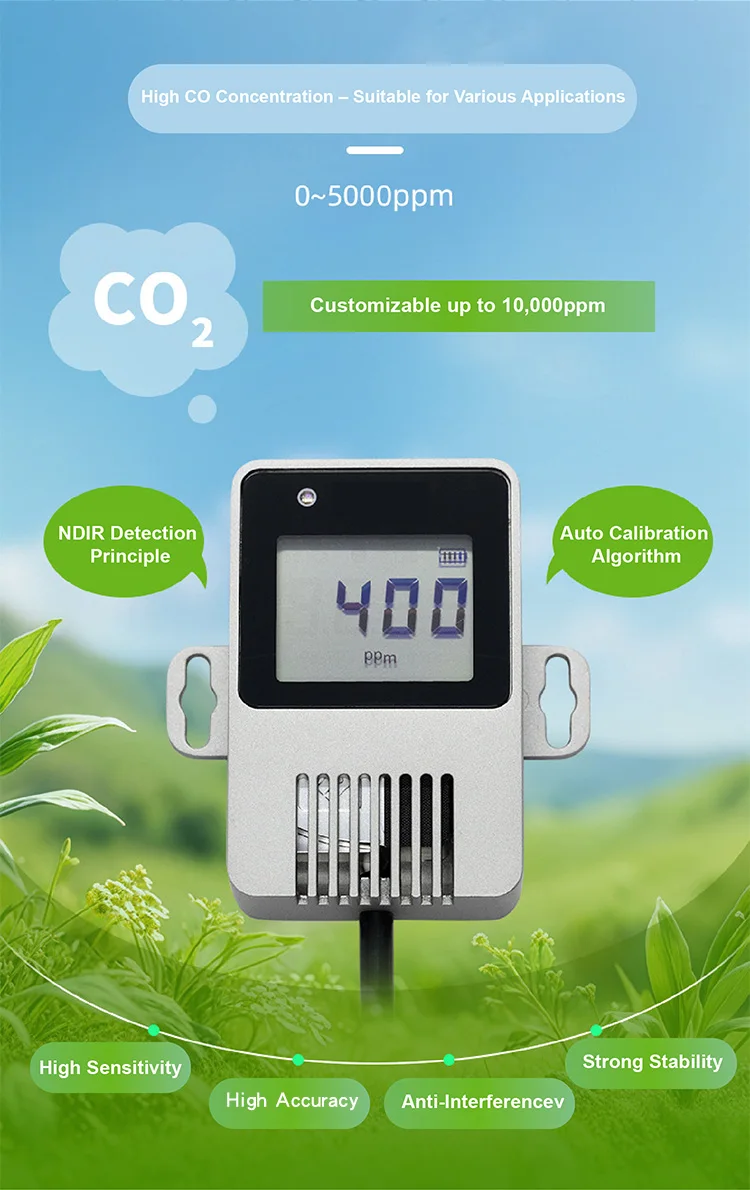

Advanced NDIR CO₂ Detection– Ensures high accuracy, long-term stability, and strong interference resistance.

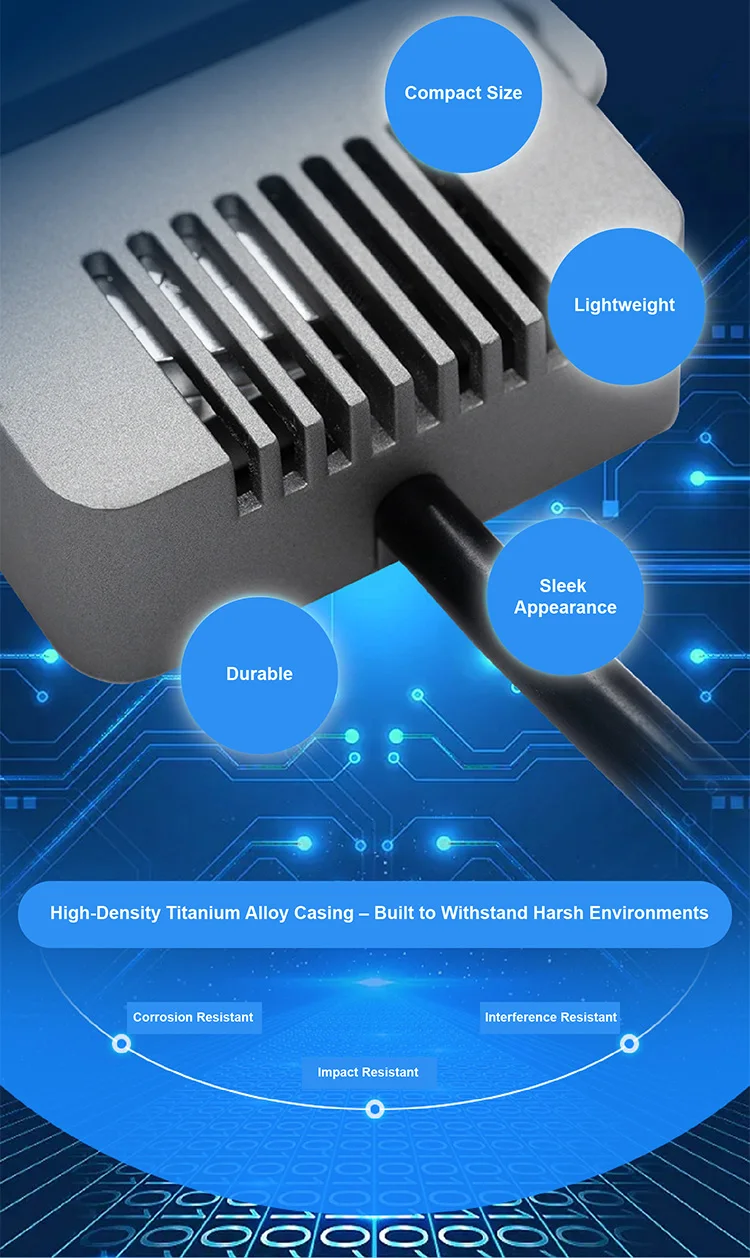

Titanium Alloy Housing– Corrosion-resistant, impact-resistant, and suitable for harsh environments.
Industrial-Grade RS485 Modbus– Built-in isolation, high noise immunity, and reliable data transmission.
Wide Measurement Ranges– Supports low light detection (0.01 lux) and high CO₂ concentration up to 10000ppm (customized).

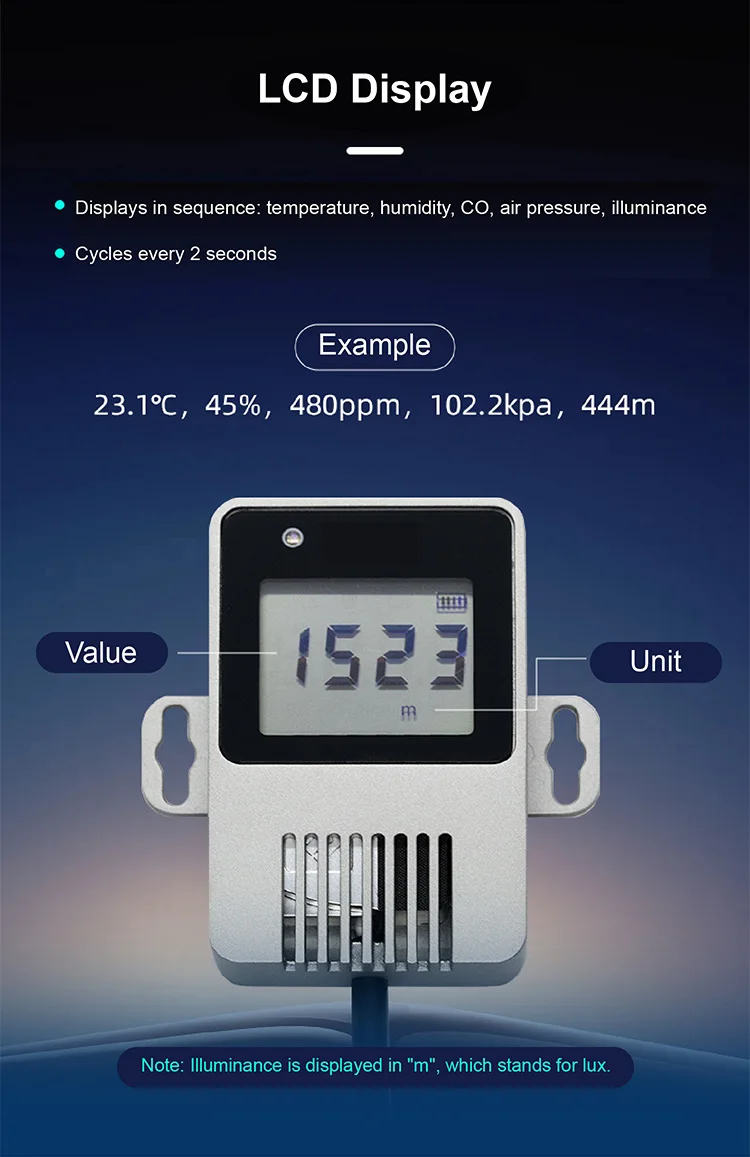

LCD Cycling Display– Rotates readings of temperature, humidity, CO₂, pressure, and light every 2 seconds.
4. Applications
Fresh air systems and HVAC control
Air quality monitoring
Greenhouse & smart farming
Microbial fermentation
Lithium battery thermal runaway monitoring
Energy management systems
Medical equipment and air purifiers
5. FAQs
Q1: Is the sensor suitable for outdoor use?
A1: Yes, the titanium alloy housing and wide operating temperature range make it ideal for both indoor and harsh outdoor environments.
Q2: Can the CO₂ range be customized to 10000ppm?
A2: Yes, we offer customization for higher CO₂ measurement ranges upon request.
Q3: What communication protocol does it use?
A3: It uses the RS485 Modbus RTU protocol, compatible with most industrial monitoring systems.
