Product Description

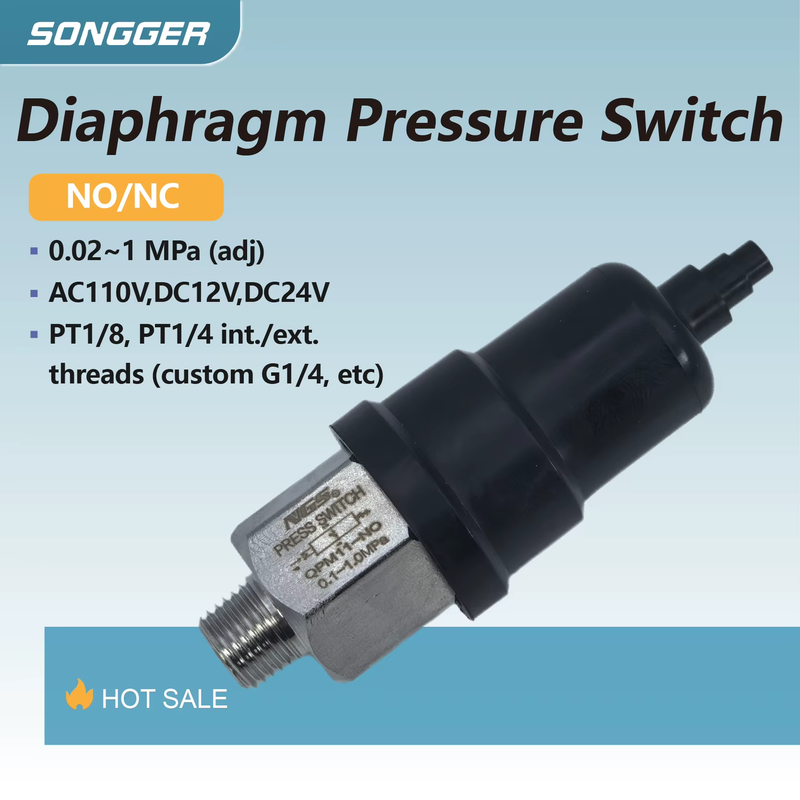

4110124T-NO 4110124T-NC Hydraulic Adjustable Pressure Switch Diaphragm Type 1/4" 1/8" NPT Air Oil Water NO NC Mechanical
4110124T-NO 4110124T-NC Hydraulic Adjustable Pressure Switch Diaphragm Type 1/4" 1/8" NPT Air Oil Water NO NC Mechanical
1.NOTE
The pressure switch supports normally open (NO) and normally closed (NC) modes. Pressure adjustments can be made using the central hex key located between the terminal connections.
If you have bulk purchase requirements, please contact us for more favorable pricing!
Default Configuration:
· Pressure Range: 0-10 MPa (adjustable)
· Connection Type: PT1/8, PT1/4 Internal and External Threads
· Working Medium: Compressed air
· Operating Voltage: AC110V, DC12V, DC24V
Optional Features:
· Custom thread specifications (e.g., G1/2, G1/4)
2.Parameters
Parameter | QPM11-NO | QPM11-NC | QPF-1 |
Medium | Compressed Air | Compressed Air | Compressed Air |
Pressure Range | 0.02~0.7 MPa | 0.02~0.7 MPa | 0.02~0.7 MPa |
Ambient & Medium Temperature | -5~60°C | -5~60°C | -5~60°C |
Working Type | Adjustable Pressure | Adjustable Pressure | Adjustable Pressure |
Installation Type | External Thread | External Thread | External Thread |
Port Size | PT1/8 (Customizable threads available) | PT1/8 (Customizable threads available) | PT1/8 (Customizable threads available) |
Working Voltage | AC 110V, AC 220V, DC 12V, DC 24V | AC 110V, AC 220V, DC 12V, DC 24V | AC 110V, AC 220V, DC 12V, DC 24V |
Max Working Current | 500mA | 500mA | 500mA |
Max Power | 100VA, 24VA | 100VA, 24VA | 100VA, 24VA |
Insulation Voltage | 1500V, 50V | 1500V, 50V | 1500V, 50V |
Max Pulse Rate | 200 cycles/min | 200 cycles/min | 200 cycles/min |
Ingress Protection | IP54 | IP54 | IP54 |
3.Features
Customizable Pressure Adjustment:
Adjust the pressure setting easily by turning the hex screw between the terminals. Counterclockwise rotation decreases pressure, while clockwise rotation increases it.
Flexible Configurations:
Choose between Normally Open (NO) and Normally Closed (NC) based on system requirements.
Robust Design:
Built with IP54 protection, ensuring resistance to dust and water splashes for reliable operation in various environments.
Wide Application Range:
Ideal for CNC machines, medical equipment, automated production lines, and air source systems.
4.Applications
CNC Machines: Precision pressure control for enhanced automation in CNC operations.
Medical Equipment: Reliable pressure switching to ensure safety and efficiency in medical systems.
Automated Production Lines: Seamless pressure regulation for consistent and efficient production processes.
Air Source Equipment: Perfect for maintaining optimal pressure levels in air systems.
5.FAQs
1. How do I adjust the pressure setting on the QPM11 switch?
Simply turn the hex screw between the terminals. Rotate counterclockwise to decrease the pressure or clockwise to increase it.
2. Is this pressure switch compatible with liquids?
No, it is specifically designed for use with compressed air and is not suitable for other mediums.
3. Can the QPM11 be used outdoors?
Yes, with an IP54 rating, the switch is resistant to dust and water splashes, making it suitable for outdoor environments.
