Product Description
XMTD-2001 Digital Temperature Controller Thermostat 220V 380V K Type PT100 399℃ 599℃ for Oven Incubator Greenhouse
XMTD-2001 Digital Temperature Controller Thermostat 220V 380V K Type PT100 399℃ 599℃ for Oven Incubator Greenhouse1.NOTE:
Due to page limitations, some configurations may not be listed.
Please contact us if you have special requirements.

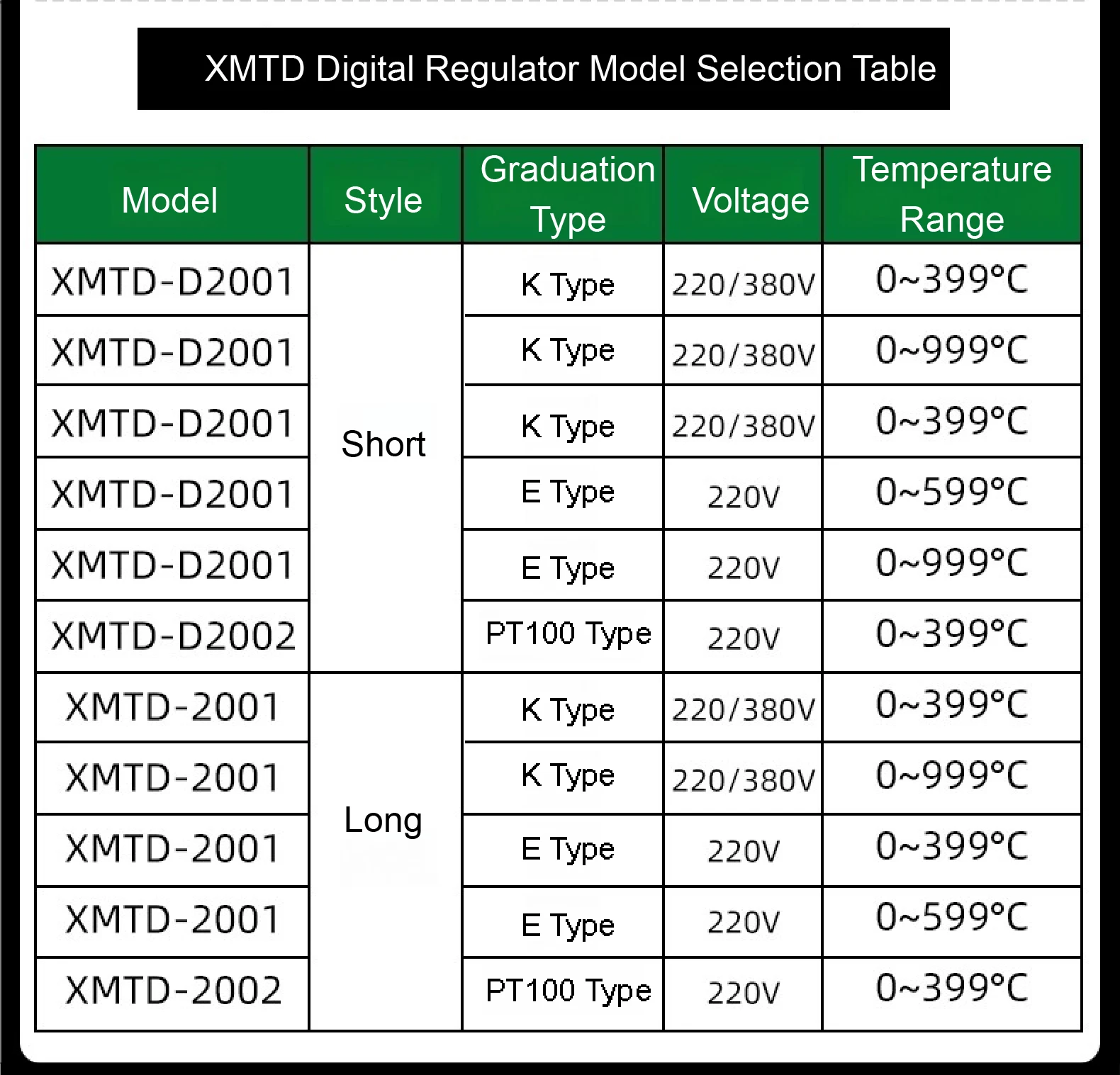

Default Configuration:
Models:
XMTD-2001 (Long type), Length: 138mm
XMTD-D2001 (Short type), Length: 101mm
Input Types: K / E / PT100
Voltage: 220V / 380V
Temperature Range: 399°C / 599°C / 999°C

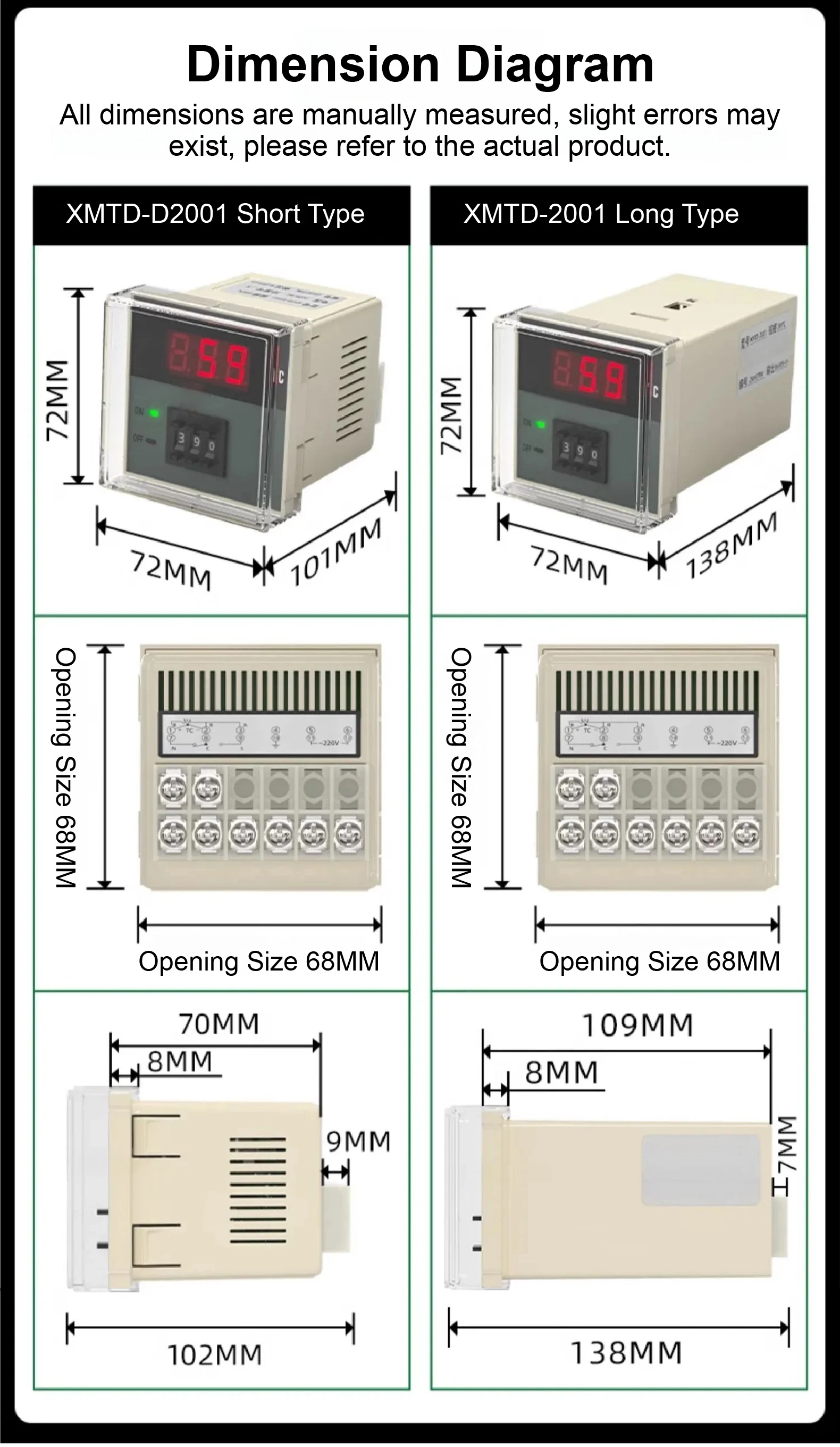

Panel Size: 72×72mm
Cutout Size: 68×68mm
Reminder:
Ensure that your temperature sensor matches the selected input type (K / E / PT100)
to guarantee accurate temperature readings.

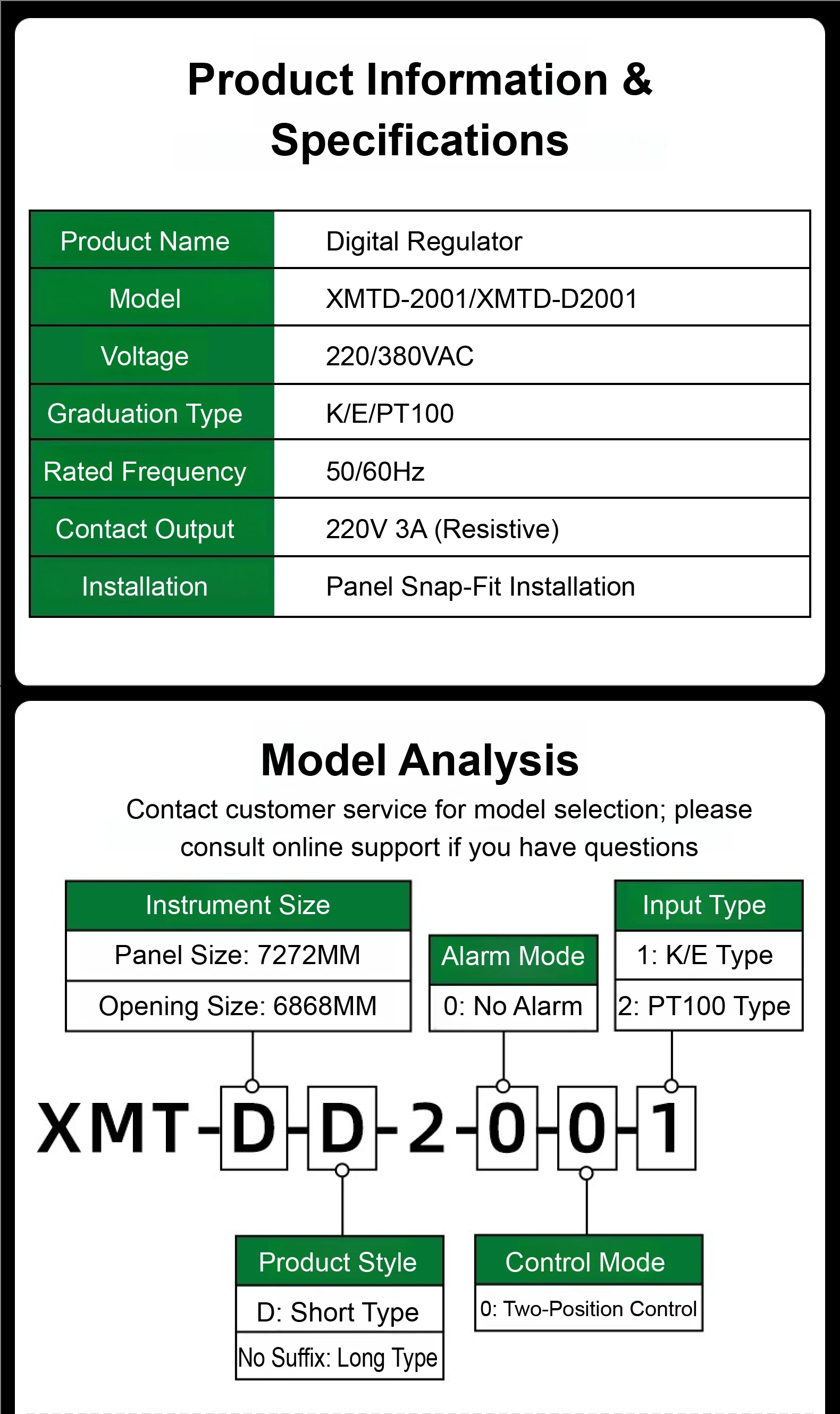

2. Parameters
Parameter | Specification |
Product Model | XMTD-2001 / XMTD-D2001 |
Panel Size | 72×72 mm |
Cut-out Size | 68×68 mm |
Total Length | 101 mm (Short) / 138 mm (Long) |
Input Type | K / E / PT100 thermocouple |
Temperature Range | 0–399°C / 0–599°C / 0–999°C |
Operating Voltage | 220V / 380V AC |
Frequency | 50/60 Hz |
Output | Relay contact 220V 3A (resistive load) |

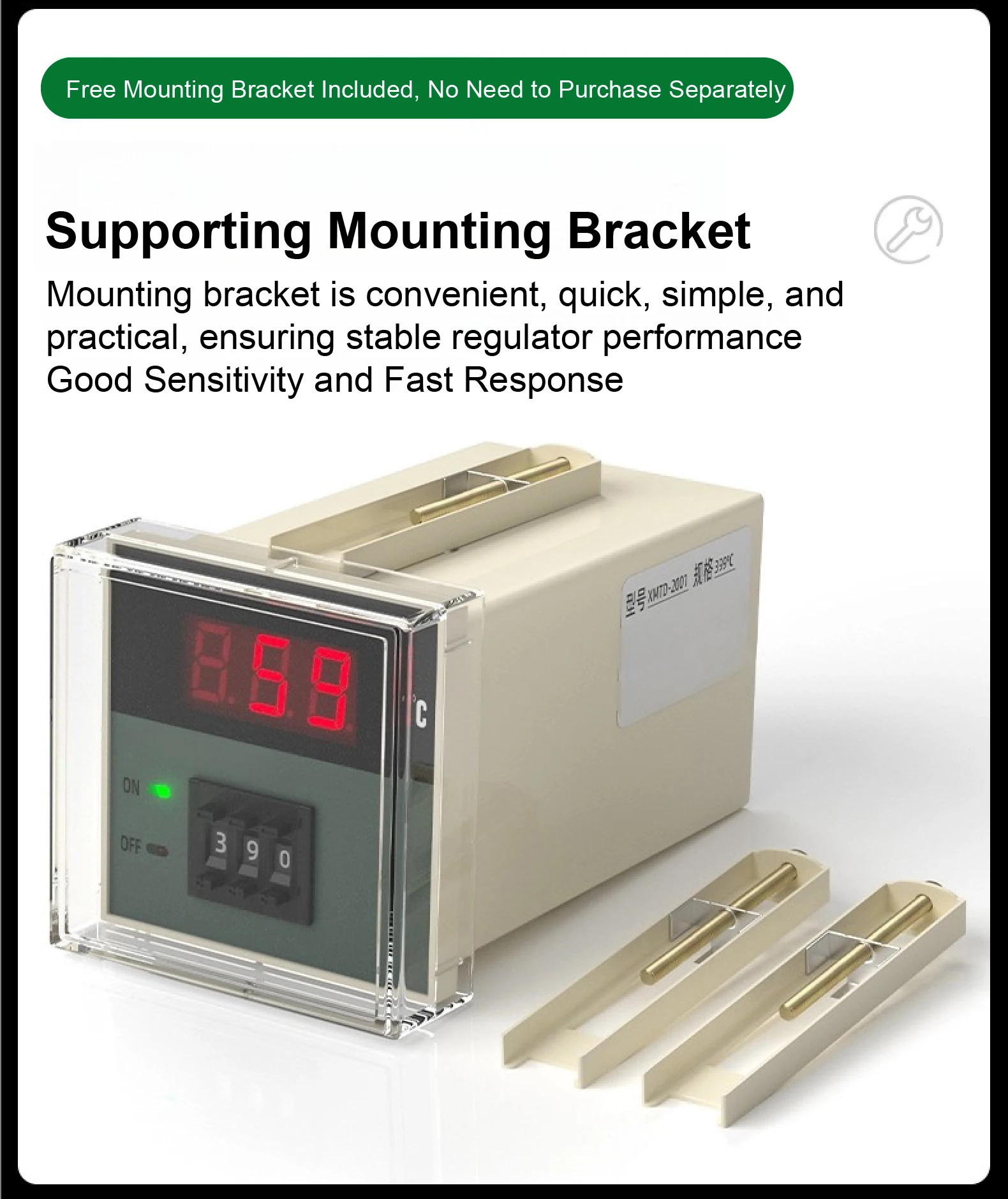

Mounting Type | Panel mount (snap-in) |
3. Features
Dual Body Length Design
Available in short and long versions for flexible installation in various control cabinets.
Thermocouple Compatibility
Supports K, E, and PT100 types for accurate temperature measurement.

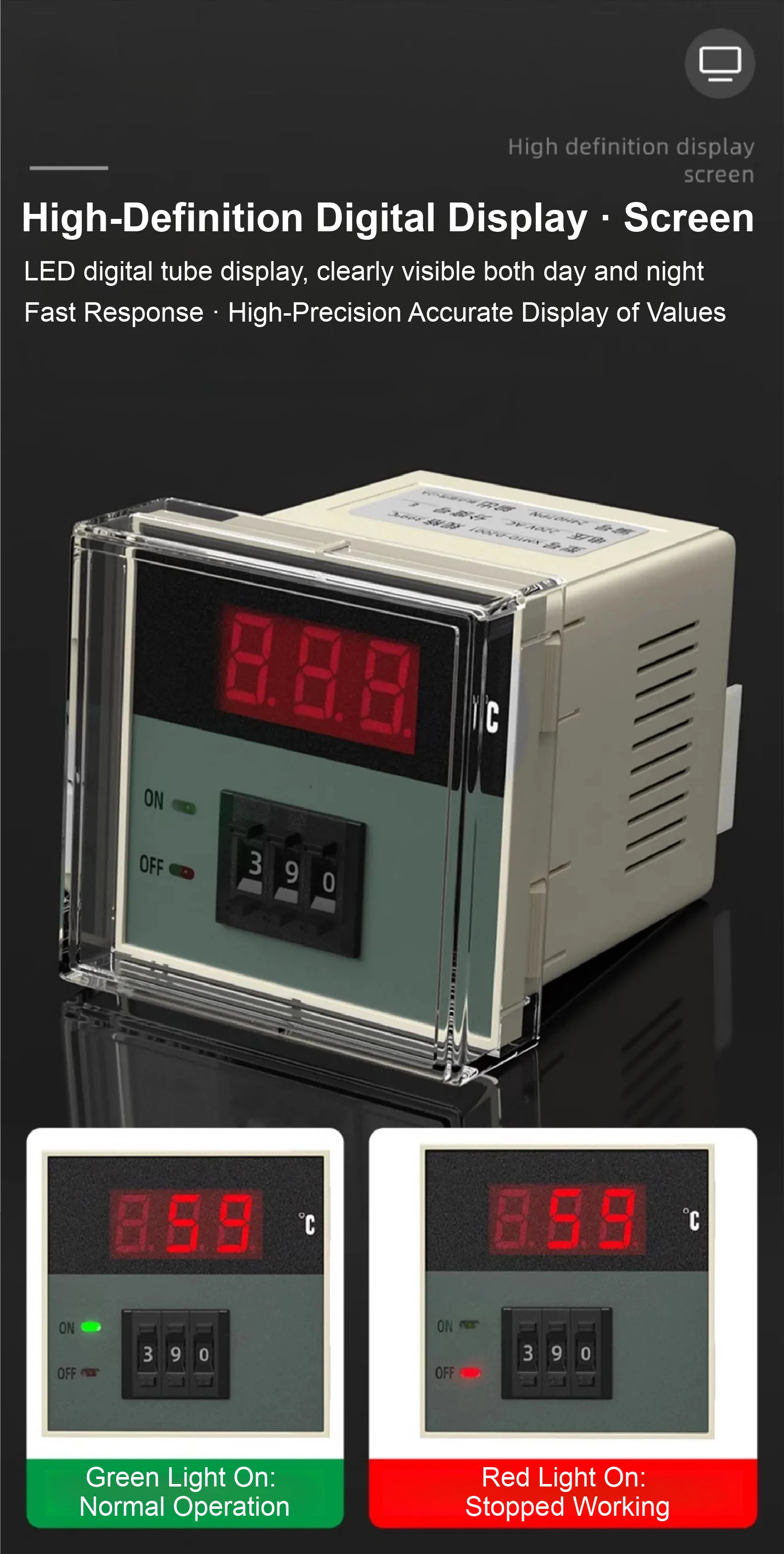

Clear LED Digital Display
Easy-to-read red LED digits ensure visibility in both day and night environments.

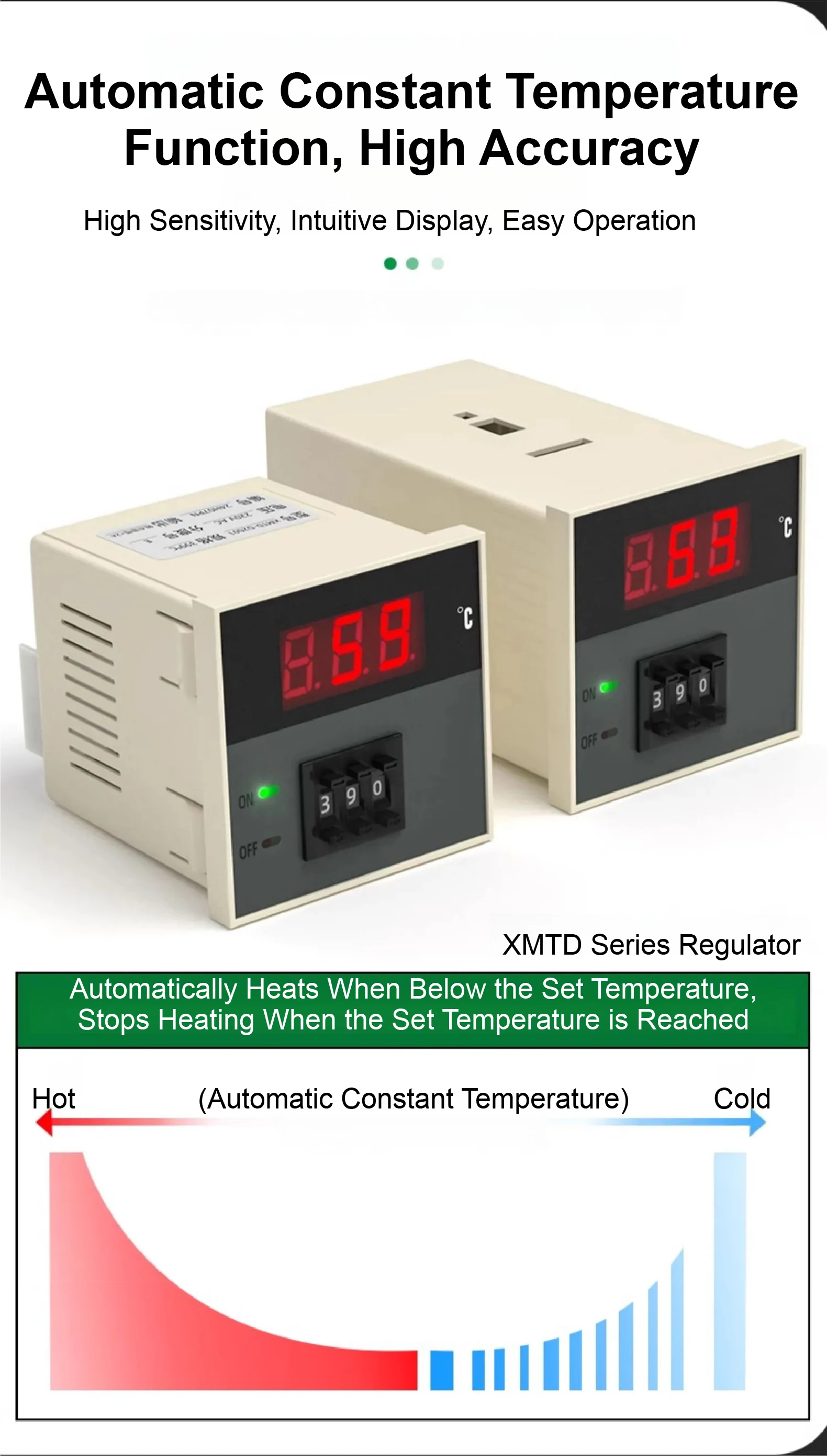

Automatic Heating Control
Automatically starts heating when below setpoint, and stops when the desired temperature is reached.

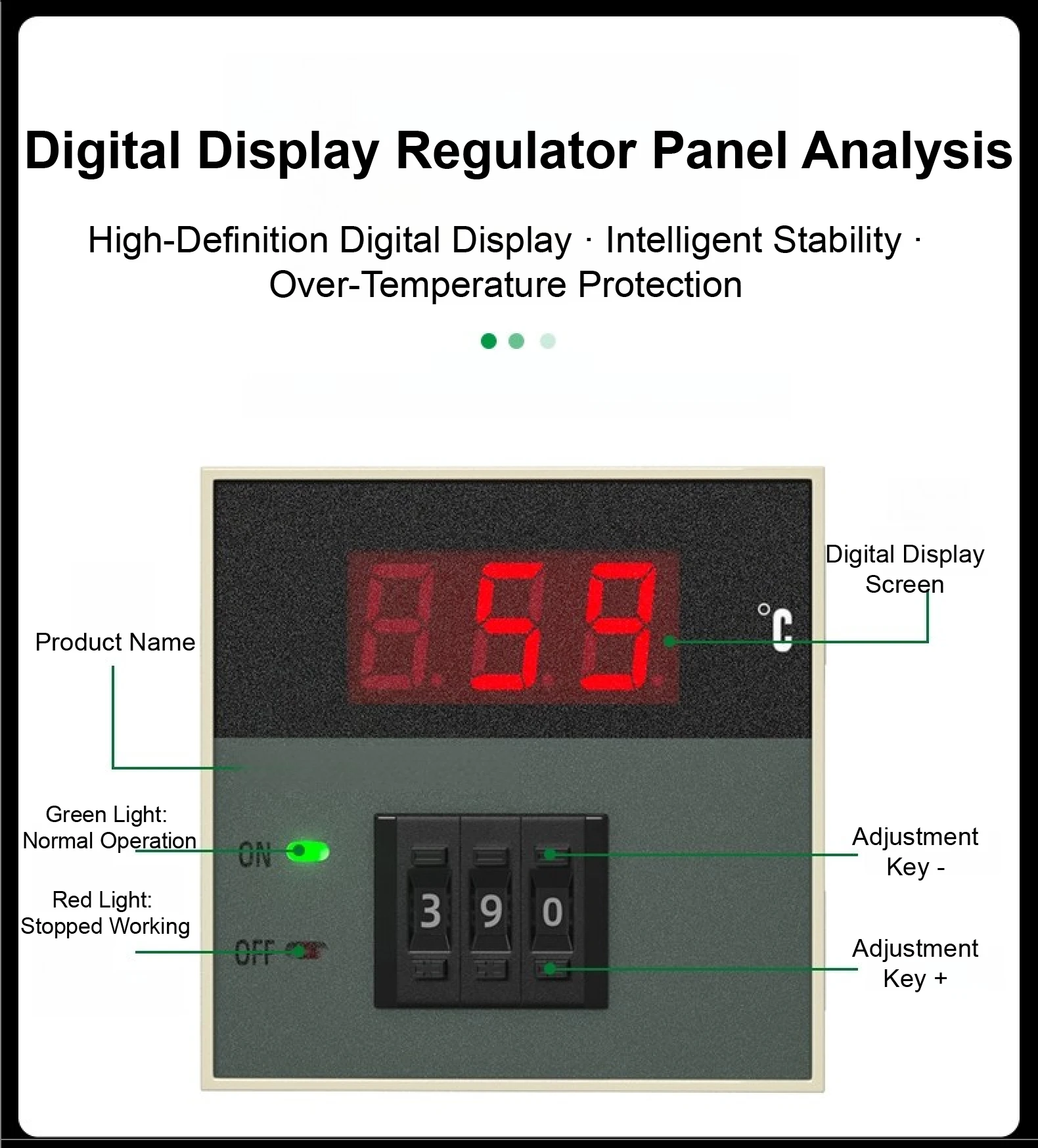

Status Indicator Lights
Green light indicates normal operation; red light shows heating stopped.
Wide Voltage Adaptation
Compatible with both 220V and 380V AC power systems.

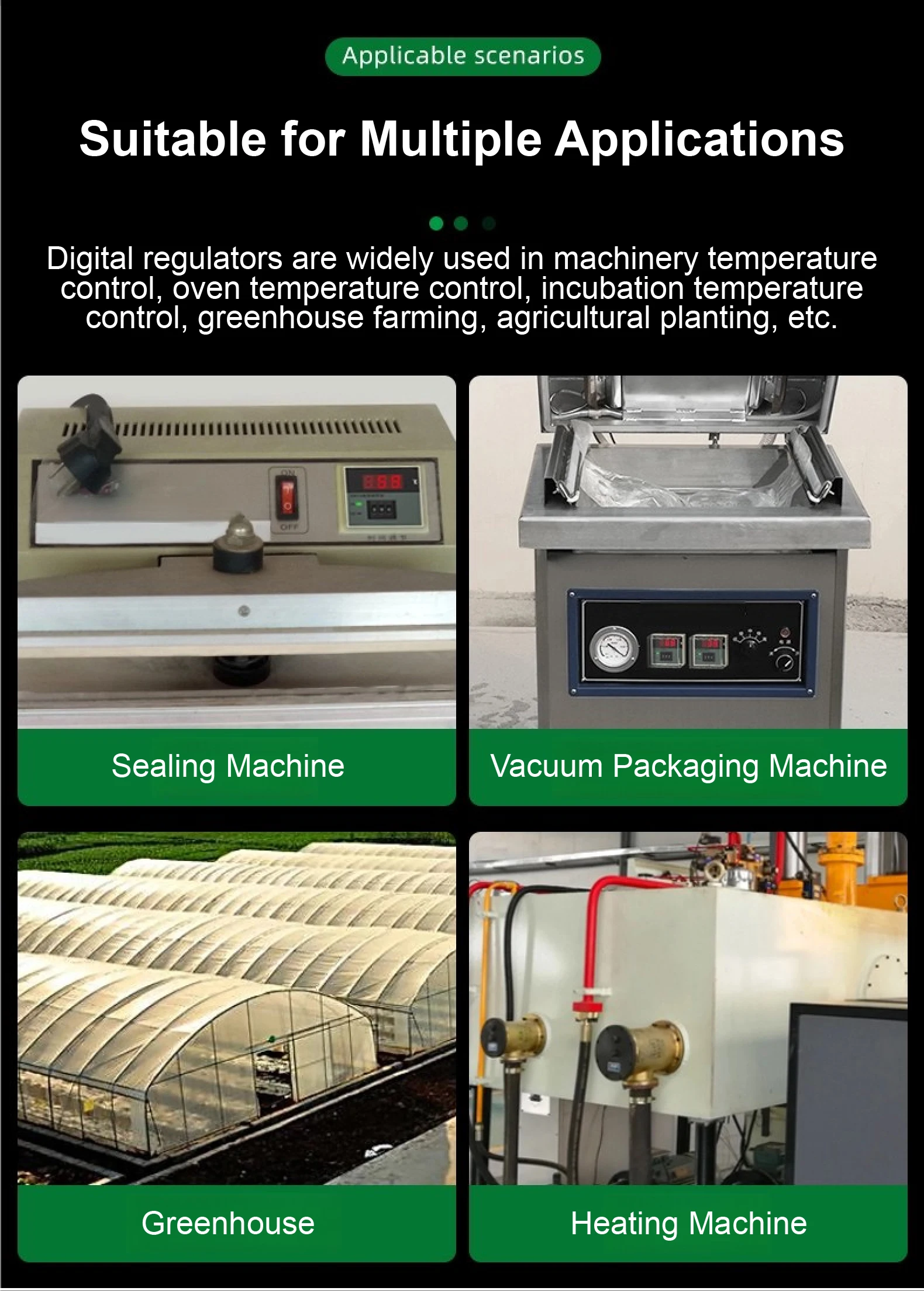

4. Applications
Mechanical temperature control systems
Oven and drying equipment
Incubators and hatcheries
Greenhouse and farming temperature regulation
5. FAQs
Q1: Which thermocouple type should I choose for this controller?
A: You must use the same type as specified on the controller (K, E, or PT100). Mismatched types will lead to inaccurate temperature readings.
Q2: Can I use this with both 220V and 380V power supply?
A: Yes, the controller supports both voltages. Make sure to select the correct model for your power system.

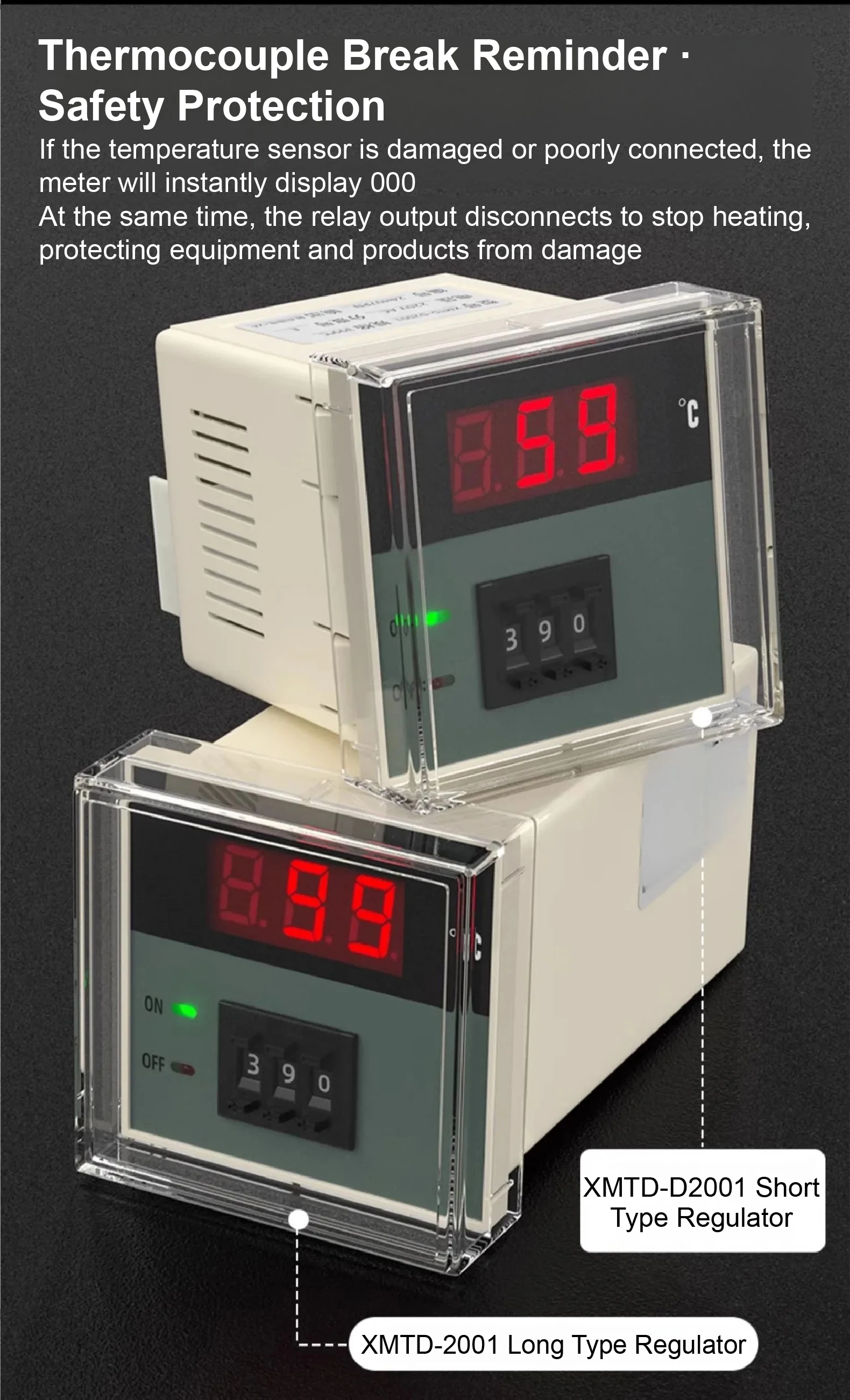

Q3: How to distinguish between the short and long version?
A: The short model (XMTD-D2001) has a total length of 101mm, while the long version (XMTD-2001) is 138mm.
