Product Description
Single Loop PID Temperature Controller Universal Input (TC/RTD/mA/V) 24V DC/220V AC Relay 4-20mA Output LED Display
Single Loop PID Temperature Controller Universal Input (TC/RTD/mA/V) 24V DC/220V AC Relay 4-20mA Output LED Display1. NOTE
Due to page limitations, not all specifications are listed. Please contact us if you have specific requirements.
Model: Single-loop Digital Display Controller

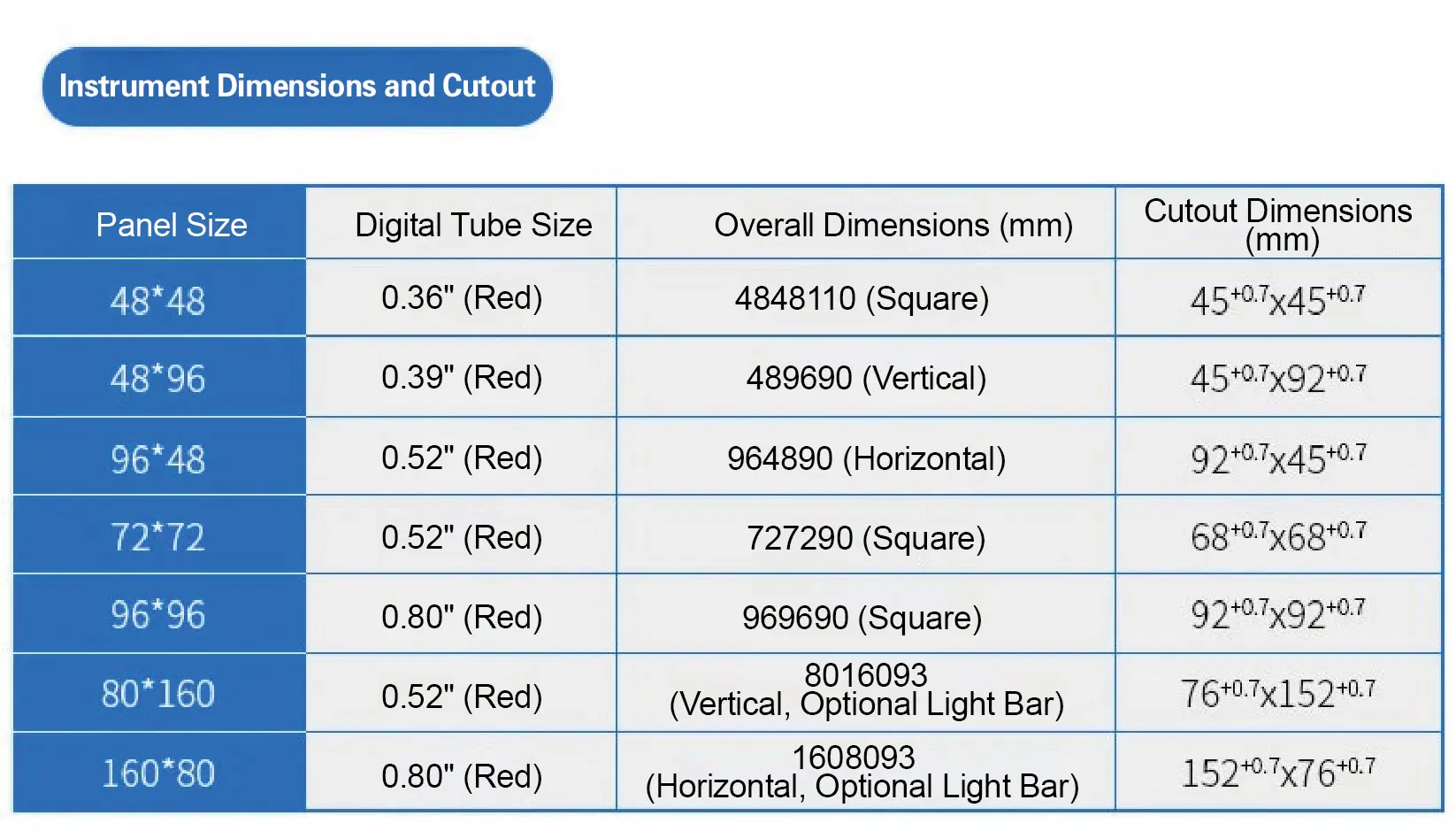

Panel Size Options: 160×80mm, 96×48mm, 96×96mm, 72×72mm (Select one)
Power Supply: AC220V or DC24V (Optional)
Input Types: Universal input compatible with PT100, K, E, J thermocouples, 4-20mA, 0-10V, and more
Output: 2 Relay Outputs + 4-20mA Analog Output
Display Range: -999 to 9999
Accuracy: ±0.5%
Display Type: LED Digital Tube

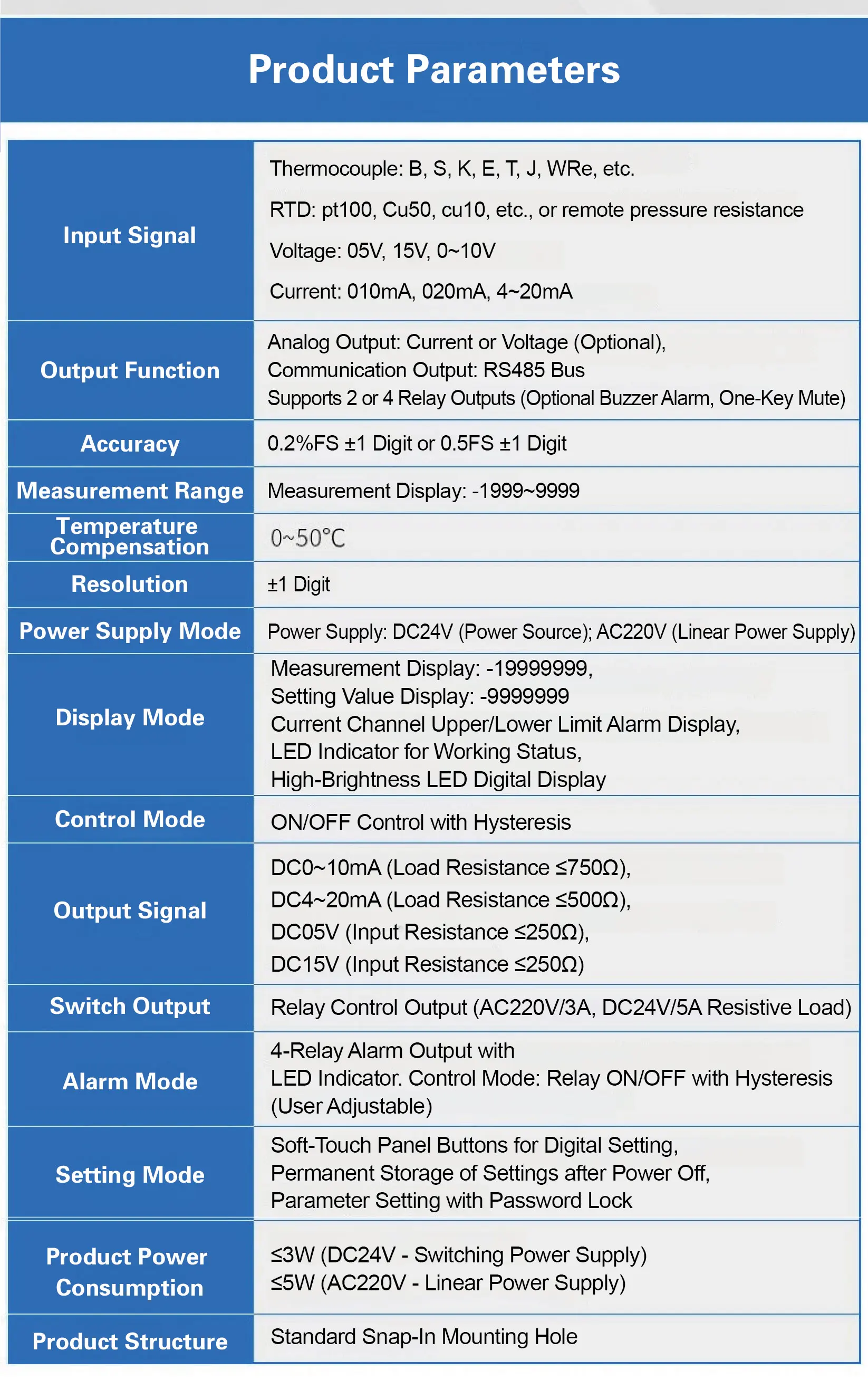

2.Parameters
|
3.Feature
Multi-Signal Compatibility – Compatible with thermocouples, RTDs, voltage, and current inputs, making it suitable for a wide range of applications.
High Precision Control – Delivers high accuracy up to ±0.2%FS, with automatic temperature compensation for reliable performance.
LED Digital Display – Offers clear real-time readings, with an optional bar graph indicator for more intuitive monitoring.
Multiple Output Options – Equipped with both relay and analog signal outputs, allowing for flexible system integration and control.
Intelligent Communication – Features an RS485 interface for smooth and reliable integration into industrial communication networks.
User-Friendly Operation – Simple parameter configuration via digital keypad, with permanent memory storage for saved settings.
4. Application
Industrial Automation – Ideal for process control in temperature, pressure, and humidity applications across various industrial environments.
Manufacturing – Commonly used in plastic molding, metal processing, and packaging machinery for precise process regulation.
HVAC Systems – Ensures accurate control of environmental temperature and humidity for optimal system performance.
Water Treatment – Effectively monitors and manages liquid levels in industrial water treatment operations.
Energy Sector – Applied in power generation and renewable energy systems for reliable process monitoring and control.
5.FAQ
Q:Is this controller compatible with PLC systems?
A：Yes, it supports RS485 communication and analog output, making it compatible with most PLCs.
Q：Does it support multi-channel input?
A：This model supports single-loop input, but we offer multi-channel models as well.
