Product Description

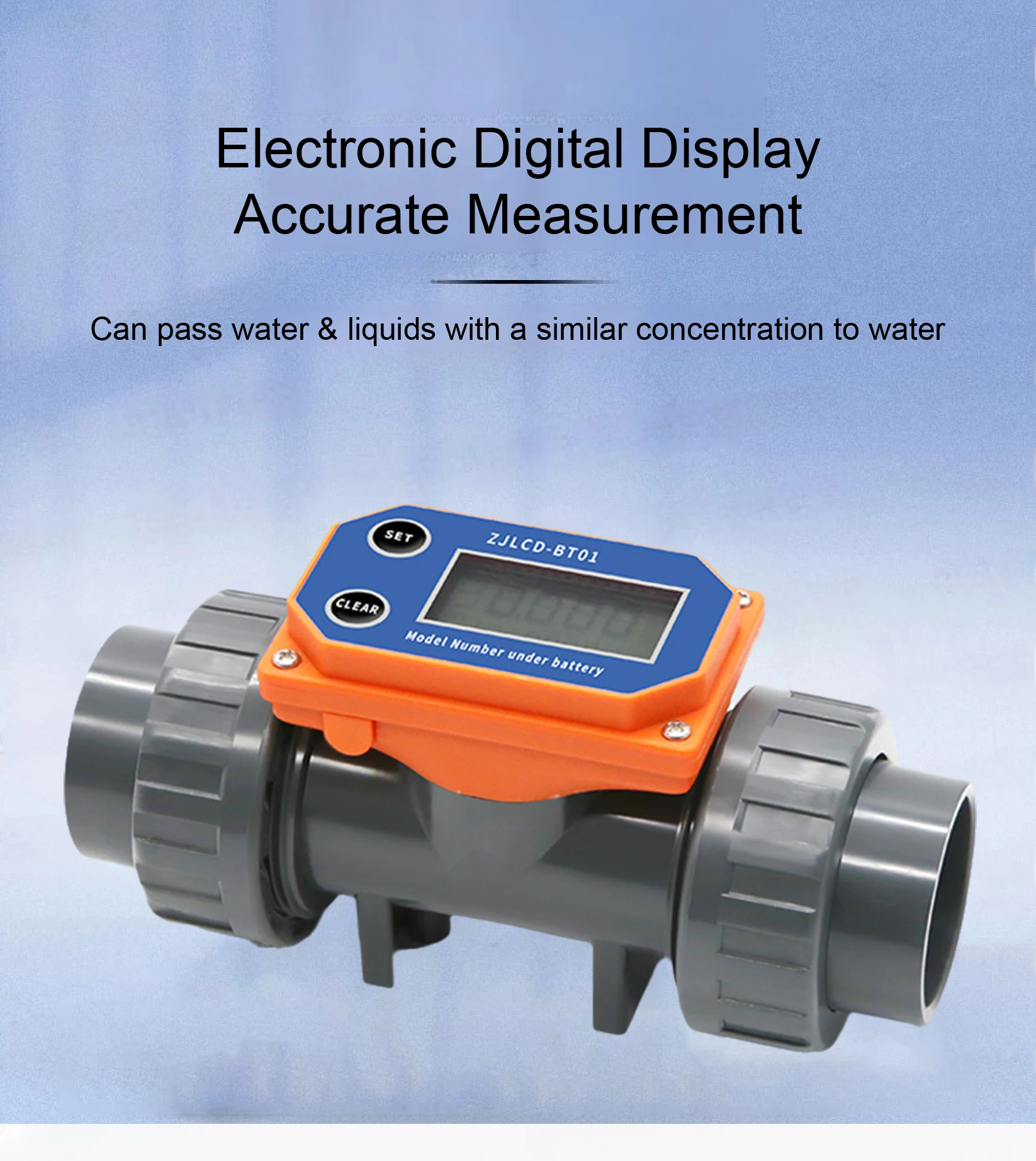

Digital Flow Meter LCD Display Irrigation Wastewater Inline Turbine Flow Sensor DN15‑80 Large Flow High Precision Pulse Output
Digital Flow Meter LCD Display Irrigation Wastewater Inline Turbine Flow Sensor DN15‑80 Large Flow High Precision Pulse Output1.NOTE:

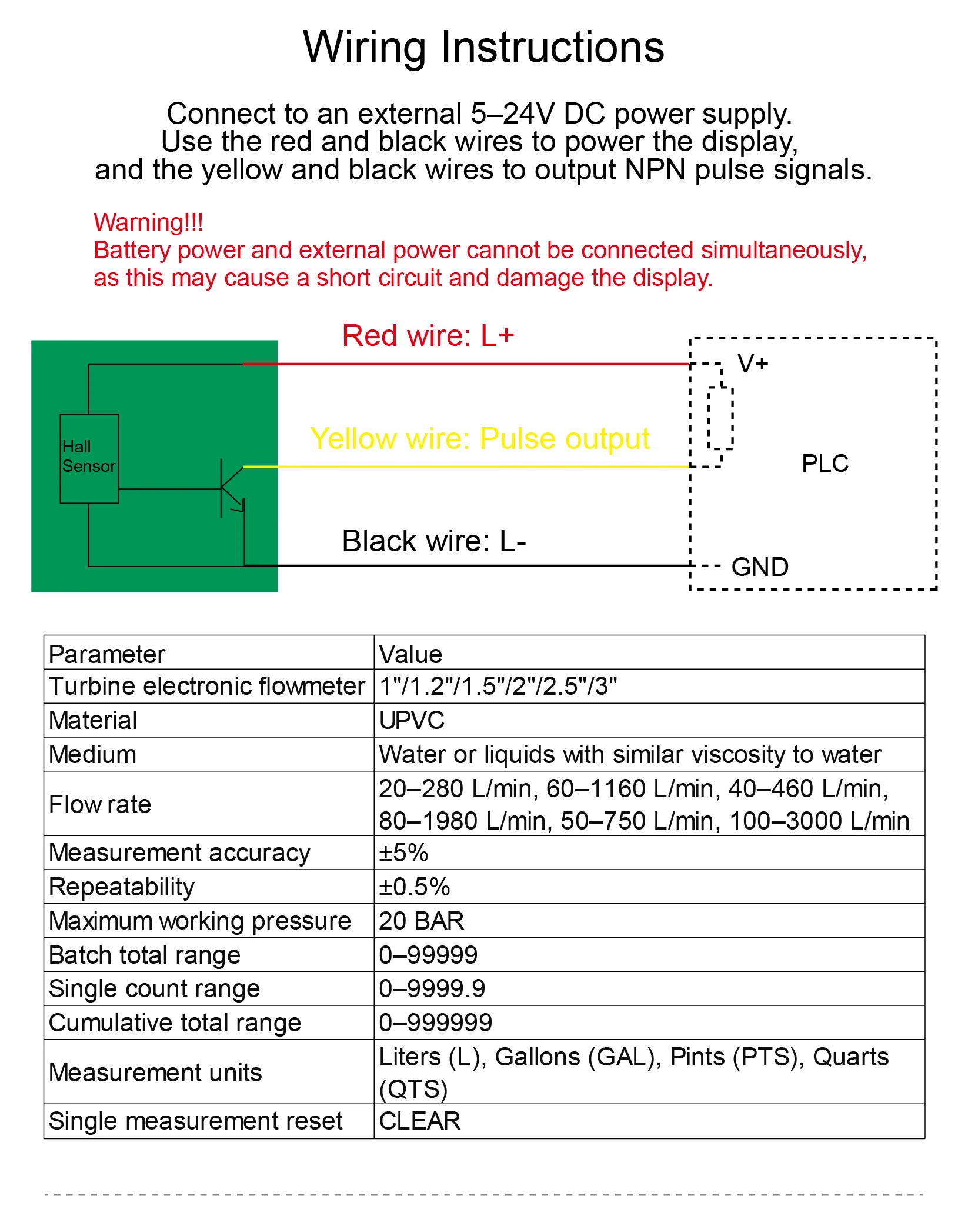

Power Supply & Wiring:

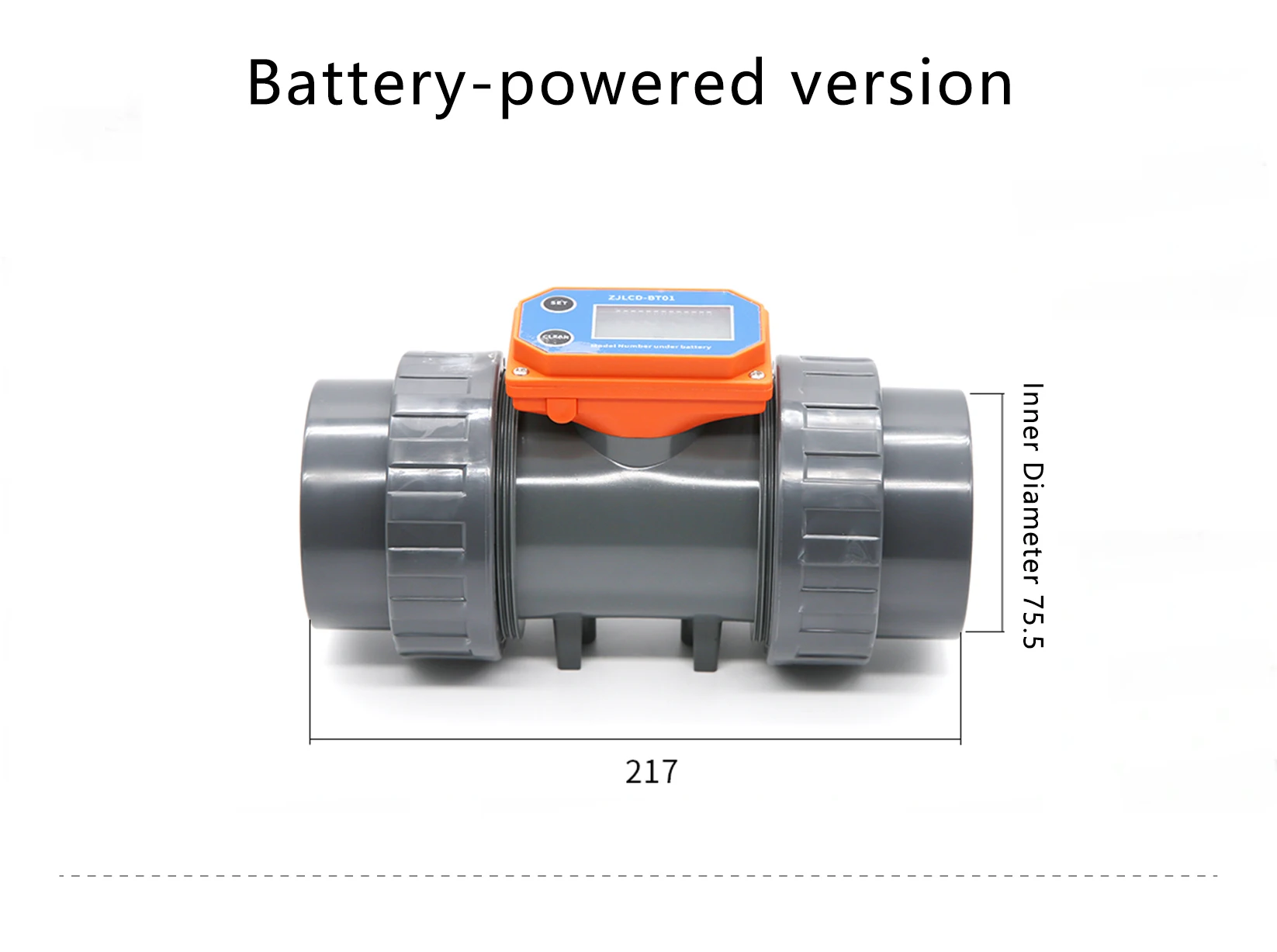

· Battery-power:Two AAA Batteries (Not included due to shipping restrictions; please prepare locally)
· Battery-powered without wire: No external power supply required.
· Material & Specifications Options:
· Material: UPVC

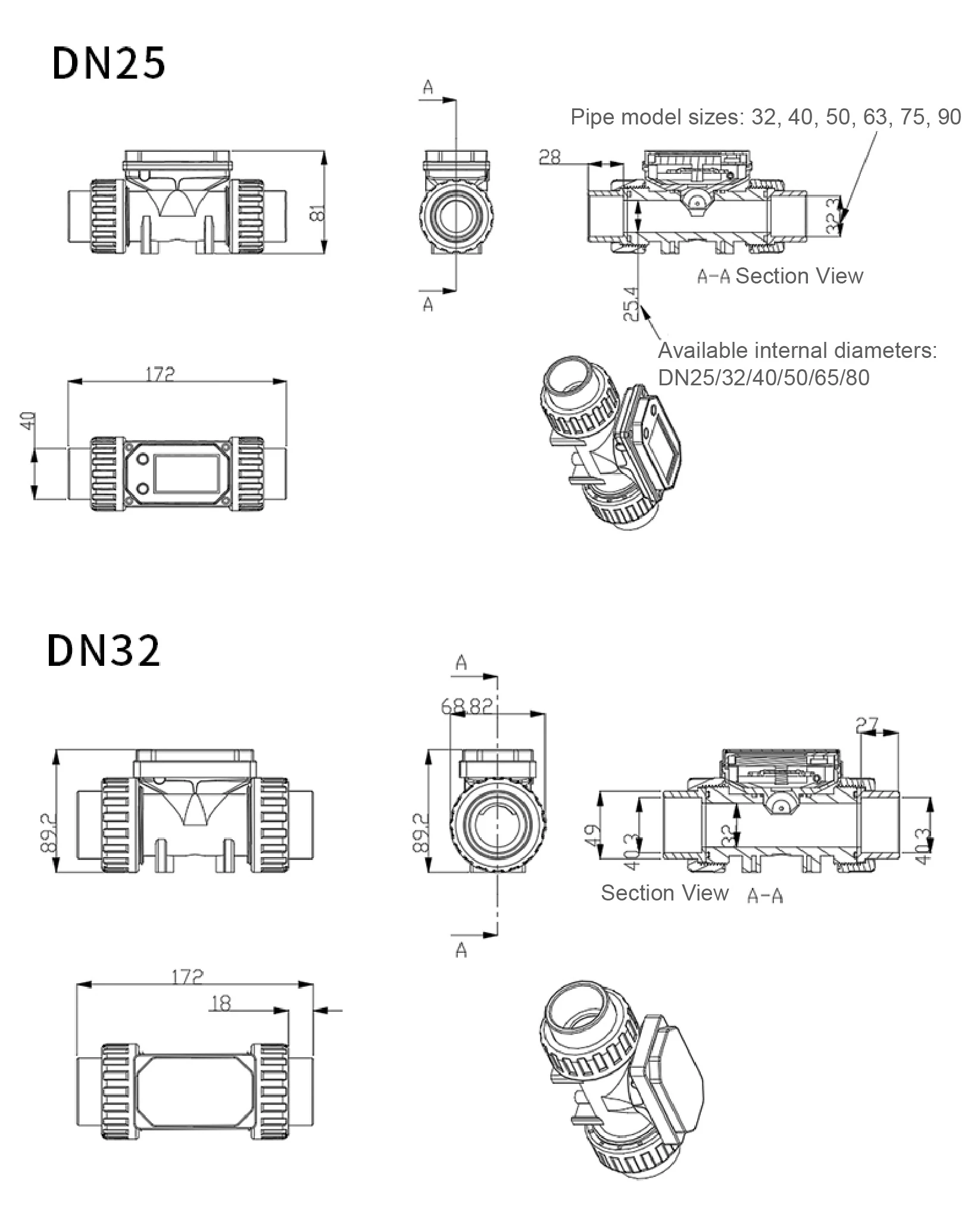

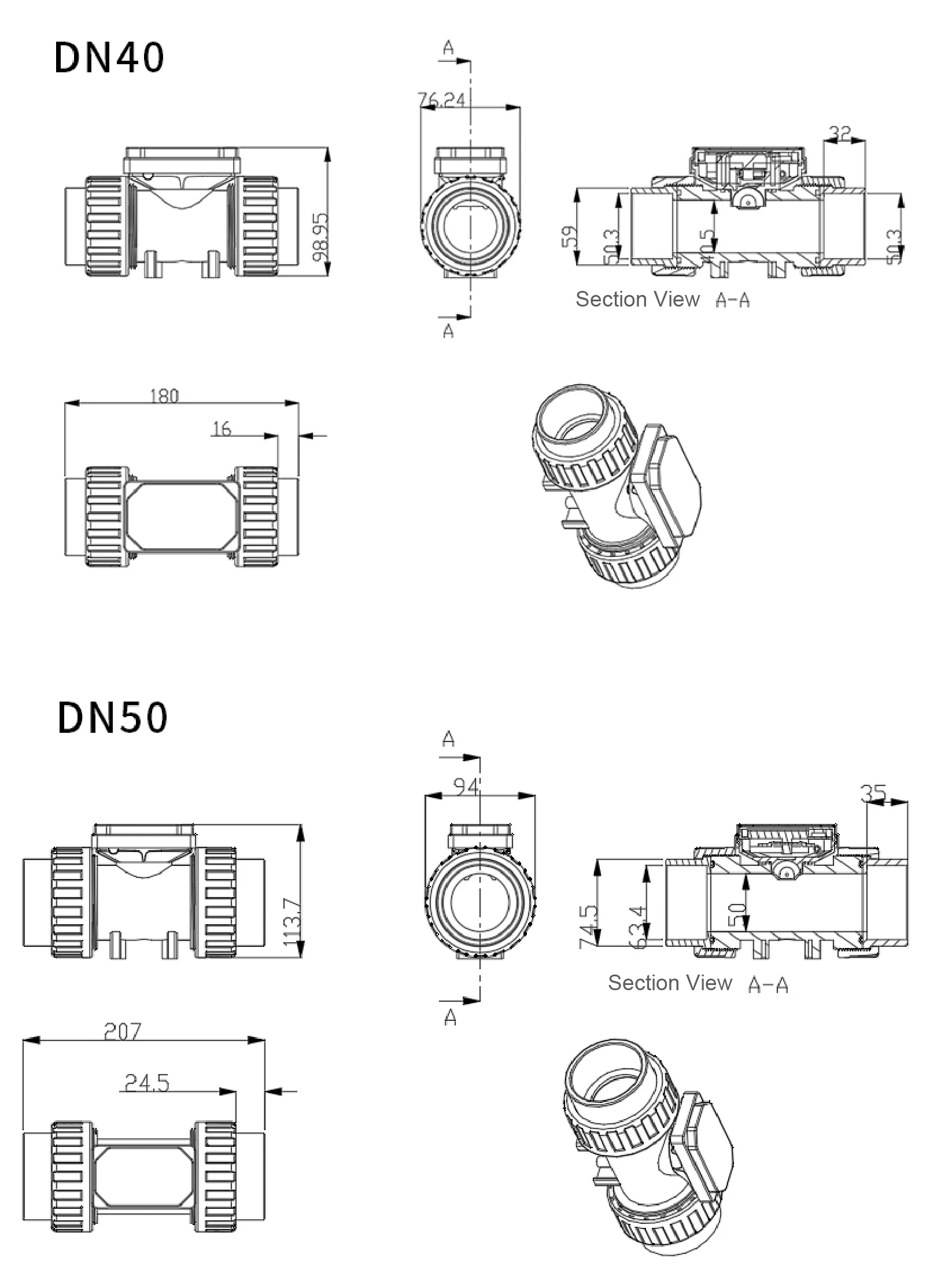

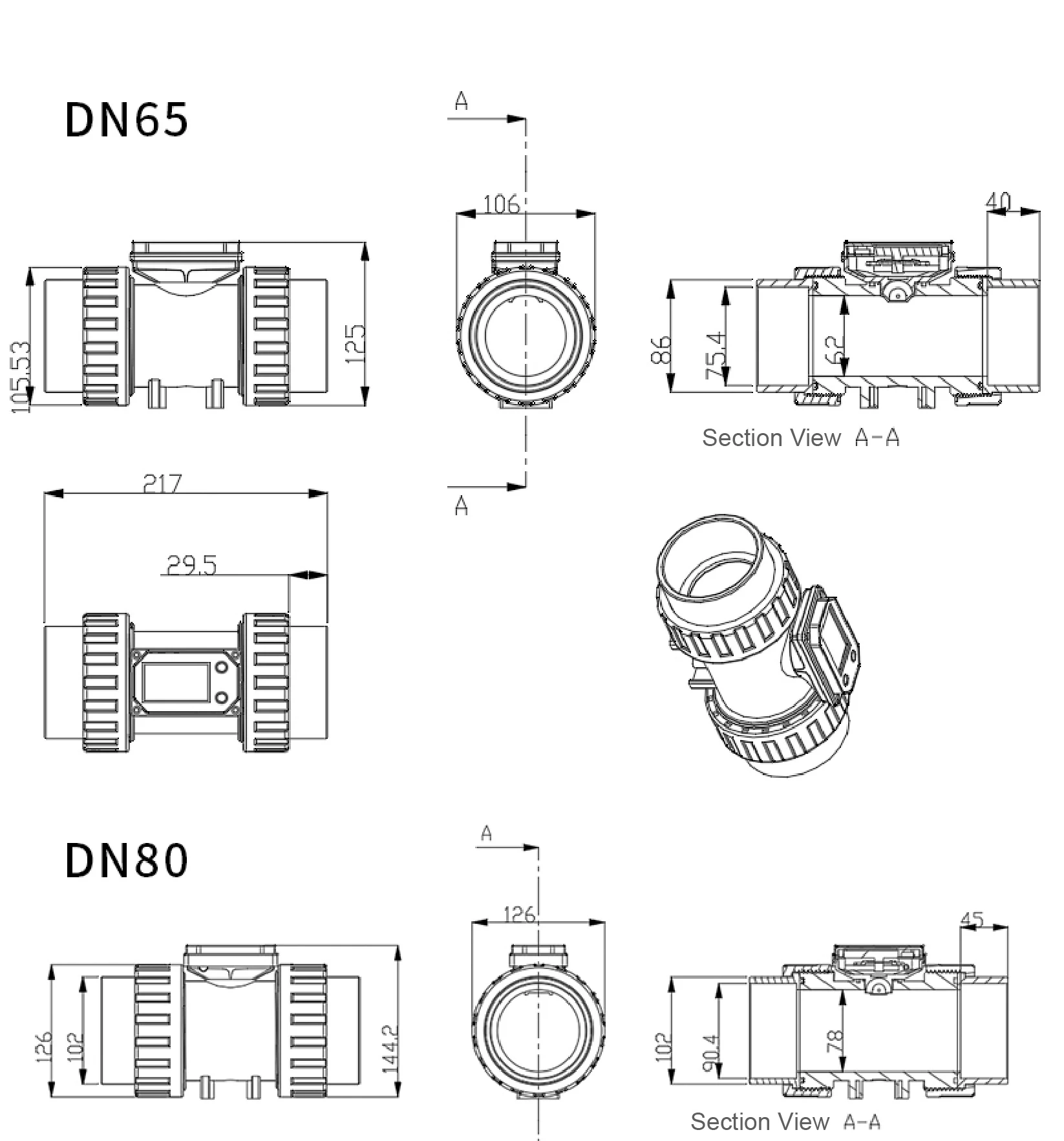

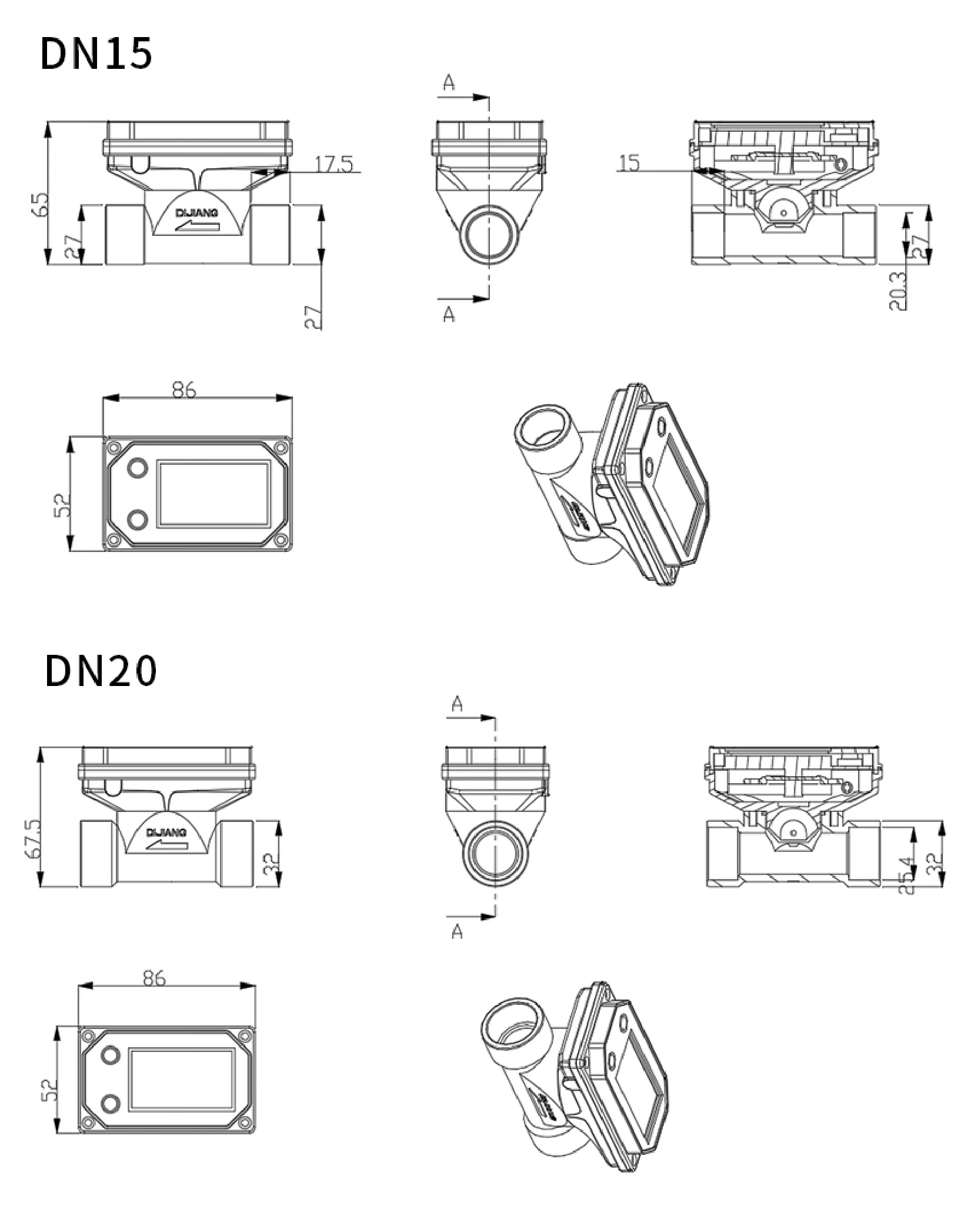

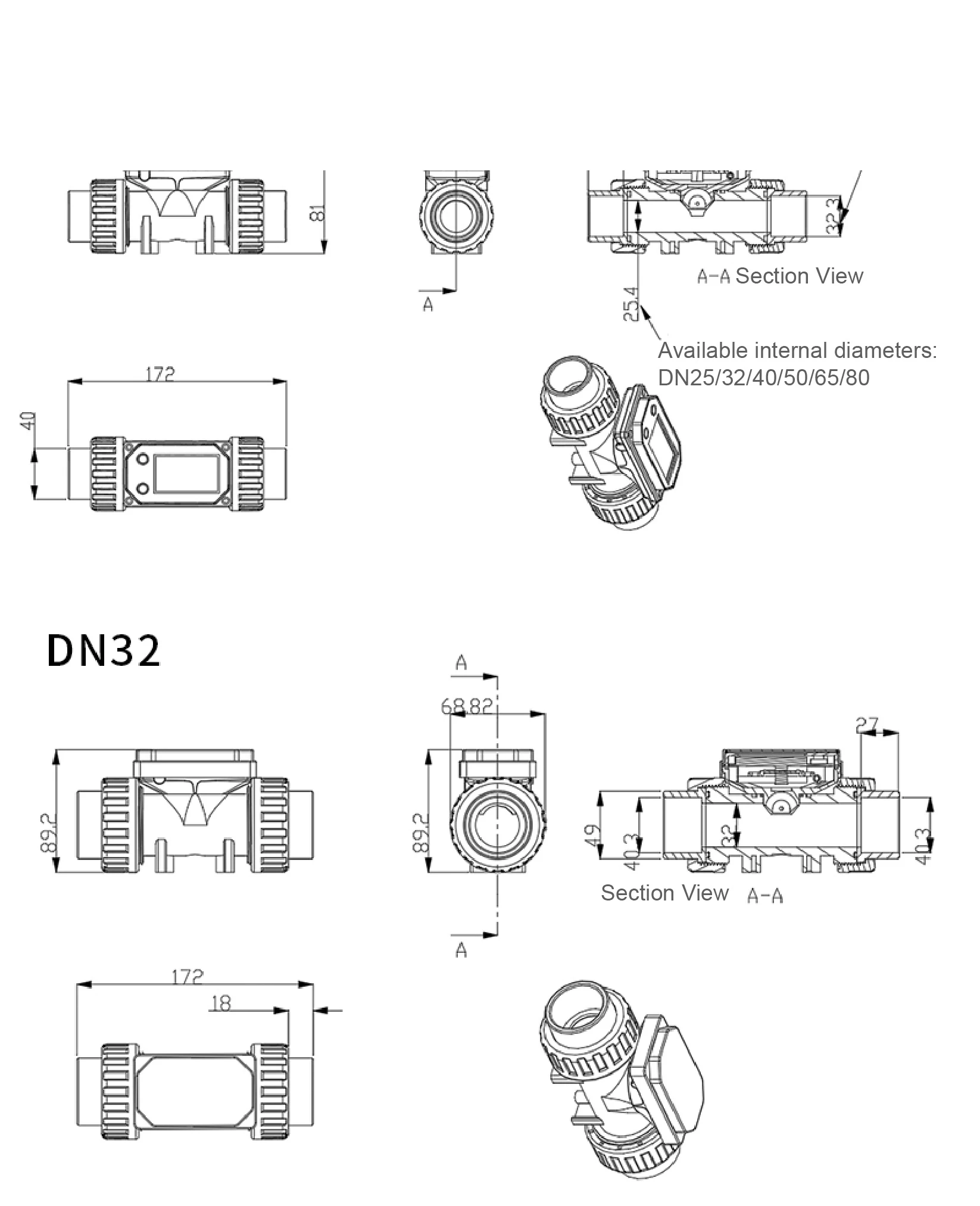

· Available Sizes:DN15，DN25, DN32, DN40, DN50, DN65, DN80

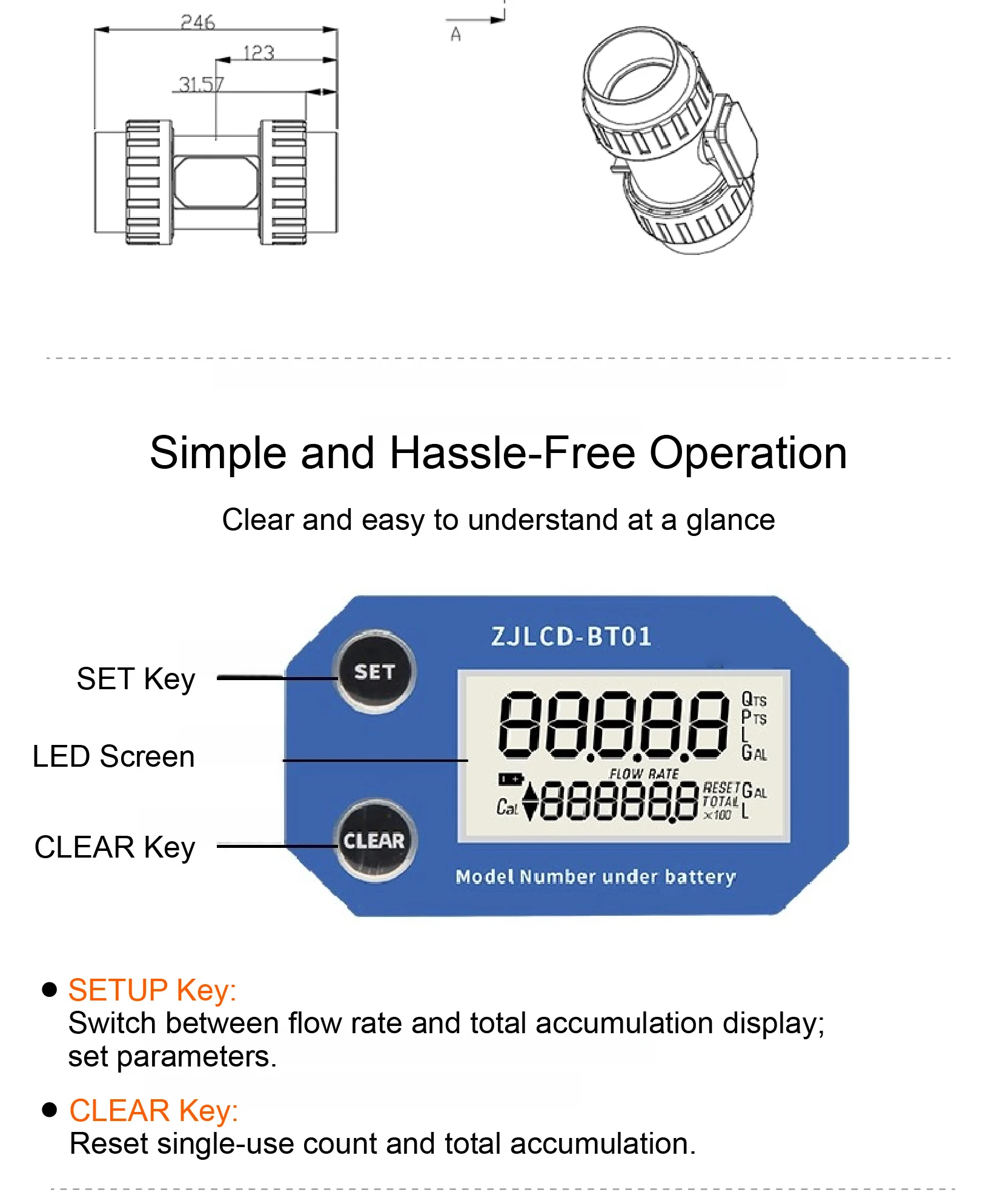

Functions & Display:

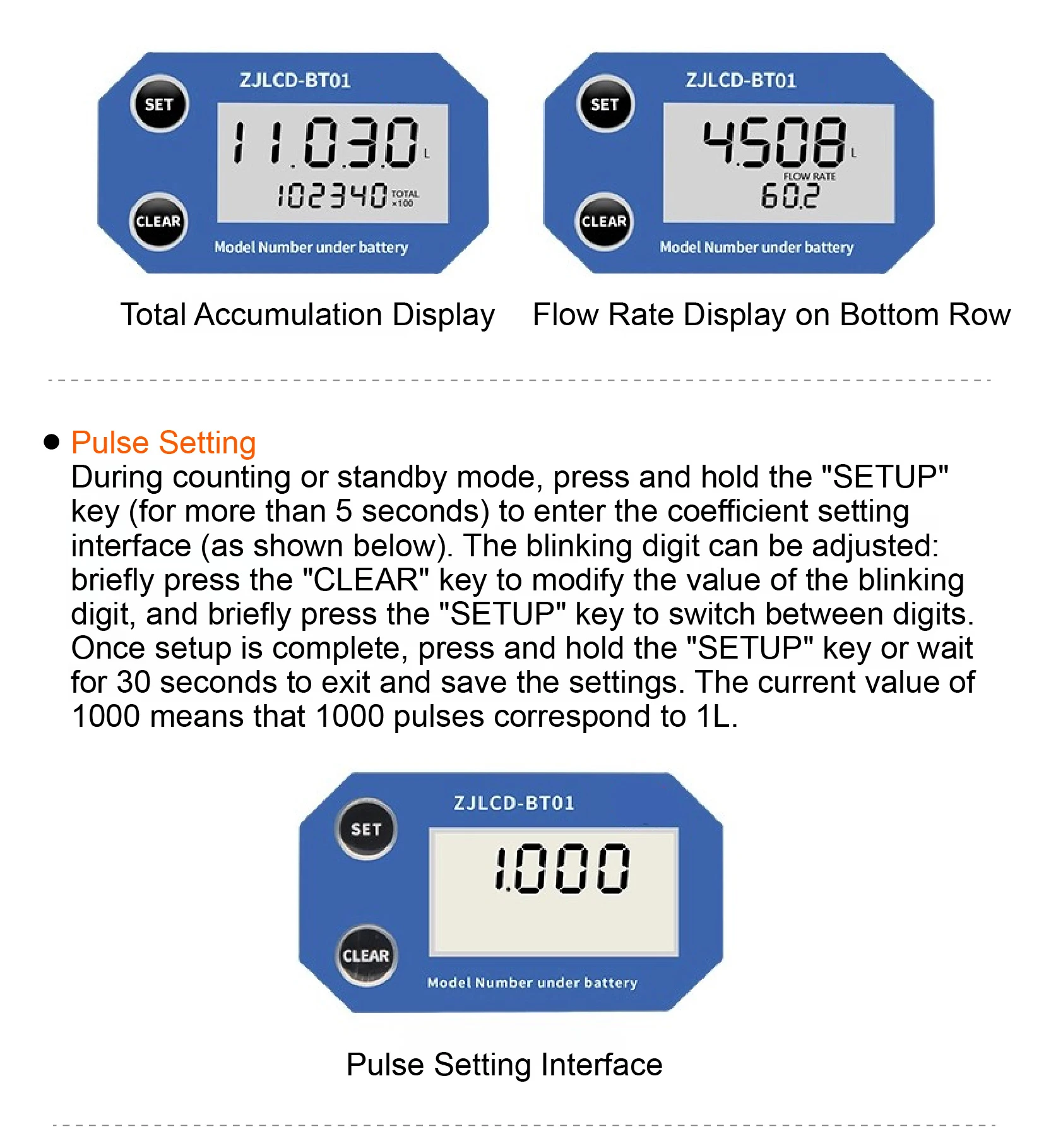

· Measures flow rate and total flow.
· Supports display units: Liters (L), Gallons (GAL), Pints (PTS), Quarts (QTS).

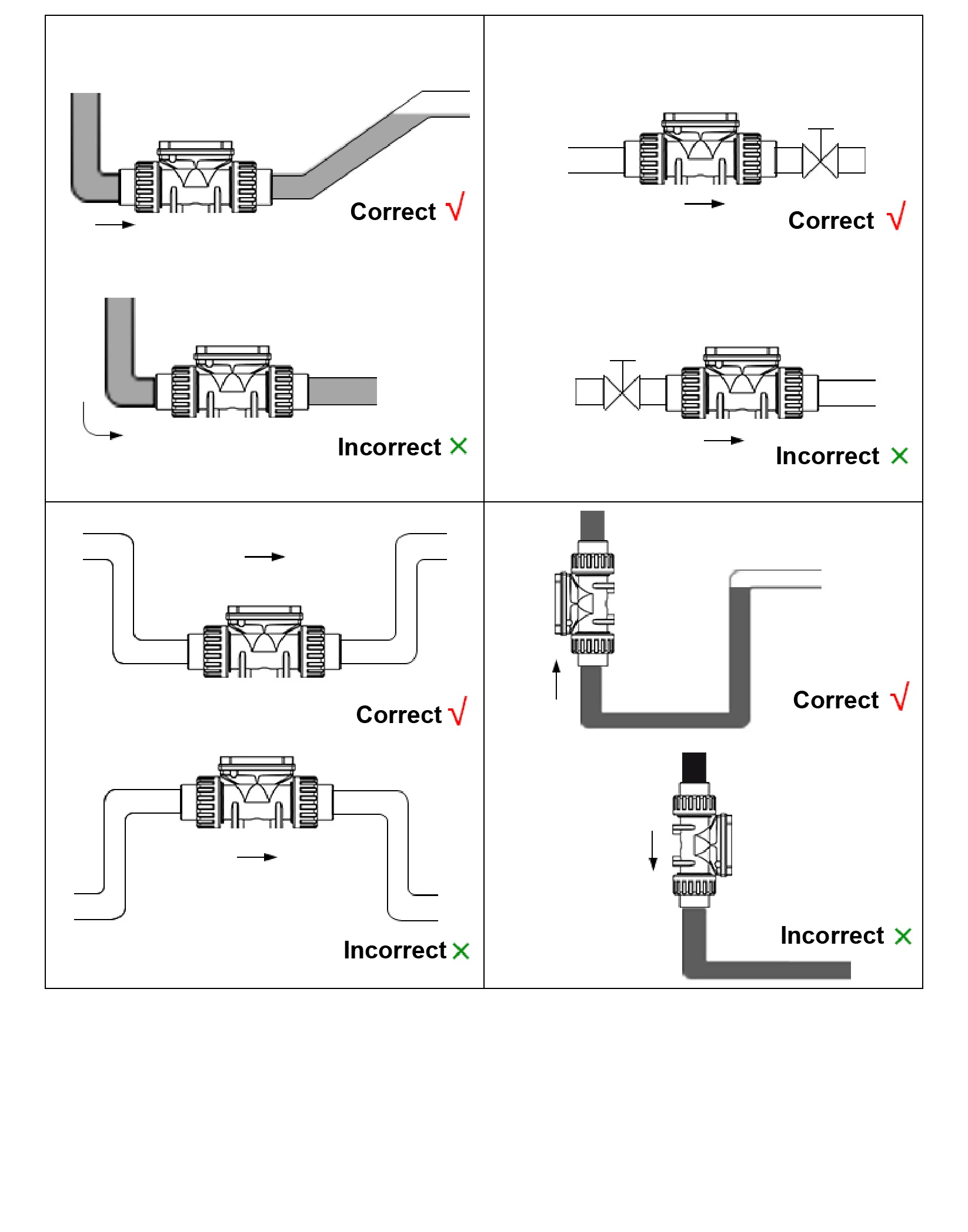

Installation & Protection:
· The display is not waterproof. Please ensure proper dust and water protection.
· Avoid outdoor use. If outdoor installation is necessary, protect the device from rain and direct sunlight.

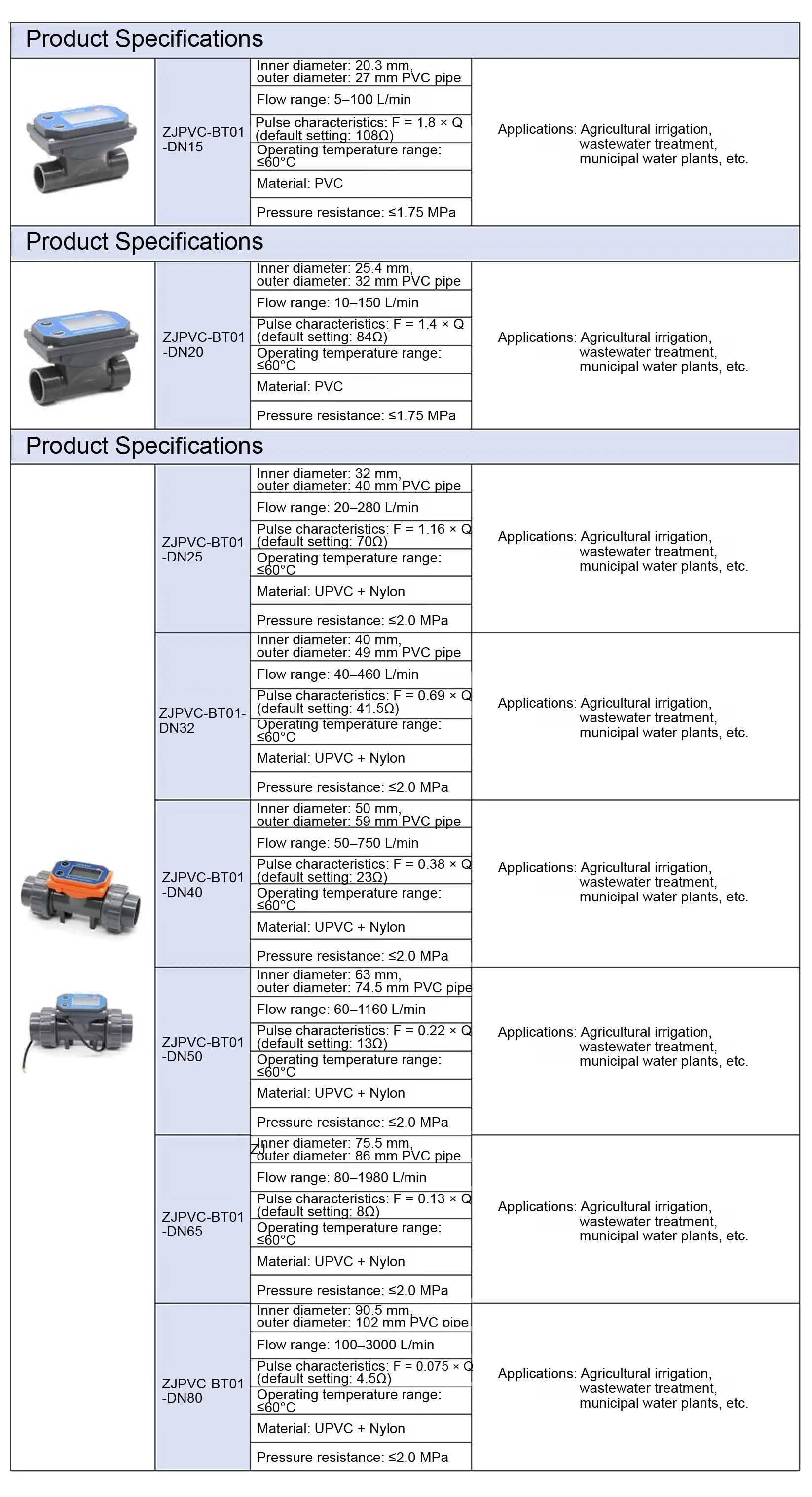

2.Parameters
Parameter | Specification |
Model | PVCBT01 |
Pipe Size | 1 inch 1.2 inch 1.5 inch 2 inch 2.5 inch 3 inch |
Material | UPVC |
Medium | Water or similar liquid |
Flow Rate | 20-280 L per min, 40-460 L per min, 50-750 L per min, 60-1160 L per min, 80-1980 L per min, 100-3000 L per min |
Accuracy | ±5 |
Repeatability | ±0.5 |
Max Pressure | 20 BAR |
Total Count Range | 0-999999 |
Single Count Range | 0-9999.9 |
Measurement Units | Liter L, Gallon GAL, Pint PTS, Quart QTS |
Power Supply | Battery or external 5-24VDC |
3.Features

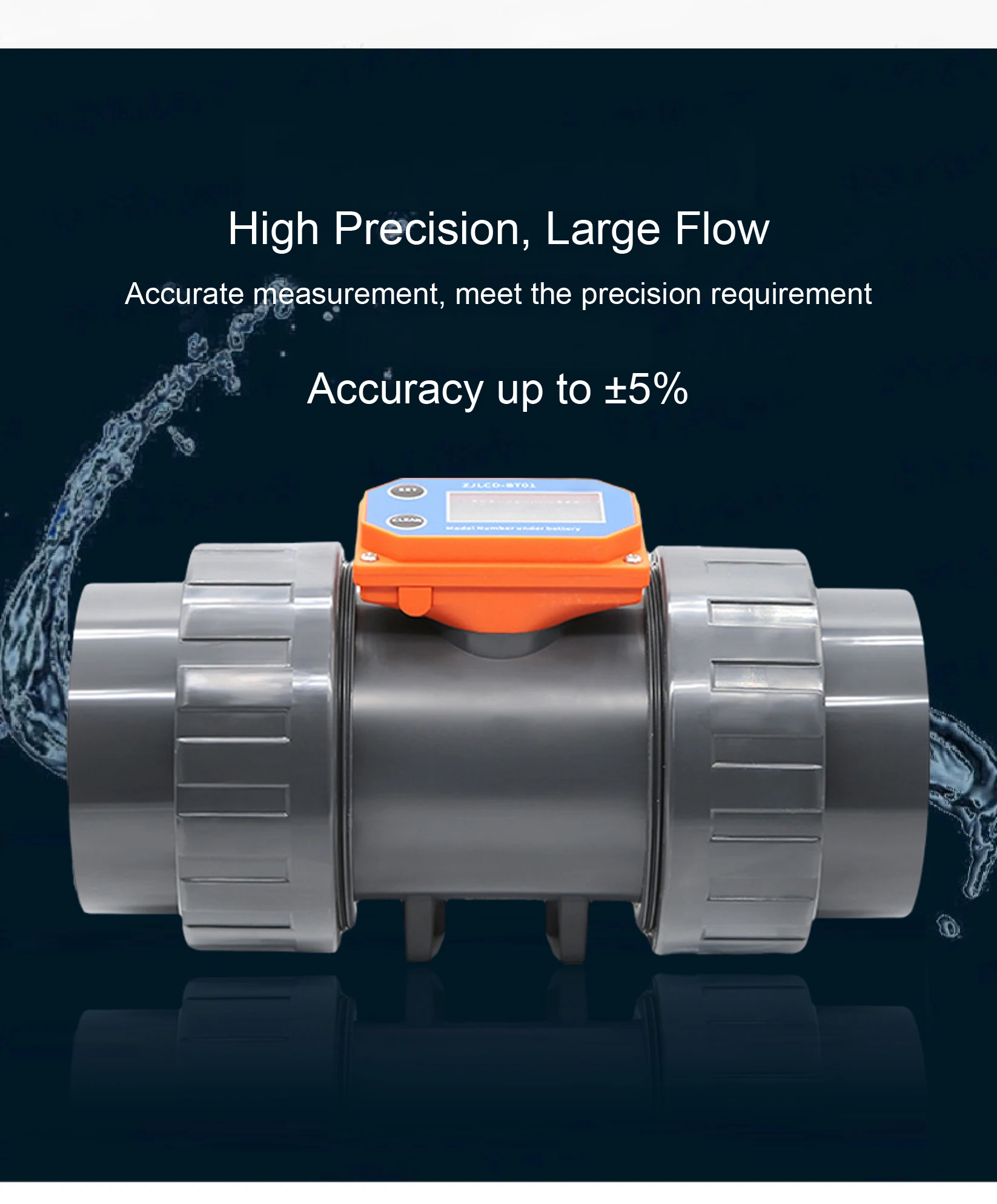

Highly Accurate Measurement Accuracy of ±5 ensures reliable readings
Compact and Durable Small size, solid structure, and long-lasting performance
Multiple Unit Display Switch between Liters, Gallons, Pints, and Quarts
Easy Installation and Operation Clear interface with simple setup and control buttons
Wide Range of Applications Suitable for irrigation, water treatment, swimming pools, and industrial use
4.Applications
Agricultural Irrigation Efficient water usage for farms and gardens
Water Treatment Plants Ideal for monitoring water flow in treatment
systemsSwimming Pools and Fish Ponds Ensures proper water circulation and measurement
Industrial and Equipment Use Suitable for various liquid flow measurement needs
5.FAQs
Q1 Can this meter be used outdoors
A1 No, the display is not waterproof It should be protected from water and dust
