Product Description
Intelligent 8‑Channel LED Alarm Annunciator Panel AC220V/DC24V for Safety Monitoring in Automation Production Lines
Intelligent 8‑Channel LED Alarm Annunciator Panel AC220V/DC24V for Safety Monitoring in Automation Production Lines1.NOTE:
· This 8-channel flashing alarm device supports standard TTL level (0-5V, high-level alarm) and relay control output (ON/OFF).
· Power Supply: AC220V or DC24V. Verify power supply before installation to avoid damage.
· Operating Environment: 0~50°C, ≤85% RH. Avoid strong corrosive gases.
· Input Method: Passive contact only. No additional input power allowed.
· Alarm & Mute: If multiple alarms occur, pressing the mute button will silence the buzzer, but the indicator will stay on until the alarm is cleared.
· Optional Features: External mute and test buttons are available upon request.
2.Parameters

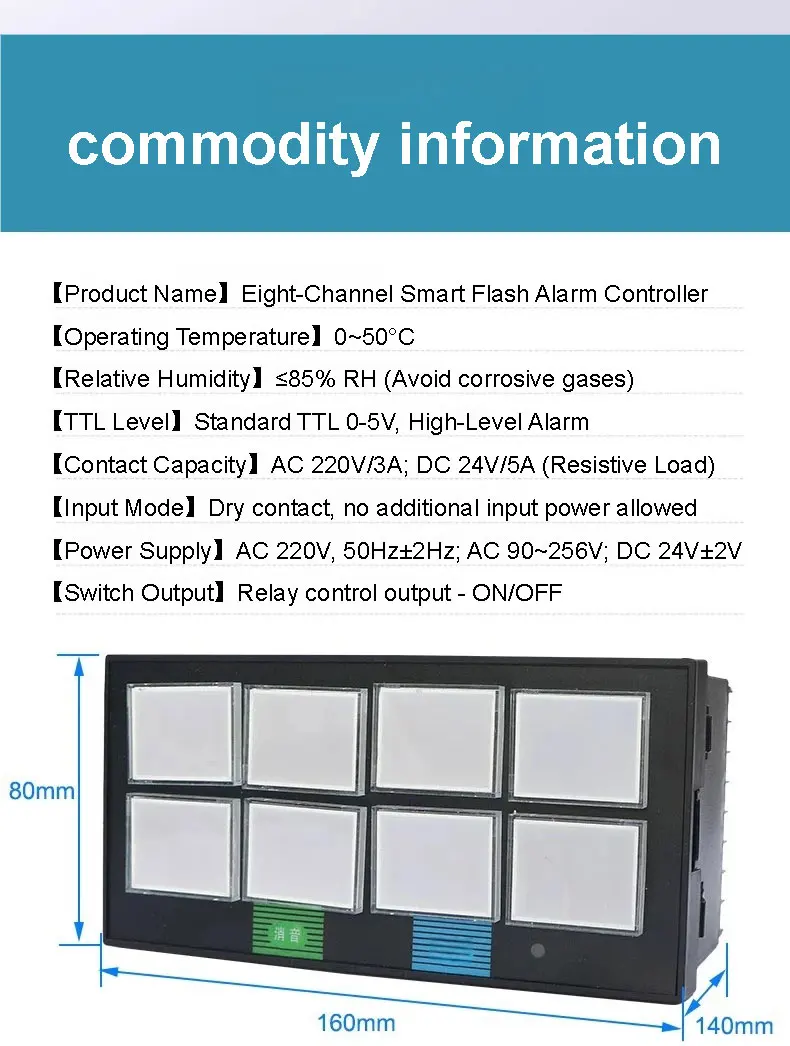

Parameter | Description |
Environment Temperature | 0~50°C |
Relative Humidity | ≤85% RH, Avoid strong corrosive gases |
TTL Level | Standard 0-5V, High-level alarm |
Contact Capacity | AC220V/3A; DC24V/5A (Resistive Load) |
Input Method | Passive contact, no additional power |
Power Supply | AC220V 50Hz, AC90~256V, DC24V ±2V |
Output | Relay control output (ON/OFF) |
Power Consumption | ≤5W |
3.Features
Multi-channel Monitoring - Supports eight-channel input signal monitoring with optoelectronic isolation for enhanced safety.
Real-Time LED Display - High-brightness LED indicators show each channel's status clearly.
Comprehensive Alarm System - Provides sound and flashing alarms when parameters exceed set values, ensuring timely alerts.
Flexible Control Functions - Includes built-in mute and test buttons, with remote mute and self-test functionality.
Durable and Reliable - Designed for industrial environments with high interference resistance and reliability.
4.Applications
Petroleum and Chemical Industry
Metallurgy and Power Plants
Light Industry Automation
Safety Monitoring Systems
5.FAQs
Q: Can the device be used in high-humidity environments?
A: Yes, it can operate in relative humidity ≤85% RH, but avoid corrosive gases.
Q: Is external power needed for input signals?
A: No, it uses passive contact input without additional power requirements.
Q: What alarm methods are available?
A: It supports sound alarms (built-in buzzer) and flashing alarms for active alerts.
