ZTS-YUX RS485 Rain Snow Detection Sensor 12–24V DC Auto Heating for Outdoor Gree

Product Description

1.NOTE

Default Parameters

Power Supply: 12–24 VDC

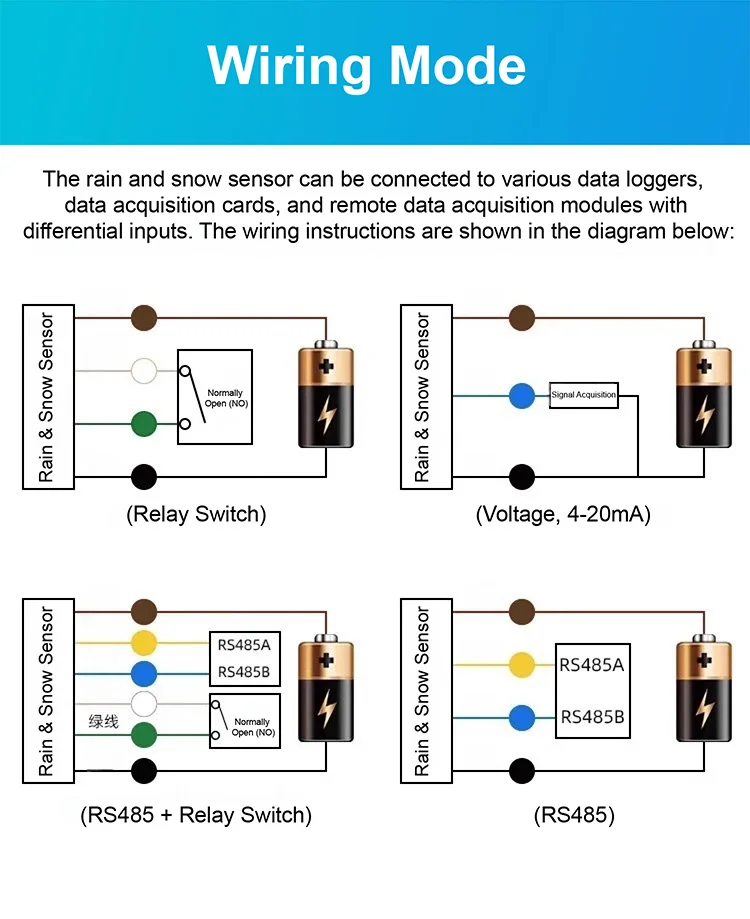

Outputs:
A: Relay Switch Output

• Load Capacity: AC 220V 1A or DC 24V 2A

B: Voltage Signal Output

• Selectable Range: 0–2V, 0–5V, or 0–10V

• Please specify the desired output range when placing your order.

• If no preference is indicated, the default output will be 0–2V.

C: 4–20 mA Current Loop Output

D: RS485 Communication Output

E: NPN Output

F: Combined Output Options

• Example: A + C + D

Auxiliary Function:

• Optional built-in heating function available upon request.

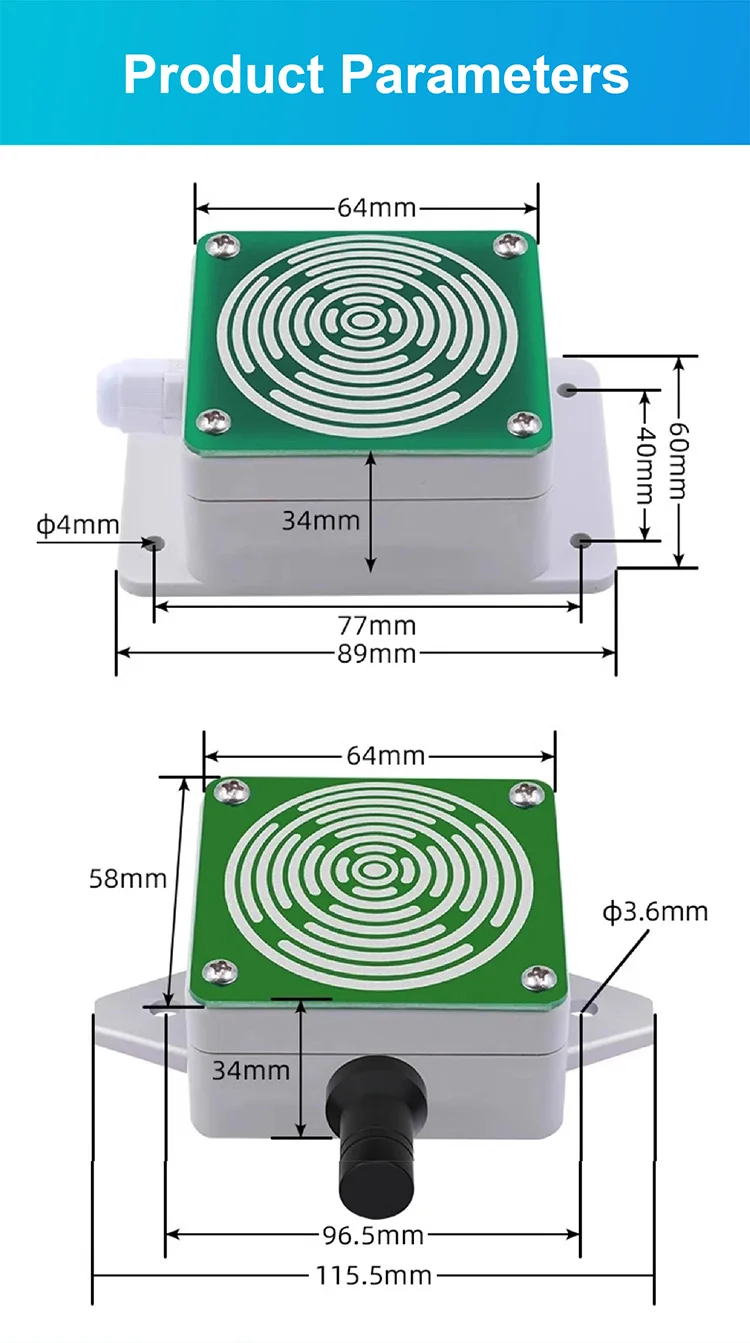

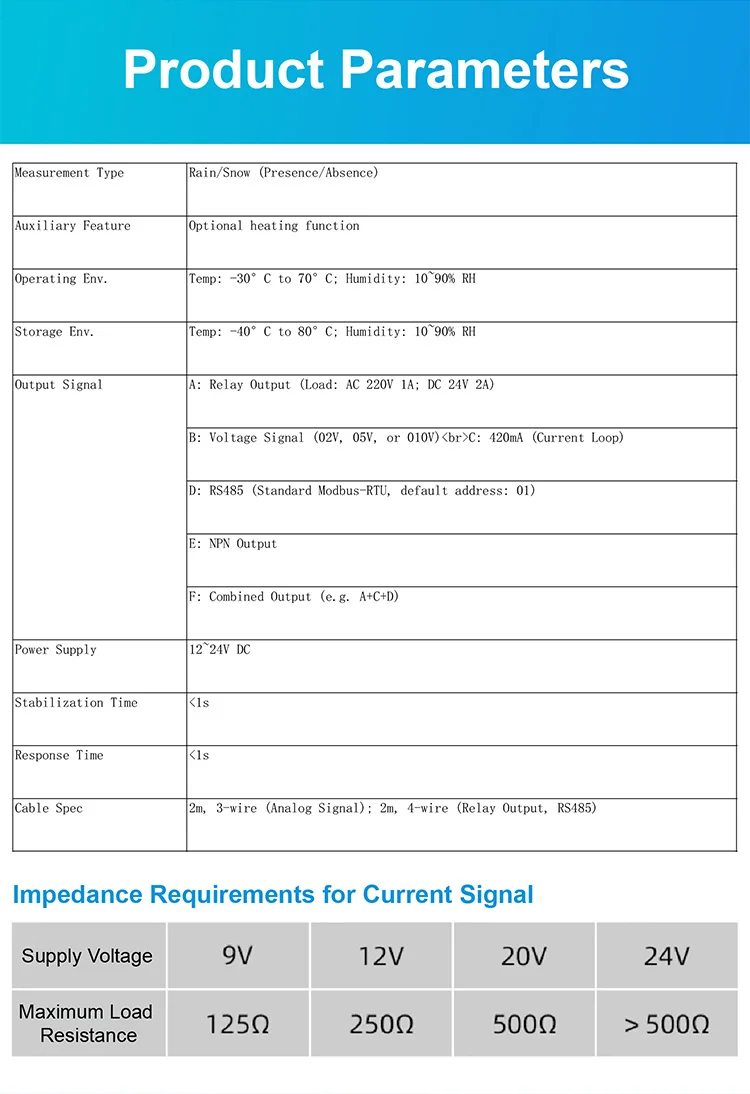

2. Parameters

3. Features

IP65 Waterproof & Corrosion Resistant
Built for demanding outdoor and industrial environments, the rugged housing offers excellent protection against water, dust, and corrosion.

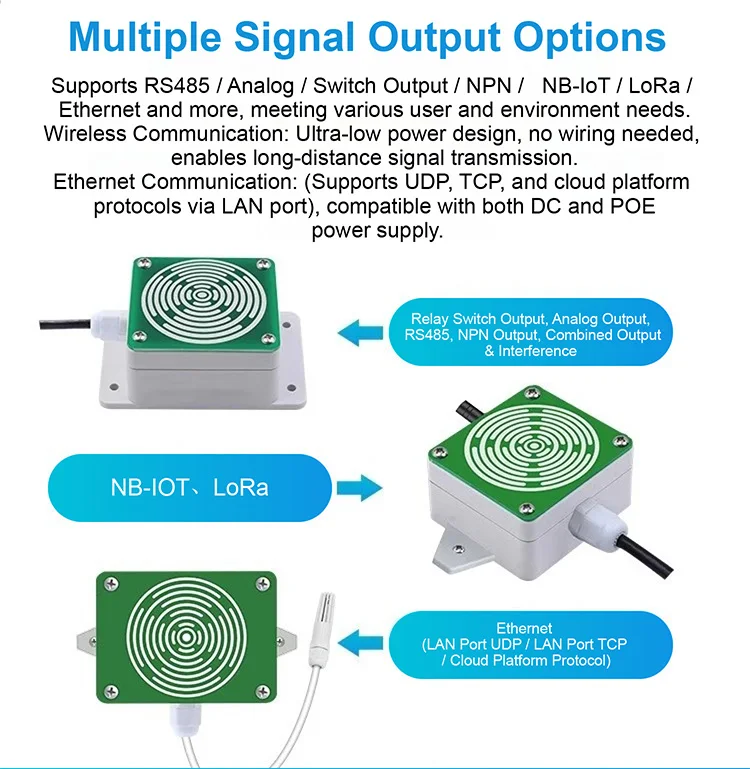

Multiple Signal Outputs
Compatible with a wide range of systems, supporting RS485, analog (voltage/current), relay, NPN, and wireless outputs to suit various integration requirements.

Optional Auto-Heating Function
Effectively prevents the buildup of snow and rain, ensuring stable operation in cold, humid, or icy conditions.

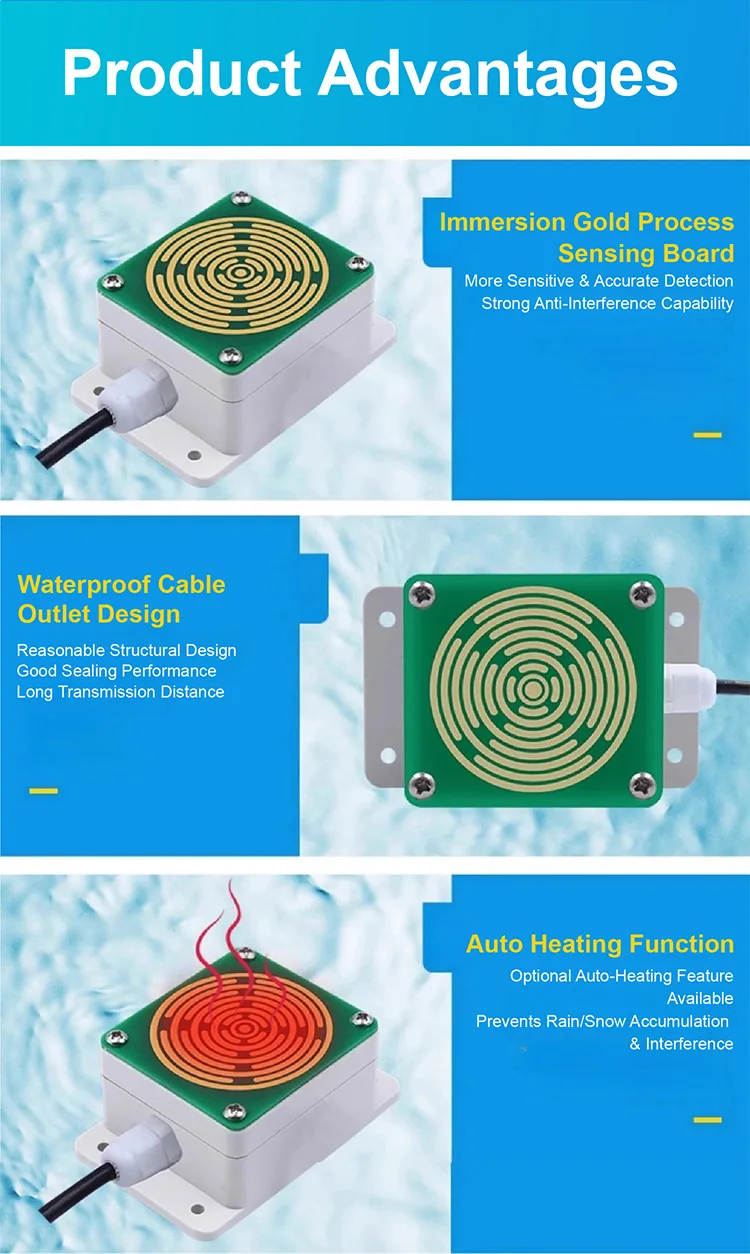

High-Sensitivity Gold-Plated Sensor Board
Delivers improved detection accuracy and longer operational lifespan thanks to its premium gold-plated design.

Waterproof Cable Design
Features a sealed cable structure that ensures reliable, long-distance signal transmission even in harsh conditions.

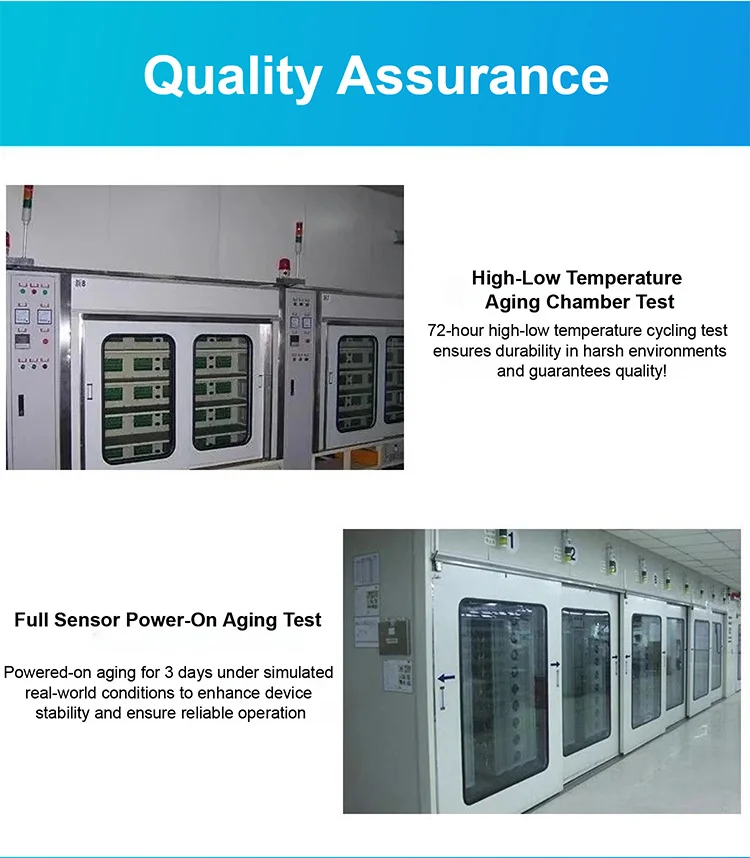

Extensive Environmental Testing
Undergoes 72-hour high and low temperature aging tests and comprehensive full-system burn-in to guarantee durability and dependable performance.

4. Applications

Widely Applied Across Industries
Ideal for qualitative detection of rain and snow presence, this sensor is extensively used in meteorology, smart agriculture, forestry, marine observation, environmental monitoring, as well as in airports, ports, and transportation systems.

5. FAQs

Q1: Can the sensor operate in extreme weather conditions?
A1: Yes. It is designed to work from -30°C to +70°C and supports optional heating to prevent snow buildup.

Q2: What output signal types are available?
A2: The sensor supports relay, analog voltage (02V / 05V / 0~10V), 4–20mA current, RS485 (Modbus-RTU), NPN, and custom combination outputs.

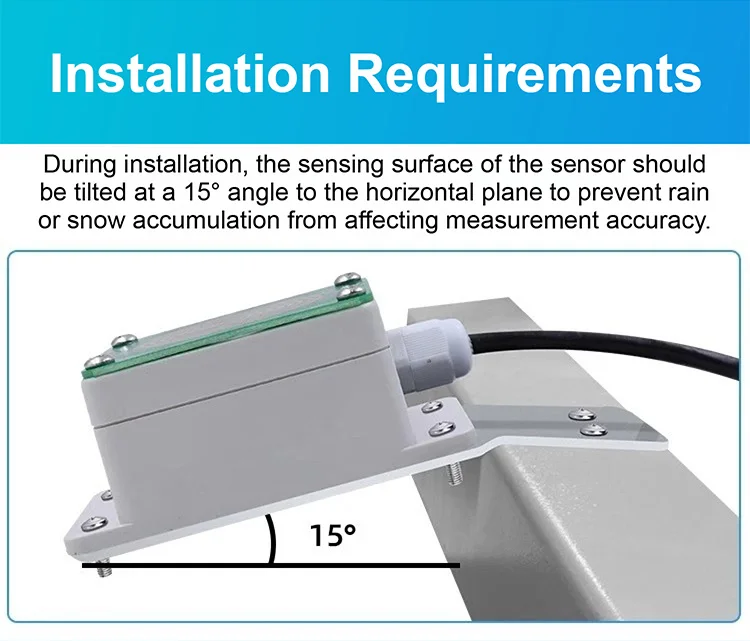

Q3: How should I install the sensor to ensure accuracy?
A3: Mount the sensor at a 15° angle to the horizontal surface to avoid rain or snow accumulation on the sensing surface.
