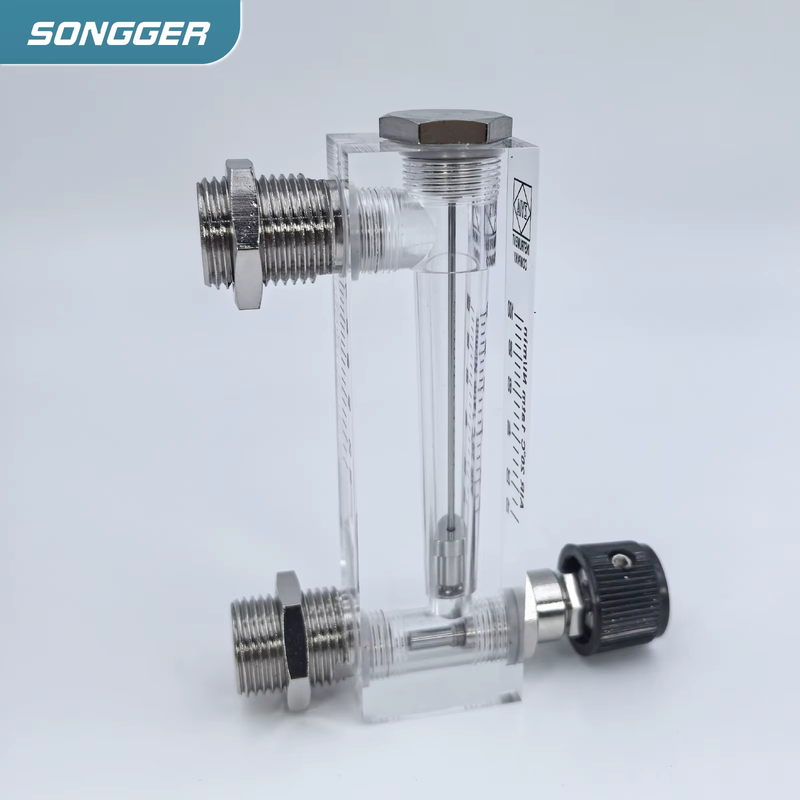

LZM-6T Panel Mount Acrylic Flow Meter Rotameter for Air Gas Low Flow Adjustable

Product Description

LZM gas series flow meters are specifically calibrated based on the density of air and are designed for use with air only. Using these meters with other gases can result in inaccurate measurements, potential equipment damage, and serious safety hazards.

The liquid series flow meters are similarly calibrated using the density of pure water and should only be used with water. For other media—such as mixed gases, hydrogen, ammonia, chlorine, argon, methanol, or acetone—a customized flow range must be configured. Please contact customer service for tailored solutions.

Product Specifications (Default Model: LZM-6T)

• Material: Durable clear acrylic body for superior visibility and strength

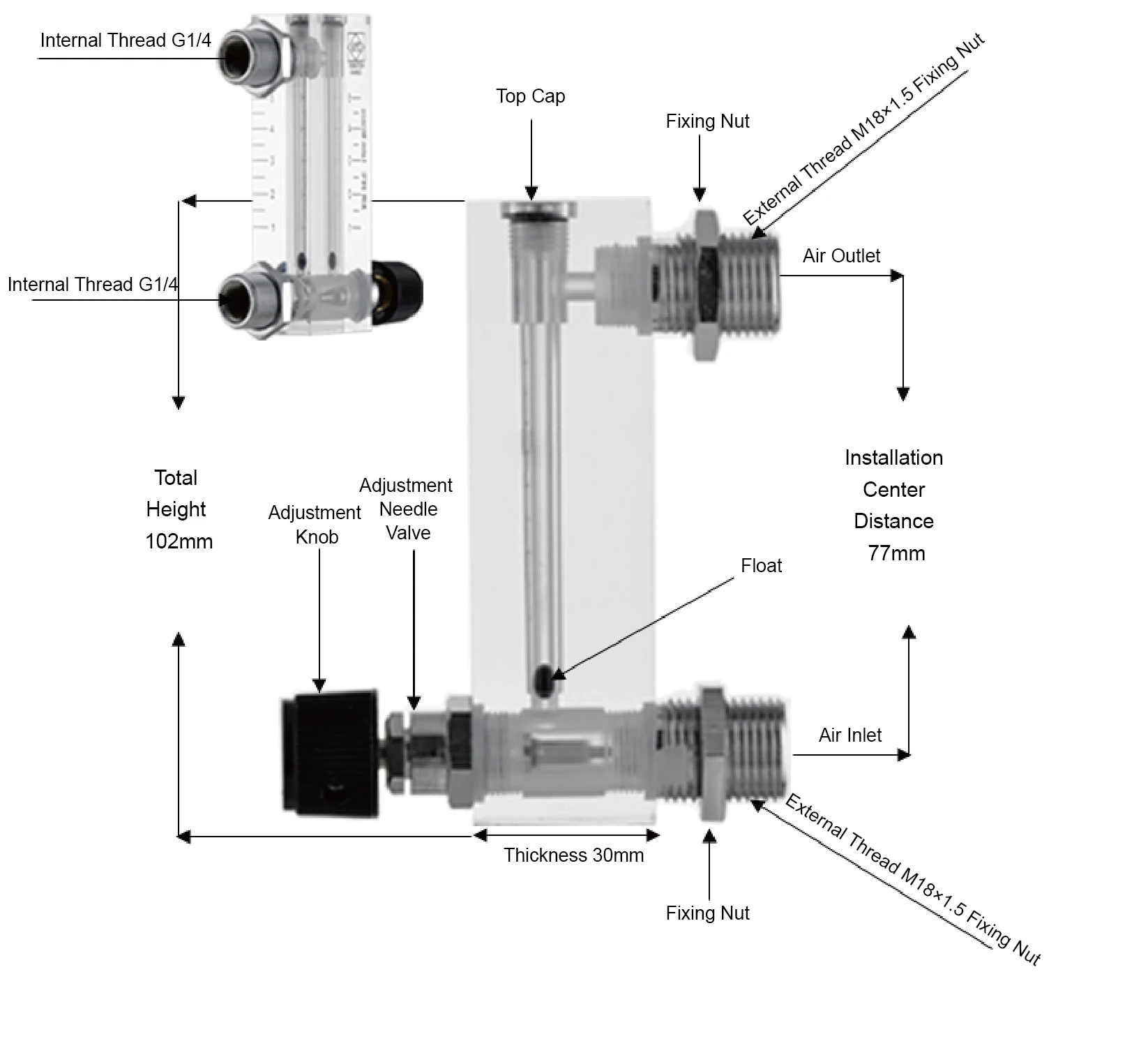

• Connection: Internal G1/4 threaded ports

• Measurement Range:

  • Gas: 0.1–100 L/min (or 0.04–0.4 m³/h)

  • Liquid: 6–60 L/h

• Accuracy: ±4% (Class)

• Operating Conditions: Maximum temperature of 60°C and pressure up to 0.6 MPa

• Installation: Vertical installation required. Use the top of the float as the reference point for flow readings

Optional Configurations

• Connection Types: Quick-connect fittings available for flexible installation

• Measurement Range Options:

  • Gas: 0.2–2 m³/h

  • Liquid: 6–60 L/h (custom ranges available on request)

• Pulsation Control: An upstream buffer can be added to stabilize readings in systems with pulsating flow

• Impurity Handling: Optional filter for media containing solid particles

Other Available Models

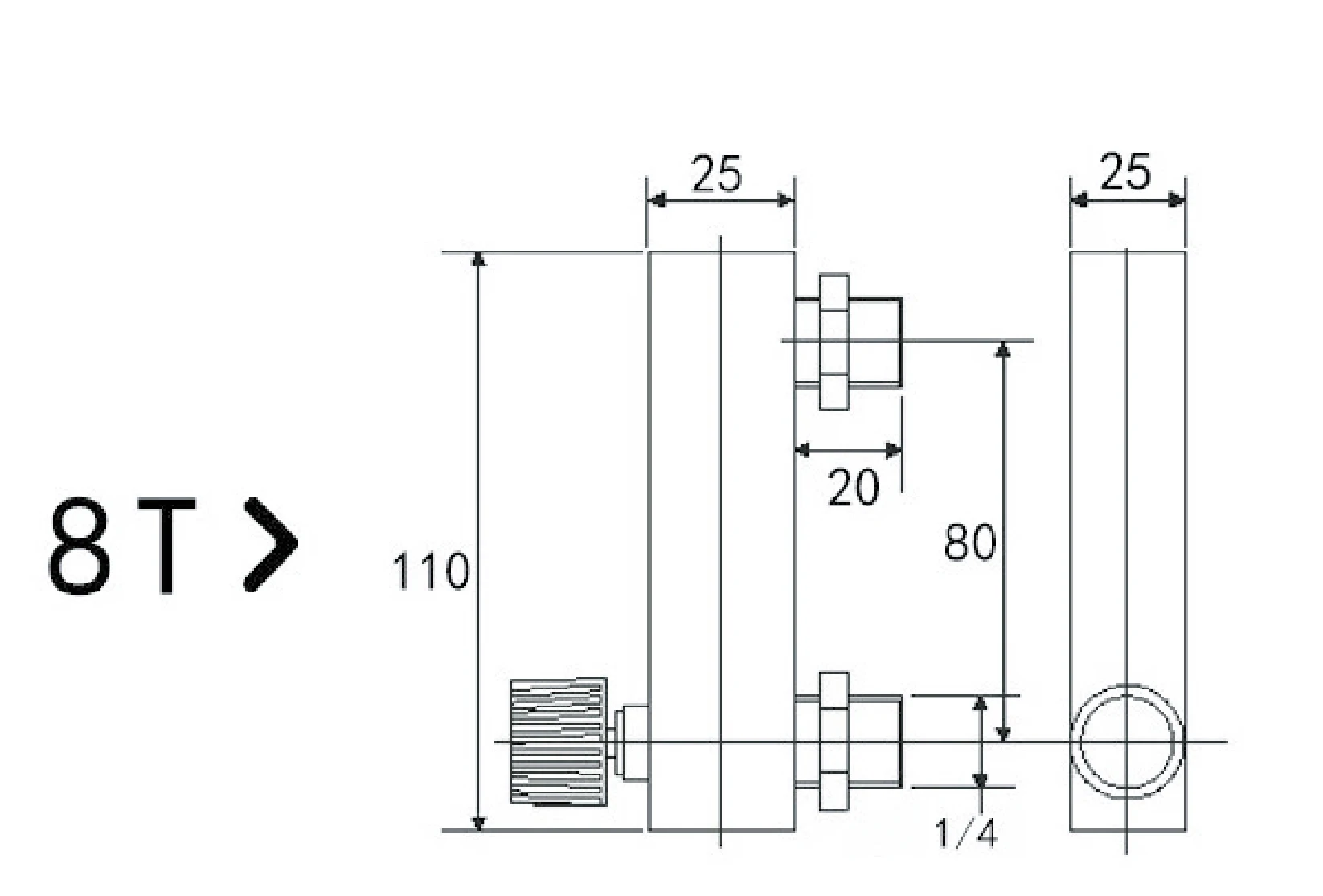

• LZM-4T and LZM-8T: Variants available for different flow ranges or connection requirements

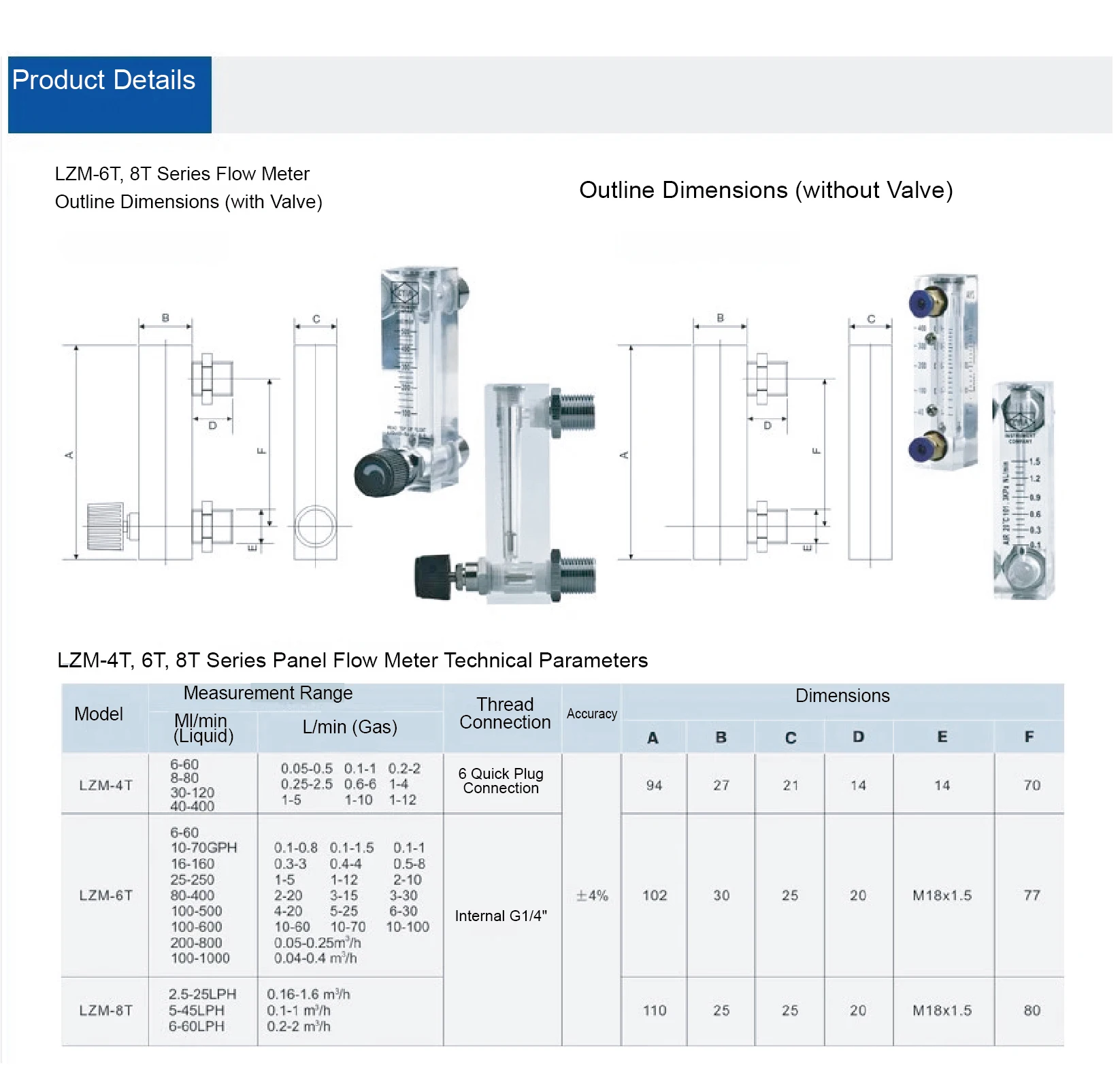

2.Parameters

3.Features

Versatile Flow Measurement
Accommodates a wide gas flow range from 0.1–100 L/min (0.04–0.4 m³/h)
Compatible with liquid flow rates between 6–1000 mL/min

Robust Acrylic Construction
Crafted from lightweight, high-strength acrylic
Provides excellent visibility for real-time flow monitoring

Easy Installation and Operation
Designed for straightforward vertical mounting
Clear, easy-to-read scale ensures precise flow readings

Customizable Settings
Flow rate configurations can be tailored to meet specific application requirements

4.Applications

Ideal for a wide range of applications, including laboratory experiments, water treatment systems, gas flow monitoring, and industrial processes that demand accurate and reliable flow control.

5.FAQs

Q: Can this flow meter be used for organic solvents like alcohol or acetone?
A: No, it is not suitable for use with alcohol, gasoline, acetone, or other similar organic solvents.

Q: What is the recommended installation orientation?
A: The flow meter must be installed vertically to ensure accurate readings.

Q: How can I prevent blockages in the flow meter?
A: If the medium contains solid particles, it is recommended to install a filter at the inlet to prevent blockages.
