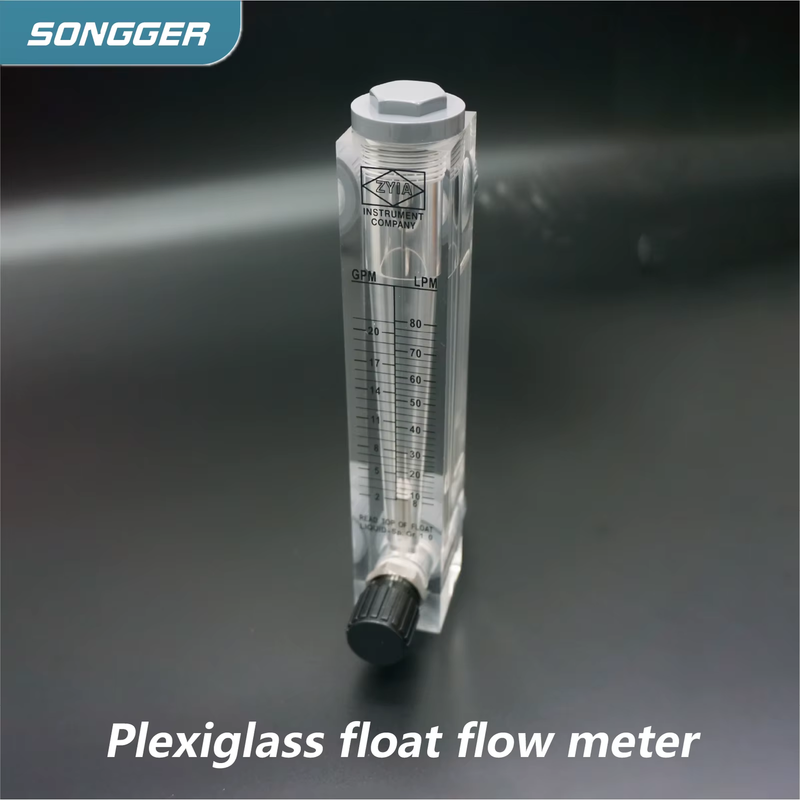

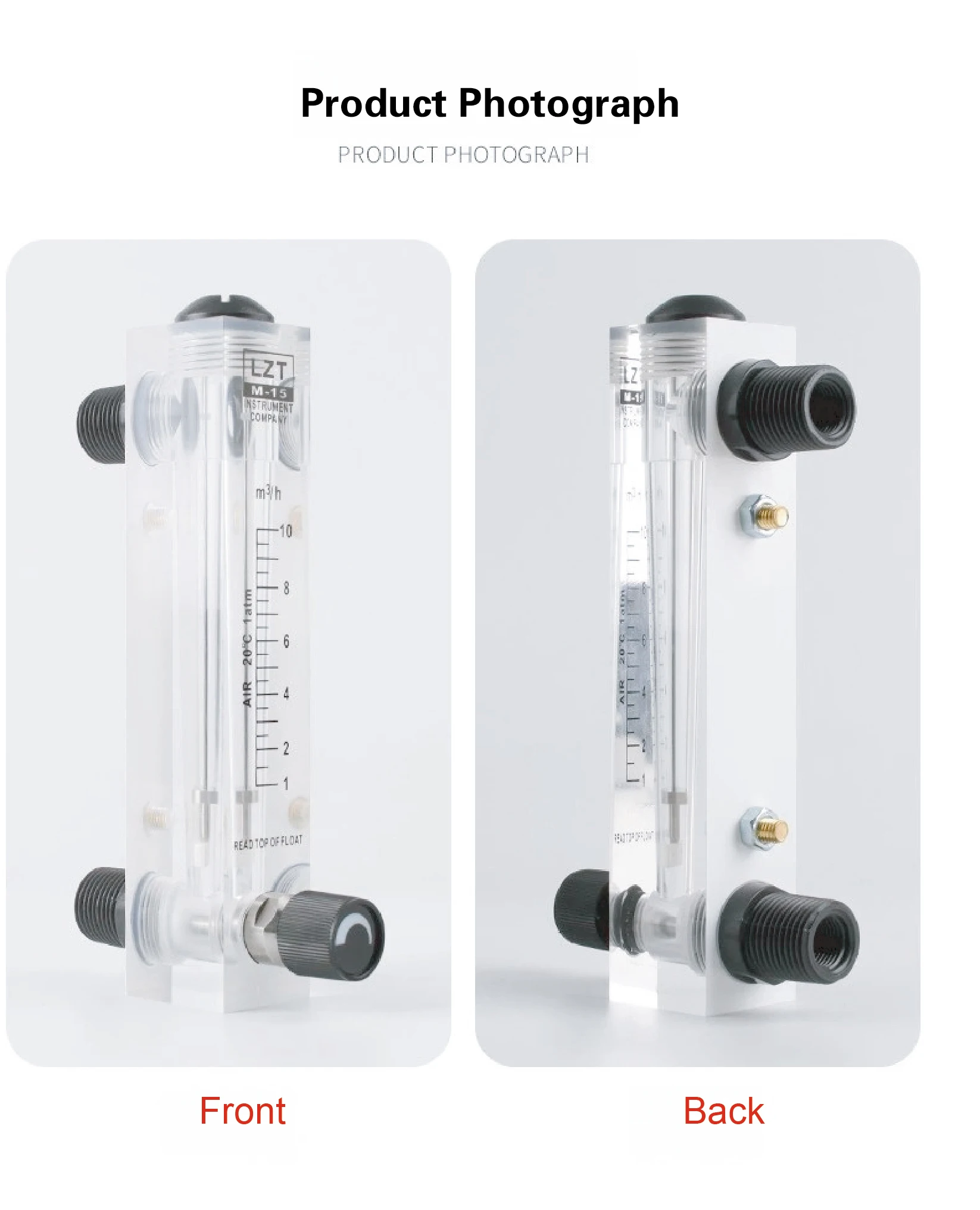

Acrylic Rotameter Flow Meter LZM-15ZT with Control Valve Panel Mount Transparent

Product Description

1. Standard Configuration

The LZM-15ZT panel flowmeter is engineered for precise and dependable fluid flow measurement. Key features include:

Material: High-strength, transparent organic glass (acrylic/PMMA)

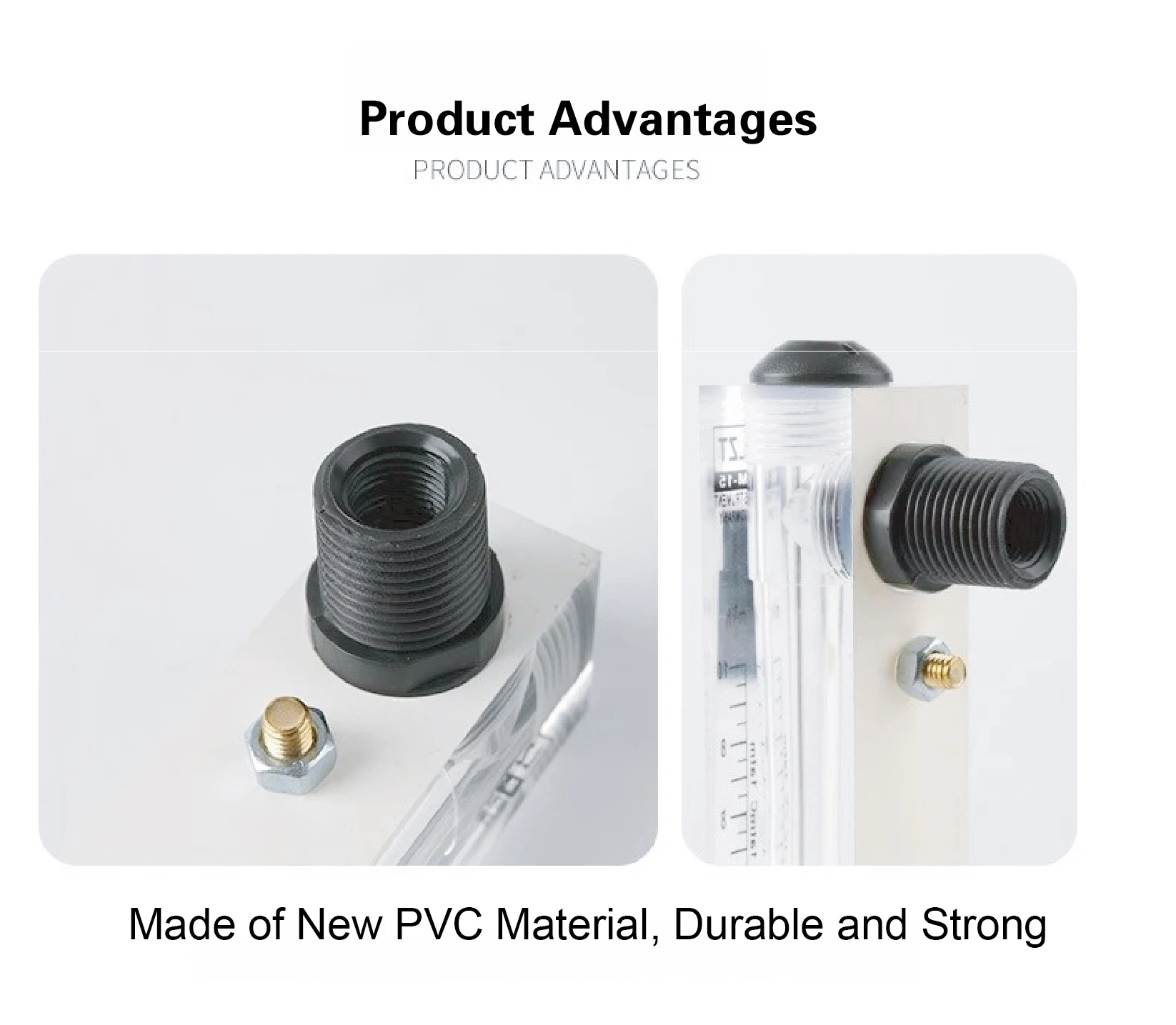

Connection Components: Durable plastic fittings
Maximum Operating Temperature: 60°C
Maximum Operating Pressure: ≤1.0 MPa
Measurement Accuracy: ±4%
Connection Options:

• External Thread: ZG1/2

• Internal Thread: ZG1/4

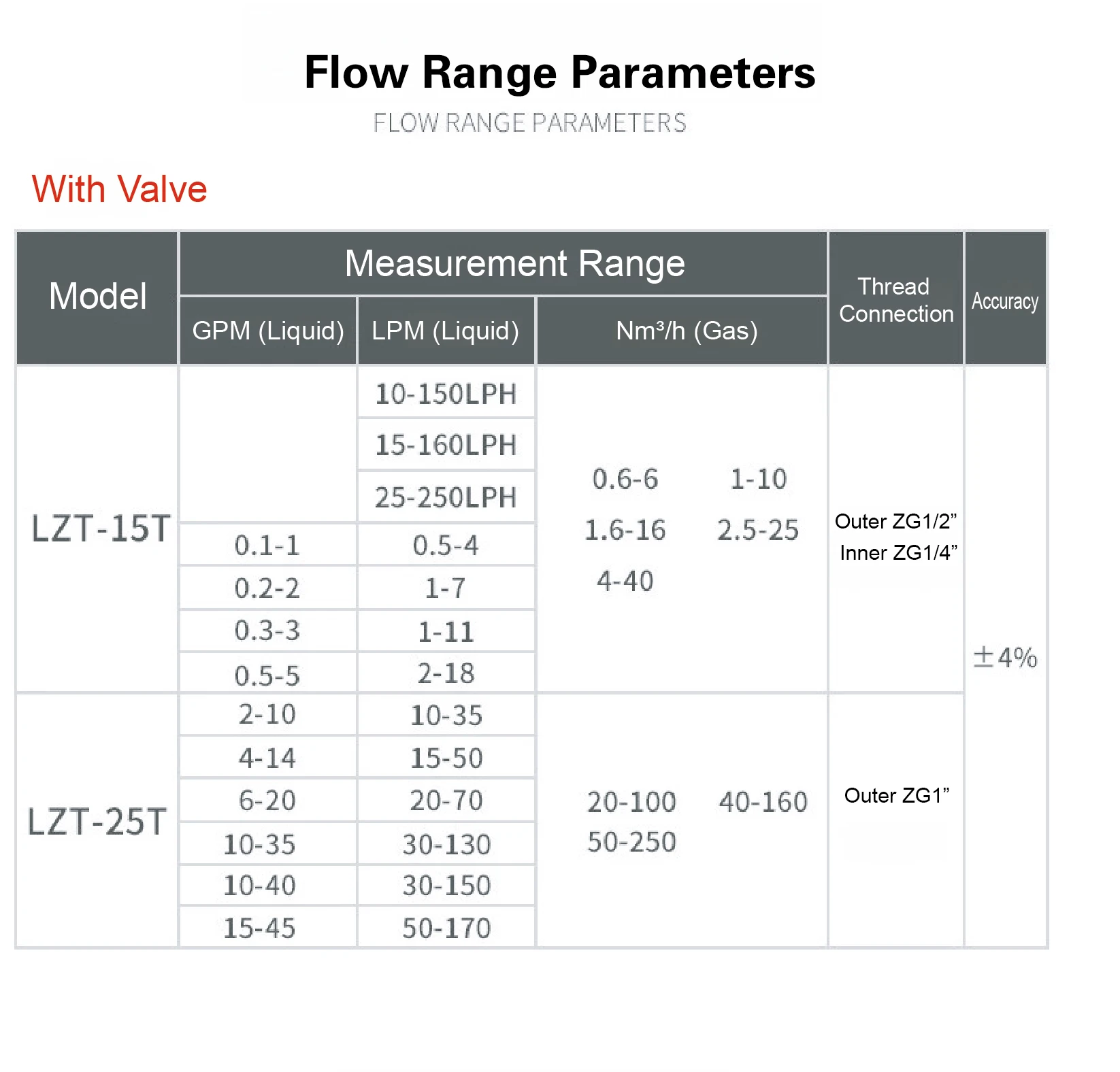

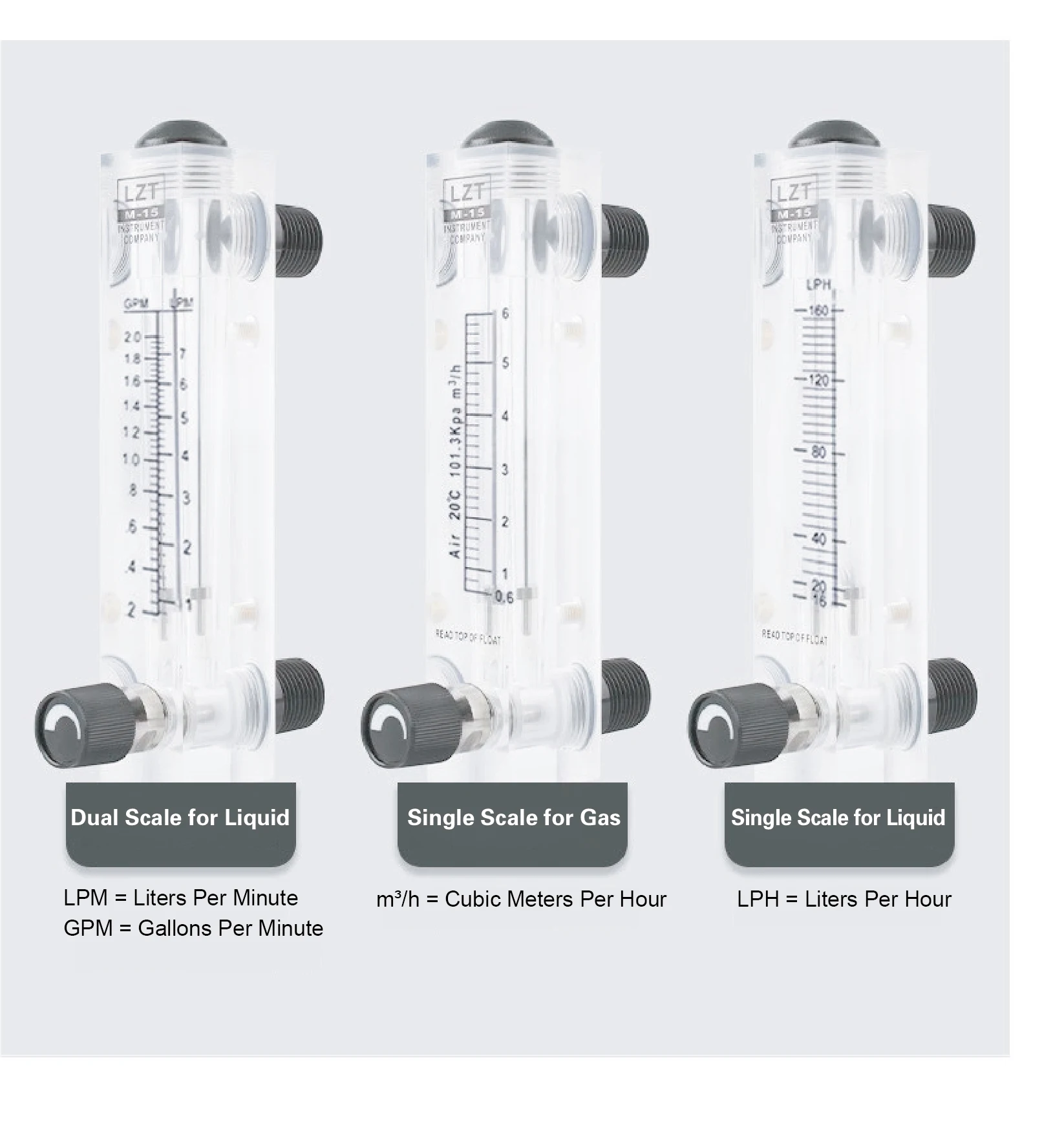

Liquid Flow Range (Model Dependent):

• 0.03–0.35 GPM (0.1–1.4 LPM)

• 0.05–0.5 GPM (0.2–1.8 LPM)

• 0.1–1 GPM (0.5–4 LPM)

• 0.15–1.5 GPM (0.6–6 LPM)

• 0.2–2 GPM (1–7 LPM)

• 0.3–3 GPM (1–11 LPM)

• 0.5–5 GPM (2–18 LPM)

• 1.5–9 GPM (400–2000 LPH)

Gas Flow Range (Model Dependent):

• 0.04–0.4 Nm³/h

• 0.1–1 Nm³/h

• 0.16–1.6 Nm³/h

• 0.25–2.5 Nm³/h

• 0.3–3 Nm³/h

• 0.4–4 Nm³/h

• 0.6–6 Nm³/h

• 0.8–8 Nm³/h

• 1–10 Nm³/h

• 1.6–16 Nm³/h

• 1.8–18 Nm³/h

• 2–20 Nm³/h

• 2.5–25 Nm³/h

• 3–30 Nm³/h

• 4–40 Nm³/h

Optional Upgrades:

• 316 stainless steel connectors for enhanced corrosion resistance

• Quick-connect fittings for easier installation and maintenance

2. Technical Parameters

3. Key Features

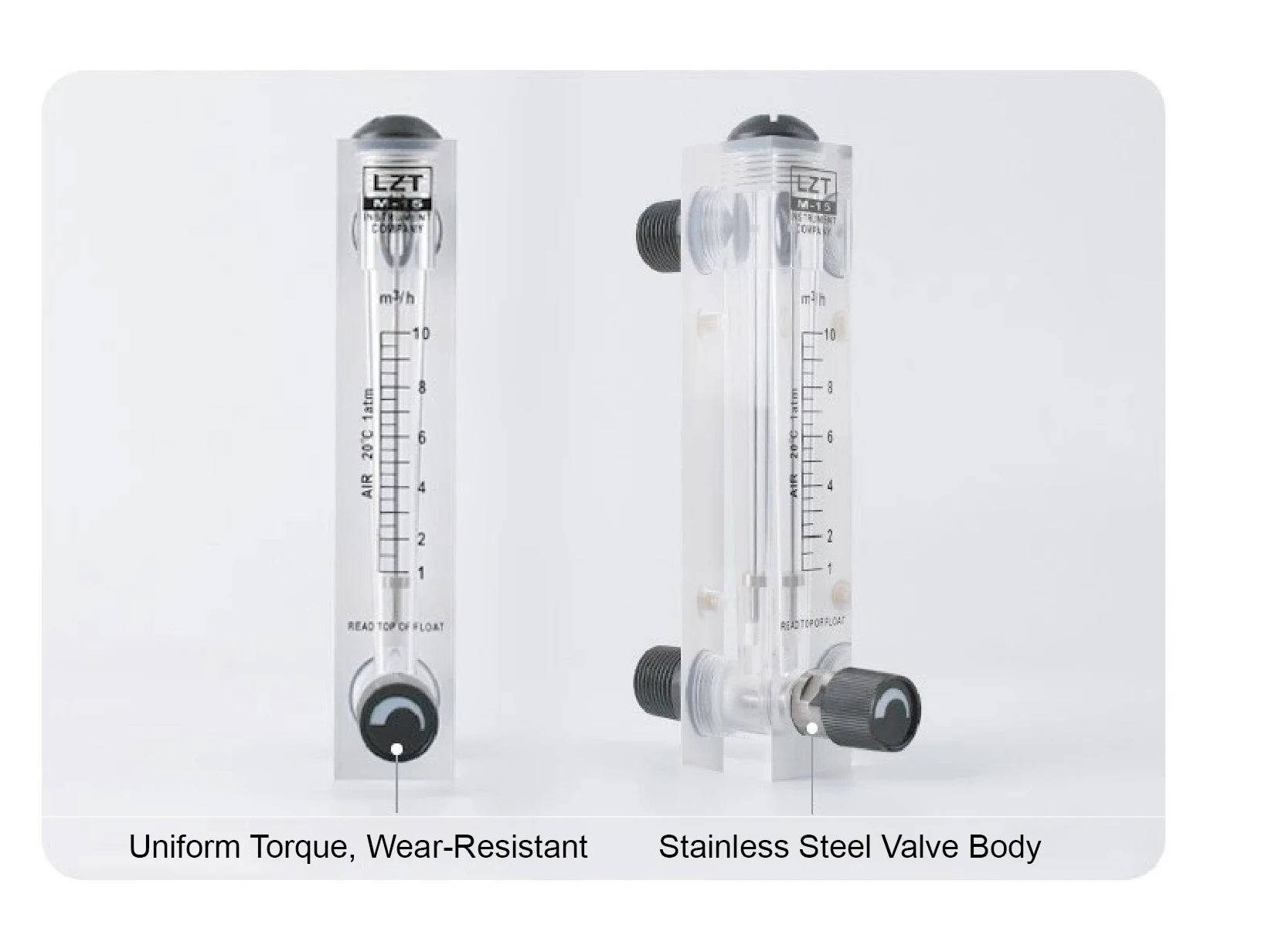

Adjustable Flow Control
Equipped with an integrated downstream control valve for accurate and stable flow adjustment, ensuring precise measurement and optimal performance.

Durable and Chemical-Resistant Build
Made from premium PMMA acrylic, this flowmeter offers exceptional durability and resistance to a wide range of chemicals, making it suitable for demanding environments.

Versatile Flow Range
Supports a broad spectrum of flow rates for both liquids and gases, making it adaptable to various industrial applications and process requirements.

Simple Vertical Installation
Optimized for vertical mounting, the design allows for quick and straightforward installation with clear, easy-to-follow setup instructions.

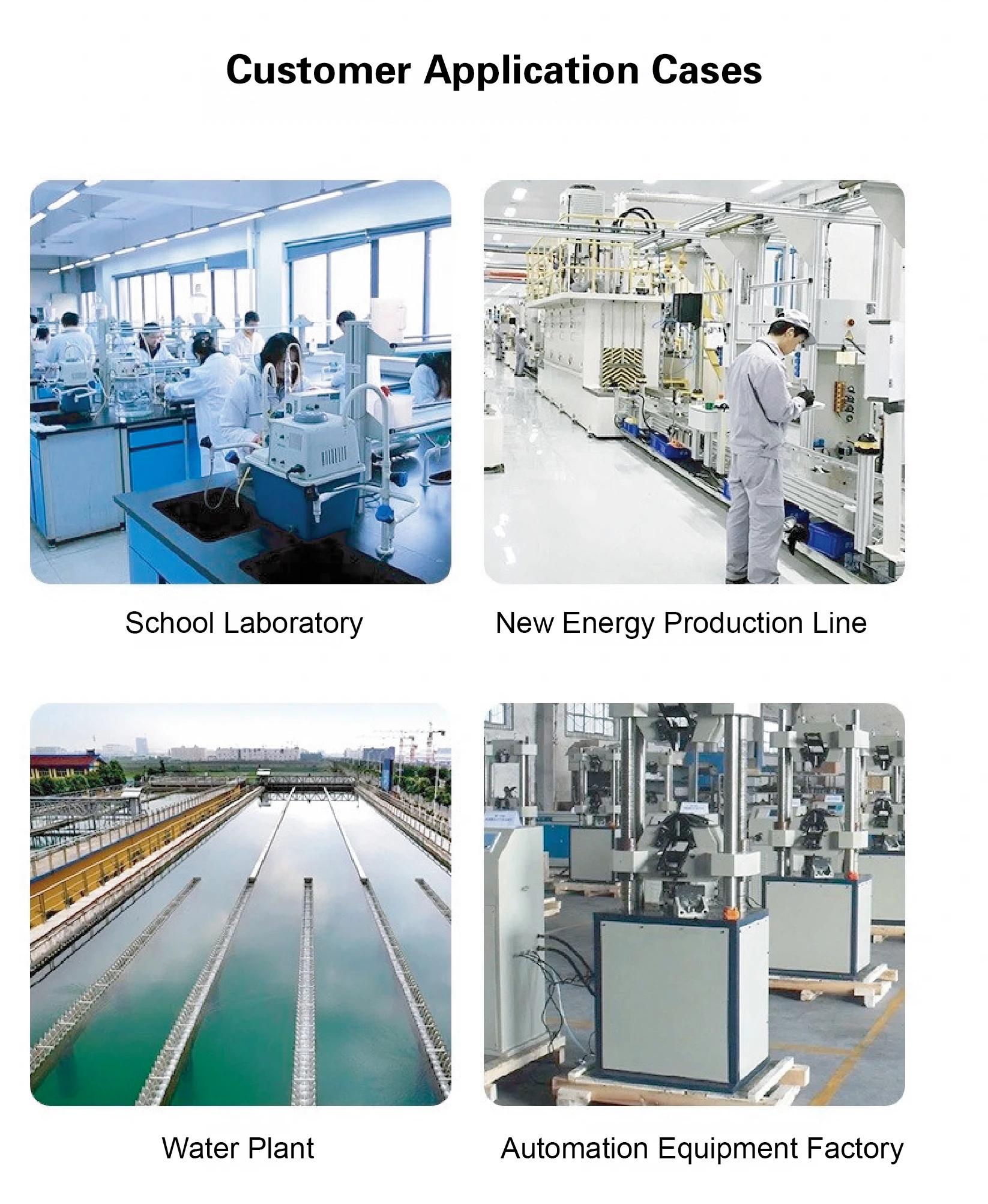

4. Typical Applications

Industrial Liquid and Gas Flow Monitoring
Designed for accurate and continuous monitoring of liquid and gas flow in industrial environments, ensuring process efficiency and safety.

Seamless Integration
Easily integrates with filtration, buffering, and other system components, enhancing overall operational control and performance.

Broad Industry Applications
Widely utilized across chemical processing, water treatment, and manufacturing industries due to its reliability, versatility, and robust construction.5.FAQs

Q1: Can this flowmeter be used with organic solvents like alcohol or gasoline?
A1: No, this flowmeter is not compatible with organic solvents such as alcohol, gasoline, or acetone, as these substances may damage the acrylic material.

Q2: How should I install the flowmeter for optimal performance?
A2: Install the flowmeter vertically and ensure that fluids with particulates pass through a filter before entering the unit to prevent clogging or damage.

Q3: What precautions should I take during operation?
A3: Avoid sudden pressure fluctuations and operate the flowmeter within 40–70% of its maximum flow range for the most accurate and stable readings.
