Sub250 High Speed Brushless FPV Drone Motor 0803/1002/1003 Frame 19000KV 21000KV

Product Description

Specifications:1003 Motor

Model：1003 Motor
KV value: 10000KV/19000KV
Rated voltage: 3.7 -7.4(V)
Magnet: N52H
Stator diameter: 10mm
Stator height: 2mm
Outlet diameter: Φ1.5mm
Motor Dimensions: Φ13.83mm*8.7mm
Mounting holes: 6.6*M 1.4
Maximum current: 11.5A
Recommended ESC: 5A-12A
Weight: 3.5g （4cm wire）
Applicable model: 1.6- 2-inch FPV drones

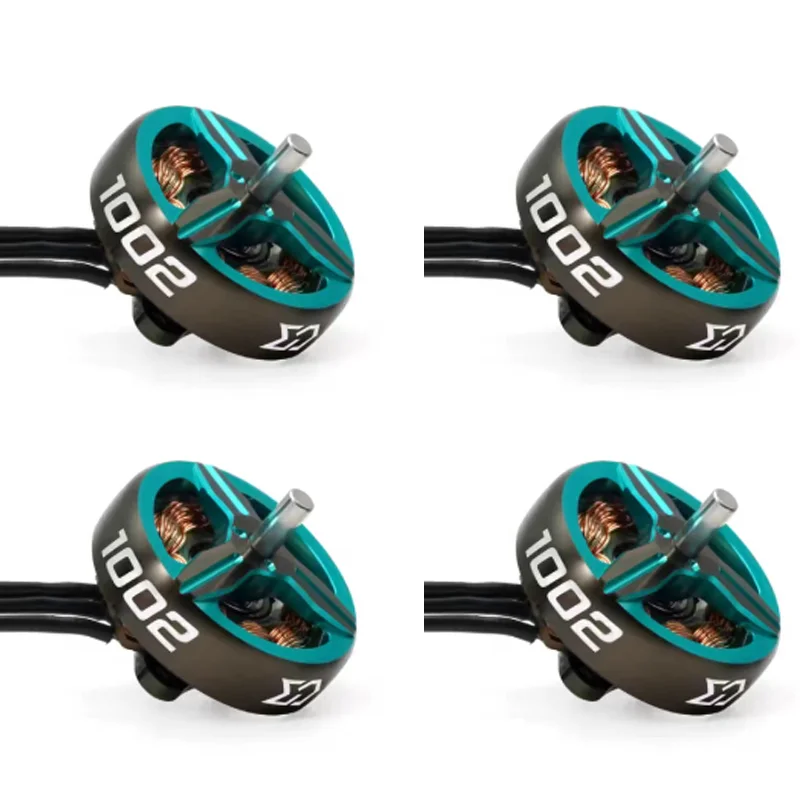

Specifications:1002 Motor
Product: M2 1002 Brushless Motor
KV value: 14000KV/21000KV
Working voltage: 4.35V (1S)
Configuration: 9N12P
Stator diameter: 10mm
Stator height: 2mm
Outlet diameter: Φ1.5mm
Dimensions: Φ13.83mm*7.75mm
Magnet: N52H
Weight: 2.6g (5cm wire)
Applicable model: 1.6- 2-inch FPV drones
Recommended battery: 1S 380mAh-530mAh LiPo


Specifications:0803 Motor
Model: M1 0803 19000KV
Configure-ration:9N12P
Voltage: 4.2V (1S)
Stator Diameter:8.4mm
Stator Length:2.8mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ12mm*14mm
Weight(g):2.2g
No.of Cells(Lipo):1S only
Battery: Recommend: 1S 380mAh-530mAh LiPo
Suitable for 1.6-inch FPV drone
