Product Description

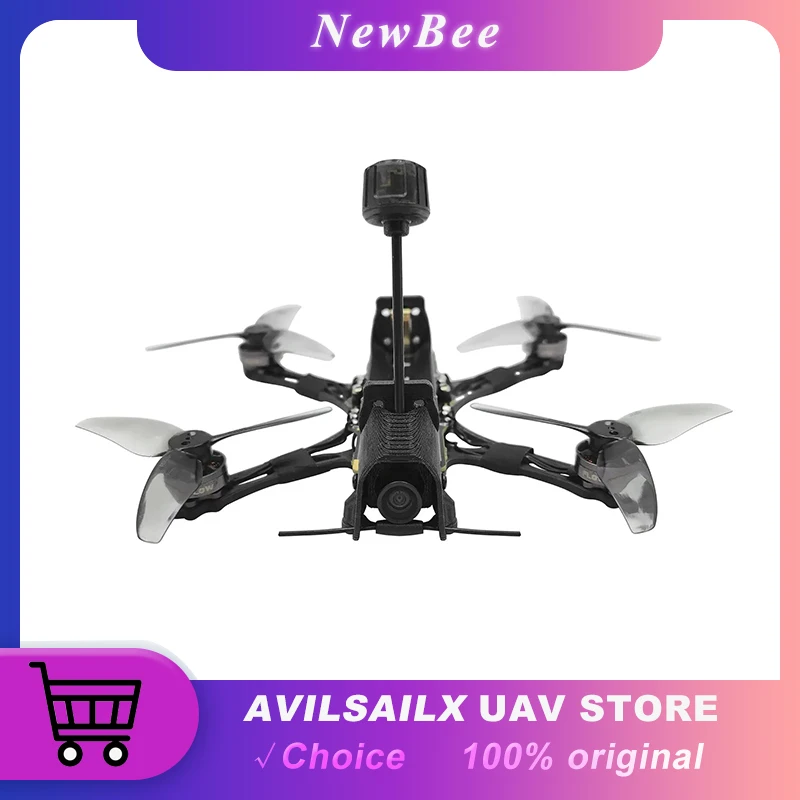

NewBeeDrone LionBee 3inch Long Range AIO Developer Kit, ELRS 2.4G with/without 18650 3000mAh Battery Option
NewBeeDrone LionBee 3inch Long Range AIO Developer Kit, ELRS 2.4G with/without 18650 3000mAh Battery OptionThe NewBeeDrone LionBee Long Range Developer Kit is a completely new approach to 1S long-range FPV drone design. Engineered around an innovative 18650 structural-integrated flight controller, the LionBee introduces breakthroughs that redefine what a micro long-range drone can be. By mounting the AIO FC directly onto the battery chamber, the frame gains natural vibration resistance, reduced complexity, and improved electrical efficiency—something never before seen in the FPV world.
To unlock true 1S long-range performance, LionBee features a custom 0.5mm brass high-current conduction system, eliminating the bottleneck found in traditional 18650 battery holders. This high cross-section path allows modern high-discharge 18650 cells—such as JP30—to reach their full potential, providing freestyle-capable thrust on a single cell.
LionBee also introduces the world’s first 1S ESC built on a 32-bit MCU, developed in collaboration with the AM32 team for optimized performance. At the core of the AIO is the AT32F435 288MHz processor, delivering exceptional computational power for advanced flight control, video transmission, and integrated receiver functions. Despite the single-sided PCB layout, the system includes an 800mW Smart-Max VTX, providing temperature-adaptive power output for safe and reliable long-range video transmission.
A full reverse-polarity protection circuit ensures that accidentally inserting the 18650 battery backward will not damage the FC, ESC, PA, or other electronic components—an essential safeguard for field operation. The redesigned modular replaceable battery chamber features factory-soldered brass terminals and allows quick replacement if damaged during impact.
Released as a Developer Kit, the LionBee is designed for pilots, engineers, and innovators who want to take part in shaping the next generation of micro long-range FPV. It is more than a product—it’s an expandable, experimental platform for R&D exploration and community-driven evolution.
LionBee AIO Flight Controller Specifications
MCU: AT32F435
Gyro: ICM42688P
OSD: Built-in OSD
VTX: 25mW–800mW Smart-Max Temperature Controlled PA
Receiver: Built-in SPI ELRS
ESC: 4-in-1 AM32 32-bit 5A
Input Voltage: 1S Li-ion / LiPo
Protection: Full reverse-polarity protection
Mounting Pattern: 25.5 × 82 mm
GPS Support: M10Q Series
Net weight: 62.3g
Flight time:
Hover time: approximately 20 minutes
Flight time: approximately 15 minutes
Tested by 18650 JP30 3000mAh, discharge rate of 10C–12C or higher, internal resistance of 5mΩ or lower.
Recommended battery: NewBeeDrone Nitro Nectar Gold 3000mAh 1S Tabless 18650 Battery – 2 Pack
Nectar Injector Cylindro Charger:NewBeeDrone Nectar Injector Cylindro Charger – Dual-Slot USB-C Charger for 18650/21700 & NiMH/NiCD
Key Features
Structural-integrated FC + 18650 battery chamber architecture
Custom 0.5mm brass high-current conduction system
World’s first 1S 32-bit ESC MCU
AT32F435 288MHz high-performance FC processor
800mW Smart-Max VTX with adaptive thermal control
Built-in SPI ExpressLRS receiver with customized firmware support
Full reverse-polarity protection (battery inserted backward will not cause damage)
Modular, replaceable 18650 battery chamber with factory-soldered brass terminals
Developer Kit system designed for experimentation and innovation
Ideal for long-range exploration, testing, and R&D customization
What’s Included in the Package
1× LionBee AIO Flight Controller
1× LionBee Carbon Fiber Frame Kit 3inch
4× 1202 11420KV Motors
8× Gemfan 3020 Propellers (4× CW + 4× CCW)
1× BeeEye Camera
1× NewBeeDrone Honey Dipper 5.8G UFL Antenna (IPEX1)
2× Modular Replaceable 18650 Battery Chamber
1× M10Q GPS Module + 3D Printed GPS Mount
1× BeeT-Antenna for ExpressLRS(ELRS) 2.4GHz receiver MHF3
1× JST1.0 6Pin to JST1.25 6Pin Cable for GPS
2× Velcro Battery Straps
2× Zip Ties
4× Adhesive Mounting Pads
Full Screw & Hardware Pack
LionBee Developer Kit Manual
(Battery not included — compatible with JP30 or other high-performance 18650 cells.)
