Product Description

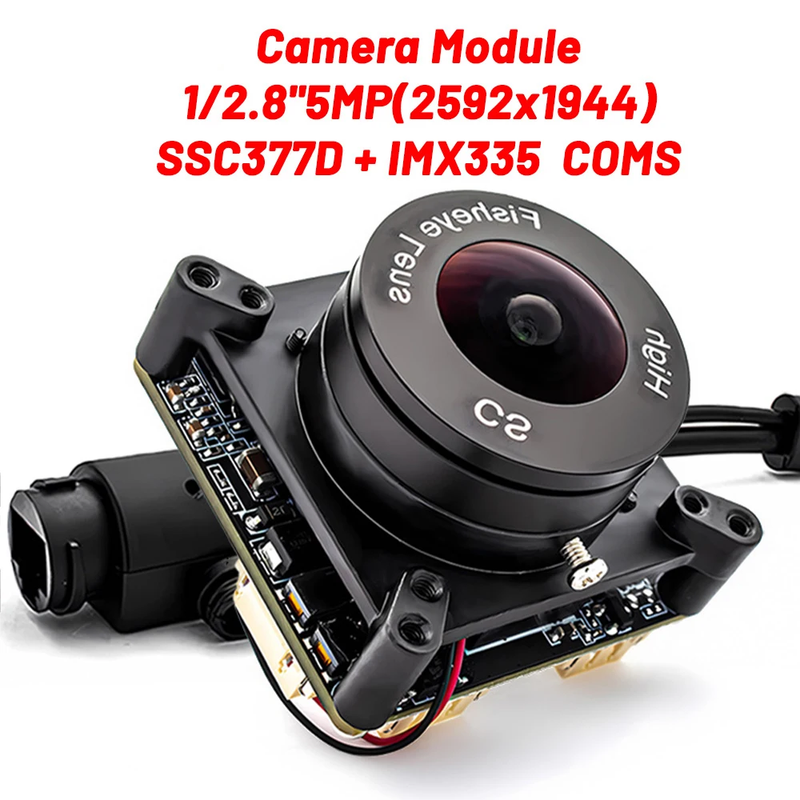

RTSP RTMP 5MP IP Camera Module 2592*1944 25FPS IMX335 CMOS With Varifocal CS Lens Provide SDK Onvif Push Video Stream To YouTube
RTSP RTMP 5MP IP Camera Module 2592*1944 25FPS IMX335 CMOS With Varifocal CS Lens Provide SDK Onvif Push Video Stream To YouTube(Noted: The effect video was captured from our 5MP Camera)
Explore new horizons in high-definition monitoring! Our 5MP 25FPS network camera is designed for exceptional performance, ensuring you capture every detail.
Ultra HD Picture Quality: supporting resolutions up to 5MP, providing clear and sharp images.
Smooth Video: Achieves smooth playback at 25 frames per second, ensuring real-time monitoring without missing any movements.
Flexible Power Supply Options
DC12V Power Supply - Suitable for traditional power connections.
POE48V Power Supply - Supplies power and transmits video simultaneously through network cables, simplifying wiring.
Manual Zoom lens: Equipped with a 2.8-12mm/5-50mm CS Mount lens,suitable for various applications such as offices, stores, and home monitoring.
Why choose us?
By selecting this webcam, you not only gain a high-performance monitoring tool but also enjoy professional after-sales service. We are committed to providing you with the highest quality products and support, ensuring that your monitoring experience is both secure and efficient.
1. 1/2.8-inch 5-megapixel CMOS sensor;
2. Supports H.265+, H.265, and H.264 encoding
3. Support soft photosensitive: dual light mode, full-color mode, infrared mode;
4. Support intelligent analysis: precise humanoid detection, area detection, and trip detection;
5. Support voice intercom, voice broadcast, and custom voice;
6. Support image flipping and digital wide dynamic range;
7. Support Onvif;
8. Provide SDK (WINDOWS, Android, Linux) development packages
Model | WGWK-A05D |
Main Control Chip | SSC377D |
Image Sensor | 5-megapixel,IMX335,1/2.8" CMOS |
Video Processing | H.265+/H.265/H.264 video encoding, supporting adjustable bitrates from 0.1Mbps to 6Mbps; frame rates from 1 to 25 frames per second; |
Image Output | Main Stream: 25 FPS @ (2592×1944, 2560×1440, 2304×1296, 1920×1080, 1280×720, 1944×1944, 1200×1200); |
Sub-Stream: D1, VGA, 640×360; | |
Audio Interface | One linear audio input and one output; |
Audio Processing | G.711 encoding standard, supports two-way voice intercom, and supports audio and video synchronization; |
IRCUT Interface | Integrated IRCUT switching circuit, automatic/external control/manual/timed control of IRCUT day/night mode |
Network Interface | One RJ45 Ethernet port, 10/100M auto-sensing; |
Light Board Interface | PWM infrared, PWM warm light; |
Reliability | Power supply and network fully lightning-protected, complying with national standard GB/T17626.5 and international standard IEC61000-4-5. |
Functions | Supports OSD, real-time audio and video transmission, precise human presence detection, dual-light alarm, and audible alarm. |
Network Protocols | Supports HTTP/RTSP/RTMP/DHCP/NTP/ONVIF and other network protocols. |
Power Supply | DC12V power input port, power consumption 130mA |
Operating Environment | -40°C to +65°C |
Dimensions | 38mm (length) x 38mm (width) |
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display,automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system,teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system,Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope,Medical auxiliary equipment, etc.
About computer operation and use1. Make sure the camera is connected to the power supply and network(the signal light flashes to prove that everything is normal)
2. Download the client to the computer:(LMS)
http://www.anjvision.com:8021/client/LMS_install_v5.4.0_20240725.exe(AjDevTools) http://online.anjvision.com/client/AjDevTools_V5.8.6_20240711.exe
3.APP download: Search AC18Pro in Apple Store; Scan QR code download
About RTSP
The RTSP URL format is as follows (assuming the IPC IP is 192.168.0.123):
Main stream: rtsp://admin:123456@192.168.0.123/stream0
Sub-stream: rtsp://admin:123456@192.168.0.123/stream1
above RTSP URL, if audio is turned on, the streaming data will contain video and audio.
If you only need video or audio data, use the following URL:
Main stream pure video: rtsp://admin:123456@192.168.0.123/video1
Sub-stream pure video: rtsp://admin:123456@192.168.0.123/ video2
pure audio: rtsp://admin:123456@192.168.0.123/audio
Step 1. Install LMShttp://www.anjvision.com:8021/client/LMS_install_v5.5.0_20250106.exe
Step 2. Login LMSLogin Password:123456
Step 3. Search for cameras connected to the local area network
Double-click the camera to add it
Step 4. Switch to the camera live view
