Product Description

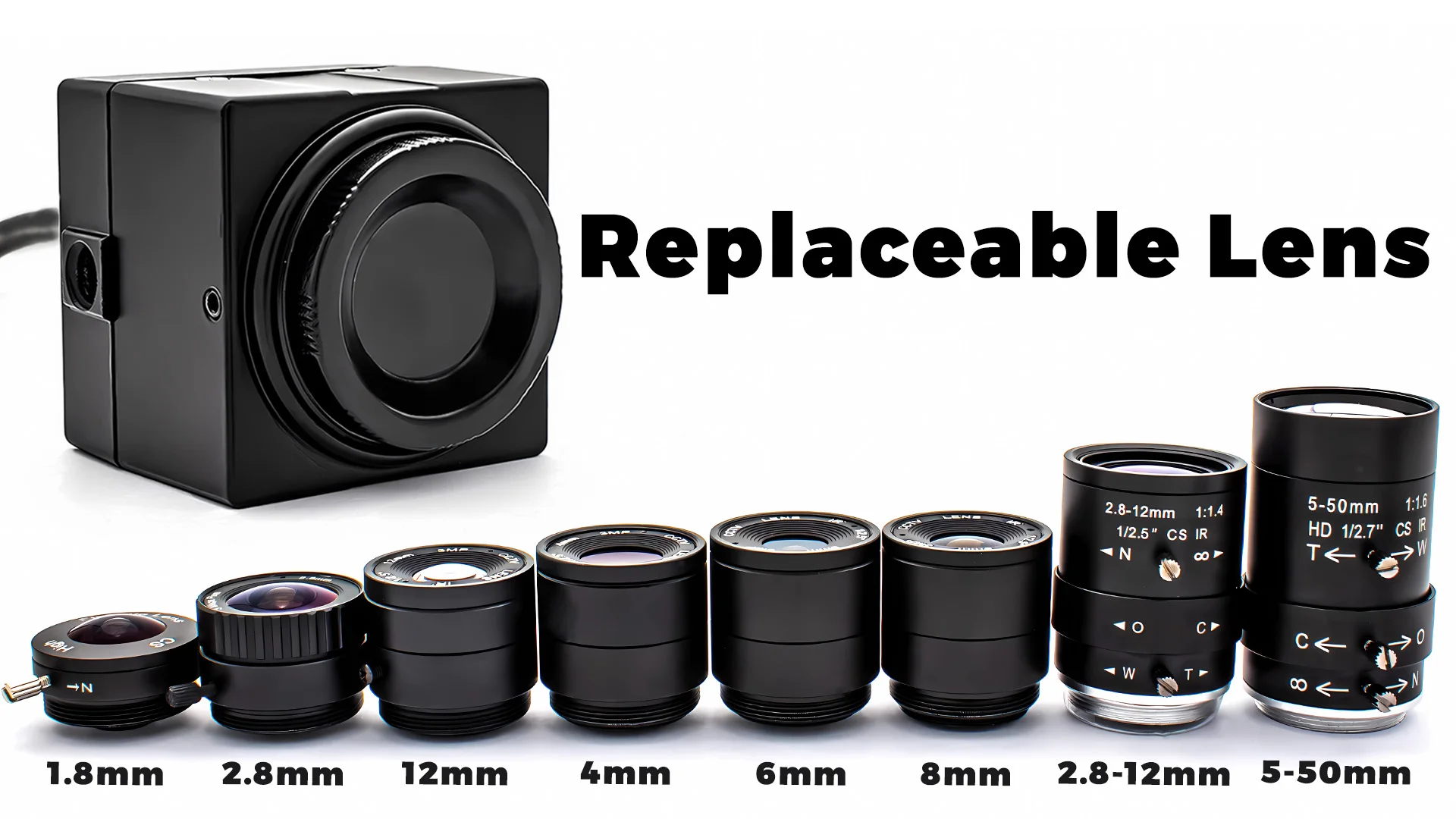

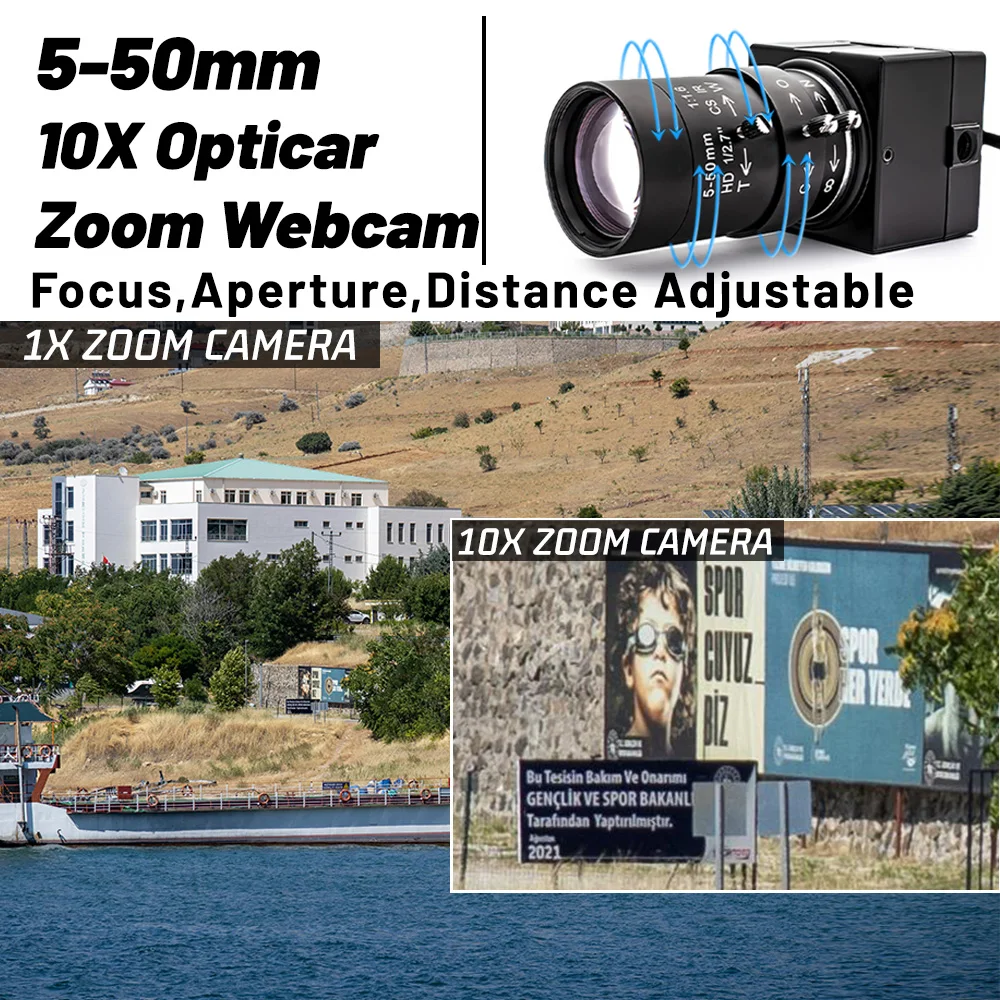

10X Zoom Industrial IP Camera 2MP 50FPS High Speed Motion Camera 5-50mm Manual Zoom Varifocal CS Lens Onvif RTSP Security Webcam
10X Zoom Industrial IP Camera 2MP 50FPS High Speed Motion Camera 5-50mm Manual Zoom Varifocal CS Lens Onvif RTSP Security Webcam10X Zoom Industrial IP Camera 2MP 50FPS High Speed Motion Camera 5-50mm Manual Zoom Varifocal CS Lens Onvif RTSP Security Webcam

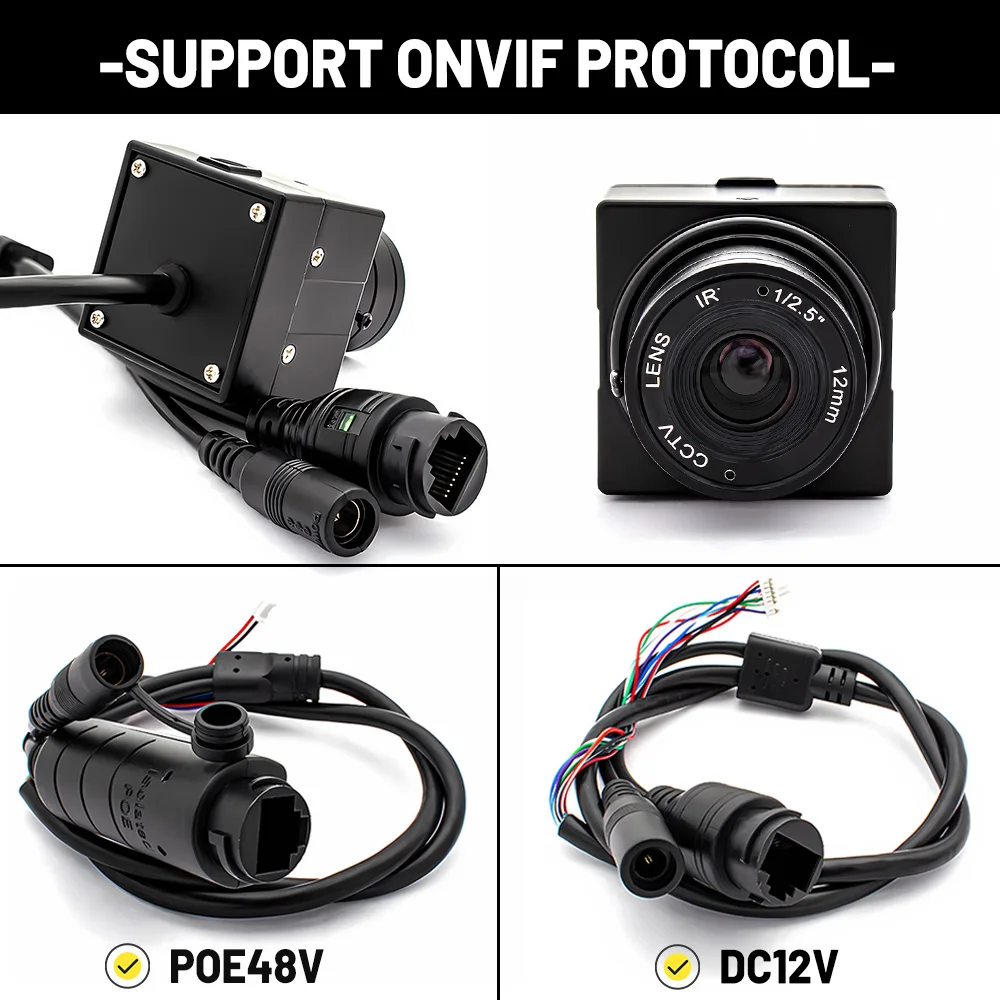

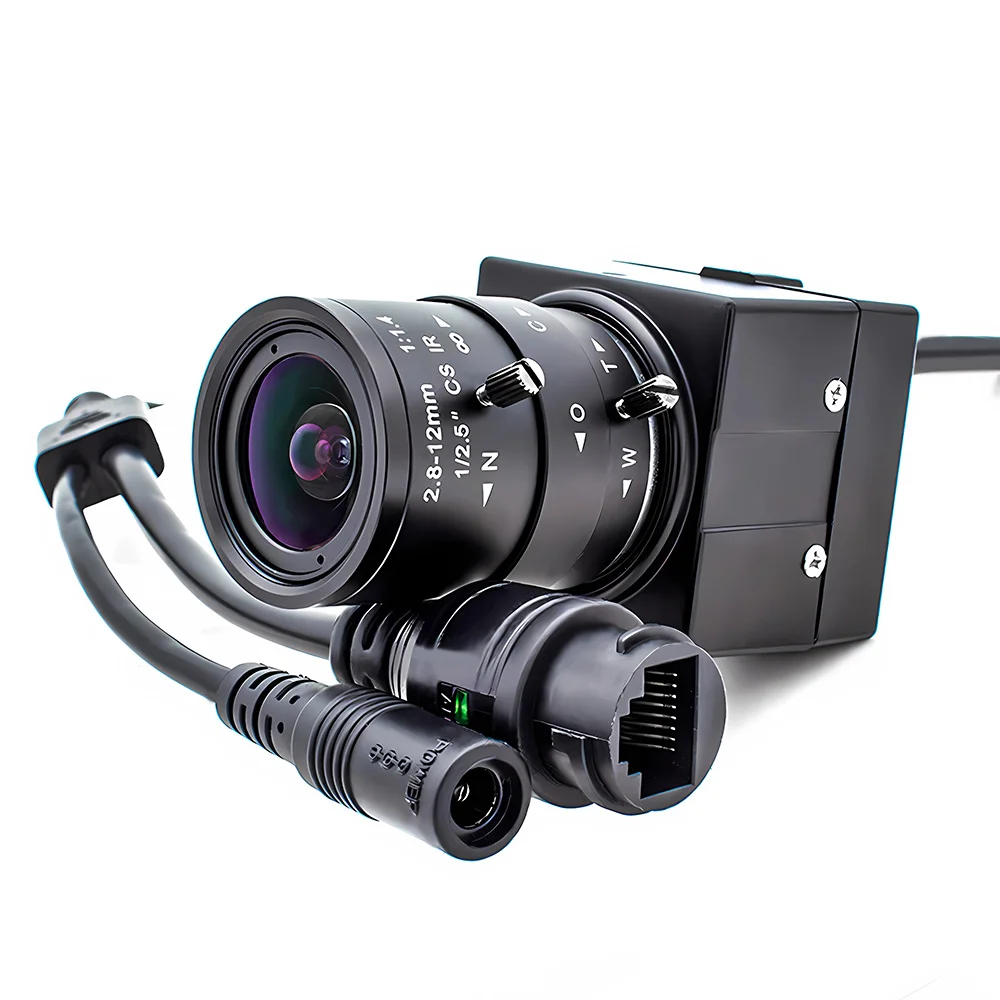

1. Not included Power Adapter, Please contact customer service if you need Power Adapter.（you can choose 48V POE to power on through Ethernet cable interface without the need for a power adapter)
2.Due to manual measurement, please allow an error of 2-3mm.
Are you still struggling with the lag and limited field of vision of traditional surveillance? The 1080P 50FPS wide-angle IP network camera module redefines security with technology!
1080P resolution with a high refresh rate of 50 frames per second ensures dynamic images without motion blur.
Built-in AI motion tracking and sound alerts immediately push notifications to your phone in case of abnormal intrusions.
Supports ONVIF protocol, compatible with mainstream NVR devices, and offers an open SDK for secondary development, ensuring worry-free industrial customization.
Choose our 1080P 50fps webcam module to take your video quality to a new level, giving you a clearer, more stable, and smoother visual experience! Whether it is monitoring, live broadcasting, or conferencing, it can provide you with excellent performance.
| Specifications | WGWK-H20050FPS |
| Chipset | Fullhan solution main controller + 1/2.8" 2MP CMOS |
| Minimum Illumination | Color 0.05Lux@F1.2; Black and White 0.005Lux@F1.2; |
| Signal-to-noise ratio | ≥50db(AGC OFF) |
| Wide Dynamic Range | Digital wide dynamic range; >80dB |
| Audio Input | Audio MIC input |
| Audio Output | Onboard analog audio output is not supported. |
| Light Panel Functions | CDS Hard Infrared, Soft Infrared, Soft White Light (Soft Photosensitive with PWM Support) |
| IO Functions | IRCUT, Reset |
| Others | / |
| Encoding Format | Smart H.264 |
| Main Stream | 1920*1080, 1280*720, 1-50 frames/second |
| Secondary Stream | 704*576, 800*448, 640*480, 640*360, 352*288, 1-50 frames/second |
| Video Compression Bitrate | 128Kbps-8192bps continuously adjustable |
| Character Overlay | Supports channel name, date and time, bitrate, resolution, and character overlay. |
| Data Storage | Videos and pictures |
| Storage Mechanism | Loop recording, alarm recording |
| Alarm Data Transmission | Browser, management software |
| Supported Protocols | RTSP/HTTP/FTP/NTP/ONVIF and other protocols |
| Client Browsing | Supports browsing with IE6.0 and above, and client browsing. |
| Mobile Client | Supports iOS and Android platforms |
| Operating Temperature | -30℃- +60℃ |
| Operating Humidity | 0% - 90% |
| Power Supply | DC12V / 110mA |
| Device Power | 1.3W |
| Device Dimensions | 32* 32* 10mm |
| Device Weight | 10g |
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display,automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system,teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system,Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope,Medical auxiliary equipment, etc.
About computer operation and use
1. Make sure the camera is connected to the power supply and network
(the signal light flashes to prove that everything is normal)
2. Download the client to the computer:
(HVS) https://drive.google.com/drive/folders/1gHl6wqjsjIEc-RJ3ZiKbq-Mta_Xa1vgj?usp=sharing
(AjDevTools) http://online.anjvision.com/client/AjDevTools_V5.8.6_20240711.exe
About RTSP
The RTSP URL format is as follows (assuming the IPC IP is 192.168.0.123):
Main stream: rtsp://192.168.0.123:554/stream1
Sub-stream: rtsp://192.168.0.123:554/stream2

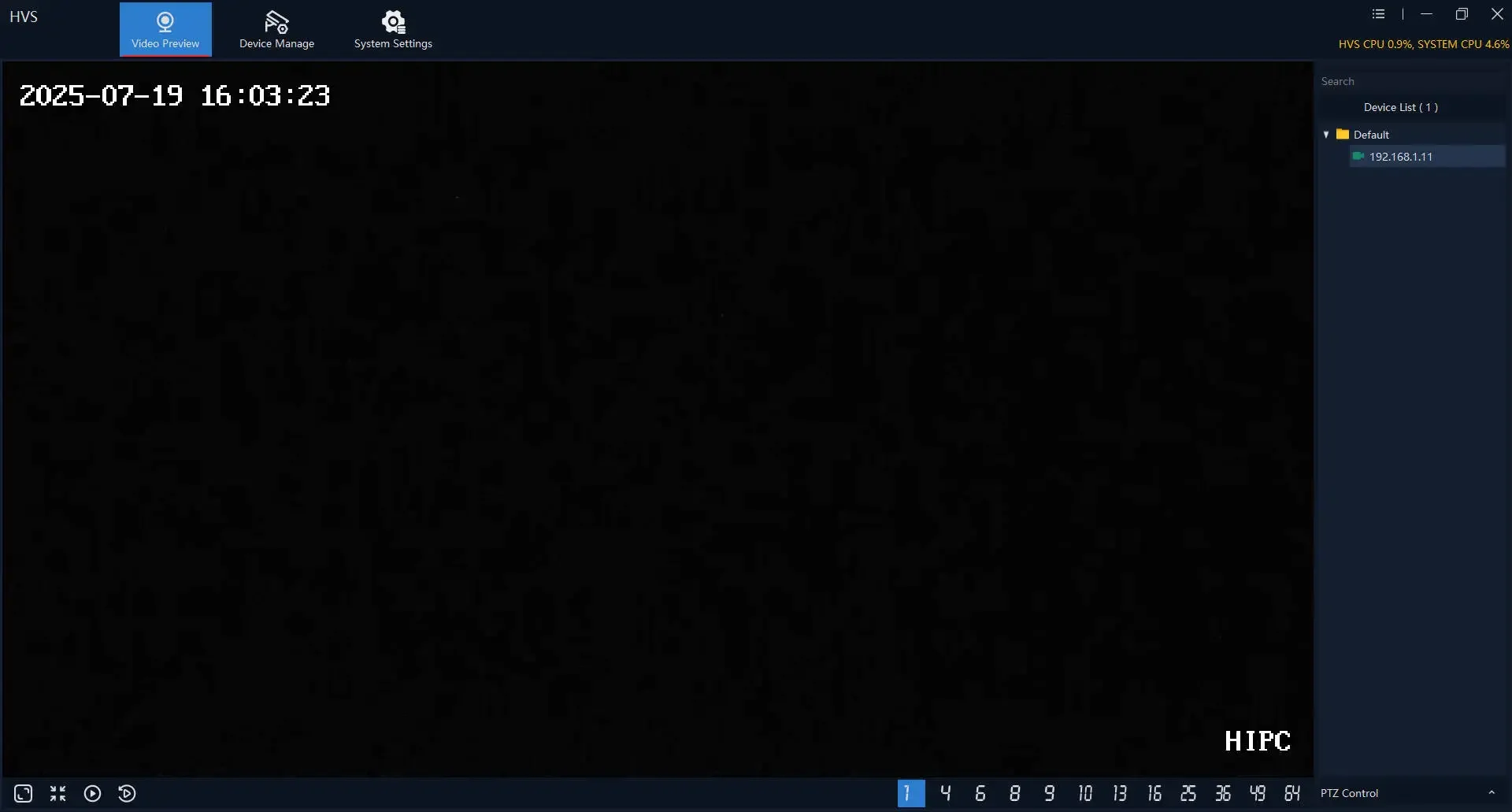

About Computer Software—HVS:
Step 1. Install HVS
https://drive.google.com/drive/folders/1gHl6wqjsjIEc-RJ3ZiKbq-Mta_Xa1vgj?usp=sharing
Step 2. Login HVS
Step 3. Search for cameras connected to the local area network
Remotely configure the camera:
