Product Description

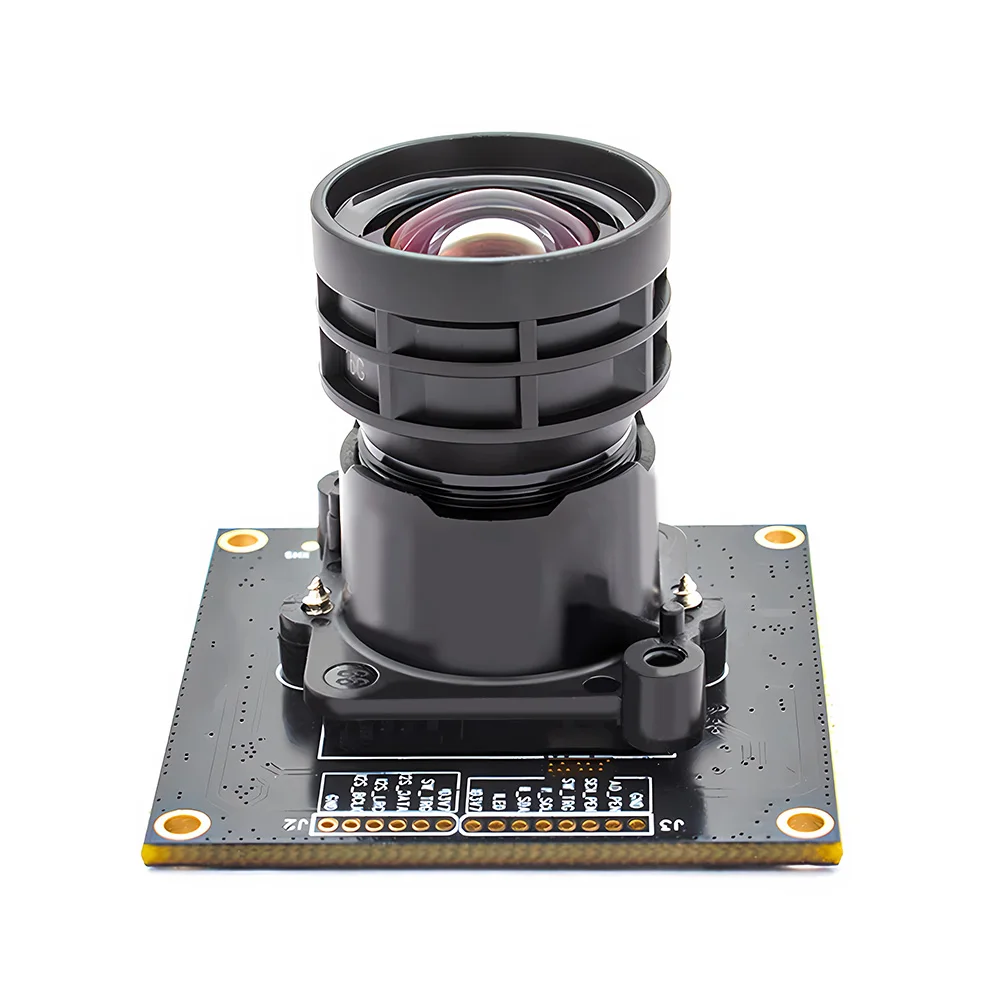

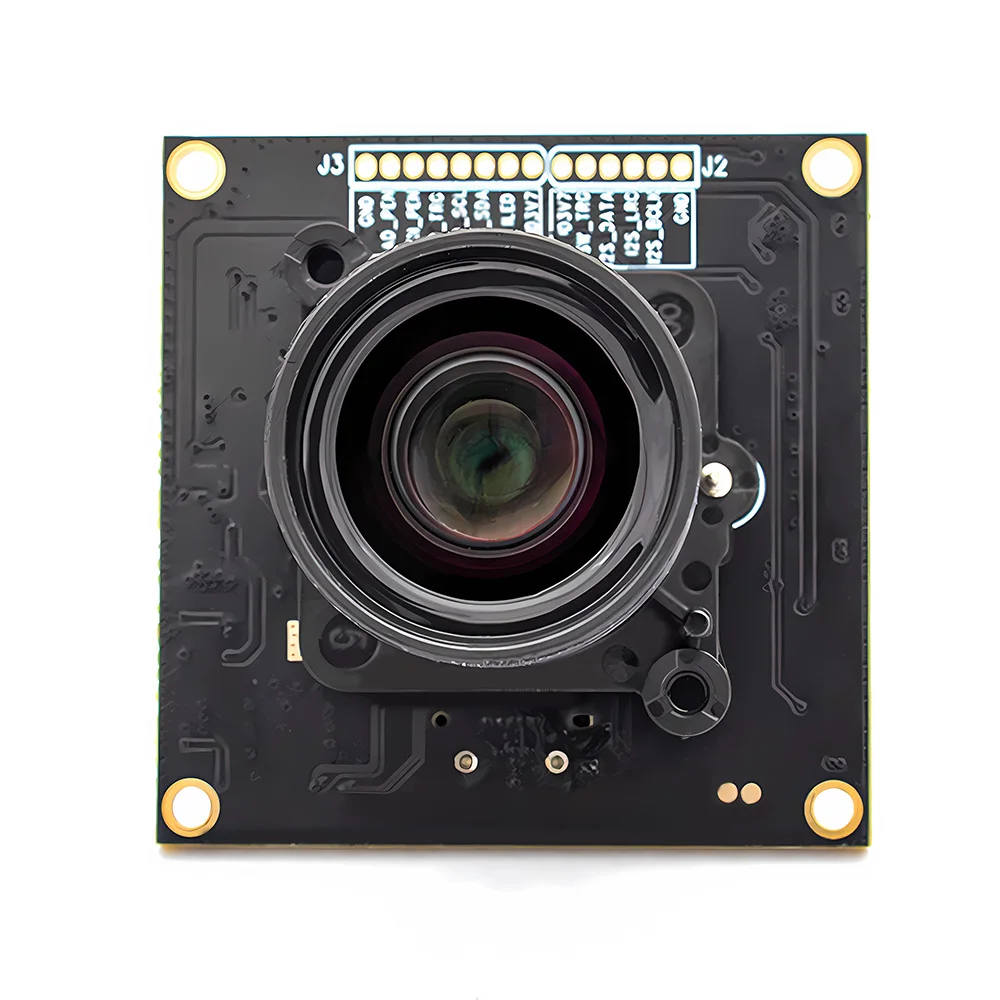

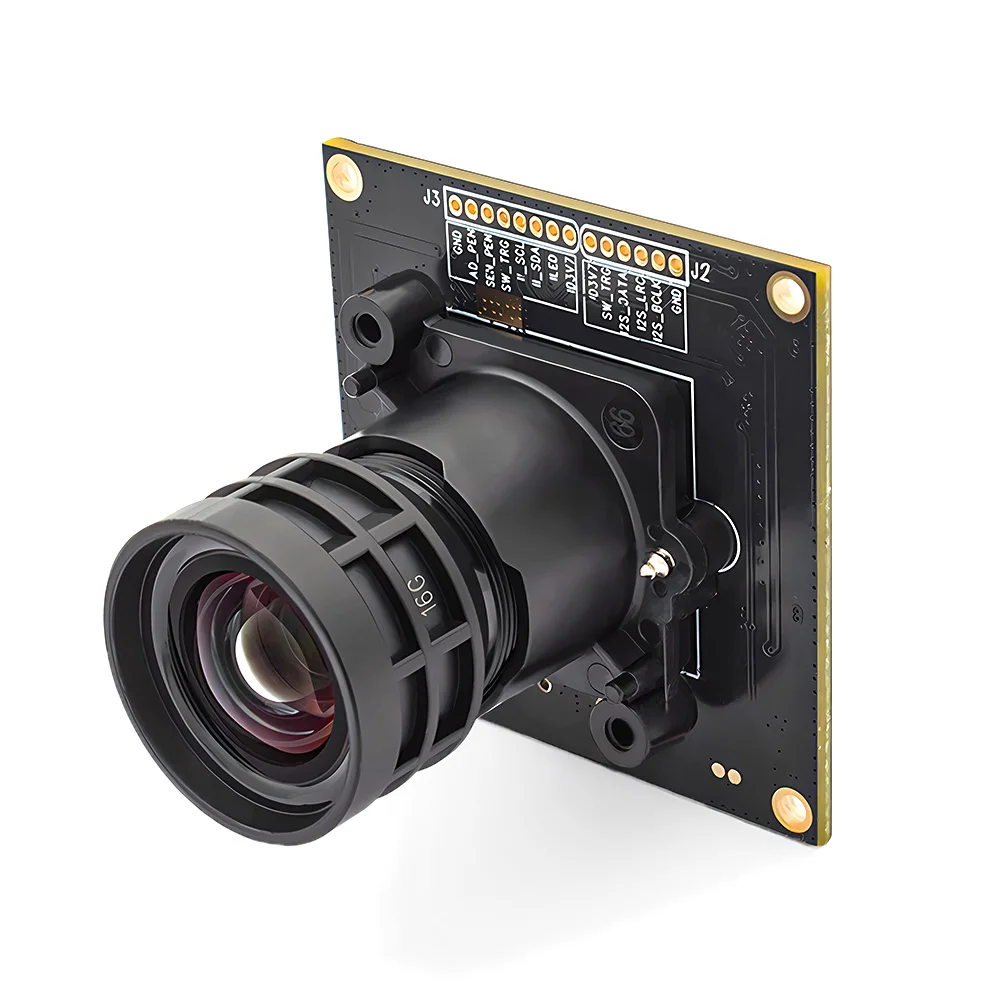

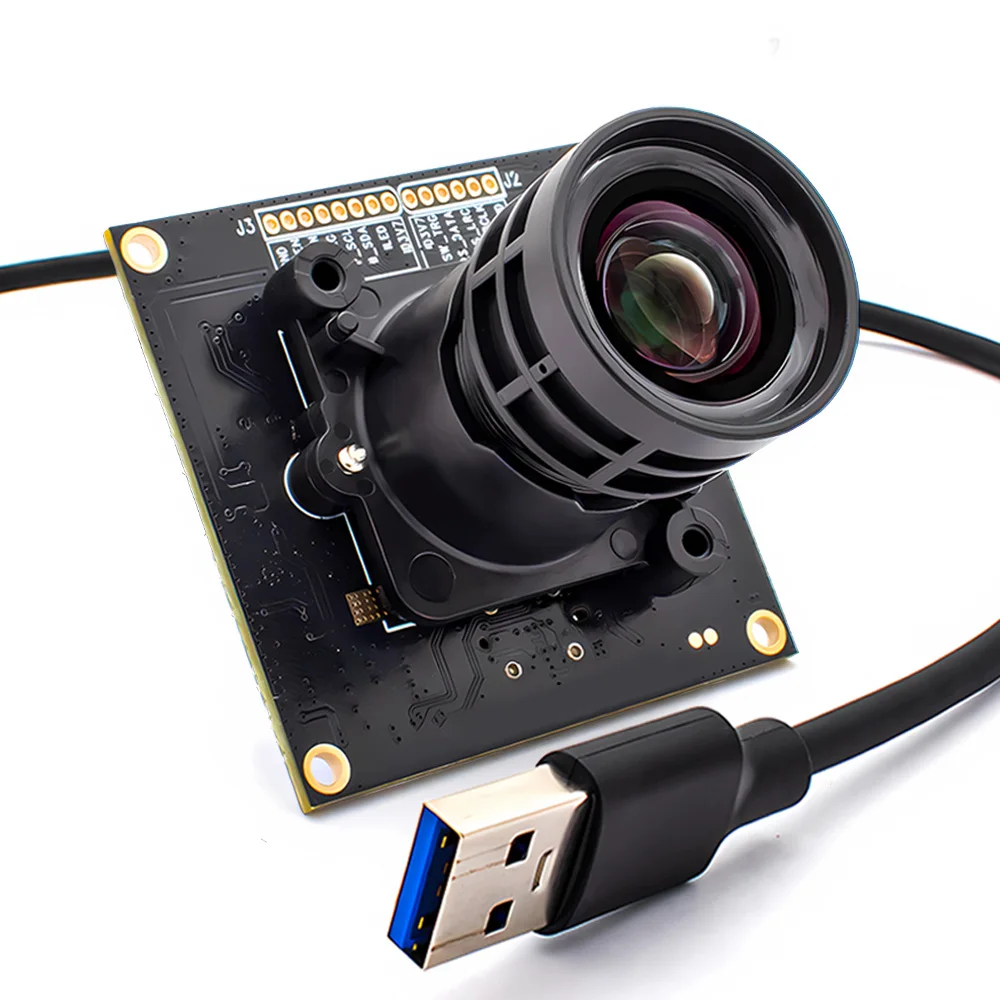

4K 60FPS USB3.0 Camera Module With 2.8mm M16 Mount Lens 1/1.8" IMX678 CMOS Industrial Webcam Board Plug Play For Machine Vision
4K 60FPS USB3.0 Camera Module With 2.8mm M16 Mount Lens 1/1.8" IMX678 CMOS Industrial Webcam Board Plug Play For Machine Vision4K 60FPS USB3.0 Camera Module With 2.8mm M16 Mount Lens 1/1.8" IMX678 CMOS Industrial Webcam Board Plug Play For Machine Vision
Every frame presented clearly
Our 8MP USB camera features the IMX678 sensor and supports 60FPS high-definition shooting. Whether for live streaming, video conferencing, or capturing professional images, it delivers smooth and detailed visual effects. Ensure you can showcase your best self in any situation.

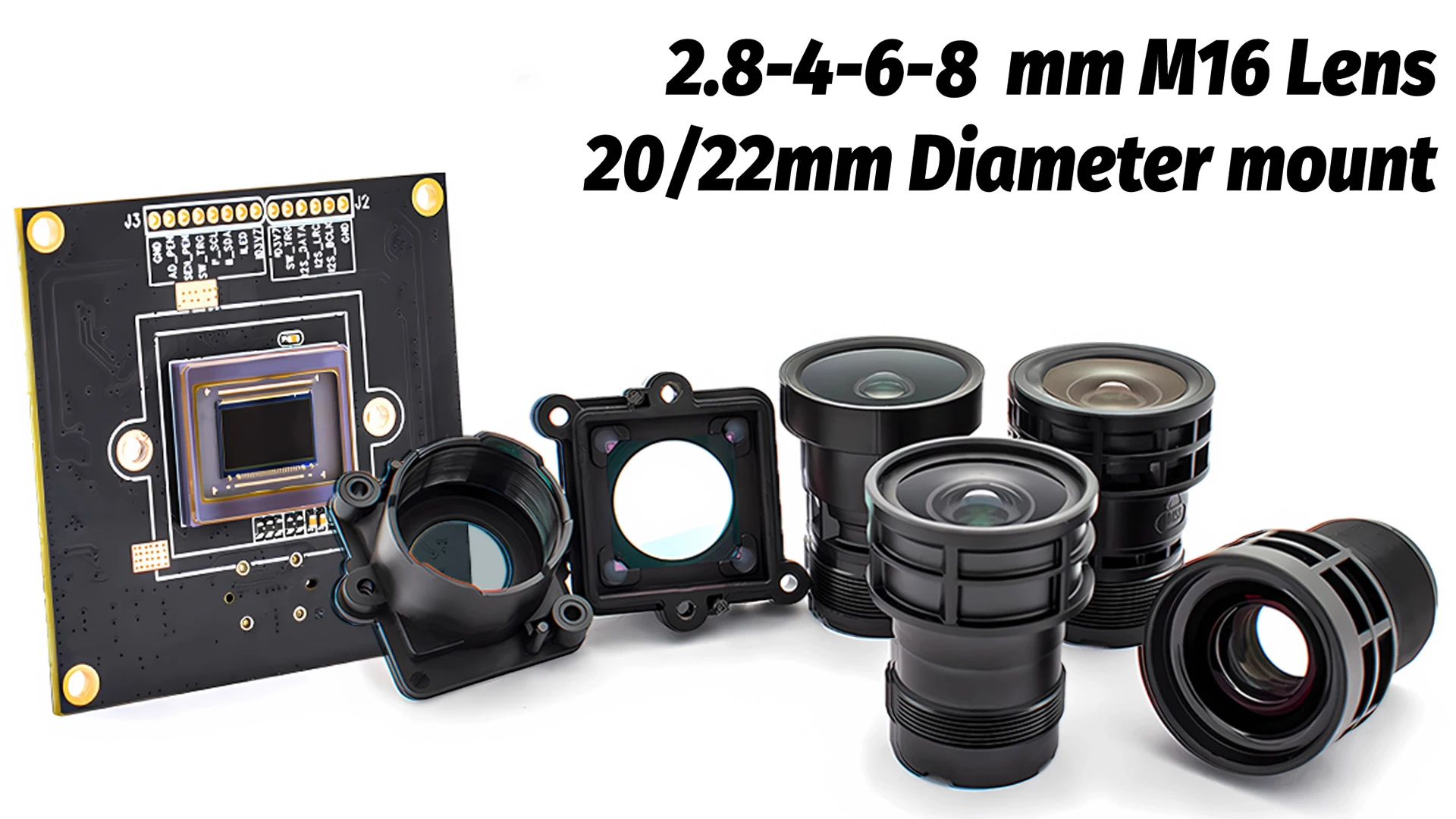

Flexible lens selection to meet diverse needs
We offer a variety of lenses to choose from based on different application requirements. You can quickly switch lenses according to specific scenarios, enhancing flexibility and convenience in use. Whether for wide-angle shots, close-ups, or medium shots, our lenses perfectly adapt to various shooting demands.
Product Model | WGWK-USB3.0678 | |
CMOS | (1/1.8") IMX678 | |
Maximum Effective Pixel | 3840(H)*2160(V) | |
Lens Size | 1/1.8 inch (16:9) | |
Pixel Size | 2.0*um 2.0*um | |
Image Area | TBD | |
Output Image Format | MJPEG / YUV2 (YUYV) | |
Supported ResolutionsAnd Frame Rates | 3840*2160@60fps MJPEG 2592*1944@60fps MJPEG 2560*1440@60fps MJPEG 1920*1080@60fps MJPEG 1600*1200@60fps MJPEG 1280*960@60fps MJPEG1280*720@60fps MJPEG640*480@60fps MJPEG | 3840*2160@15fps YUV 2592*1944@30fps YUV 2560*1440@30fps YUV 1920*1080@60fps YUV 1600*1200@60fps YUV 1280*960@60fps YUV1280*720@60fps YUV640*480@60fps YUV |
Camera Board Assembly Technology | SMT | |
Focus | Fixed | |
Center Clarity | 800LW/PH(Center) | |
Signal-to-noise Ratio | 39.9dB | |
Dynamic Range | 73dB | |
Sensitivity | 1.4V/lux-sec@550nm | |
Minimum illumination | 0.5Lux | |
Shutter Type | Rolling Shutter | |

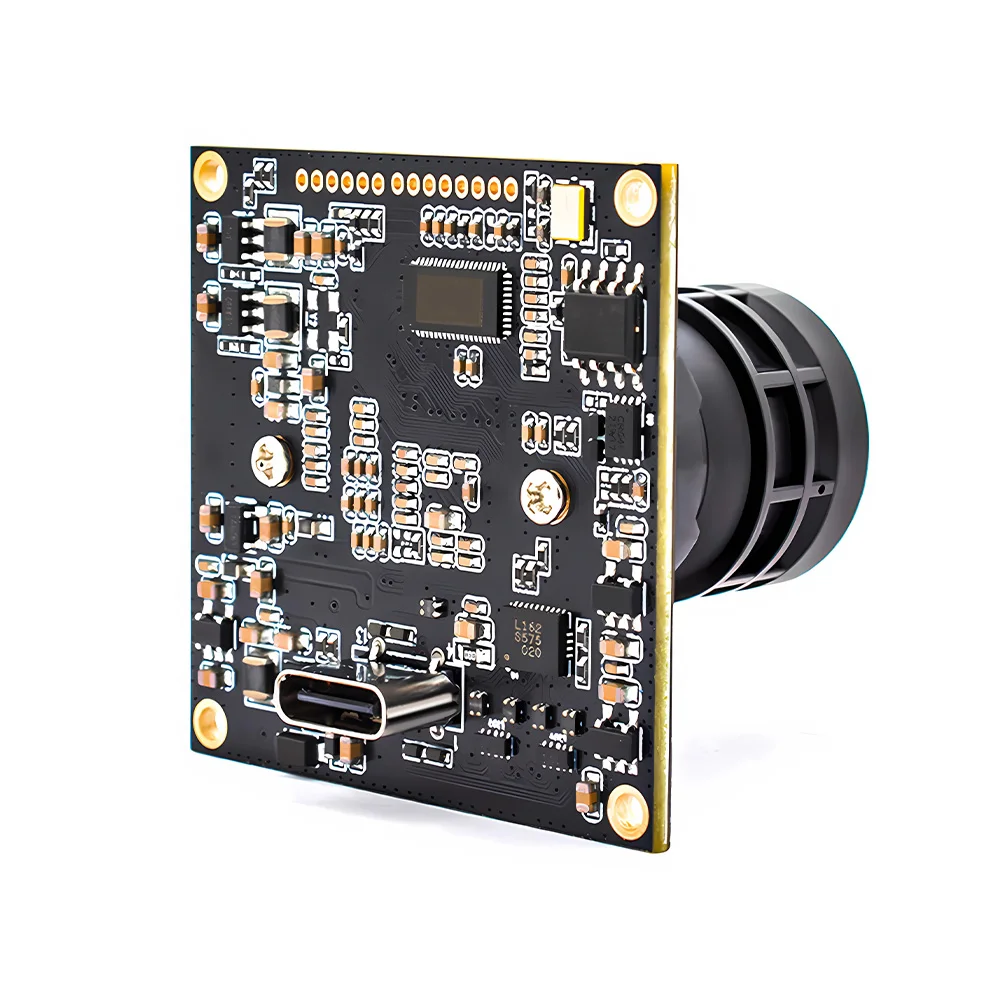

Interface Type | USB3.0 TYPE-C | |
Automatic Exposure Control (AEC) | Support | |
Automatic White Balance (AEB) | Support | |
Automatic Gain Control (AGC) | Support | |
Lens Specifications | M12 Mount Lens | |
Adjustable Parameters | Brightness, Contrast, Color Saturation, Hue, Clarity, Gamma, White Balance, Backlight Contrast, Exposure | |
Light Board Power Supply Interface | / | |
Power Supply And Interface | USBBUSPOWERTYPE-CUSB3.024P Vertical | |
Voltage | USB-5V | |
Current | 80mA-200mA | |

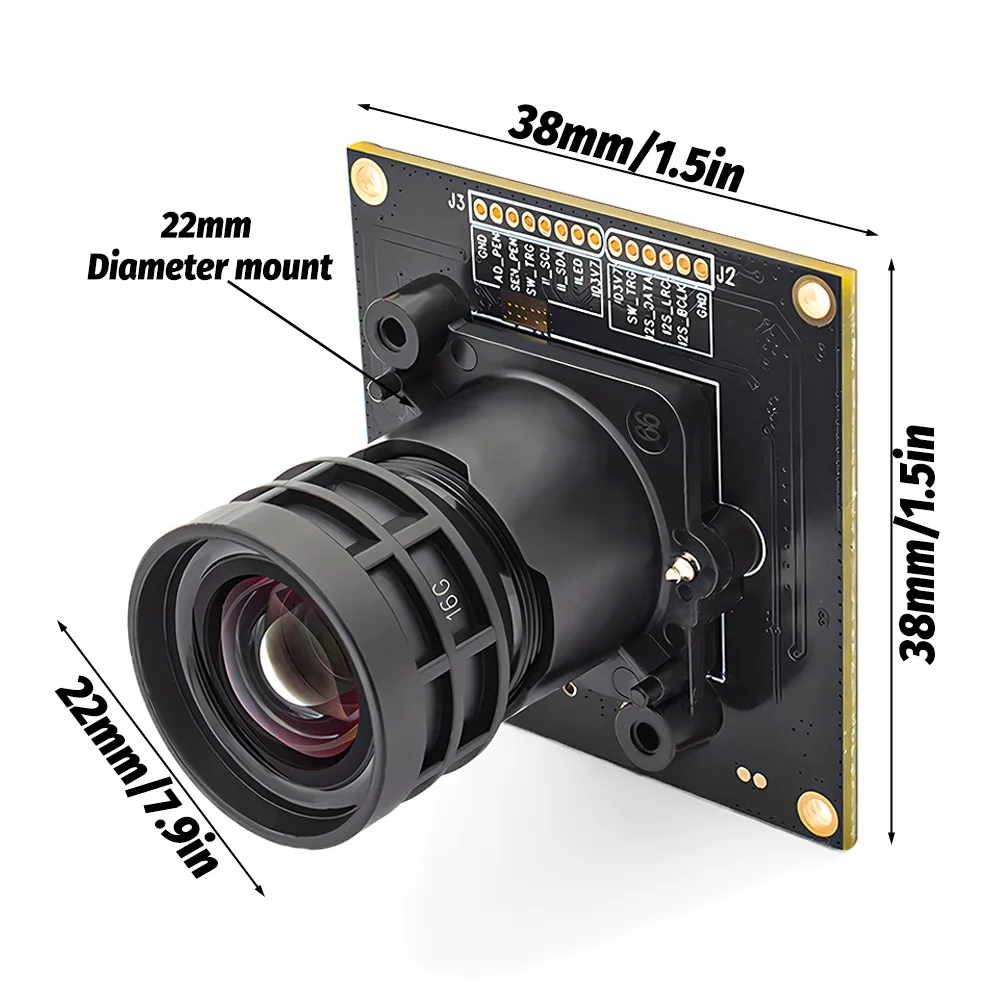

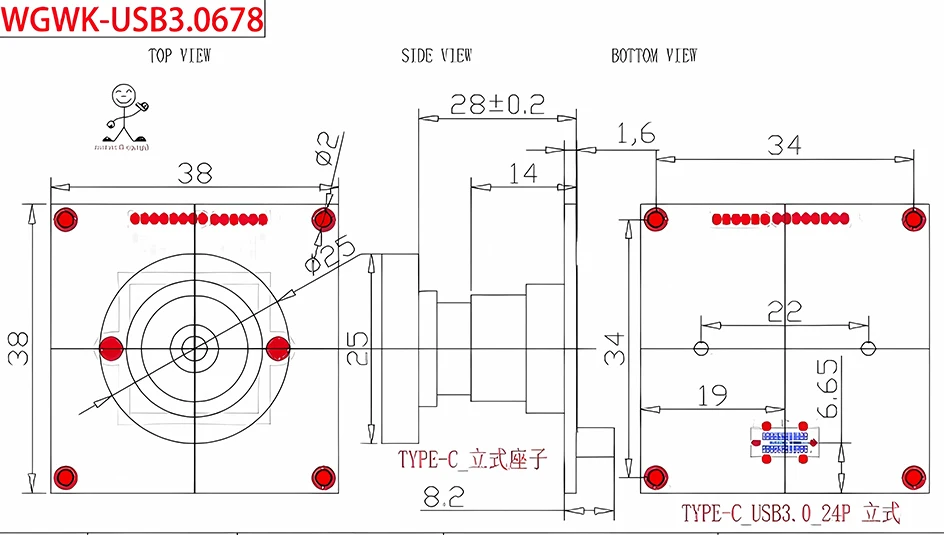

Size | 38mm(length) x 38mm(width) x 28mm(height) | |
Storage Temperature | -30℃to 85℃ | |
Operating Temperature | 0°C to 60°C | |
USB Cable | 1M(2M/3M/5M Optional) | |
System Support | Win XP/Vista/Win7/Win8/Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display,automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system,teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system,Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope,Medical auxiliary equipment, etc.
Step 1: Install Computer USB Camera Software - amcap
https://drive.google.com/file/d/1ZpJSSVhLD2qGCQusnFoF1JI5uW6IqkBR/view?usp=sharing
（Contact customer service to agree to share this document.）

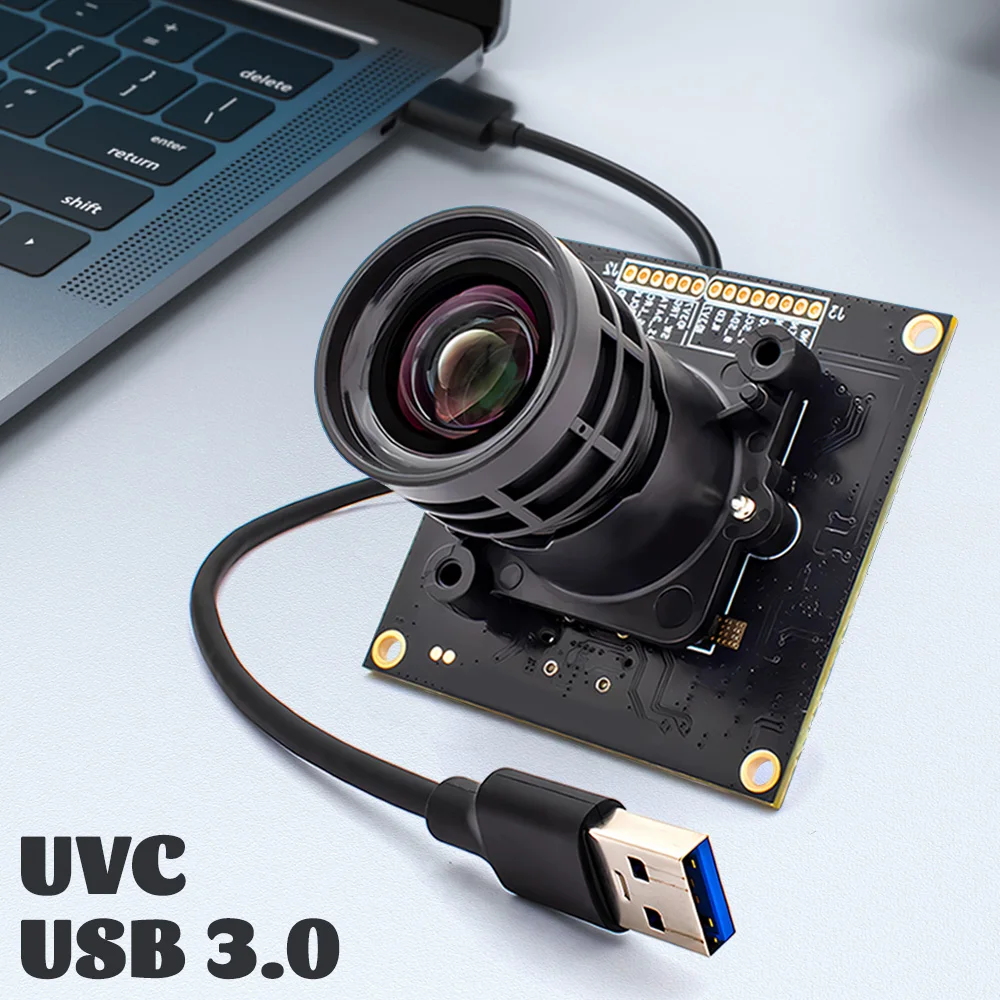

Step 2: Connect the computer using a USB cable.
Step 3: Adjust the focal length to achieve a clear image.
