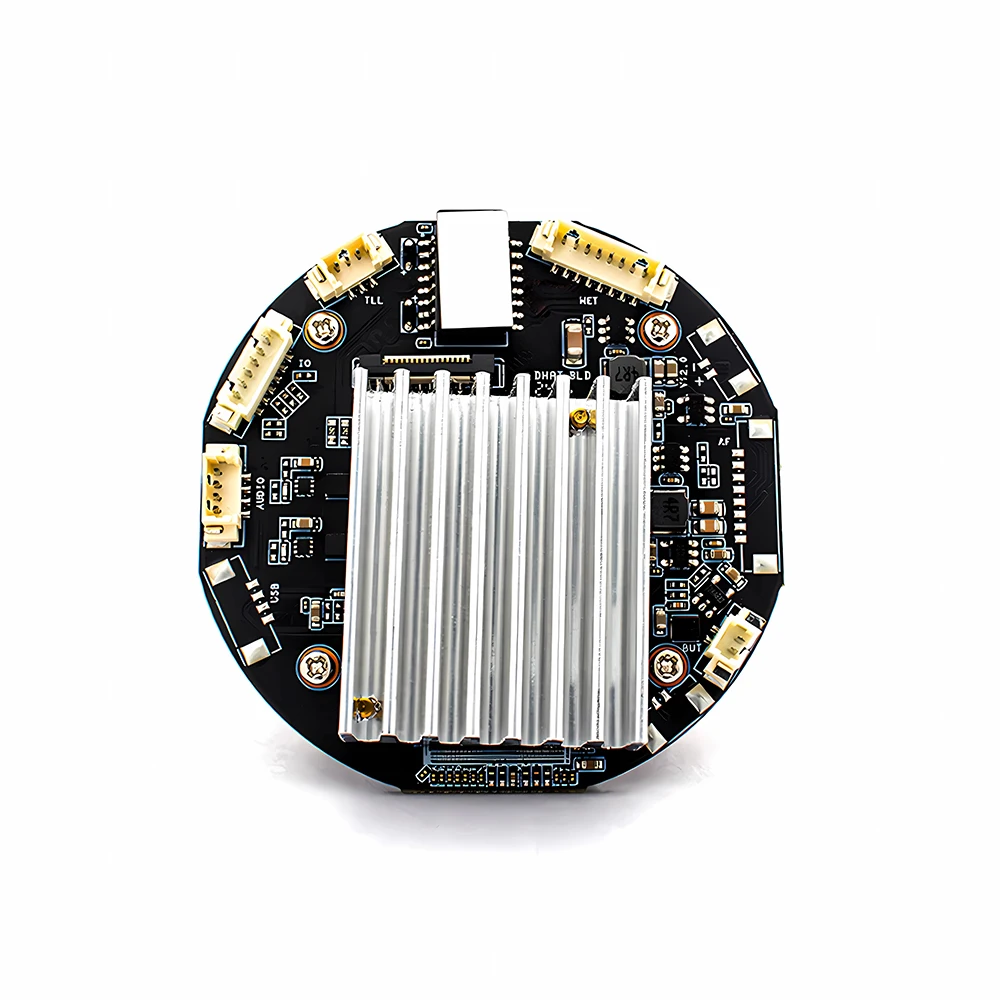

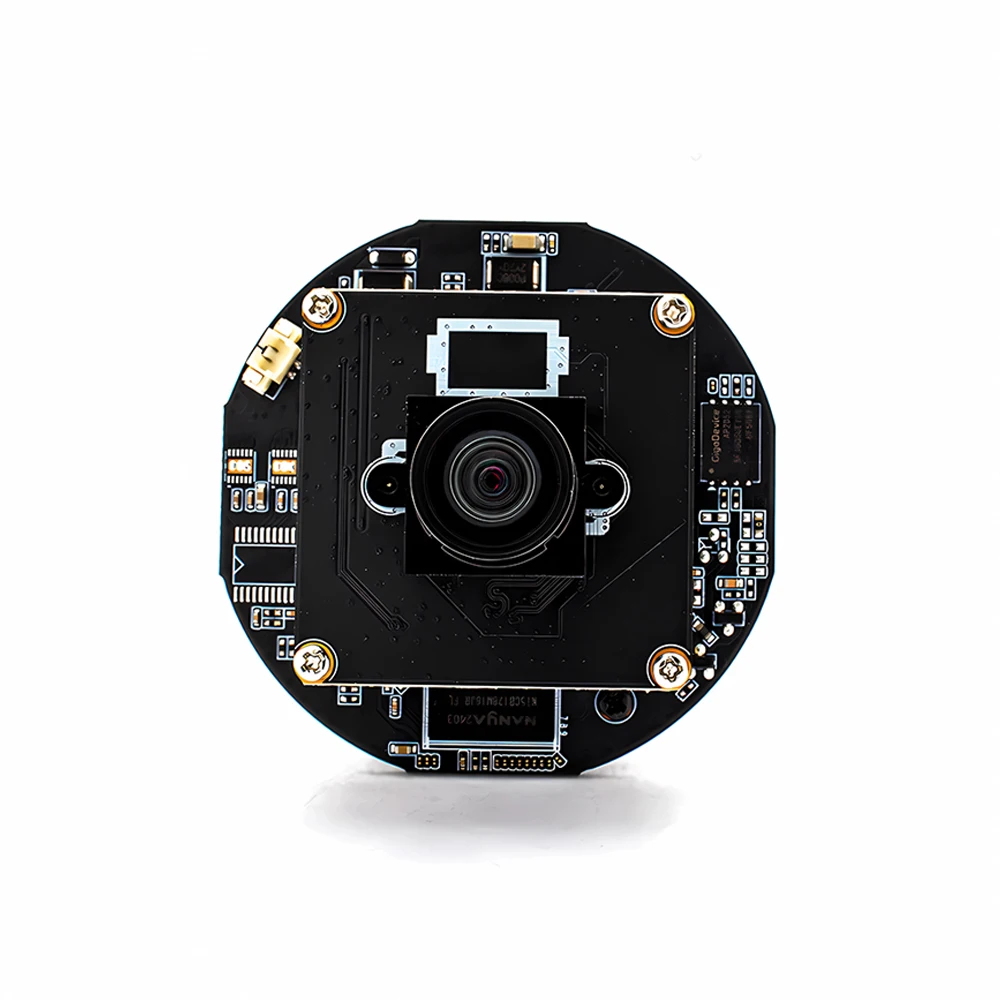

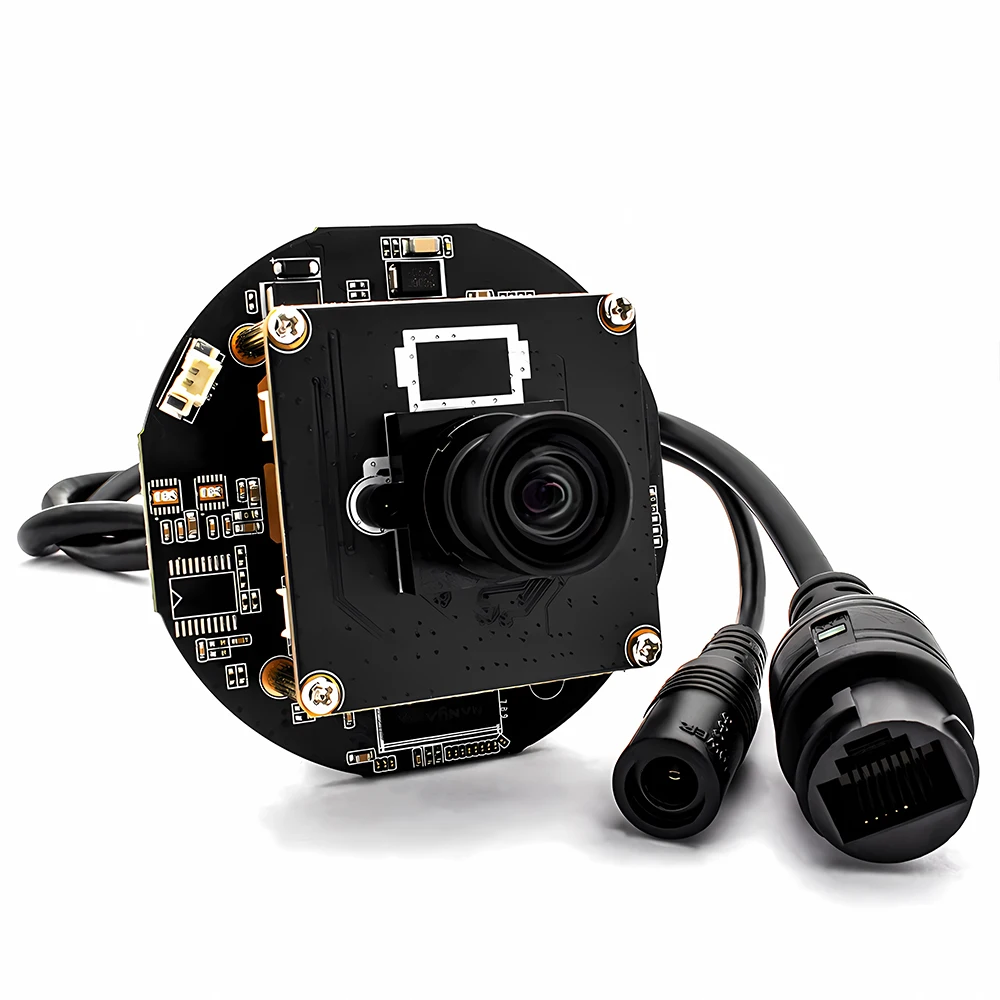

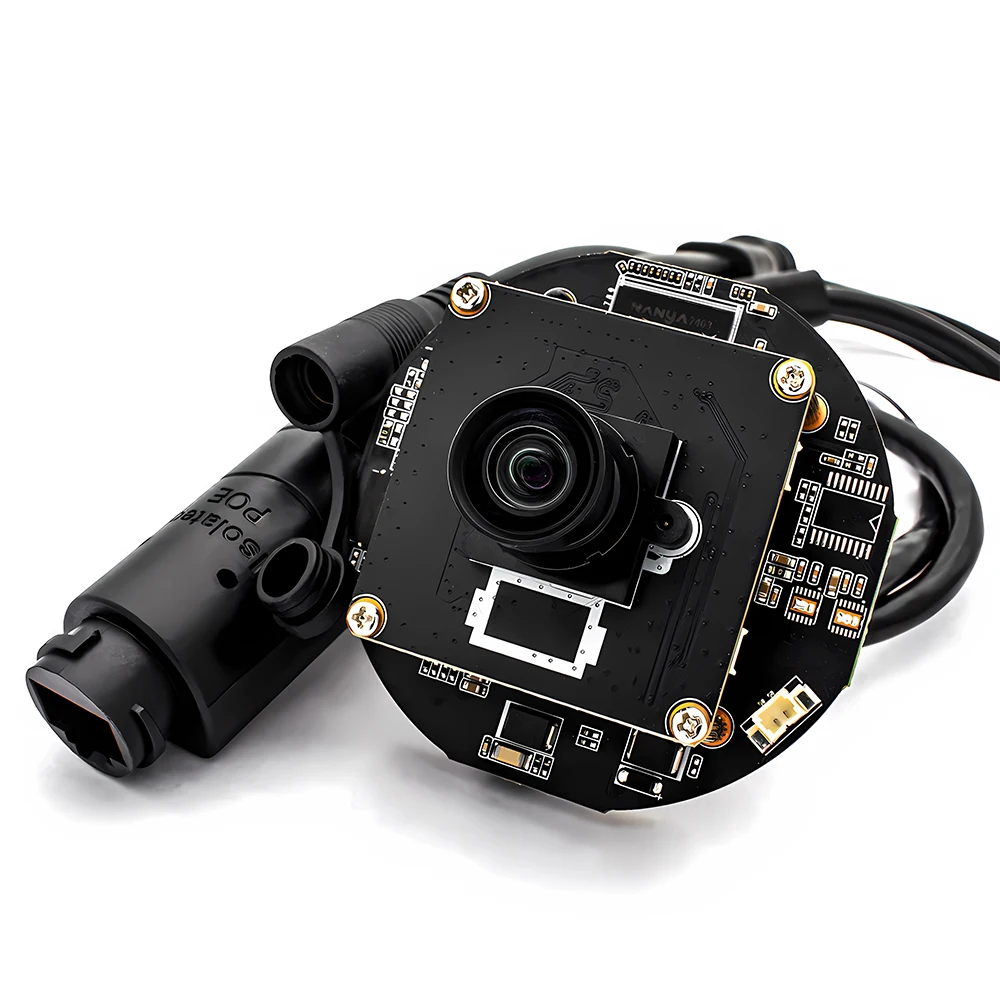

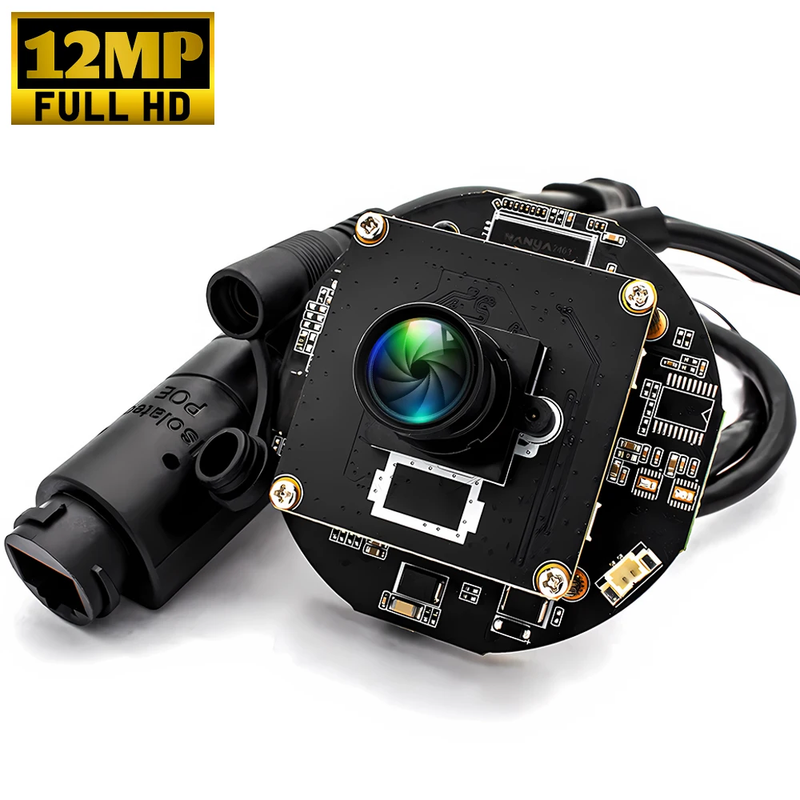

12MP IP Camera Module 4000x3000 25FPS 1/2.3" IMX577 CMOS POE Webcam Board With N

Product Description

1. Not included Power Adapter, Please contact customer service if you need Power Adapter.（you can choose 48V POE to power on through Ethernet cable interface without the need for a power adapter)

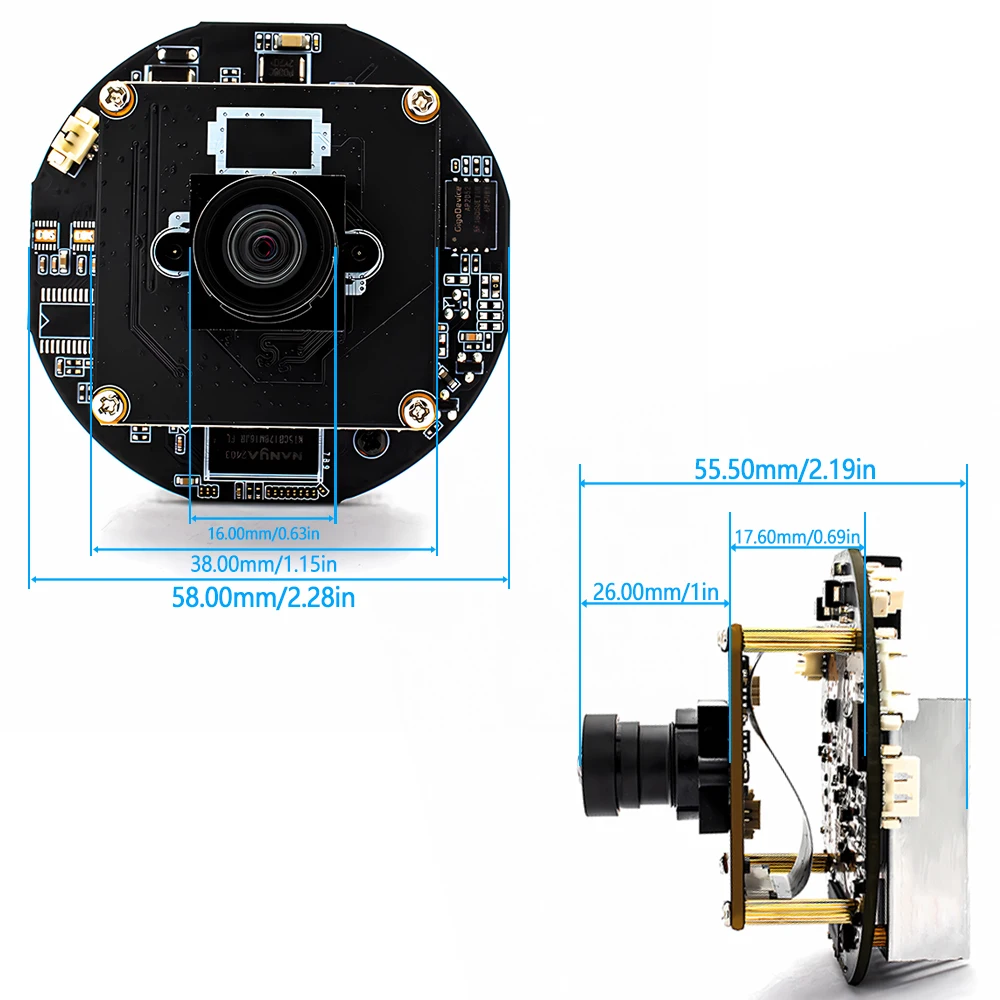

2.Due to manual measurement, please allow an error of 2-3mm

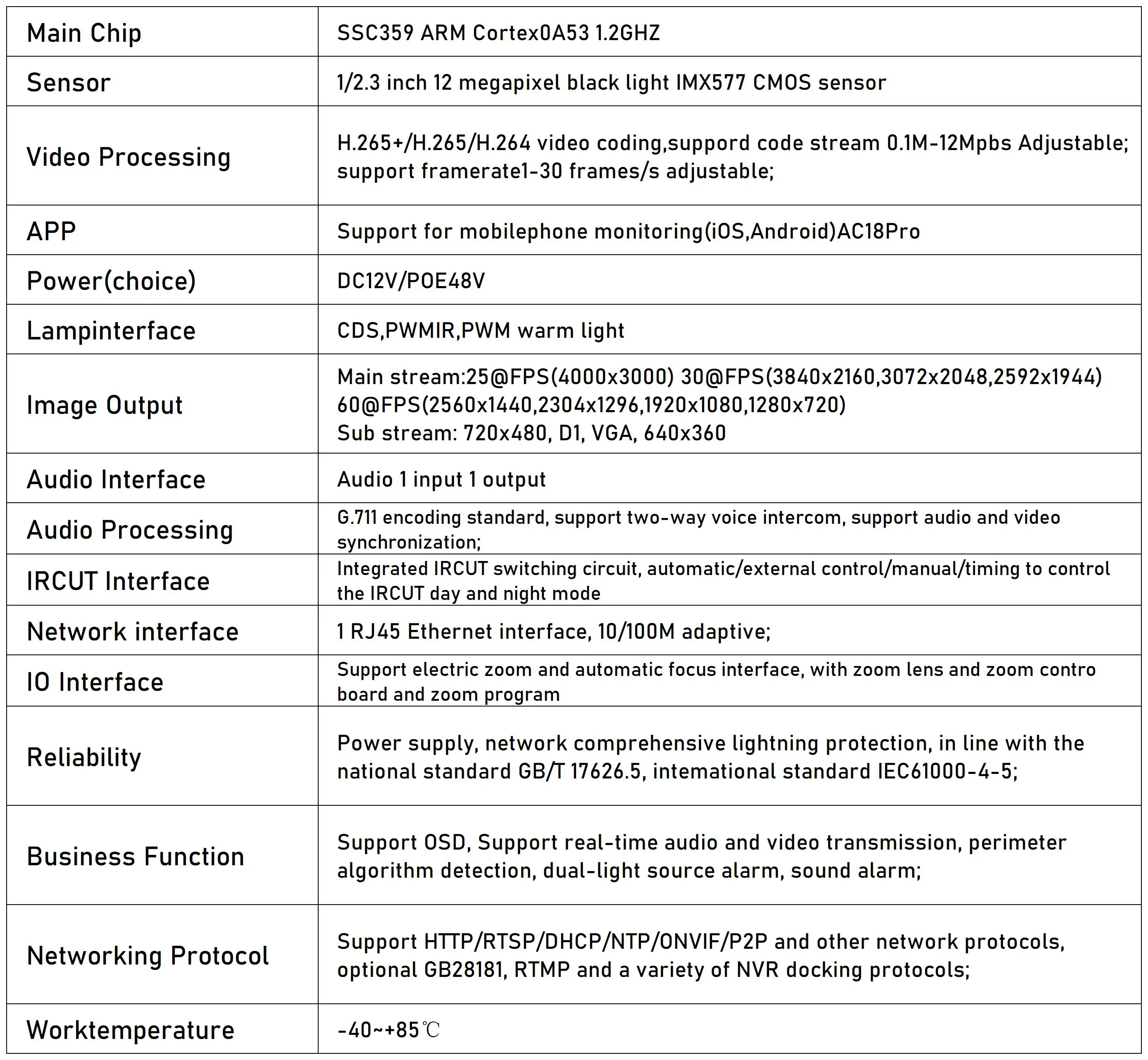

Experience professional-grade surveillance performance with this high-definition smart camera, powered by the SSC359 ARM Cortex0A53 1.2GHz processor and a 1/2.3-inch 12-megapixel blacklight IMX577 sensor. It delivers crisp, detailed images and excellent low-light performance, allowing you to capture crucial moments day or night.

• Ultra-HD video quality: The primary stream supports various high resolutions, including 4000×3000 and 3840×2160, at up to 30 FPS, delivering exceptional detail. Secondary streams support 720×480, D1, and VGA, facilitating remote preview and saving bandwidth.

• High-efficiency video encoding: Supports H.265+/H.265/H.264, with adjustable bitrates from 0.1Mbps to 12Mbps, ensuring high image quality while saving storage and bandwidth costs.

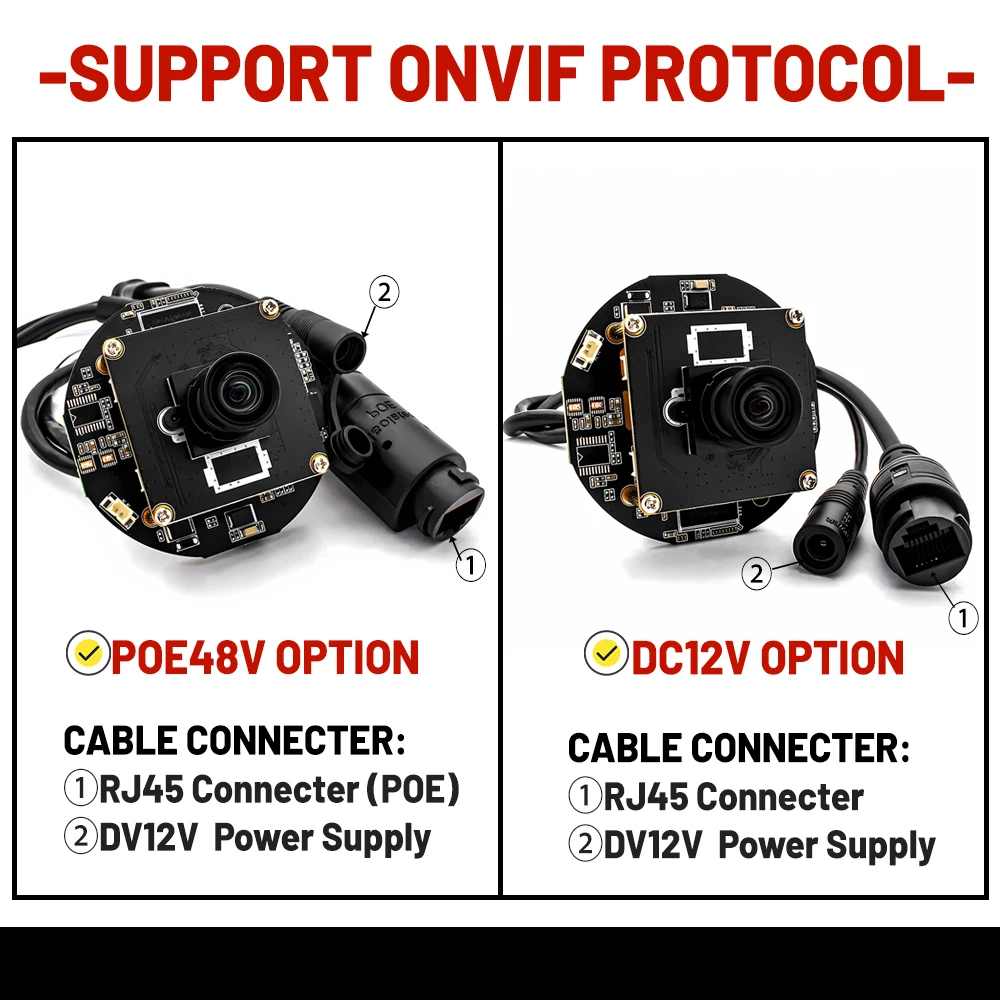

• Multiple power supply methods: Supports DC12V and POE (48V), ensuring flexible and convenient installation.

• Industrial-grade reliability: The power supply and network feature integrated lightning protection and comply with national and international standards such as GB/T17626.5 and IEC61000-4-5. The wide operating temperature range (-40°C to +85°C) allows for adaptability to complex environments.

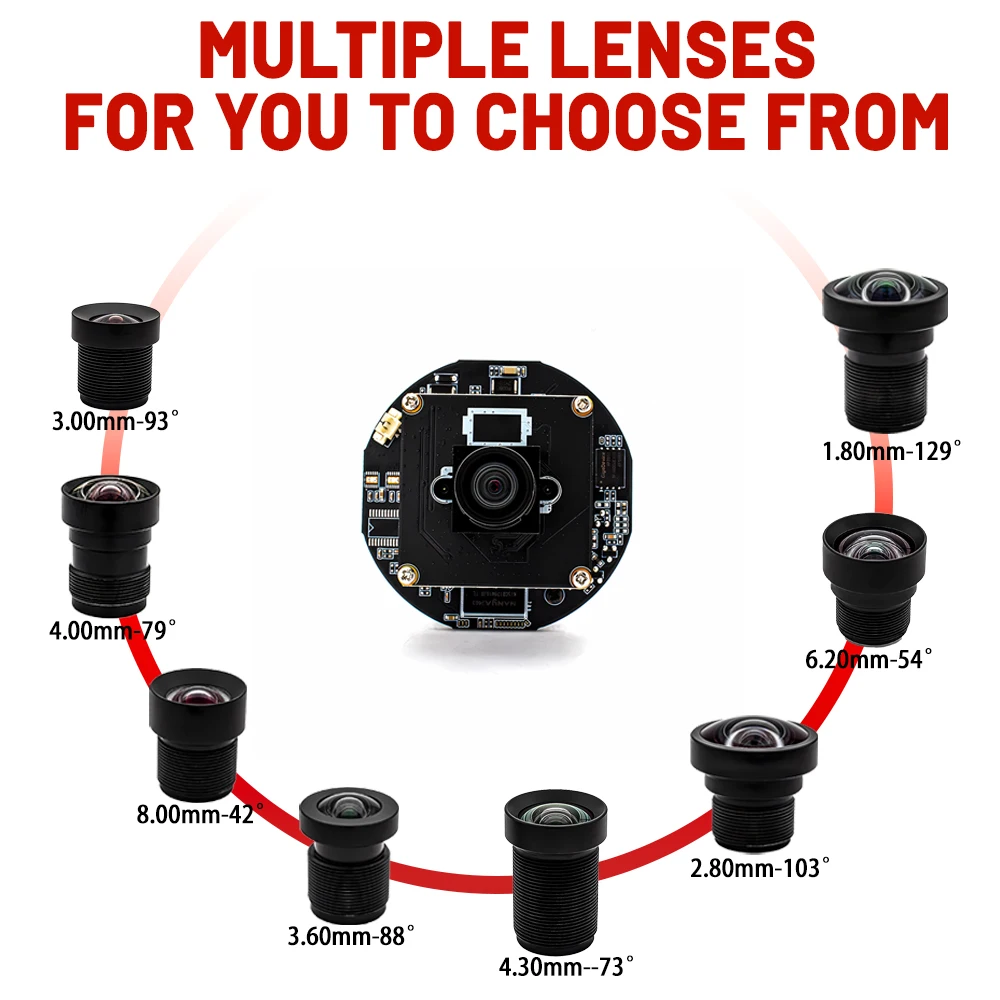

• Wide-angle, distortion-free lens: Optional wide-angle and distortion-free lenses are available, ideal for wide-area coverage without edge stretching or barrel distortion, providing a more realistic image and a wider field of view.

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display,automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system,teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system,Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope,Medical auxiliary equipment, etc.

1. Make sure the camera is connected to the power supply and network(the signal light flashes to prove that everything is normal)

2. Download the client to the computer:(LMS)

http://www.anjvision.com:8021/client/LMS_install_v5.4.0_20240725.exe(AjDevTools) http://online.anjvision.com/client/AjDevTools_V5.8.6_20240711.exe

3.APP download: Search AC18Pro in Apple Store; Scan QR code download

The RTSP URL format is as follows (assuming the IPC IP is 192.168.0.123):

Main stream: rtsp://admin:123456@192.168.0.123/stream0

Sub-stream: rtsp://admin:123456@192.168.0.123/stream1

above RTSP URL, if audio is turned on, the streaming data will contain video and audio.

If you only need video or audio data, use the following URL:

Main stream pure video: rtsp://admin:123456@192.168.0.123/video1

Sub-stream pure video: rtsp://admin:123456@192.168.0.123/ video2

pure audio: rtsp://admin:123456@192.168.0.123/audio

http://www.anjvision.com:8021/client/LMS_install_v5.5.0_20250106.exe

Login Password:123456

Step 3. Search for cameras connected to the local area network

Double-click the camera to add it

Step 4. Switch to the camera live view
