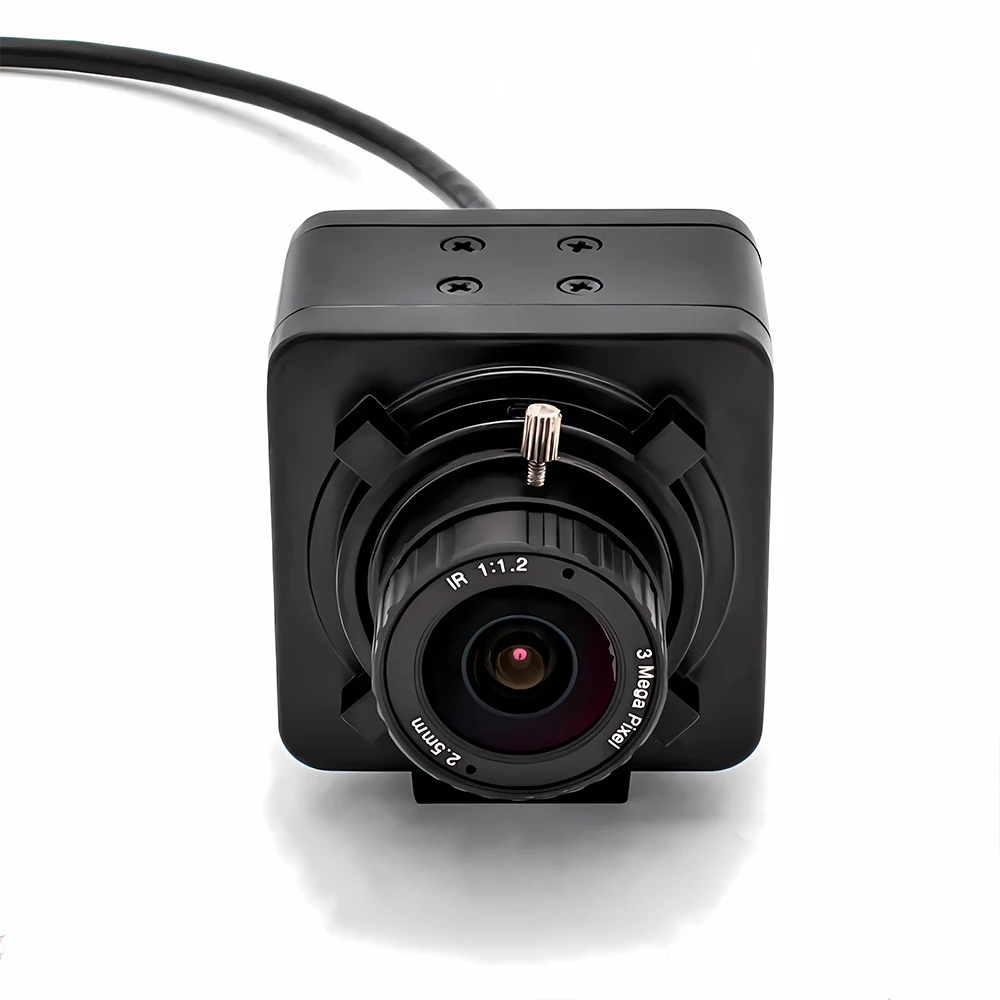

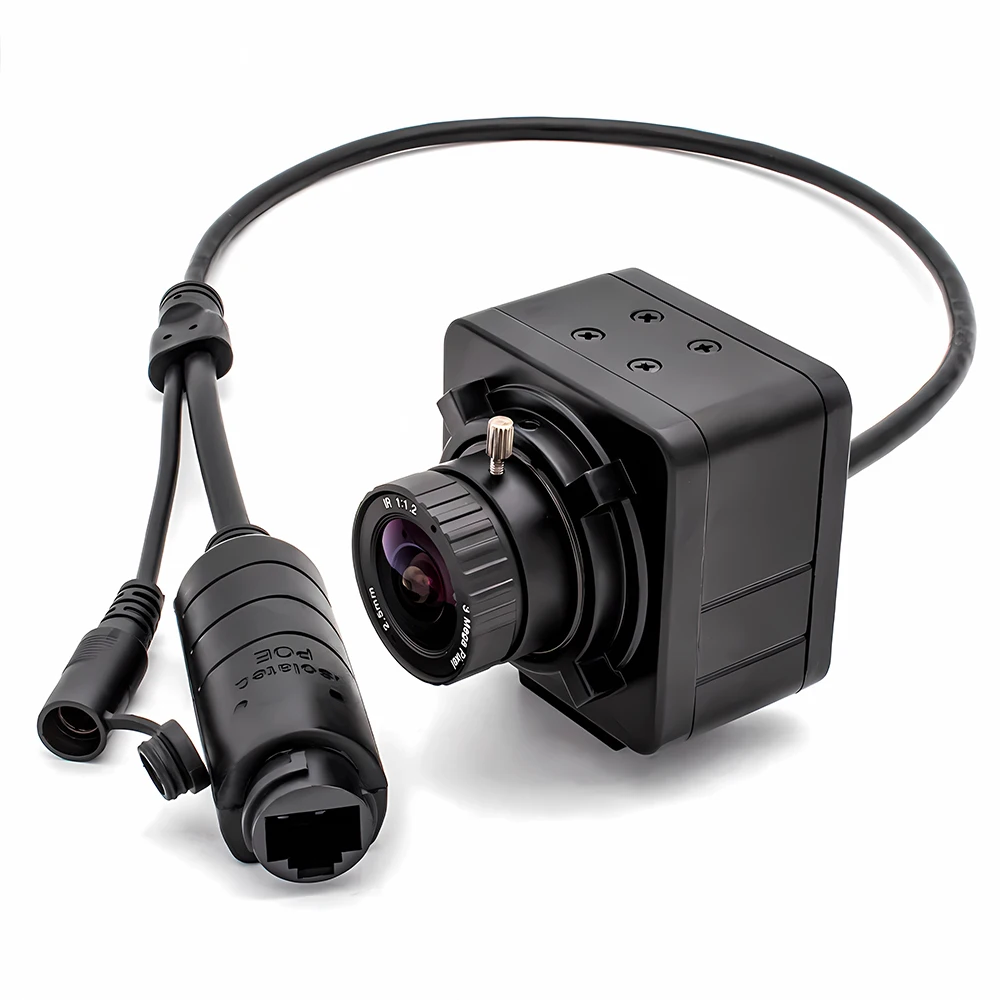

2.1mm/2.5mm/2.8mm Wide Angle IP Camera 3/4/5/8MP Security Camera Industrial Meta

Product Description

NOTE:

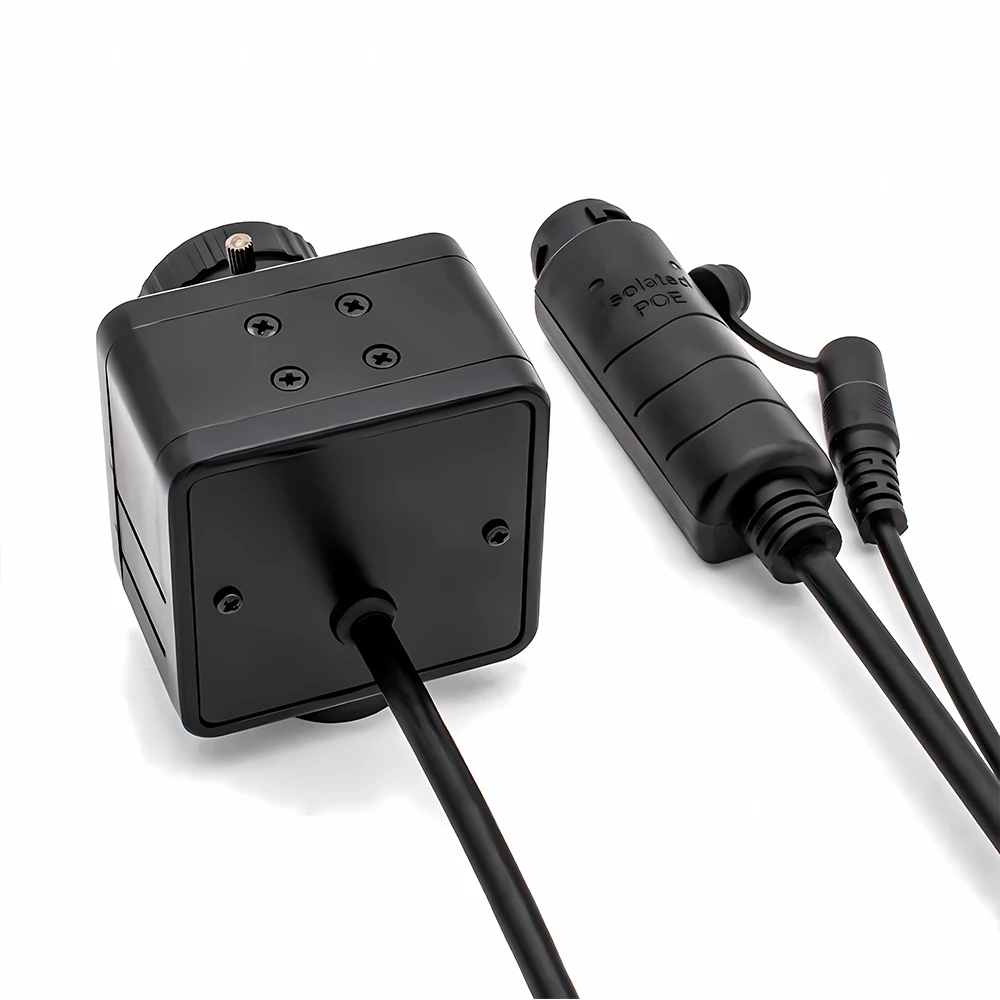

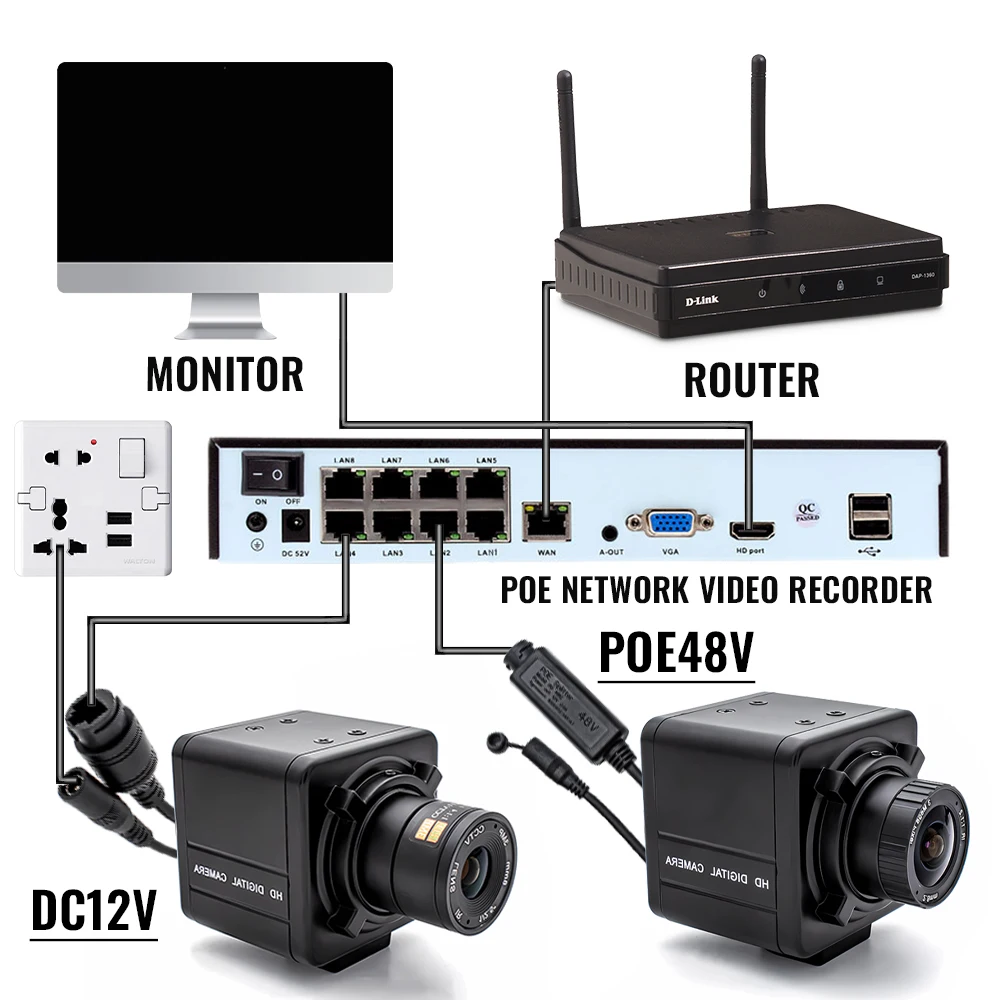

1. Not included Power Adapter, Please contact customer service if you need Power Adapter.（you can choose 48V POE to power on through Ethernet cable interface without the need for a power adapter)

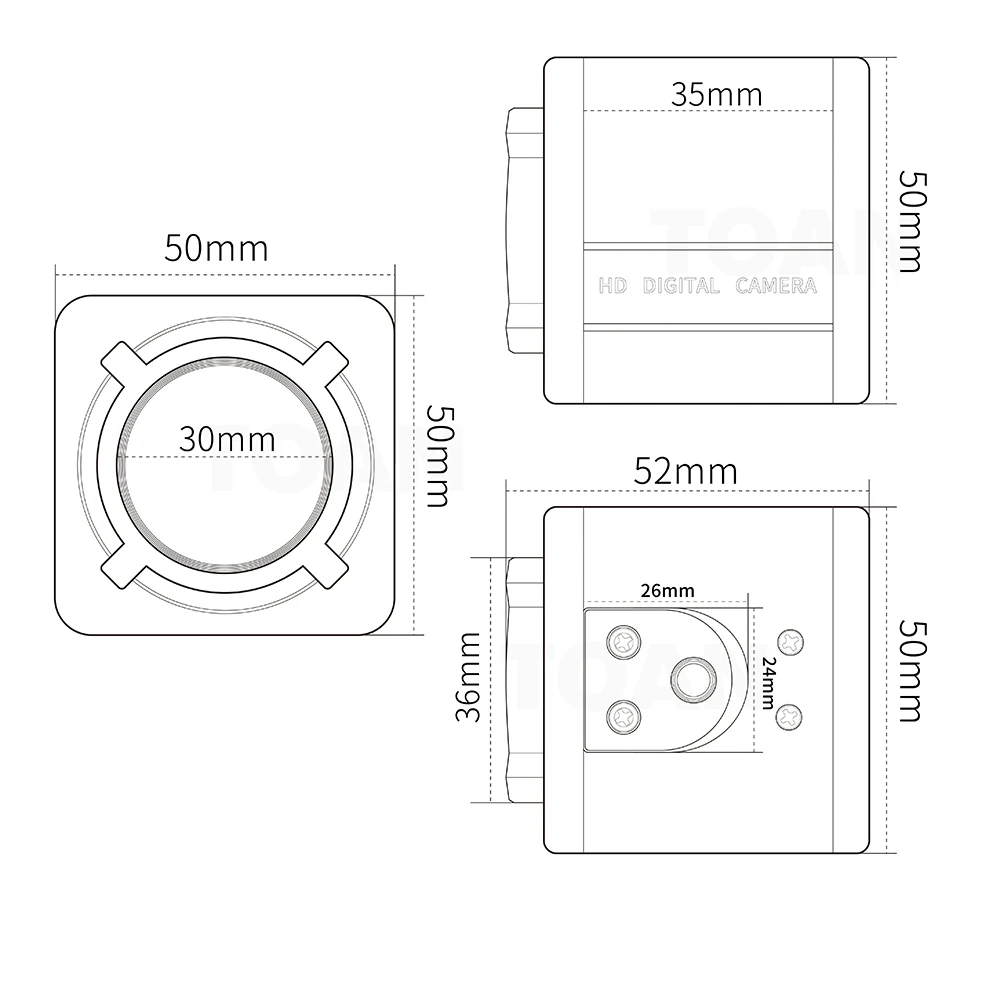

2.Due to manual measurement, please allow an error of 2-3mm

Experience our webcam, featuring high frame rates, excellent low-light performance, and optional lenses to ensure clear and detailed images. Its ultra-compact design is perfect for various embedded applications, elevating your visual experience to the next level!

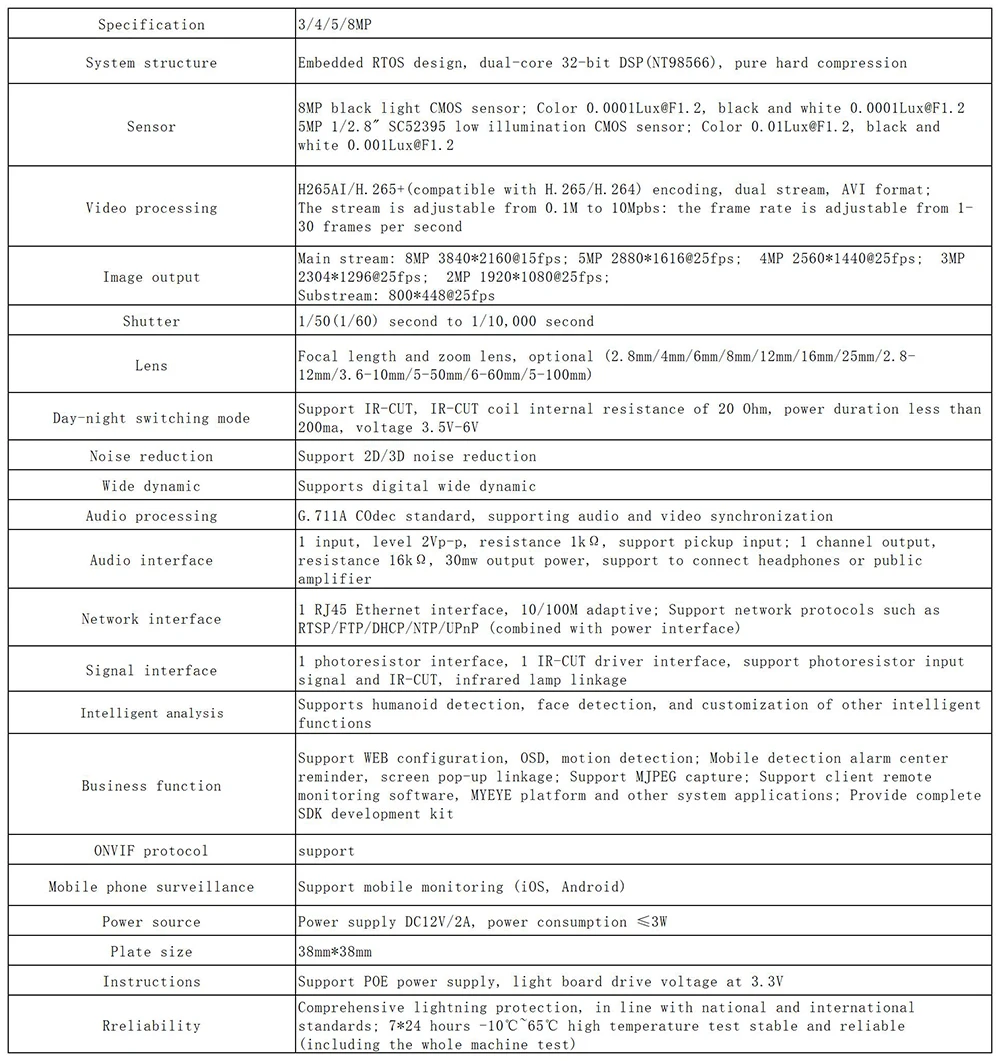

1.High quality 3/4/5/8MP HD IP Camera

2.2.1mm/2.5mm/2.8mm Lens can choose

3.High frame rate MJPG– deliver 25fps in 2560x1440 resolution, 25fps in 1920X1080 resolution.

4.CMOS Sensor for high quality image and low power consumption.

5.Super small outline and thin profile for embedded applications.

6.high pixel technology for sharp image and accurate color reproduction.

7.low light performance – ideal for any lighting condition.

-3/4/5/8MP high-definition resolution, low illumination, clear and delicate images;
-Supports 2D/3D noise reduction and digital wide dynamic function;
-Advanced H.265+(compatible with H.265/H.264) video compression technology, ultra-low bit rate, high-definition image quality;
-Supports ONVIF protocol and can access third-party backend/platforms;
-Support mobile monitoring (iOS, Android);
-Support multiple cloud technologies, achieve network penetration, front-end and back-end docking, and push alarm information to mobile phones and other functions;

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display,automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system,teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system,Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope,Medical auxiliary equipment, etc.

About RTSP

Address stream:

Enter the network URL in Please enter network URL:

rtsp://10.6.3.57:554/user=admin&password=&channel=1&stream=0.sdp?
10.6.3.57 This is the IP of the connected device

:554 This is the port number of the RTSP service, which can be changed in the device's network service

user=admin This is the login user name for the device

password= Password blank

channel=1 First channel

stream=0.sdp？Main code stream

stream=1.sdp？Auxiliary code stream

rtsp://192.168.1.10:554/user= admin&password=&channel=1&stream=0.sdp?

rtsp://10.6.3.57:554/user=admin&password=&channel=1&stream=0.sdp?

10.6.3.57 is the device IP address

:554 is RTSP port，can reset in device network service

user=admin is device user’s name

password= no pass word

channel=1 refer to Channel No.1

stream=0.sdp？ mainstream

stream=1.sdp？ substream

About computer operation and use

Make sure the camera is connected to the power supply and network

(the signal light flashes to prove that everything is normal)

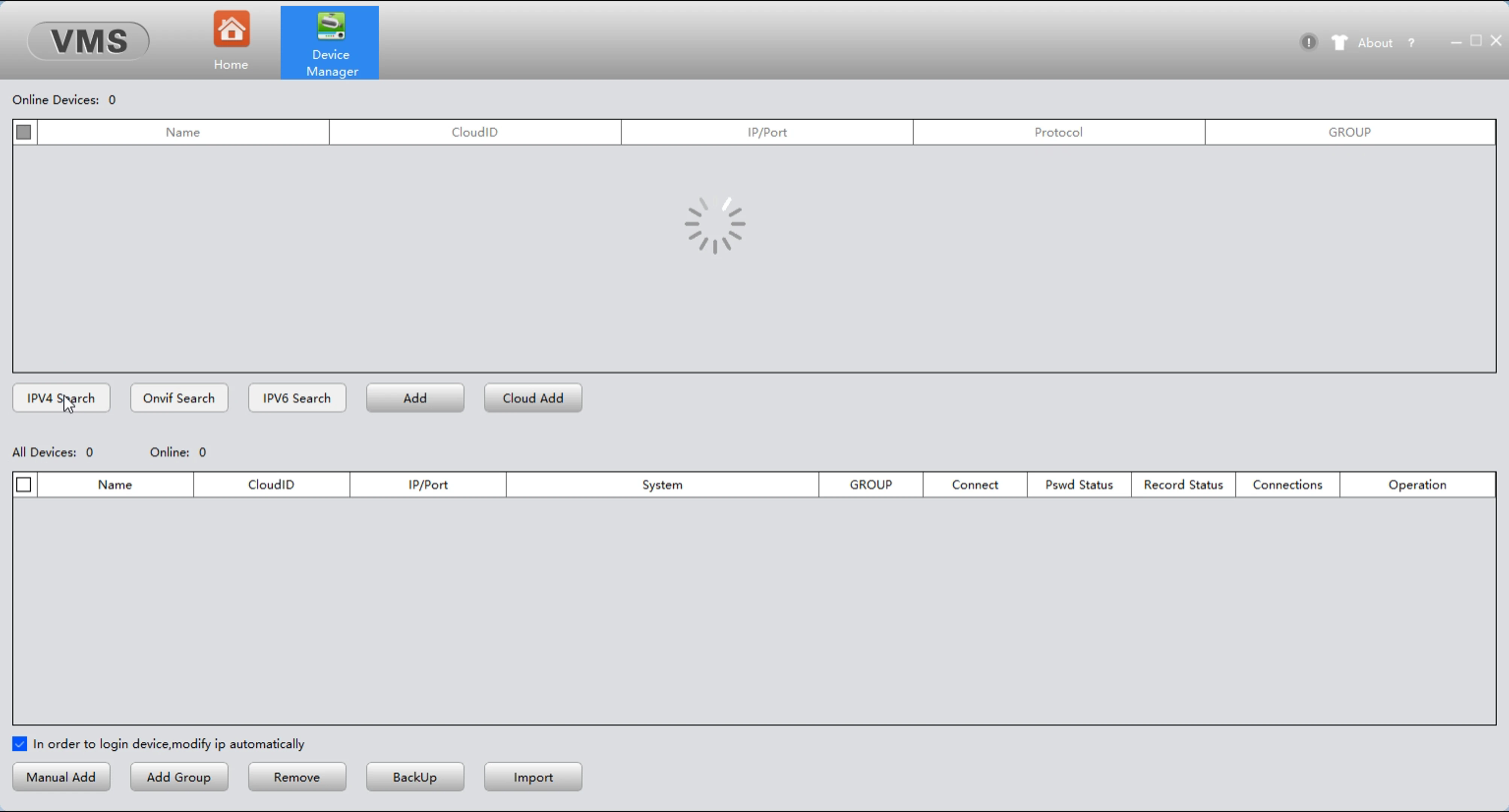

Step 1 : Install VMS

https://download.xm030.cn/d/MDAwMDE2OTA=

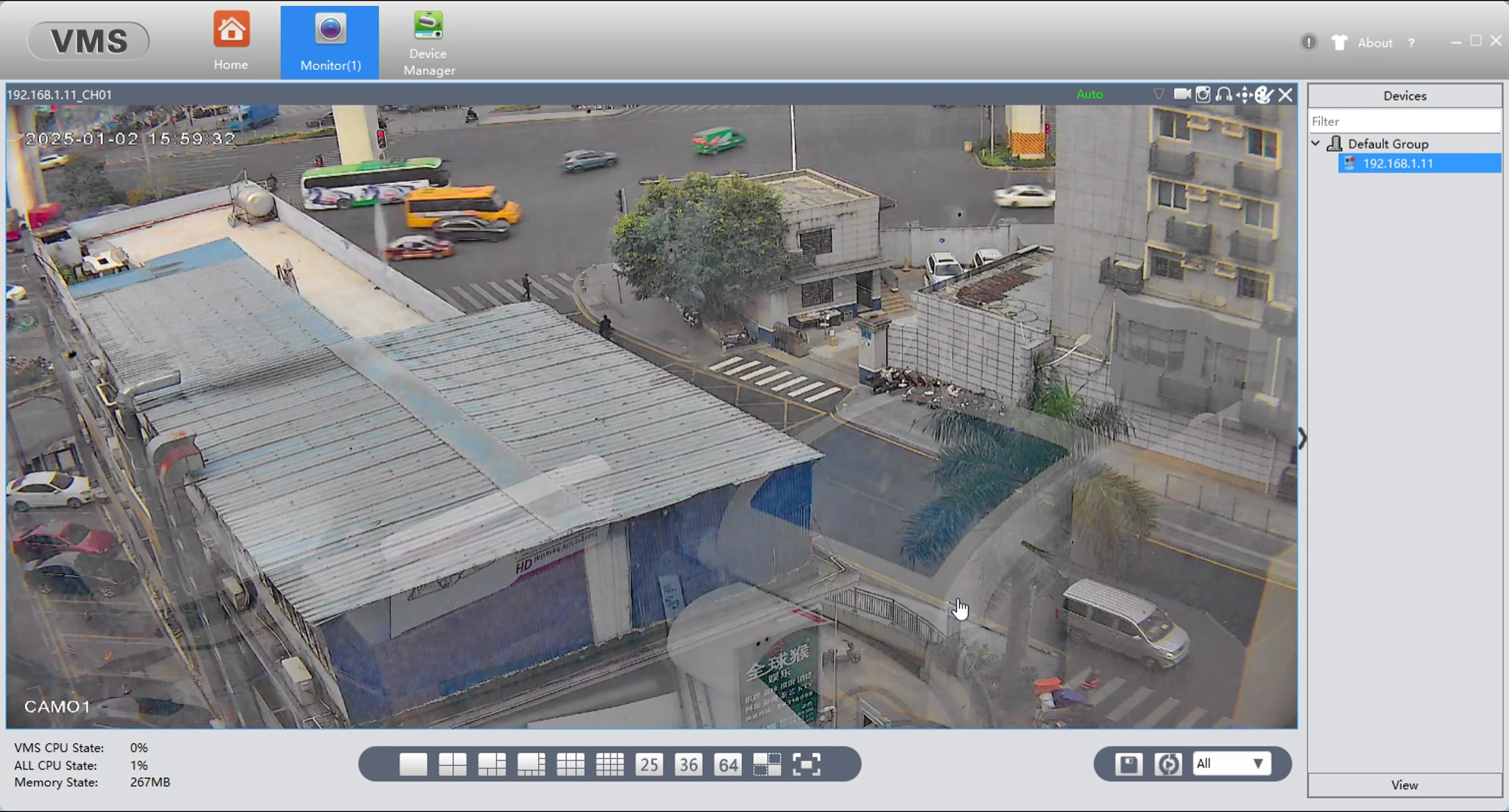

Step 2: Login VMS

UserName: admin,Password:admin

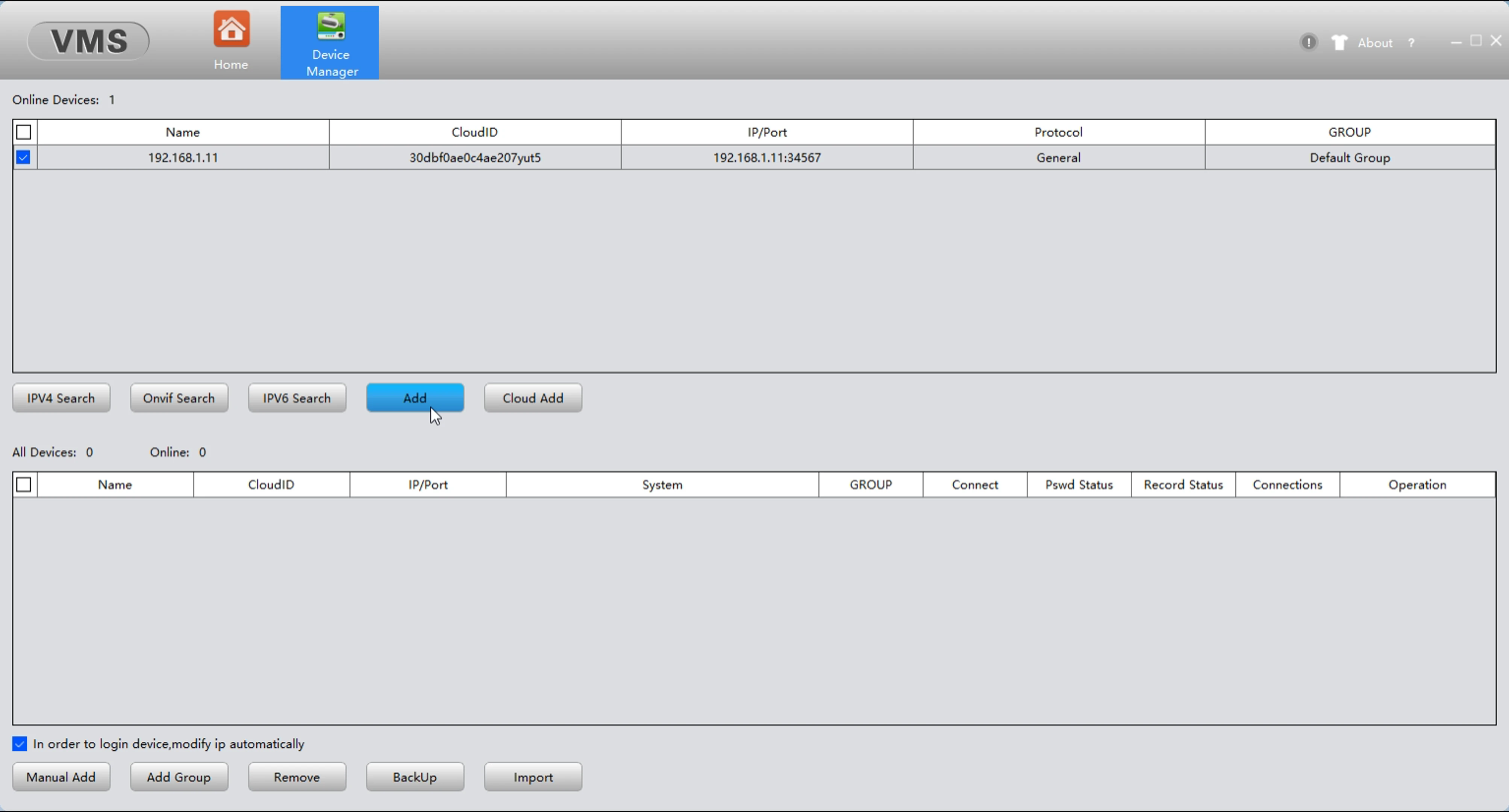

Step 3: Find your camera and add

APP download: Search XMEye in Apple Store
