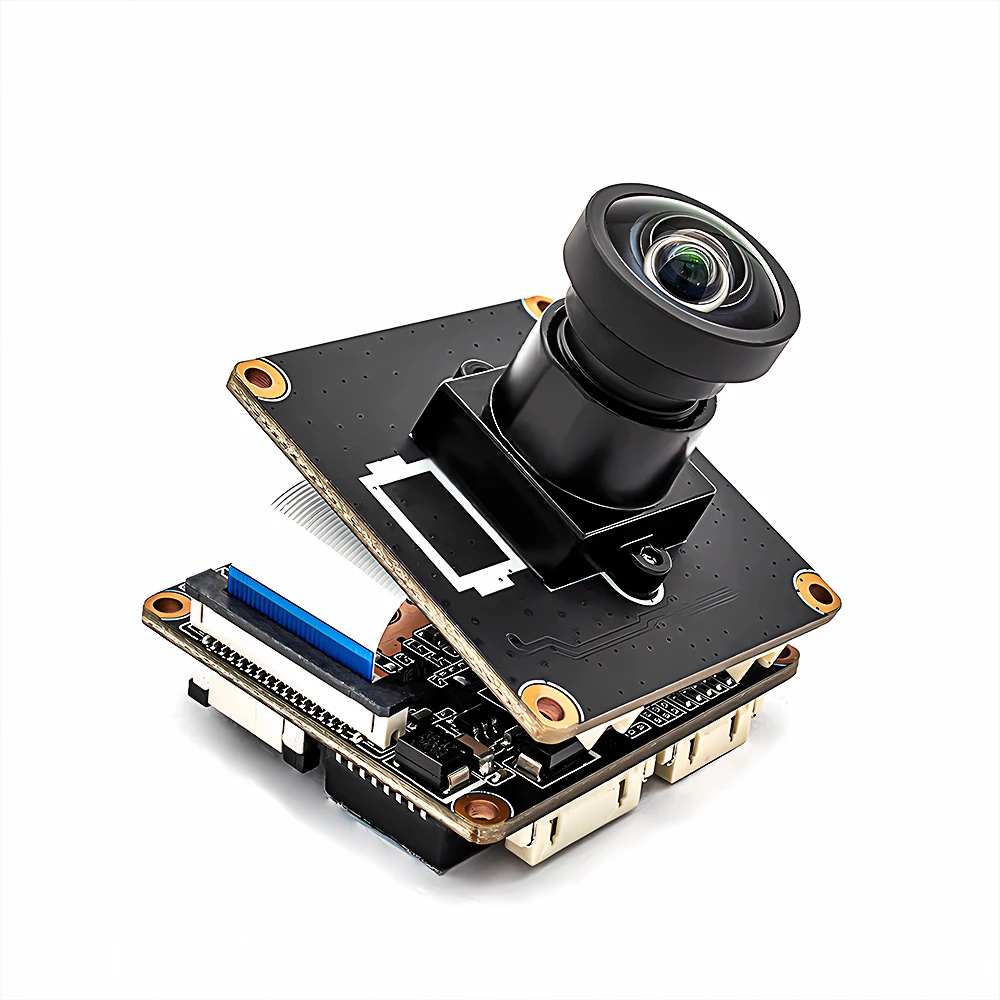

4K 30FPS POE IP Camera 8MP Webcam Board IMX415 CMOS With No Distortion Lens Supp

Product Description

1. Not included Power Adapter, Please contact customer service if you need Power Adapter.（you can choose 48V POE to power on through Ethernet cable interface without the need for a power adapter)

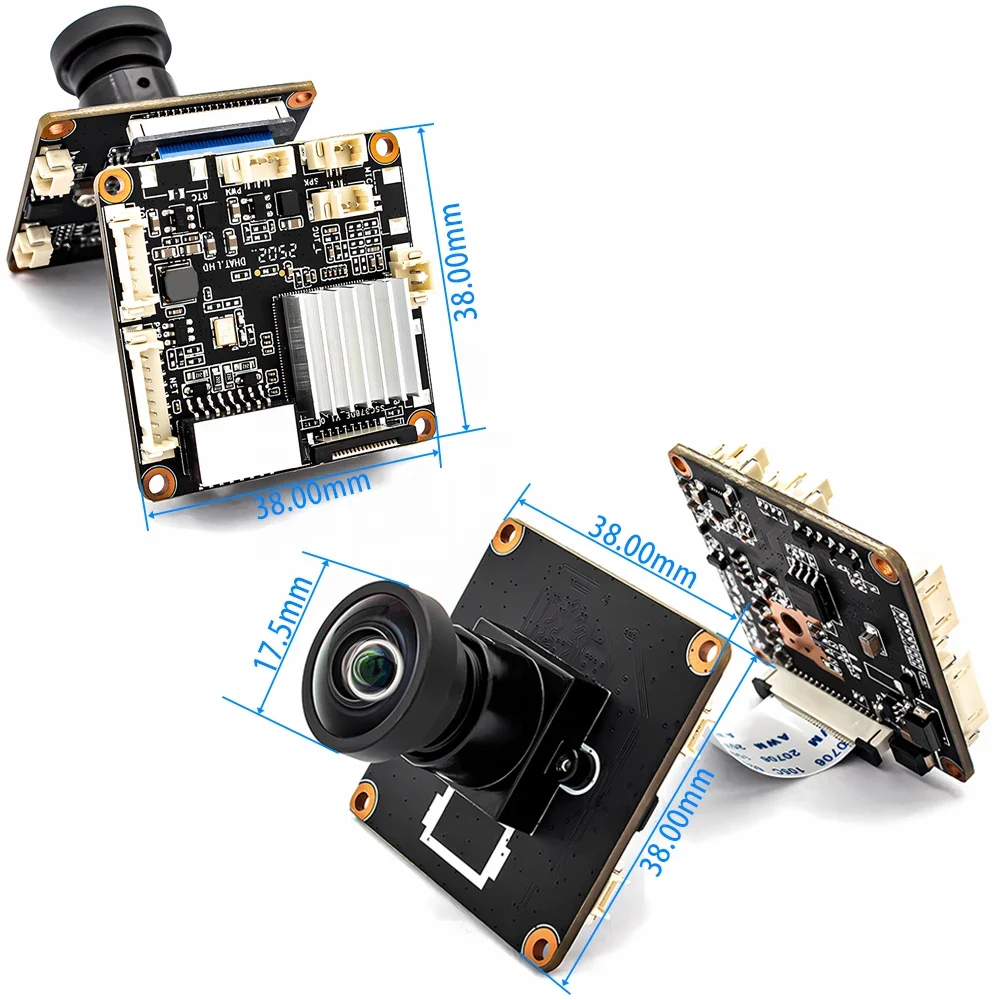

2.Due to manual measurement, please allow an error of 2-3mm.

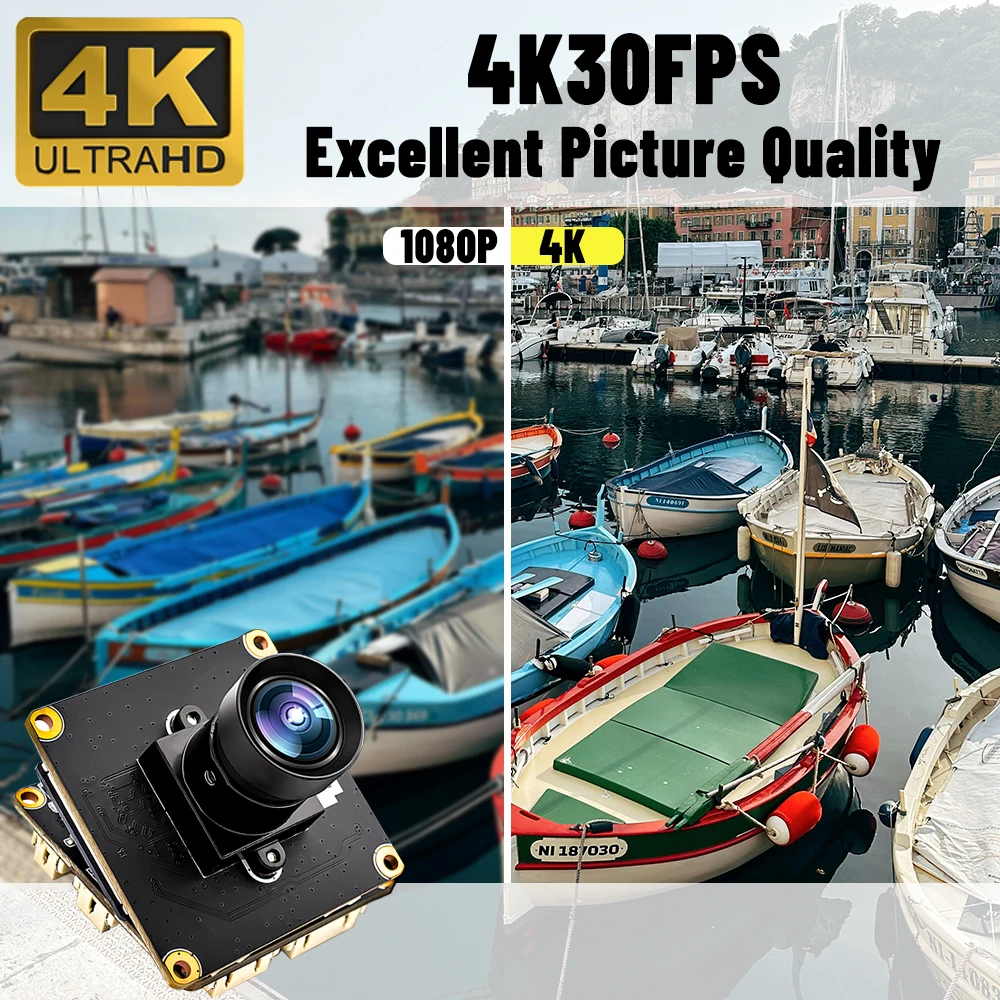

This network camera is specifically designed for high-end security and intelligent monitoring scenarios. It features a SONY IMX415 8-megapixel (8MP) sensor and supports smooth 4K resolution (3840×2160) recording at 30FPS. Combined with H.265 efficient encoding technology, it captures intricate details with clarity and dynamic motion without blurring.

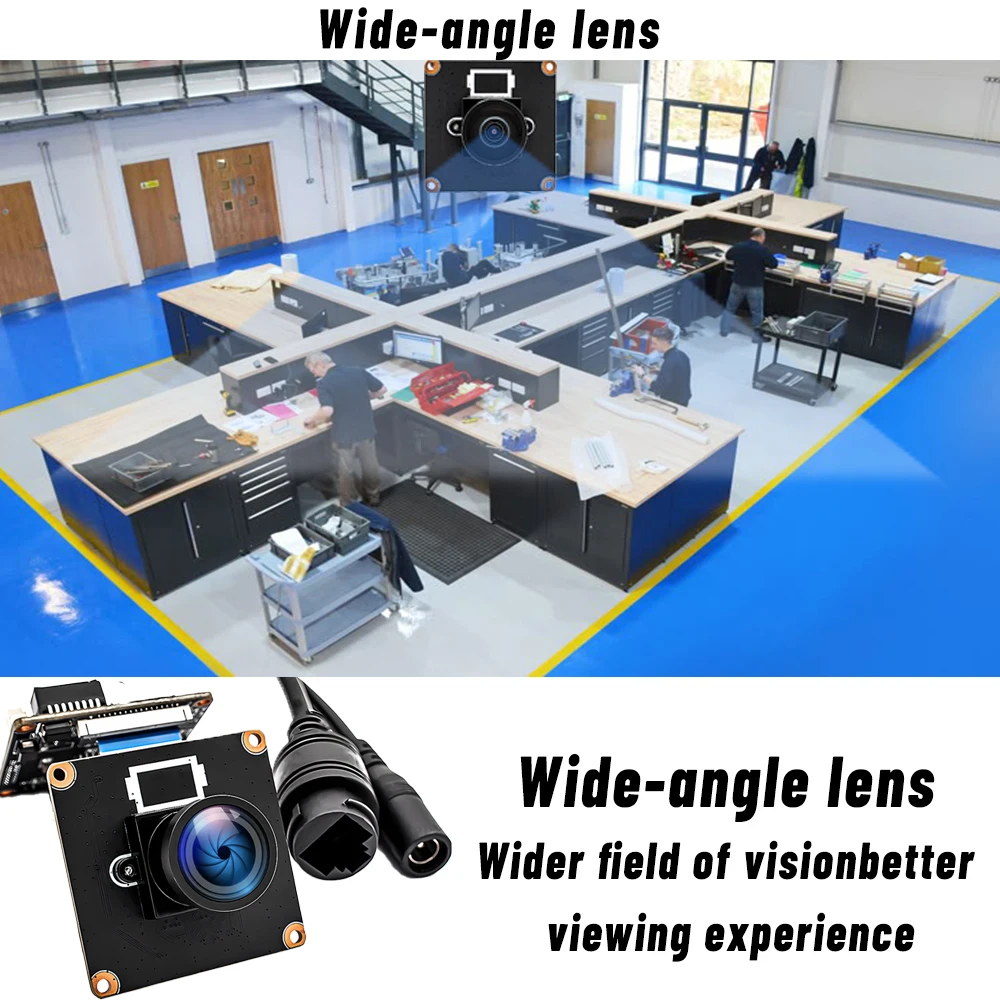

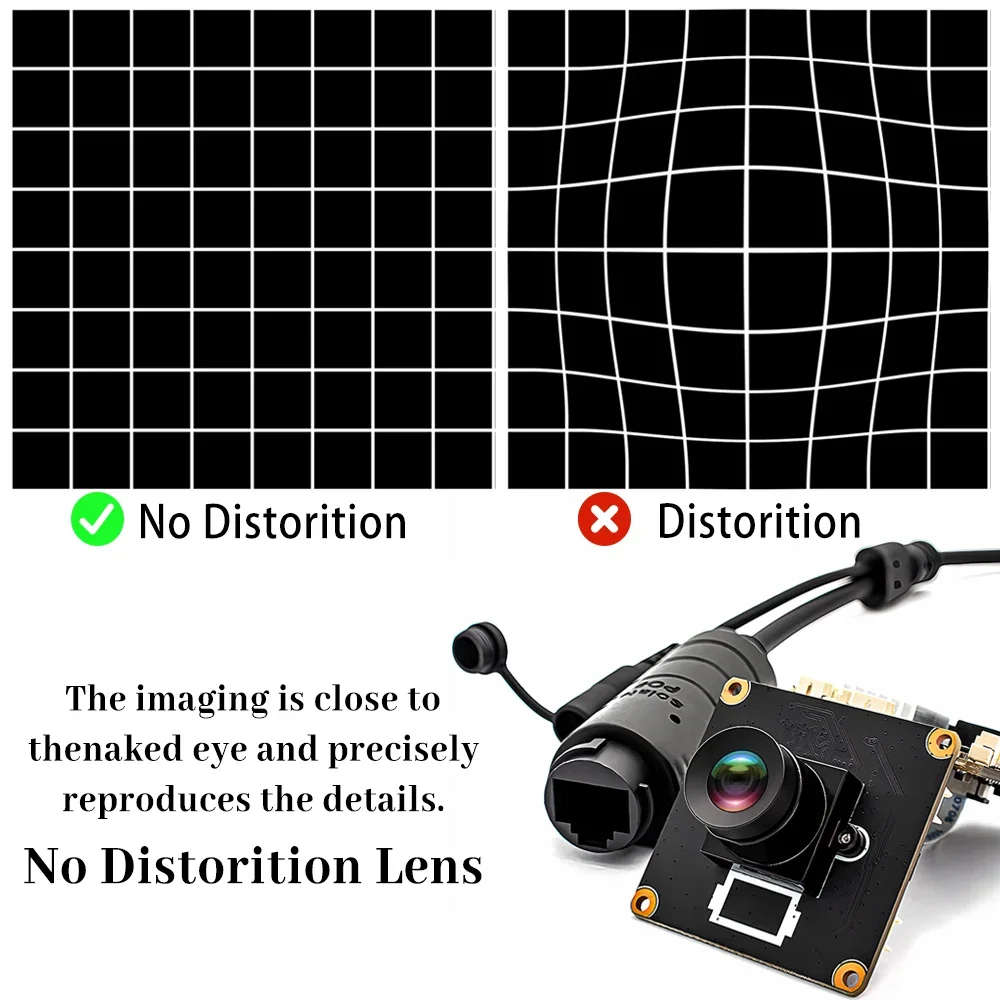

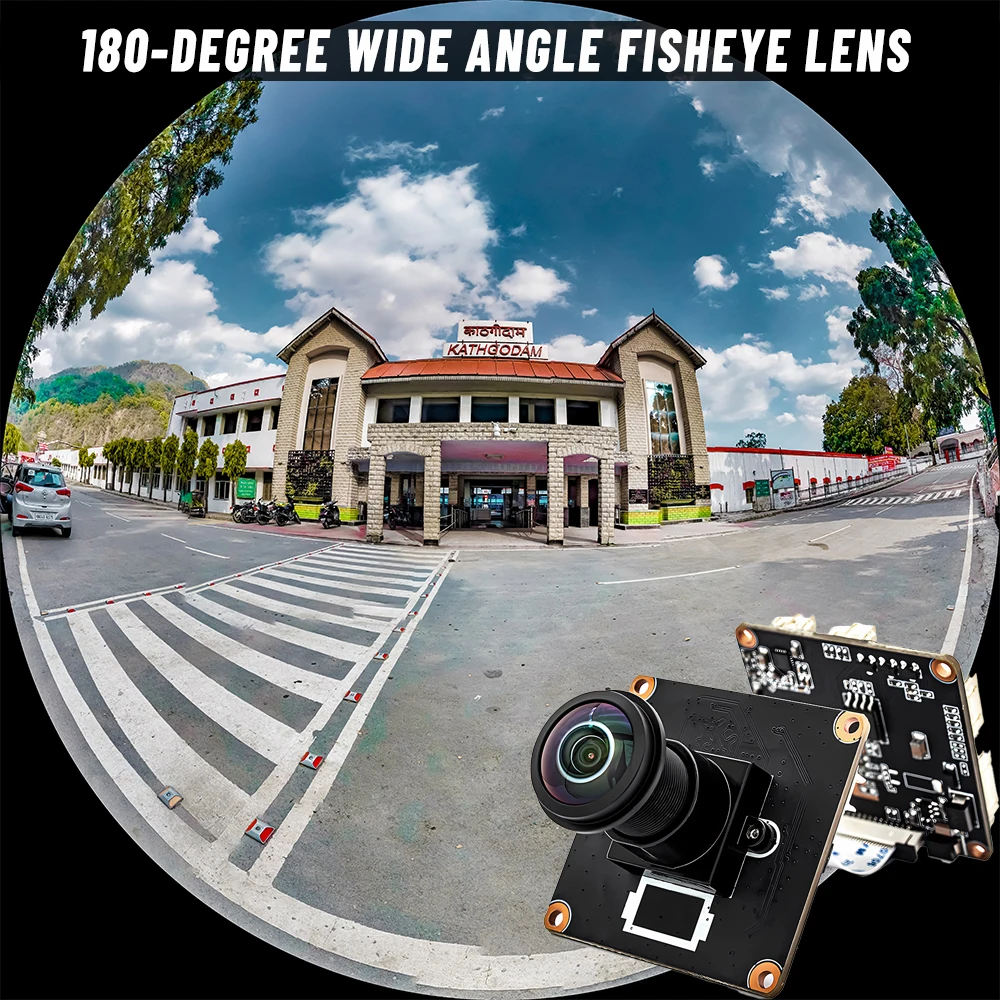

• Lens Configuration: Offers a variety of lens options, including distortion-free lenses and wide-angle lensesmeeting the needs of different scenarios.

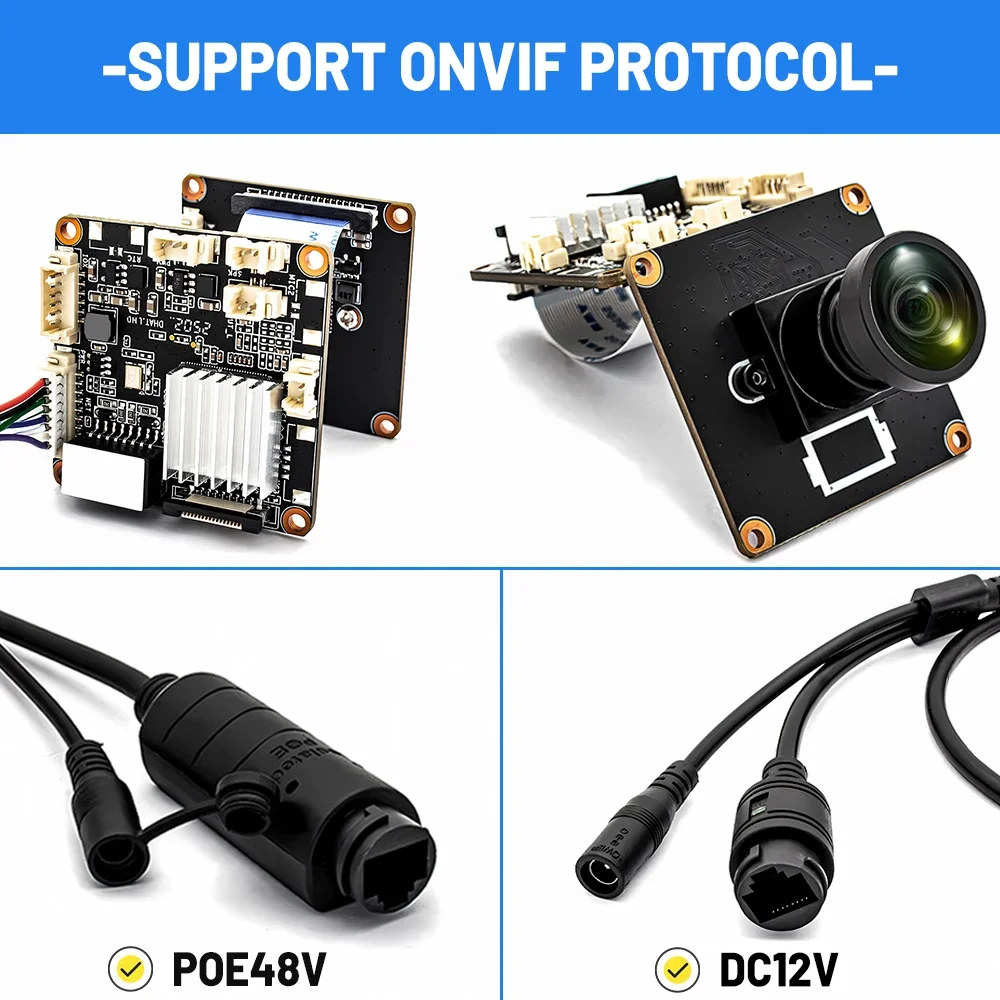

• POE48V Power Supply: Integrated Power over Ethernet (PoE) simplifies wiring, supports long-distance stable transmission, complies with IEEE 802.3af standards, offers strong compatibility, and is energy-efficient and environmentally friendly.

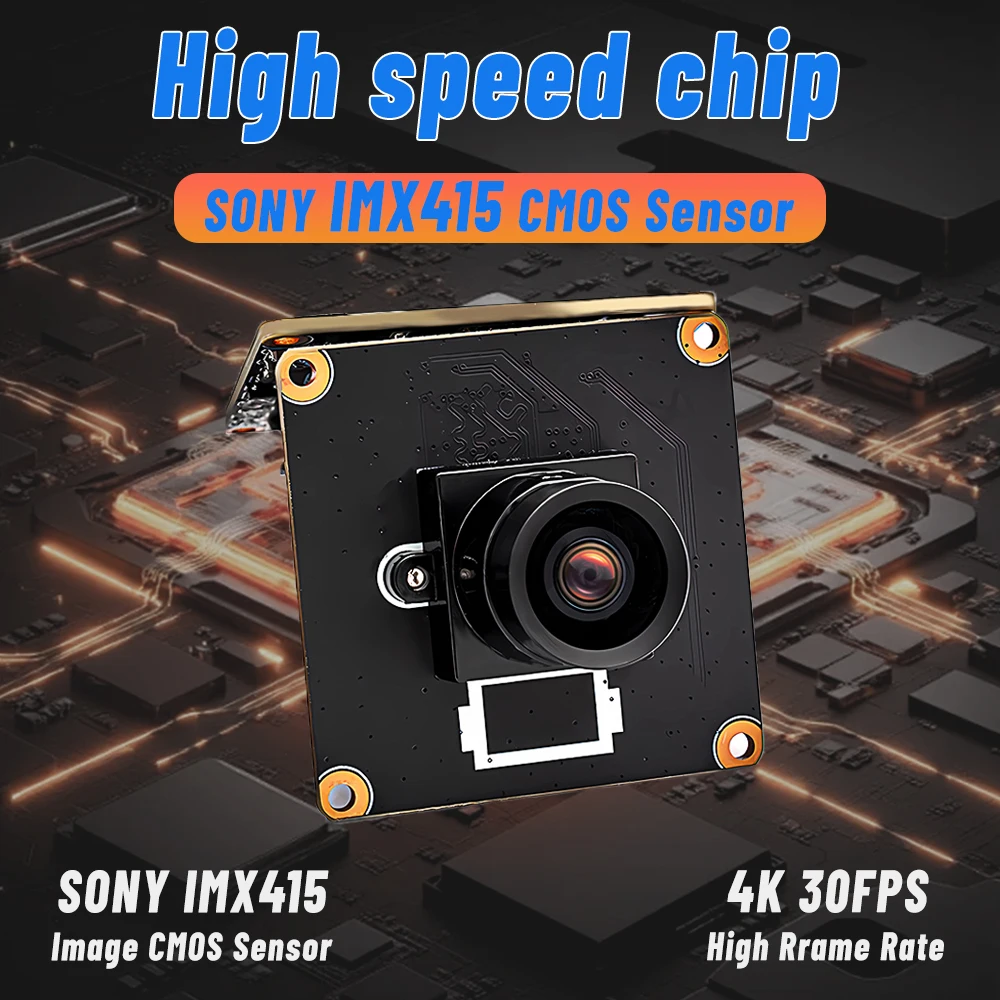

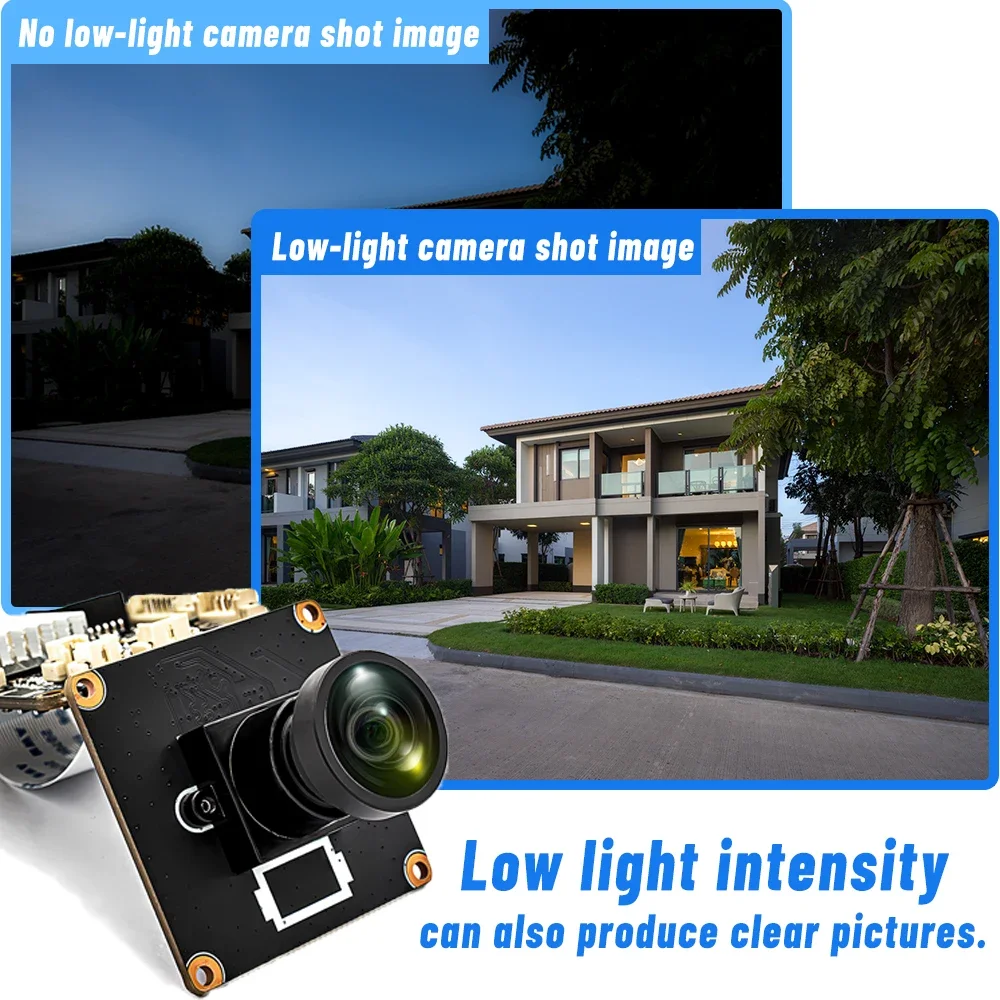

• Core performance: Equipped with a 1/2.8-inch CMOS sensor IMX415, with a minimum illumination as low as 0.0001 Lux (in color mode), and a wide dynamic range of 120dB, it remains clear in backlit and low-light environments.

1. Supports 2-channel video and 1-channel audio, two independent channels, 30 frames per second active video (8MP)

2. With 1T computing power

3. H.264/H.265/H.265+ video compression standard

4. G.711/G711A/AAC audio compression standard

5. Embedded Web Server, fully supports Internet Explore monitoring, configuration, and upgrade;

6. Deep perimeter: supports 4 defense modes: cross-border detection, entering the area, leaving the area, and area intrusion

7. Can classify and detect motor vehicles, non-motor vehicles, and pedestrians

8. Two-way audio real-time transmission on the Internet, video frame rate automatically adjusted according to bandwidth

9. Support DHCP, easily achieve dynamic IP address

10. Video bit rate 64Kbps-12Mbps continuously adjustable, frame rate (5-30) continuously adjustable;

11. Support IP filtering

12. Support sound linkage alarm and voice customization

13. Support OSD customization

14. Support automatic focus and pan/tilt

15. Support Safari, Chrome, Firefox, Opera, Edge browsers

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display,automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system,teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system,Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope,Medical auxiliary equipment, etc.

About computer operation and use

1. Make sure the camera is connected to the power supply and network

(the signal light flashes to prove that everything is normal)

2. Download the client to the computer:

(LMS) http://www.anjvision.com:8021/client/LMS_install_v5.4.0_20240725.exe

(AjDevTools) http://online.anjvision.com/client/AjDevTools_V5.8.6_20240711.exe

About RTSP

The RTSP URL format is as follows (assuming the IPC IP is 192.168.0.123):

Main stream: rtsp://admin:123456@192.168.0.123/stream0

Sub-stream: rtsp://admin:123456@192.168.0.123/stream1

above RTSP URL, if audio is turned on, the streaming data will contain video and audio.

If you only need video or audio data, use the following URL:

Main stream pure video: rtsp://admin:123456@192.168.0.123/video1

Sub-stream pure video: rtsp://admin:123456@192.168.0.123/ video2

pure audio: rtsp://admin:123456@192.168.0.123/audio

Step 1. Install LMS

http://www.anjvision.com:8021/client/LMS_install_v5.5.0_20250106.exe

Step 2. Login LMS

Login Password:123456

Step 3. Search for cameras connected to the local area network

Double-click the camera to add it

Step 4. Switch to the camera live view
