Product Description

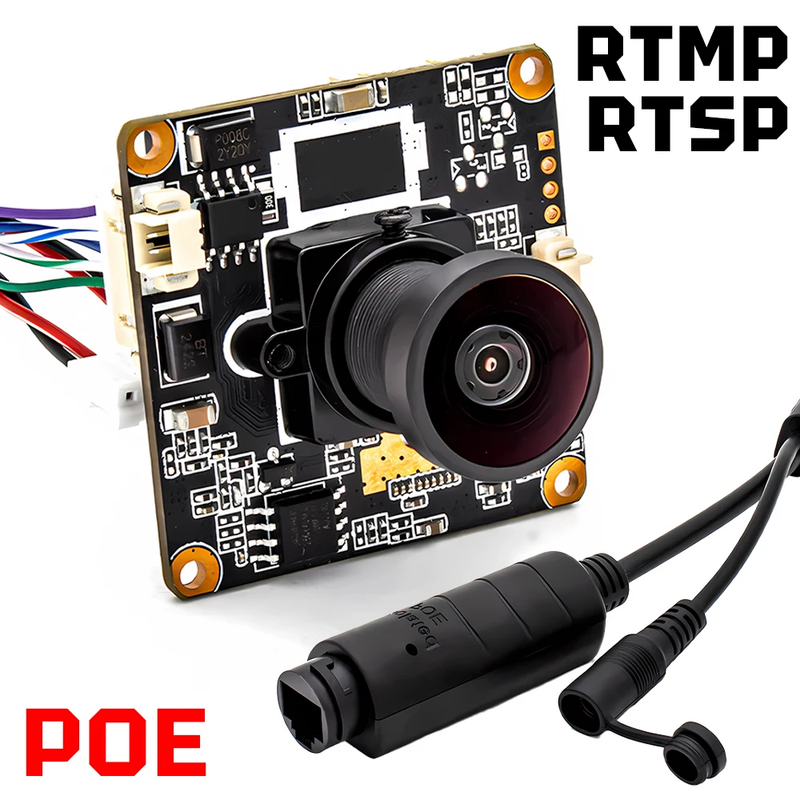

RTSP POE IP Camera Module 3MP 25FPS Webcam Board IMX307 CMOS With M12 Mount Lens Support Onvif RTMP Push Video Stream To Youtube
RTSP POE IP Camera Module 3MP 25FPS Webcam Board IMX307 CMOS With M12 Mount Lens Support Onvif RTMP Push Video Stream To YoutubeEnhance the flexibility and efficiency of your industrial applications by choosing our customizable industrial cameras! Whether it's the housing design, cable length, lens specifications, or special features, this camera can provide you with tailored solutions.
1. Not included Power Adapter, Please contact customer service if you need Power Adapter.（you can choose 48V POE to power on through Ethernet cable interface without the need for a power adapter) 2.Due to manual measurement, please allow an error of 2-3mm.
| Module. | WGWK-AS300 |
| Main chip | MSTAR SSC335 |
| Image Sensor | 1/2.8", 2 megapixel ultra-low illumination ceramic package CMOS Sony IMX307 |
| Minimum illumination | Color 0.01 Lux |
| Signal-to-Noise Ratio | ≥ 50 dB |
| Video Processing | P/N video format optional, support automatic white balance, support 3D noise reduction, support wide dynamic, support anti-face overexposure, support defogging function, H.264/H.265/H.265+ different encoding formats optional, achieve ultra-low storage, adjustable bit rate/frame rate, manual adjustment of shutter value |
| Image resolution | Main stream: 3MP@25fps, 1080P/720P/D1@30fps, Sub stream: D1/VGA/640*360/CIF@30fps Support CBR/VBR |
| Audio Processing | Audio linear input and output, G711U/G711A encoding, support two-way voice intercom |
| Network Interface | One RJ45, 10/100M adaptive Ethernet interface, 2KV lightning protection design |
| Protocol support | Supports HTTP/RTSP/DHCP/NTP/ONVIF/P2P and other network protocols, optional GB28181, RTMP and various NVR docking protocols |
| Storage | Supports 128G maximum storage, requires an SD card backplane |
| IO Interface | Support electric zoom and auto focus interface, need to be matched with zoom lens, zoom control panel and zoom program |
| Light board interface | Supports active mode and passive mode, and requires the corresponding light board to be used together |
| IRCUT Interface | Integrated IRCUT switching circuit, automatic/external control/manual/timing to control IRCUT day and night mode IE6.0 and above (device embedded Web Server) browser browsing Motion detection and OSD customization JPEG capture P2P cloud service (danale) IP filtering |
| Business Functions | Provide SDK (WINDOWS, Android, Linux) development kit Active infrared function Active warm light function Dual light source function License plate Automatic zoom PTZ linkage Support alarm sound linkage and the sound can be customized |
| General parameters | DC12V/POE, 1.2W Max, 38(L) * 38(W) *15(H)mm (without lens), 0.06kg |
| Operating temperature | -30~85℃ |
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.
1. Make sure the camera is connected to the power supply and network(the signal light flashes to prove that everything is normal)
2. Download the client to the computer:(LMS)
http://www.anjvision.com:8021/client/LMS_install_v5.4.0_20240725.exe(AjDevTools) http://online.anjvision.com/client/AjDevTools_V5.8.6_20240711.exe
3.APP download: Search AC18Pro in Apple Store; Scan QR code download
About RTSPThe RTSP URL format is as follows (assuming the IPC IP is 192.168.0.123):
Main stream: rtsp://admin:123456@192.168.0.123/stream0
Sub-stream: rtsp://admin:123456@192.168.0.123/stream1
above RTSP URL, if audio is turned on, the streaming data will contain video and audio.
If you only need video or audio data, use the following URL:
Main stream pure video: rtsp://admin:123456@192.168.0.123/video1
Sub-stream pure video: rtsp://admin:123456@192.168.0.123/ video2
pure audio: rtsp://admin:123456@192.168.0.123/audio
Step 1. Install LMSContact customer service to obtain the LMS installation package.
Step 2. Login LMSLogin Password:123456
Step 3. Search for cameras connected to the local area networkDouble-click the camera to add it
Step 4. Switch to the camera live view
