Product Description

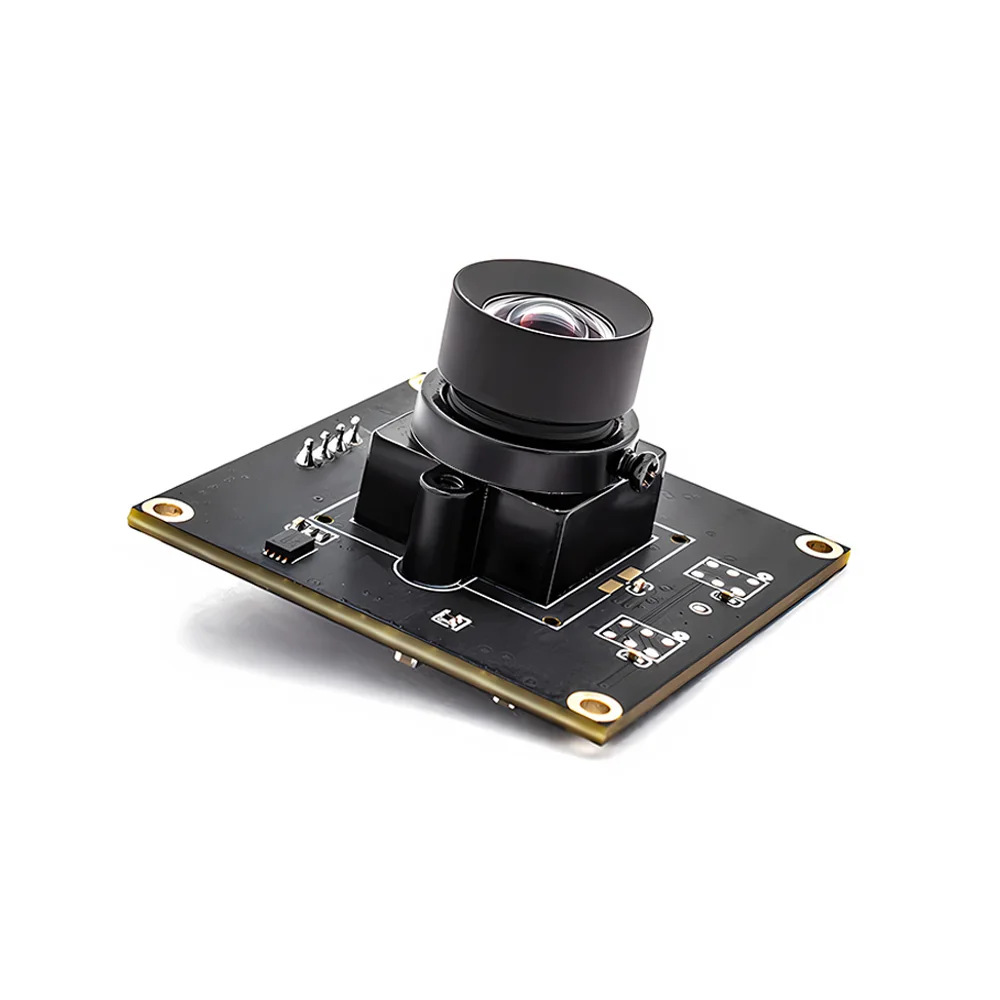

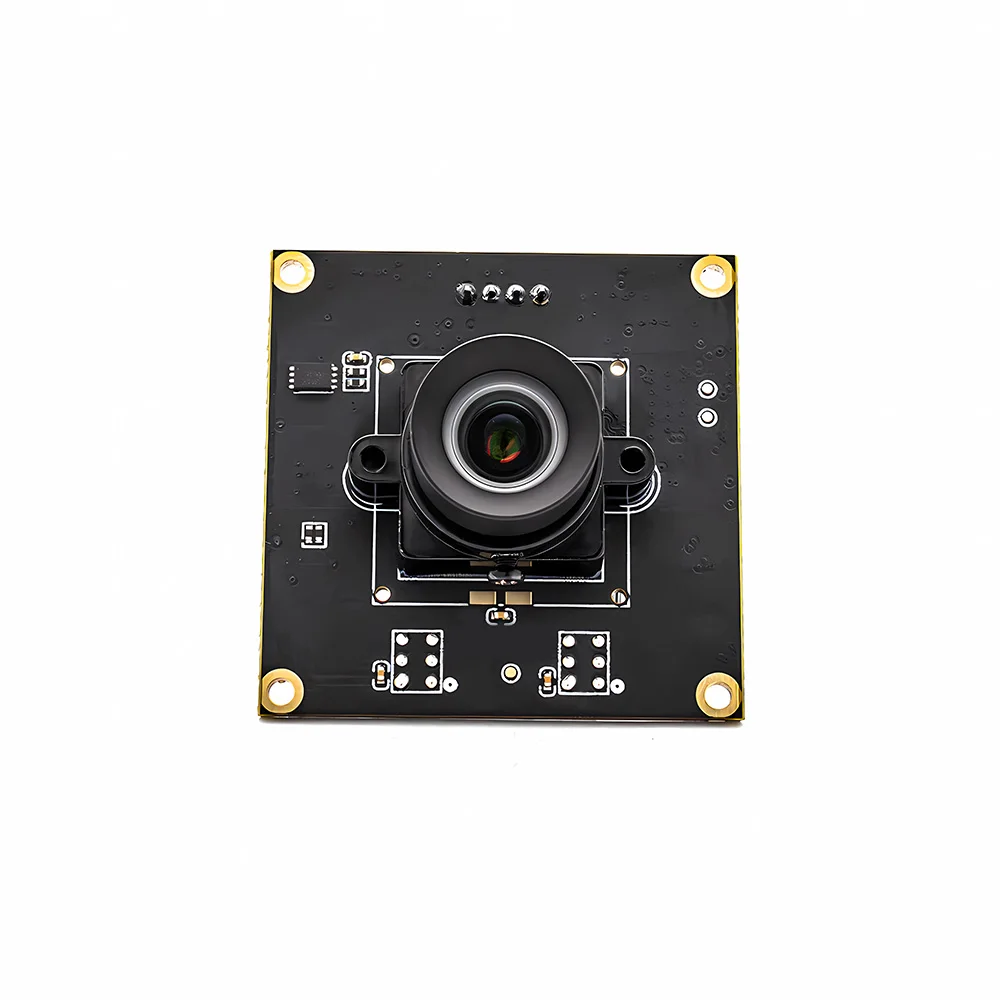

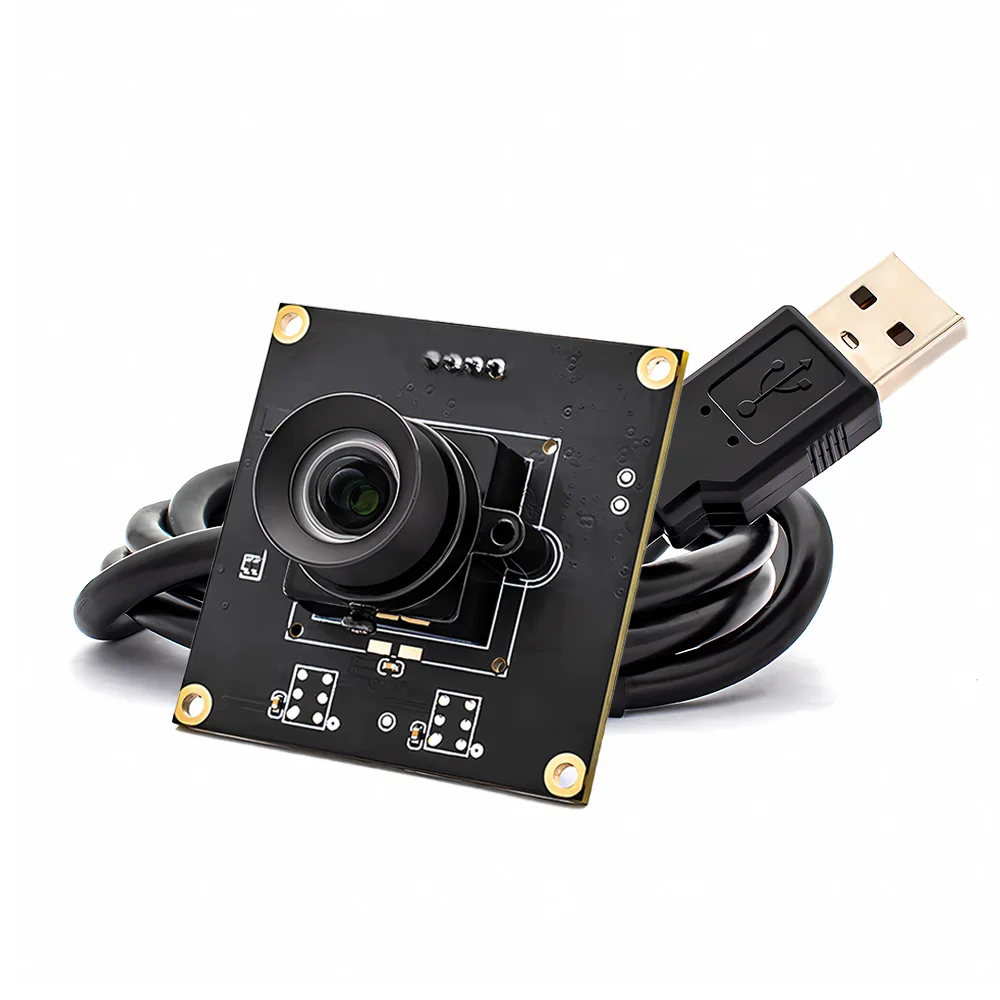

IMX662 USB Camera Module HD 1080P 60FPS High Speed Motion Camera Board With No Distortion Lens Plug Play For Live Video Meeting
IMX662 USB Camera Module HD 1080P 60FPS High Speed Motion Camera Board With No Distortion Lens Plug Play For Live Video MeetingIMX662 USB Camera Module HD 1080P 60FPS High Speed Motion Camera Board With No Distortion Lens Plug Play For Live Video Meeting
1080P60FPS, smooth and without lag
The module features a high-performance CMOS sensor, supporting a full HD resolution of 1920×1080 and a frame rate of up to 60FPS, ensuring that dynamic images are smooth and free of motion blur.
Paired with MJPEG/H.264 dual compression formats, it maintains image quality while reducing bandwidth requirements, making it suitable for real-time video transmission, motion capture, and other scenarios.
The module is compatible with USB 2.0 interfaces, plug-and-play (UVC compliant), requiring no additional drivers, and supports multiple systems including Windows, Linux, Android, and Mac, easily usable with mobile OTG connections.
Smooth 60FPS Frame Rate: Capture dynamic scenes at a high frame rate of 60 frames per second, ensuring smooth footage during motion shooting and significantly reducing motion blur.
UVC Plug-and-Play: Plug and play with broad compatibility across operating systems, requiring no additional drivers, making it convenient and time-saving.
Advantages for Mobile Shooting: Designed specifically for mobile shooting, it easily handles walking, running, or other dynamic scenes.
High-Speed Capture Without Motion Blur: Advanced image processing technology allows you to capture clear images of fast-moving subjects without worrying about motion blur interference.
| Model. | WGWK-U662 | |

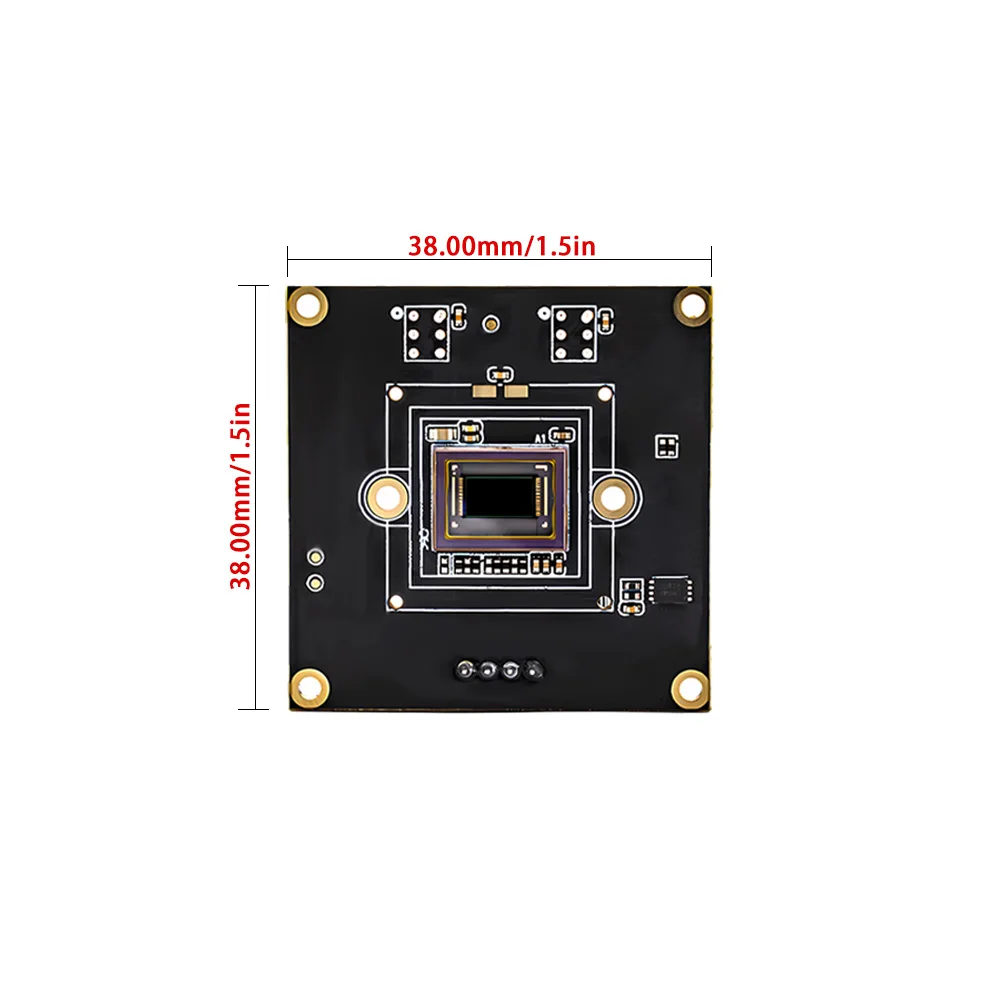

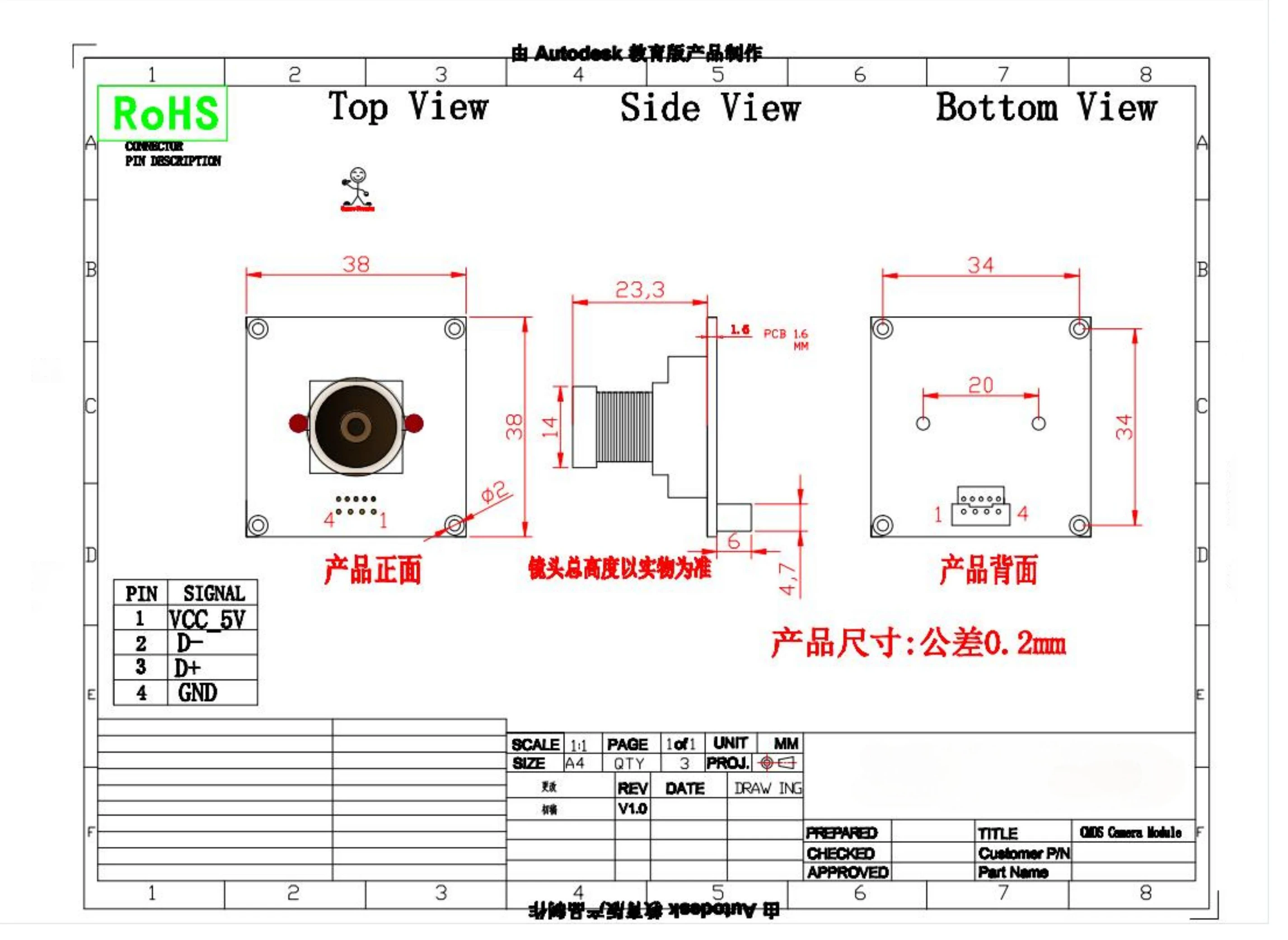

| Module Size | 38x38mm 23.3±0.2mm | |
| Sensor | 1/2.8-Inch CMOS-IMX662 2MP | |
| Pixel Size | 2.9μm x2.9μm | |
| Resolution | 1920 H x 1080 V | |
| Output Format | MJPEG, YUV2 | |
| FOV | Auto Focus:90 Degree, Manual and Fixed: TBD | |

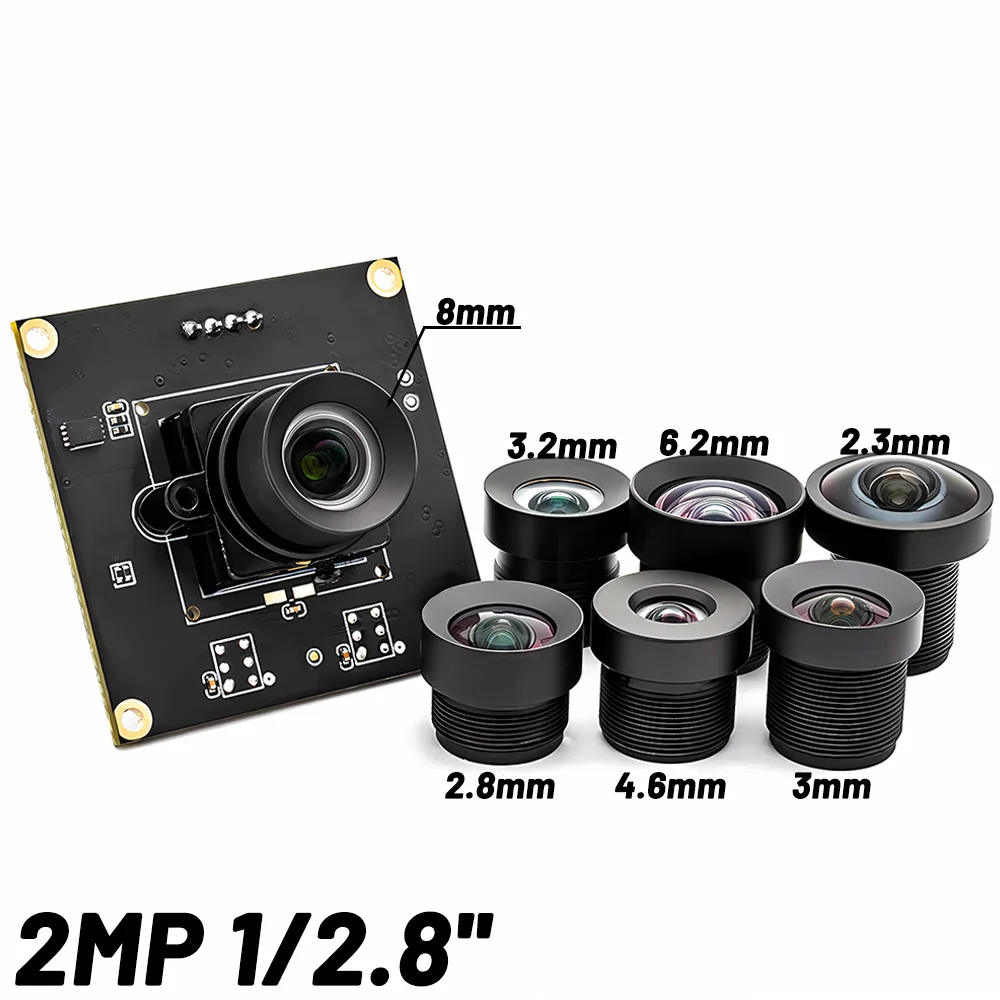

| Lens | 650nmIR (EFL:3.24mm F/no:2.7) | |
| Focus Type | FF | |
| Shutter Type | Electronic Rolling shutter | |
| Audio Input | Not supporting audio | |
| Output and Power Supply | High Speed USB2.0 | |
| USB Interface | 4PIN 2.0MM | |
| Controllable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure | |
| Supported OS | Windows, Android, Linux, Wince, | |

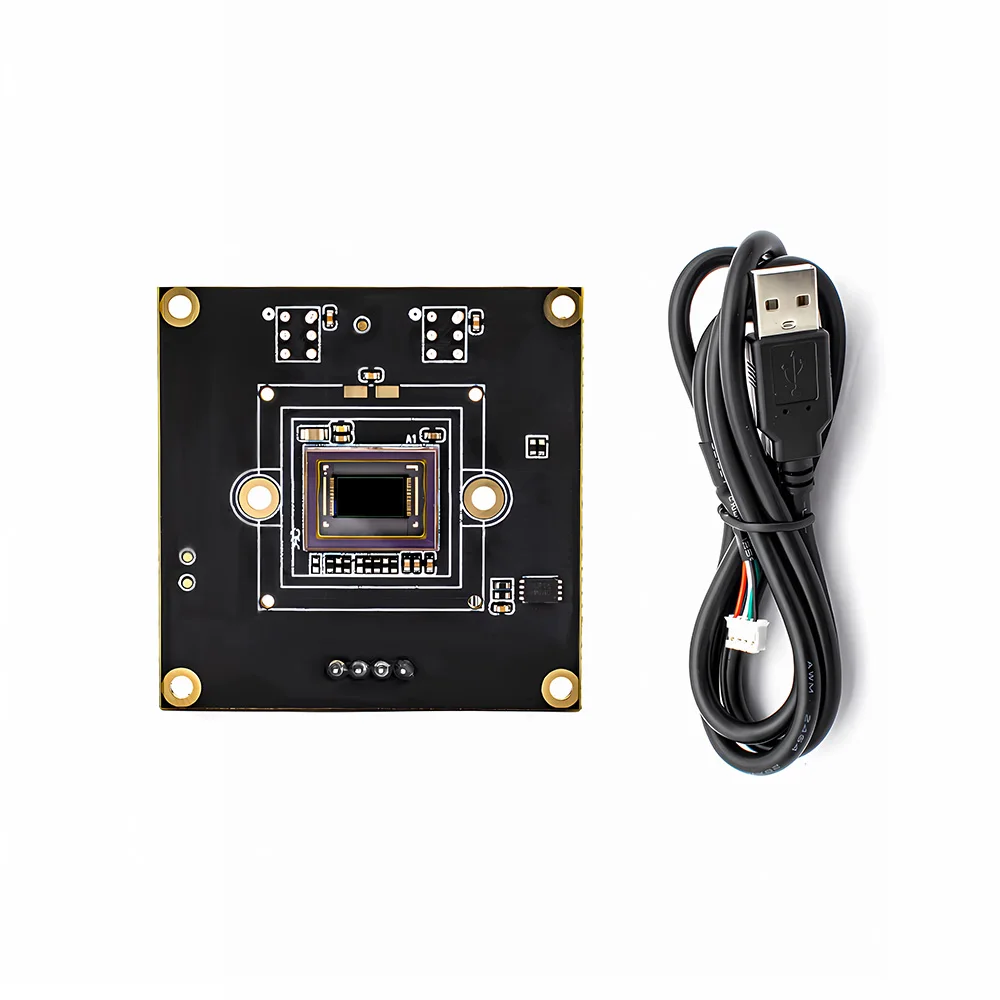

| Cable Length | Default 1.0 Meter USB Cable | |
| Output Image Format | MJPEG / YUV | |
| Supported Resolutions And Frame Rates | 1920*1080@60fps MJPEG 1280*960@60fps MJPEG 1280*720@60fps MJPEG 1024*768@60fps MJPEG 800*600@60fps MJPEG 640*480@60fps MJPEG 320*240@60fps MJPEG | 1920*1080@5fps YUV 1280*960@5fps YUV 1280*720@10fps YUV 1024*768@10fps YUV 800*600@20fps YUV 640*480@30fps YUV 320*240@60fps YUV |
| PIN Pin No. | Signal Name | Description |
| 1 | VCC | 5V Power |
| 2 | DM | USB2.0 Data+ |
| 3 | DP | USB2.0 Data- |
| 4 | GND | GND |
| Operating Voltage | USB DC +5V Supply | |
| Operating Current | 100Ma-180M a 士 5mA | |
| Operating Temperature | -15℃ ~ 60℃ | |
| Storage Temperature | -20℃ ~ 85℃ | |
| Humidity | 80 ~85% |
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display,automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system,teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system,Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope,Medical auxiliary equipment, etc.
Step 1: Install Computer USB Camera Software - amcaphttps://drive.google.com/file/d/1ZpJSSVhLD2qGCQusnFoF1JI5uW6IqkBR/view?usp=sharing
Step 2: Connect the computer using a USB cable.
Step 3: Adjust the focal length to achieve a clear image.
