Product Description

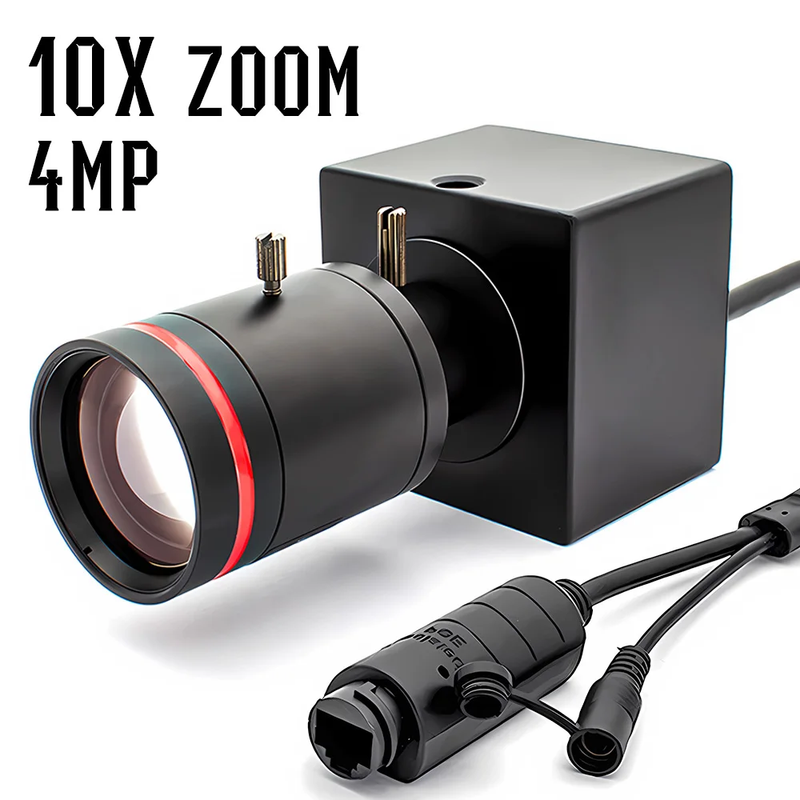

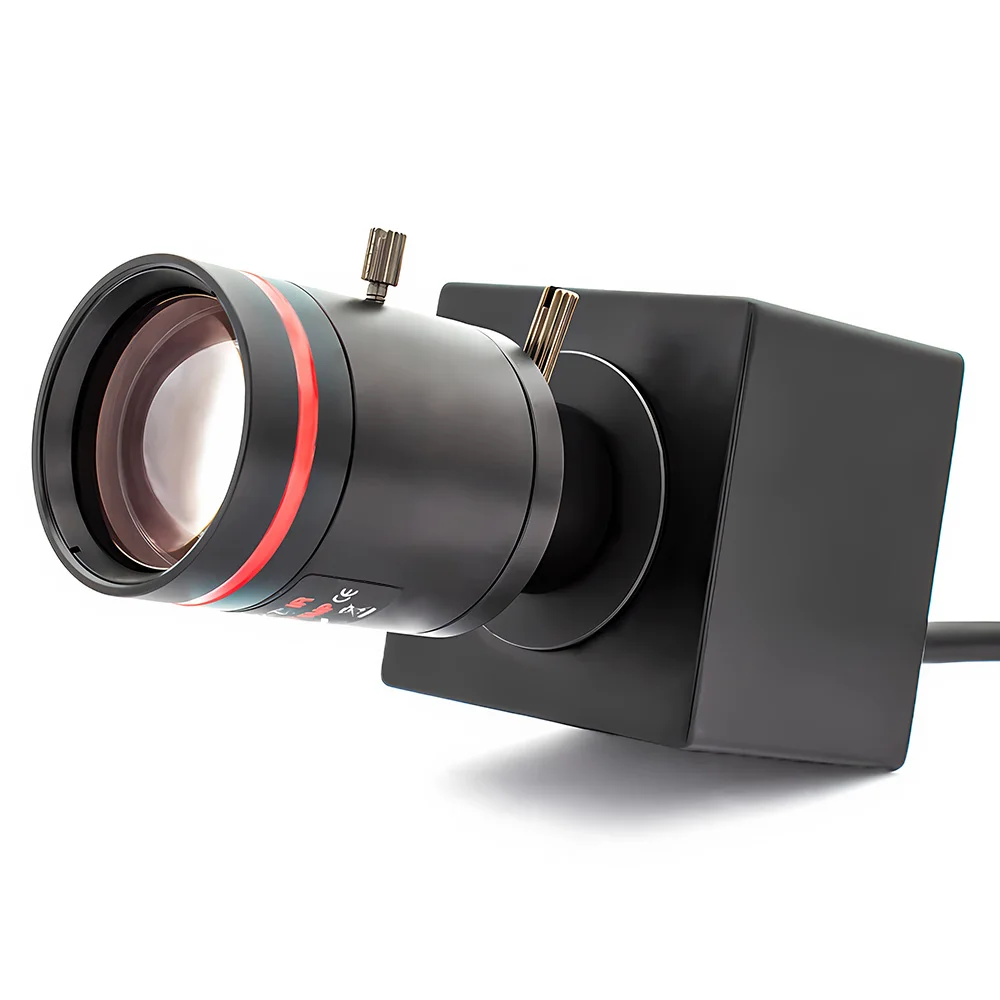

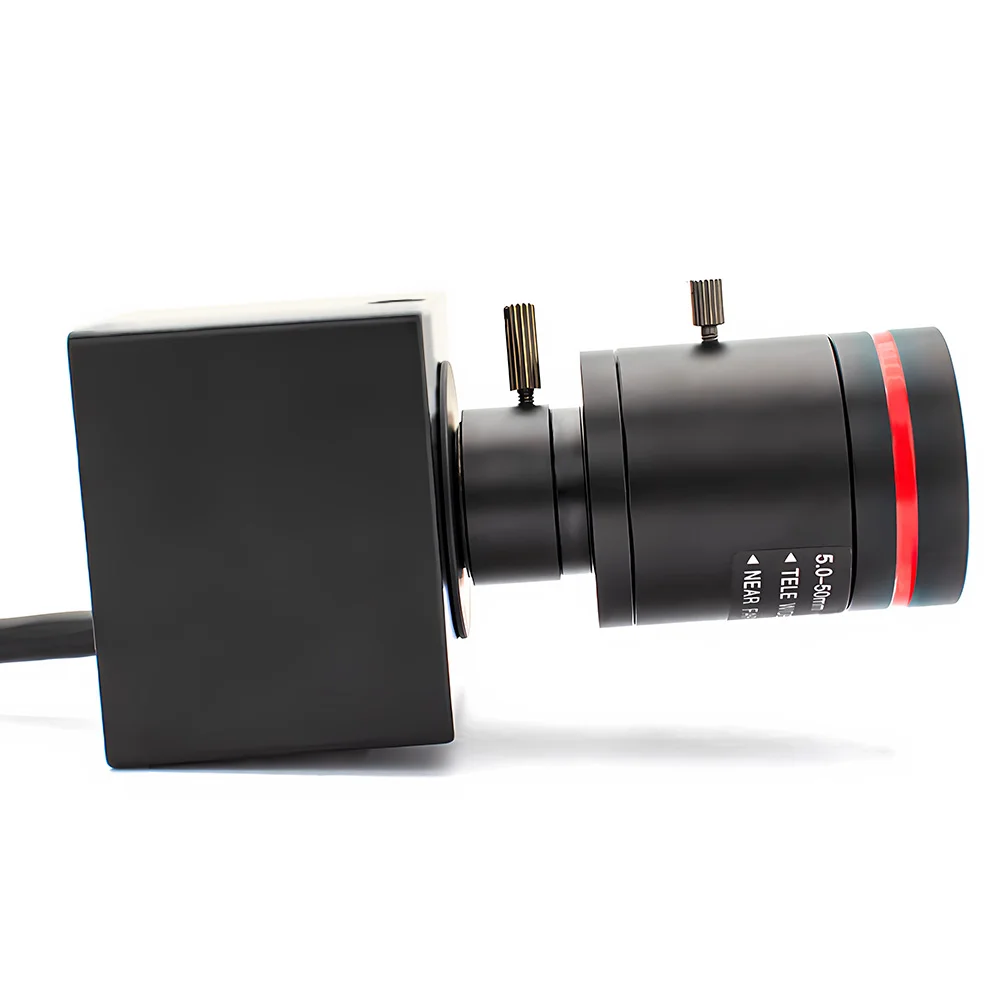

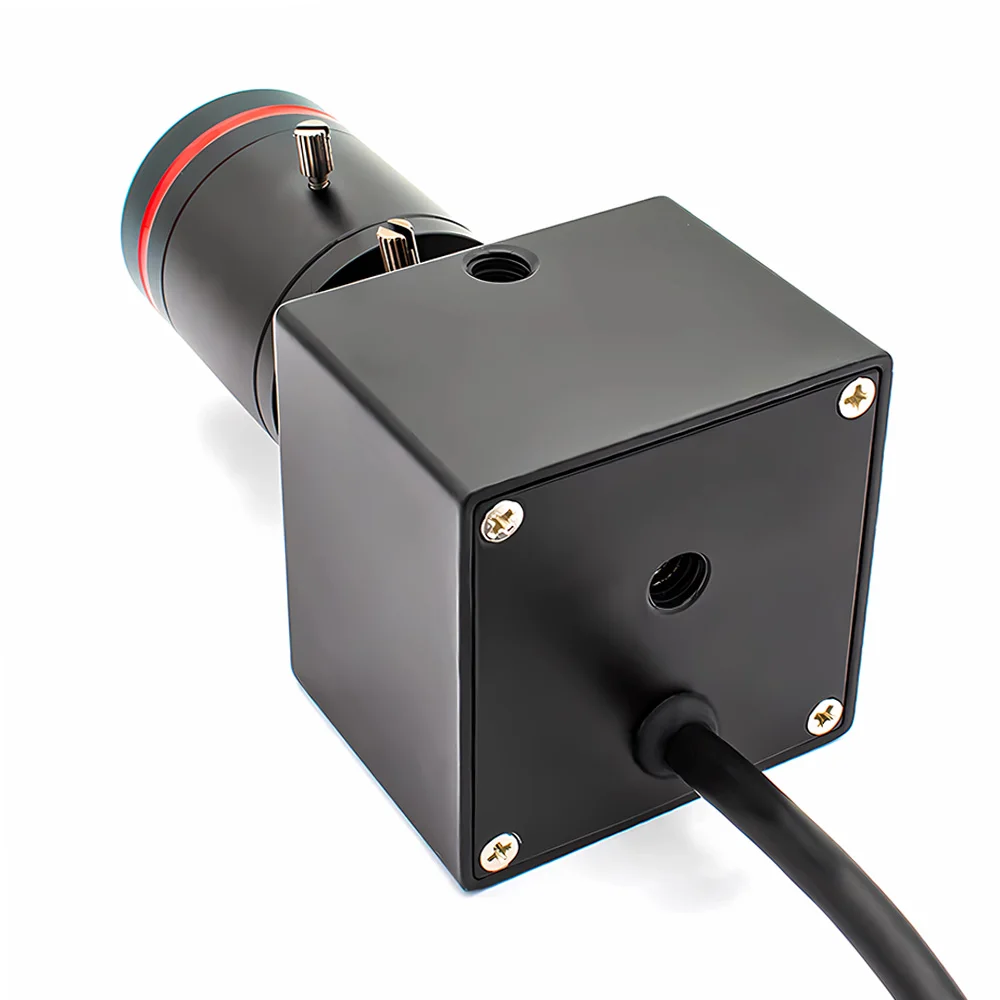

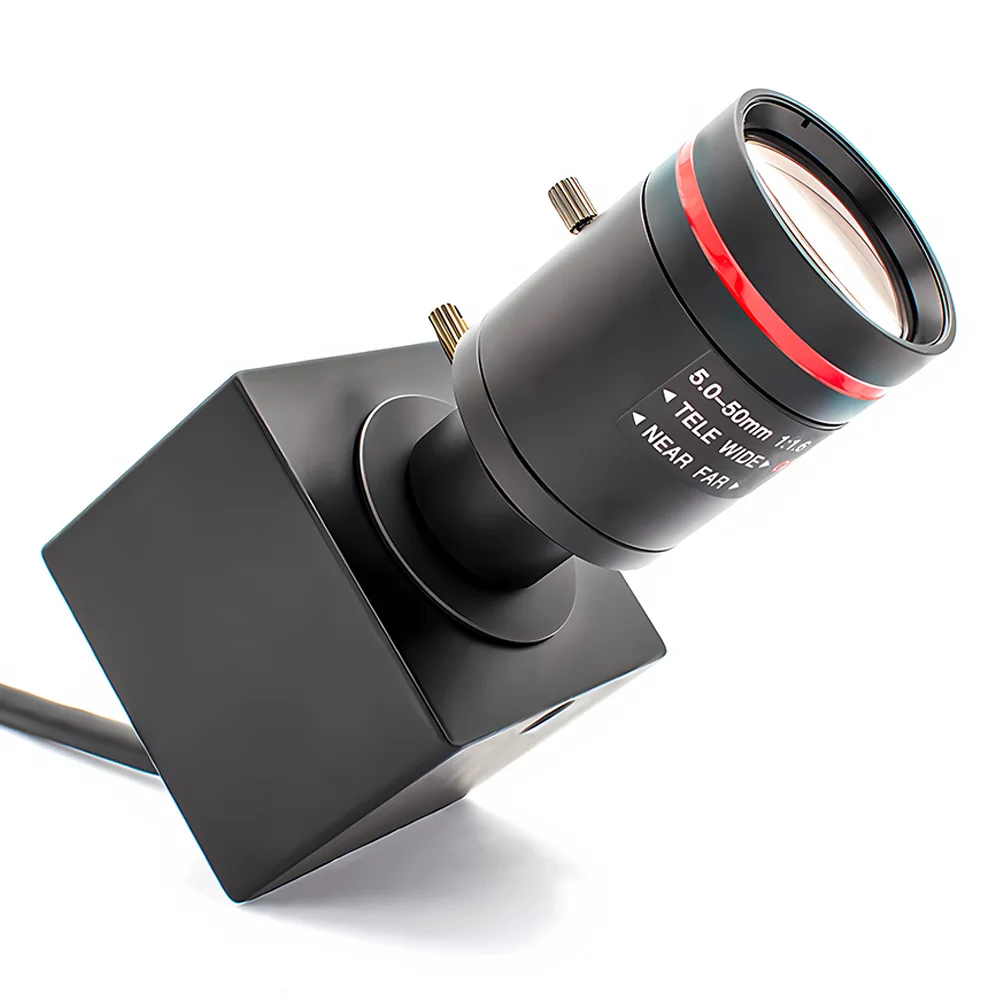

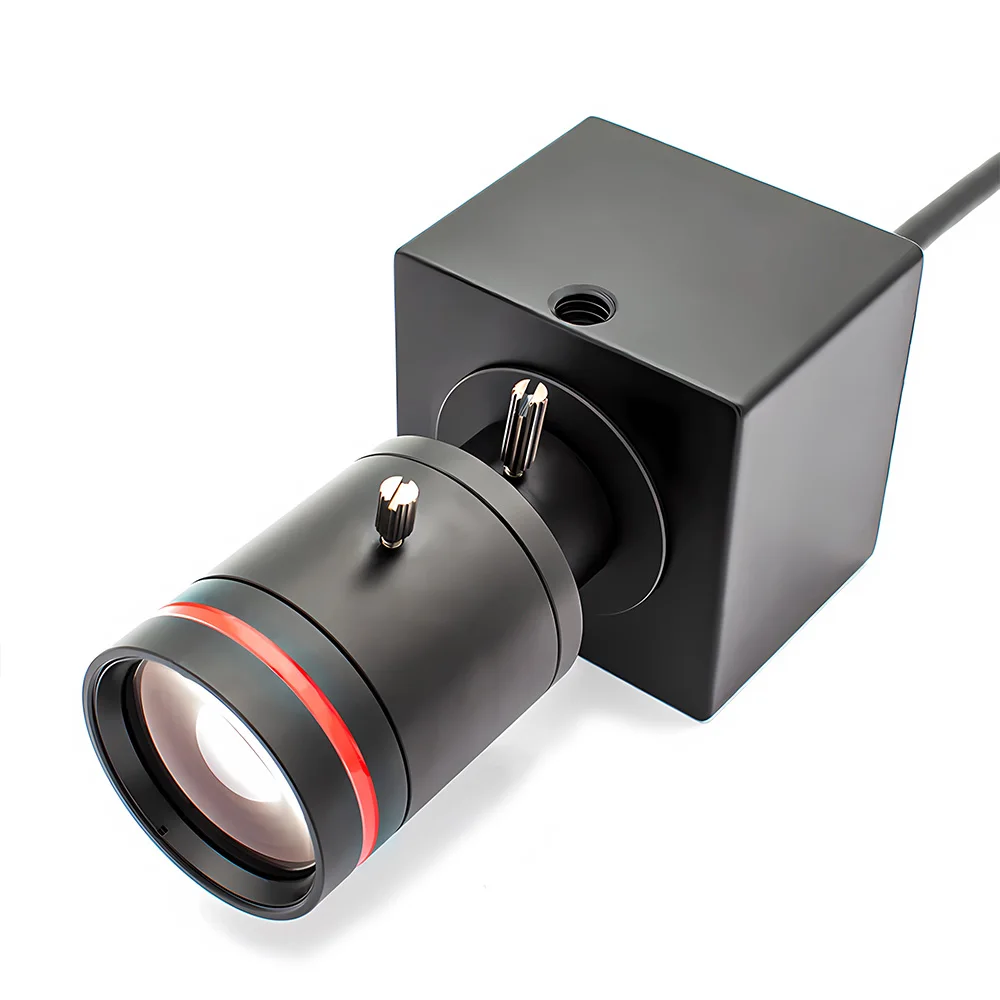

POE IP Camera 2/4MP Industrial Indoor HD Security Onvif RTSP CCTV System Video Surveillance Camera With 10X Zoom Varifocal Lens
POE IP Camera 2/4MP Industrial Indoor HD Security Onvif RTSP CCTV System Video Surveillance Camera With 10X Zoom Varifocal LensPOE IP Camera 2/4MP Industrial Indoor HD Security Onvif RTSP CCTV System Video Surveillance Camera With 10X Zoom Varifocal Lens
Color: black
Material: Metal
Encoding Format: H.265、H.264
Minimum illumination: COLOR 0.05Lux@F1.2;BLACK AND WHITE 0.005Lux@F1.2
Image Resolution: 2560x1440, 1-25 fps 2304x1296, 1920x1080, 1280x720, 1-30 fps

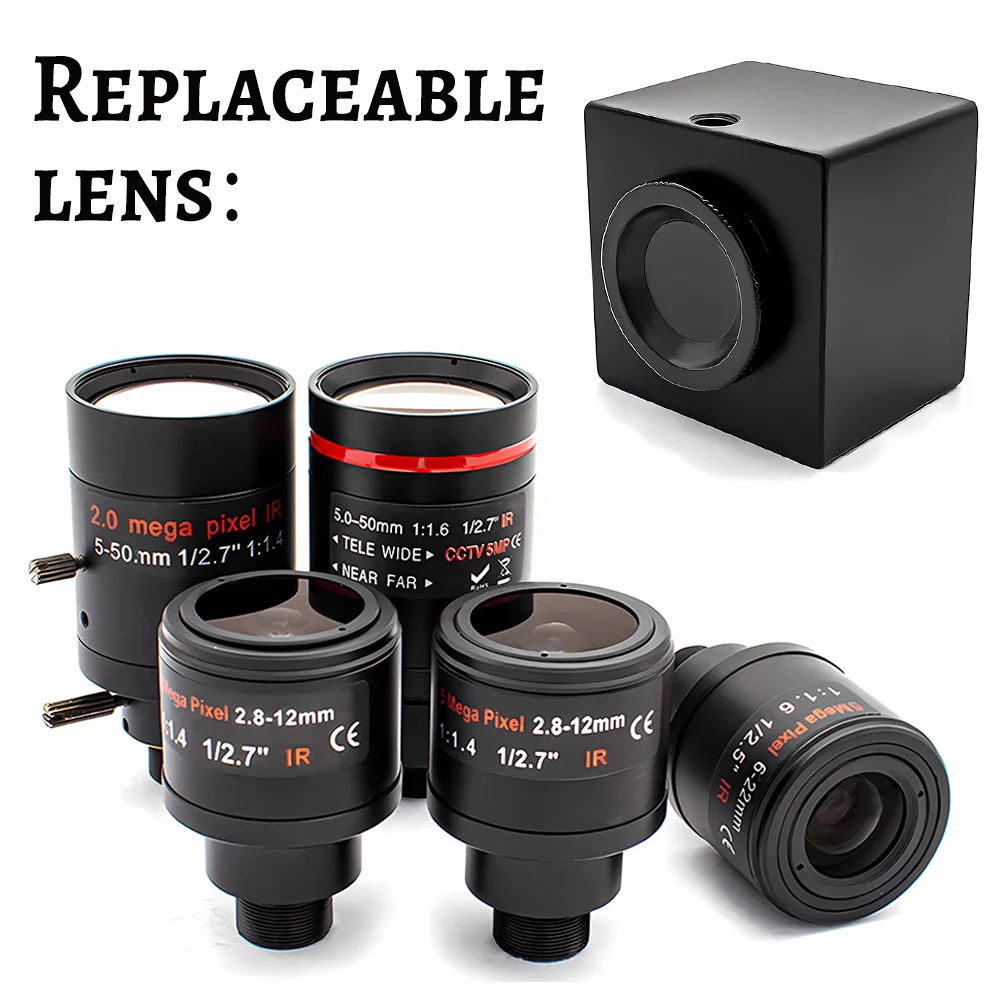

Lens: Lens
Power Supply： DC12V/120mA
(Not included Power Adapter, Please contact customer service if you need Power Adapter).
| Specifications | WGWK-H200 |
| Chipset | Fullhan 3MP solution main controller + 1/3" 3MP CMOS |
| Minimum Illumination | Color 0.05Lux@F1.2; Black and White 0.005Lux@F1.2; |
| Signal-to-Noise Ratio | ≥50db(AGC OFF) |
| Wide Dynamic Range | Digital wide dynamic range; >80dB |
| Audio Input | Audio MIC input |
| Audio Output | Onboard analog audio output is not supported. |
| Light Panel Functions | CDS Hard Infrared, Soft Infrared, Soft White Light (Soft Photosensitive with PWM Support) |
| IO Functions | IRCUT, Reset |
| Others | / |
| Encoding Format | Smart H.264 |
| Main Stream | 2304*1296, 1-15 frames/second; 1920*1080, 1280*720, 1-20 frames/second |
| Secondary Stream | 704*576, 800*448, 640*480, 640*360, 352*288, 1-20 frames/second |
| Video Compression Bitrate | 128Kbps-8192bps continuously adjustable |
| Character Overlay | Supports channel name, date and time, bitrate, resolution, and character overlay. |
| Data Storage | Videos and pictures |
| Storage Mechanism | Loop recording, alarm recording |
| Alarm Data Transmission | Browser, management software |

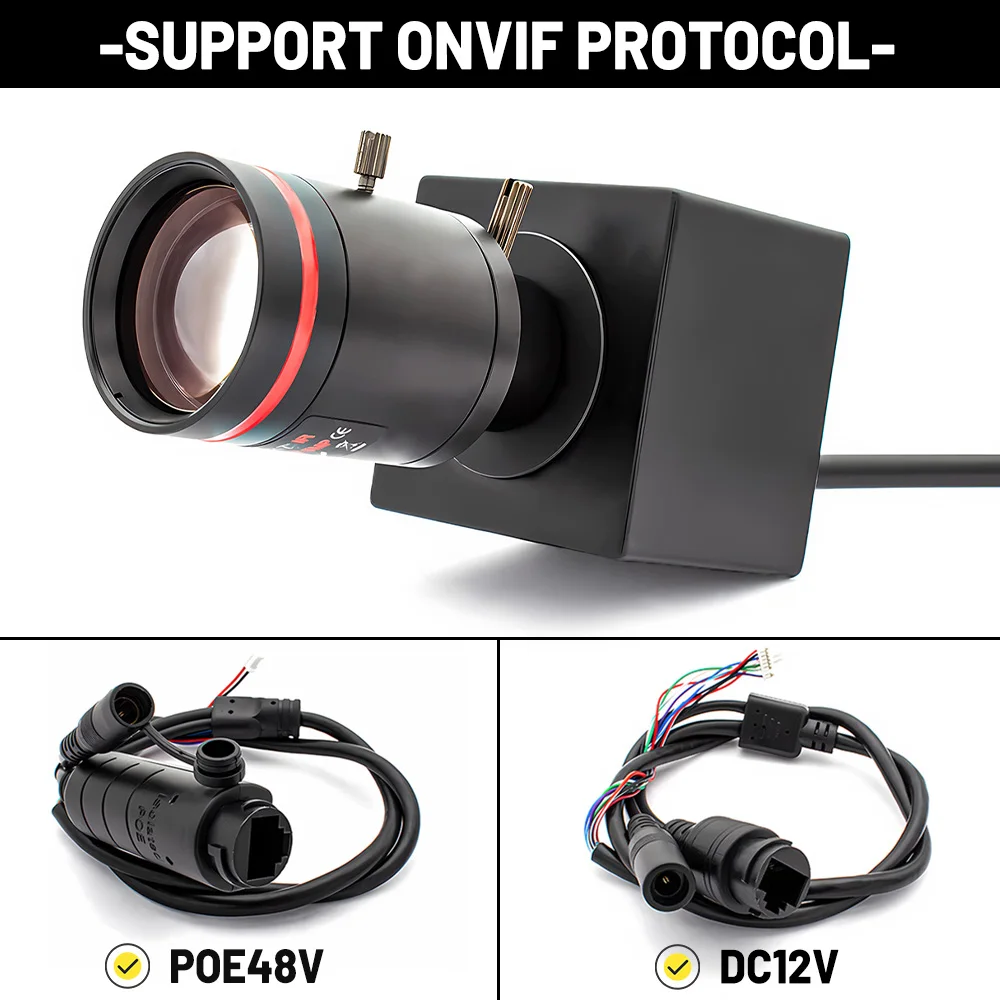

| Supported Protocols | RTSP/HTTP/FTP/NTP/ONVIF and other protocols |
| Client Browsing | Supports browsing with IE6.0 and above, and client browsing. |
| Mobile Client | Supports iOS and Android platforms. |
| Operating Temperature | -30℃ - +60℃ |
| Operating Humidity | 0% - 90% |
| Power Supply | DC12V / 110mA |
| Device Power | 1.3W |
| Device Dimensions | 32* 32* 10mm |
| Device Weight | 10g |
| Model | WGWK-H400 |
| Chipset | Fullhan 2K solution controller + 1/2.9" 4MP CMOS |
| Minimum Illumination | Color 0.05Lux@F1.2; Black and White 0.005Lux@F1.2; |
| Signal-to-noise ratio | ≥50db(AGC OFF) |
| Wide dynamic range | Digital wide dynamic range; >80dB |
| Audio input | Audio MIC input |
| Audio output | Onboard analog audio output is not supported. |
| Light Panel Functions | CDS Hard Infrared, Soft Infrared, Soft White Light (Soft Photosensitive with PWM Support) |
| IO Functions | IRCUT, Reset |
| Others | / |
| Encoding Format | H.265 、H.264 |
| Main Stream | 2560*1440, 1-25 frames/second; 2304*1296, 1920*1080, 1280*720, 1-30 frames/second |
| Secondary Stream | 704*576, 640*480, 640*360, 352*288, 1-30 frames/second |
| Video Compression Bitrate | 128Kbps-8192bps continuously adjustable |
| Character Overlay | Supports channel name, date and time, bitrate, resolution, and character overlay. |
| Data Storage | Videos and pictures |
| Storage Mechanism | Loop recording, alarm recording |
| Alarm Data Transmission | Browser, management software |
| Supported Protocols | RTSP/HTTP/FTP/NTP/ONVIF and other protocols |
| Client Browsing | Supports browsing with IE6.0 and above, and client browsing. |
| Mobile Client | Supports iOS and Android platforms |
| Operating Temperature | -30℃ - +60℃ |
| Operating Humidity | 0% - 90% |
| Power Supply | DC12V / 110mA |
| Device Power | 1.3W |
| Device Dimensions | 32* 32* 10mm |
| Device Weight | 10g |
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display,automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system,teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system,Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope,Medical auxiliary equipment, etc.
About computer operation and use
1. Make sure the camera is connected to the power supply and network
(the signal light flashes to prove that everything is normal)
2. Download the client to the computer:
(HVS) https://drive.google.com/drive/folders/1gHl6wqjsjIEc-RJ3ZiKbq-Mta_Xa1vgj?usp=sharing
(AjDevTools) http://online.anjvision.com/client/AjDevTools_V5.8.6_20240711.exe
About RTSP
The RTSP URL format is as follows (assuming the IPC IP is 192.168.0.123):
Main stream: rtsp://192.168.0.123:554/stream1
Sub-stream: rtsp://192.168.0.123:554/stream2
About Computer Software—HVS:
Step 1. Install HVS
https://drive.google.com/drive/folders/1gHl6wqjsjIEc-RJ3ZiKbq-Mta_Xa1vgj?usp=sharing
Step 2. Login HVS
Step 3. Search for cameras connected to the local area network
Remotely configure the camera:
