Waveshare ESP32-P4-NANO ESP32-P4 RISC-V MCU Bluetooth5/BLE Wi-Fi6 32MB PSRAM 16

Product Description

Description

Based on ESP32-P4 chip with RISC-V dual-core and single-core processors

Rich Human-machine Interfaces

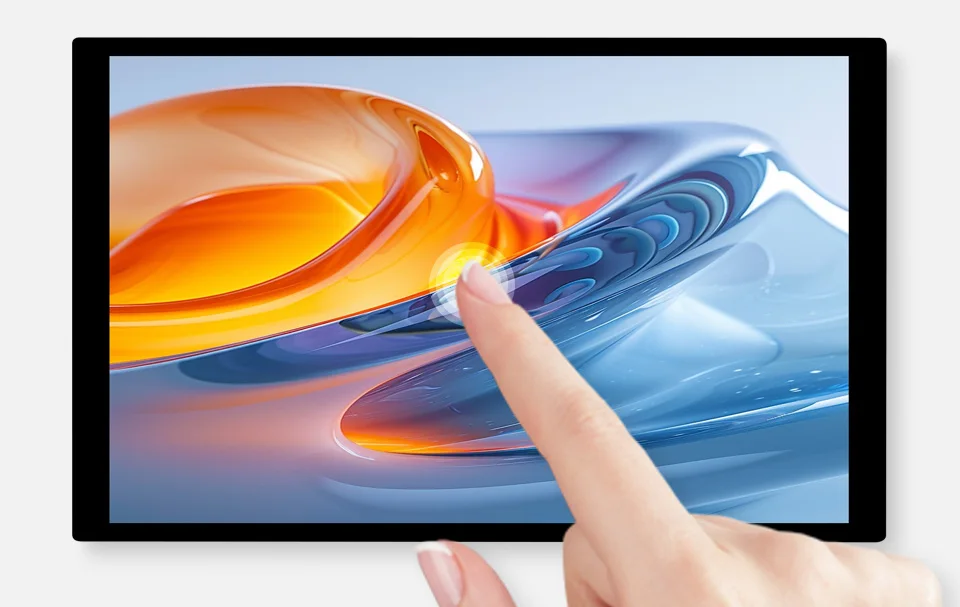

IPS Screen, Optical Bonding Toughened Glass Panel, 800×1280 Resolution, With 178° Wide Viewing Angle. Supports 10-Point Touch, provides clear image and excellent visual experience

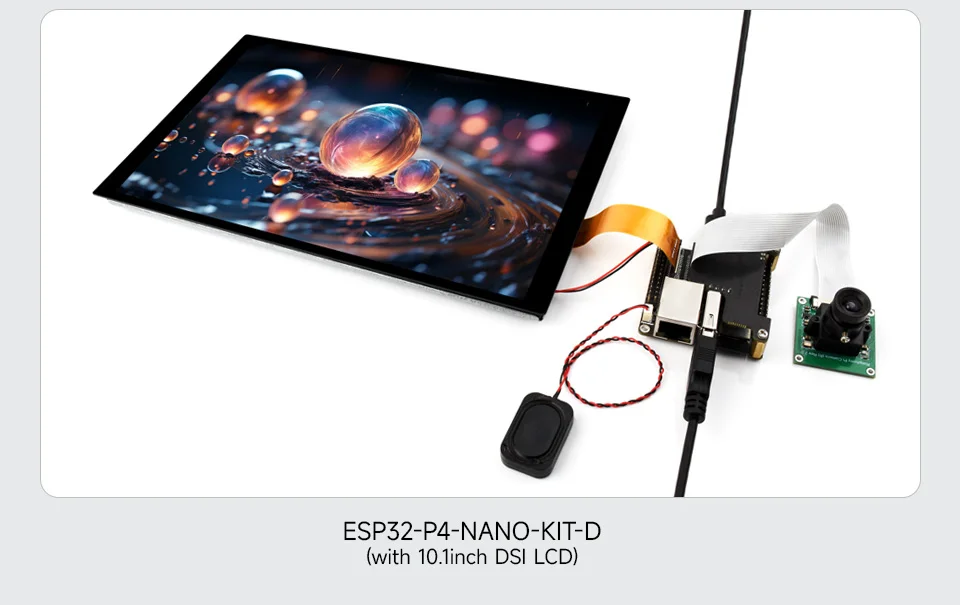

* the 10.1inch DSI LCD is only included in the ESP32-P4-NANO-KIT-D

5MP | Manual Focus

Compatible with Raspberry Pi series boards

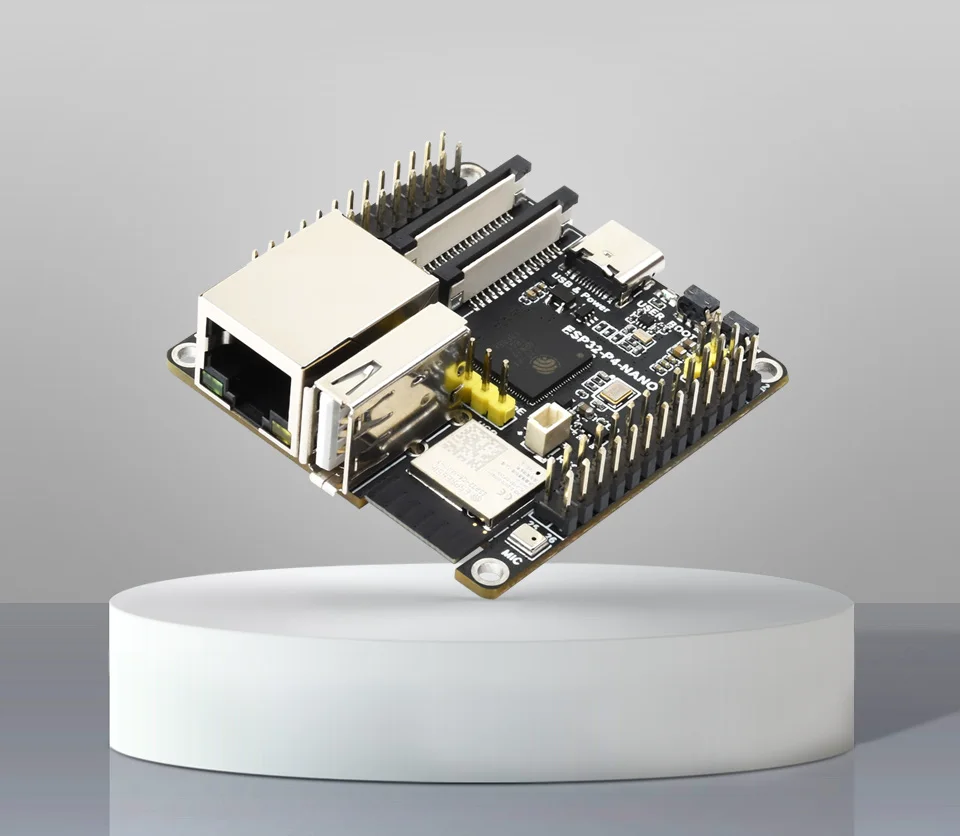

This product is a high-performance development board based on the ESP32-P4 chip with RISC-V dual-core and single-core processors, and features rich Human-Machine Interfaces, including MIPI-CSI (with integrated Image Signal Processor) and MIPI-DSI interface. It supports a comprehensive range of commonly used peripherals including SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, and TWAI. Additionally, it offers support for USB OTG 2.0 HS, Ethernet, and SDIO Host 3.0, facilitating high-speed connectivity.

The ESP32-P4 chip integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, the ESP32-P4-NANO meets the advanced requirements of Human-Machine Interfaces, efficient edge computing, and increased IO-connectivity.

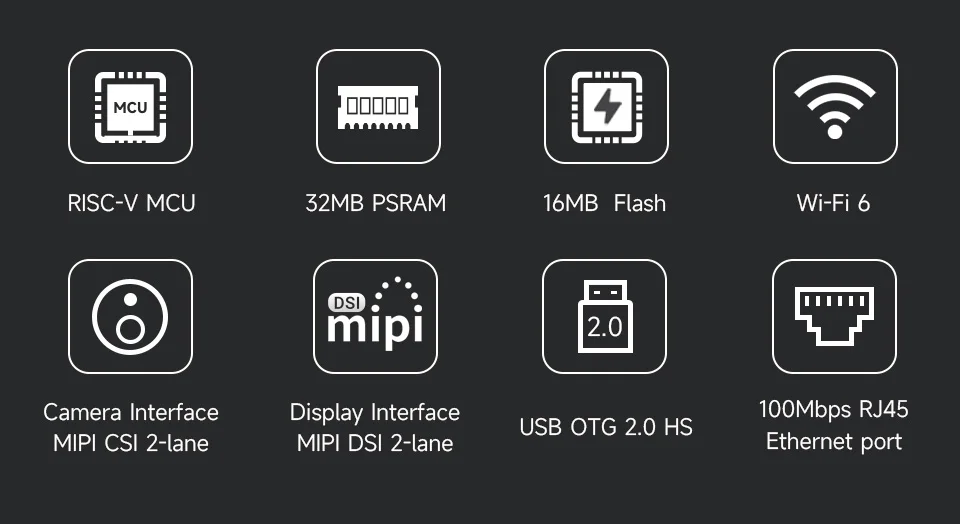

Key features include:

• High-performance MCU with RISC-V 32-bit dual-core and single-core processors

• 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM

• Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder

• 32MB PSRAM in the chip's package, with onboard 16MB Nor Flash

• Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC battery header, etc.

• Adtaping 2*2*13 GPIO headers with 28 x programmable GPIOs

• Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation

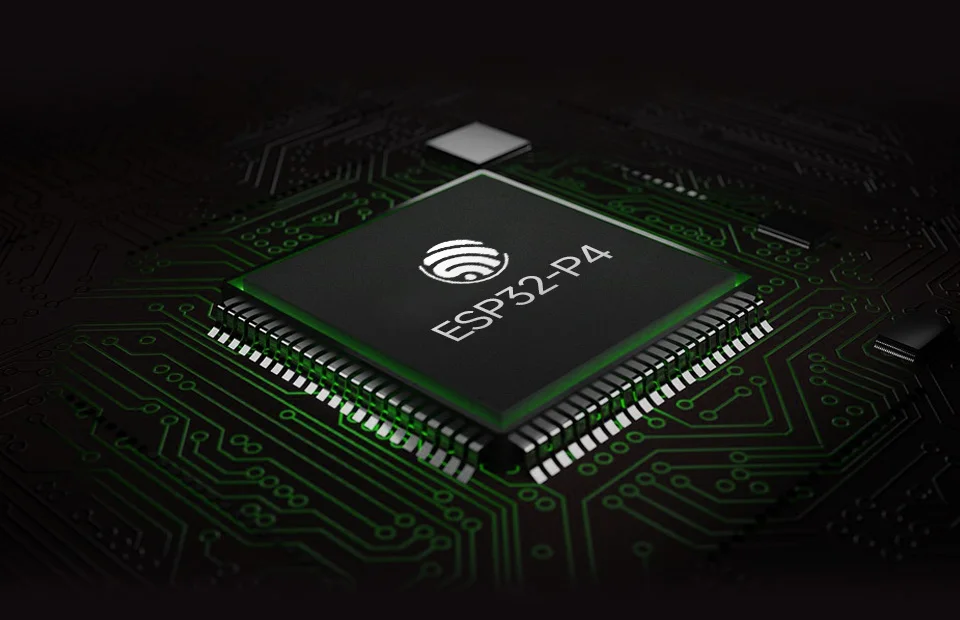

Adopts ESP32-P4 high-performance MCU

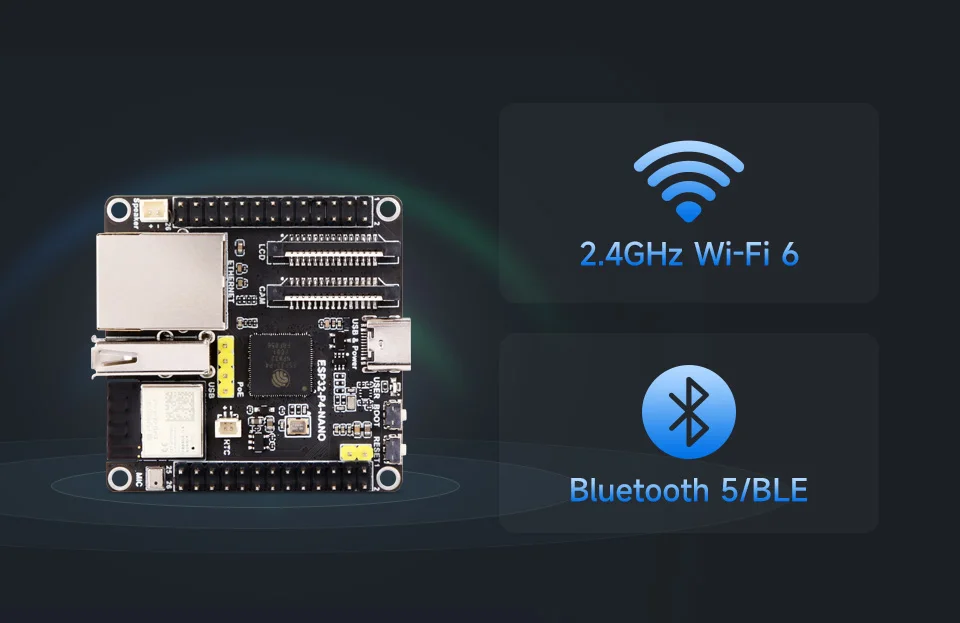

Onboard ESP32-C6-MINI module to extend 2.4GHz Wi-Fi 6 and Bluetooth 5/BLE for ESP32-P4, using SDIO interface protocol for communication, stable connection and efficient transmission.

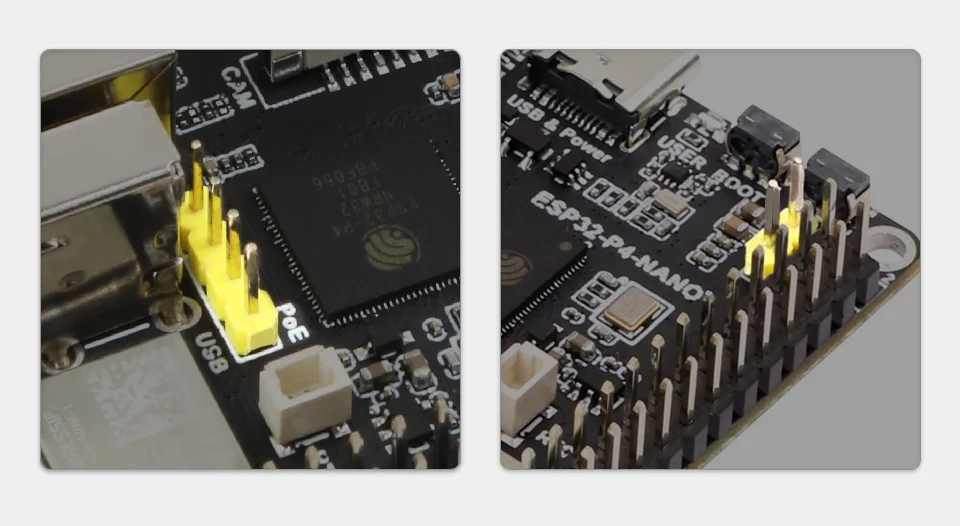

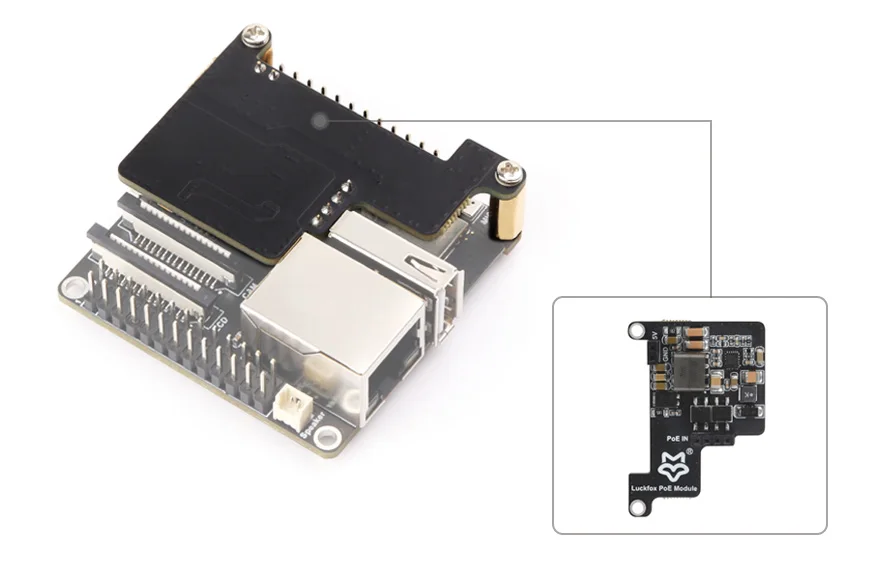

More Flexible for Power Supply

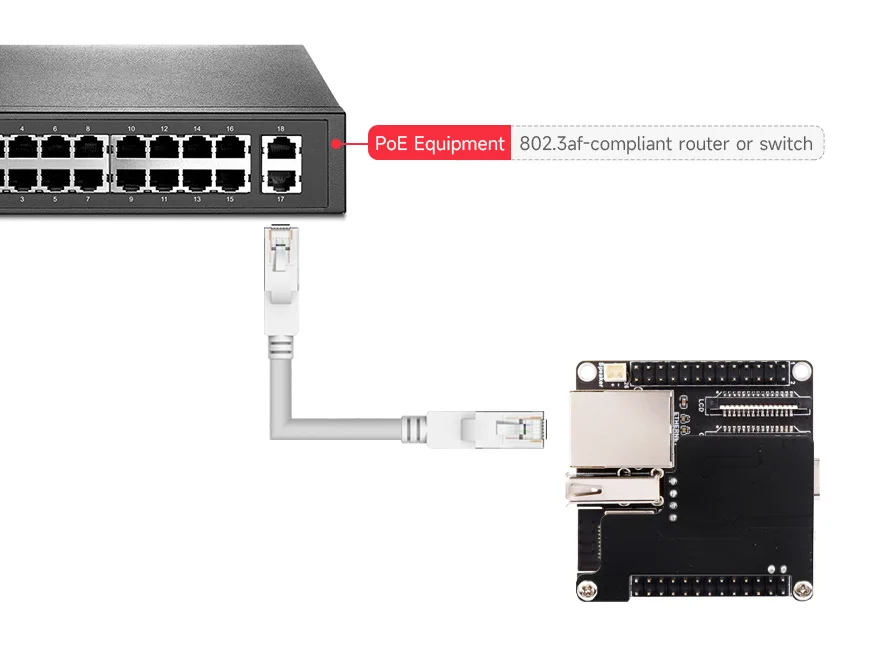

Provides Both Network Connection And Power Supply for ESP32-P4-NANO board In Only One Ethernet Cable

* the PoE module is optional, and the switch in the picture above is NOT included.

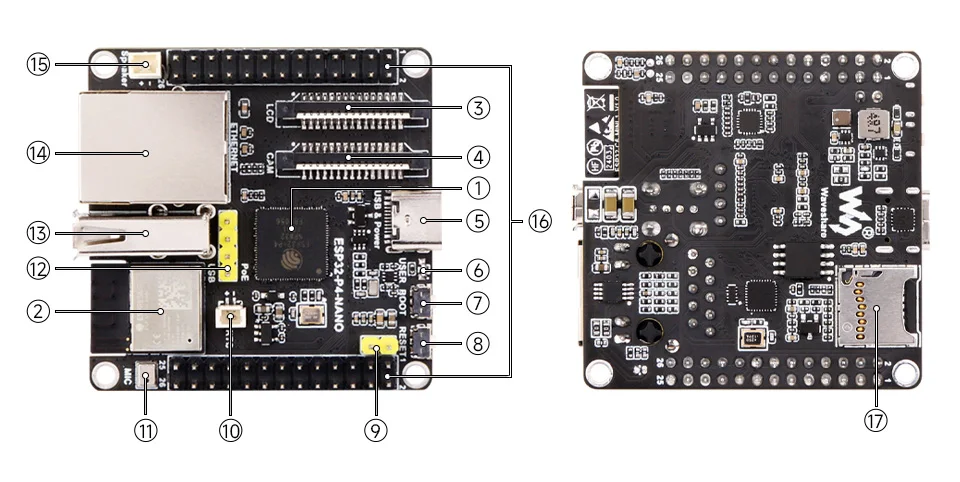

1. ESP32-P4NRW32
   ESP32-P4 chip with 32MB PSRAM

2. ESP32-C6-MINI-1
   SDIO interface protocol, extending Wi-Fi 6 and Bluetooth 5 for ESP32-P4-NANO

3. Display interface
   MIPI 2-lane

4. Camera interface
   MIPI 2-lane

5. USB Type-C connector
   for power supply, program burning and debugging

6. USER-LED
   Power supply indicator

7. BOOT button
   Press it when powering on or resetting to enter download mode

8. RESET button

1. PoE module / external power supply header
   for connecting external 5V power supply or PoE module power supply

2. RTC battery header
   for connecting rechargeable(supports rechargeable RTC batteries only)

3. Onboard microphone

4. PoE module header

5. Type-A Port
   USB OTG 2.0 High Speed port

6. RJ45 100M Ethernet port

7. Speaker header
   MX1.25 2P connector, supports 8Ω 2W speaker

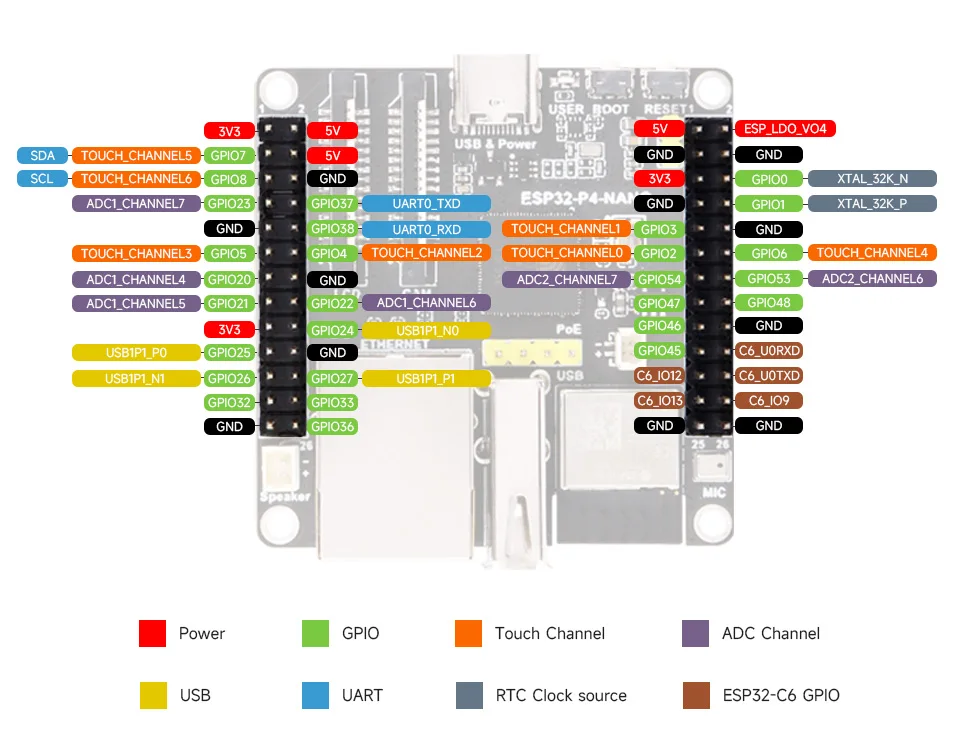

8. GPIO header

9. TF card slot
   SDIO 3.0 interface protocol

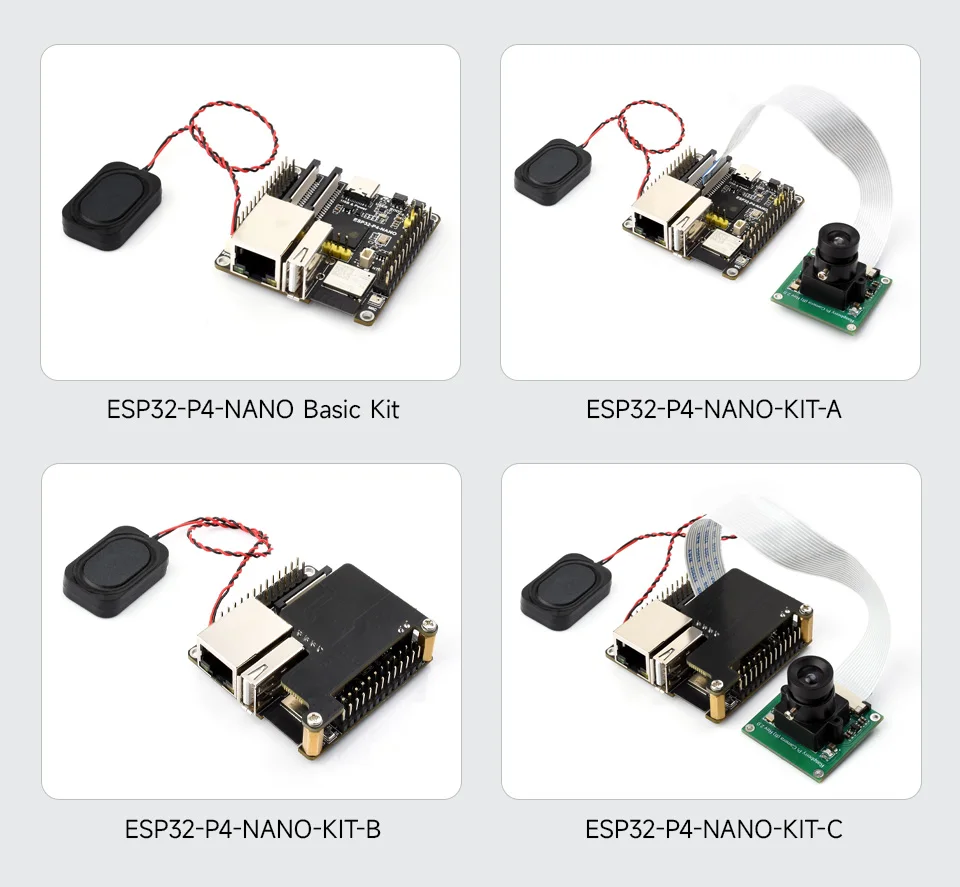

Package Content

Weight:0.575 kg

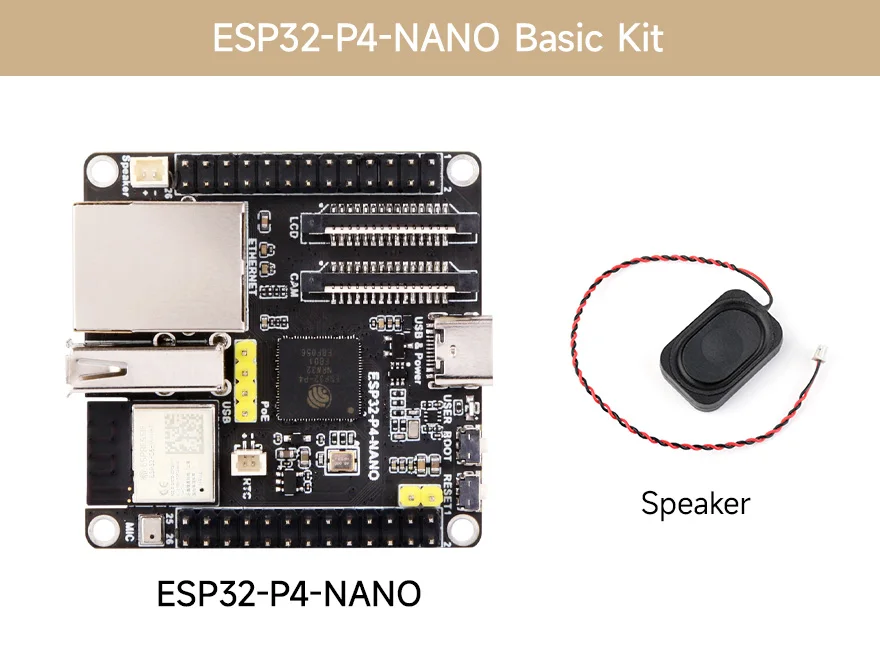

ESP32-P4-NANO

1. ESP32-P4-NANO x1

2. 8Ω 2W speaker x1

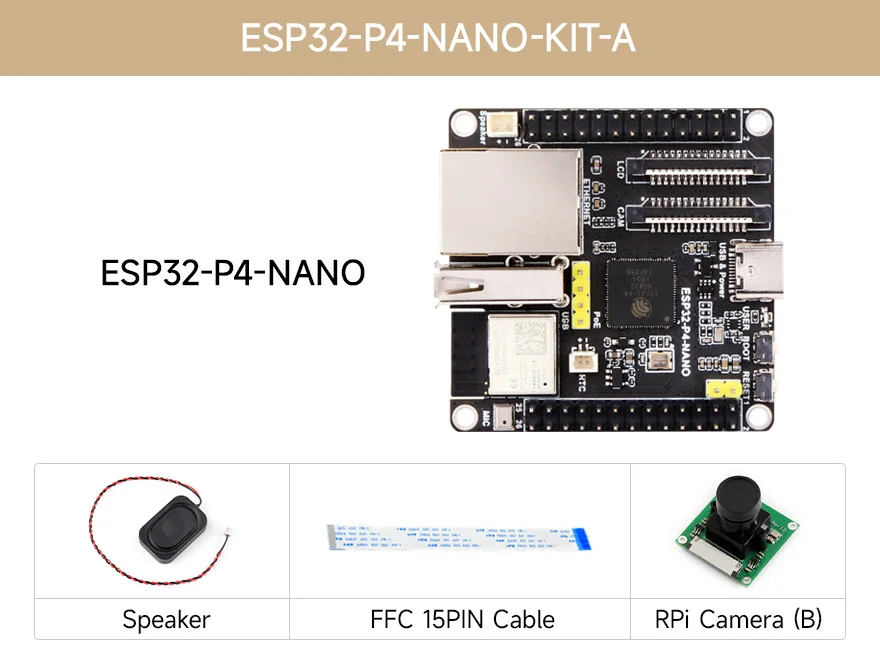

ESP32-P4-NANO-KIT-A

1. ESP32-P4-NANO x1

2. x1

3. 8Ω 2W speaker x1

4. FFC 15PIN cable x1

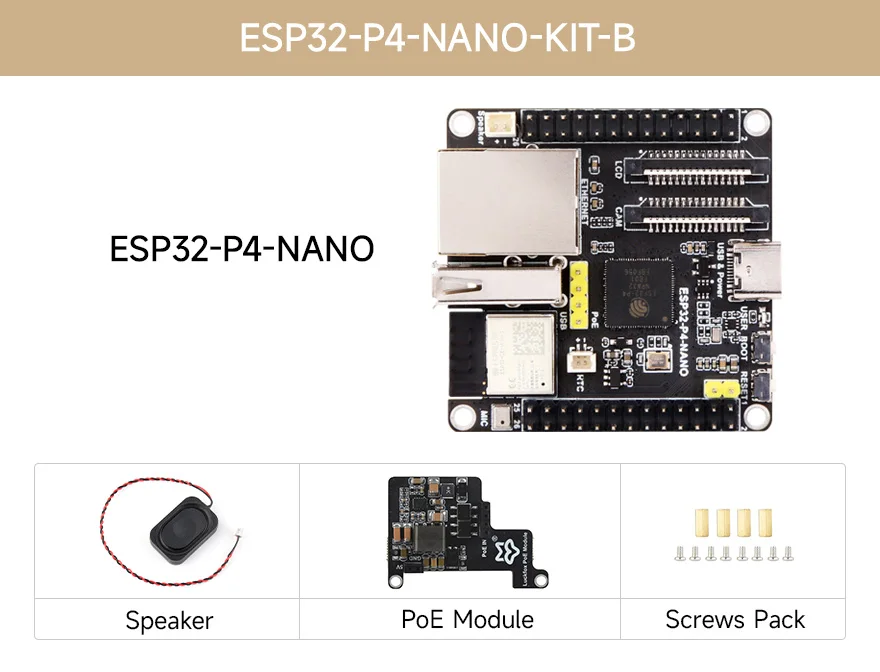

ESP32-P4-NANO-KIT-B

1. ESP32-P4-NANO x1

2. PoE module x1

3. 8Ω 2W speaker x1

4. Screws pack x1

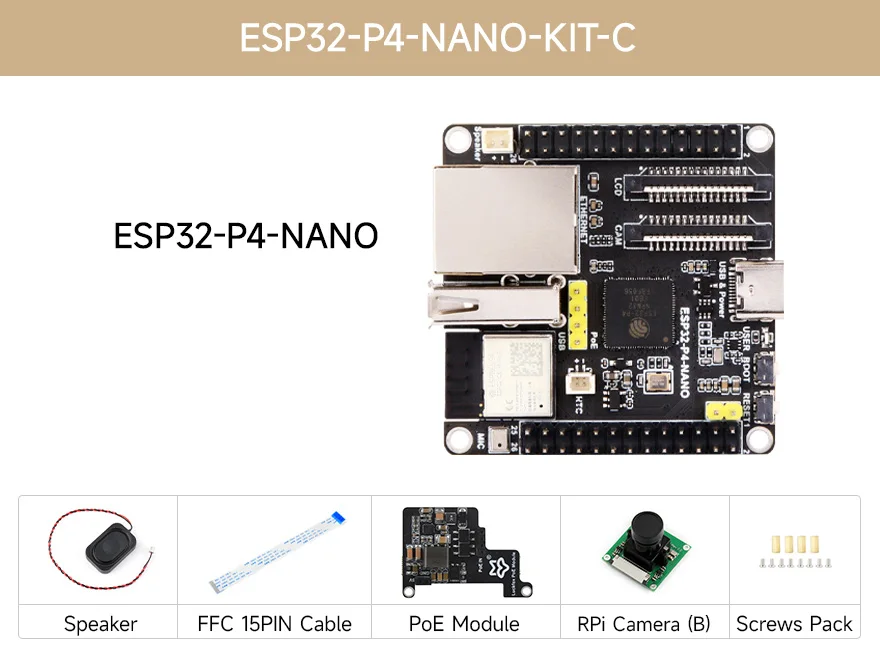

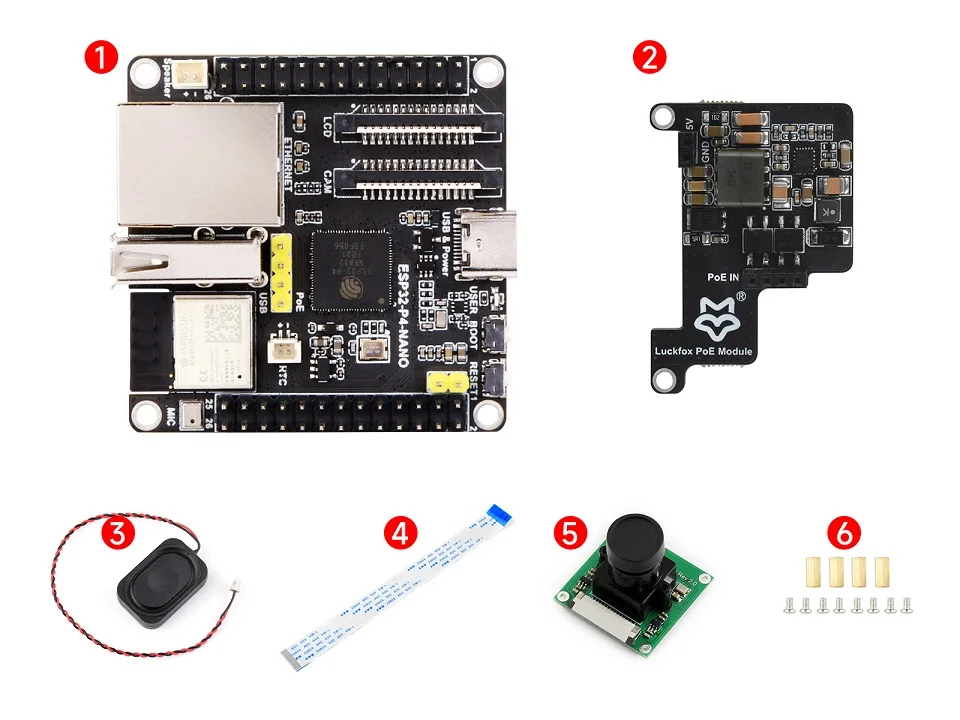

ESP32-P4-NANO-KIT-C

1. ESP32-P4-NANO x1

2. PoE module x1

3. 8Ω 2W speaker x1

4. FFC 15PIN cable x1

5. x1

6. Screws pack x1

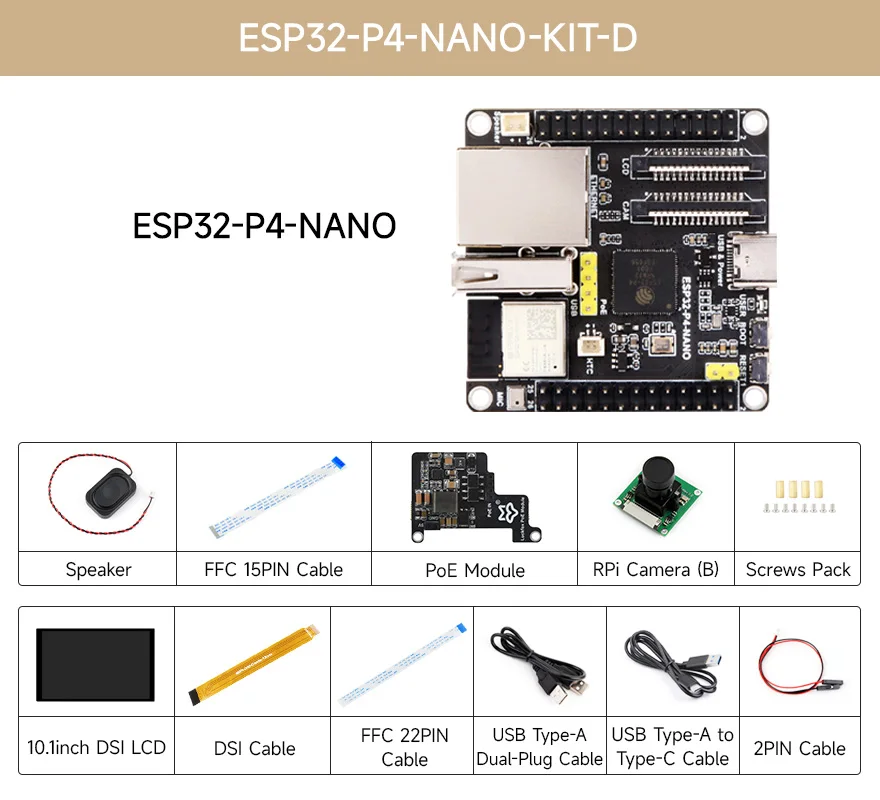

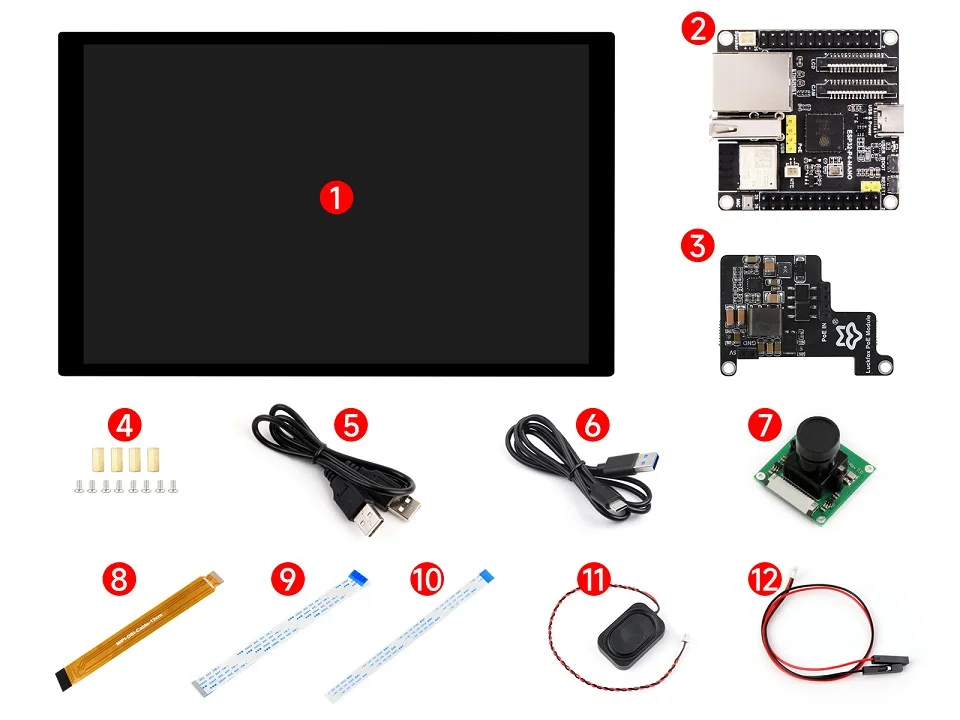

ESP32-P4-NANO-KIT-D

1. 10.1inch DSI LCD x1

2. ESP32-P4-NANO x1

3. PoE module x1

4. Screws pack x1

5. USB Type-A dual-plug cable x1

6. USB Type-A to Type-C cable ~1m x1

7. x1

8. MIPI-DSI-Cable x1

9. FFC 15PIN cable x1

10. FFC 22PIN cable x1

11. 8Ω 2W speaker x1

12. SH1.0 2PIN cable x1
