Product Description

Integrates RGB interface LCD and 5-point capacitive touch (optional)

ESP32-S3-LCD-7
without touch control

ESP32-S3-Touch-LCD-7
with touch control

This product is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 7inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications

• Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency

• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

• Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash

• Onboard 7inch LCD display, 800×480 resolution, 65K color

• Supports 5-point capacitive touch control via I2C interface, with interrupt support (for touch version only)

• Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port

• Supports flexible clock, module power supply independent setting, and other control to realize low power consumption in different scenarios

Excellent display performance, 170° viewing angle

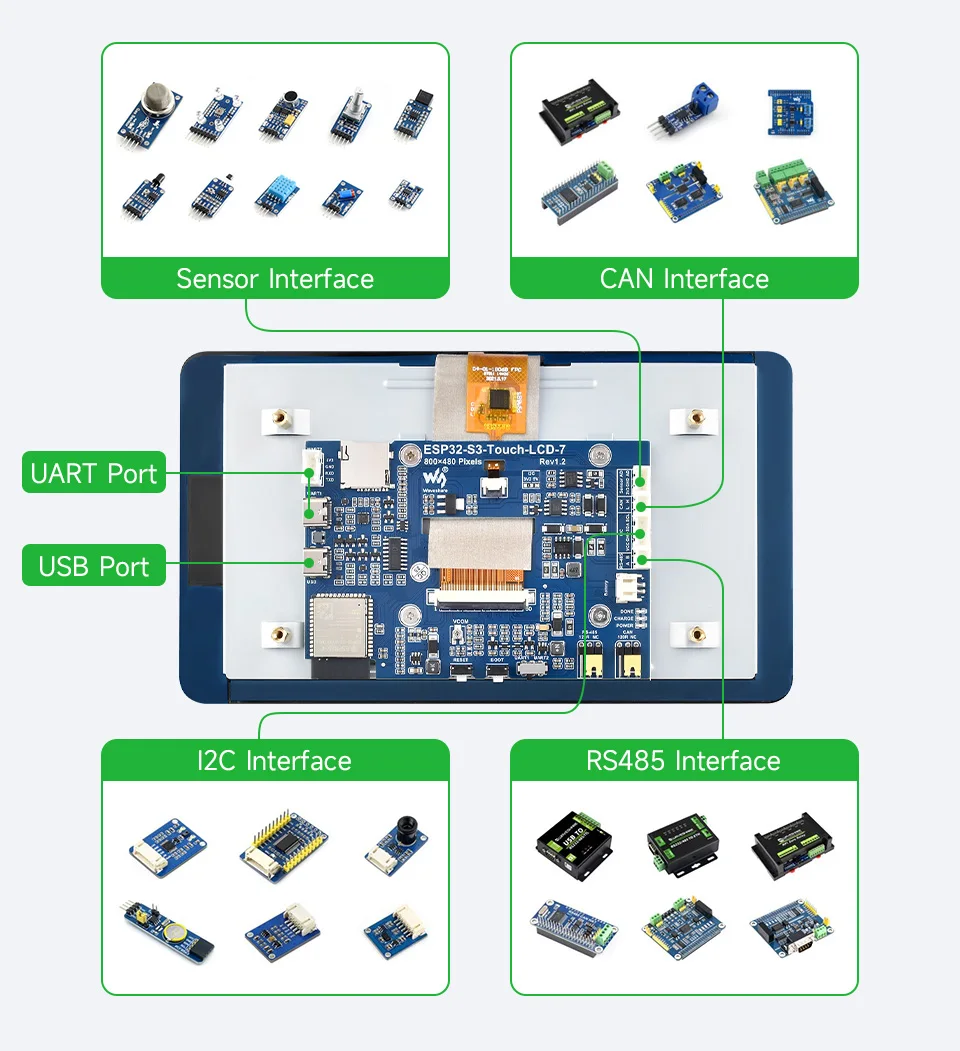

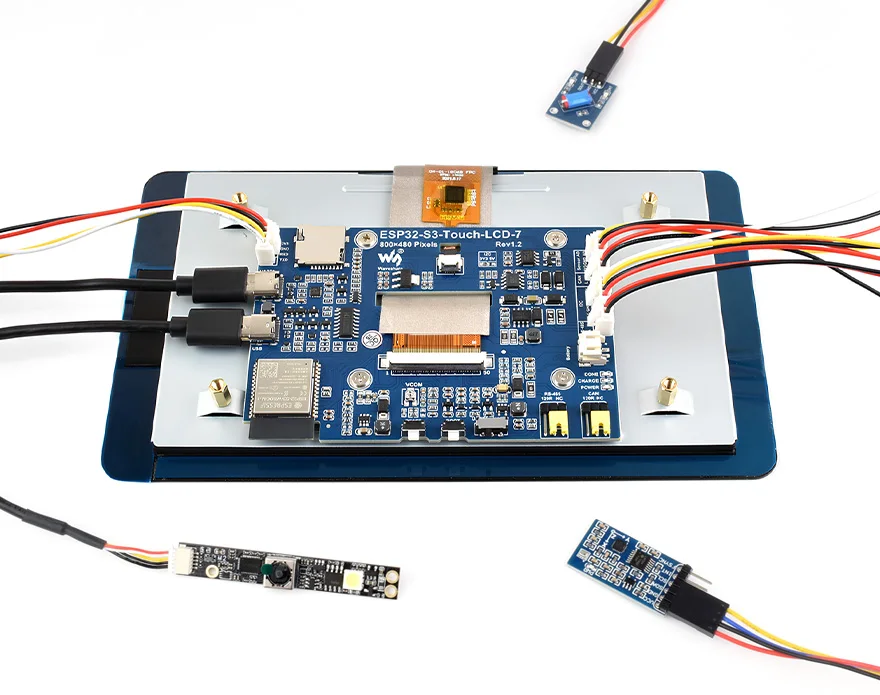

Supports the expansion of multiple peripherals via Sensor, CAN, RS485, and I2C interfaces

for reference only, please refer to the Package Content for the detailed part list

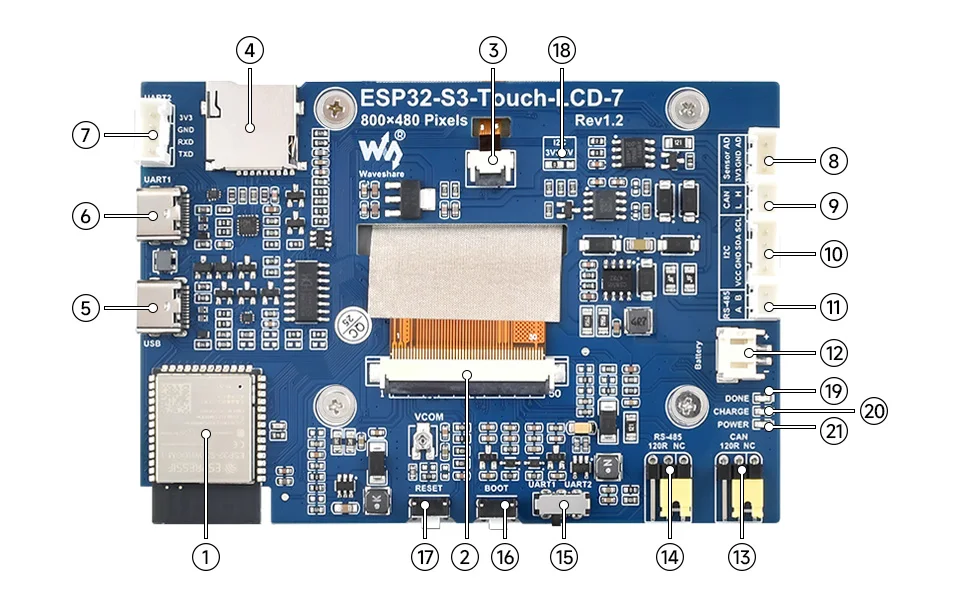

1. ESP32-S3N8R8
   The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, integrated 8MB PSRAM and Flash

2. 7inch display panel connector

3. Touch panel connector

4. TF card slot

5. USB Type-C port

6. UART1 Port
   USB TO UART Type-C port

7. UART2 connector
   UART1 and UART2 are the same UART, selected by switch

8. Sensor header

9. CAN header

10. I2C header

11. RS485 header

1. 3.7V single lithium battery PH2.0 header

2. CAN terminal resistor selection

3. RS485 terminal resistor selection

4. UART selection
   select UART1 or UART2

5. BOOT button
   Press and hold while powering on for program burning

6. RESET button

7. I2C level selection
   3.3V / 5V

8. DONE
   Lithium battery charging completed indicator

9. CHG
   Lithium battery charging indicator

10. PWR
    Power supply indicator

ESP32-S3-LCD-7

ESP32-S3-Touch-LCD-7

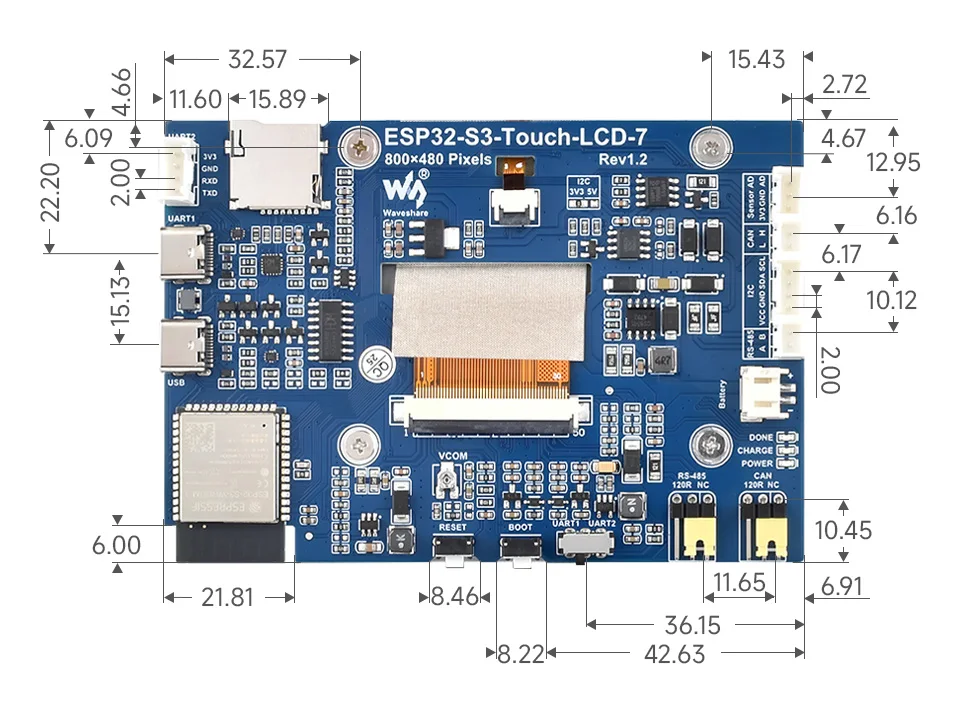

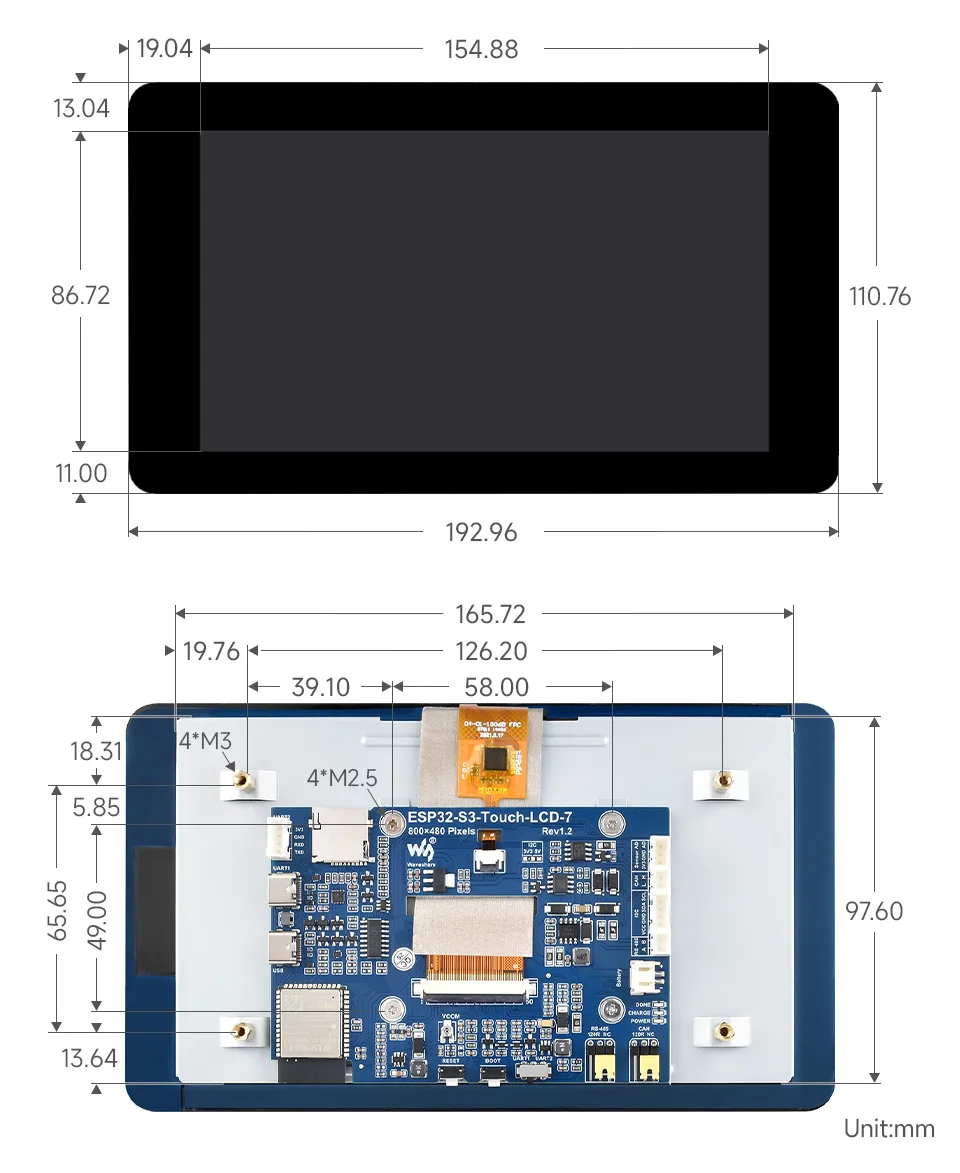

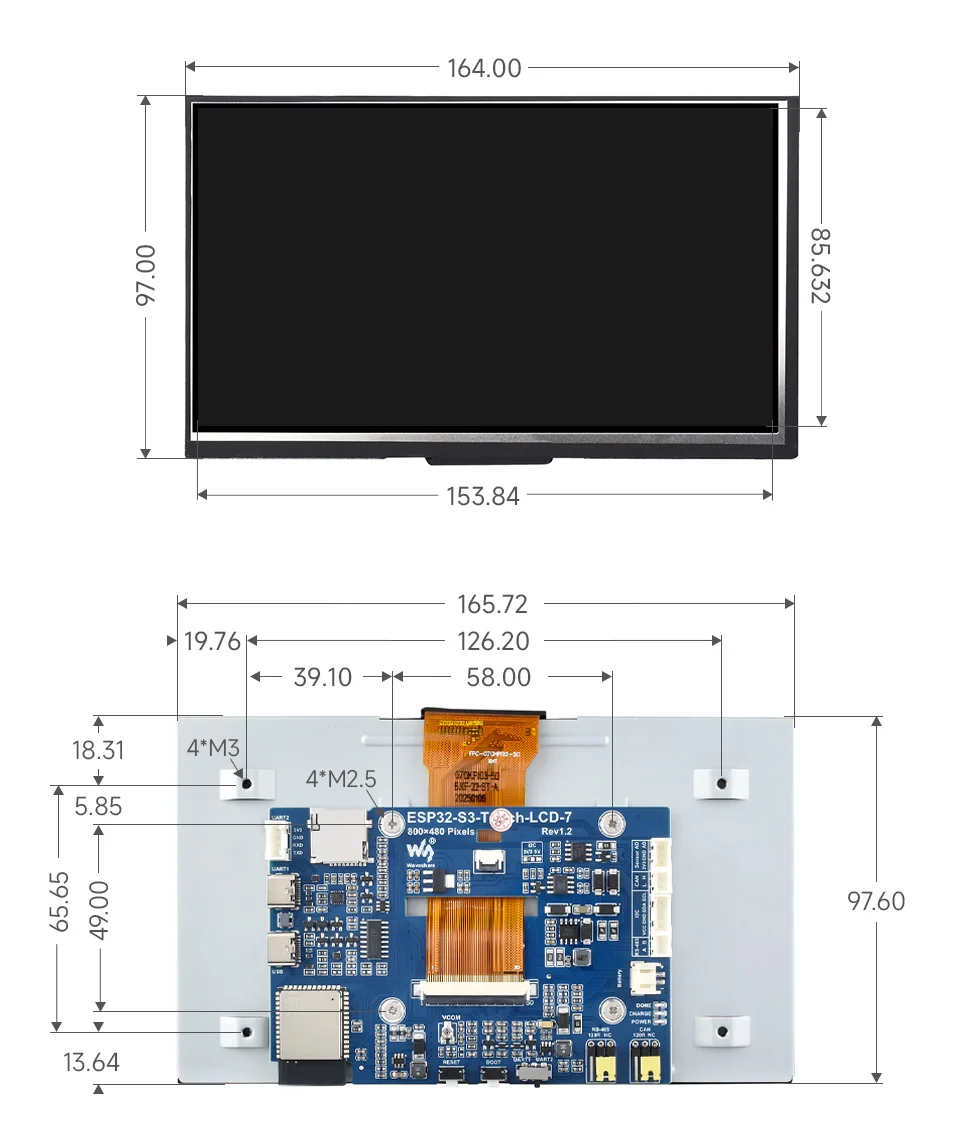

Development Board Size

Package Content

ESP32-S3-LCD-7

1. ESP32-S3-LCD-7 x1

2. HY2.0 2P to 2PIN male cable 10cm ×2

3. HY2.0 3P to 3PIN male cable 10cm ×1

4. HY2.0 4P to 4PIN male cable 10cm ×2

5. Screws pack x1

ESP32-S3-Touch-LCD-7

1. ESP32-S3-Touch-LCD-7 x1

2. HY2.0 2P to 2PIN male cable 10cm ×2

3. HY2.0 3P to 3PIN male cable 10cm ×1

4. HY2.0 4P to 4PIN male cable 10cm ×2

5. Screws pack x1

Weight:0.291 kg
